Sayfa 1-40 - Isuzu EPC

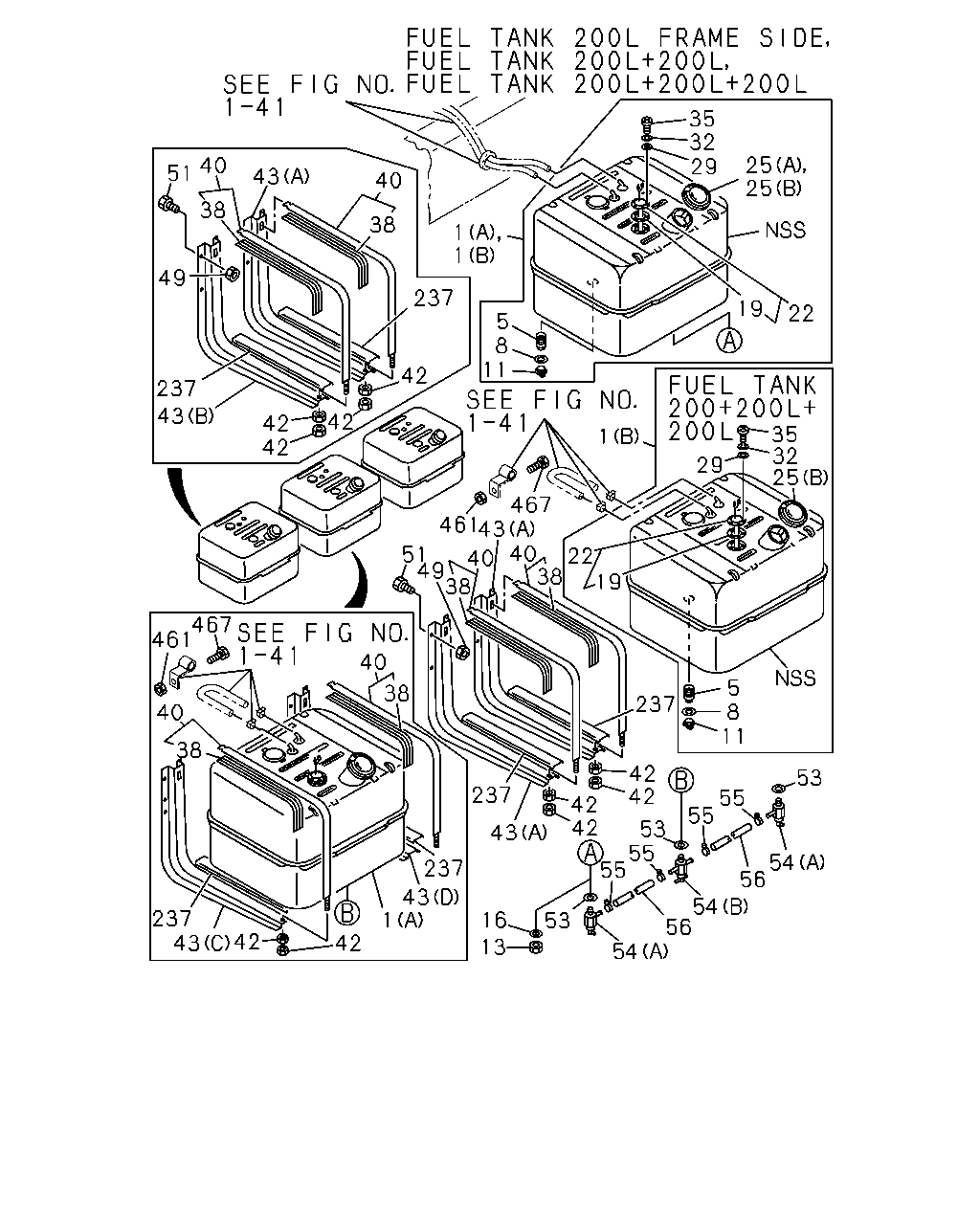

1-40 — FUEL TANK (#2974) — 177 parça

43 237 42 42 1 43 237 237 43 16 13 53 54 55 55 56 54 56 54 53 55 55 53 42 42 42 42 237 11 8 5 25 32 35 29 1 19 22 38 40 40 38 49 51 40 38 467 461 40 38 42 42 42 43 237 49 38 40 51 43 40 38 237 42 11 8 5 1 1 35 32 29 25 25 19 22 467 43 461

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> EXC. CHINA TIBET EQUIPMENT(WD1),FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496	1-22400-854-1	01	1	9002-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1) (B) 720X610X496	1-22400-855-0	01	1	9002-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> EXC. CHINA TIBET EQUIPMENT(WD1),FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496	1-22400-854-1	02	1	9002-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1) (A) 720X610X496	1-22400-855-0	02	1	9002-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> CHINA TIBET EQUIPMENT(WD1) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496	1-22400-860-1	01	1	9002-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496	1-22400-860-1	02	1	9002-		●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502	1-22400-838-0	01	1	9002-9108		●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502	1-22400-946-1	01	1	9109-		●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY>	1-22460-001-1	01	1	9002-9402	●	●
5	STRAINER; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY>	1-22460-001-1	02	1	9002-9402	●	●
5	STRAINER; FUEL TANK FUEL TANK 300L<RF5>	1-22460-001-1	01	1	9403-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY> T=2.0	9-09923-030-0	01	1	9002-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> T=2.0	9-09923-030-0	02	1	9002-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY> M36	1-09604-052-0	01	1	9002-9405	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L<RF5> M36	1-09604-052-0	01	1	9406-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M36	1-09604-052-0	02	1	9002-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M36	1-09604-052-0	01	1	9406-		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20>	9-99202-318-0	01	1	9002-9106	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> M18X12	1-09604-081-0	01	1	9107-	●	●
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> T=1.60	1-22416-001-0	01	1	9002-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY>	9-83135-003-0	02	1	9002-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY>	9-83135-003-0	01	1	9002-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9509-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9509-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY>	1-83141-080-1	02	1	9002-9508	●	●
22	UNIT; FUEL TANK CVR&RHD(CVR5M*) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1)	1-83141-080-1	02	1	9509-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY>	1-83141-080-1	01	1	9002-9508		●
22	UNIT; FUEL TANK CVR&RHD(CVR5M*) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1)	1-83141-080-1	01	1	9509-		●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-085-1	01	1	9002-9508		●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-111-0	01	1	9509-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1) (B)	1-22440-034-1	01	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B)	1-22440-033-2	01	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1) (A)	1-22440-034-1	02	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A)	1-22440-033-2	02	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5> (C)	1-22440-023-1	01	1	9002-9108		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5> (C)	1-22440-044-0	01	1	9109-		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> ID=5.3	9-09160-505-0	02	1	9002-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY> ID=5.3	9-09160-505-0	01	1	9002-		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> ID=5.1	9-09150-505-0	10	1	9002-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY> ID=5.1	9-09150-505-0	05	1	9002-		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M5X10	9-93497-510-0	10	1	9002-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M5X10	9-93497-510-0	05	1	9002-		●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5>	1-22419-012-0	05	1	9109-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> L=650	1-22553-022-1	02	1	9002-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> L=650	1-22553-022-1	04	1	9002-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> L=1030	1-22550-204-1	02	1	9002-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> L=1030	1-22550-204-1	04	1	9002-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1034	1-22550-192-1	02	1	9002-		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M10	9-09110-510-0	08	1	9002-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M10	9-09110-510-0	04	1	9002-	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L<RF5> M12	9-99110-412-0	04	1	9002-9304		●
42	NUT; SUPPORT BELT FUEL TANK 300L<RF5> M12	9-99110-512-0	04	1	9305-		●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-374-0	02	1	9002-9012	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-374-0	02	1	9002-9012	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-279-4	02	1	9101-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-279-4	02	1	9101-	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CVR*MC) SILENCER SINGLE VERTICAL<N28> (A)	1-53461-374-0	01	1	9002-9012	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CVR*MF) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-374-0	01	1	9002-9012	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CVR*MC) SILENCER SINGLE VERTICAL<N28> (A)	1-53461-279-4	01	1	9101-	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CVR*MF) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-279-4	01	1	9101-	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CVR*MC) SILENCER SINGLE VERTICAL<N28> (B)	1-53461-375-0	01	1	9002-	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CVR*MF) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> (B)	1-53461-375-0	01	1	9002-	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-53461-346-0	01	1	9002-9306	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (D)	1-53461-347-0	01	1	9002-9306	●	●
43	BRACKET; FUEL TANK CVR LONG CHASSIS&LHD(CVR6MF) FUEL TANK 300L<RF5>	1-53461-220-0	02	1	9002-9212	●	●
43	BRACKET; FUEL TANK CVR LONG CHASSIS&LHD(CVR6MF) FUEL TANK 300L<RF5>	1-53461-407-2	02	1	9301-	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M12	9-99110-412-0	12	1	9002-9304	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M12	9-99110-512-0	12	1	9305-	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M12	9-99110-412-0	24	1	9002-9304	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M12	9-99110-512-0	24	1	9305-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M12X35	9-01911-235-0	12	1	9002-9005	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M12X35 W/LK WASHER	0-50041-235-0	12	1	9006-9306	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M12X35	9-01911-235-0	24	1	9002-9005	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M12X35 W/LK WASHER	0-50041-235-0	24	1	9006-9306	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M12X35 W/LK WASHER	0-50041-235-0	12	1	9307-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M12X35 FLANGE	0-28081-235-0	12	1	9308-		●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M12X35 W/LK WASHER	0-50041-235-0	24	1	9307-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M12X35 FLANGE	0-28081-235-0	24	1	9308-		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> T=1.60	1-22416-001-0	02	1	9002-	●	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> T=0.80	1-22416-004-0	02	1	9002-	●	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L+200L<SGY> T=1.60	1-22416-001-0	01	1	9002-	●	●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L+200L<SGY> T=0.80	1-22416-004-0	01	1	9002-	●	●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> (A)	9-09904-176-0	02	1	9002-	●	●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L+200L<SGY> (B)	1-09680-062-0	01	1	9002-	●	●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> TROPICAL ZONE KIT(WB6) ID=14	1-09704-102-0	02	1	9002-	●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) ID=14	1-09704-102-0	02	1	9002-		●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6),CHINA TIBET EQUIPMENT(WD1) ID=15	9-09715-098-0	02	1	9002-	●	●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L+200L<SGY> ID=15	9-09715-098-0	04	1	9002-	●	●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> EXC. TROPICAL ZONE KIT(WB6),CHINA TIBET EQUIPMENT(WD1) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L+200L<SGY> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	02	1	9002-	●	●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9307-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY> L=580	1-22553-003-0	02	1	9002-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> L=580	1-22553-003-0	04	1	9002-	●	●
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8	9-09110-408-0	02	1	9002-	●	●
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L+200L<SGY> M8	9-09110-408-0	04	1	9002-	●	●
467	BOLT FUEL TANK 200L+200L<NF7> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
467	BOLT FUEL TANK 200L+200L<NF7> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
467	BOLT FUEL TANK 200L+200L+200L<SGY> M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204	●	●
467	BOLT FUEL TANK 200L+200L+200L<SGY> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302	●	●
467	BOLT FUEL TANK 200L+200L<NF7> M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
467	BOLT FUEL TANK 200L+200L+200L<SGY> M8X20 FLANGE	0-28080-820-0	04	1	9303-	●	●

45 110 47 47 43 42 42 19 22 45 40 40 43 107 109 1 35 32 29 25 5 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> EXC. CHINA TIBET EQUIPMENT(WD1),FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496	1-22400-854-1	01	1	9002-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1) (B) 720X610X496	1-22400-855-0	01	1	9002-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> EXC. CHINA TIBET EQUIPMENT(WD1),FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496	1-22400-854-1	02	1	9002-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1) (A) 720X610X496	1-22400-855-0	02	1	9002-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> CHINA TIBET EQUIPMENT(WD1) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496	1-22400-860-1	01	1	9002-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> CHINA TIBET EQUIPMENT(WD1) EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496	1-22400-860-1	02	1	9002-		●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502	1-22400-838-0	01	1	9002-9108		●
1	TANK; FUEL FUEL TANK 300L<RF5> (C) 1040X602X502	1-22400-946-1	01	1	9109-		●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY>	1-22460-001-1	01	1	9002-9402	●	●
5	STRAINER; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY>	1-22460-001-1	02	1	9002-9402	●	●
5	STRAINER; FUEL TANK FUEL TANK 300L<RF5>	1-22460-001-1	01	1	9403-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY> T=2.0	9-09923-030-0	01	1	9002-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> T=2.0	9-09923-030-0	02	1	9002-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY> M36	1-09604-052-0	01	1	9002-9405	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L<RF5> M36	1-09604-052-0	01	1	9406-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M36	1-09604-052-0	02	1	9002-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M36	1-09604-052-0	01	1	9406-		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY>	9-83135-003-0	02	1	9002-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY>	9-83135-003-0	01	1	9002-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9509-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9509-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY>	1-83141-080-1	02	1	9002-9508	●	●
22	UNIT; FUEL TANK CVR&RHD(CVR5M*) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1)	1-83141-080-1	02	1	9509-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY>	1-83141-080-1	01	1	9002-9508		●
22	UNIT; FUEL TANK CVR&RHD(CVR5M*) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1)	1-83141-080-1	01	1	9509-		●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-085-1	01	1	9002-9508		●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-111-0	01	1	9509-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1) (B)	1-22440-034-1	01	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (B)	1-22440-033-2	01	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. CHINA TIBET EQUIPMENT(WD1) (A)	1-22440-034-1	02	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A)	1-22440-033-2	02	1	9002-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5> (C)	1-22440-023-1	01	1	9002-9108		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5> (C)	1-22440-044-0	01	1	9109-		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> ID=5.3	9-09160-505-0	02	1	9002-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY> ID=5.3	9-09160-505-0	01	1	9002-		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> ID=5.1	9-09150-505-0	10	1	9002-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> ,FUEL TANK 200L+200L+200L<SGY> ID=5.1	9-09150-505-0	05	1	9002-		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M5X10	9-93497-510-0	10	1	9002-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M5X10	9-93497-510-0	05	1	9002-		●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5>	1-22419-012-0	05	1	9109-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> L=1030	1-22550-204-1	02	1	9002-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> L=1030	1-22550-204-1	04	1	9002-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1034	1-22550-192-1	02	1	9002-		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> M10	9-09110-510-0	08	1	9002-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> M10	9-09110-510-0	04	1	9002-	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L<RF5> M12	9-99110-412-0	04	1	9002-9304		●
42	NUT; SUPPORT BELT FUEL TANK 300L<RF5> M12	9-99110-512-0	04	1	9305-		●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-374-0	02	1	9002-9012	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-374-0	02	1	9002-9012	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-279-4	02	1	9101-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-279-4	02	1	9101-	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CVR*MC) SILENCER SINGLE VERTICAL<N28> (A)	1-53461-374-0	01	1	9002-9012	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CVR*MF) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-374-0	01	1	9002-9012	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CVR*MC) SILENCER SINGLE VERTICAL<N28> (A)	1-53461-279-4	01	1	9101-	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CVR*MF) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> (A)	1-53461-279-4	01	1	9101-	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CVR*MC) SILENCER SINGLE VERTICAL<N28> (B)	1-53461-375-0	01	1	9002-	●	●
43	BRACKET; FUEL TANK LONG CHASSIS(CVR*MF) FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L+200L+200L<SGY> (B)	1-53461-375-0	01	1	9002-	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (C)	1-53461-346-0	01	1	9002-9306	●	●
43	BRACKET; FUEL TANK SHORT CHASSIS(CVR*MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (D)	1-53461-347-0	01	1	9002-9306	●	●
43	BRACKET; FUEL TANK CVR LONG CHASSIS&LHD(CVR6MF) FUEL TANK 300L<RF5>	1-53461-220-0	02	1	9002-9212	●	●
43	BRACKET; FUEL TANK CVR LONG CHASSIS&LHD(CVR6MF) FUEL TANK 300L<RF5>	1-53461-407-2	02	1	9301-	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35	9-01911-235-0	20	1	9002-9005		●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 W/LK WASHER	0-50041-235-0	20	1	9006-9306		●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 W/LK WASHER	0-50041-235-0	12	1	9501-		●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 W/LK WASHER	0-50041-235-0	20	1	9307-9307		●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 FLANGE	0-28081-235-0	20	1	9308-9412		●
45	BOLT; BRKT,FUEL TANK FUEL TANK 300L<RF5> M12X35 FLANGE	0-28081-235-0	08	1	9501-		●
47	SPACER; FUEL TANK FUEL TANK 300L<RF5>	1-53469-009-0	02	1	9002-9212		●
47	SPACER; FUEL TANK FUEL TANK 300L<RF5>	1-53469-016-0	02	1	9301-9306		●
47	SPACER; FUEL TANK FUEL TANK 300L<RF5>	1-53469-009-0	02	1	9307-		●
107	PROTECTOR; HEAT,FUEL TANK CONCRETE PUMP<RA5>	1-22159-098-1	01	1	9002-9509		●
107	PROTECTOR; HEAT,FUEL TANK CONCRETE PUMP<RA5>	1-22159-273-0	01	1	9510-		●
109	BOLT; HEAT PROTECTOR CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	02	1	9002-9509		●
109	BOLT; HEAT PROTECTOR CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	04	1	9510-		●
110	NUT; PROTECTOR CONCRETE PUMP<RA5> M10	9-09110-510-0	02	1	9002-9509		●
110	NUT; PROTECTOR CONCRETE PUMP<RA5> M10	9-09110-510-0	04	1	9510-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
