◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10891 - FTR34(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#29731) — 195 parça

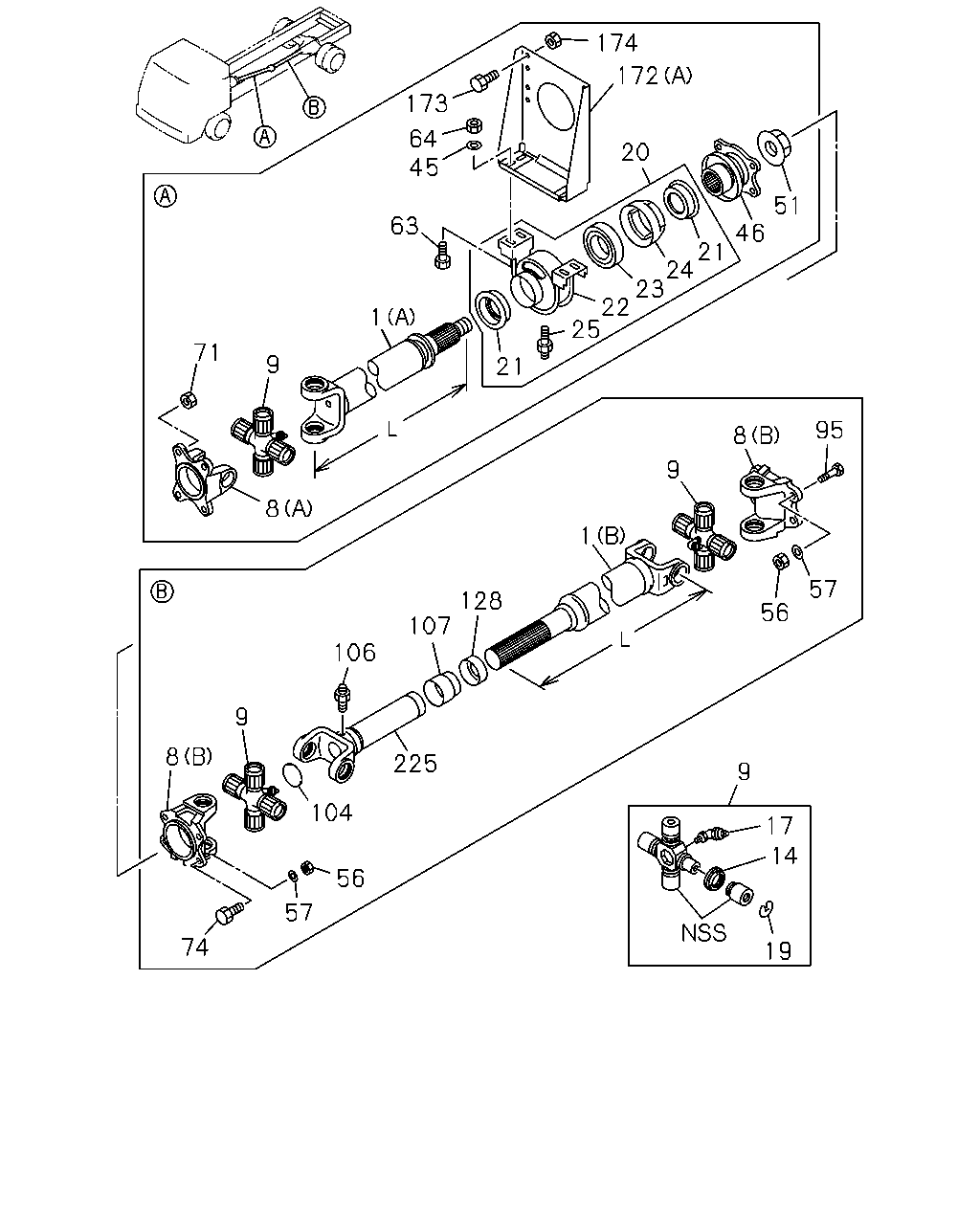

çizim 21211
174 172 173 64 45 20 51 46 63 21 24 23 22 25 1 71 9 21 95 8 9 8 1 57 128 56 107 106 9 8 225 9 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=601 		1-37152-005-1 01 1 0107-1111 ●
1 SHAFT; PROP
(A) L=594 		8-98069-607-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=1296 		1-37124-065-1 01 1 0107- ● ●
1 SHAFT; PROP
(D) L=816 		1-37151-390-1 01 1 0107- ●
1 SHAFT; PROP
(C) L=526 		1-37152-007-1 01 1 0107- ●
1 SHAFT; PROP
(B) L=1286 		1-37124-066-1 01 1 0107- ●
1 SHAFT; PROP
(D) L=1081 		1-37151-641-1 01 1 0107- ●
1 SHAFT; PROP
(C) L=761 		1-37151-772-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0107-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 0107- ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0107-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-129-0 AR 1 0601- ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112- ● ● ●
14 COVER; DUST,SPIDER
2ND,END 		1-37319-012-0 AR 1 0107- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0107- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0107- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0107- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0107-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 1112- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND 		1-37510-105-0 02 1 0107-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1112- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0107- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0107- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0107- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0107-1111 ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 1112- ● ● ●
24 RETAINER; CENTER BRG,1ST
1ST.2ND 		1-37529-068-0 02 1 0107-1111 ● ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1112- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 0107- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0107-0605 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0107-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 1112- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		1-37245-071-0 02 1 0107-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1112- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0107- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 02 1 0107- ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0107-0512 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0107-0603 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0107- ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0107- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0107- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0107- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0107- ● ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 0107- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-071-2 01 1 0107- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-101-0 01 1 0107- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0107-0512 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0107-0512 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0107- ● ● ●

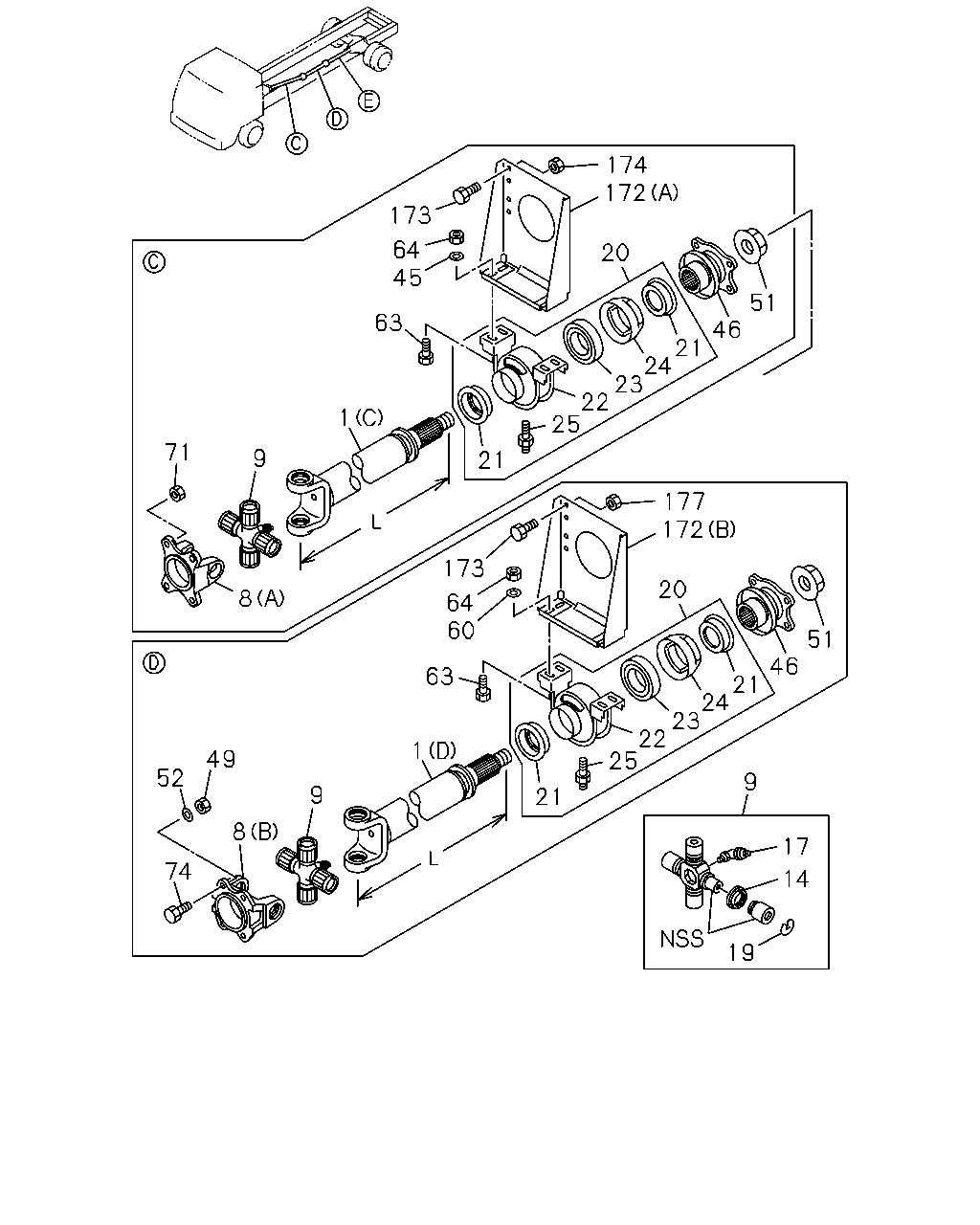

çizim 22676
174 172 173 64 45 51 46 63 21 24 23 22 25 1 71 9 21 177 172 173 20 8 64 60 51 46 63 21 24 23 22 25 1 49 52 9 9 21 8 17 74 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=601 		1-37152-005-1 01 1 0107-1111 ●
1 SHAFT; PROP
(A) L=594 		8-98069-607-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=1296 		1-37124-065-1 01 1 0107- ● ●
1 SHAFT; PROP
(D) L=816 		1-37151-390-1 01 1 0107- ●
1 SHAFT; PROP
(C) L=526 		1-37152-007-1 01 1 0107- ●
1 SHAFT; PROP
(B) L=1286 		1-37124-066-1 01 1 0107- ●
1 SHAFT; PROP
(D) L=1081 		1-37151-641-1 01 1 0107- ●
1 SHAFT; PROP
(C) L=761 		1-37151-772-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0107-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 0107- ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0107-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-129-0 AR 1 0601- ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112- ● ● ●
14 COVER; DUST,SPIDER
2ND,END 		1-37319-012-0 AR 1 0107- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0107- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0107- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0107- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		1-37510-105-0 01 1 0107-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 1112- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND 		1-37510-105-0 02 1 0107-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1112- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0107- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0107- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0107- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-068-0 01 1 0107-1111 ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 1112- ● ● ●
24 RETAINER; CENTER BRG,1ST
1ST.2ND 		1-37529-068-0 02 1 0107-1111 ● ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1112- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 0107- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0107-0605 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-071-0 01 1 0107-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 1112- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		1-37245-071-0 02 1 0107-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1112- ● ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0107-0512 ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0107- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 02 1 0107- ● ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0107-0603 ● ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0107-0605 ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0107- ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 0107- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-071-2 01 1 0107- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-101-0 01 1 0107- ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0107-0512 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0107-0512 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0107-0602 ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
çizim 79712
95 8 9 1 57 128 107 56 106 9 225 8 104 56 57 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(A) L=601 		1-37152-005-1 01 1 0107-1111 ●
1 SHAFT; PROP
(A) L=594 		8-98069-607-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=1296 		1-37124-065-1 01 1 0107- ● ●
1 SHAFT; PROP
(D) L=816 		1-37151-390-1 01 1 0107- ●
1 SHAFT; PROP
(C) L=526 		1-37152-007-1 01 1 0107- ●
1 SHAFT; PROP
(B) L=1286 		1-37124-066-1 01 1 0107- ●
1 SHAFT; PROP
(D) L=1081 		1-37151-641-1 01 1 0107- ●
1 SHAFT; PROP
(C) L=761 		1-37151-772-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0107-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 0107- ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0107-0512 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 1112- ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-129-0 AR 1 0601- ● ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112- ● ● ●
14 COVER; DUST,SPIDER
2ND,END 		1-37319-012-0 AR 1 0107- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0107- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0107- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0107- ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0107-0512 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0107-0603 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0107- ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0107- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0107- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0107- ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0107- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0107- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
