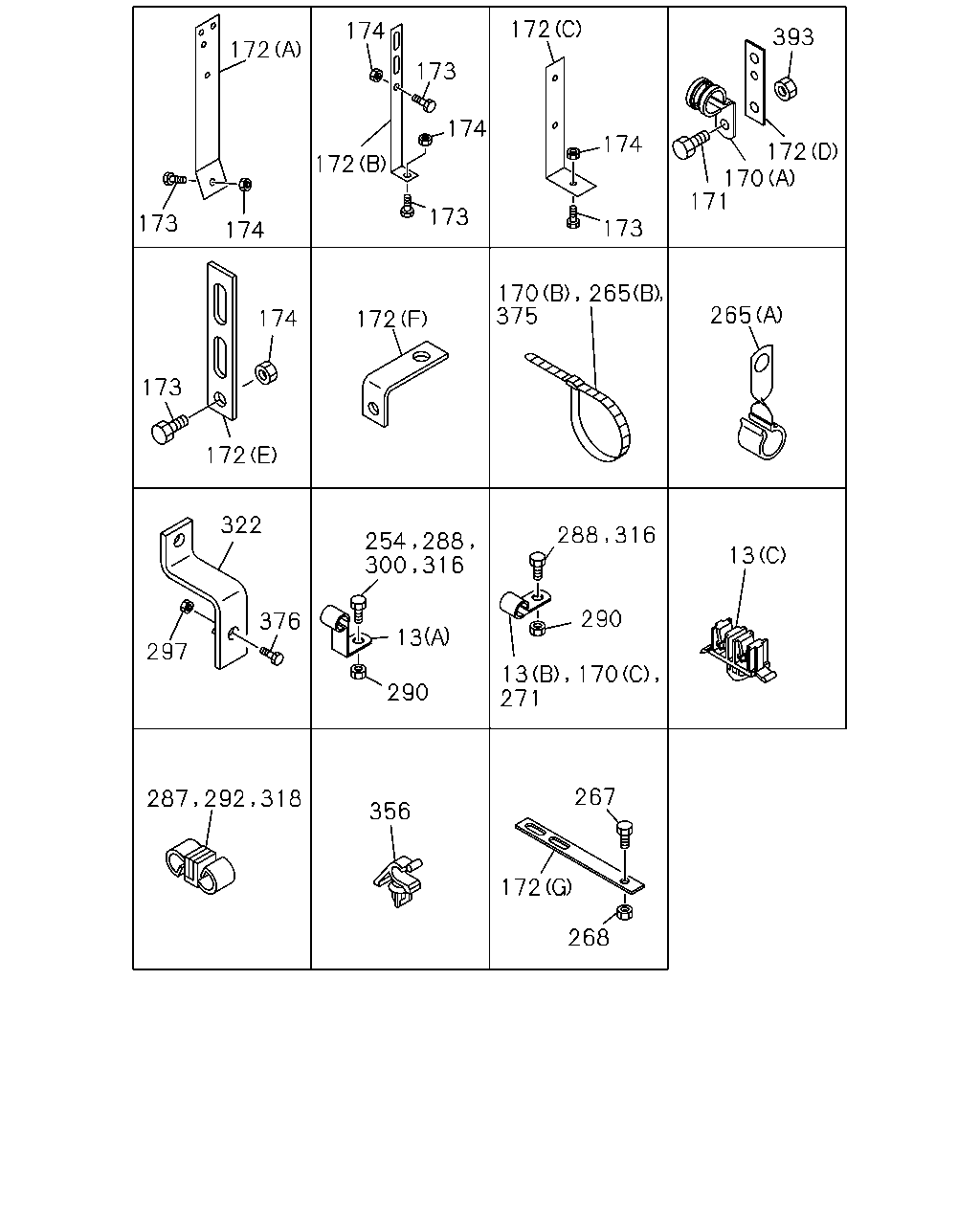

3-78 — FIXING PARTS; AIR PIPING (#29730) — 76 parça

172 174 393 172 173 174 174 172 170 171 172 173 173 173 174 375 265 174 172 173 172 322 13 290 376 13 297 13 271 170 290 267 356 172 268 170 265 288 316 254 288 300 316 287 292 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0107-
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0107-
13	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0107-0606
13	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0607-
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0107-0606
13	CLIP; AIR PIPE (B) ID=7 L=40	0-95234-675-0	01	1	0607-
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0107-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	22	1	0107-
170	CLIP; NYLON TUBE (C) ID=11 L=50	9-09525-085-0	01	1	0107-0606
170	CLIP; NYLON TUBE (C) ID=11 L=50	0-95235-085-0	01	1	0607-
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
171	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0107-
172	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0107-
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	02	1	0107-
172	BRACKET; TUBE CLIP (B) L=225	1-47477-646-3	01	1	0107-0107
172	BRACKET; TUBE CLIP (G) L=215	1-47479-288-0	01	1	0107-0108
172	BRACKET; TUBE CLIP (B) L=225	1-47477-646-3	01	1	0109-
172	BRACKET; TUBE CLIP (F) L=60 H=30	1-47477-716-1	01	1	0107-
172	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	01	1	0107-
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	0107-
172	BRACKET; TUBE CLIP (D) L=117	1-47478-116-0	01	1	0107-
172	BRACKET; TUBE CLIP (F) L=59 B=20	1-47479-048-0	01	1	0107-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	09	1	0107-0512
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	09	1	0601-
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
173	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28650-830-0	02	1	0601-
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28680-825-0	10	1	0107-0512
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X25 FLANGE	0-28650-825-0	10	1	0601-
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
173	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M8X30 FLANGE	0-28650-830-0	01	1	0601-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	11	1	0107-0602
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	11	1	0603-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0107-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205
265	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	01	1	0107-
265	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (B) L=250	1-09707-126-0	09	1	0107-
265	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (B) L=250	1-09707-126-0	10	1	0107-
265	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (B) L=250	1-09707-126-0	15	1	0107-
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
267	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
268	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602
268	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
271	CLIP; AIR PIPE FIX ID=9	9-09524-872-0	01	1	0107-
287	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0107-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	03	1	0107-0512
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	03	1	0601-
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	0107-0602
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0107-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0206-0904
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
316	BOLT; CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	0107-0512
316	BOLT; CLIP M6X12 W/LK WASHER	0-50540-612-0	01	1	0601-
318	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0107-
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0107-
322	BRACKET; CLIP	1-47479-071-0	01	1	0107-
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0107-
375	CLIP; AIR PIPE L=250	1-09707-126-0	01	1	0107-
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
393	NUT; UNION M8 FLANGE	0-91150-108-0	02	1	0107-0602
393	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	0603-

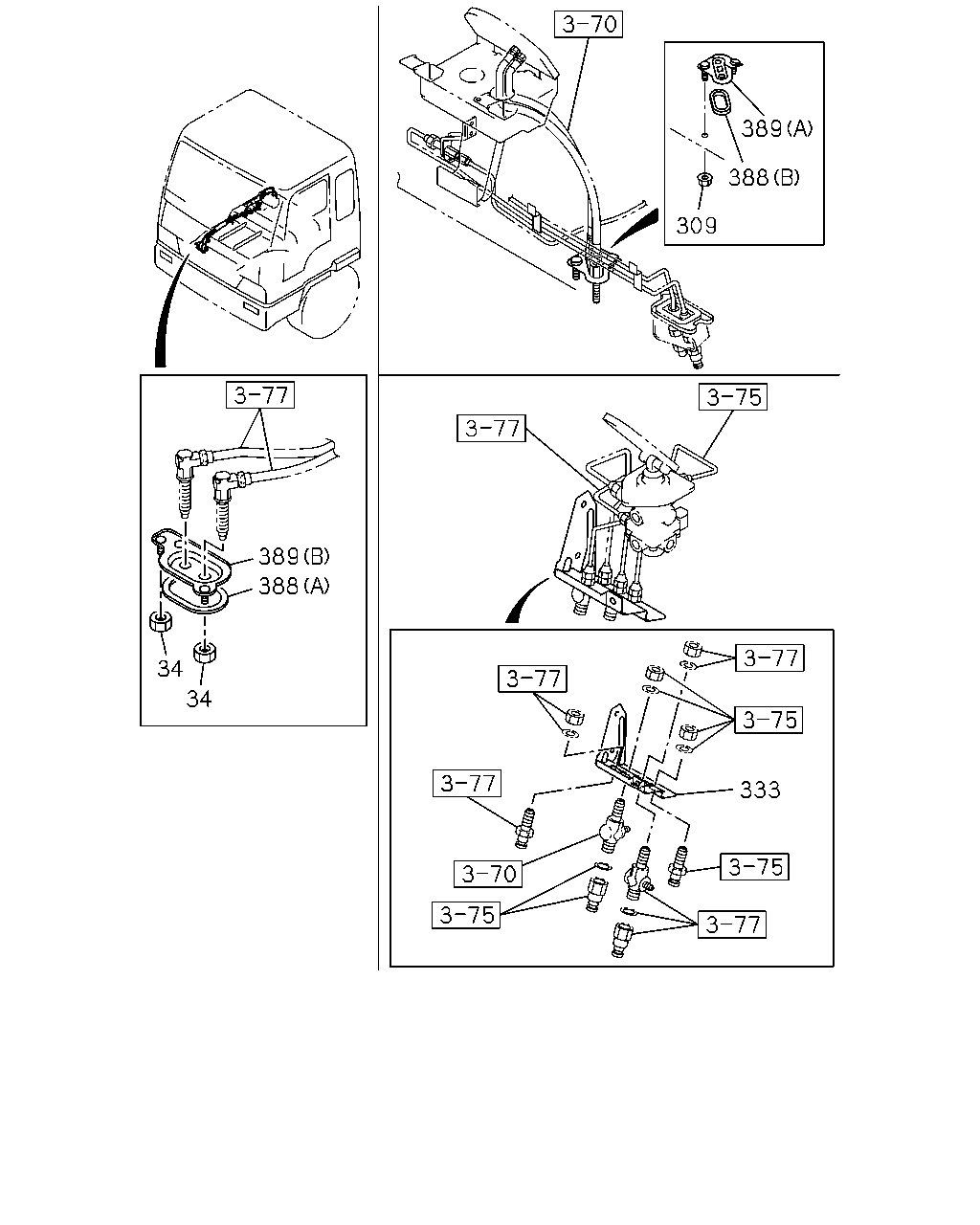

389 388 309 389 388 34 34 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0107-
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0107-
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0107-
388	SEAL (A) L=280	1-79738-793-1	01	1	0107-
388	SEAL (B)	1-79738-826-0	01	1	0107-
389	BRACKET; UNION (B)	1-79738-814-2	01	1	0107-
389	BRACKET; UNION (A)	1-79738-827-1	01	1	0107-
