Sayfa 1-31 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶

1-31 — AIR DUCT (#2973) — 127 parça

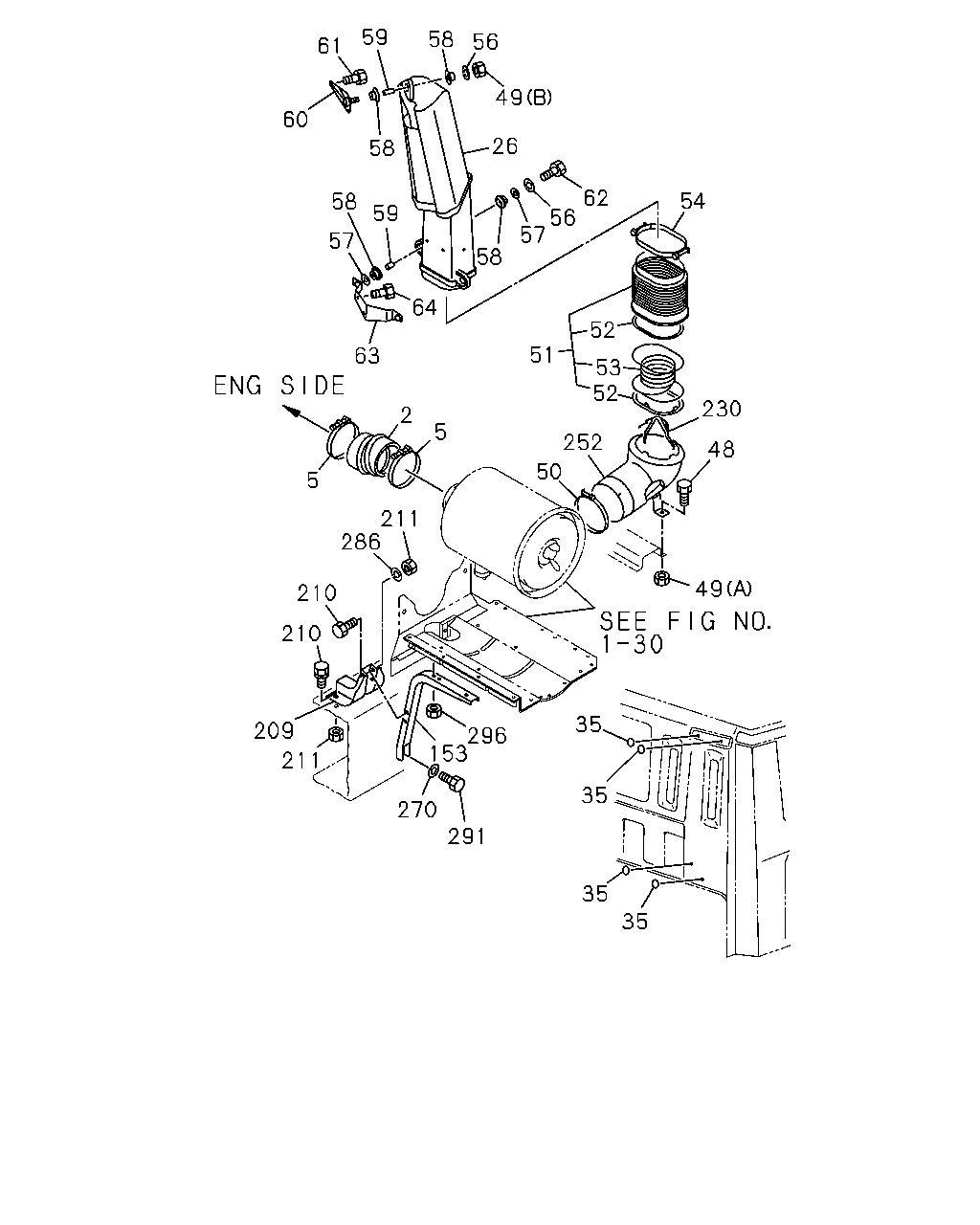

35 35 35 35 296 153 270 291 211 209 210 210 286 211 5 2 5 50 252 48 230 52 53 52 51 54 62 56 57 58 64 63 57 58 59 26 58 60 61 59 58 56 49 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL AIR CLEANER HEAVY DUTY<K45>	1-14231-500-0	01	1	9002-	●	●
2	HOSE; ACL EXC. AIR CLEANER HEAVY DUTY<K45>,CONCRETE PUMP<RA5>	1-14231-501-0	01	1	9002-	●	●
2	HOSE; ACL CONCRETE PUMP<RA5>	1-14231-589-0	01	1	9002-		●
5	CLIP; AIR DUCT ID=87-116	1-09707-144-0	01	1	9002-	●	●
5	CLIP; AIR DUCT AIR CLEANER HEAVY DUTY<K45> ID=130-169	1-09707-157-0	01	1	9002-	●	●
5	CLIP; AIR DUCT EXC. AIR CLEANER HEAVY DUTY<K45> ID=104-142	1-09707-155-0	01	1	9002-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-9306	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-9306	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9307-		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9307-		●
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9002-	●	●
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9002-	●	●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-	●	●
52	SEAT; SPR	1-14239-111-1	02	1	9002-	●	●
53	SPRING	1-14239-113-2	01	1	9002-	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> UPPER & LOWER LH ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> LOWER RH ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT L=37.2	1-14234-078-0	03	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	01	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
153	BRACKET; ACL,FRT	1-53419-149-2	01	1	9002-9108	●	●
153	BRACKET; ACL,FRT	1-53419-247-0	01	1	9109-	●	●
209	BRACKET; ACL	1-53419-150-1	01	1	9002-9108	●	●
209	BRACKET; ACL	1-53419-248-0	01	1	9109-	●	●
210	BOLT; ACL BRKT M8X65	9-01055-865-0	02	1	9002-9005	●	●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	02	1	9006-	●	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005	●	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-	●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9002-	●	●
230	GUIDE	1-14239-125-0	01	1	9002-	●	●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14231-400-2	01	1	9002-9306	●	●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-399-2	01	1	9002-9306	●	●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14230-057-2	01	1	9307-		●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14230-055-2	01	1	9307-		●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-	●	●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9002-	●	●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●	●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●
296	NUT; ACL M12	9-99110-512-0	02	1	9002-	●	●

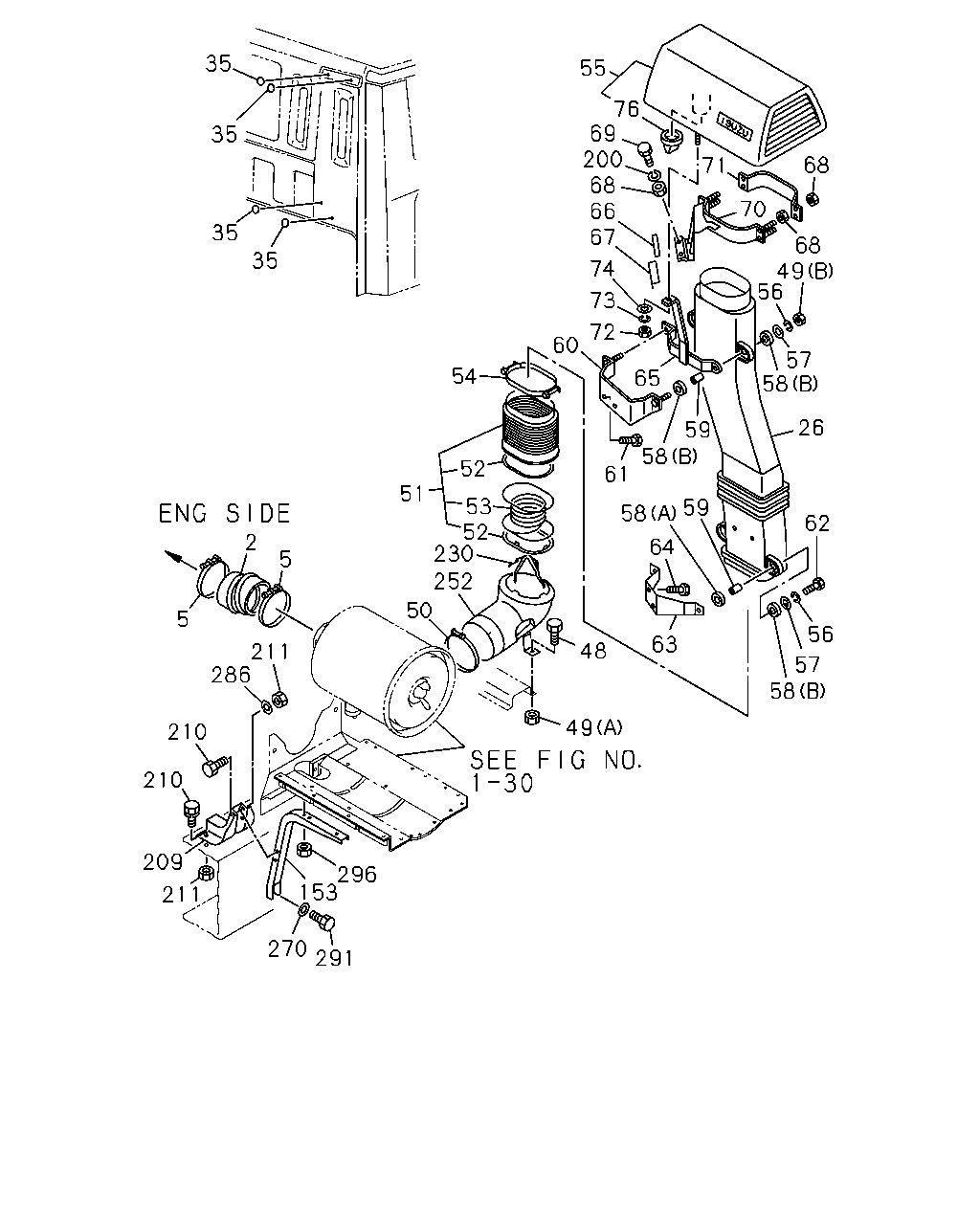

291 270 153 296 211 209 210 210 286 211 5 2 5 50 252 230 52 53 52 51 54 60 72 73 74 67 66 68 200 69 76 55 71 70 68 68 49 56 57 58 26 62 56 57 58 63 48 49 64 58 59 61 58 59 65 35 35 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL AIR CLEANER HEAVY DUTY<K45>	1-14231-500-0	01	1	9002-	●	●
2	HOSE; ACL EXC. AIR CLEANER HEAVY DUTY<K45>,CONCRETE PUMP<RA5>	1-14231-501-0	01	1	9002-	●	●
2	HOSE; ACL CONCRETE PUMP<RA5>	1-14231-589-0	01	1	9002-		●
5	CLIP; AIR DUCT ID=87-116	1-09707-144-0	01	1	9002-	●	●
5	CLIP; AIR DUCT AIR CLEANER HEAVY DUTY<K45> ID=130-169	1-09707-157-0	01	1	9002-	●	●
5	CLIP; AIR DUCT EXC. AIR CLEANER HEAVY DUTY<K45> ID=104-142	1-09707-155-0	01	1	9002-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-9306	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-9306	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9307-		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9307-		●
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9002-	●	●
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9002-	●	●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-	●	●
52	SEAT; SPR	1-14239-111-1	02	1	9002-	●	●
53	SPRING	1-14239-113-2	01	1	9002-	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-	●	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-495-0	01	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> UPPER & LOWER LH ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> LOWER RH ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT L=37.2	1-14234-078-0	03	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	01	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
65	BRACKET; PRE ACL PRE CLEANER<W17>	1-14239-157-1	01	1	9002-	●	●
66	GASKET; SPACER PRE CLEANER<W17>	1-14239-170-0	01	1	9002-	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	9002-	●	●
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	10	1	9002-	●	●
69	BOLT; DUCT CLIP PRE CLEANER<W17>	1-09000-372-0	02	1	9002-	●	●
70	CLIP; BAND,ACL TO DUCT PRE CLEANER<W17>	1-14239-197-0	01	1	9002-	●	●
71	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	9002-	●	●
72	NUT; ACL TO BRKT PRE CLEANER<W17> M10	1-09400-053-0	01	1	9002-	●	●
73	WASHER; LK,ACL PRE CLEANER<W17>	1-09500-033-0	01	1	9002-	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	01	1	9002-	●	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	9002-	●	●
153	BRACKET; ACL,FRT	1-53419-149-2	01	1	9002-9108	●	●
153	BRACKET; ACL,FRT	1-53419-247-0	01	1	9109-	●	●
200	WASHER; PL,CLAMP PRE CLEANER<W17> ID=10.5	1-09985-107-0	02	1	9307-		●
209	BRACKET; ACL	1-53419-150-1	01	1	9002-9108	●	●
209	BRACKET; ACL	1-53419-248-0	01	1	9109-	●	●
210	BOLT; ACL BRKT M8X65	9-01055-865-0	02	1	9002-9005	●	●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	02	1	9006-	●	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005	●	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-	●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9002-	●	●
230	GUIDE	1-14239-125-0	01	1	9002-	●	●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14231-400-2	01	1	9002-9306	●	●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-399-2	01	1	9002-9306	●	●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14230-057-2	01	1	9307-		●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14230-055-2	01	1	9307-		●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-	●	●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9002-	●	●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●	●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●
296	NUT; ACL M12	9-99110-512-0	02	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
