3-77 — BRAKE PIPING; AIR,REAR
(#29729) — 70 parça
◀

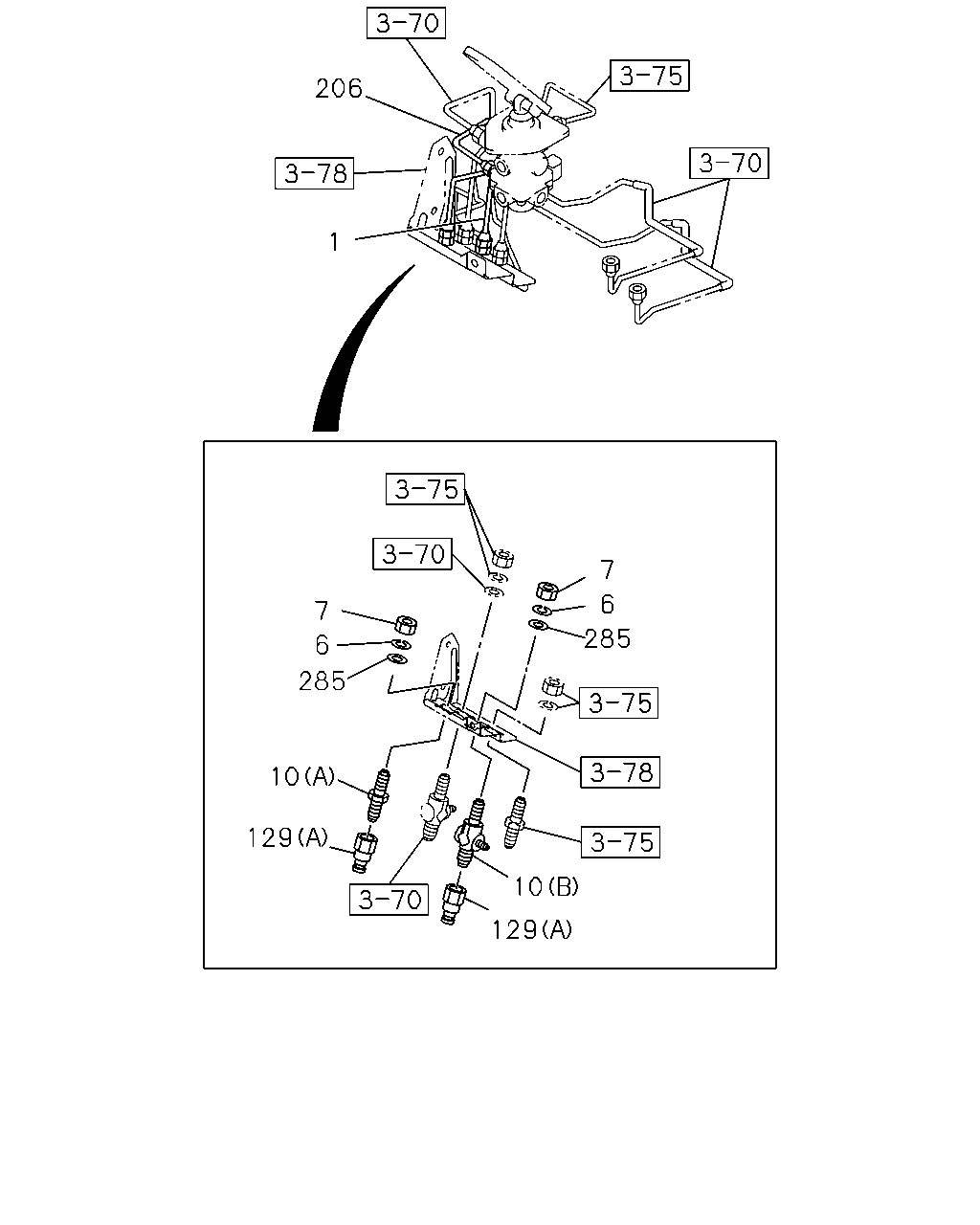

[377A] CAB SIDE NO.2 (12 parça)

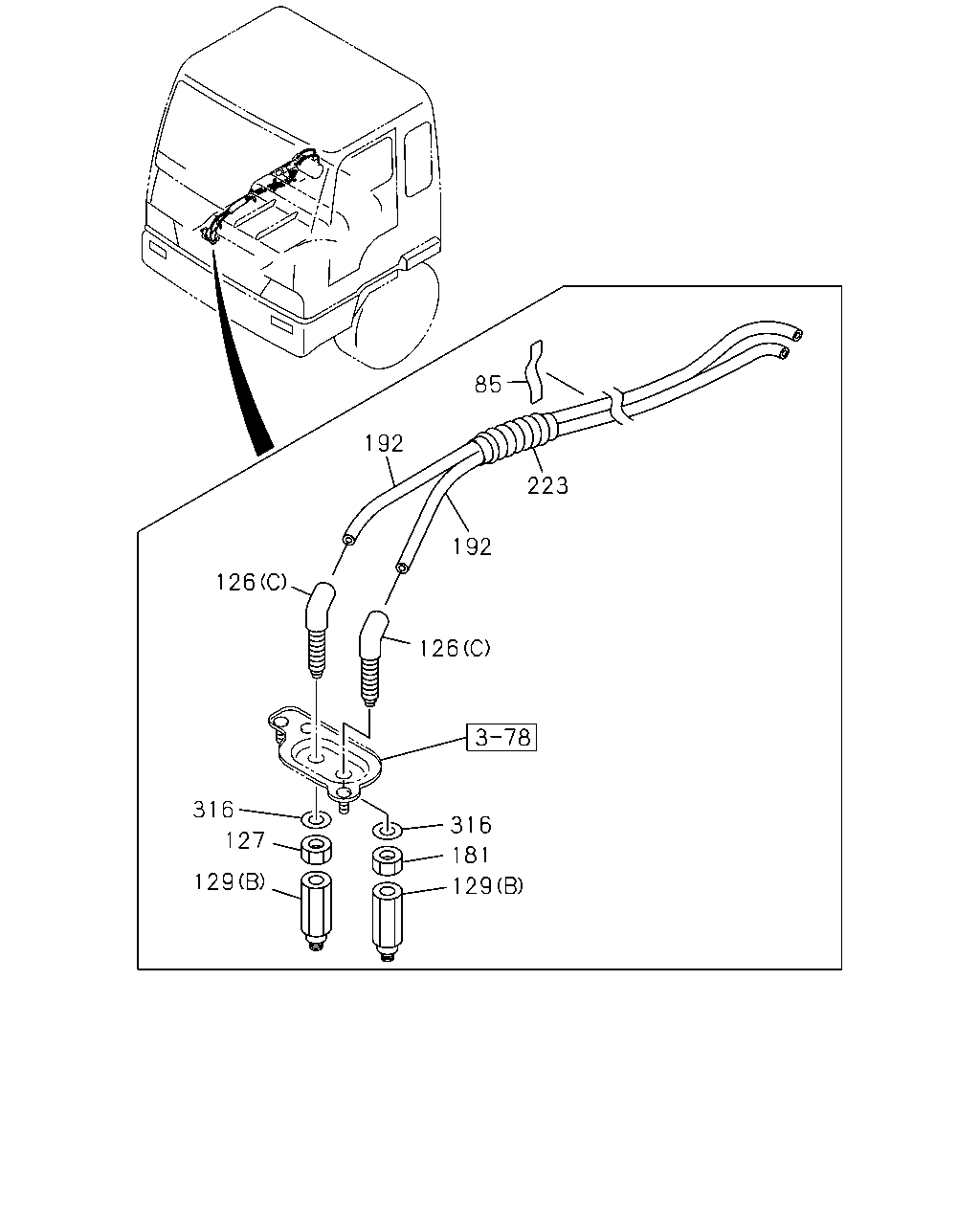

[377A] CAB SIDE NO.1 (20 parça)

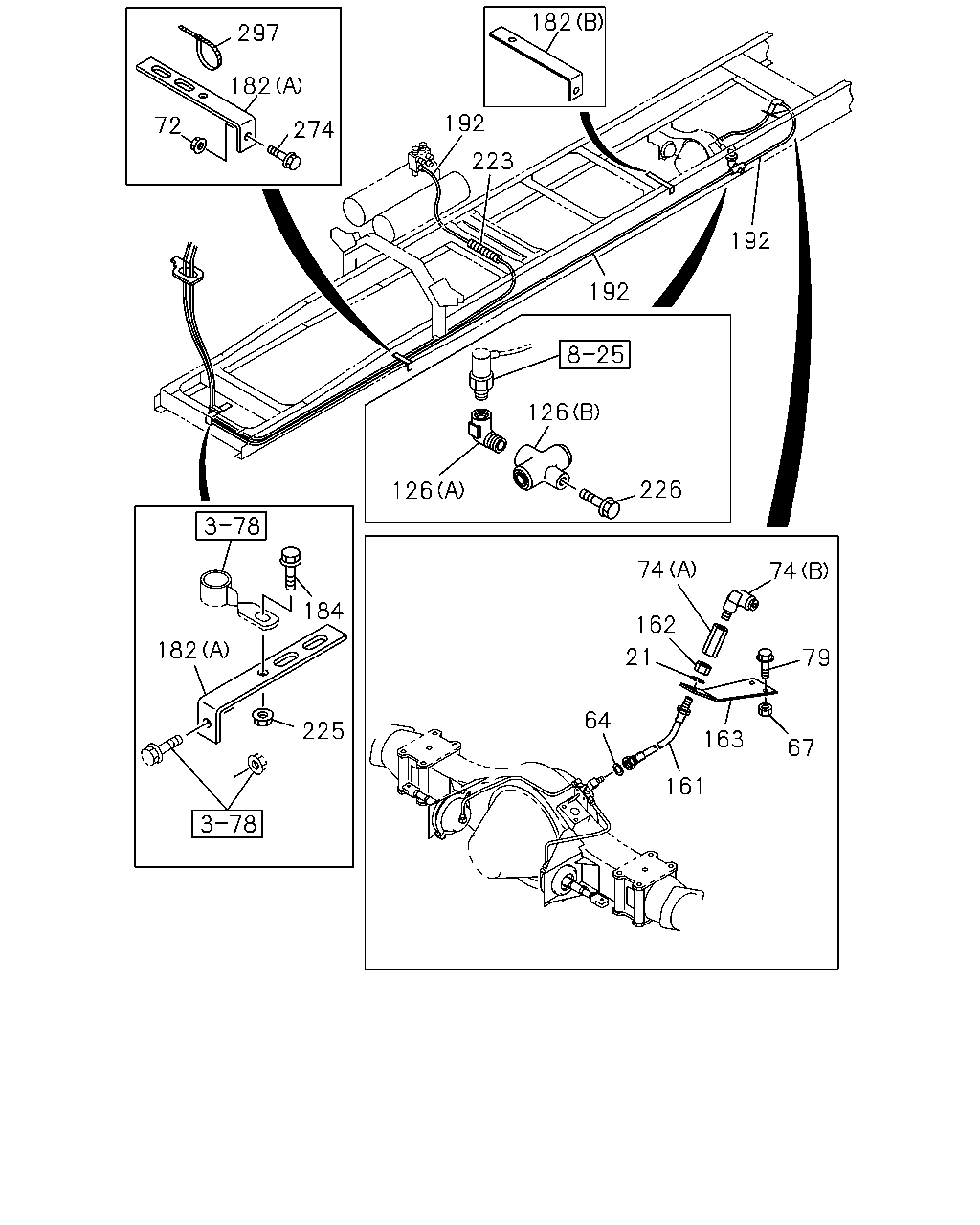

[377A] FRAME SIDE (38 parça)
▶
206
1
7
6
7
285
6
285
10
129
10
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=277
1-49121-487-0
01
1
0107-
6
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0107-0603
6
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
7
NUT; FLEX HOSE
M16
9-99111-416-0
02
1
0107-0512
7
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
0601-
10
CONNECTOR; FLEX HOSE
(A) M16 STRAIGHT
1-09654-380-0
01
1
0107-
10
CONNECTOR; FLEX HOSE
(B)
1-09656-754-0
01
1
0107-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0107-
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
0107-
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=406
1-47492-451-3
01
1
0107-
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
02
1
0107-0605
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
02
1
0606-
85
192
223
192
126
126
316
316
127
181
129
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
GASKET; NYLON TUBE
100X40
1-72498-022-1
05
1
0107-
126
UNION; NYLON TUBE
(A) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0107-
126
UNION; NYLON TUBE
(C) DIN8 & M20 ELBOW
1-09661-015-0
02
1
0107-
126
UNION; NYLON TUBE
(B) DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
0107-
127
NUT; UNION
M20
9-99111-420-0
01
1
0107-0512
127
NUT; UNION
M20
0-91111-520-0
01
1
0601-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0107-
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
0107-
181
NUT; TUBE UNION
M20
9-99111-420-0
01
1
0107-0512
181
NUT; TUBE UNION
M20
0-91111-520-0
01
1
0601-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0107-0212
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0107-
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0107-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0107-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0107-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87410-100-0
AR
1
0107-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87410-102-0
AR
1
0107-
316
WASHER; PL
ID=21
9-09160-520-0
02
1
0107-0605
316
WASHER; PL
ID=21
0-91610-520-0
02
1
0606-
182
297
182
192
72
274
223
192
192
126
226
126
74
74
184
162
182
21
79
64
225
163
67
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
WASHER; LK,UNION
ID=14.2
9-09150-514-0
01
1
0107-0603
21
WASHER; LK,UNION
ID=14.2
0-91510-514-0
01
1
0604-
64
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
01
1
0107-
67
NUT; HOSE BRKT
M8 FLANGE
0-91150-108-0
02
1
0107-0602
67
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
72
NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE
0-91150-108-0
02
1
0107-0602
72
NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE
0-91180-108-0
02
1
0603-
74
ADAPTER; UNION TO NYLON TUBE
(A)
1-09660-881-0
01
1
0107-
74
ADAPTER; UNION TO NYLON TUBE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0107-
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28680-825-0
02
1
0107-0512
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0601-
126
UNION; NYLON TUBE
(A) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0107-
126
UNION; NYLON TUBE
(C) DIN8 & M20 ELBOW
1-09661-015-0
02
1
0107-
126
UNION; NYLON TUBE
(B) DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
0107-
161
HOSE; FLEX,QUICK RELEASE VLV
L=580
0-07462-580-1
01
1
0107-0605
161
HOSE; FLEX,QUICK RELEASE VLV
L=580
0-57462-580-1
01
1
0606-
162
NUT; FLEX HOSE
M14
9-99111-414-0
01
1
0107-0512
162
NUT; FLEX HOSE
M14
0-91111-514-0
01
1
0601-
163
BRACKET; FLEX HOSE
1-47475-464-0
01
1
0107-
182
BRACKET; TUBE CLIP
(B)
1-47479-287-0
01
1
0107-
182
BRACKET; TUBE CLIP
WHEEL BASE 5000MM(50W) (A) L=150 H=30
1-47477-629-2
02
1
0107-
184
BOLT; TUBE CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
184
BOLT; TUBE CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0601-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0107-0212
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0107-
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0107-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0107-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0107-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87410-100-0
AR
1
0107-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87410-102-0
AR
1
0107-
225
NUT; TUBE CLIP
M8 FLANGE
0-91150-108-0
01
1
0107-0602
225
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
226
BOLT; UNION
M8X20 FLANGE
0-28680-820-0
01
1
0107-0512
226
BOLT; UNION
M8X20 FLANGE
0-28650-820-0
01
1
0601-
274
BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE
0-28680-825-0
02
1
0107-0512
274
BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X25 FLANGE
0-28650-825-0
02
1
0601-
297
CLIP; BAND
WHEEL BASE 5000MM(50W) L=250
1-09707-126-0
02
1
0107-
