Isuzu WW
▶
TRUCKS
▶
CVR
▶
10661 - CVR
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

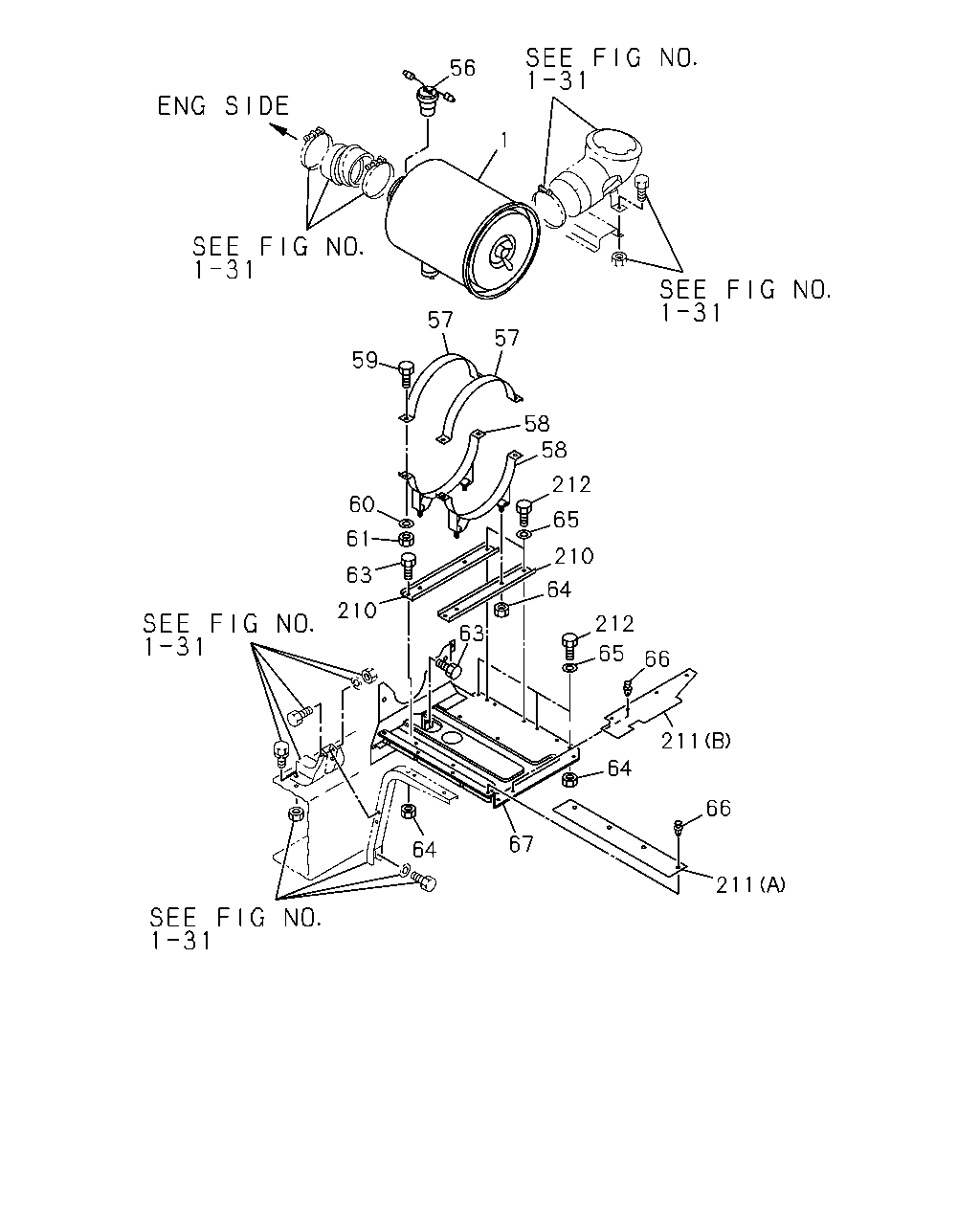

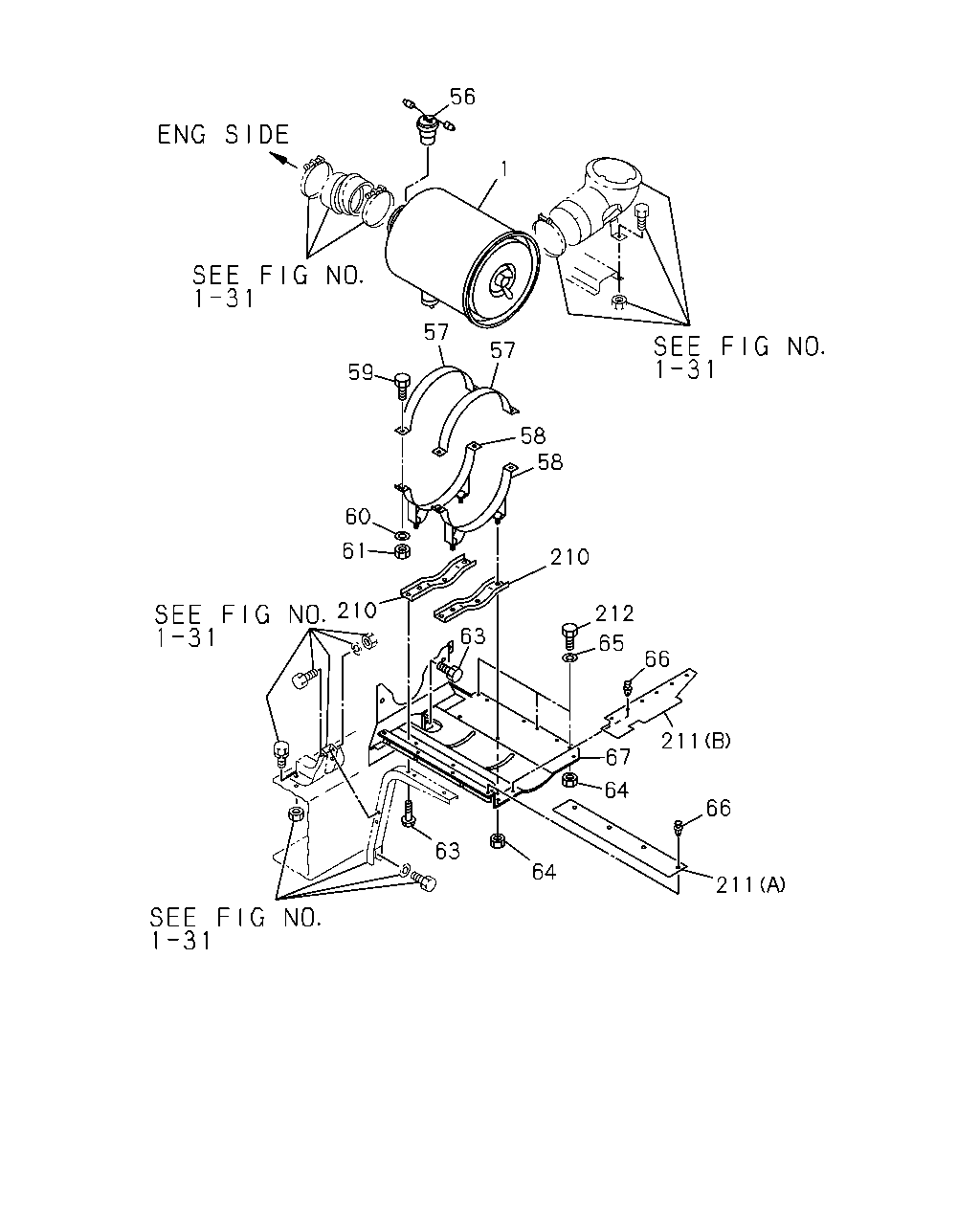

1-30 — AIR CLEANER
(#2972) — 102 parça
Tümü
A - 6RB1 STD ENG
B - 6QA1 STD ENG
◀
[130A] NO.2 AIR CLEANER HEAVY DUTY (40 parça)
[130A] NO.1 EXC.AIR CLEANER HEAVY DUTY (40 parça)
[130A] NO.3 (22 parça)
▶
211
66
64
67
211
64
63
66
65
212
63
210
61
60
210
58
58
57
57
59
1
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14210-530-3
01
1
9002-
●
●
1
CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14210-433-5
01
1
9002-
●
●
1
CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14210-498-3
01
1
9002-
●
●
1
CLEANER ASM; AIR
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> EXC. AIR CLEANER HEAVY DUTY<K45>
1-14210-529-3
01
1
9002-
●
●
56
SWITCH; ACL
1-81530-011-0
01
1
9002-9306
●
●
56
SWITCH; ACL
1-81530-016-0
01
1
9307-
●
57
BAND; ACL
AIR CLEANER HEAVY DUTY<K45>
1-53419-131-1
02
1
9002-9304
●
●
57
BAND; ACL
AIR CLEANER HEAVY DUTY<K45>
1-53419-252-0
02
1
9305-
●
●
57
BAND; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>
1-53419-126-1
02
1
9002-9304
●
●
57
BAND; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>
1-53419-251-0
02
1
9305-
●
●
58
BRACKET; ACL BAND
AIR CLEANER HEAVY DUTY<K45>
1-53419-146-3
02
1
9002-9106
●
●
58
BRACKET; ACL BAND
AIR CLEANER HEAVY DUTY<K45>
1-53419-250-0
02
1
9107-
●
●
58
BRACKET; ACL BAND
EXC. AIR CLEANER HEAVY DUTY<K45>
1-53419-124-3
01
1
9002-
●
●
59
BOLT; BAND,ACL
M10X30 W/LK&PL WASHER
9-01961-030-0
04
1
9002-9204
●
●
59
BOLT; BAND,ACL
M10X30 W/LK&PL WASHER
0-50141-030-0
04
1
9205-
●
●
60
WASHER; PL,ACL BAND
ID=10.5 OD=22
9-09164-610-0
04
1
9002-
●
●
61
NUT; ACL BAND
M10
9-09110-510-0
04
1
9002-
●
●
63
BOLT; BRKT
M8X20 W/LK WASHER
9-01910-820-0
01
1
9002-9005
●
●
63
BOLT; BRKT
M8X20 W/LK WASHER
0-50040-820-0
02
1
9006-9302
●
●
63
BOLT; BRKT
M8X20 FLANGE
0-28080-820-0
02
1
9303-9304
●
●
63
BOLT; BRKT
M8X20 FLANGE
0-28080-820-0
01
1
9305-
●
●
63
BOLT; BRKT
EXC. AIR CLEANER HEAVY DUTY<K45> M10X25 W/LK WASHER
0-50041-025-0
02
1
9002-
●
●
64
NUT; BAND BRKT
M10 FLANGE
5-09440-006-0
04
1
9002-
●
●
64
NUT; BAND BRKT
M10
9-09110-410-0
05
1
9002-9009
●
●
64
NUT; BAND BRKT
M8
9-09110-408-0
01
1
9010-
●
●
64
NUT; BAND BRKT
M10
9-09110-510-0
04
1
9010-
●
●
64
NUT; BAND BRKT
EXC. AIR CLEANER HEAVY DUTY<K45> M10 FLANGE
5-09440-006-0
02
1
9002-
●
●
65
WASHER; PL
ID=10 OD=22
9-09160-610-0
02
1
9002-
●
●
65
WASHER; PL
ID=8.4 OD=22
9-09160-708-0
01
1
9002-9304
●
●
65
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
03
1
9002-
●
●
66
CLIP; ACL
5-09987-033-0
08
1
9002-
●
●
67
COVER; ACL
AIR CLEANER HEAVY DUTY<K45>
1-53419-214-0
01
1
9002-
●
●
67
COVER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>
1-53419-123-9
01
1
9002-
●
●
210
BRACKET; ACL MTG
AIR CLEANER HEAVY DUTY<K45>
1-53419-208-0
02
1
9002-9202
●
●
210
BRACKET; ACL MTG
AIR CLEANER HEAVY DUTY<K45>
1-53419-239-0
02
1
9203-
●
●
210
BRACKET; ACL MTG
EXC. AIR CLEANER HEAVY DUTY<K45>
1-53419-209-0
02
1
9002-
●
●
211
RUBBER; SEAL
(B)
1-53499-006-0
01
1
9002-
●
●
211
RUBBER; SEAL
(A)
1-79930-358-1
01
1
9002-
●
●
212
BOLT; MUD COVER
M10X25 W/LK WASHER
0-50041-025-0
05
1
9002-9506
●
●
212
BOLT; MUD COVER
M10X20 FLANGE
0-28081-020-0
05
1
9507-
●
1
56
57
57
59
60
61
63
210
64
67
64
66
211
211
66
65
212
64
63
210
65
212
58
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14210-530-3
01
1
9002-
●
●
1
CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14210-433-5
01
1
9002-
●
●
1
CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14210-498-3
01
1
9002-
●
●
1
CLEANER ASM; AIR
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> EXC. AIR CLEANER HEAVY DUTY<K45>
1-14210-529-3
01
1
9002-
●
●
56
SWITCH; ACL
1-81530-011-0
01
1
9002-9306
●
●
56
SWITCH; ACL
1-81530-016-0
01
1
9307-
●
57
BAND; ACL
AIR CLEANER HEAVY DUTY<K45>
1-53419-131-1
02
1
9002-9304
●
●
57
BAND; ACL
AIR CLEANER HEAVY DUTY<K45>
1-53419-252-0
02
1
9305-
●
●
57
BAND; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>
1-53419-126-1
02
1
9002-9304
●
●
57
BAND; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>
1-53419-251-0
02
1
9305-
●
●
58
BRACKET; ACL BAND
AIR CLEANER HEAVY DUTY<K45>
1-53419-146-3
02
1
9002-9106
●
●
58
BRACKET; ACL BAND
AIR CLEANER HEAVY DUTY<K45>
1-53419-250-0
02
1
9107-
●
●
58
BRACKET; ACL BAND
EXC. AIR CLEANER HEAVY DUTY<K45>
1-53419-124-3
01
1
9002-
●
●
59
BOLT; BAND,ACL
M10X30 W/LK&PL WASHER
9-01961-030-0
04
1
9002-9204
●
●
59
BOLT; BAND,ACL
M10X30 W/LK&PL WASHER
0-50141-030-0
04
1
9205-
●
●
60
WASHER; PL,ACL BAND
ID=10.5 OD=22
9-09164-610-0
04
1
9002-
●
●
61
NUT; ACL BAND
M10
9-09110-510-0
04
1
9002-
●
●
63
BOLT; BRKT
M8X20 W/LK WASHER
9-01910-820-0
01
1
9002-9005
●
●
63
BOLT; BRKT
M8X20 W/LK WASHER
0-50040-820-0
02
1
9006-9302
●
●
63
BOLT; BRKT
M8X20 FLANGE
0-28080-820-0
02
1
9303-9304
●
●
63
BOLT; BRKT
M8X20 FLANGE
0-28080-820-0
01
1
9305-
●
●
63
BOLT; BRKT
EXC. AIR CLEANER HEAVY DUTY<K45> M10X25 W/LK WASHER
0-50041-025-0
02
1
9002-
●
●
64
NUT; BAND BRKT
M10 FLANGE
5-09440-006-0
04
1
9002-
●
●
64
NUT; BAND BRKT
M10
9-09110-410-0
05
1
9002-9009
●
●
64
NUT; BAND BRKT
M8
9-09110-408-0
01
1
9010-
●
●
64
NUT; BAND BRKT
M10
9-09110-510-0
04
1
9010-
●
●
64
NUT; BAND BRKT
EXC. AIR CLEANER HEAVY DUTY<K45> M10 FLANGE
5-09440-006-0
02
1
9002-
●
●
65
WASHER; PL
ID=10 OD=22
9-09160-610-0
02
1
9002-
●
●
65
WASHER; PL
ID=8.4 OD=22
9-09160-708-0
01
1
9002-9304
●
●
65
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
03
1
9002-
●
●
66
CLIP; ACL
5-09987-033-0
08
1
9002-
●
●
67
COVER; ACL
AIR CLEANER HEAVY DUTY<K45>
1-53419-214-0
01
1
9002-
●
●
67
COVER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>
1-53419-123-9
01
1
9002-
●
●
210
BRACKET; ACL MTG
AIR CLEANER HEAVY DUTY<K45>
1-53419-208-0
02
1
9002-9202
●
●
210
BRACKET; ACL MTG
AIR CLEANER HEAVY DUTY<K45>
1-53419-239-0
02
1
9203-
●
●
210
BRACKET; ACL MTG
EXC. AIR CLEANER HEAVY DUTY<K45>
1-53419-209-0
02
1
9002-
●
●
211
RUBBER; SEAL
(B)
1-53499-006-0
01
1
9002-
●
●
211
RUBBER; SEAL
(A)
1-79930-358-1
01
1
9002-
●
●
212
BOLT; MUD COVER
M10X25 W/LK WASHER
0-50041-025-0
05
1
9002-9506
●
●
212
BOLT; MUD COVER
M10X20 FLANGE
0-28081-020-0
05
1
9507-
●
3
2
8
4
110
3
2
27
94
1
26
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14210-530-3
01
1
9002-
●
●
1
CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14210-433-5
01
1
9002-
●
●
1
CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14210-498-3
01
1
9002-
●
●
1
CLEANER ASM; AIR
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> EXC. AIR CLEANER HEAVY DUTY<K45>
1-14210-529-3
01
1
9002-
●
●
2
NUT; WING,ELEMENT
(A)
1-14217-003-0
01
1
9002-
●
●
2
NUT; WING,ELEMENT
(B)
1-14217-049-0
01
1
9002-
●
●
2
NUT; WING,ELEMENT
(C)
1-14217-050-0
01
1
9002-
●
●
3
WASHER; SEAL,WING NUT
(A)
1-14219-032-0
01
1
9002-
●
●
3
WASHER; SEAL,WING NUT
(B)
1-14219-118-0
01
1
9002-
●
●
3
WASHER; SEAL,WING NUT
(C)
1-14219-156-0
01
1
9002-
●
●
4
GASKET; COVER TO BODY
AIR CLEANER HEAVY DUTY<K45>
1-14219-130-0
01
1
9002-
●
●
4
GASKET; COVER TO BODY
EXC. AIR CLEANER HEAVY DUTY<K45>
1-14219-128-0
01
1
9002-
●
●
8
COVER ASM; ACL
AIR CLEANER HEAVY DUTY<K45> CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14212-090-0
01
1
9002-
●
●
8
COVER ASM; ACL
AIR CLEANER HEAVY DUTY<K45> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14212-091-0
01
1
9002-
●
●
8
COVER ASM; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>
1-14212-099-0
01
1
9002-
●
●
8
COVER ASM; ACL
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> EXC. AIR CLEANER HEAVY DUTY<K45>
1-14212-098-0
01
1
9002-
●
●
26
FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45>
1-14215-127-0
01
1
9002-
●
●
26
FILTER; ACL,INNER
EXC. AIR CLEANER HEAVY DUTY<K45>
1-14215-125-0
01
1
9002-
●
●
27
FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45>
1-14215-192-0
01
1
9002-
●
●
27
FILTER; ACL,OUTER
EXC. AIR CLEANER HEAVY DUTY<K45>
1-14215-183-0
01
1
9002-
●
●
94
VALVE; VACUATOR
1-14219-129-0
01
1
9002-
●
●
110
ADAPTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>
1-14219-175-0
01
1
9002-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
