Isuzu WW
▶
TRUCKS
▶
FTR
▶
10891 - FTR34(RHD)
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶

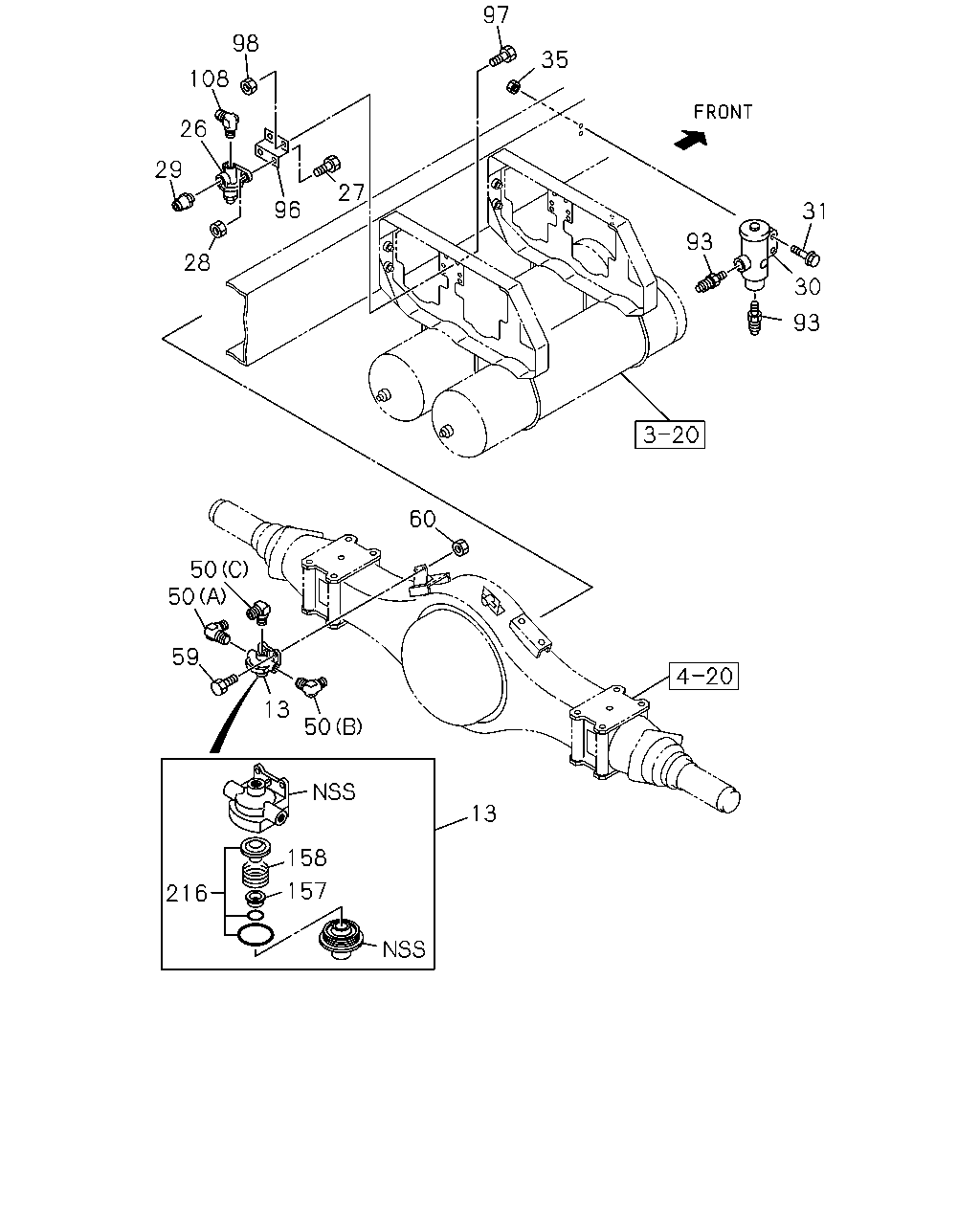

3-22 — AIR CONTROL PARTS
(#29718) — 31 parça
◀
[322A] REPAIR KIT (1 parça)
[322A] FIXING (30 parça)
▶
240
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
240
REPAIR KIT; AIR CONT GOV
1-85576-467-0
01
1
0107-
97
98
35
108
26
29
27
96
31
93
28
30
93
60
50
50
59
13
50
13
158
157
216
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
VALVE ASM; QUICK RELEASE
1-48410-320-0
01
1
0107-0109
13
VALVE ASM; QUICK RELEASE
1-48410-659-0
01
1
0110-
26
VALVE; AIR
1-48110-006-1
01
1
0107-
27
BOLT; AIR VLV
M8X30 FLANGE
0-28680-830-0
02
1
0107-0512
27
BOLT; AIR VLV
M8X30 FLANGE
0-28650-830-0
02
1
0601-
28
NUT; AIR VLV
M8 FLANGE
0-91150-108-0
02
1
0107-0602
28
NUT; AIR VLV
M8 FLANGE
0-91180-108-0
02
1
0603-
29
CONNECTOR; AIR VLV
DIN12 & R1/4 STRAIGHT
1-09660-967-0
01
1
0107-
30
GOVERNOR; AIR CONT
1-48350-063-2
01
1
0107-
31
BOLT; GOV TO FRAME
M8X35 FLANGE
0-28680-835-0
02
1
0107-0512
31
BOLT; GOV TO FRAME
M8X35 FLANGE
0-28650-835-0
02
1
0601-
35
NUT; GOV TO FRAME
M8 FLANGE
0-91150-108-0
02
1
0107-0602
35
NUT; GOV TO FRAME
M8 FLANGE
0-91180-108-0
02
1
0603-
50
CONNECTOR; RELEASE VLV
(A) M14 & PT3/8 STRAIGHT
1-09650-085-1
01
1
0107-
50
CONNECTOR; RELEASE VLV
(B) M14 & PT3/8 ELBOW
1-09650-437-0
01
1
0107-
50
CONNECTOR; RELEASE VLV
(C) M20 & PT3/8 ELBOW
1-09660-684-0
01
1
0107-
59
BOLT; RELEASE VALVE FIX
M8X20 W/LK WASHER
0-50040-820-0
02
1
0107-0906
59
BOLT; RELEASE VALVE FIX
M8X20 W/LK WASHER
0-50540-820-0
02
1
0907-
60
NUT; RELEASE VALVE FIX
M8
9-09110-408-0
02
1
0107-0512
60
NUT; RELEASE VALVE FIX
M8
0-91110-508-0
02
1
0601-
93
CONNECTOR; GOV
M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
0107-
96
BRACKET
1-48495-224-0
01
1
0107-
97
BOLT; VLV BRKT
M8X25 FLANGE
0-28680-825-0
02
1
0107-0512
97
BOLT; VLV BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0601-
98
NUT; VLV BRKT
M8 FLANGE
0-91150-108-0
02
1
0107-0602
98
NUT; VLV BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
108
CONNECTOR; ELBOW
DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
0107-
157
RETAINER; VALVE
1-48419-020-0
01
1
0110-
158
SPRING; VALVE
9-48419-003-0
01
1
0110-
216
REPAIR KIT; QUICK RELEASE VLV
1-85576-235-0
01
1
0110-
