1-11 — RADIATOR HOSE AND SUB TANK (#2971) — 48 parça

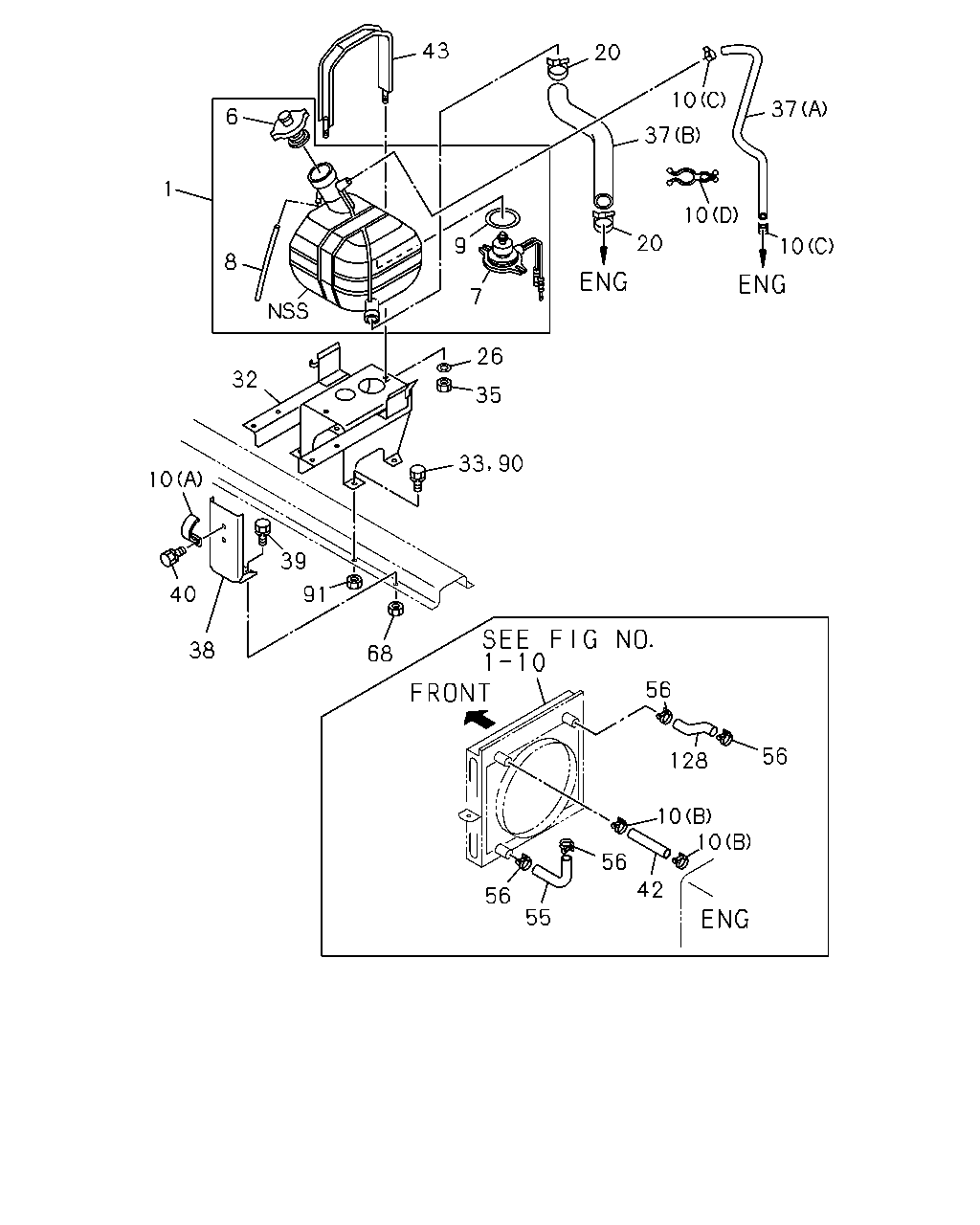

çizim 38797
55 56 42 56 10 10 128 56 56 68 91 38 40 39 10 32 33 90 35 26 7 9 8 1 6 43 20 37 10 37 10 10 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD
CAUTIONS ARABIAN<WJ7> 		1-21481-055-1 01 1 9002-9306 ● ●
1 TANK; SURGE,RAD
CAUTIONS CHINESE<SL7> 		1-21481-054-1 01 1 9002-9306 ● ●
1 TANK; SURGE,RAD
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> 		1-21481-039-5 01 1 9002-9306 ● ●
1 TANK; SURGE,RAD
CAUTIONS FRENCH<WJ8> 		1-21481-053-1 01 1 9002-9306 ● ●
1 TANK; SURGE,RAD 1-21481-080-1 01 1 9307- ●
6 CAP; SUB TANK
CAUTIONS ARABIAN<WJ7> 		1-21450-093-1 01 1 9002-9306 ● ●
6 CAP; SUB TANK
CAUTIONS CHINESE<SL7> 		1-21450-092-1 01 1 9002-9306 ● ●
6 CAP; SUB TANK
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> 		1-21450-083-4 01 1 9002-9306 ● ●
6 CAP; SUB TANK
CAUTIONS FRENCH<WJ8> 		1-21450-091-1 01 1 9002-9306 ● ●
6 CAP; SUB TANK 1-21450-083-4 01 1 9307- ●
7 SWITCH ASM; TANK 1-82480-022-3 01 1 9002-9306 ● ●
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9307- ●
8 HOSE; VINYL
L=1000 SERVICED BY L=3000 		0-03259-300-0 01 1 9002-9306 ● ●
8 HOSE; VINYL
L=680 SERVICED BY L=3000 		0-03259-300-0 01 1 9307- ●
9 GASKET; SWITCH
ID=28 OD=35 		1-09630-101-0 01 1 9002-9306 ● ●
10 CLIP; RUBBER HOSE
(A) 		1-09700-703-0 01 1 9002- ● ●
10 CLIP; RUBBER HOSE
(B) 		1-09704-077-0 02 1 9002- ● ●
10 CLIP; RUBBER HOSE
(C) 		1-09704-102-0 02 1 9002- ● ●
10 CLIP; RUBBER HOSE
(D) 		1-09709-125-0 03 1 9002- ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9002- ● ●
26 WASHER
CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> ID=8.4 		9-09160-508-0 02 1 9002-9306 ● ●
26 WASHER
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> ID=8.4 		9-09160-508-0 04 1 9002-9306 ● ●
26 WASHER
ID=8.4 		9-09160-508-0 04 1 9307- ●
32 BRACKET; SUB TANK 1-21489-111-0 01 1 9002-9109 ● ●
32 BRACKET; SUB TANK 1-21489-137-1 01 1 9110- ● ●
33 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9002- ● ●
35 NUT
M8 		9-09110-408-0 04 1 9002- ● ●
37 HOSE; RUBBER
(A) L=1150 SERVICED BY L=3000 		0-03259-300-0 01 1 9002- ● ●
37 HOSE; RUBBER
(B) ID=31 		1-21437-161-1 01 1 9002- ● ●
38 BRACKET; RUBBER HOSE 1-21464-092-0 01 1 9002-9212 ● ●
38 BRACKET; RUBBER HOSE 1-21464-341-0 01 1 9301- ● ●
39 BOLT; BRKT FIX
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9002-9506 ● ●
39 BOLT; BRKT FIX
M10X20 FLANGE 		0-28081-020-0 02 1 9507- ●
40 BOLT; CLIP
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9002-9506 ● ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28081-020-0 01 1 9507- ●
42 HOSE; RUBBER 1-21437-163-0 01 1 9002- ● ●
43 BAND ASM 1-21489-062-2 01 1 9002-9109 ● ●
43 BAND ASM 1-21489-139-2 01 1 9110- ● ●
55 HOSE; WATER,RAD OUTLET
RADIATOR HEAVY DUTY<V05> 		1-21437-033-2 01 1 9002-9306 ●
55 HOSE; WATER,RAD OUTLET
EXC. RADIATOR HEAVY DUTY<V05> 		1-21437-030-3 01 1 9002-9306 ●
55 HOSE; WATER,RAD OUTLET
EXC. FIRE TRUCK<RA9> 		1-21437-030-3 01 1 9002-9306 ●
55 HOSE; WATER,RAD OUTLET 1-21437-030-3 01 1 9307- ●
55 HOSE; WATER,RAD OUTLET
FIRE TRUCK<RA9> 		1-21437-252-2 01 1 9002-9306 ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 9002- ● ●
68 NUT; BRKT
M10 		9-09110-510-0 02 1 9002- ● ●
90 BOLT; SUB TANK TO BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9010- ● ●
91 NUT; SUB TANK TO BRKT
M10 		9-09110-510-0 04 1 9010- ● ●
128 HOSE; WATER,RAD INL 1-21437-034-1 01 1 9002- ● ●
