Isuzu WW
▶
TRUCKS
▶
FTR
▶
10891 - FTR34(RHD)
▶
2 - Clutch, Transmission, Trans Axle
▶

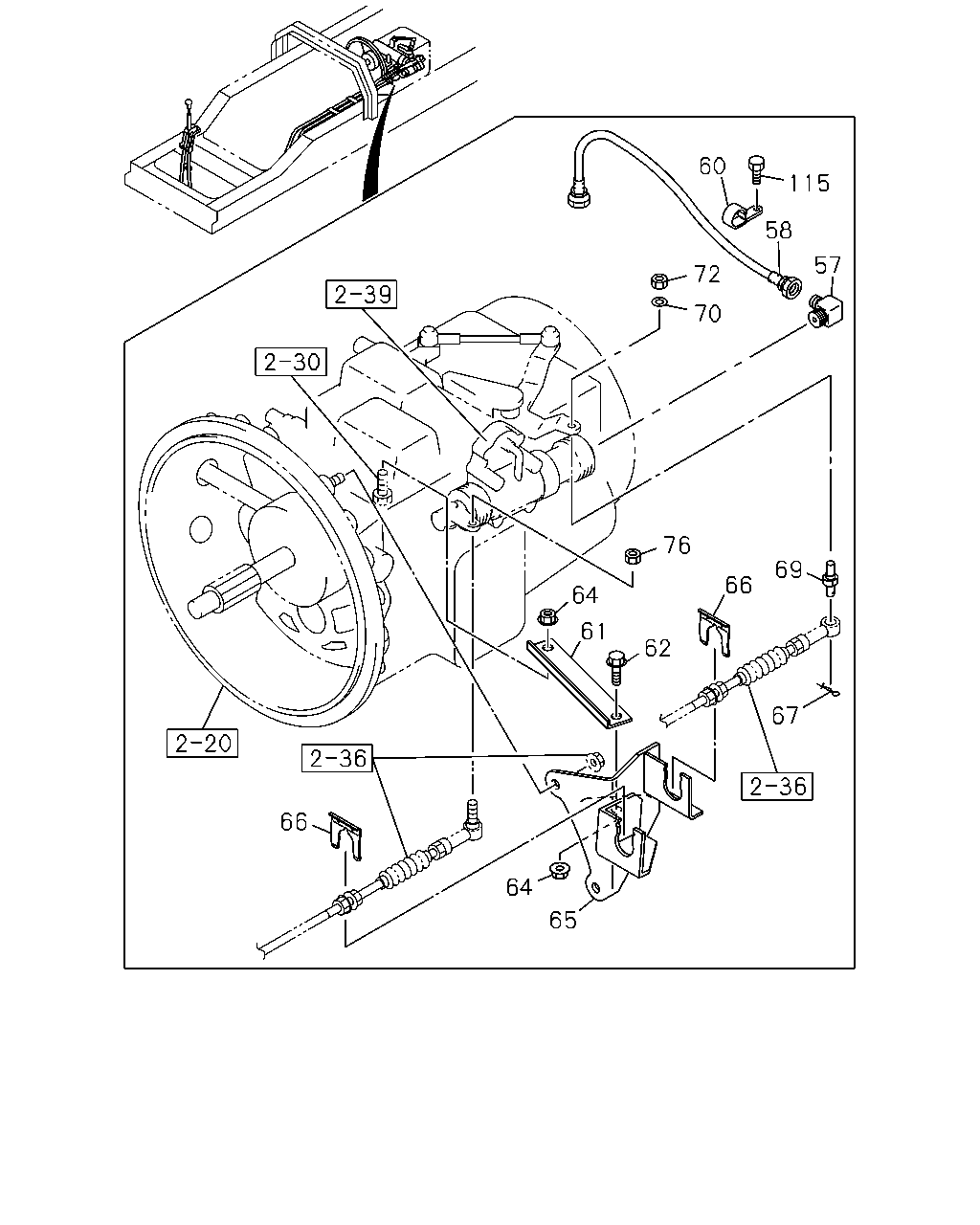

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#29709) — 19 parça
60
115
58
57
72
70
76
69
66
64
61
62
67
66
64
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
NIPPLE; POWER ASSISTOR
M12 & PT1/4 ELBOW
1-09661-001-1
01
1
0107-
58
HOSE; FLEX,POWER ASSISTOR
L=780
1-09363-620-0
01
1
0107-
60
CLIP; FLEX HOSE
ID=13 L=20
9-09525-235-0
02
1
0107-0606
60
CLIP; FLEX HOSE
ID=13 L=20
0-95235-235-0
02
1
0607-
61
STAY; BRKT,TRANS CONT
1-33657-267-0
01
1
0107-
62
BOLT; STAY
M10X30 FLANGE
0-28681-030-0
01
1
0107-0512
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
01
1
0601-
64
NUT; STAY
M10 FLANGE
0-91150-210-0
02
1
0107-0602
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
0603-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
1-33657-554-2
01
1
0107-
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
0107-
67
PIN; SNAP,SELECT WIRE
L=27.7
8-94157-841-0
01
1
0107-
69
PIN; TRANS CONT,SELECT
1-33659-116-1
01
1
0107-
70
WASHER; PL,SELECT WIRE
ID=8.4 OD=18
9-09164-608-0
01
1
0107-0605
70
WASHER; PL,SELECT WIRE
ID=8.4 OD=18
0-91614-608-0
01
1
0606-
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
0107-
76
NUT; BALL JOINT,SELECT WIRE
M10 FLANGE
1-09440-056-0
01
1
0107-
115
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
02
1
0107-0512
115
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
0601-
