Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10964 - EXZ LHD WEDGE BRAKE
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#29705) — 111 parça
◀

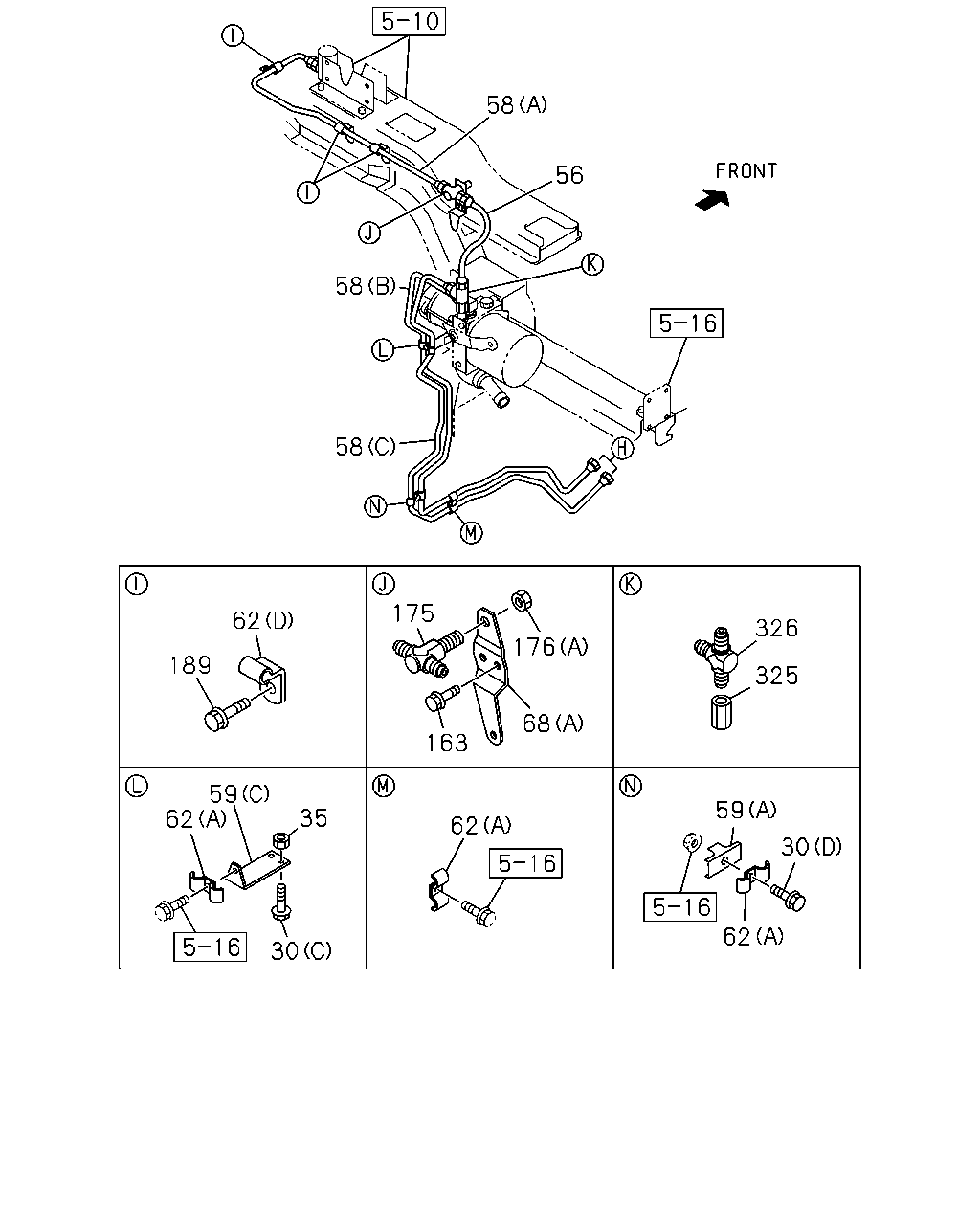

[515A] CAB TILT PIPING;CAB MTG MBR SIDE (38 parça)
[515A] BRACKET,PIN AND OTHER PARTS (20 parça)

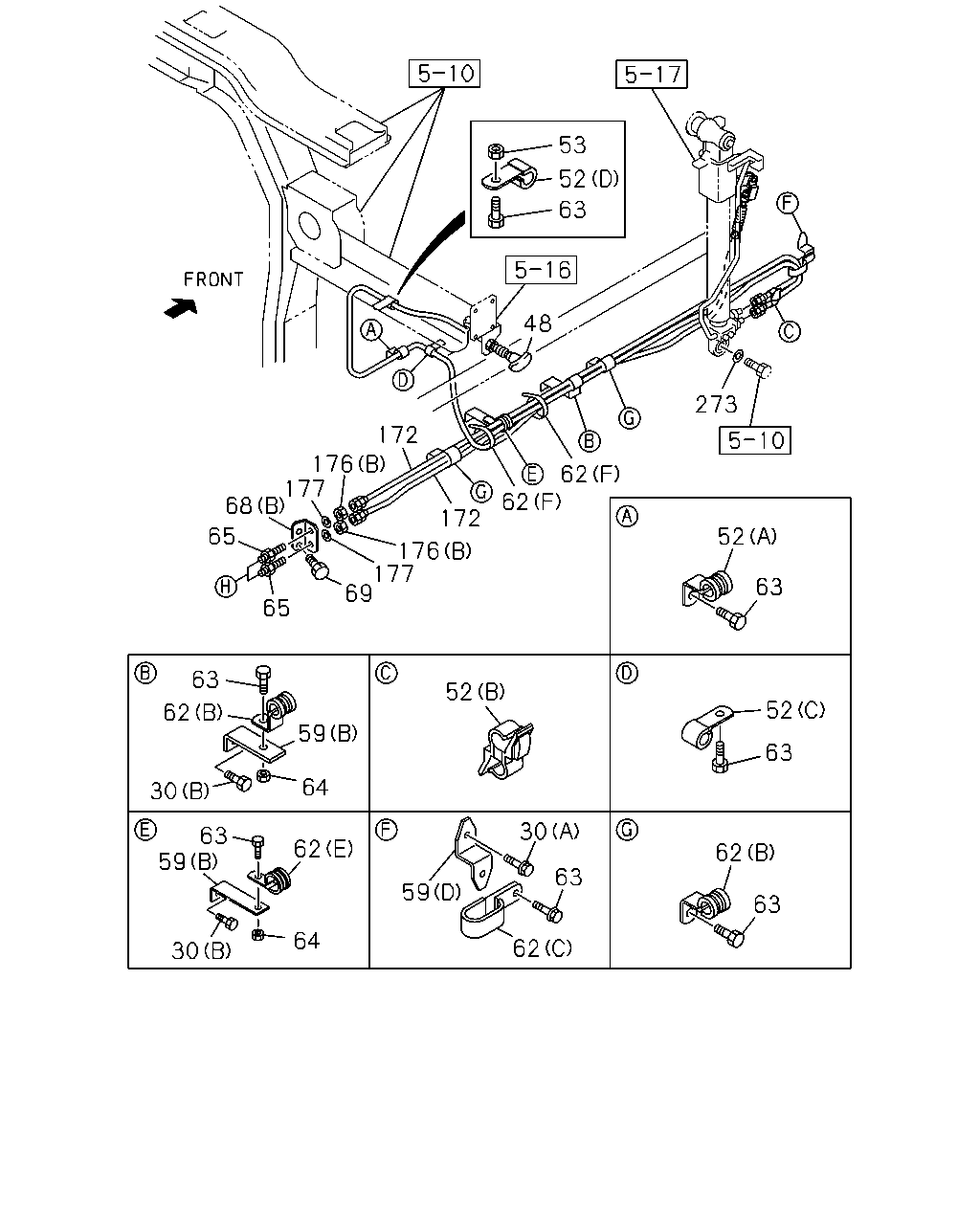

[515A] CAB TILT PIPING;FRAME SIDE (53 parça)
▶
58
56
58
58
175
62
326
176
189
325
68
163
59
62
59
35
62
30
62
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(D) M8X40 FLANGE
0-28680-840-0
01
1
0511-0512
30
BOLT; BRKT FIX
(D) M8X40 FLANGE
0-28650-840-0
01
1
0601-
30
BOLT; BRKT FIX
(C) M8X20 FLANGE
0-28680-820-0
02
1
0509-0512
30
BOLT; BRKT FIX
(C) M8X20 FLANGE
0-28650-820-0
02
1
0601-
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28680-830-0
02
1
0509-0512
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
02
1
0601-
30
BOLT; BRKT FIX
(A) M12X25 FLANGE
0-28681-225-0
01
1
0509-0512
30
BOLT; BRKT FIX
(A) M12X25 FLANGE
0-28651-225-0
01
1
0601-
35
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0509-0602
35
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
56
HOSE; FLEX,OIL PIPE
L=400
1-09365-060-0
01
1
0509-
58
PIPE; OIL,POWER UNIT
(B) L=1191 SERVICED BY L=1200
1-47428-732-0
01
1
0509-
58
PIPE; OIL,POWER UNIT
(C) L=1154 SERVICED BY L=1200
1-47428-732-0
01
1
0509-1009
58
PIPE; OIL,POWER UNIT
(C) L=1268 SERVICED BY L=1370
1-47428-734-0
01
1
1010-
58
PIPE; OIL,POWER UNIT
(A) L=1401 SERVICED BY L=1500
1-47428-735-0
01
1
0509-
59
BRACKET; CLIP
(A)
1-47475-427-1
01
1
0509-
59
BRACKET; CLIP
(B) L=115 B=25
1-47476-758-0
02
1
0509-
59
BRACKET; CLIP
(C)
1-47477-317-0
01
1
0509-
59
BRACKET; CLIP
(D)
1-47477-631-1
01
1
0509-
62
CLIP; OIL PIPE
(F) L=140
5-09707-031-1
02
1
0511-
62
CLIP; OIL PIPE
(D) ID=6 H=20 L=20
1-09700-603-0
03
1
0509-
62
CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
03
1
0509-
62
CLIP; OIL PIPE
(E) ID=24 L=27
1-09700-809-0
01
1
0509-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
03
1
0509-
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
9-09534-825-0
01
1
0509-0606
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
0-95324-825-0
01
1
0607-
68
BRACKET; UNION
(B)
1-47471-040-0
01
1
0509-
68
BRACKET; UNION
(A)
1-53458-374-1
01
1
0509-
163
BOLT; BRKT FIX
M8X20 FLANGE
0-28680-820-0
02
1
0509-0512
163
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
02
1
0601-
175
UNION; FLEX HOSE
M12 2WAY
1-09654-234-2
01
1
0509-
176
NUT; UNION
(A) M12 FLANGE
0-91150-212-0
01
1
0509-0602
176
NUT; UNION
(A) M12 FLANGE
0-91180-212-0
01
1
0603-
176
NUT; UNION
(B) M12
9-09840-280-0
02
1
0509-
189
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
03
1
0509-0512
189
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
0601-
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
0509-
326
UNION; PUMP
M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
0509-
302
159
136
71
136
301
302
27
243
161
241
242
242
235
168
49
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
NUT; OIL CYL
M14
9-99116-414-0
01
1
0509-0604
27
NUT; OIL CYL
M14 SLOTTED
0-91116-514-0
01
1
0605-
48
CABLE ASM; CONT
L=2457
1-62500-730-0
01
1
0509-
49
PIN; JAW FIX
OD=6 L=17
9-08223-617-0
01
1
0509-0606
49
PIN; JAW FIX
OD=6 L=17
0-82253-617-0
01
1
0607-
71
BOLT
M10X25 W/LK&PL WASHER
1-09980-488-0
02
1
0509-
136
BOLT; CAB LK
M8X24.5 W/LK&PL WASHER
8-94279-217-0
04
1
0509-
159
PIN
1-79717-627-1
01
1
0509-
161
PIN; SPLIT
OD=2.8 L=25
9-08113-025-0
01
1
0509-0606
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
0607-
168
WASHER; PL
ID=6.4
9-09160-506-0
01
1
0509-
235
PIN; SNAP
L=21.2
8-94157-840-0
01
1
0509-
241
BRACKET; POWER CYL UPR,CAB TILT
1-53458-660-1
01
1
0509-
242
BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER
1-09980-546-0
05
1
0509-
242
BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70
1-53458-633-0
01
1
0509-
243
WASHER; LK,POWER CYL BRKT
ID=14.2
9-09150-514-0
01
1
0509-0603
243
WASHER; LK,POWER CYL BRKT
ID=14.2
0-91510-514-0
01
1
0604-0805
243
WASHER; LK,POWER CYL BRKT
ID=14.2
0-91510-814-0
01
1
0806-
301
BRACKET; RR MTG,CAB
1-62570-866-1
02
1
0509-
302
BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER
1-09980-488-0
08
1
0509-
53
52
63
48
273
172
176
177
68
62
62
172
65
52
176
177
69
63
65
63
52
52
62
59
63
64
30
30
63
59
62
62
63
59
63
64
62
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(D) M8X40 FLANGE
0-28680-840-0
01
1
0511-0512
30
BOLT; BRKT FIX
(D) M8X40 FLANGE
0-28650-840-0
01
1
0601-
30
BOLT; BRKT FIX
(C) M8X20 FLANGE
0-28680-820-0
02
1
0509-0512
30
BOLT; BRKT FIX
(C) M8X20 FLANGE
0-28650-820-0
02
1
0601-
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28680-830-0
02
1
0509-0512
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
02
1
0601-
30
BOLT; BRKT FIX
(A) M12X25 FLANGE
0-28681-225-0
01
1
0509-0512
30
BOLT; BRKT FIX
(A) M12X25 FLANGE
0-28651-225-0
01
1
0601-
48
CABLE ASM; CONT
L=2457
1-62500-730-0
01
1
0509-
52
CLIP; CONT CABLE
(A) ID=6 H=20 L=20
1-09700-603-0
01
1
0509-
52
CLIP; CONT CABLE
(B) ID=6-10 & 10-14
1-09709-201-1
01
1
0509-
52
CLIP; CONT CABLE
(C) ID=7 L=20
9-09524-635-0
01
1
0509-0606
52
CLIP; CONT CABLE
(C) ID=7 L=20
0-95234-635-0
01
1
0607-
52
CLIP; CONT CABLE
(D) ID=7 L=50
9-09524-685-0
01
1
0509-0606
52
CLIP; CONT CABLE
(D) ID=7 L=50
0-95234-685-0
01
1
0607-
53
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0509-0602
53
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
59
BRACKET; CLIP
(A)
1-47475-427-1
01
1
0509-
59
BRACKET; CLIP
(B) L=115 B=25
1-47476-758-0
02
1
0509-
59
BRACKET; CLIP
(C)
1-47477-317-0
01
1
0509-
59
BRACKET; CLIP
(D)
1-47477-631-1
01
1
0509-
62
CLIP; OIL PIPE
(F) L=140
5-09707-031-1
02
1
0511-
62
CLIP; OIL PIPE
(D) ID=6 H=20 L=20
1-09700-603-0
03
1
0509-
62
CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
03
1
0509-
62
CLIP; OIL PIPE
(E) ID=24 L=27
1-09700-809-0
01
1
0509-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
03
1
0509-
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
9-09534-825-0
01
1
0509-0606
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
0-95324-825-0
01
1
0607-
63
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
05
1
0509-0512
63
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
0601-
63
BOLT; CLIP
M8X30 FLANGE
0-28680-830-0
01
1
0509-0512
63
BOLT; CLIP
M8X30 FLANGE
0-28650-830-0
01
1
0601-
63
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
03
1
0509-0512
63
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
05
1
0601-0810
63
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
0811-
64
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0509-0602
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-0810
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0811-
65
UNION; OIL PIPE
M12 L=66.5
9-09223-306-1
02
1
0509-0607
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
0608-
68
BRACKET; UNION
(B)
1-47471-040-0
01
1
0509-
68
BRACKET; UNION
(A)
1-53458-374-1
01
1
0509-
69
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0509-0512
69
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0601-
172
HOSE; FLEX,OIL TILT
L=1600
1-09365-052-1
02
1
0509-0909
172
HOSE; FLEX,OIL TILT
L=1600
8-97634-002-0
02
1
0910-
176
NUT; UNION
(A) M12 FLANGE
0-91150-212-0
01
1
0509-0602
176
NUT; UNION
(A) M12 FLANGE
0-91180-212-0
01
1
0603-
176
NUT; UNION
(B) M12
9-09840-280-0
02
1
0509-
177
WASHER; LK,UNION
ID=12.2
9-09150-512-0
02
1
0509-0603
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
0604-
273
WASHER; PL,OIL CYL
ID=10.5 OD=32
9-09164-810-0
01
1
0509-0605
273
WASHER; PL,OIL CYL
ID=10.5 OD=32
0-91614-810-0
01
1
0606-
