5-10 — CAB MOUNTING; FRAME SIDE (#29704) — 171 parça

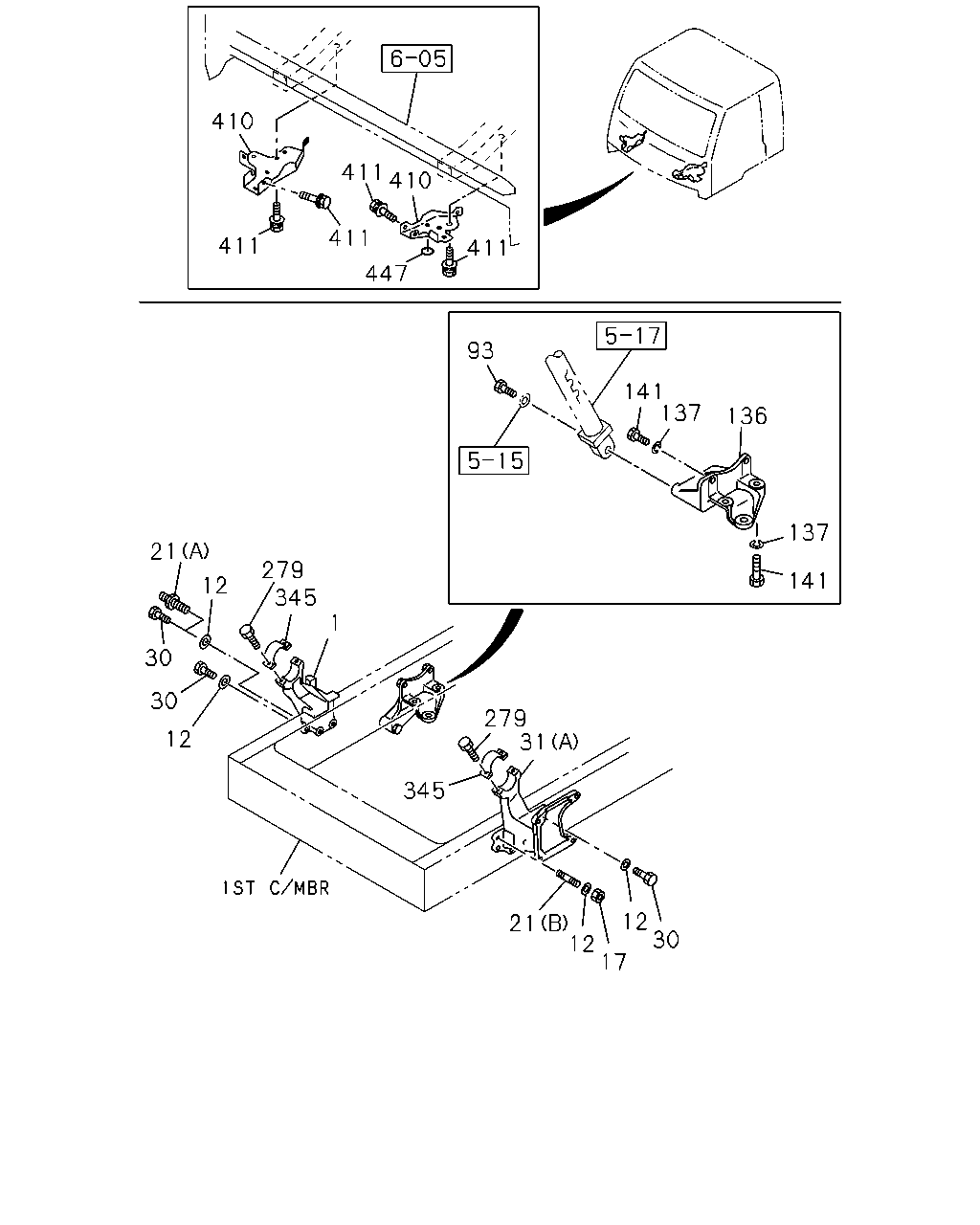

çizim 87986
410 411 410 411 411 411 447 93 141 137 136 137 21 279 345 141 12 1 30 30 279 31 12 345 12 30 21 12 17
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 1-53453-306-1 01 1 0908-
12 WASHER; LK,BRKT
ID=16.2 		1-09503-223-0 11 1 0509-
12 WASHER; LK,BRKT
ID=15 		9-09651-069-0 02 1 0509-1201
12 WASHER; LK,BRKT
ID=15 		8-98010-627-1 02 1 1202-
17 NUT; BRKT,CAB TILT
M16 		9-99110-516-0 01 1 0509-0512
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 0601-
21 STUD; BRKT,CAB TILT
(A) M10X20,M16X50 L=81 		1-09029-069-0 02 1 0509-
21 STUD; BRKT,CAB TILT
(B) M16X50 L=74 		1-09300-117-0 01 1 0509-
30 BOLT; CAB FRT FOOT
M14X60 		9-92061-460-0 02 1 0509-0512
30 BOLT; CAB FRT FOOT
M14X60 		0-20951-460-0 02 1 0601-
30 BOLT; CAB FRT FOOT
M16X45 		9-92061-645-0 03 1 0509-
30 BOLT; CAB FRT FOOT
M16X50 		9-92061-650-0 05 1 0509-0512
30 BOLT; CAB FRT FOOT
M16X50 		0-20951-650-0 05 1 0601-
31 BRACKET; CAB
(A) 		1-44226-177-3 01 1 0509-
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 0509-
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 0509-
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 0509-
136 BRACKET; OIL CYL 1-53458-903-0 01 1 0509-
137 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0509-1201
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1202-
141 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0509-0512
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0601-
279 BOLT
M12X40 FLANGE 		0-28091-240-0 04 1 0509-0512
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 0601-
345 CAP; CAB 1-53458-336-3 02 1 0509-
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 0509-
410 REINFORCEMENT; CAB TILT 1-62570-939-0 01 1 0509-
411 BOLT; REINFORCEMENT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0509-0904
411 BOLT; REINFORCEMENT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
411 BOLT; REINFORCEMENT
M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 0509-
447 SEAL
OD=25 BLACK 		1-76798-019-0 03 1 0509-
çizim 88271
202 202 203 69 72 204 205 65 204 203 70
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 0509-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0509-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0509-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 0509-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 0509-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0509-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0509-1007
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0509-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 02 1 0509-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 04 1 0509-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 02 1 0509-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 08 1 0509-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0509-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 0509-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 08 1 0509-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 02 1 0509-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 06 1 0509-
çizim 88272
202 294 202 203 204 205 204 203 201 173 203 204 205 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date
173 MEMBER; CAB MTG RR 1-53450-686-3 01 1 0509-1003
173 MEMBER; CAB MTG RR 8-98166-348-0 01 1 1004-
174 OUTRIGGER 1-53456-277-3 01 1 0509-1003
174 OUTRIGGER 8-98158-645-0 01 1 1004-
174 OUTRIGGER 1-53456-278-3 01 1 0509-1003
174 OUTRIGGER 8-98158-646-0 01 1 1004-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 0509-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0509-1007
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0509-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 02 1 0509-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 04 1 0509-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 02 1 0509-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 08 1 0509-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0509-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 0509-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 08 1 0509-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 02 1 0509-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 06 1 0509-
294 MEMBER; FLOATING 1-53454-950-3 01 1 0509-
çizim 104000

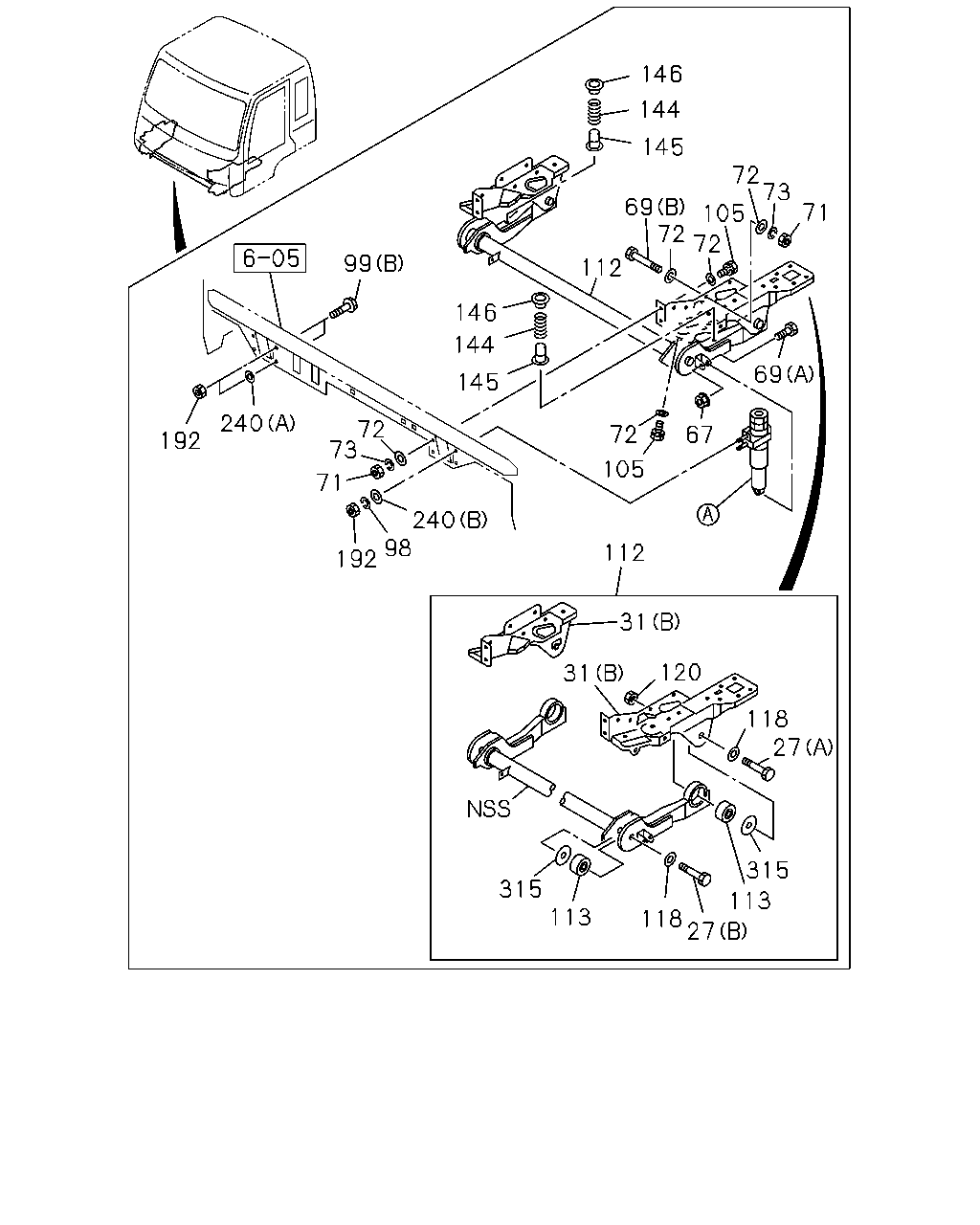

146 144 145 72 73 69 72 72 71 105 99 112 146 144 69 145 240 72 73 72 67 192 105 71 240 98 192 112 31 120 31 118 27 315 315 113 113 118 27
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 0509-
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 0509-
31 BRACKET; CAB
(A) 		1-44226-177-3 01 1 0509-
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 0509-
31 BRACKET; CAB
(B) 		1-53453-280-2 01 1 0509-
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91150-212-0 02 1 0509-0602
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 0603-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0509-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0509-
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 0509-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0509-
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 0509-
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 0509-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0509-0512
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0509-0512
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 14 1 0509-
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-567-7 01 1 0509-
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 0509-
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 0509-
120 NUT; STOPPER RUBBER,LINK ARM
M18 		9-99110-518-0 02 1 0509-0512
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 0601-
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 0509-
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 0509-
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 0509-
192 NUT; BRKT FIX
M10 		1-09984-142-0 04 1 0509-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0509-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0509-
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0509-0605
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0606-
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 0509-
çizim 104001

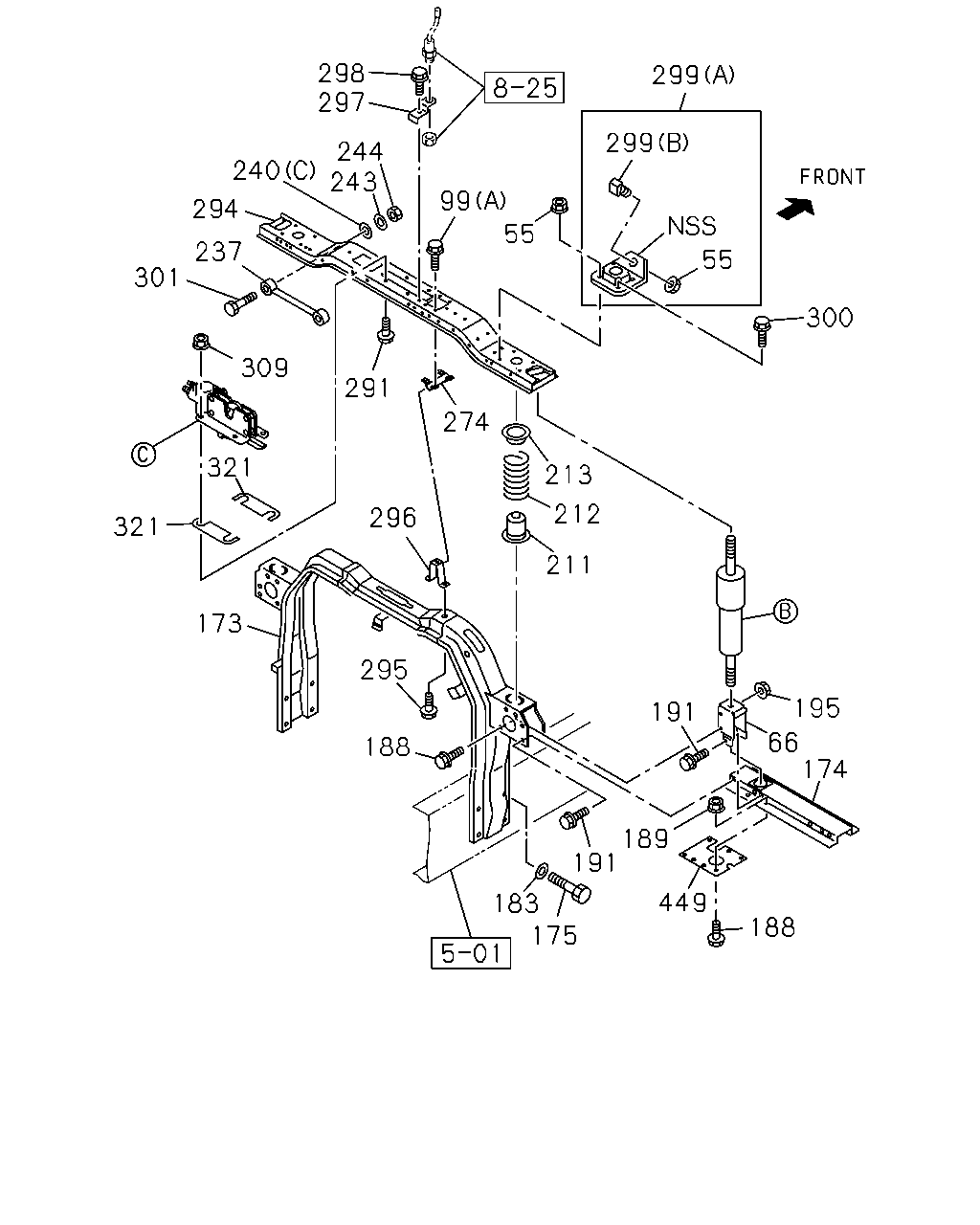

298 297 299 299 244 243 240 99 294 55 237 55 301 300 309 291 274 321 213 212 296 321 211 173 295 195 191 66 174 188 189 191 449 183 175 188
BalonParca AdiParca NoAdetTipApplied Date
55 NUT; RUBBER
M8 FLANGE 		0-91150-108-0 06 1 0509-0602
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 0603-
66 BRACKET; S/ABS 1-53458-755-2 01 1 0509-
66 BRACKET; S/ABS 1-53458-786-0 01 1 0509-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0509-0512
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0509-0512
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
173 MEMBER; CAB MTG RR 1-53450-686-3 01 1 0509-1003
173 MEMBER; CAB MTG RR 8-98166-348-0 01 1 1004-
174 OUTRIGGER 1-53456-277-3 01 1 0509-1003
174 OUTRIGGER 8-98158-645-0 01 1 1004-
174 OUTRIGGER 1-53456-278-3 01 1 0509-1003
174 OUTRIGGER 8-98158-646-0 01 1 1004-
175 BOLT; MEMBER TO FRAME
M14X40 		9-92061-440-0 08 1 0509-0512
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 0601-
183 WASHER; PL,MEMBER
ID=15 		9-09651-069-0 08 1 0509-1201
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1202-
188 BOLT; OUTRIGGER
M10X20 FLANGE 		0-28681-020-0 04 1 0509-0512
188 BOLT; OUTRIGGER
M10X20 FLANGE 		0-28651-020-0 04 1 0601-
188 BOLT; OUTRIGGER
M10X25 FLANGE 		0-28681-025-0 08 1 0509-0512
188 BOLT; OUTRIGGER
M10X25 FLANGE 		0-28651-025-0 08 1 0601-
189 NUT; OUTRIGGER
M10 FLANGE 		0-91150-210-0 04 1 0509-0602
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 0603-
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28681-025-0 07 1 0509-0512
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 0601-
195 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 04 1 0509-0602
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0603-
211 RUBBER; CUSHION,S/ABS 1-53366-128-0 02 1 0509-
212 SPRING; COIL 1-09580-515-0 02 1 0509-
213 SEAT; SPR,S/ABS 1-53366-132-1 02 1 0509-
237 ROD ASM; LATERAL 1-53458-343-0 01 1 0509-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0509-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0509-
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0509-0605
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0606-
243 WASHER; LK,LATERAL ROD
ID=12.2 		9-09150-512-0 02 1 0509-0603
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 0604-
244 NUT; LATERAL ROD
M12 		9-99110-512-0 02 1 0509-0512
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 0601-
274 PIN 1-53458-996-0 01 1 0509-
291 BOLT; RATCH
M10X25 FLANGE 		0-28681-025-0 04 1 0509-0512
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
294 MEMBER; FLOATING 1-53454-950-3 01 1 0509-
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28681-020-0 02 1 0509-0512
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 0601-
296 STOPPER; UPR 1-53458-973-1 01 1 0509-
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 0509-
298 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0509-0512
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 0509-
299 RUBBER; MTG
(A) 		1-53366-156-0 02 1 0509-0812
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 0901-
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 0509-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 0509-
309 NUT
M10 FLANGE 		0-91150-210-0 04 1 0509-0602
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603-
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 0509-
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 0509-
çizim 104102

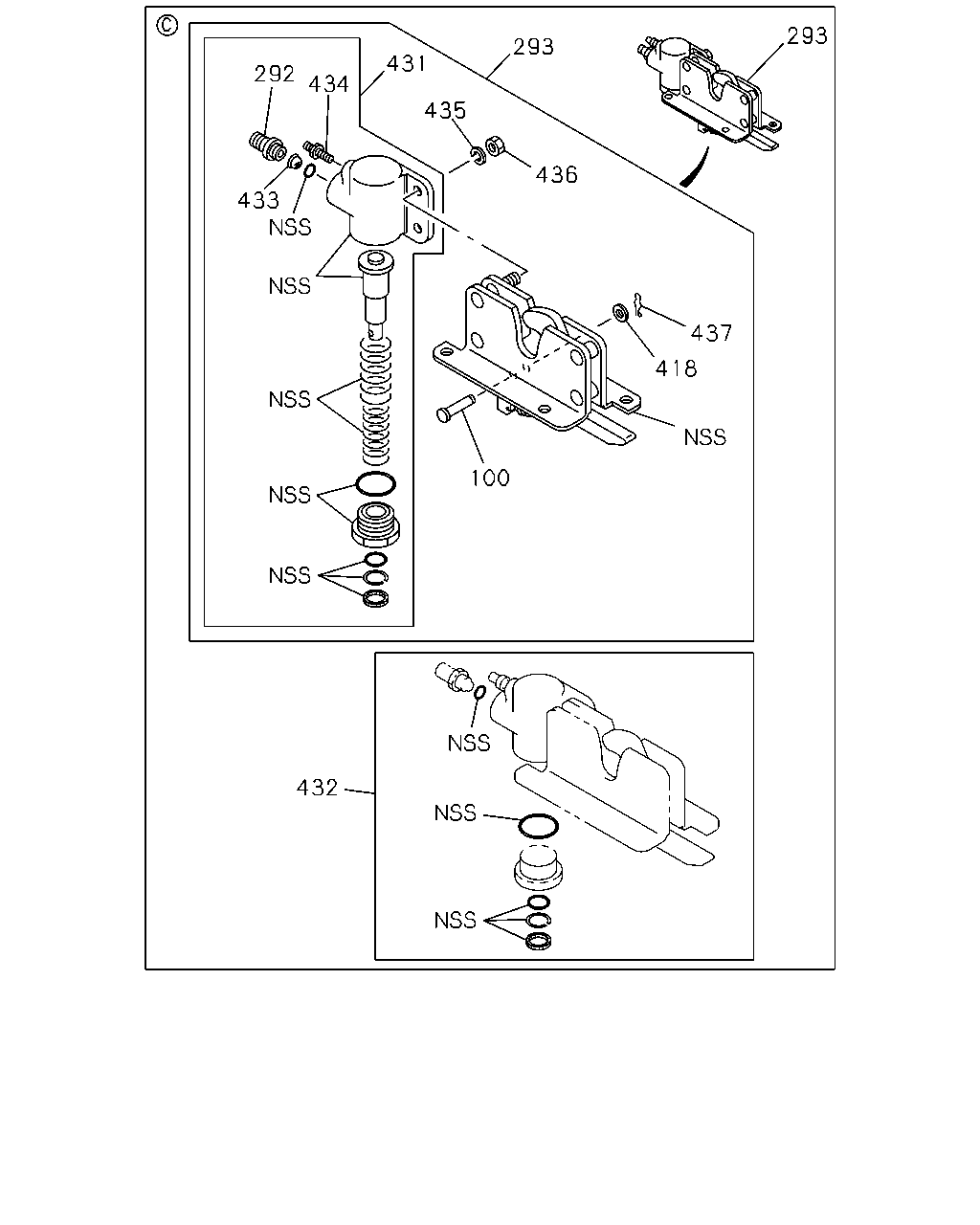

293 293 431 292 434 435 436 433 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date
100 PIN; JOINT 1-53458-831-0 01 1 0509-
292 CONNECTOR; CAB SUSPENSION
M12 		1-53458-941-0 01 1 0509-
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 0509-
418 WASHER; PL,PIN 1-53458-059-0 01 1 0509-
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 0509-
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 0509-
433 FILTER; AIR CYL 1-53458-048-0 01 1 0509-
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 0509-
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 0509-
436 NUT; AIR CYL 1-53458-528-0 02 1 0509-
437 PIN; SNAP 1-53458-526-0 01 1 0509-
