4-80 — ROAD WHEEL (#29702) — 63 parça

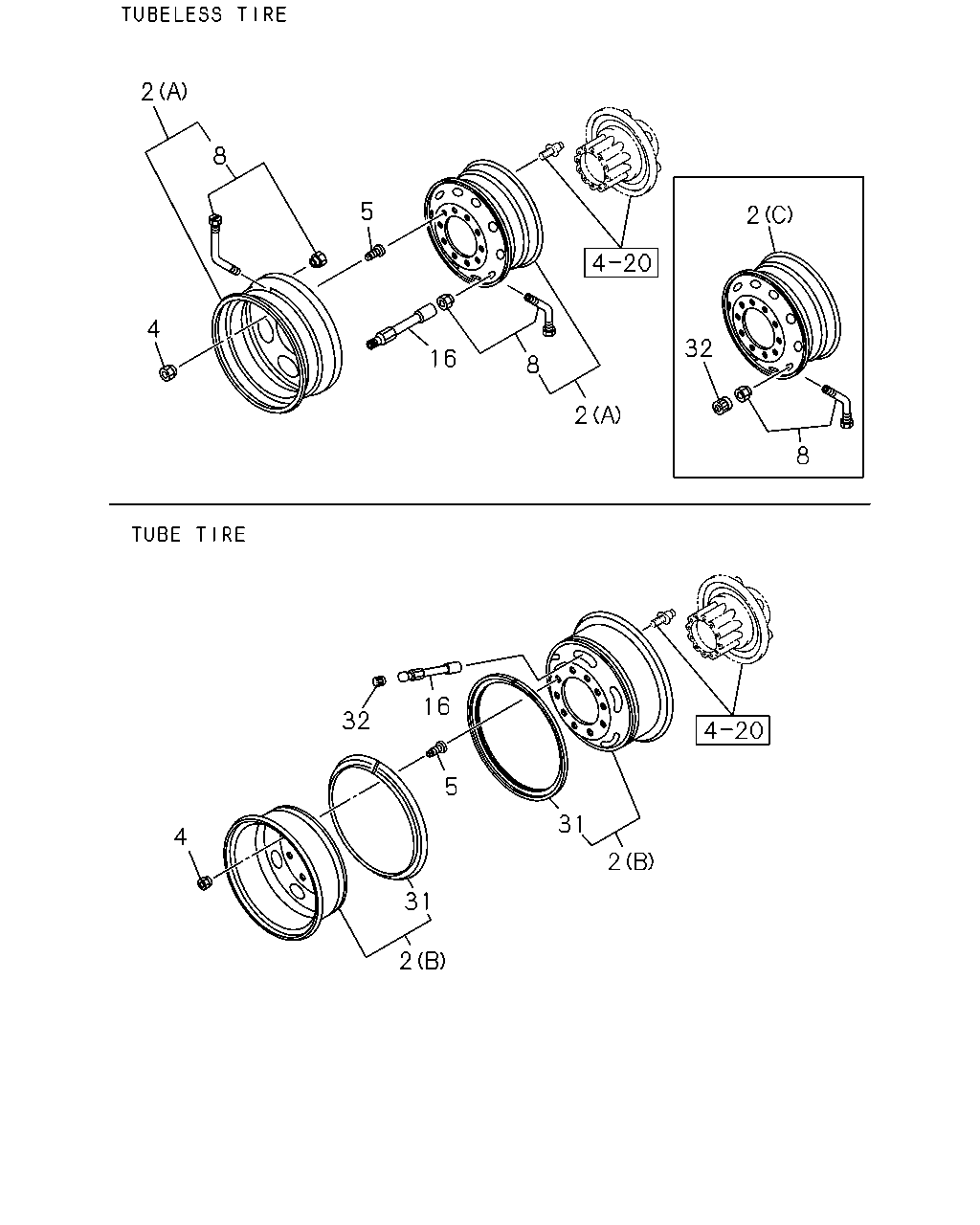

2 8 5 2 4 32 16 8 2 8 16 32 5 31 4 2 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42350-646-0	10	1	0509-0605
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	1-42350-730-0	10	1	0606-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98217-247-0	10	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98281-497-0	10	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-646-0	01	1	0509-0605
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-730-0	01	1	0606-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-448-0	10	1	0509-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	0509-
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	40	1	0509-0907
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	40	1	0908-
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30	1-42333-023-0	16	1	0509-0610
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 RH THREAD	8-97359-809-0	16	1	0611-
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	1-42334-023-0	16	1	0509-0610
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	8-97359-810-0	16	1	0611-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	1-42335-005-1	16	1	0509-0610
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	0611-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	1-42336-005-1	16	1	0509-0610
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	0611-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-020-3	10	1	0509-1205
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-048-0	10	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-019-3	10	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0509-1205
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42370-019-3	01	1	1408-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) L=170	1-42370-024-0	04	1	0509-1003
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) L=170	8-98167-052-0	04	1	1004-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	10	1	0509-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	0509-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	10	1	0606-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	0606-
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0509-
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0509-

2 8 8 33 32 2 3 33 3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	1-42350-646-0	10	1	0509-0605
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	1-42350-730-0	10	1	0606-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98217-247-0	10	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	8-98281-497-0	10	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-646-0	01	1	0509-0605
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-730-0	01	1	0606-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-448-0	10	1	0509-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	0509-
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	20	1	0509-0907
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	20	1	0908-
3	NUT; WHEEL,FRT AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24	1-42333-022-3	08	1	0509-
3	NUT; WHEEL,FRT AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24 LH THREAD	1-42334-022-3	08	1	0509-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-020-3	10	1	0509-1205
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-048-0	10	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-019-3	10	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	0509-1205
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42370-019-3	01	1	1408-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	10	1	0509-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42355-014-0	01	1	0509-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	10	1	0606-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	0606-
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	0509-
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	06	1	0509-
33	COVER; WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> RUSSIA COUNTRY<CZ3>	1-43139-065-0	02	1	0810-0901
33	COVER; WHEEL INTERNATIONAL STANDARD ISO 10STUD<B3V> RUSSIA COUNTRY<CZ3> EXC. CHINA EQUIPMENT(YT2)	1-43139-065-1	02	1	0902-
33	COVER; WHEEL CHINA EQUIPMENT(YT2)	1-43139-065-1	02	1	0902-
