1-10 — RADIATOR (#2970) — 100 parça

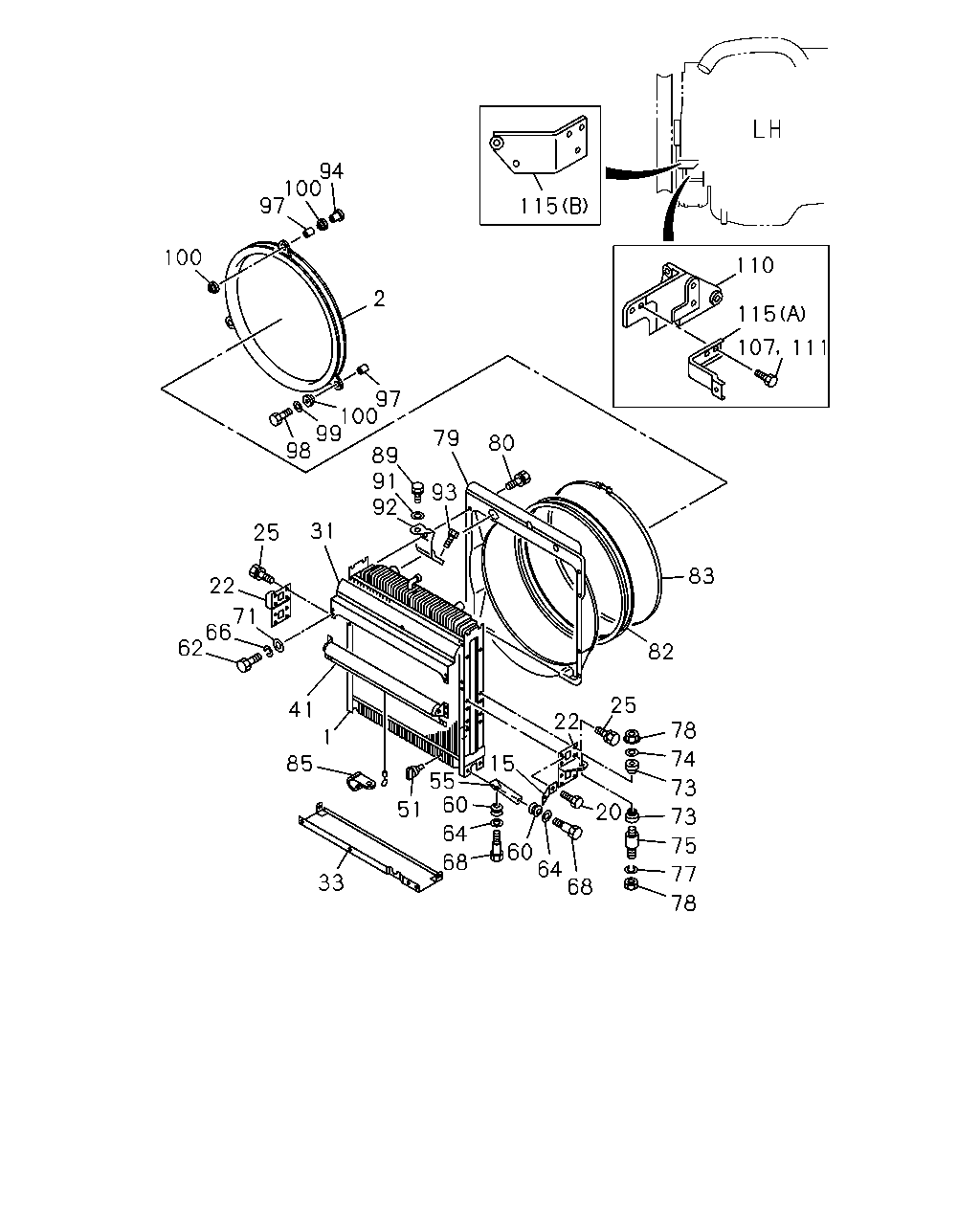

çizim 4999
78 77 75 73 73 74 78 25 22 20 68 64 60 68 64 60 55 51 33 85 1 41 62 66 71 22 25 31 92 91 89 93 79 80 83 82 98 99 100 97 2 100 97 100 94 115 110 115 111 107 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-634-0 01 1 9002-9306 ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> 		1-21410-501-1 01 1 9002-9306 ●
1 RADIATOR ASM
EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> 		1-21410-501-1 01 1 9002-9306 ●
1 RADIATOR ASM
CONCRETE PUMP<RA5> 		1-21410-484-1 01 1 9002- ●
1 RADIATOR ASM
EXC. CONCRETE PUMP<RA5> 		1-21410-501-1 01 1 9307- ●
1 RADIATOR ASM
FIRE TRUCK<RA9> 		1-21410-506-1 01 1 9002-9306 ●
2 GUIDE; FAN 1-21551-235-3 01 1 9002- ● ●
15 BRACKET; PIPE,RAD
RADIATOR HEAVY DUTY<V05> 		1-21464-284-0 01 1 9002-9306 ●
15 BRACKET; PIPE,RAD
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-244-0 01 1 9002-9106 ●
15 BRACKET; PIPE,RAD
FIRE TRUCK<RA9> 		1-21464-244-0 01 1 9002-9106 ●
15 BRACKET; PIPE,RAD
EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>,CAB SUSPENSION RIGID<W71> 		1-21464-244-0 01 1 9002-9106 ●
15 BRACKET; PIPE,RAD
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-244-0 01 1 9107- ●
15 BRACKET; PIPE,RAD
EXC. CONCRETE PUMP<RA5> 		1-21464-244-0 01 1 9107- ●
15 BRACKET; PIPE,RAD
CAB SUSPENSION RIGID<W71> EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> 		1-21464-243-0 01 1 9002-9106 ●
15 BRACKET; PIPE,RAD
CONCRETE PUMP<RA5> 		1-21464-243-0 01 1 9002-9106 ●
15 BRACKET; PIPE,RAD
CONCRETE PUMP<RA5> 		1-21464-243-0 01 1 9107- ●
20 BOLT; PIPE BRKT,RAD
RADIATOR HEAVY DUTY<V05> M8X20 		9-01970-820-0 01 1 9002-9306 ●
20 BOLT; PIPE BRKT,RAD
EXC. RADIATOR HEAVY DUTY<V05> M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9002-9306 ●
20 BOLT; PIPE BRKT,RAD
M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9002-9306 ●
20 BOLT; PIPE BRKT,RAD
M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9307- ●
22 BRACKET; RAD MTG 1-21464-115-1 01 1 9002- ●
22 BRACKET; RAD MTG
EXC. CONCRETE PUMP<RA5> 		1-21464-115-1 01 1 9002- ●
22 BRACKET; RAD MTG 1-21464-114-1 01 1 9002- ●
22 BRACKET; RAD MTG
EXC. CONCRETE PUMP<RA5> 		1-21464-114-1 01 1 9002- ●
22 BRACKET; RAD MTG
CONCRETE PUMP<RA5> 		1-21464-094-1 01 1 9002- ●
22 BRACKET; RAD MTG
CONCRETE PUMP<RA5> 		1-21464-093-1 01 1 9002- ●
25 BOLT; BRKT
RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER 		9-01970-818-0 15 1 9002-9306 ●
25 BOLT; BRKT
EXC. RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER 		9-01960-818-0 19 1 9002- ●
25 BOLT; BRKT
EXC. CONCRETE PUMP<RA5> M8X18 W/LK&PL WASHER 		9-01960-818-0 19 1 9002- ●
25 BOLT; BRKT
CONCRETE PUMP<RA5> M8X18 W/LK&PL WASHER 		9-01960-818-0 15 1 9002- ●
31 BRACKET; UPR,RAD
RADIATOR HEAVY DUTY<V05> 		1-21460-080-1 01 1 9002-9306 ●
31 BRACKET; UPR,RAD
EXC. RADIATOR HEAVY DUTY<V05> 		1-21460-076-4 01 1 9002-9106 ●
31 BRACKET; UPR,RAD
EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>,CAB SUSPENSION RIGID<W71> 		1-21460-076-4 01 1 9002-9106 ●
31 BRACKET; UPR,RAD
EXC. RADIATOR HEAVY DUTY<V05> 		1-21460-076-4 01 1 9107- ●
31 BRACKET; UPR,RAD
EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> 		1-21460-076-4 01 1 9107- ●
31 BRACKET; UPR,RAD
CAB SUSPENSION RIGID<W71> EXC. CONCRETE PUMP<RA5> 		1-21460-078-3 01 1 9002-9106 ●
31 BRACKET; UPR,RAD
FIRE TRUCK<RA9> 		1-21460-078-3 01 1 9107-9306 ●
33 PROTECTOR; RAD
L=120 		1-21419-030-2 01 1 9002- ●
33 PROTECTOR; RAD
EXC. FIRE TRUCK<RA9> L=120 		1-21419-030-2 01 1 9002- ●
33 PROTECTOR; RAD
FIRE TRUCK<RA9> 		1-21419-034-1 01 1 9002-9306 ●
41 SHUTTER ASM; RAD
RADIATOR CURTAIN<SK7> 		1-21511-090-1 01 1 9002- ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9002- ● ●
55 STAY; RAD TO UPR MBR
RADIATOR HEAVY DUTY<V05> 		1-21464-081-1 01 1 9002-9306 ●
55 STAY; RAD TO UPR MBR
RADIATOR HEAVY DUTY<V05> 		1-21464-080-1 01 1 9002-9306 ●
55 STAY; RAD TO UPR MBR
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-113-1 01 1 9002- ●
55 STAY; RAD TO UPR MBR
EXC. CONCRETE PUMP<RA5> 		1-21464-113-1 01 1 9002- ●
55 STAY; RAD TO UPR MBR
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-112-1 01 1 9002- ●
55 STAY; RAD TO UPR MBR
EXC. CONCRETE PUMP<RA5> 		1-21464-112-1 01 1 9002- ●
55 STAY; RAD TO UPR MBR
CONCRETE PUMP<RA5> 		1-21464-077-2 01 1 9002- ●
55 STAY; RAD TO UPR MBR
CONCRETE PUMP<RA5> 		1-21464-076-2 01 1 9002- ●
60 GROMMET 1-09332-117-0 04 1 9002- ● ●
62 BOLT; STAY
RADIATOR HEAVY DUTY<V05> M10X20 		9-02041-020-0 04 1 9002-9306 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 9002- ● ●
66 WASHER; LK,STAY
RADIATOR HEAVY DUTY<V05> ID=10.2 		9-09150-510-0 04 1 9002-9306 ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 04 1 9002- ● ●
71 WASHER; PL,STAY
RADIATOR HEAVY DUTY<V05> ID=10.5 OD=22 		9-09160-610-0 04 1 9002-9306 ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9002- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9002- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9002- ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9002- ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		5-09440-006-0 02 1 9002- ● ●
78 NUT; CUSHION RUBBER
M12 		9-99110-412-0 02 1 9002-9304 ● ●
78 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 9305- ● ●
79 GUIDE; FAN,RAD
RADIATOR HEAVY DUTY<V05> 		1-21551-216-1 01 1 9002-9306 ●
79 GUIDE; FAN,RAD
EXC. RADIATOR HEAVY DUTY<V05> 		1-21551-242-1 01 1 9002- ●
79 GUIDE; FAN,RAD
EXC. CONCRETE PUMP<RA5> 		1-21551-242-1 01 1 9002- ●
79 GUIDE; FAN,RAD
CONCRETE PUMP<RA5> CAB SUSPENSION RIGID<W71> 		1-21551-265-1 01 1 9002-9106 ●
79 GUIDE; FAN,RAD
CONCRETE PUMP<RA5> EXC. CAB SUSPENSION RIGID<W71> 		1-21551-312-0 01 1 9002-9106 ●
79 GUIDE; FAN,RAD
CONCRETE PUMP<RA5> 		1-21551-312-0 01 1 9107- ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 17 1 9002- ● ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 9002- ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9002- ● ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9002- ● ●
85 CLIP
RADIATOR CURTAIN<SK7> EXC. RADIATOR HEAVY DUTY<V05> 		9-09520-835-0 01 1 9002- ●
85 CLIP
RADIATOR CURTAIN<SK7> EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>,CAB SUSPENSION RIGID<W71> 		9-09520-835-0 01 1 9002- ●
89 BOLT
M8X20 W/LK WASHER 		9-01910-820-0 01 1 9002-9005 ● ●
89 BOLT
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9006-9302 ● ●
89 BOLT
M8X20 FLANGE 		0-28080-820-0 01 1 9303- ● ●
91 WASHER; PL
ID=8.4 OD=22 		9-09164-708-0 02 1 9002- ● ●
92 BRACKET; FAN GUIDE 1-21559-220-1 01 1 9002- ● ●
93 BOLT; BRKT FIX
M8X20 W/LK WASHER 		9-01910-820-0 02 1 9002-9005 ● ●
93 BOLT; BRKT FIX
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9006-9302 ● ●
93 BOLT; BRKT FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9303- ● ●
93 BOLT; BRKT FIX
M8X25 W/LK WASHER 		9-01910-825-0 01 1 9002-9005 ● ●
93 BOLT; BRKT FIX
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9006-9302 ● ●
93 BOLT; BRKT FIX
M8X25 FLANGE 		0-28080-825-0 01 1 9303- ● ●
94 TUBE; DIST 1-11369-113-2 01 1 9002- ● ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 9002- ● ●
98 BOLT; RAD FAN GUIDE
M8X45 		9-01055-845-0 02 1 9002-9005 ● ●
98 BOLT; RAD FAN GUIDE
M8X45 		0-10805-845-0 02 1 9006-9310 ● ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 02 1 9311- ●
98 BOLT; RAD FAN GUIDE
M8X85 		9-01055-885-0 01 1 9002-9005 ● ●
98 BOLT; RAD FAN GUIDE
M8X85 		0-10805-885-0 01 1 9006- ● ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9002- ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9002- ● ●
107 BOLT; BRKT TO STAY
M10X20 W/LK WASHER 		0-50051-020-0 02 1 9002- ●
110 STAY; FAN GUIDE 1-83571-318-1 01 1 9002- ● ●
111 BOLT; BRKT
M10X20 W/LK WASHER 		0-50051-020-0 02 1 9002-9306 ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-210-0 01 1 9002- ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-219-1 01 1 9002- ● ●
