0-13 — OIL PAN AND LEVEL GAUGE (#297) — 57 parça

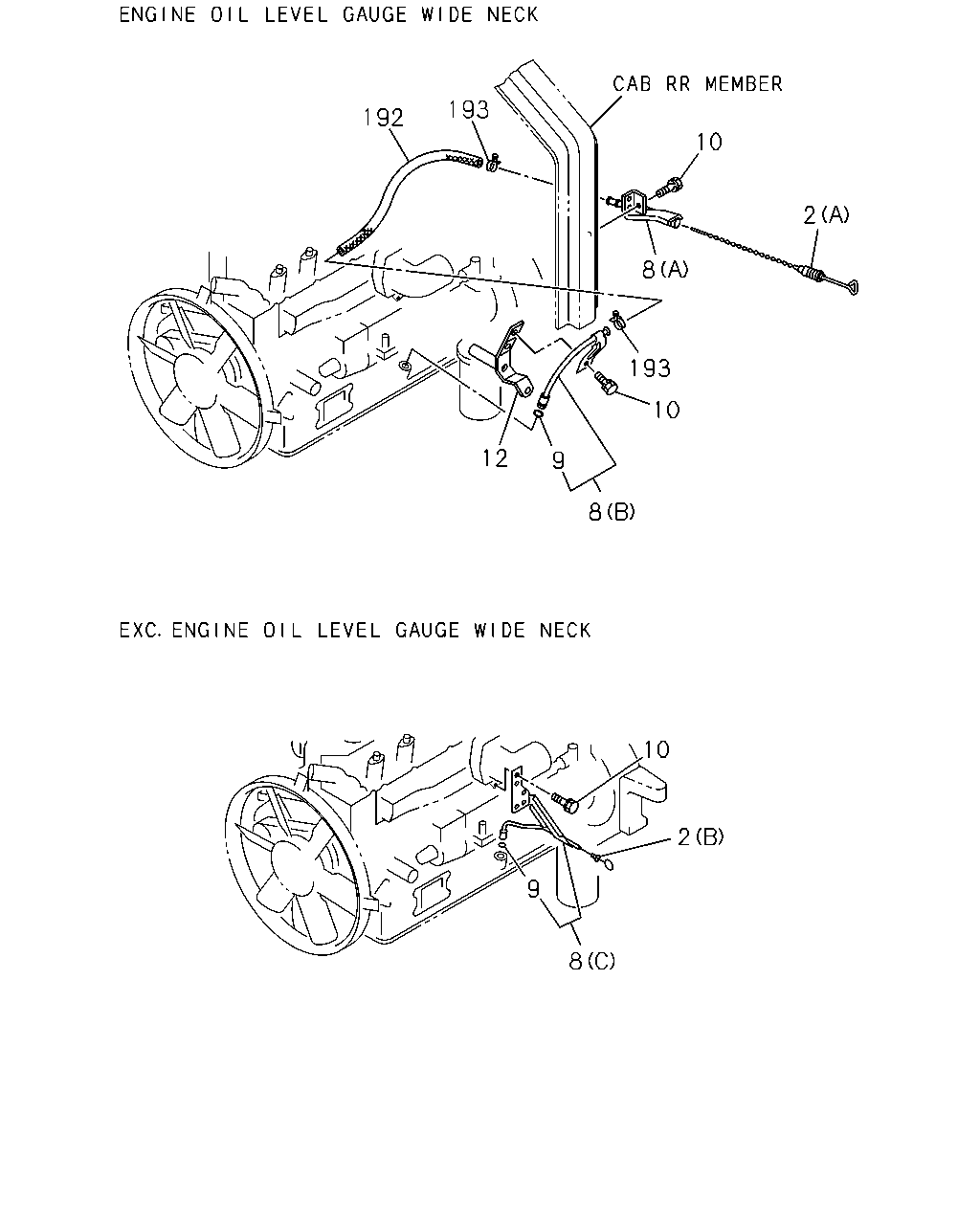

çizim 94209
193 192 10 2 8 193 10 12 9 8 10 2 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL
ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> (A) 		8-94394-687-0 01 1 9202-9204 ● ●
2 GAUGE; OIL LEVEL
ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M>,ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A) 		8-94394-687-0 01 1 9205- ● ●
2 GAUGE; OIL LEVEL
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M>, ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B) 		8-94393-034-0 01 1 9202- ● ●
2 GAUGE; OIL LEVEL
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A) 		8-94393-101-0 01 1 9202-9204 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> (B) 		8-94394-624-0 01 1 9202-9204 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M>,ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B) 		8-94394-624-0 01 1 9205- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M>,ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A) 		8-94393-613-1 01 1 9202- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M>, ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C) 		8-94393-038-0 01 1 9202- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B) 		8-94393-069-0 01 1 9202-9204 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9202- ● ●
10 BOLT; GUIDE TUBE
M8X16 FLANGE 		0-28080-816-0 01 1 9202- ● ●
10 BOLT; GUIDE TUBE
ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> M10X40 M10X140 FLANGE 		8-94373-016-1 01 1 9202- ● ●
10 BOLT; GUIDE TUBE
ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> M10X120 		8-94396-689-0 01 1 9202- ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> 		8-94393-088-1 01 1 9202- ● ●
192 HOSE; GUIDE TUBE
ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M>,ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		0-02311-320-0 01 1 9202- ● ●
193 CLIP; HOSE,GUIDE TUBE
ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M>,ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> ID=17 		1-09707-158-0 02 1 9202- ● ●

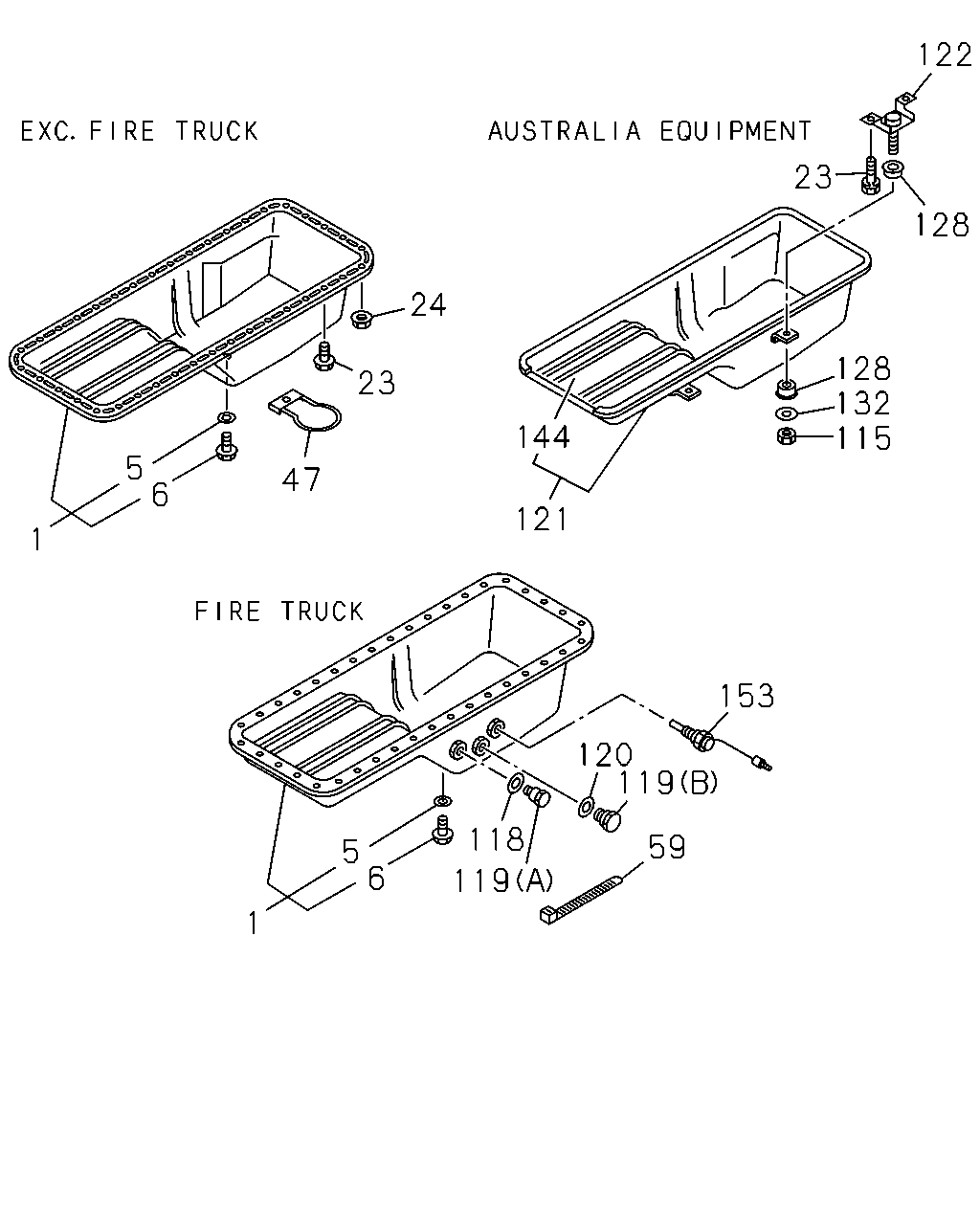

çizim 95429
122 23 128 24 128 132 115 23 144 5 6 47 121 1 153 120 119 118 59 5 6 119 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
AUSTRALIA EQUIPMENT(RR3) 		8-94396-789-0 01 1 9202-9410 ●
1 PAN ASM; OIL
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94396-789-0 01 1 9411- ●
1 PAN ASM; OIL
AUSTRALIA EQUIPMENT(RR3) 		8-94396-789-0 01 1 9411- ●
1 PAN ASM; OIL
EXC. FIRE TRUCK<RA9>,AUSTRALIA EQUIPMENT(RR3) 		8-94393-176-0 01 1 9202-9410 ● ●
1 PAN ASM; OIL
EXC. FIRE TRUCK<RA9>,AUSTRALIA EQUIPMENT(RR3), ANTINOISE EQUIPMENT VAR2<TAK> 		8-94393-176-0 01 1 9411- ● ●
1 PAN ASM; OIL
FIRE TRUCK<RA9> 		8-94396-930-1 01 1 9202- ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-183-0 01 1 9202- ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9202- ● ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 31 1 9202-9501 ● ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 28 1 9502- ● ●
23 BOLT; OIL PAN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 02 1 9202- ● ●
23 BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) M8X28 FLANGE 		0-28080-828-0 02 1 9202- ●
24 NUT; OIL PAN
M8 FLANGE 		8-94328-243-0 01 1 9202-9309 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 01 1 9310-9501 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9502- ● ●
47 CLIP; HOSE,AIR BREATHER
THAILAND EQUIPMENT(PM9) 		1-11369-115-0 01 1 9308- ●
59 CLIP; HARNESS
FIRE TRUCK<RA9> L=180 		1-09707-162-0 01 1 9202- ●
115 NUT; OIL PAN COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		8-94328-243-0 04 1 9202-9309 ●
115 NUT; OIL PAN COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 04 1 9310-9410 ●
115 NUT; OIL PAN COVER
ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE 		0-91150-108-0 04 1 9411- ●
115 NUT; OIL PAN COVER
AUSTRALIA EQUIPMENT(RR3) M8 FLANGE 		0-91150-108-0 04 1 9411- ●
118 GASKET; PLUG,OIL HTR
FIRE TRUCK<RA9> ID=16.2 OD=24 		9-09571-416-0 01 1 9202- ●
119 PLUG; OIL HTR BLIND
FIRE TRUCK<RA9> (A) 		5-09600-009-0 01 1 9202- ●
119 PLUG; OIL HTR BLIND
FIRE TRUCK<RA9> (B) 		5-09600-010-0 01 1 9202- ●
120 GASKET; PLUG,OIL HTR BLIND
ALSO INCLUDED IN GASKET SET(ENGINE). FIRE TRUCK<RA9> ID=36.5 OD=44 		9-09571-436-0 01 1 9202- ●
121 COVER; OIL PAN
AUSTRALIA EQUIPMENT(RR3) 		8-94393-492-0 01 1 9202-9410 ●
121 COVER; OIL PAN
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94393-492-0 01 1 9411- ●
121 COVER; OIL PAN
AUSTRALIA EQUIPMENT(RR3) 		8-94393-492-0 01 1 9411- ●
122 BRACKET; OIL PAN COVER
AUSTRALIA EQUIPMENT(RR3) 		8-94396-827-0 04 1 9202-9410 ●
122 BRACKET; OIL PAN COVER
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94396-827-0 04 1 9411- ●
122 BRACKET; OIL PAN COVER
AUSTRALIA EQUIPMENT(RR3) 		8-94396-827-0 04 1 9411- ●
128 RUBBER; MTG,OIL PAN
AUSTRALIA EQUIPMENT(RR3) 		1-09337-024-0 08 1 9202-9410 ●
128 RUBBER; MTG,OIL PAN
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-09337-024-0 08 1 9411- ●
128 RUBBER; MTG,OIL PAN
AUSTRALIA EQUIPMENT(RR3) 		1-09337-024-0 08 1 9411- ●
132 WASHER; PL,OIL PAN COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=22 		9-09160-708-0 04 1 9202-9410 ●
132 WASHER; PL,OIL PAN COVER
ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=22 		9-09160-708-0 04 1 9411- ●
132 WASHER; PL,OIL PAN COVER
AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=22 		9-09160-708-0 04 1 9411- ●
144 INSULATOR; OIL PAN
AUSTRALIA EQUIPMENT(RR3) 		8-94393-499-0 01 1 9202-9410 ●
144 INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94393-499-0 01 1 9411- ●
144 INSULATOR; OIL PAN
AUSTRALIA EQUIPMENT(RR3) 		8-94393-499-0 01 1 9411- ●
153 THERMOMETER UNIT; OIL
FIRE TRUCK<RA9> 		1-83161-035-0 01 1 9202- ●
