◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10964 - EXZ LHD WEDGE BRAKE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#29699) — 68 parça

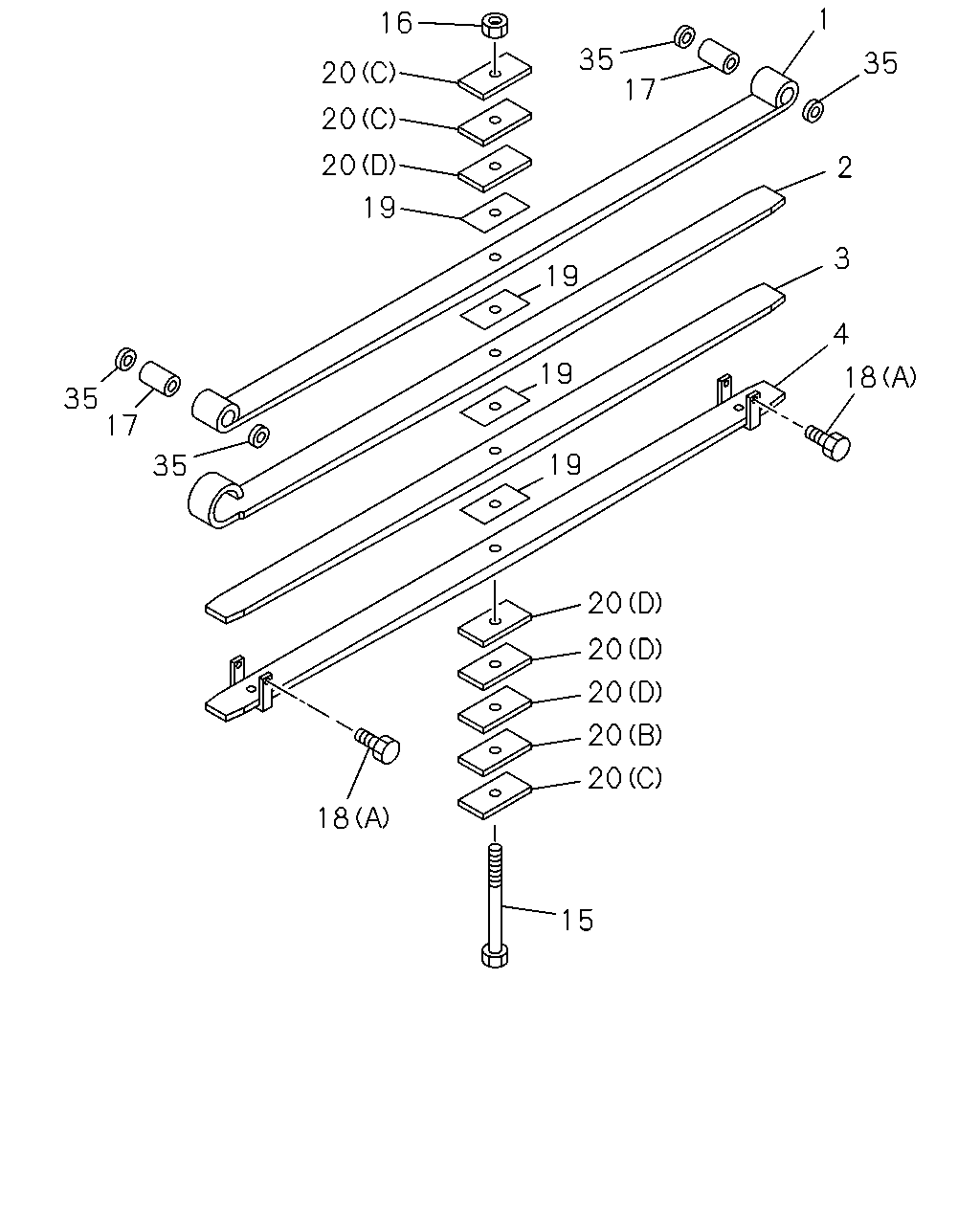

çizim 87998
1 16 35 17 35 20 20 20 2 19 3 19 4 19 18 35 17 19 35 20 20 20 20 20 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-958-0 		1-51131-958-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 1-51130-962-0 		1-51131-962-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-97614-072-0 		8-97615-368-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-98159-659-0 		8-98165-031-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-958-0 		1-51132-958-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 1-51130-962-0 		1-51132-962-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-97614-072-0 		8-97615-369-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-98159-659-0 		8-98165-032-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-958-0 		1-51133-958-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 1-51130-962-0 		1-51133-962-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-370-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-958-0 		1-51134-958-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 1-51130-962-0 		1-51134-962-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-371-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=175 ASM PART: B = 1-51130-962-0, C = 8-97614-072-0, D = 8-98159-659-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=200 ASM PART: A = 1-51130-958-0 		1-51156-415-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-958-0, B = 1-51130-962-0, C = 8-97614-072-0, D = 8-98159-659-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: D = 8-98159-659-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-958-0, B = 1-51130-962-0, C = 8-97614-072-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 1-51130-962-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 1-51130-958-0, B = 1-51130-962-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-958-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-962-0, C = 8-97614-072-0, D = 8-98159-659-0 		1-51177-071-0 07 1 -
20 SEAT; LEAF SPR,FRT
(C), T=7 ASM PART: A = 1-51130-958-0 		1-51177-074-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 1-51130-958-0, B = 1-51130-962-0, C = 8-97614-072-0, D = 8-98159-659-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: B = 1-51130-962-0, C = 8-97614-072-0, D = 8-98159-659-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=15 ASM PART: A = 1-51130-958-0 		1-51177-352-0 04 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-958-0, B = 1-51130-962-0, C = 8-97614-072-0 		1-51177-321-0 04 1 -

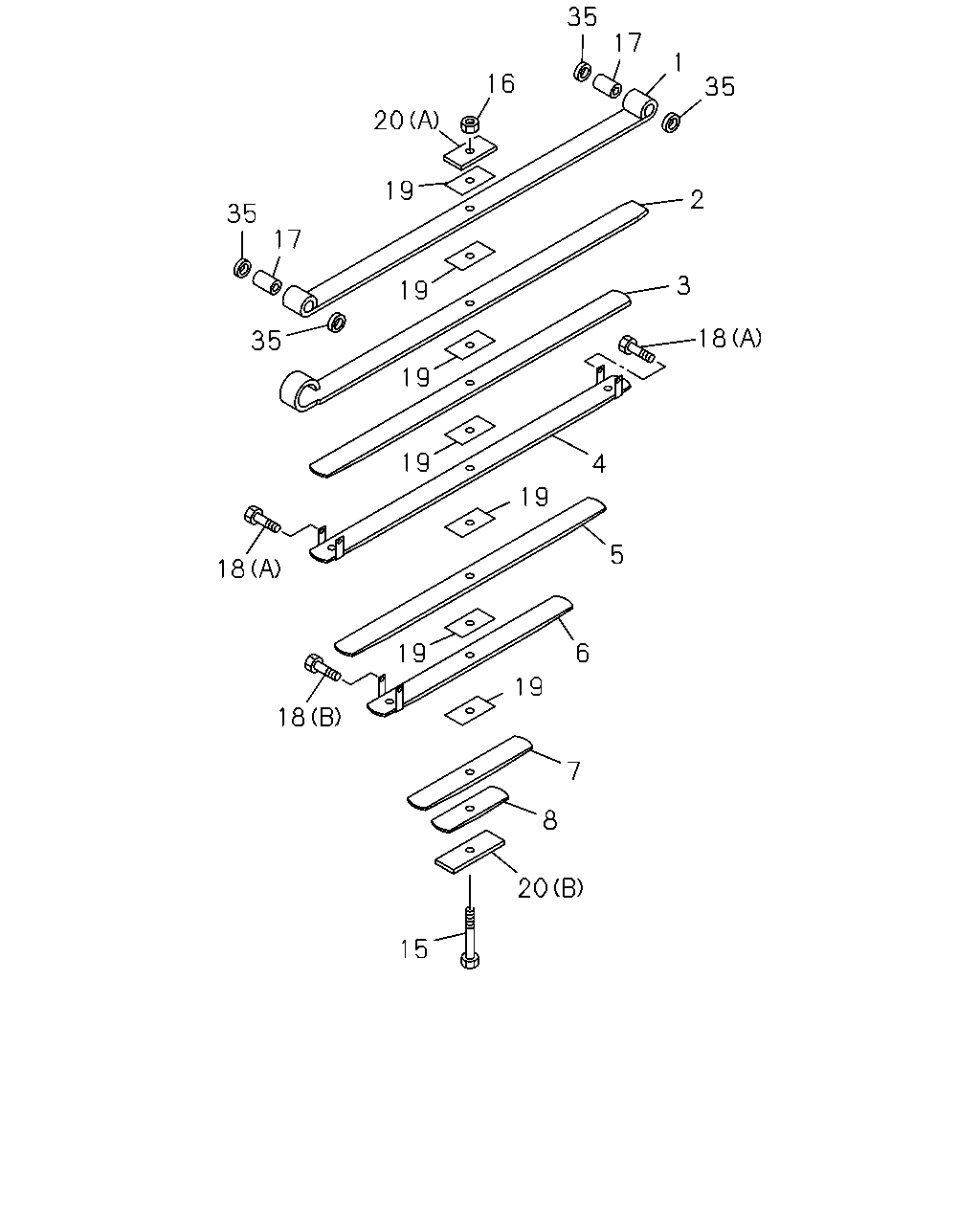

çizim 88014
35 17 1 16 35 20 19 2 35 17 3 19 18 35 19 19 4 19 5 18 19 6 19 18 7 8 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-958-0 		1-51131-958-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 1-51130-962-0 		1-51131-962-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-97614-072-0 		8-97615-368-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-98159-659-0 		8-98165-031-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-958-0 		1-51132-958-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 1-51130-962-0 		1-51132-962-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-97614-072-0 		8-97615-369-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-98159-659-0 		8-98165-032-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-958-0 		1-51133-958-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 1-51130-962-0 		1-51133-962-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-370-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-958-0 		1-51134-958-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 1-51130-962-0 		1-51134-962-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-371-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 1-51130-962-0 		1-51135-962-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-372-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 1-51130-962-0 		1-51136-962-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-373-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: B = 1-51130-962-0 		1-51137-962-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-374-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: B = 1-51130-962-0 		1-51138-962-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-375-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=175 ASM PART: B = 1-51130-962-0, C = 8-97614-072-0, D = 8-98159-659-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=200 ASM PART: A = 1-51130-958-0 		1-51156-415-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-958-0, B = 1-51130-962-0, C = 8-97614-072-0, D = 8-98159-659-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: D = 8-98159-659-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-958-0, B = 1-51130-962-0, C = 8-97614-072-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: B = 1-51130-962-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 1-51130-958-0, B = 1-51130-962-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: C = 8-97614-072-0, D = 8-98159-659-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-958-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-962-0, C = 8-97614-072-0, D = 8-98159-659-0 		1-51177-071-0 07 1 -
20 SEAT; LEAF SPR,FRT
(C), T=7 ASM PART: A = 1-51130-958-0 		1-51177-074-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 1-51130-958-0, B = 1-51130-962-0, C = 8-97614-072-0, D = 8-98159-659-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: B = 1-51130-962-0, C = 8-97614-072-0, D = 8-98159-659-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=15 ASM PART: A = 1-51130-958-0 		1-51177-352-0 04 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-958-0, B = 1-51130-962-0, C = 8-97614-072-0 		1-51177-321-0 04 1 -
