4-50 — FRONT SUSPENSION (#29698) — 59 parça

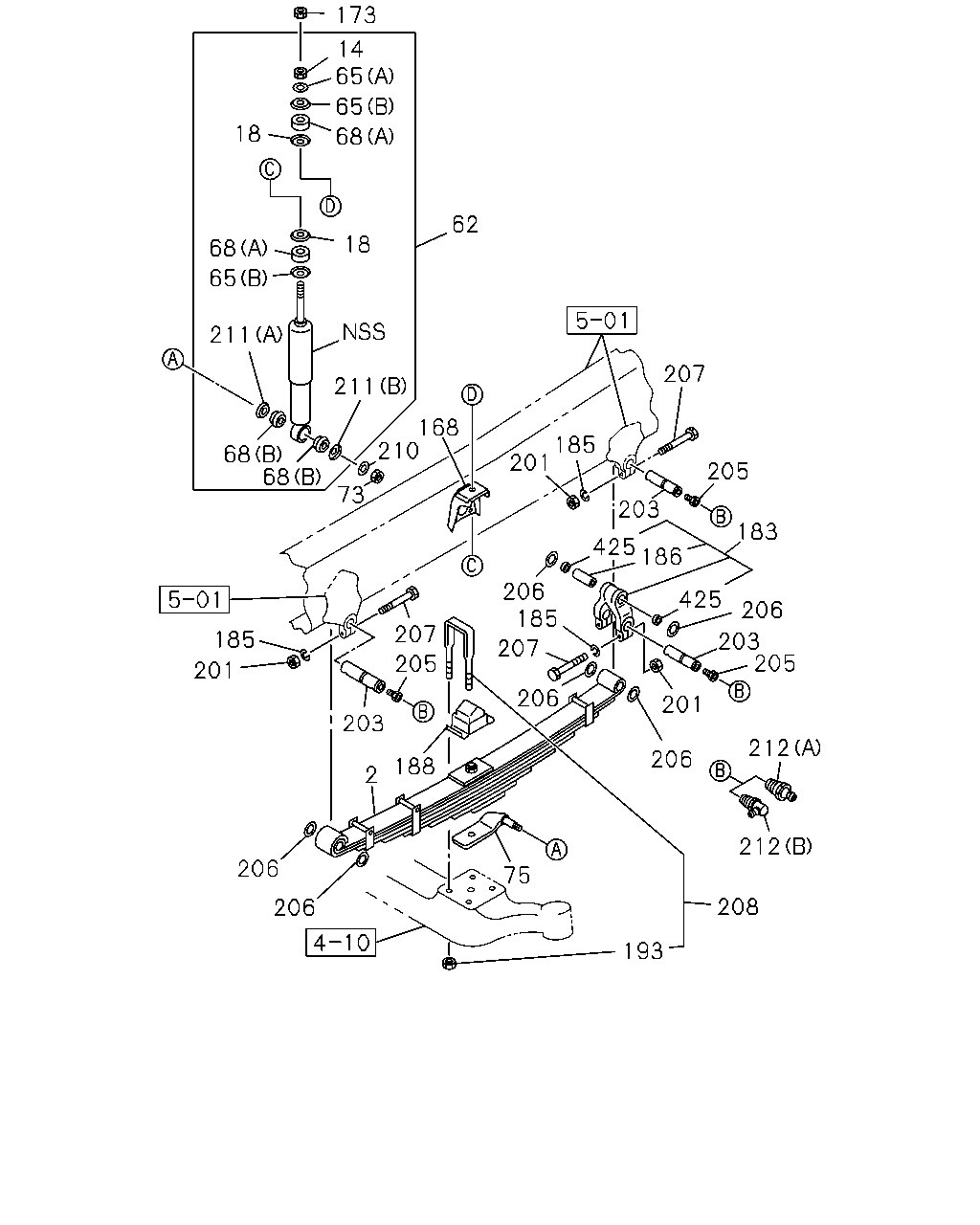

çizim 103999
173 14 65 65 18 68 62 18 68 65 211 207 211 168 210 185 68 68 201 205 73 203 183 425 186 206 185 425 206 207 185 203 205 207 205 201 206 201 203 212 206 188 2 212 206 75 208 206 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		1-51130-958-0 02 1 0603-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-962-0 02 1 0509-0602
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		1-51130-962-0 02 1 0603-0603
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-97614-072-0 02 1 0604-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98159-659-0 02 1 1001-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0509-0602
14 NUT; S/ABS,UPR
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> M14 		9-99111-414-0 02 1 0603-
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0509-0602
18 WASHER; CENTERING,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 04 1 0603-
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-433-1 02 1 0603-
62 ABSORBER ASM; SHOCK,FRT 1-51630-512-0 02 1 0509-0602
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-512-0 02 1 0603-
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0509-0602
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 02 1 0603-
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0509-0602
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 04 1 0603-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0509-0602
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 04 1 0603-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0509-0602
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 04 1 0603-
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0509-0602
73 NUT; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> M20 		9-99110-520-0 02 1 0603-
75 BRACKET; FRT S/ABS 1-51681-825-1 01 1 0509-0602
75 BRACKET; FRT S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> 		1-51681-825-1 01 1 0603-
75 BRACKET; FRT S/ABS 1-51681-826-1 01 1 0509-0602
75 BRACKET; FRT S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> 		1-51681-826-1 01 1 0603-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0509-
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0509-0512
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0601-
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 0509-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1006-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0509-0603
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 0509-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 0509-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0509-0512
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0509-0512
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0509-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0509-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0509-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0509-0512
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601-
208 U-BOLT SET; FRT SPRING
L=250 		1-87870-343-1 04 1 0509-1206
208 U-BOLT SET; FRT SPRING
L=250 		1-87870-494-0 04 1 1207-
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 0509-0602
210 WASHER; S/ABS,OUTER
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> ID=21 		9-09160-520-0 02 1 0603-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0509-0602
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 0603-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0509-0602
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 0603-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 02 1 0509-0512
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 04 1 0509-0512
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 0601-
425 SEAL; DUST 1-51177-321-0 04 1 0509-1005
