◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10964 - EXZ LHD WEDGE BRAKE ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#29696) — 60 parça

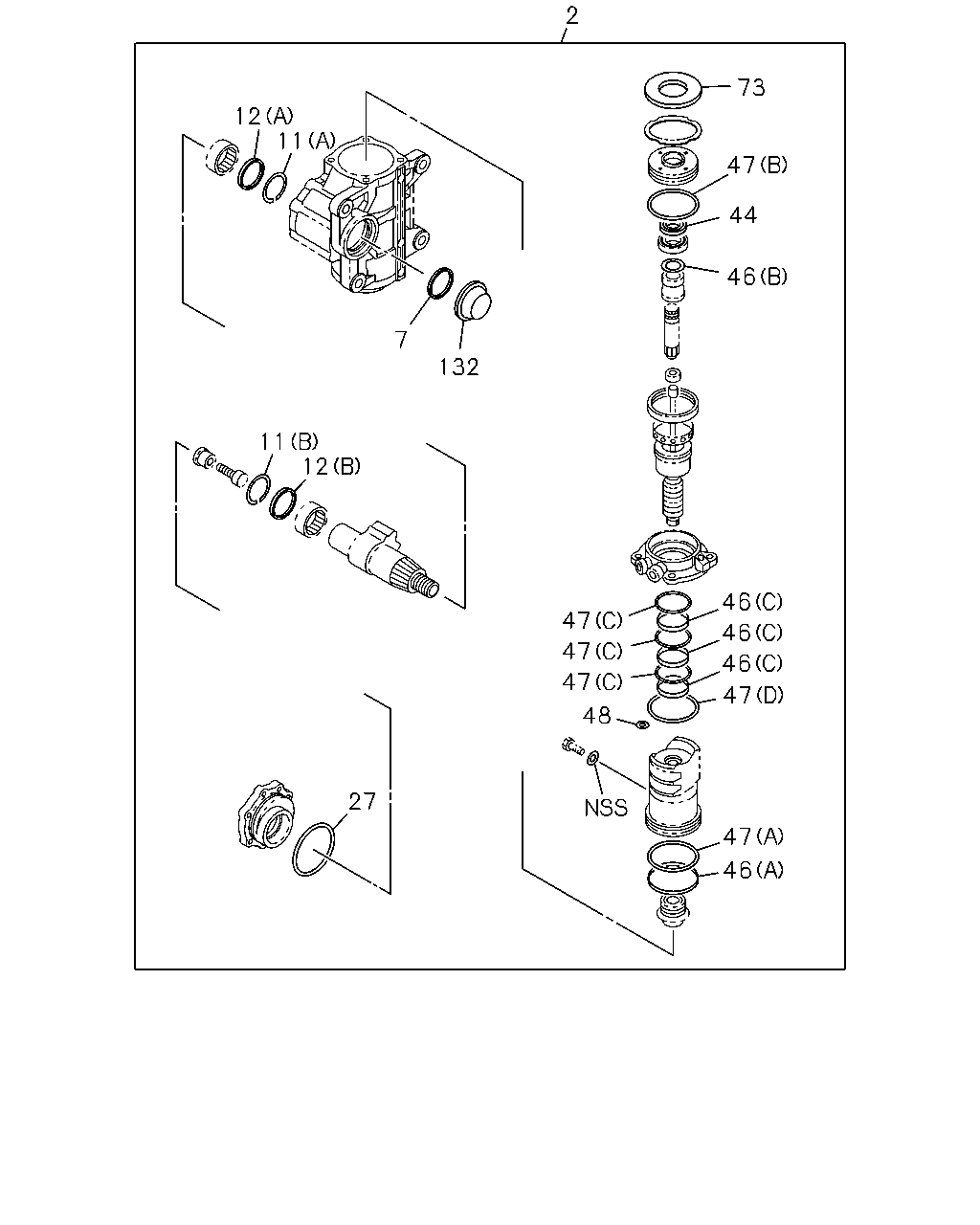

çizim 88266
2 73 12 11 47 44 46 7 132 11 12 46 47 46 47 46 47 47 48 27 47 46
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-916-2 		1-85574-084-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-916-2 		8-98166-304-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-916-2 		8-98159-116-0 01 1 1002-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-916-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-916-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-916-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-916-2 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-916-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-916-2 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-916-2 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-916-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-916-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-916-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-916-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-916-2 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44519-227-0 01 1 -

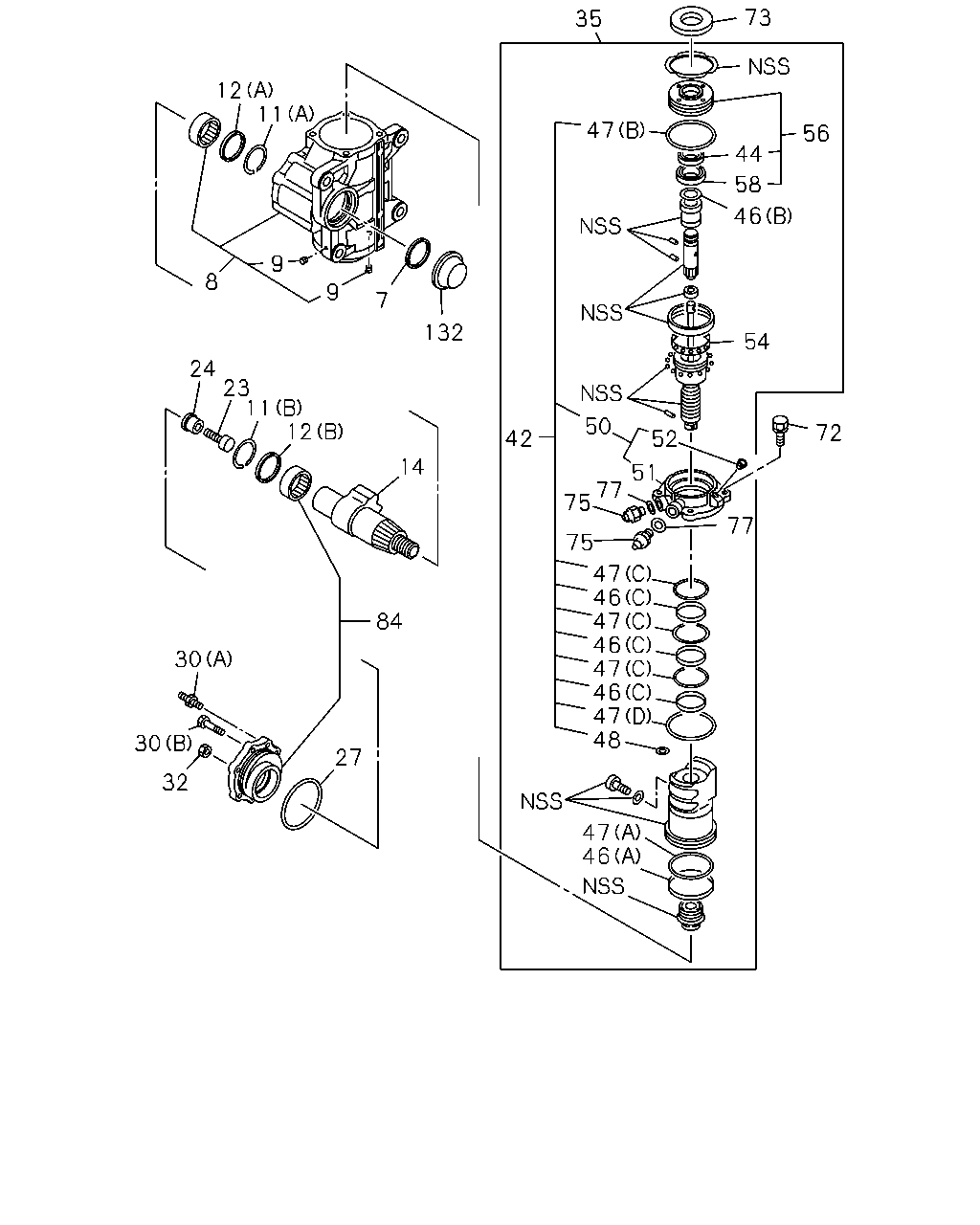

çizim 103996
73 35 12 11 47 56 44 58 46 9 8 9 7 132 54 24 23 11 12 50 72 42 52 14 51 77 75 77 75 47 46 47 46 47 46 47 48 84 30 30 27 32 47 46
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-916-2 		8-98159-116-0 01 1 1002-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44240-152-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-916-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-916-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-916-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-916-2 		1-44519-265-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44321-032-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: A = 1-44000-916-2 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-916-2 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44150-103-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-916-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-916-2 		1-44519-255-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-916-2 		1-44519-302-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-916-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-916-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-916-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-916-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44561-020-0 01 1 -1003
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-916-2 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-916-2 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-916-2 		9-89970-787-0 02 1 -
84 COVER ASM; STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44260-030-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-916-2 		1-44519-227-0 01 1 -
