1-01 — ACCELERATOR PEDAL AND CONTROL (#2969) — 166 parça

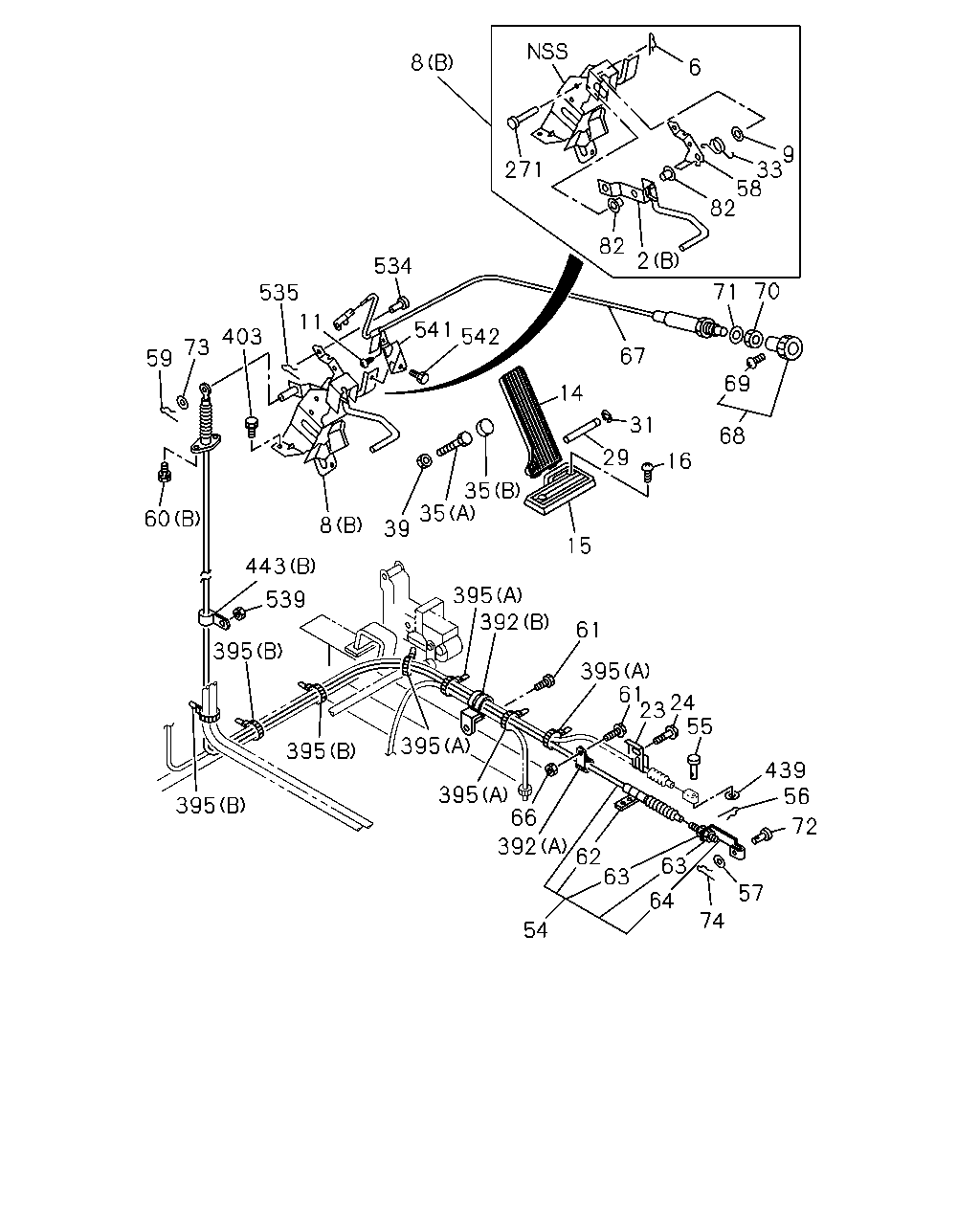

74 57 64 63 62 54 392 66 395 395 395 395 395 443 8 39 539 395 392 61 395 61 23 24 55 439 56 72 63 15 16 29 31 14 35 35 60 59 73 403 535 11 534 541 542 67 68 69 70 71 2 82 82 58 33 9 6 271 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT CVR&RHD(CVR5M*) (A)	1-73997-904-1	01	1	9002-	●	●
2	LEVER; ENG CONT CVR&LHD(CVR6M*) (B)	1-73997-796-5	01	1	9002-	●	●
6	RING; SNAP,LINK TO LINK CVR&RHD(CVR5M*) (A) ID=6	9-09185-406-0	01	1	9002-	●	●
6	RING; SNAP,LINK TO LINK CVR&RHD(CVR5M*) (B) ID=9	9-09185-409-0	01	1	9002-9306	●	●
6	RING; SNAP,LINK TO LINK CVR&LHD(CVR6M*) L=32.6	8-94202-777-0	01	1	9002-	●	●
6	RING; SNAP,LINK TO LINK CVR&RHD(CVR5M*) (B) ID=8	9-09185-408-0	01	1	9307-		●
8	LINK ASM; ENG CONT CVR&RHD(CVR5M*) (A)	1-23240-067-2	01	1	9002-	●	●
8	LINK ASM; ENG CONT CVR&LHD(CVR6M*) (B)	1-23240-050-7	01	1	9002-	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9002-	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	9002-	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9002-	●	●
15	STAND; HEEL,ACCEL PEDAL CVR&RHD(CVR5M*)	1-73997-675-3	01	1	9002-9305	●	●
15	STAND; HEEL,ACCEL PEDAL CVR&RHD(CVR5M*)	1-73907-266-2	01	1	9306-	●	●
15	STAND; HEEL,ACCEL PEDAL CVR&LHD(CVR6M*)	1-73997-770-1	01	1	9002-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9002-	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9002-	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	9002-	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9002-	●	●
33	SPRING; IDLING CONT LEVER CVR&RHD(CVR5M*)	1-73997-906-0	01	1	9002-	●	●
33	SPRING; IDLING CONT LEVER CVR&LHD(CVR6M*)	1-73997-824-0	01	1	9002-	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-	●	●
35	STOPPER; ACCEL PEDAL (B)	1-23249-009-0	01	1	9002-	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9002-	●	●
54	CABLE; ENG CONT CVR&RHD(CVR5M*) L=2365	1-23210-793-6	01	1	9002-9306	●
54	CABLE; ENG CONT CVR&LHD(CVR6M*) L=2780	1-23210-751-6	01	1	9002-9306	●
54	CABLE; ENG CONT CVR&RHD(CVR5M*) L=2365	1-23210-923-2	01	1	9002-		●
54	CABLE; ENG CONT CVR&LHD(CVR6M*) L=2710	1-23210-747-7	01	1	9002-		●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9002-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9002-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
58	LEVER; IDLING CONT CVR&RHD(CVR5M*)	1-73997-905-1	01	1	9002-	●	●
58	LEVER; IDLING CONT CVR&LHD(CVR6M*)	1-73997-781-2	01	1	9002-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9002-	●	●
60	BOLT; CABLE (B) M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●
60	BOLT; CABLE (B) M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●
60	BOLT; CABLE CVR&RHD(CVR5M*) (A) M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE AIR COMPRESSOR HEAVY DUTY<E1Q> M8X16 W/LK WASHER	9-01900-816-0	01	1	9010-9204	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE AIR COMPRESSOR HEAVY DUTY<E1Q> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE AIR COMPRESSOR HEAVY DUTY<E1Q> M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9307-		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9002-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9002-	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9002-	●	●
66	NUT; BRKT M8	9-09110-408-0	01	1	9002-	●	●
67	CABLE ASM; IDLE CONT CVR&RHD(CVR5M*) L=422	1-73997-647-0	01	1	9002-	●	●
67	CABLE ASM; IDLE CONT CVR&LHD(CVR6M*) L=347	1-73997-789-0	01	1	9002-	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9002-	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9002-	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9002-	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9002-	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	9002-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9002-	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9002-	●	●
271	SHAFT; ENG CONT CVR&LHD(CVR6M*)	1-09987-081-0	01	1	9002-	●	●
392	CLIP; ACCEL CONT CABLE AIR COMPRESSOR HEAVY DUTY<E1Q> (A) ID=9	9-09524-825-0	01	1	9010-9306	●
392	CLIP; ACCEL CONT CABLE (B) ID=19 L=24 H=21	1-09700-109-1	01	1	9307-		●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-1	03	1	9002-	●	●
395	CLIP; BAND,ACCEL CONT CABLE CVR&LHD(CVR6M*) (B) L=250	5-09707-030-1	03	1	9002-	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9002-	●	●
443	CLIP; CABLE EXC. AUTO ENG SHUTOFF<KB6> (A) ID=9 L=20	9-09524-835-0	01	1	9307-		●
443	CLIP; CABLE HONG KONG EQUIPMENT(PQ1) (B) ID=7 L=20	9-09524-635-0	01	1	9307-		●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9002-	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9002-	●	●
539	NUT; CLIP M6 FLANGE	1-09984-141-0	01	1	9002-	●	●
541	BRACKET; IDLING CONT CABLE CVR&LHD(CVR6M*)	1-73997-797-1	01	1	9002-	●	●
542	BOLT; BRKT,IDLING CONT CABLE CVR&LHD(CVR6M*) M6X16 W/LK&PL WASHER	9-01960-616-0	01	1	9002-9204	●	●
542	BOLT; BRKT,IDLING CONT CABLE CVR&LHD(CVR6M*) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9205-	●	●

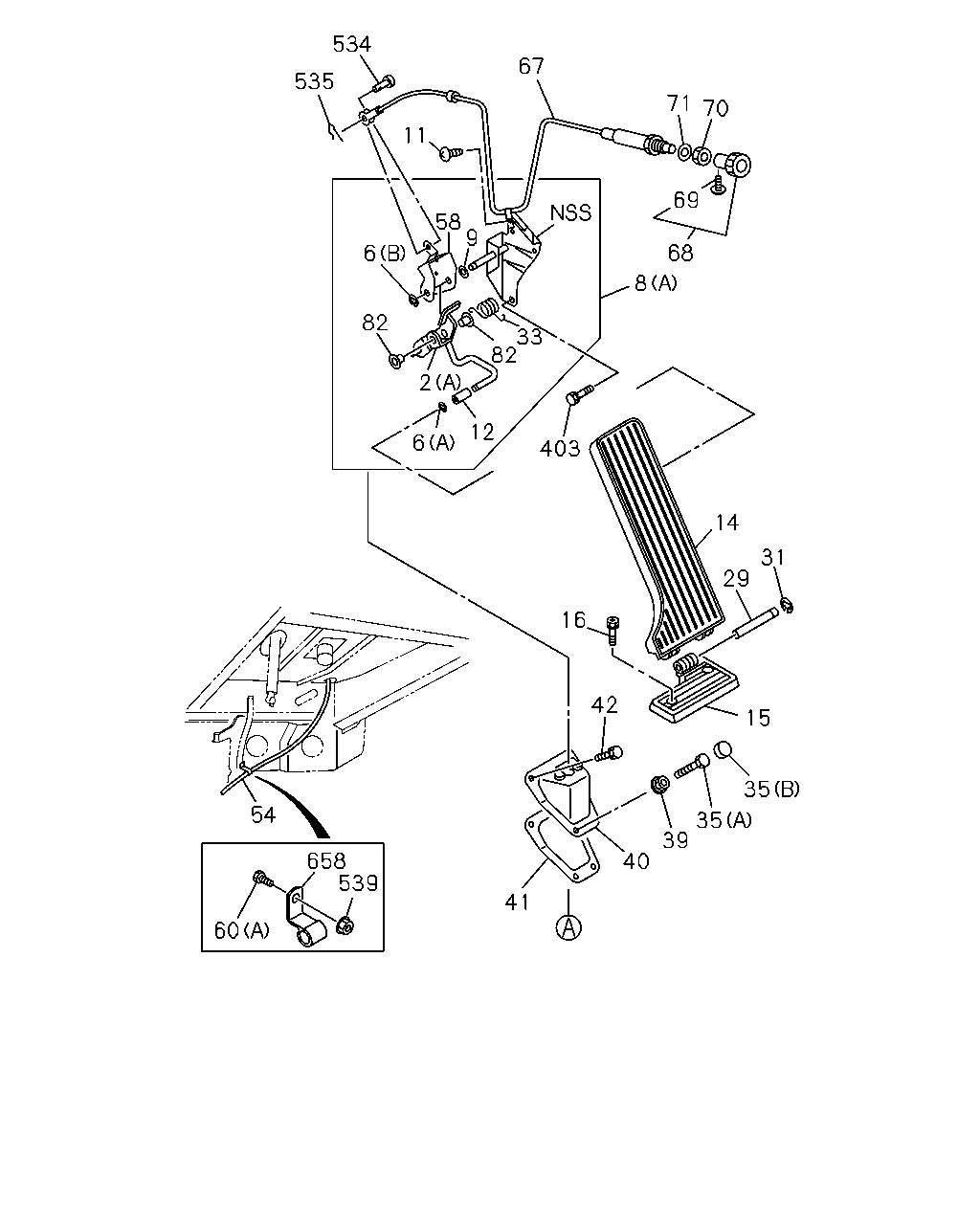

35 35 39 40 41 539 658 54 60 42 15 29 31 14 16 403 12 6 2 82 33 82 6 58 9 8 68 69 70 71 67 11 535 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT CVR&RHD(CVR5M*) (A)	1-73997-904-1	01	1	9002-	●	●
2	LEVER; ENG CONT CVR&LHD(CVR6M*) (B)	1-73997-796-5	01	1	9002-	●	●
6	RING; SNAP,LINK TO LINK CVR&RHD(CVR5M*) (A) ID=6	9-09185-406-0	01	1	9002-	●	●
6	RING; SNAP,LINK TO LINK CVR&RHD(CVR5M*) (B) ID=9	9-09185-409-0	01	1	9002-9306	●	●
6	RING; SNAP,LINK TO LINK CVR&LHD(CVR6M*) L=32.6	8-94202-777-0	01	1	9002-	●	●
6	RING; SNAP,LINK TO LINK CVR&RHD(CVR5M*) (B) ID=8	9-09185-408-0	01	1	9307-		●
8	LINK ASM; ENG CONT CVR&RHD(CVR5M*) (A)	1-23240-067-2	01	1	9002-	●	●
8	LINK ASM; ENG CONT CVR&LHD(CVR6M*) (B)	1-23240-050-7	01	1	9002-	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9002-	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	9002-	●	●
12	ROLLER; ENG CONT LEVER CVR&RHD(CVR5M*)	1-09989-007-0	01	1	9002-	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9002-	●	●
15	STAND; HEEL,ACCEL PEDAL CVR&RHD(CVR5M*)	1-73997-675-3	01	1	9002-9305	●	●
15	STAND; HEEL,ACCEL PEDAL CVR&RHD(CVR5M*)	1-73907-266-2	01	1	9306-	●	●
15	STAND; HEEL,ACCEL PEDAL CVR&LHD(CVR6M*)	1-73997-770-1	01	1	9002-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9002-	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9002-	●	●
33	SPRING; IDLING CONT LEVER CVR&RHD(CVR5M*)	1-73997-906-0	01	1	9002-	●	●
33	SPRING; IDLING CONT LEVER CVR&LHD(CVR6M*)	1-73997-824-0	01	1	9002-	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-	●	●
35	STOPPER; ACCEL PEDAL (B)	1-23249-009-0	01	1	9002-	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9002-	●	●
40	BRACKET; ENG CONT CABLE CVR&RHD(CVR5M*)	1-73997-632-1	01	1	9002-	●	●
41	SEAL; BRKT,ENG CONT CABLE CVR&RHD(CVR5M*)	1-73998-451-0	01	1	9002-	●	●
42	BOLT; BRKT,ENG CONT CABLE CVR&RHD(CVR5M*) M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●	●
42	BOLT; BRKT,ENG CONT CABLE CVR&RHD(CVR5M*) M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●
54	CABLE; ENG CONT CVR&RHD(CVR5M*) L=2365	1-23210-793-6	01	1	9002-9306	●
54	CABLE; ENG CONT CVR&LHD(CVR6M*) L=2780	1-23210-751-6	01	1	9002-9306	●
54	CABLE; ENG CONT CVR&RHD(CVR5M*) L=2365	1-23210-923-2	01	1	9002-		●
54	CABLE; ENG CONT CVR&LHD(CVR6M*) L=2710	1-23210-747-7	01	1	9002-		●
58	LEVER; IDLING CONT CVR&RHD(CVR5M*)	1-73997-905-1	01	1	9002-	●	●
58	LEVER; IDLING CONT CVR&LHD(CVR6M*)	1-73997-781-2	01	1	9002-	●	●
60	BOLT; CABLE (B) M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●
60	BOLT; CABLE (B) M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●
60	BOLT; CABLE CVR&RHD(CVR5M*) (A) M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-	●	●
67	CABLE ASM; IDLE CONT CVR&RHD(CVR5M*) L=422	1-73997-647-0	01	1	9002-	●	●
67	CABLE ASM; IDLE CONT CVR&LHD(CVR6M*) L=347	1-73997-789-0	01	1	9002-	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9002-	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9002-	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9002-	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9002-	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9002-	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9002-	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9002-	●	●
539	NUT; CLIP M6 FLANGE	1-09984-141-0	01	1	9002-	●	●
658	CLIP; ENG CONT CABLE CVR&RHD(CVR5M*) ID=13 H=24 L=20	9-09527-012-0	02	1	9002-	●	●

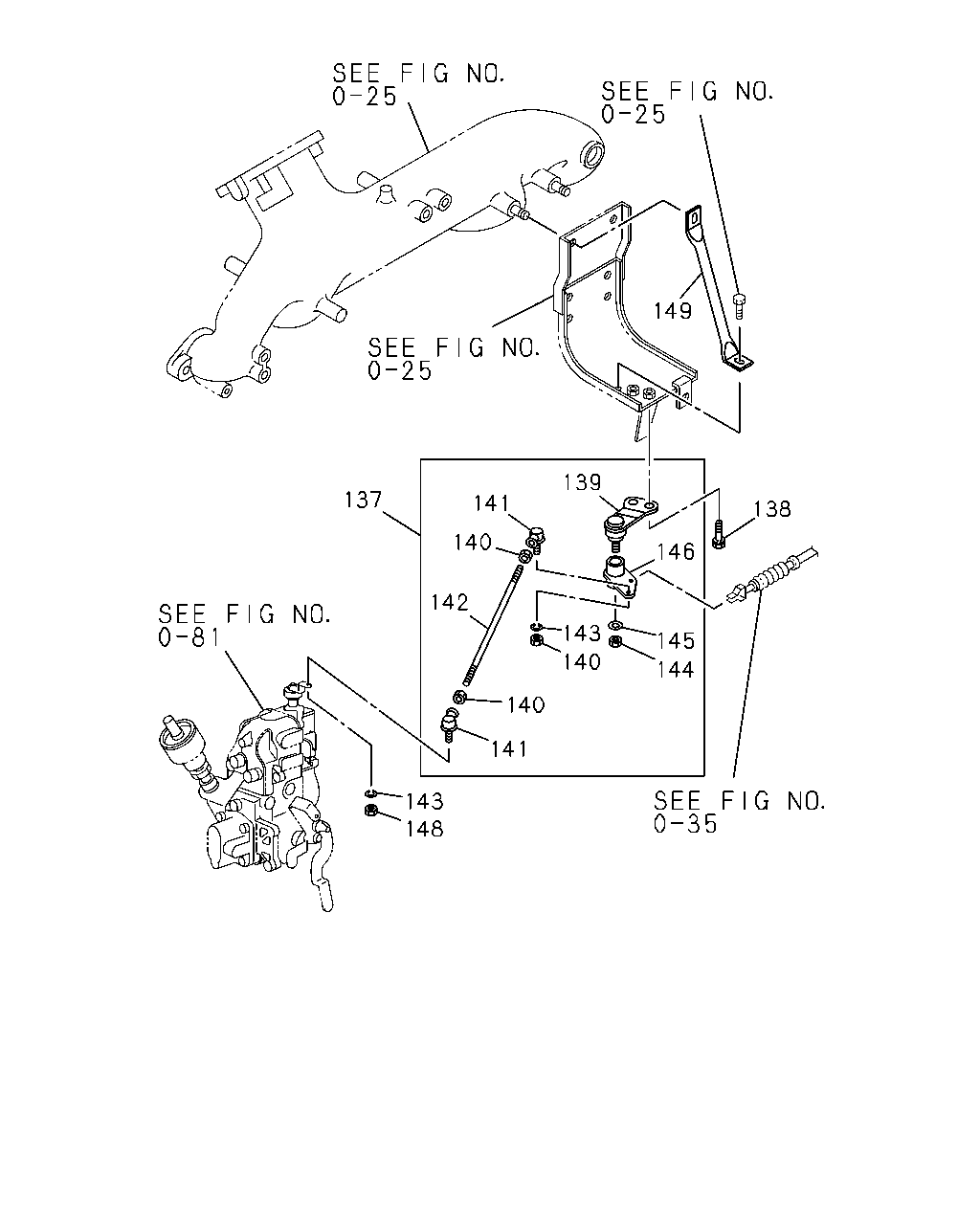

148 143 140 141 140 143 144 145 146 138 139 141 140 142 137 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
137	ROD ASM; LINK,FUEL CUT	1-23310-473-1	01	1	9002-	●
138	BOLT; LINK ROD M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005	●
138	BOLT; LINK ROD M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-	●
139	BRACKET; LINK ROD	1-23335-226-0	01	1	9002-	●
140	NUT; BALL JOINT M5	9-99110-405-0	03	1	9002-	●
141	JOINT ASM; BALL RH THREAD	1-09760-002-0	02	1	9002-	●
142	ROD; LINK,SHAFT TO LEVER	9-08400-529-0	01	1	9002-	●
143	WASHER; LK,BALL JOINT,LINK ROD ID=5.1	9-09150-505-0	02	1	9002-	●
144	NUT; LEVER M10	9-09110-410-0	01	1	9002-	●
145	WASHER; LK,LEVER ID=10.5 OD=22	9-09164-610-0	01	1	9002-	●
146	LEVER; LINK ROD	1-23311-277-1	01	1	9002-	●
148	NUT; BALL JOINT,LINK ROD M5	9-99110-405-0	01	1	9002-	●
149	BRACKET; ENG CONT	1-23335-268-0	01	1	9002-	●

72 57 74 63 64 63 62 54 392 56 439 55 24 23 66 395 395 61 392 395 443 443 450 323 60 59 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9002-	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	9002-	●	●
54	CABLE; ENG CONT CVR&RHD(CVR5M*) L=2365	1-23210-793-6	01	1	9002-9306	●
54	CABLE; ENG CONT CVR&LHD(CVR6M*) L=2780	1-23210-751-6	01	1	9002-9306	●
54	CABLE; ENG CONT CVR&RHD(CVR5M*) L=2365	1-23210-923-2	01	1	9002-		●
54	CABLE; ENG CONT CVR&LHD(CVR6M*) L=2710	1-23210-747-7	01	1	9002-		●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9002-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9002-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9002-	●	●
60	BOLT; CABLE (B) M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●
60	BOLT; CABLE (B) M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●
60	BOLT; CABLE CVR&RHD(CVR5M*) (A) M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE AIR COMPRESSOR HEAVY DUTY<E1Q> M8X16 W/LK WASHER	9-01900-816-0	01	1	9010-9204	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE AIR COMPRESSOR HEAVY DUTY<E1Q> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE AIR COMPRESSOR HEAVY DUTY<E1Q> M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9307-		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9002-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9002-	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9002-	●	●
66	NUT; BRKT M8	9-09110-408-0	01	1	9002-	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	9002-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9002-	●	●
323	BOLT; CLIP CVR&RHD(CVR5M*) M8X20 FLANGE	0-28080-820-0	01	1	9307-		●
392	CLIP; ACCEL CONT CABLE AIR COMPRESSOR HEAVY DUTY<E1Q> (A) ID=9	9-09524-825-0	01	1	9010-9306	●
392	CLIP; ACCEL CONT CABLE (B) ID=19 L=24 H=21	1-09700-109-1	01	1	9307-		●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-1	03	1	9002-	●	●
395	CLIP; BAND,ACCEL CONT CABLE CVR&LHD(CVR6M*) (B) L=250	5-09707-030-1	03	1	9002-	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9002-	●	●
443	CLIP; CABLE EXC. AUTO ENG SHUTOFF<KB6> (A) ID=9 L=20	9-09524-835-0	01	1	9307-		●
443	CLIP; CABLE HONG KONG EQUIPMENT(PQ1) (B) ID=7 L=20	9-09524-635-0	01	1	9307-		●
450	CLIP; BAND CVR&RHD(CVR5M*) FULLER M/T<X9B> L=140	5-09707-031-0	01	1	9008-9306	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
