3-78 — FIXING PARTS; AIR PIPING (#29683) — 373 parça

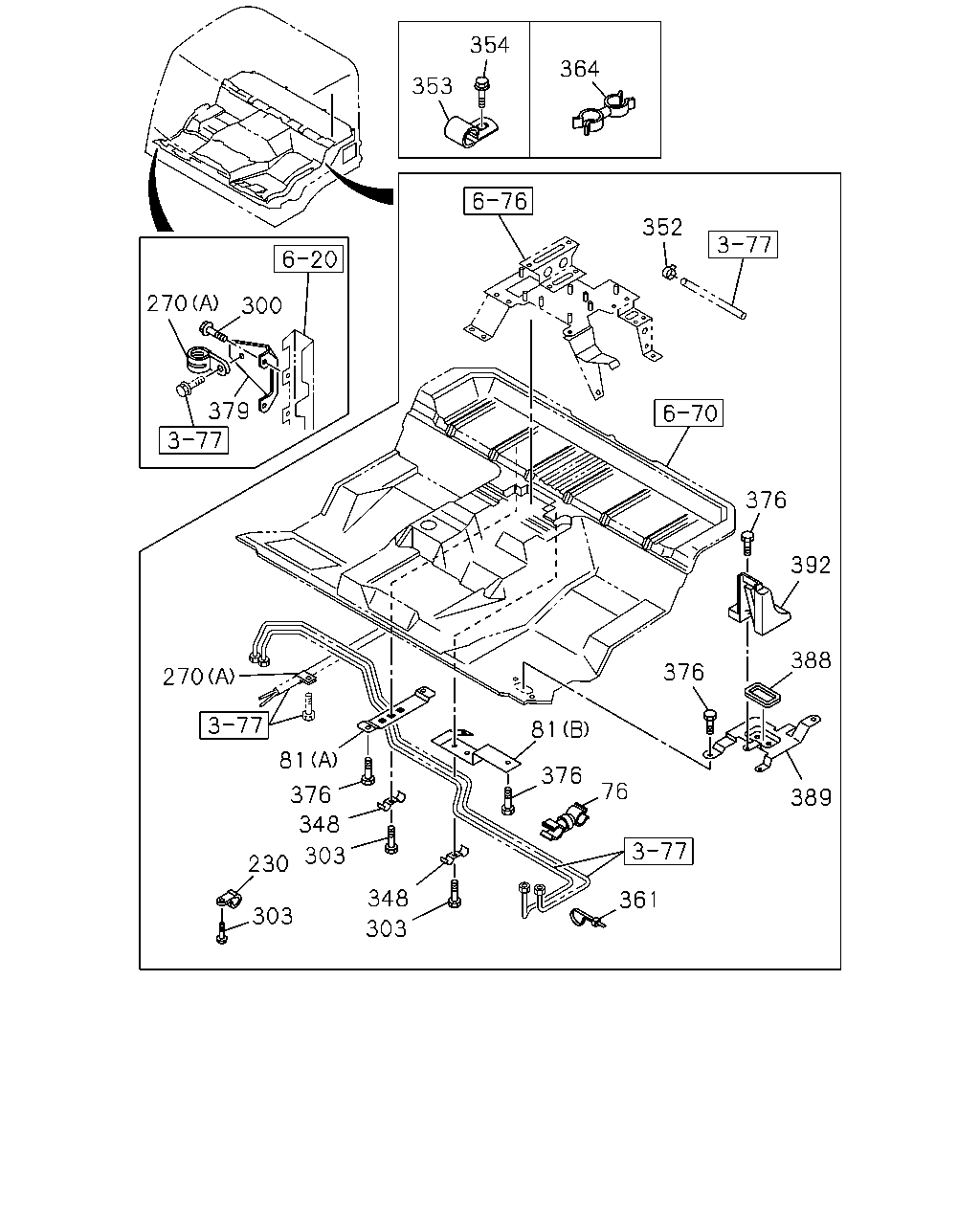

çizim 88395
354 364 353 352 270 300 379 376 392 388 376 270 81 81 376 76 376 389 348 303 230 348 361 303 303
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 01 1 0509-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 04 1 0509-
81 BRACKET; CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0509-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0509-
81 BRACKET; CLIP
(G) 		1-47478-113-0 02 1 0509-
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0509-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 0509-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 0509-
230 CLIP; PIPE,AIR
ID=9 L=16 		9-09524-822-0 03 1 0509-0602
230 CLIP; PIPE,AIR
PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16 		9-09524-822-0 03 1 0603-0606
230 CLIP; PIPE,AIR
PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16 		0-95234-822-0 03 1 0607-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0509-0602
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0603-
270 CLIP; NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 0509-0602
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33 		1-09700-945-0 02 1 0603-0706
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33 		1-09700-945-0 03 1 0707-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0509-
270 CLIP; NYLON TUBE
(A) ID=26 L=26 		1-09701-236-0 01 1 0509-0602
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=26 L=26 		1-09701-236-0 01 1 0603-0706
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0509-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0509-
348 CLIP; AIR PIPE
ID=13 L=28 		9-09525-252-0 03 1 0509-0602
348 CLIP; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> ID=13 L=28 		9-09525-252-0 03 1 0603-0606
348 CLIP; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> ID=11 L=28 		0-95235-252-0 03 1 0607-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0509-0602
352 CLIP; EXH HOSE
PARKING BRAKE VALVE LEVER TYPE<W48> ID=14 		8-94238-572-0 02 1 0603-
353 CLIP; AIR PIPE
ID=9 L=16 		9-09524-822-0 01 1 0509-0602
353 CLIP; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16 		9-09524-822-0 01 1 0603-0606
353 CLIP; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16 		0-95234-822-0 01 1 0607-
354 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0509-0602
354 BOLT; PIPE CLIP
PARKING BRAKE VALVE LEVER TYPE<W48> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0603-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 0509-
364 CLIP; AIR PIPE
ID=8.3 & 10 		8-94176-792-0 01 1 0509-0602
364 CLIP; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> ID=8.3 & 10 		8-94176-792-0 01 1 0603-
376 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
376 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0509-0512
376 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0509-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0509-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0509-0904
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 0509-
388 SEAL
L=215 		1-79738-794-1 01 1 0509-
389 BRACKET; UNION 1-79738-790-1 01 1 0509-
392 COVER; BRKT 1-73996-264-1 01 1 0509-

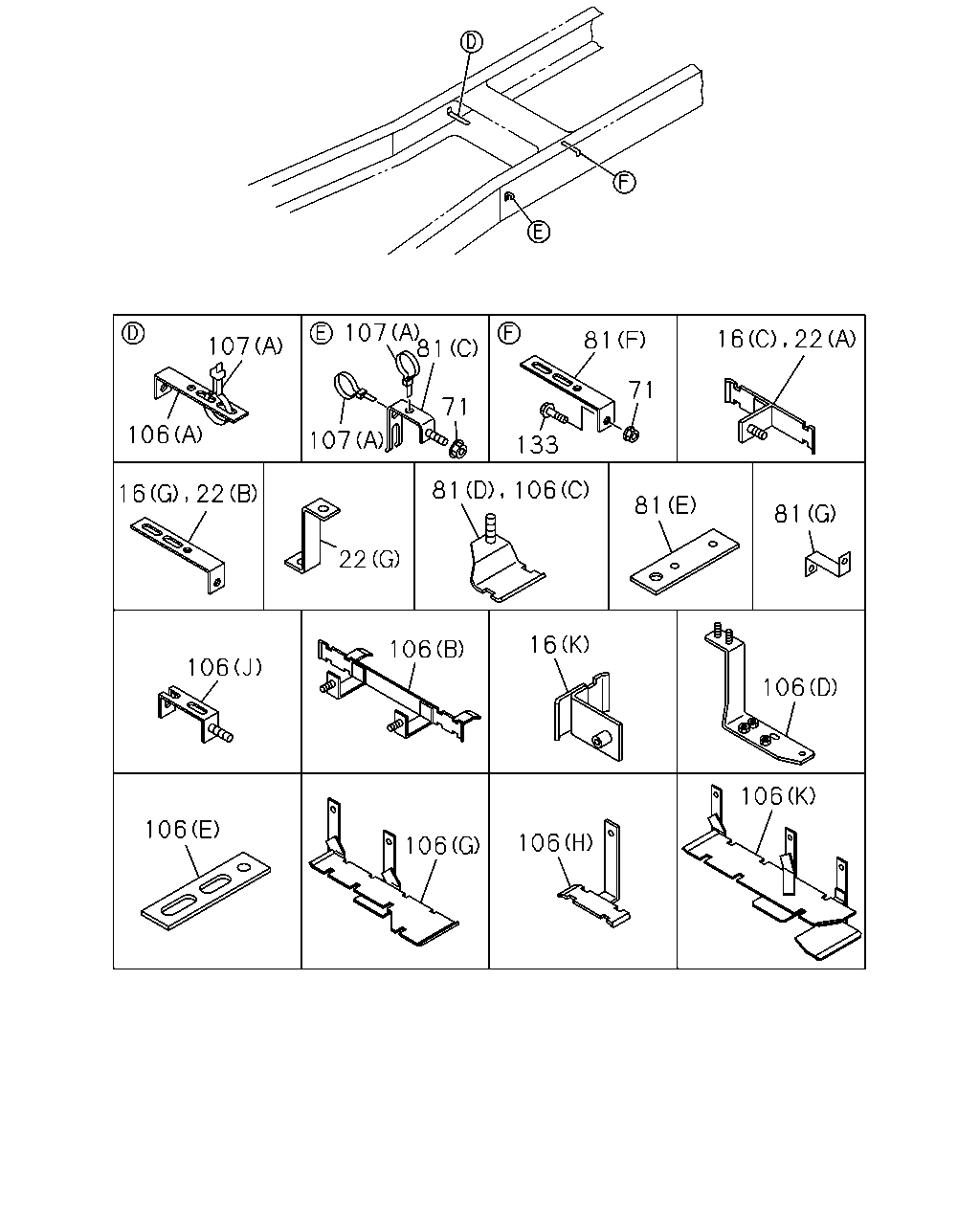

çizim 88463
107 81 81 107 71 71 106 107 133 81 106 16 22 81 81 22 16 106 106 106 106 106 106 106
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(K) 		8-98054-389-0 01 1 0609-
16 BRACKET; PIPE CLIP
(D) 		1-47471-309-0 01 1 0509-
16 BRACKET; PIPE CLIP
(E) L=85 H=40 		1-47476-676-0 01 1 0509-
16 BRACKET; PIPE CLIP
(G) L=100 H=30 		1-47477-645-2 05 1 0509-0810
16 BRACKET; PIPE CLIP
(G) L=100 H=30 		1-47477-645-2 04 1 0811-
16 BRACKET; PIPE CLIP
(H) 		1-47479-721-0 03 1 0509-0810
16 BRACKET; PIPE CLIP
(H) 		1-47479-721-0 01 1 0811-
16 BRACKET; PIPE CLIP
(I) 		1-47479-856-0 01 1 0509-
16 BRACKET; PIPE CLIP
(J) 		1-47479-857-0 01 1 0509-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0811-
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0811-
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0811-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0811-
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0811-
22 BRACKET; CLIP
(G) 		1-46147-101-0 02 1 0509-
22 BRACKET; CLIP
(F) 		1-47471-308-0 01 1 0509-
22 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 07 1 0509-0810
22 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 06 1 0811-
22 BRACKET; CLIP
(C) 		1-47479-856-0 01 1 0509-0810
22 BRACKET; CLIP
(A) 		1-47479-554-0 01 1 0811-
22 BRACKET; CLIP
(D) 		1-47479-857-0 01 1 0509-0810
22 BRACKET; CLIP
(E) 		1-47479-898-0 01 1 0509-0810
22 BRACKET; CLIP
(A) 		1-47479-554-0 01 1 0509-0810
22 BRACKET; CLIP
(A) 		1-47479-554-0 01 1 0509-0810
71 NUT; BRKT
M8 FLANGE 		0-91150-108-0 11 1 0509-0602
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0603-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 04 1 0509-
81 BRACKET; CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0509-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0509-
81 BRACKET; CLIP
(G) 		1-47478-113-0 02 1 0509-
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0509-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 0509-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 0509-
106 BRACKET; TUBE CLIP
(J) 		1-47471-450-0 01 1 0602-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0509-0601
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 0602-
106 BRACKET; TUBE CLIP
(D) 		1-47471-108-0 01 1 0509-
106 BRACKET; TUBE CLIP
(G) 		1-47471-144-0 01 1 0509-0812
106 BRACKET; TUBE CLIP
(K) 		8-98122-297-0 01 1 0901-
106 BRACKET; TUBE CLIP
(C) W/STUD M8X20 		1-47471-209-0 02 1 0509-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0509-
106 BRACKET; TUBE CLIP
(I) 		1-47477-746-0 01 1 0509-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 0509-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0509-
106 BRACKET; TUBE CLIP
(H) 		1-47479-870-0 01 1 0509-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 0509-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0509-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0509-1202
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 1203-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 0509-1202
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203-
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		9-09525-896-0 01 1 0509-0606
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 0607-
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0509-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 14 1 0509-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0509-0512
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0601-
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0509-0512
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601-0810
133 BOLT; BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0509-0512
133 BOLT; BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601-0810
133 BOLT; BRKT
M8X35 FLANGE 		0-28050-835-0 01 1 0811-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0509-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 14 1 0601-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 13 1 0811-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 05 1 0509-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 0601-0601
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0602-0812
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 0901-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 06 1 0509-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0601-

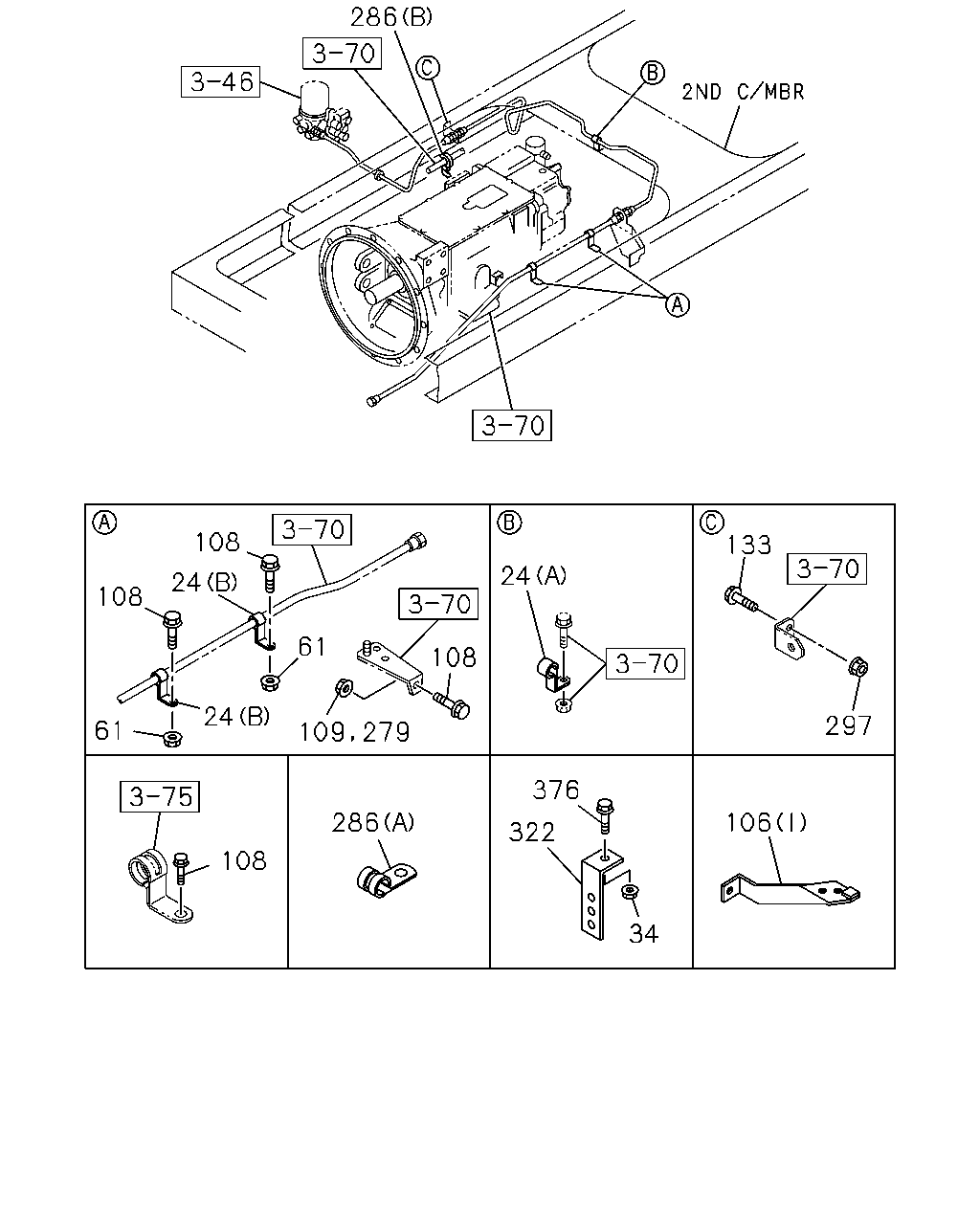

çizim 88469
286 133 108 24 24 108 61 108 24 297 61 376 286 106 322 108 34 109 279
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0509-
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0509-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 0603-
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603-
106 BRACKET; TUBE CLIP
(J) 		1-47471-450-0 01 1 0602-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0509-0601
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 0602-
106 BRACKET; TUBE CLIP
(D) 		1-47471-108-0 01 1 0509-
106 BRACKET; TUBE CLIP
(G) 		1-47471-144-0 01 1 0509-0812
106 BRACKET; TUBE CLIP
(K) 		8-98122-297-0 01 1 0901-
106 BRACKET; TUBE CLIP
(C) W/STUD M8X20 		1-47471-209-0 02 1 0509-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0509-
106 BRACKET; TUBE CLIP
(I) 		1-47477-746-0 01 1 0509-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 0509-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0509-
106 BRACKET; TUBE CLIP
(H) 		1-47479-870-0 01 1 0509-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 0509-0512
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 06 1 0601-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 08 1 0509-0512
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 08 1 0601-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0509-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 14 1 0509-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0509-0512
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0601-
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0509-0512
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601-0810
133 BOLT; BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0509-0512
133 BOLT; BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601-0810
133 BOLT; BRKT
M8X35 FLANGE 		0-28050-835-0 01 1 0811-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0509-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 14 1 0601-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 13 1 0811-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 05 1 0509-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 0601-0601
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0602-0812
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 0901-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 06 1 0509-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0601-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 14 1 0509-0602
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 14 1 0603-0810
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 17 1 0811-
286 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0509-
286 CLIP; NYLON TUBE
(B) ID=15 & 7 		1-09709-311-0 01 1 0509-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0509-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 10 1 0509-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0603-
322 BRACKET; CLIP
L=120 H=35 		1-82699-970-0 01 1 0509-0905
322 BRACKET; CLIP 1-82698-358-0 01 1 0906-
376 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
376 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0509-0512
376 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0509-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0509-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0509-0904
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-

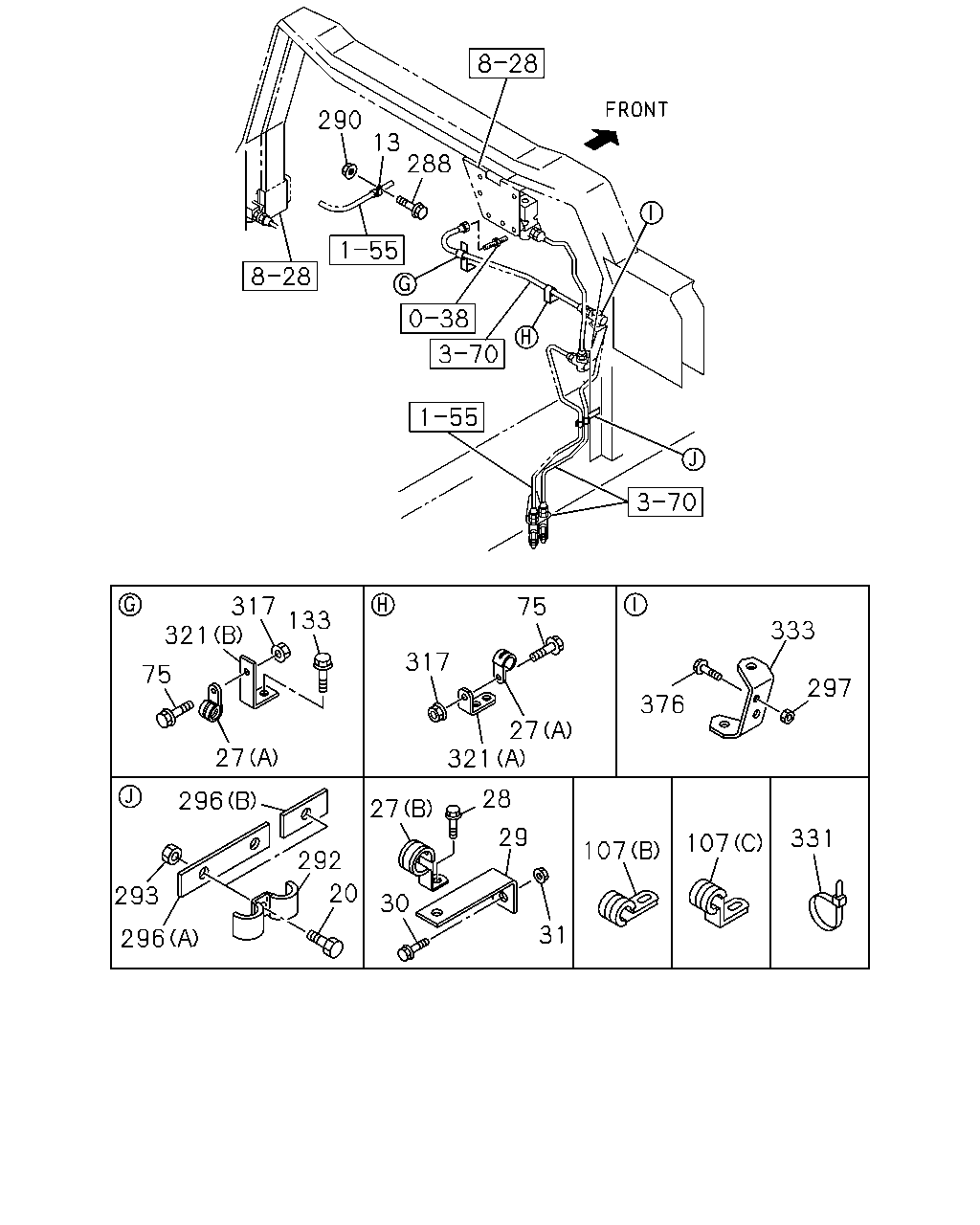

çizim 88470
290 13 288 317 321 75 133 333 317 75 297 376 27 321 27 28 296 27 29 331 107 107 292 20 293 30 31 296
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0509-
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 0509-0512
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 06 1 0601-0810
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 0811-
27 CLIP; FLEX HOSE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0509-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 0509-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
29 BRACKET; CLIP,AIR PIPE
L=60 		1-47476-217-0 01 1 0509-
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0509-0512
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
31 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
75 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
107 CLIP; NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 02 1 0509-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0509-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0509-1202
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 1203-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 0509-1202
107 CLIP; NYLON TUBE
(A) L=600 		1-09707-107-1 02 1 1203-
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		9-09525-896-0 01 1 0509-0606
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 0607-
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 0509-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 14 1 0509-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0509-0512
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0601-
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0509-0512
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601-0810
133 BOLT; BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0509-0512
133 BOLT; BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0601-0810
133 BOLT; BRKT
M8X35 FLANGE 		0-28050-835-0 01 1 0811-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0509-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 14 1 0601-0810
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 13 1 0811-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 05 1 0509-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 0601-0601
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0602-0812
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 05 1 0901-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 06 1 0509-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0601-
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0509-0512
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-208-0 01 1 0509-0602
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-208-0 01 1 0603-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0509-
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
296 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0509-
296 BRACKET; CLIP
(B) 		1-47475-648-0 01 1 0509-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0509-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 10 1 0509-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0603-
317 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0509-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0509-
331 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 0509-
333 BRACKET; BRK AIR PIPE 1-47477-045-0 01 1 0509-
376 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
376 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0509-0512
376 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0509-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0509-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0509-0904
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-

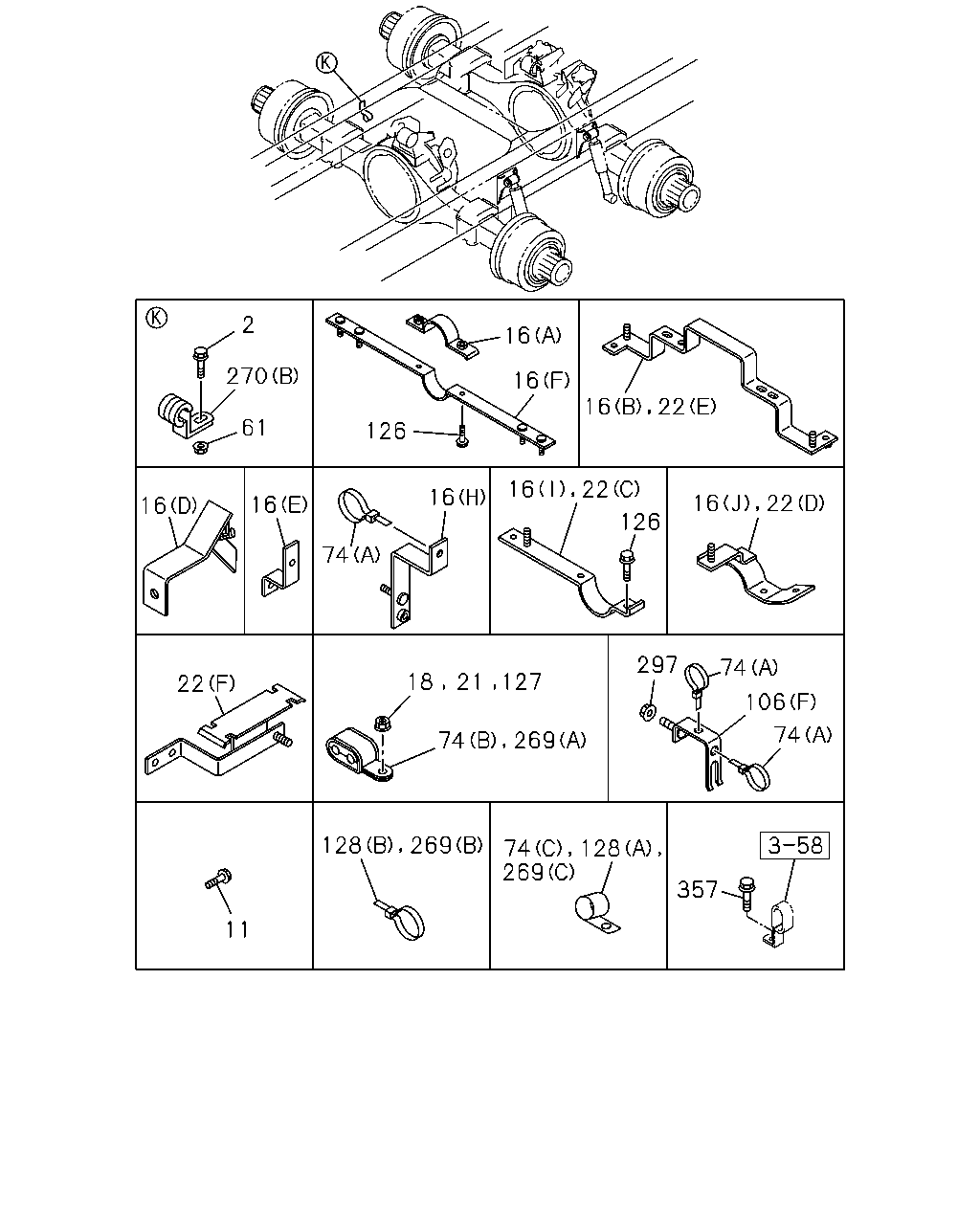

çizim 103899
2 16 270 16 61 126 16 16 16 126 74 297 74 18 21 127 22 106 74 74 128 269 357 11 16 22 16 22 16 22 269 74 128 269
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0509-0512
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0509-0512
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
16 BRACKET; PIPE CLIP
(K) 		8-98054-389-0 01 1 0609-
16 BRACKET; PIPE CLIP
(D) 		1-47471-309-0 01 1 0509-
16 BRACKET; PIPE CLIP
(E) L=85 H=40 		1-47476-676-0 01 1 0509-
16 BRACKET; PIPE CLIP
(G) L=100 H=30 		1-47477-645-2 05 1 0509-0810
16 BRACKET; PIPE CLIP
(G) L=100 H=30 		1-47477-645-2 04 1 0811-
16 BRACKET; PIPE CLIP
(H) 		1-47479-721-0 03 1 0509-0810
16 BRACKET; PIPE CLIP
(H) 		1-47479-721-0 01 1 0811-
16 BRACKET; PIPE CLIP
(I) 		1-47479-856-0 01 1 0509-
16 BRACKET; PIPE CLIP
(J) 		1-47479-857-0 01 1 0509-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0811-
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0811-
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0811-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0811-
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0509-0810
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0811-
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0509-0602
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 06 1 0509-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0603-0810
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0811-
22 BRACKET; CLIP
(G) 		1-46147-101-0 02 1 0509-
22 BRACKET; CLIP
(F) 		1-47471-308-0 01 1 0509-
22 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 07 1 0509-0810
22 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 06 1 0811-
22 BRACKET; CLIP
(C) 		1-47479-856-0 01 1 0509-0810
22 BRACKET; CLIP
(A) 		1-47479-554-0 01 1 0811-
22 BRACKET; CLIP
(D) 		1-47479-857-0 01 1 0509-0810
22 BRACKET; CLIP
(E) 		1-47479-898-0 01 1 0509-0810
22 BRACKET; CLIP
(A) 		1-47479-554-0 01 1 0509-0810
22 BRACKET; CLIP
(A) 		1-47479-554-0 01 1 0509-0810
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 0603-
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603-
74 CLIP; NYLON TUBE
(C) ID=13 		1-09701-030-1 08 1 0509-0810
74 CLIP; NYLON TUBE
(C) ID=13 		1-09701-030-1 06 1 0811-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 01 1 0509-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 0509-
106 BRACKET; TUBE CLIP
(J) 		1-47471-450-0 01 1 0602-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0509-0601
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 0602-
106 BRACKET; TUBE CLIP
(D) 		1-47471-108-0 01 1 0509-
106 BRACKET; TUBE CLIP
(G) 		1-47471-144-0 01 1 0509-0812
106 BRACKET; TUBE CLIP
(K) 		8-98122-297-0 01 1 0901-
106 BRACKET; TUBE CLIP
(C) W/STUD M8X20 		1-47471-209-0 02 1 0509-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0509-
106 BRACKET; TUBE CLIP
(I) 		1-47477-746-0 01 1 0509-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 0509-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0509-
106 BRACKET; TUBE CLIP
(H) 		1-47479-870-0 01 1 0509-
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28060-845-0 01 1 0609-0703
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 0704-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0509-0512
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 03 1 0509-0512
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 03 1 0601-0810
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 01 1 0811-0811
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0509-0512
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 11 1 0509-0512
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 11 1 0601-0810
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0811-0811
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 07 1 0811-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 0509-0512
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0601-0810
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0811-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 12 1 0509-0602
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 12 1 0603-0810
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 10 1 0811-0811
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 09 1 0811-
128 CLIP; NYLON TUBE
(A) ID=16 H=25 L=25 		1-09701-162-0 01 1 0509-
128 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 01 1 0509-
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 08 1 0509-0810
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 07 1 0811-
269 CLIP; BAND,NYLON TUBE
(C) ID=13 		1-09701-030-1 05 1 0509-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 04 1 0509-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 0509-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0509-0602
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0603-
270 CLIP; NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 0509-0602
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33 		1-09700-945-0 02 1 0603-0706
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33 		1-09700-945-0 03 1 0707-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0509-
270 CLIP; NYLON TUBE
(A) ID=26 L=26 		1-09701-236-0 01 1 0509-0602
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=26 L=26 		1-09701-236-0 01 1 0603-0706
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0509-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 10 1 0509-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0603-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28080-810-0 02 1 0509-0512
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
