2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#29660) — 42 parça

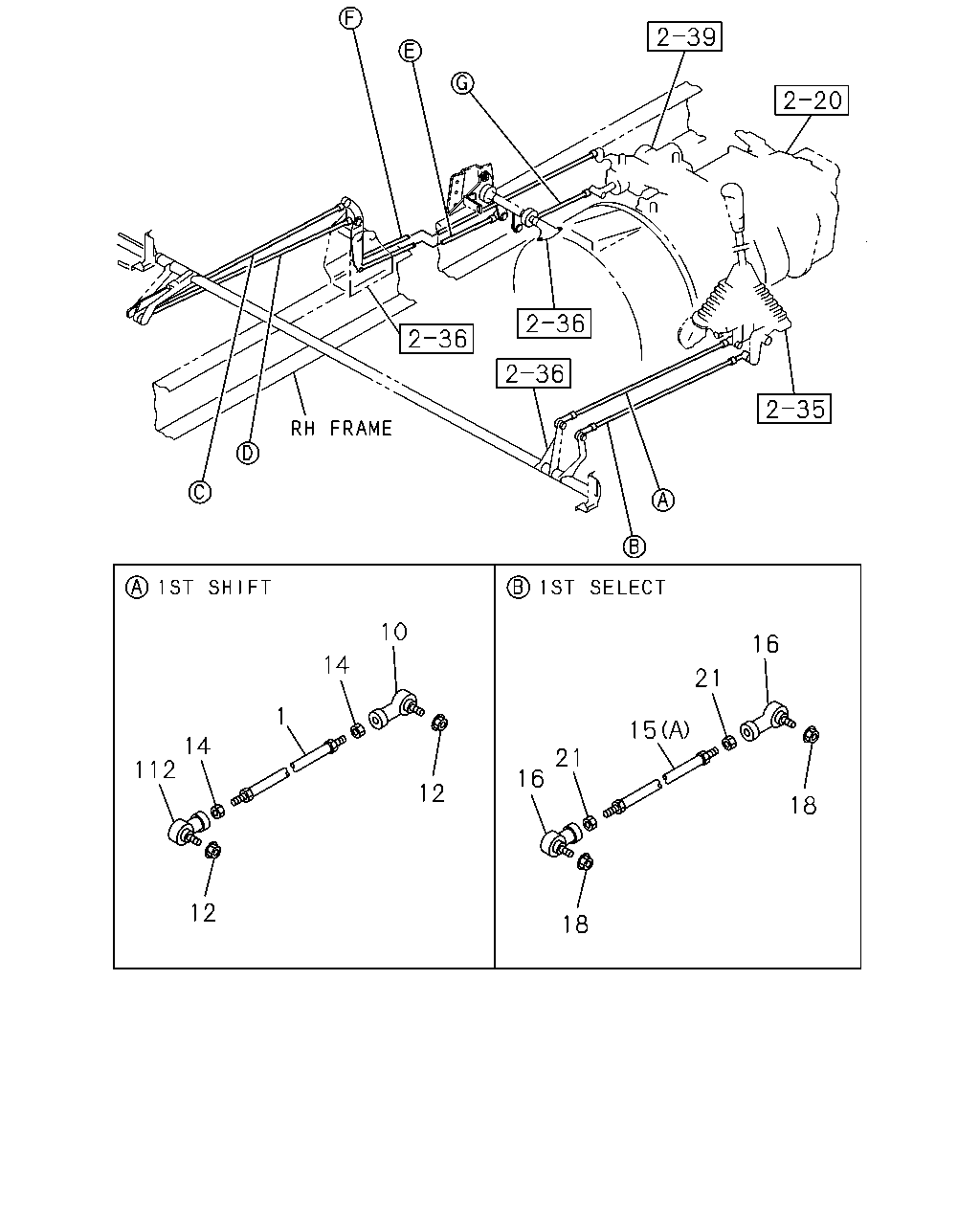

çizim 88727
10 16 14 21 1 15 14 112 21 16 12 18 12 18
BalonParca AdiParca NoAdetTipApplied Date
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 0509-
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 0509-
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0509-
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0509-0512
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0601-
15 ROD; LINK 1ST SHIFT
(A) L=556 		1-33652-744-0 01 1 0509-
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-2 01 1 0509-
15 ROD; LINK 1ST SHIFT
(C) L=446 		1-33652-998-2 01 1 0509-
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 0509-
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0509-
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 0509-0512
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		0-91111-508-0 02 1 0601-
112 JOINT; RUBBER 1-33670-413-1 01 1 0509-
112 JOINT; RUBBER 1-33670-413-1 01 1 0509-

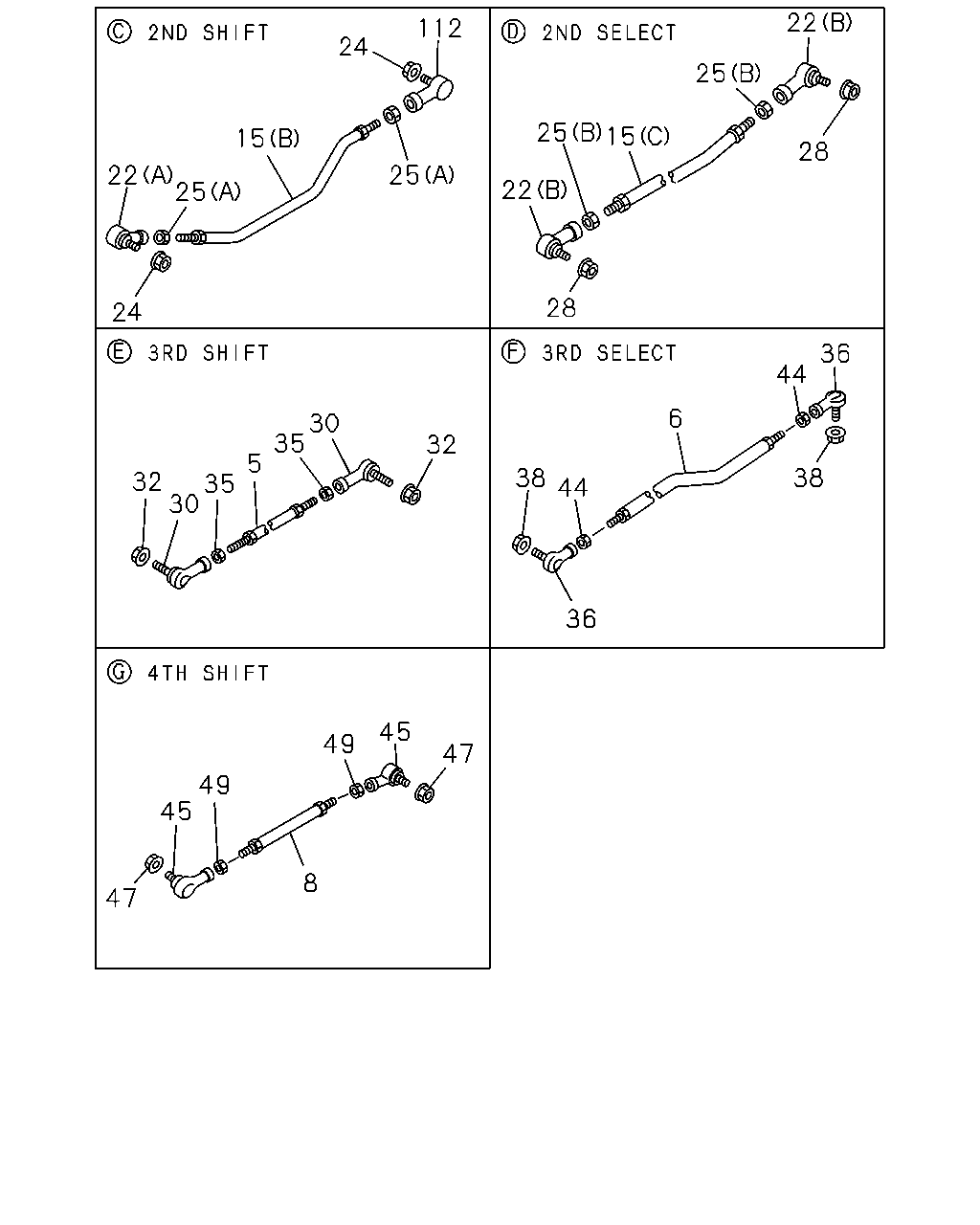

çizim 103684
22 112 24 25 25 15 15 28 22 25 25 22 28 24 36 44 6 30 35 32 5 38 38 30 44 36 45 49 47 49 45 8 47 32 35
BalonParca AdiParca NoAdetTipApplied Date
5 ROD; LINK,3RD SHIFT
L=1120 		1-33652-603-0 01 1 0509-
6 ROD; LINK,3RD SELECT
L=1692 		1-33662-004-2 01 1 0509-
8 ROD; LINK,4TH SHIFT
L=410 		1-33652-947-0 01 1 0509-
15 ROD; LINK 1ST SHIFT
(A) L=556 		1-33652-744-0 01 1 0509-
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-2 01 1 0509-
15 ROD; LINK 1ST SHIFT
(C) L=446 		1-33652-998-2 01 1 0509-
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 0509-
22 JOINT; BALL,SCREW,LINK ROD
(A) 		1-09760-125-0 01 1 0509-
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0509-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		9-09111-410-0 02 1 0509-0512
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		0-91111-510-0 02 1 0601-
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		9-99111-412-0 02 1 0509-0512
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		0-91111-512-0 02 1 0601-
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0509-
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0509-
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0509-
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0509-0512
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601-
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0509-
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0509-
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0509-0512
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0601-
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 0509-
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0509-
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0509-0512
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0601-
112 JOINT; RUBBER 1-33670-413-1 01 1 0509-
112 JOINT; RUBBER 1-33670-413-1 01 1 0509-
