◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10964 - EXZ LHD WEDGE BRAKE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#29659) — 121 parça

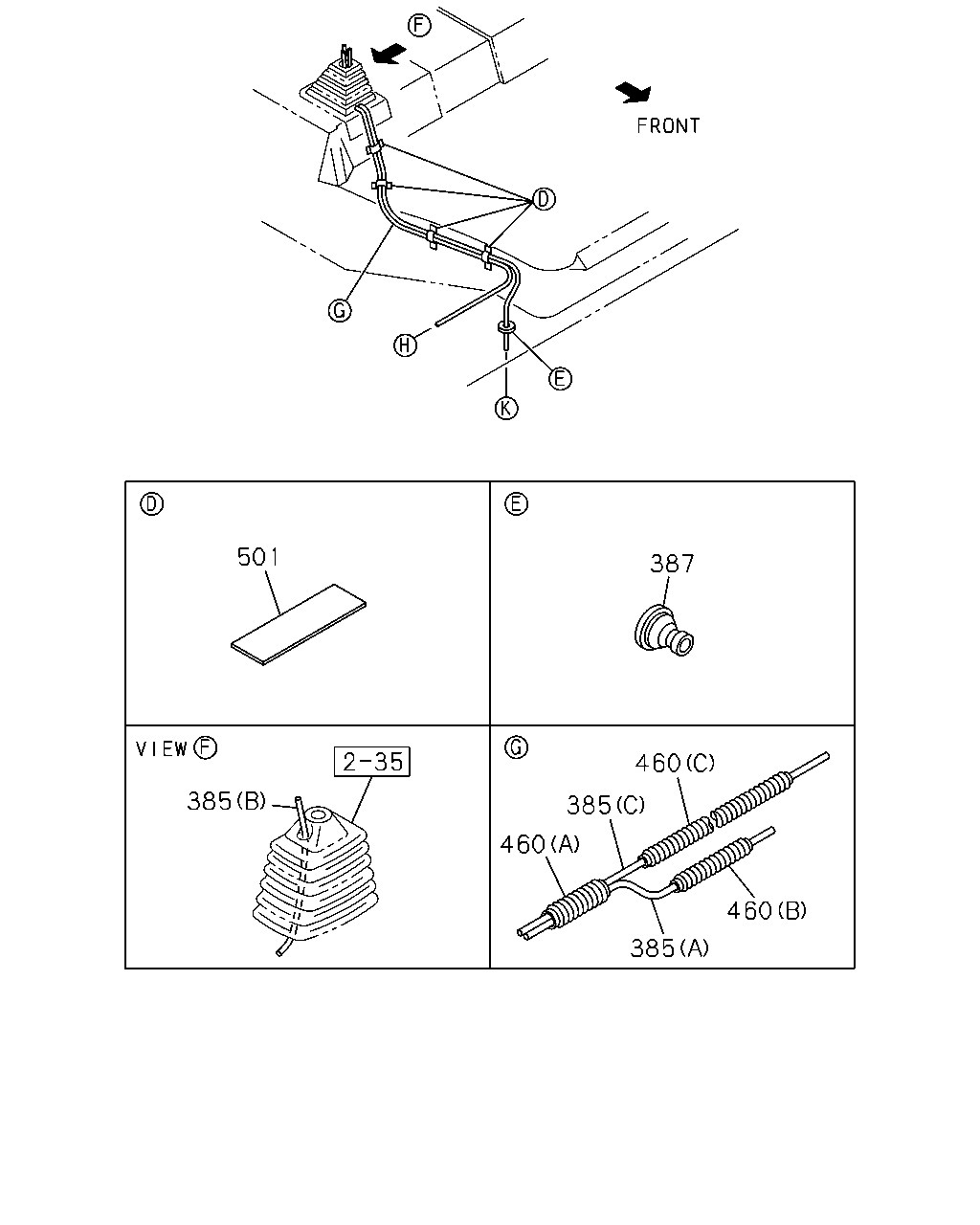

çizim 88207
501 387 460 385 385 460 460 385
BalonParca AdiParca NoAdetTipApplied Date
385 TUBE; NYLON
(B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 0509-
385 TUBE; NYLON
(C) L=1500 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 0509-
385 TUBE; NYLON
(A) L=1340 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 0509-
387 GROMMET; CONT TUBE,FULLER 1-09332-102-0 01 1 0509-
460 TUBE; CORRUGATE
(C) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0509-
460 TUBE; CORRUGATE
(A) L=250 SERVICED BY L=800 		1-83129-031-1 01 1 0509-
460 TUBE; CORRUGATE
(B) L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0509-
501 SEAL; HARNESS PROTECTOR
100X40 		1-72498-022-1 04 1 0509-

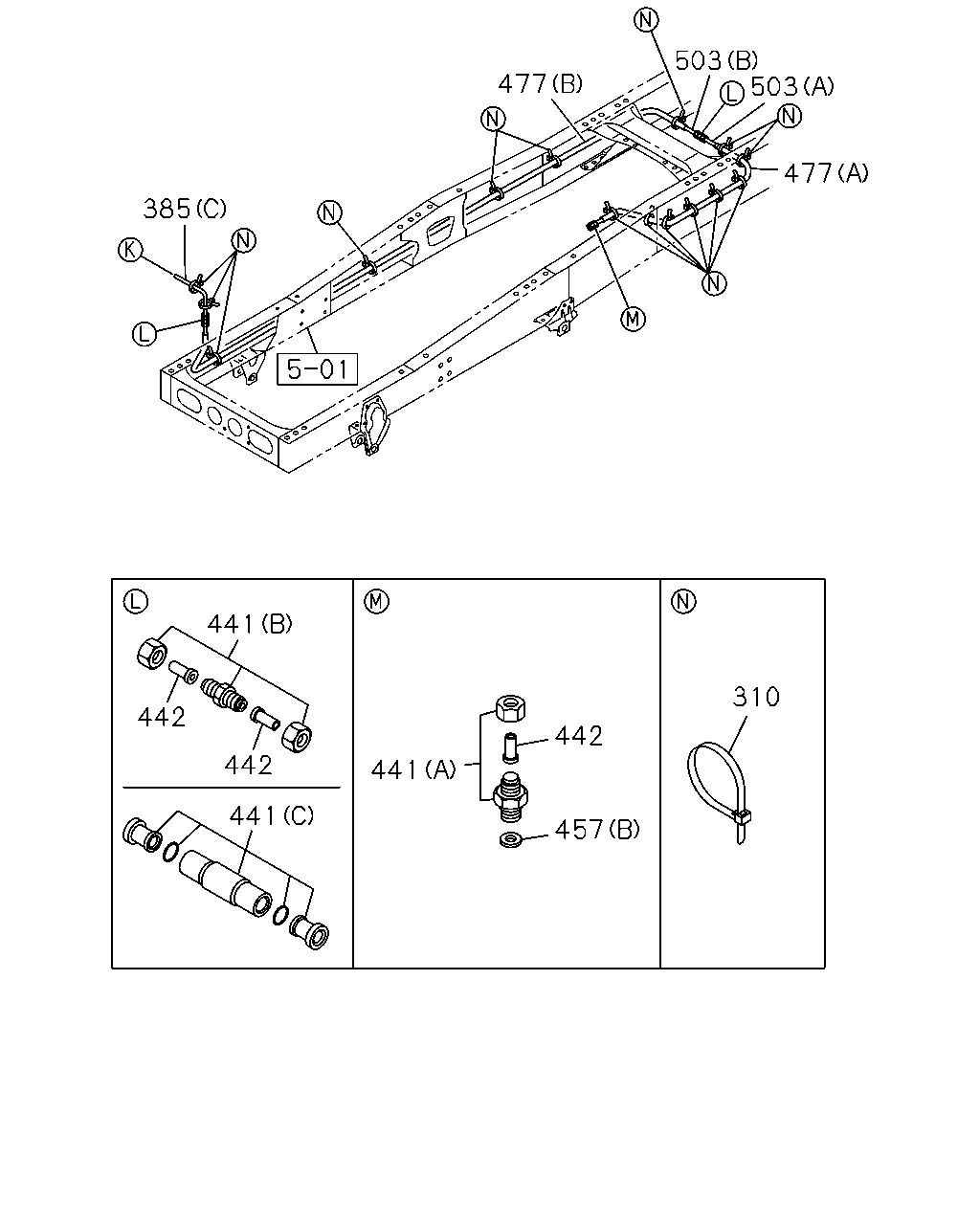

çizim 88424
503 503 477 477 385 441 310 442 442 442 441 441 457
BalonParca AdiParca NoAdetTipApplied Date
310 CLIP; TUBE
L=350 		1-09707-183-0 13 1 0509-1001
310 CLIP; TUBE
L=350 		1-09707-183-0 18 1 1002-1110
310 CLIP; TUBE
L=350 		1-09707-183-0 19 1 1111-
310 CLIP; TUBE
L=140 		5-09707-031-1 05 1 0509-1001
385 TUBE; NYLON
(B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 0509-
385 TUBE; NYLON
(C) L=1500 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 0509-
385 TUBE; NYLON
(A) L=1340 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 0509-
441 CONNECTOR; NYLON TUBE
(A) 		1-09660-466-0 01 1 0509-
441 CONNECTOR; NYLON TUBE
(B) DIN4 STRAIGHT 		1-09660-512-0 02 1 0509-0608
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 02 1 0609-0804
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 02 1 0805-0805
441 CONNECTOR; NYLON TUBE
(B) DIN4 STRAIGHT 		1-09660-512-0 02 1 0806-0904
441 CONNECTOR; NYLON TUBE
(C) 		8-98134-660-0 02 1 0905-
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 05 1 0806-0904
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0905-0909
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0905-0909
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0910-
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0509-0608
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0609-0805
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0609-0805
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0806-0904
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 05 1 0509-0608
457 GASKET
(A) 		1-09623-594-0 04 1 0509-
457 GASKET
(B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0509-
477 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0509-
477 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=7 		1-87411-018-0 01 1 0509-
503 TUBE; NYLON
(A) SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 0509-
503 TUBE; NYLON
(B) SERVICED BY L=6000 OD=4 		1-87410-079-0 01 1 0509-

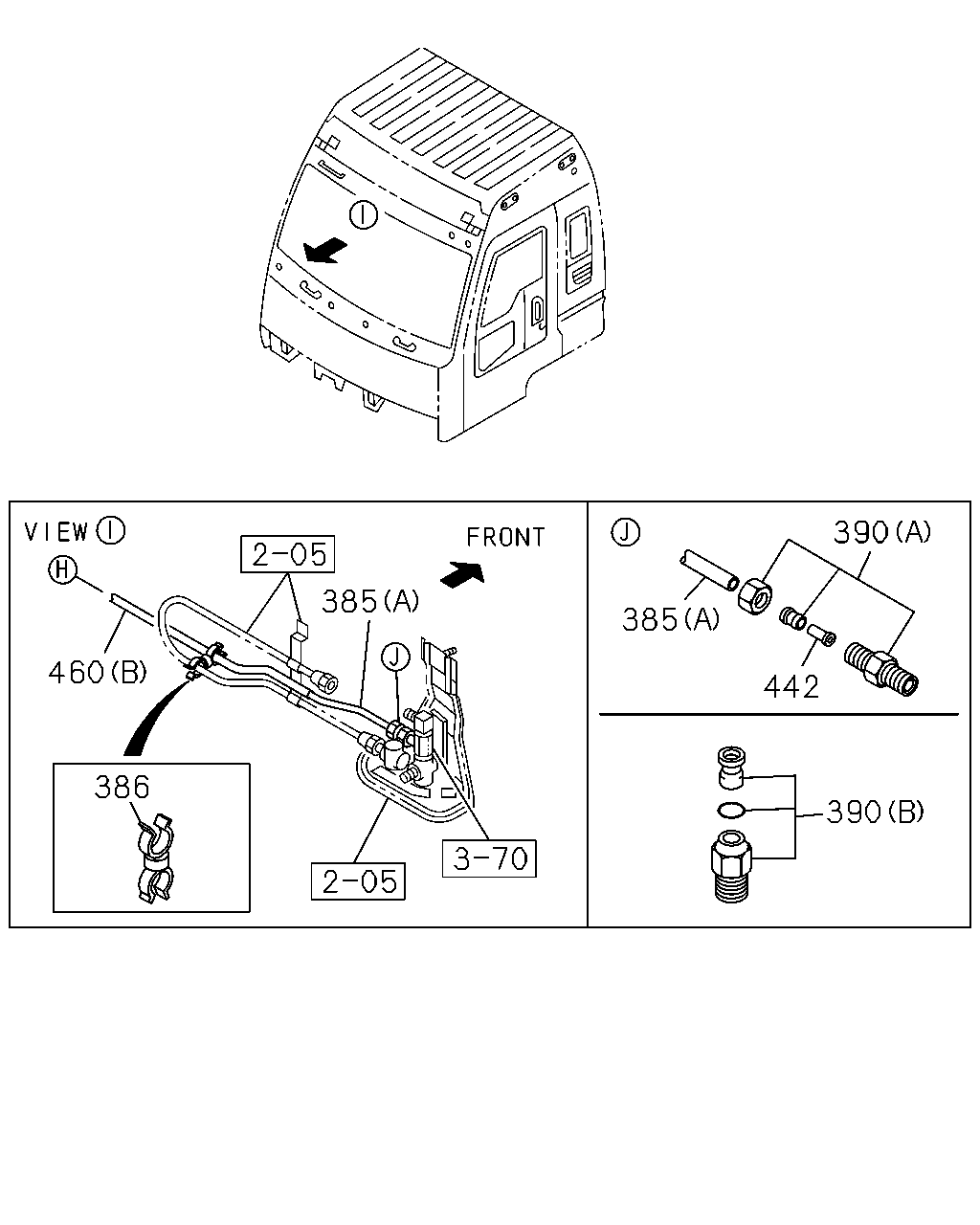

çizim 88431
390 35 385 460 442 386 390
BalonParca AdiParca NoAdetTipApplied Date
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0509-
385 TUBE; NYLON
(B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 0509-
385 TUBE; NYLON
(C) L=1500 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 0509-
385 TUBE; NYLON
(A) L=1340 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 0509-
386 CLIP; CONT CABLE & TUBE
ID=8.3 & 8.3 		8-94426-175-0 01 1 0509-
390 CONNECTOR; STRAIGHT,TRANS SIDE
(A) DIN4 & PT1/8 STRAIGHT 		1-09660-765-0 01 1 0509-0909
390 CONNECTOR; STRAIGHT,TRANS SIDE
(B) 		1-09661-174-0 01 1 0910-
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 05 1 0806-0904
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0905-0909
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0905-0909
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0910-
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0509-0608
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0609-0805
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0609-0805
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 0806-0904
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 05 1 0509-0608
460 TUBE; CORRUGATE
(C) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0509-
460 TUBE; CORRUGATE
(A) L=250 SERVICED BY L=800 		1-83129-031-1 01 1 0509-
460 TUBE; CORRUGATE
(B) L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0509-

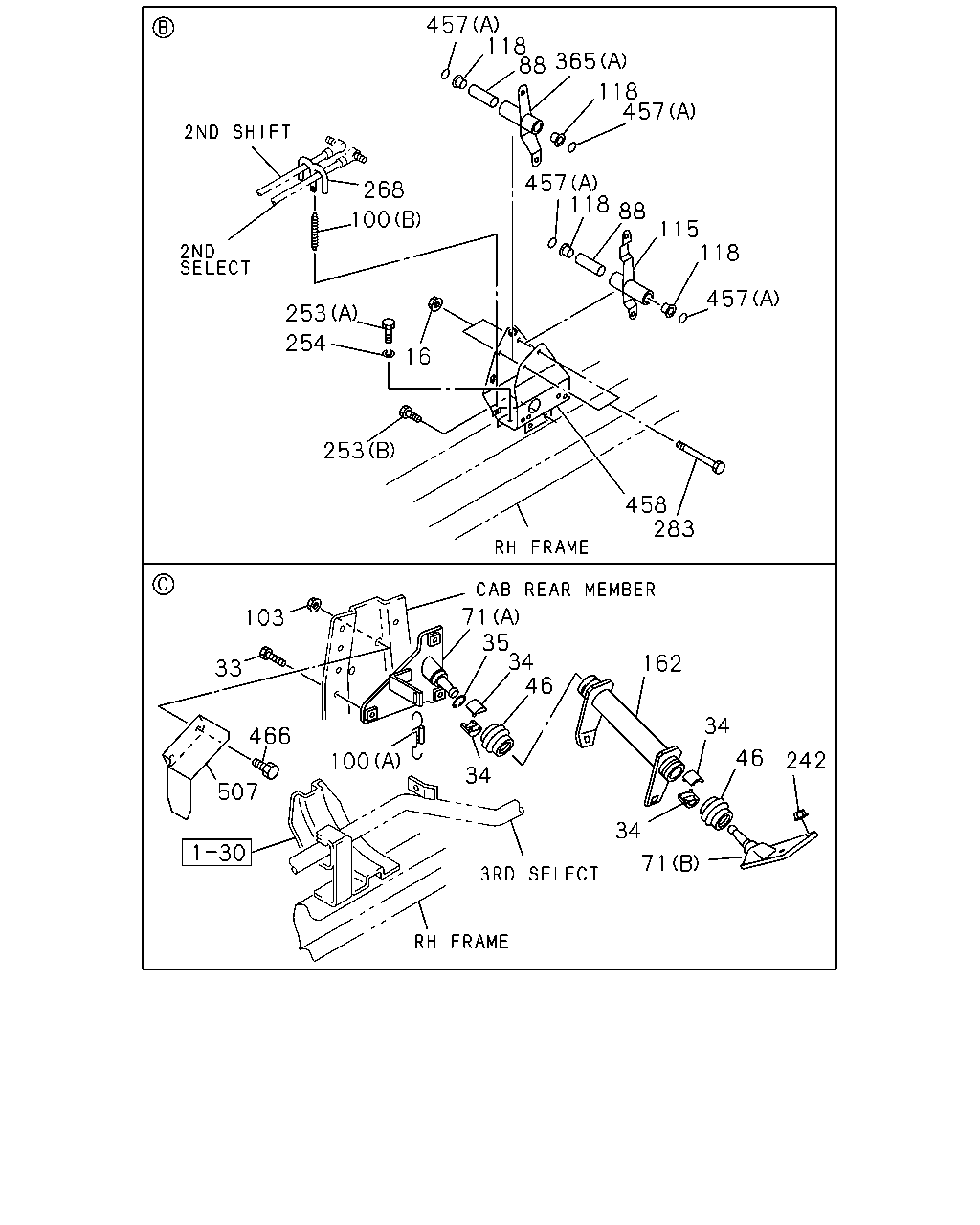

çizim 103678
457 118 365 88 118 457 457 118 88 268 100 115 118 457 253 254 16 253 458 283 71 35 34 46 103 162 33 34 466 46 242 100 34 507 34 71
BalonParca AdiParca NoAdetTipApplied Date
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 0509-0602
16 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 02 1 0603-
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 03 1 0509-0512
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28651-030-0 03 1 0601-1003
33 BOLT; BRKT,3RD RELAY LEVER
M10X35 FLANGE 		0-28651-035-0 03 1 1004-
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 0509-
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0509-
46 SEAL; DUST,RELAY LEVER 1-33659-248-0 02 1 0509-
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 0509-
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-706-0 01 1 0509-
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0509-
100 SPRING
(A) 		1-09583-319-0 01 1 0509-
100 SPRING
(B) 		1-09583-351-0 01 1 0509-
103 NUT
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
103 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
115 LEVER; RELAY,2ND SHIFT 1-33651-769-1 01 1 0509-
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0509-
162 LEVER; RELAY 1-33651-625-1 01 1 0509-
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 0509-0602
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91180-212-0 03 1 0603-
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0509-
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X25 FLANGE 		0-28081-025-0 02 1 0509-0512
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X25 FLANGE 		0-28051-025-0 02 1 0601-
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 0509-0603
254 WASHER; LK,RELAY LEVER
ID=14.2 		0-91510-614-0 02 1 0604-
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0509-
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0509-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0509-
365 LEVER; RELAY,SELECT
(B) 		1-33659-242-1 01 1 0509-
457 GASKET
(A) 		1-09623-594-0 04 1 0509-
457 GASKET
(B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0509-
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 0509-
466 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
466 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
507 PROTECTOR; HEAT 1-14181-287-1 01 1 0509-

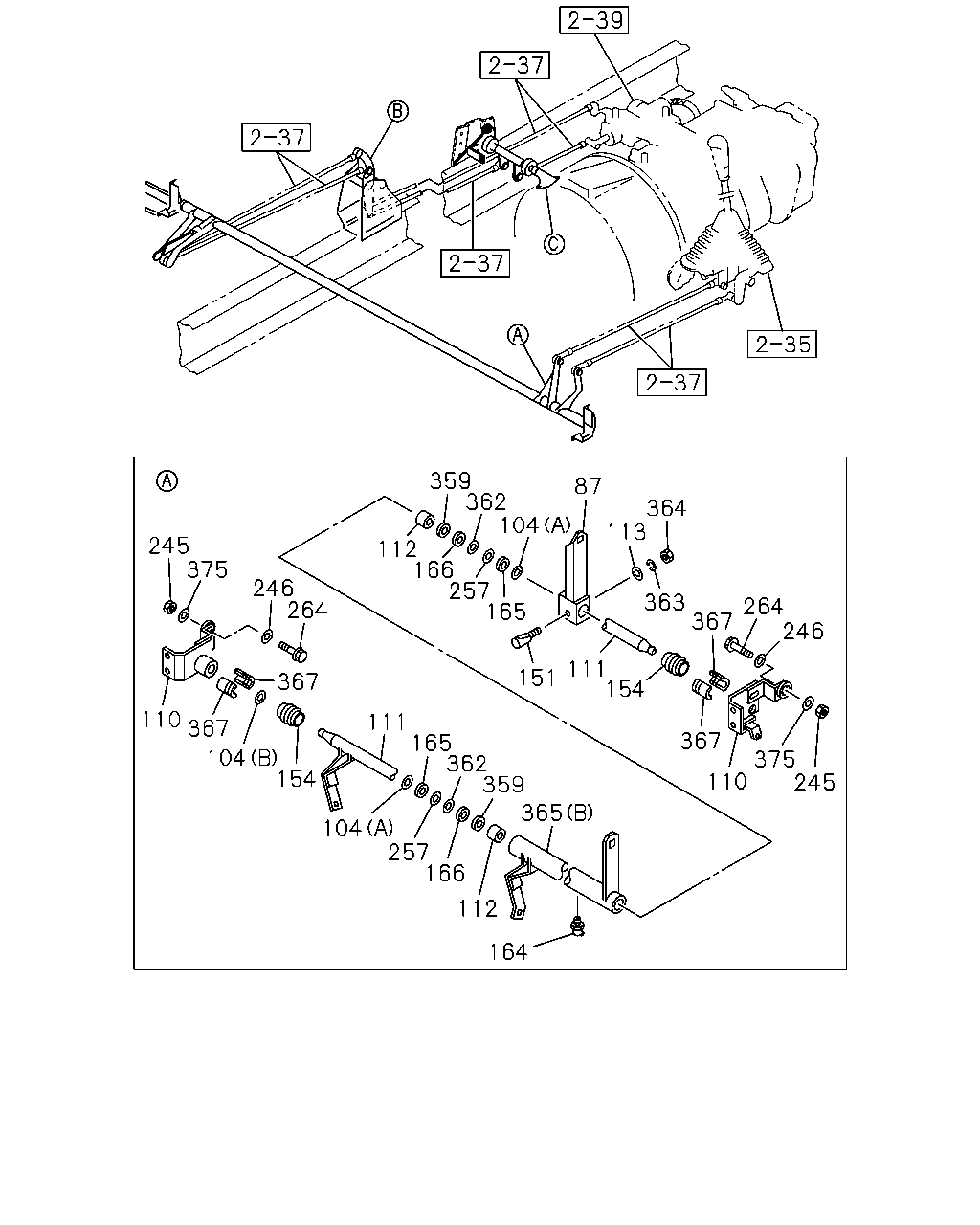

çizim 103682
359 362 104 87 364 113 245 375 112 166 257 165 246 264 363 367 264 246 111 154 151 367 367 110 367 111 165 362 359 365 104 154 375 110 245 104 257 166 112 164
BalonParca AdiParca NoAdetTipApplied Date
87 LEVER; RELAY,SELECT 1-33651-666-0 01 1 0509-
104 RING; SNAP
(A) ID=32.2 		9-09180-035-0 02 1 0509-
104 RING; SNAP
(B) OD=23.5 		9-09180-122-0 01 1 0509-
110 BRACKET; RELAY LEVER,1ST 1-33657-617-0 01 1 0509-
110 BRACKET; RELAY LEVER,1ST 1-33657-618-0 01 1 0509-
111 SHAFT; RELAY LEVER,1ST 1-33659-239-0 01 1 0509-
112 BUSHING; RELAY LEVER 1-09330-143-0 02 1 0509-
113 WASHER; RELAY LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 0509-1205
113 WASHER; RELAY LEVER
ID=10.5 		0-91610-710-0 01 1 1206-
151 BOLT; KEY,RELAY LEVER 1-33659-063-0 01 1 0509-
154 COVER; DUST,RELAY LEVER 1-33659-068-0 02 1 0509-
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0509-0512
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601-1205
165 WASHER; RELAY LEVER 1-09503-148-0 AR 1 0509-
166 WASHER; NYLON,RELAY LEVER 1-09509-040-0 02 1 0509-
245 NUT; BRKT,RELAY LEVER
M10 		1-09984-142-0 02 1 0509-
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 02 1 0509-
257 PIECE; DIST,RELAY LEVER 1-09503-198-0 AR 1 0509-
264 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 02 1 0509-0512
264 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
264 BOLT; BRKT,RELAY LEVER
M10X105 		1-79198-008-1 02 1 0509-
359 SEAL; RUBBER,RELAY LEVER 1-09625-005-1 02 1 0509-
362 SHIM 1-09503-172-0 AR 1 0509-
363 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 01 1 0509-0603
363 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 01 1 0604-
364 NUT; KEY BOLT
M10 		9-09111-410-0 01 1 0509-0512
364 NUT; KEY BOLT
M10 		0-91111-510-0 01 1 0601-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0509-
365 LEVER; RELAY,SELECT
(B) 		1-33659-242-1 01 1 0509-
367 SEAT; BALL,CONT SHAFT 1-33659-053-0 04 1 0509-
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0509-
