2-20 — MANUAL TRANSMISSION ASM AND CASE (#29654) — 127 parça

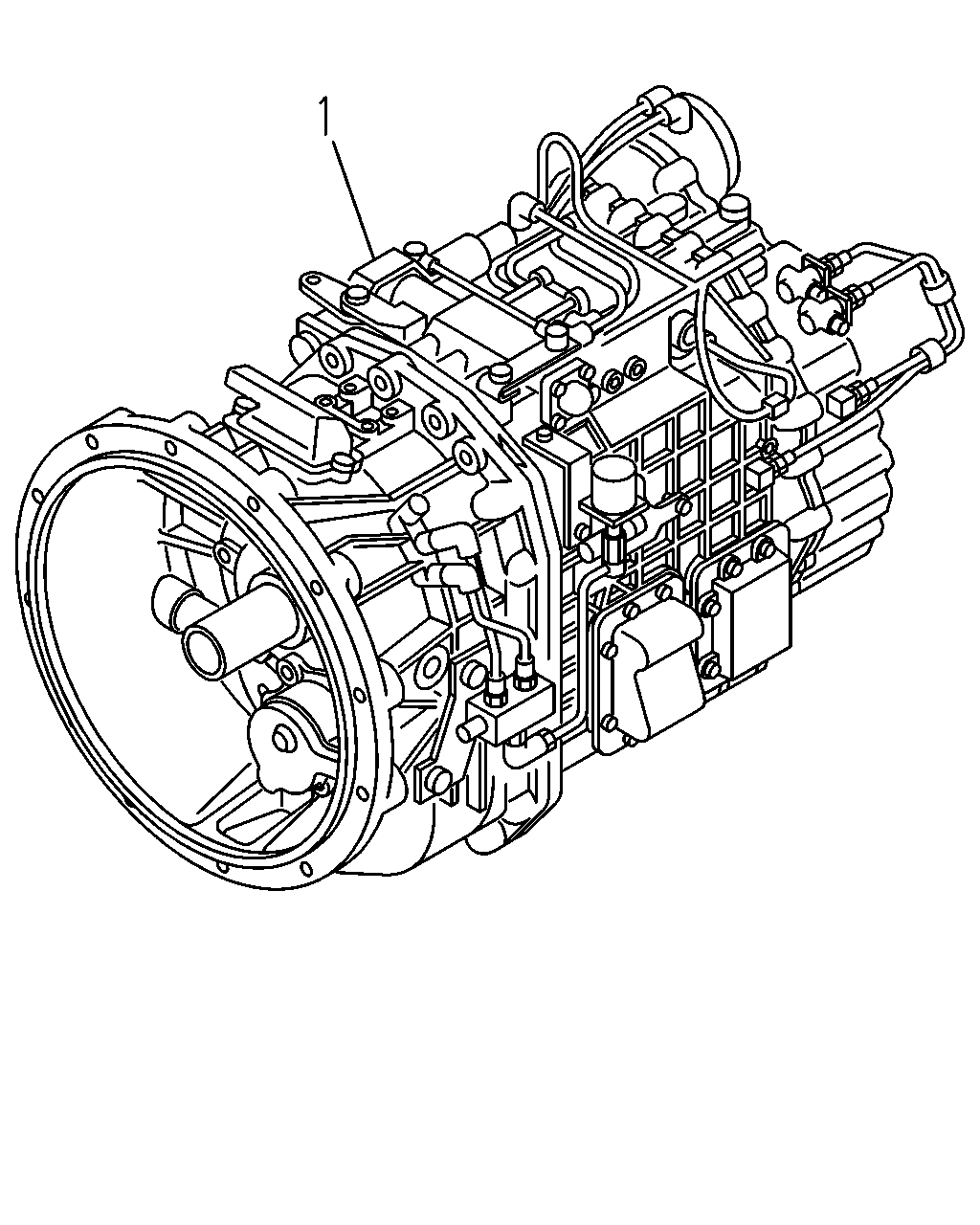

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. CHINA EQUIPMENT(YT2)	1-33043-196-0	01	1	0810-
1	TRANSMISSION ASM; MANUAL EXC. CHINA EQUIPMENT(YT2)	1-33043-196-0	01	1	0603-0809
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), CHINAEQUIPMENT(YT2)	1-33043-196-0	01	1	0810-
1	TRANSMISSION ASM; MANUAL	1-33044-040-0	01	1	0509-0602
1	TRANSMISSION ASM; MANUAL CHINA EQUIPMENT(YT2)	1-33044-040-0	01	1	0603-0809
1	TRANSMISSION ASM; MANUAL CHINA EQUIPMENT(YT2) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-040-0	01	1	0810-

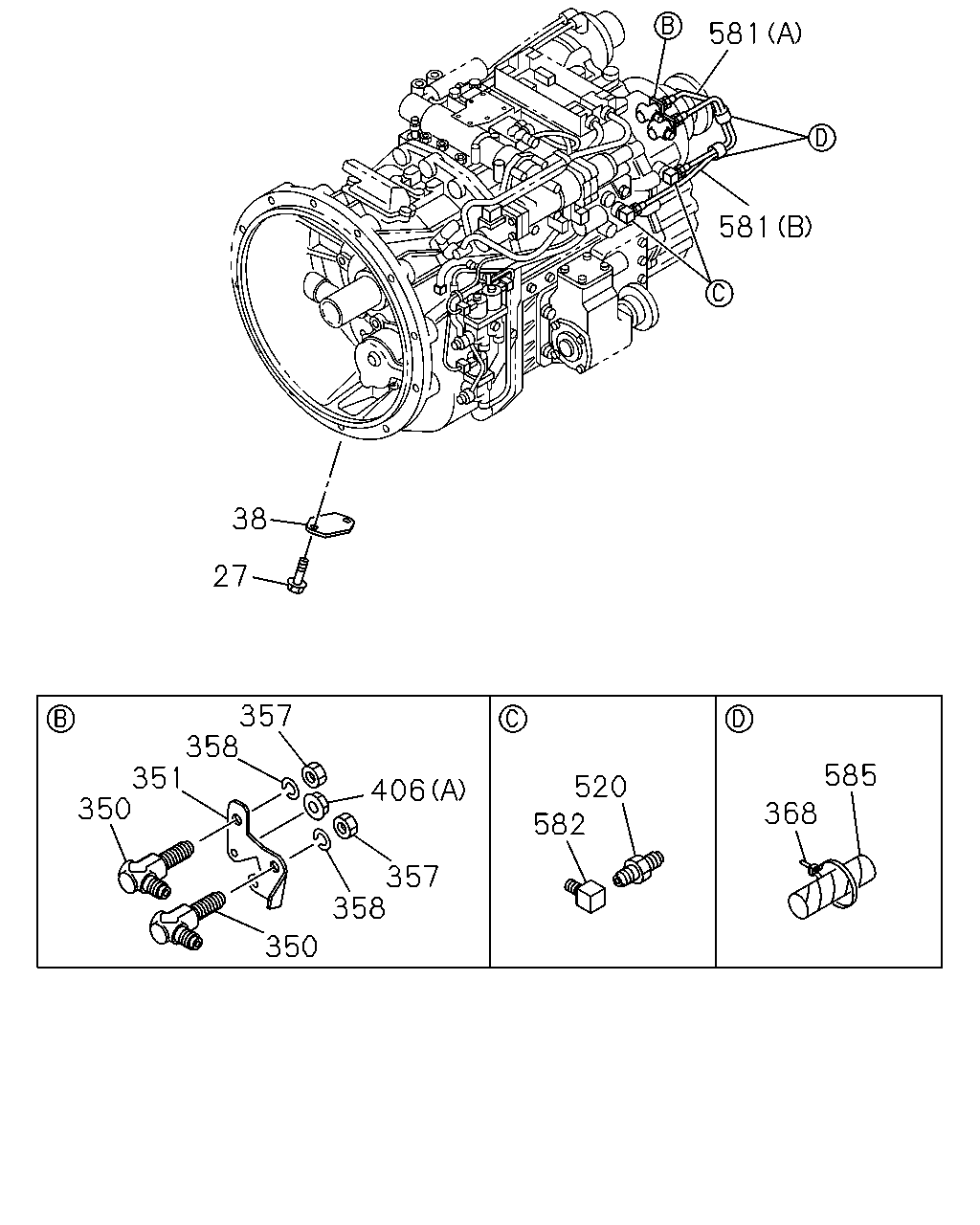

581 581 38 27 357 358 351 350 585 520 406 368 582 357 358 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0509-0512
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-0809
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0810-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0509-
350	UNION; FLEX HOSE,BRKT	1-09664-257-0	02	1	0509-
351	BRACKET; UNION,FLEX HOSE	1-46147-302-0	01	1	0509-
357	NUT; UNION,FLEX HOSE M22	9-09111-422-0	02	1	0509-0512
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0601-0809
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0810-
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0509-0603
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-
368	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	0509-
406	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	01	1	0509-0602
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0603-
406	NUT; BRKT (A) M10 FLANGE	0-91150-110-0	02	1	0509-0602
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0603-
520	CONNECTOR M20	9-99220-610-0	02	1	0509-0607
520	CONNECTOR R1/4 & M20	0-92306-010-0	02	1	0608-
581	HOSE; OIL COOLER (A) L=520	1-09365-144-0	01	1	0509-
581	HOSE; OIL COOLER (B) L=650	1-09365-145-0	01	1	0509-
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0509-
585	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	0509-

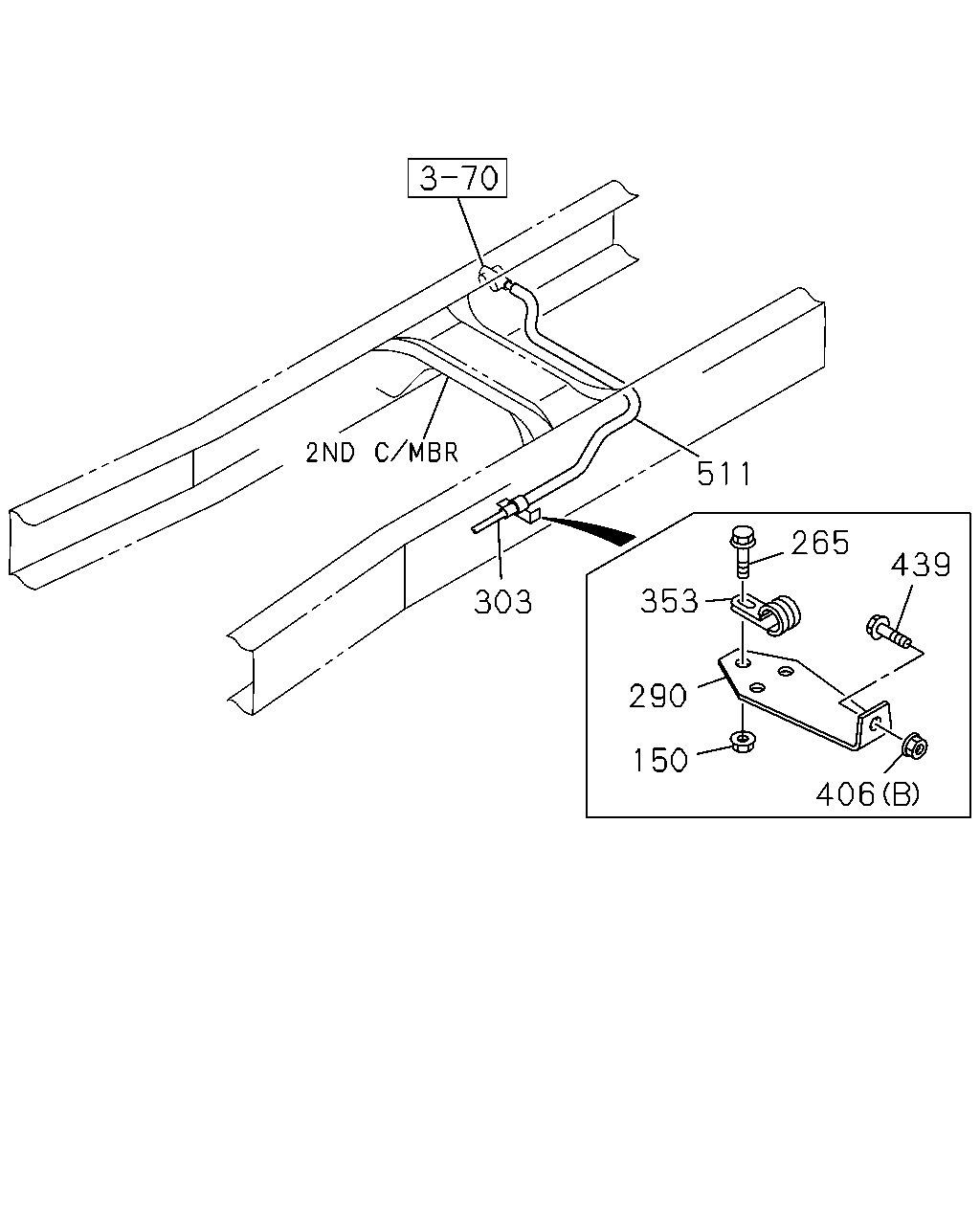

511 265 439 353 303 290 150 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
150	NUT M8 FLANGE	0-91150-108-0	01	1	0509-0602
150	NUT M8 FLANGE	0-91180-108-0	01	1	0603-
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0509-0512
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
290	BRACKET; CLIP	1-47479-779-0	01	1	0509-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0509-
353	CLIP; NYLON TUBE ID=18 L=28	1-09701-067-0	01	1	0509-
406	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	01	1	0509-0602
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0603-
406	NUT; BRKT (A) M10 FLANGE	0-91150-110-0	02	1	0509-0602
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0603-
439	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0509-0512
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0509-

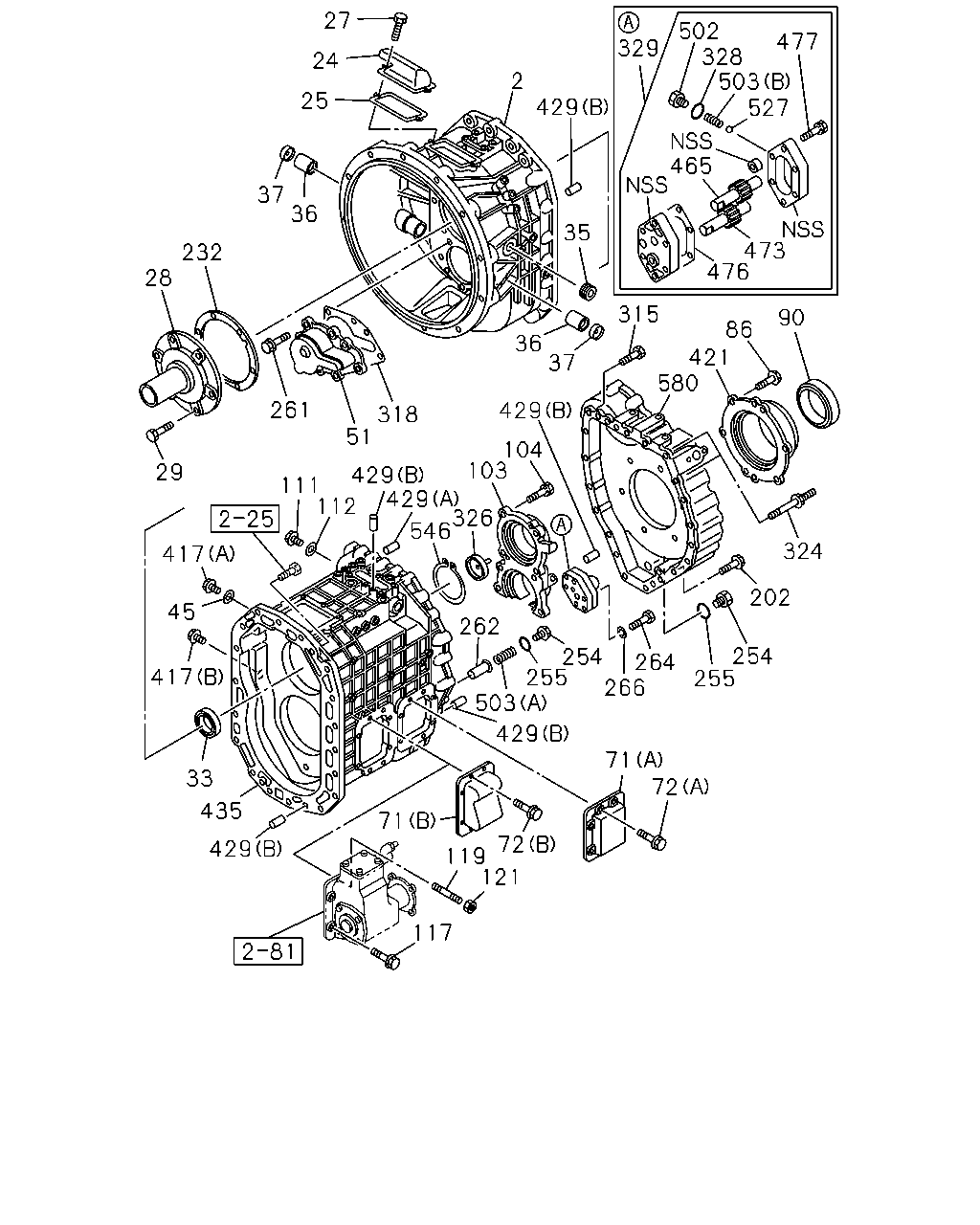

27 329 502 328 503 527 477 24 2 25 429 465 37 36 473 476 35 232 28 315 90 86 421 580 36 37 261 429 318 51 104 103 29 429 429 111 112 326 546 2 25 324 417 202 45 417 262 254 255 254 255 503 264 266 429 71 72 33 435 71 72 429 119 121 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-204-5	01	1	0509-0608
2	HOUSING; CLU	8-98052-280-0	01	1	0609-1003
2	HOUSING; CLU	8-98168-737-0	01	1	1004-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0509-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0509-1406
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0509-0512
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0601-0809
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0810-
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0509-
29	BOLT; FRT COVER M10X40	0-28191-040-0	06	1	0509-0512
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0601-0809
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0810-1211
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0509-
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0509-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0509-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0509-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0509-
51	COVER; SEAL,COUNTER,FRT	1-33319-200-1	01	1	0509-
71	COVER; SIDE,TRANS CASE (B)	1-33141-057-1	01	1	0509-0809
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33141-057-1	01	1	0810-
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	0509-
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28781-035-0	08	1	0509-0512
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28751-035-0	08	1	0601-0809
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28751-035-0	08	1	0810-
72	BOLT; SIDE COVER (B) M12X30 FLANGE	1-09044-086-0	08	1	0509-0809
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE	1-09044-086-0	08	1	0810-
86	BOLT; RR COVER M17X35	1-09044-076-0	06	1	0509-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	0509-
103	RETAINER; BRG	1-33151-063-0	01	1	0509-0910
103	RETAINER; BRG	1-33151-061-0	01	1	0911-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0509-
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	0509-
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0509-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. CHINA EQUIPMENT(YT2) M12X35 FLANGE	0-28751-235-0	04	1	0810-
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. CHINA EQUIPMENT(YT2) M12X30 L=48	8-98059-951-0	04	1	0810-
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. CHINA EQUIPMENT(YT2) M12 FLANGE	0-91180-212-0	04	1	0810-
202	BOLT; PLATE M12X35 FLANGE	0-28781-235-0	09	1	0509-0512
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	0601-0809
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	0810-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0509-
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	0509-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0509-
261	BOLT; COVER M10X30 FLANGE	0-28181-030-0	07	1	0509-0512
261	BOLT; COVER M10X30 FLANGE	0-28151-030-0	07	1	0601-0809
261	BOLT; COVER M10X30 FLANGE	0-28151-030-0	07	1	0810-
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	0509-
264	BOLT; OIL PUMP M8X50	0-10805-850-0	02	1	0509-0512
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	0601-0809
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	0810-
264	BOLT; OIL PUMP M8X65	0-10805-865-0	02	1	0509-
266	WASHER; LK ID=8.2	9-09150-508-0	04	1	0509-0603
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	0604-
315	BOLT; CASE M12X50 FLANGE	0-28181-250-0	11	1	0509-0512
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	0601-0809
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	0810-
315	BOLT; CASE M12X110	0-28186-211-0	05	1	0509-0512
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	0601-0809
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	0810-
315	BOLT; CASE M12X35 FLANGE	0-28781-235-0	02	1	0509-0512
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	0601-0809
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	0810-
318	GASKET; COVER	1-34142-034-0	01	1	0509-
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	0509-
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	0509-
328	GASKET; PLUG	1-34159-100-0	01	1	0509-
329	PUMP ASM; OIL	1-34150-117-0	01	1	0509-1408
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0509-
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0509-
421	COVER; RR,TRANS	1-33131-238-0	01	1	0509-
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	0509-
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	0509-
435	CASE; TRANS	1-33111-361-1	01	1	0509-
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	0509-1408
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	0509-1408
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	0509-
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	0509-1408
502	PLUG; OIL PUMP	1-34159-101-0	01	1	0509-
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	0509-
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	0509-
527	BALL; OIL PUMP	9-00097-531-0	01	1	0509-
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	0509-
580	CASE; RANGE	1-33115-051-2	01	1	0509-
