0-84 — FEED PUMP; INJECTION PUMP (#2965) — 99 parça

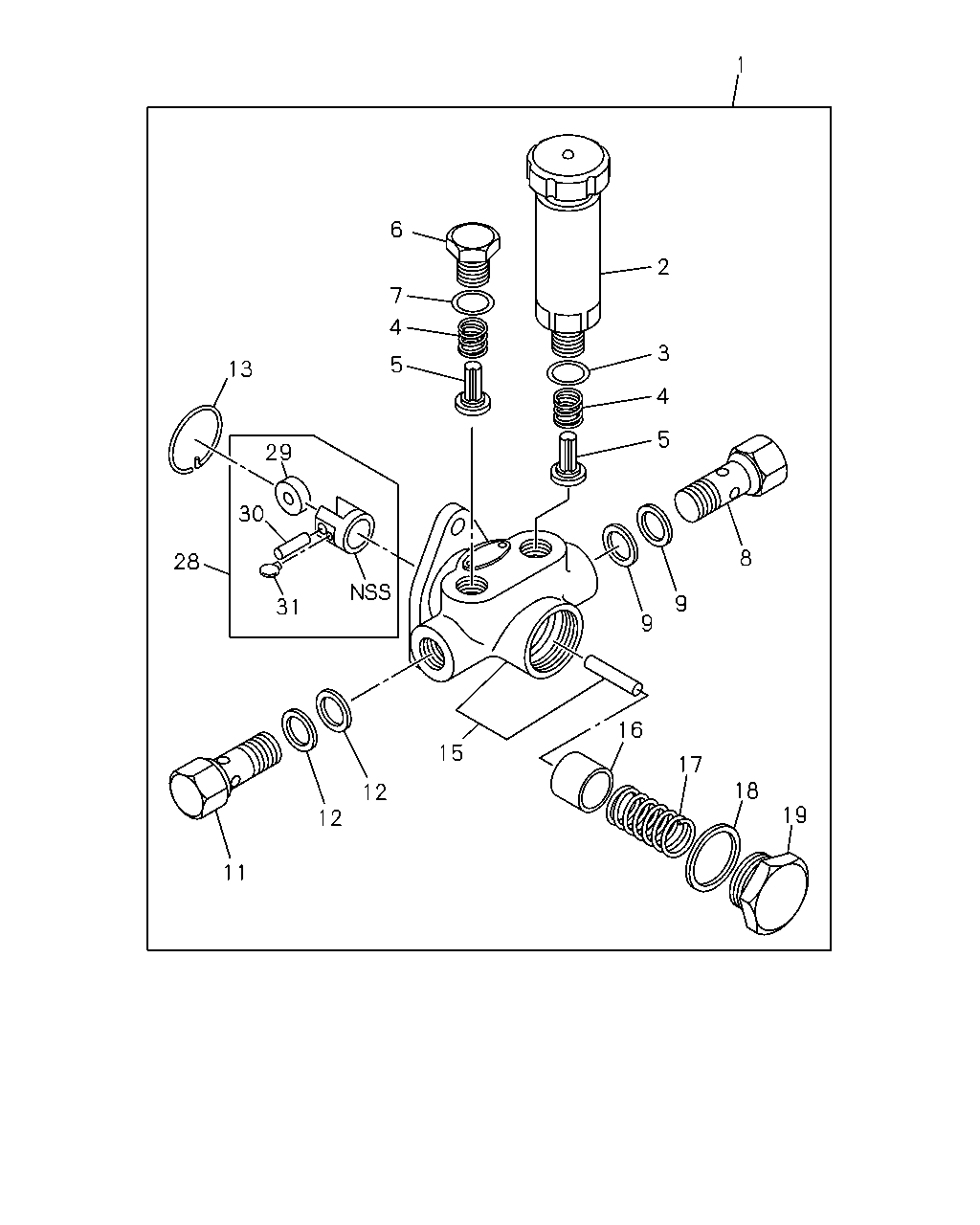

19 18 17 16 15 12 12 11 28 31 30 29 13 5 4 7 6 2 1 3 4 5 8 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	1-15750-068-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15750-085-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	8-94131-130-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	1-09623-016-0	01	1	-9311
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, H = 1-15602-521-0, I = 1-15602-585-1	1-09623-016-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	1-19623-016-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	1-19623-016-0	01	1	9312-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	9-81351-702-0	04	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81351-702-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81351-602-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	9-81351-602-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15759-009-0	01	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	1-15759-009-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	9-81355-031-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81355-031-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-011-0	01	1	9312-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-029-0	01	1	-9311
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15759-029-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: F = 1-15602-519-1	1-09630-085-0	02	1	9401-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-520-1	1-09630-085-0	02	1	9312-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-012-0	02	1	-9311
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: F = 1-15602-519-1	1-15759-012-0	02	1	-9312
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15759-011-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-011-0	01	1	-9311
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-029-0	01	1	9312-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-520-1	1-09630-085-0	02	1	9312-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: F = 1-15602-519-1	1-09630-085-0	02	1	9401-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: F = 1-15602-519-1	1-15759-012-0	02	1	-9312
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15759-012-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-012-0	02	1	-9311
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81355-025-0	01	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15751-018-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	8-94171-185-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: E = 1-15602-506-1, F = 1-15602-519-1	8-94171-185-0	01	1	9401-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	8-94171-185-0	01	1	9312-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81355-023-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: E = 1-15602-506-1, F = 1-15602-519-1	9-81355-023-0	01	1	-9312
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	9-81355-023-0	01	1	-9311
28	TAPPET ASM; FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15754-002-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	1-15754-004-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-043-0	01	1	9312-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81351-403-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	9-81351-403-0	01	1	-9311
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81351-406-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81351-416-0	02	1	-

19 18 17 16 15 12 12 11 28 13 5 4 7 6 1 2 3 4 5 9 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	1-15750-068-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15750-085-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	8-94131-130-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	1-09623-016-0	01	1	-9311
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, H = 1-15602-521-0, I = 1-15602-585-1	1-09623-016-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	1-19623-016-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	1-19623-016-0	01	1	9312-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	9-81351-702-0	04	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81351-702-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81351-602-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	9-81351-602-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15759-009-0	01	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	1-15759-009-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	9-81355-031-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81355-031-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-011-0	01	1	9312-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-029-0	01	1	-9311
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15759-029-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: F = 1-15602-519-1	1-09630-085-0	02	1	9401-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-520-1	1-09630-085-0	02	1	9312-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15759-012-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-012-0	02	1	-9311
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ASM PART: F = 1-15602-519-1	1-15759-012-0	02	1	-9312
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15759-011-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-011-0	01	1	-9311
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-029-0	01	1	9312-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: G = 1-15602-520-1	1-09630-085-0	02	1	9312-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: F = 1-15602-519-1	1-09630-085-0	02	1	9401-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: F = 1-15602-519-1	1-15759-012-0	02	1	-9312
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15759-012-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	1-15759-012-0	02	1	-9311
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81355-025-0	01	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15751-018-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0, D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	8-94171-185-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: E = 1-15602-506-1, F = 1-15602-519-1	8-94171-185-0	01	1	9401-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	8-94171-185-0	01	1	9312-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: D = 1-15602-505-1, H = 1-15602-521-0, I = 1-15602-585-1	9-81355-023-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: E = 1-15602-506-1, F = 1-15602-519-1	9-81355-023-0	01	1	-9312
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: G = 1-15602-520-1	9-81355-023-0	01	1	-9311
28	TAPPET ASM; FUEL FEED PUMP ASM PART: D = 1-15602-505-1, E = 1-15602-506-1, F = 1-15602-519-1, G = 1-15602-520-1, H = 1-15602-521-0, I = 1-15602-585-1	1-15754-002-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15602-438-0, B = 1-15602-439-0, C = 1-15602-441-0	1-15754-004-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
