Sayfa 1-31 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10964 - EXZ LHD WEDGE BRAKE ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶

1-31 — AIR DUCT (#29641) — 168 parça

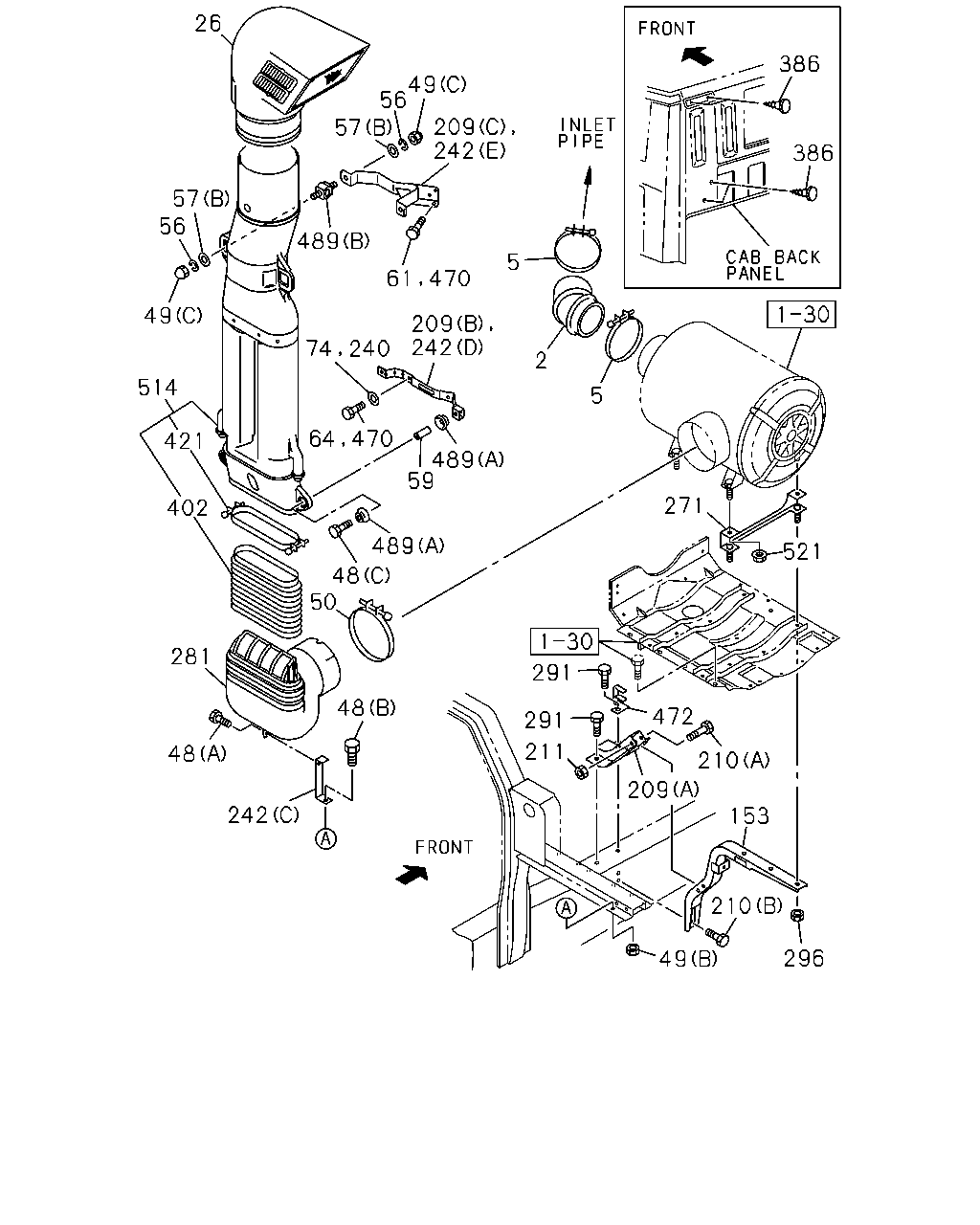

26 386 49 56 57 209 242 386 57 56 489 5 61 470 49 209 242 74 2 514 5 64 421 489 59 271 402 521 489 48 50 281 291 48 472 291 211 48 210 209 242 153 210 296 49 240 470

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-955-1	01	1	0509-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0509-
26	DUCT; AIR INT PRE CLEANER<W17>	1-14219-258-1	01	1	0603-
26	DUCT; AIR INT	1-14230-202-2	01	1	0509-0602
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-202-2	01	1	0603-1003
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	8-98122-904-2	01	1	1004-
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0603-
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0509-0512
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0509-0512
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	0603-
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0509-0602
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-
49	NUT; AIR DUCT (C) M8 FLANGE	1-09984-126-0	01	1	0509-0602
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0603-
49	NUT; AIR DUCT (A) M8	9-09110-408-0	01	1	0509-0512
49	NUT; AIR DUCT (A) M8	0-91110-508-0	01	1	0601-0602
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	0-91110-508-0	01	1	0603-0808
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8 FLANGE	1-09984-122-0	01	1	0809-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0509-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0603-
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	02	1	0509-0602
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0603-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.4 OD=22	1-09985-188-0	04	1	0603-
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0509-0602
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0603-0606
57	WASHER; PL,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0509-0602
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.4 OD=22	1-09985-188-0	02	1	0603-
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0509-
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0509-0702
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807
61	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0509-0702
64	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807
64	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
74	WASHER; PL,ACL PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0808-
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0509-
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	0808-
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	0808-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0509-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0509-0512
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	0509-0512
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0509-0602
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0603-0807
242	BRACKET; AIR DUCT PRE CLEANER<W17> (D)	1-79990-041-0	01	1	0603-0807
242	BRACKET; AIR DUCT PRE CLEANER<W17> (E)	1-79990-045-1	01	1	0603-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> (A)	1-53419-351-1	01	1	0509-0602
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (A)	1-53419-351-1	01	1	0603-0606
242	BRACKET; AIR DUCT EXC. FULL FLOATING CAB(W16),PRE CLEANER<W17> (A)	1-53419-324-1	01	1	0607-
242	BRACKET; AIR DUCT (C)	1-23957-006-0	01	1	0509-
242	BRACKET; AIR DUCT (B)	1-53419-325-1	01	1	0509-0602
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-53419-325-1	01	1	0603-
242	BRACKET; AIR DUCT EXC. GRIP OUT SIDE<W52> (A)	1-53419-324-0	01	1	0509-0602
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (A)	1-53419-324-0	01	1	0603-0606
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (F)	8-98041-993-0	01	1	0607-0607
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (F)	8-98041-993-1	01	1	0607-
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	0509-
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	0603-
291	BOLT; ACL M12X30 FLANGE	0-28081-230-0	02	1	0509-0512
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	0601-
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0509-0602
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0607-0610
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0611-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0509-0606
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0509-0606
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0607-0610
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0611-
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-2	01	1	0603-
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0603-
470	BOLT; BRKT PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	0808-
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0509-
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0603-
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0603-
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-1	01	1	0603-
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0509-0602
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-

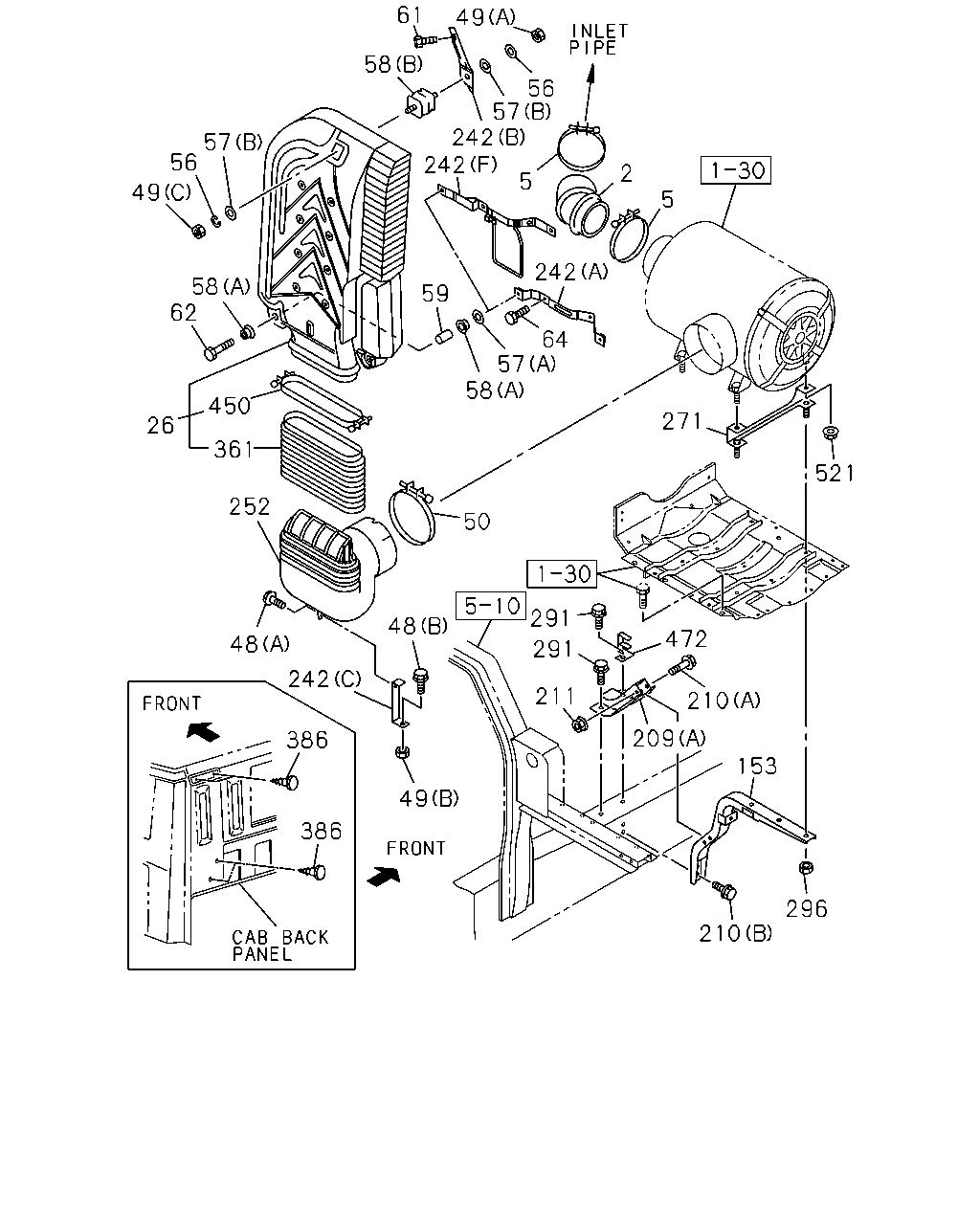

61 49 58 56 57 242 242 57 56 2 5 49 5 242 58 62 59 64 57 58 450 271 26 361 521 252 50 291 48 472 48 291 242 211 210 209 386 153 49 386 296 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-955-1	01	1	0509-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0509-
26	DUCT; AIR INT PRE CLEANER<W17>	1-14219-258-1	01	1	0603-
26	DUCT; AIR INT	1-14230-202-2	01	1	0509-0602
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-202-2	01	1	0603-1003
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	8-98122-904-2	01	1	1004-
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0603-
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0509-0512
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0509-0512
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	0603-
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0509-0602
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-
49	NUT; AIR DUCT (C) M8 FLANGE	1-09984-126-0	01	1	0509-0602
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0603-
49	NUT; AIR DUCT (A) M8	9-09110-408-0	01	1	0509-0512
49	NUT; AIR DUCT (A) M8	0-91110-508-0	01	1	0601-0602
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	0-91110-508-0	01	1	0603-0808
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8 FLANGE	1-09984-122-0	01	1	0809-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0509-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0603-
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	02	1	0509-0602
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0603-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.4 OD=22	1-09985-188-0	04	1	0603-
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0509-0602
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0603-0606
57	WASHER; PL,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0509-0602
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.4 OD=22	1-09985-188-0	02	1	0603-
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52> (B)	1-14119-452-0	01	1	0509-0602
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0603-0606
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0509-0602
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0603-
58	SUPPORT; AIR INL DUCT EXC. GRIP OUT SIDE<W52> (B)	8-97080-149-0	01	1	0509-0602
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (B)	8-97080-149-0	01	1	0603-0606
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0607-
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0509-
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0509-0702
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807
61	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
62	BOLT; AIR INT DUCT M10X60	1-09030-044-1	02	1	0509-0602
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X60	1-09030-044-1	02	1	0603-
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0509-0702
64	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0703-0807
64	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	0808-
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0509-
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	0808-
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	0808-
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0509-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0509-0512
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	0509-0512
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0509-0602
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
242	BRACKET; AIR DUCT PRE CLEANER<W17> (D)	1-79990-041-0	01	1	0603-0807
242	BRACKET; AIR DUCT PRE CLEANER<W17> (E)	1-79990-045-1	01	1	0603-0807
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> (A)	1-53419-351-1	01	1	0509-0602
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (A)	1-53419-351-1	01	1	0603-0606
242	BRACKET; AIR DUCT EXC. FULL FLOATING CAB(W16),PRE CLEANER<W17> (A)	1-53419-324-1	01	1	0607-
242	BRACKET; AIR DUCT (C)	1-23957-006-0	01	1	0509-
242	BRACKET; AIR DUCT (B)	1-53419-325-1	01	1	0509-0602
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-53419-325-1	01	1	0603-
242	BRACKET; AIR DUCT EXC. GRIP OUT SIDE<W52> (A)	1-53419-324-0	01	1	0509-0602
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (A)	1-53419-324-0	01	1	0603-0606
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (F)	8-98041-993-0	01	1	0607-0607
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (F)	8-98041-993-1	01	1	0607-
252	DUCT; AIR INT	1-14230-194-0	01	1	0509-0606
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0607-
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	0509-
291	BOLT; ACL M12X30 FLANGE	0-28081-230-0	02	1	0509-0512
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	0601-
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0509-0602
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-
361	RUBBER; CUSHION,AIR DUCT	1-14230-149-2	01	1	0509-0602
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-2	01	1	0603-
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0607-0610
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0611-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0509-0606
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0509-0606
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0607-0610
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0611-
450	CLAMP; HOSE	1-14239-237-0	01	1	0509-0602
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0603-
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0509-
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0509-0602
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-
