3-08 — PARKING BRAKE (#29637) — 150 parça

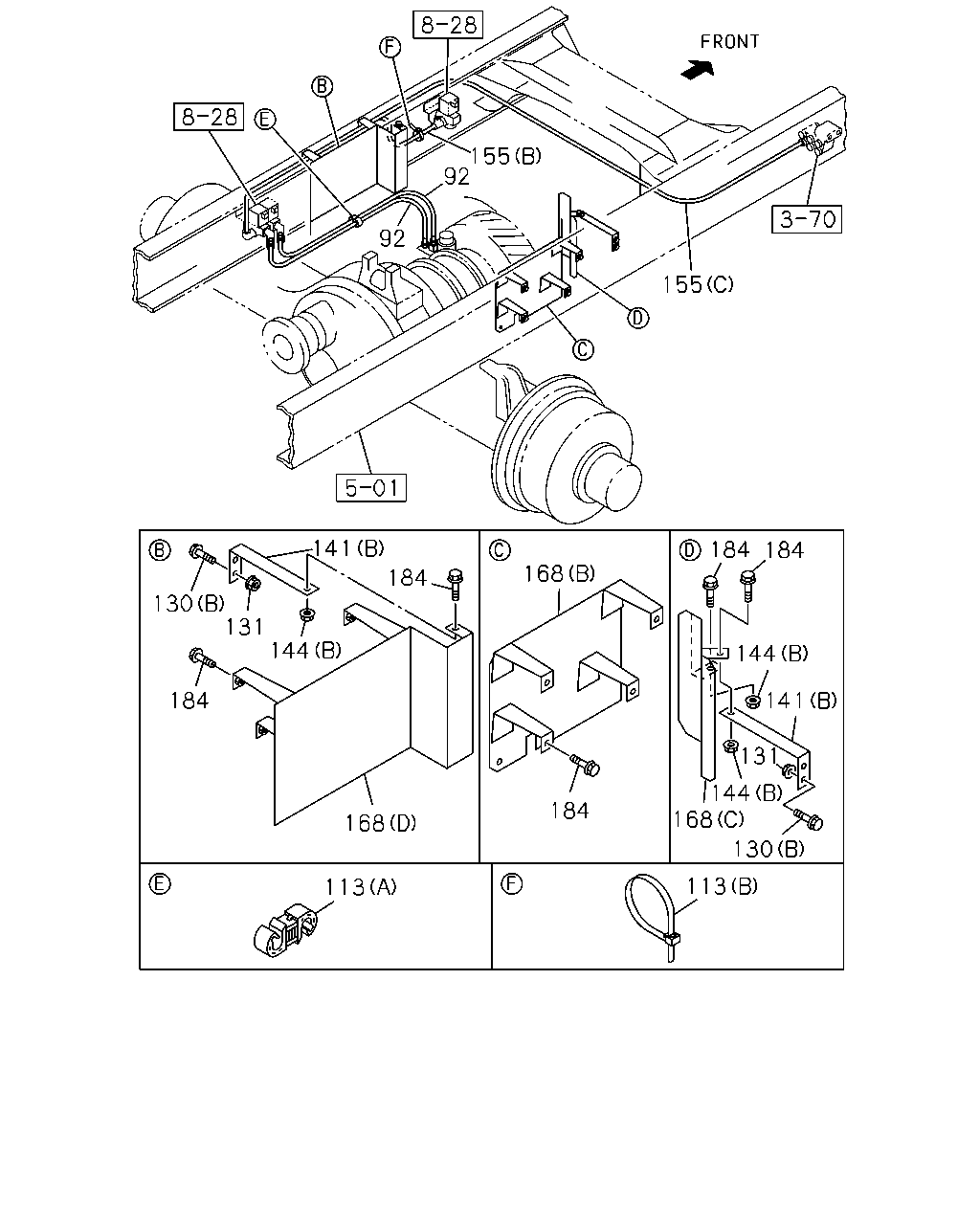

155 155 92 92 141 130 184 168 131 144 184 184 184 144 141 131 144 168 130 113 113 168 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	HOSE; FLEX,RETARDER L=390	1-09363-616-0	02	1	0407-0511
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=390	1-09363-616-0	02	1	0512-
113	CLIP; HOSE (B) L=350	1-09707-183-0	01	1	0407-0511
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=350	1-09707-183-0	01	1	0512-
113	CLIP; HOSE (A) ID=10 & 10	1-09709-277-1	01	1	0407-0511
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=10 & 10	1-09709-277-1	01	1	0512-
130	BOLT; BRKT (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0407-0511
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0512-
130	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	04	1	0407-0511
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
131	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0407-0511
131	NUT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	04	1	0512-0602
131	NUT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	04	1	0603-
141	BRACKET (A)	1-48629-111-2	01	1	0407-0511
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-111-2	01	1	0512-
141	BRACKET (B)	1-47479-803-0	02	1	0407-0511
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-47479-803-0	02	1	0512-
144	NUT (A) M12	9-09840-280-0	03	1	0407-0511
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12	9-09840-280-0	03	1	0512-
144	NUT (B) M8 FLANGE	0-91150-108-0	03	1	0407-0511
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8 FLANGE	0-91150-108-0	03	1	0512-0602
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8 FLANGE	0-91180-108-0	03	1	0603-
155	TUBE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0407-0511
155	TUBE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0512-
155	TUBE (A)	1-48629-092-0	01	1	0407-0511
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0512-
155	TUBE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0407-0511
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0512-
168	PROTECTOR; HEAT (A)	1-48629-190-0	02	1	0407-0511
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0512-
168	PROTECTOR; HEAT (B)	1-22119-592-0	01	1	0407-0511
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-592-0	01	1	0512-
168	PROTECTOR; HEAT (C)	1-22119-593-0	01	1	0407-0509
168	PROTECTOR; HEAT (C)	8-97609-584-0	01	1	0510-0511
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-22119-593-0	01	1	0512-
168	PROTECTOR; HEAT (D)	1-22119-594-0	01	1	0407-0511
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-22119-594-0	01	1	0512-
184	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	11	1	0407-0511
184	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	11	1	0512-0512
184	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28650-825-0	11	1	0601-

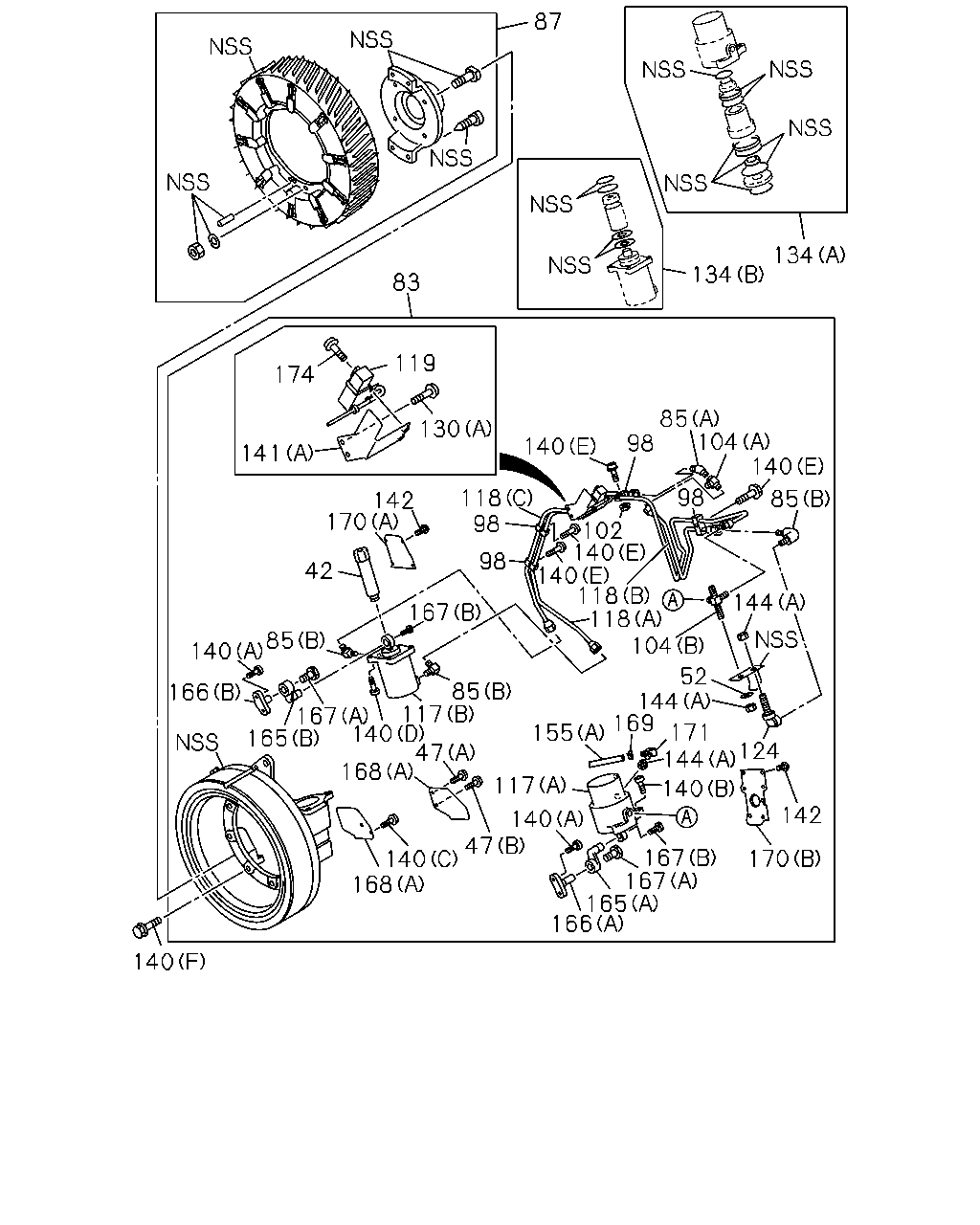

87 83 119 130 174 141 142 170 42 167 85 140 166 165 167 140 168 117 47 85 140 168 140 47 117 155 169 171 144 140 140 166 165 167 167 144 104 118 118 140 98 118 98 140 98 102 140 144 85 140 104 98 85 124 142 170 134 134 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	SPRING; RETURN,LEVER	1-48629-071-1	01	1	0407-0511
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	0512-
47	BOLT; SUPPORT PLATE (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	0407-0511
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	0512-
47	BOLT; SUPPORT PLATE (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0407-0511
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0512-
52	WASHER; PL ID=12.5 OD=26	9-09160-612-0	01	1	0407-0511
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	01	1	0512-0605
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	0-91610-612-0	01	1	0606-
83	RETARDER ASM; PARKING BRK	1-48610-466-3	01	1	0407-0511
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-466-3	01	1	0512-
85	CONNECTOR; RETARDER (A)	1-48629-150-0	01	1	0407-0511
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0512-
85	CONNECTOR; RETARDER (B) M12 & PT1/8	9-09224-306-2	03	1	0407-0511
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	03	1	0512-0607
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	0-92124-306-0	03	1	0608-
87	DRUM; RETARDER,PARKING BRK	1-48610-460-2	01	1	0407-0511
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-2	01	1	0512-
98	CLIP; AIR PIPE	1-48629-131-0	10	1	0407-0511
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	10	1	0512-
102	NUT; CLIP,AIR PIPE M6 FLANGE	5-09440-004-0	01	1	0407-0511
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	0512-
104	CONNECTOR (A)	1-48629-149-0	01	1	0407-0511
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0512-
104	CONNECTOR (B)	1-48629-394-0	01	1	0407-0511
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-394-0	01	1	0512-
117	CYLINDER ASM; AIR (A)	1-48629-142-0	01	1	0407-0511
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0512-
117	CYLINDER ASM; AIR (B)	1-48629-146-0	01	1	0407-0511
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0512-
118	PIPE ASM; AIR CYL (B)	1-48629-391-0	01	1	0407-0511
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-391-0	01	1	0512-
118	PIPE ASM; AIR CYL (C)	1-48629-392-0	01	1	0407-0511
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-48629-392-0	01	1	0512-
118	PIPE ASM; AIR CYL (A)	1-49115-875-0	01	1	0407-0511
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0512-
119	SWITCH; THERMO	1-82450-054-0	01	1	0407-0511
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0512-
124	CONNECTOR; FLEX HOSE	1-48629-393-0	01	1	0407-0511
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-393-0	01	1	0512-
130	BOLT; BRKT (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0407-0511
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X14 HEX SOCKET	1-48629-145-0	01	1	0512-
130	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	04	1	0407-0511
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE	0-28680-825-0	04	1	0512-0512
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
134	REPAIR KIT; AIR CYL (A)	1-48629-137-0	01	1	0407-0511
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0512-
134	REPAIR KIT; AIR CYL (B)	1-48629-138-0	01	1	0407-0511
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0512-
140	BOLT (F) M12X35 FLANGE	0-28791-235-0	08	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M12X35 FLANGE	0-28791-235-0	08	1	0512-0512
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (F) M12X35 FLANGE	0-28761-235-0	08	1	0601-
140	BOLT (A) M10X20	1-48629-070-0	04	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0512-
140	BOLT (B)	1-48629-104-0	03	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0512-
140	BOLT (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0512-
140	BOLT (E) M8X18	1-48629-134-0	05	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) M8X18	1-48629-134-0	05	1	0512-
140	BOLT (D)	1-48629-148-0	04	1	0407-0511
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0512-
141	BRACKET (A)	1-48629-111-2	01	1	0407-0511
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-111-2	01	1	0512-
141	BRACKET (B)	1-47479-803-0	02	1	0407-0511
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-47479-803-0	02	1	0512-
142	SCREW M5X10 PAN-HD	9-93490-510-0	11	1	0407-0511
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	0512-
144	NUT (A) M12	9-09840-280-0	03	1	0407-0511
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12	9-09840-280-0	03	1	0512-
144	NUT (B) M8 FLANGE	0-91150-108-0	03	1	0407-0511
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8 FLANGE	0-91150-108-0	03	1	0512-0602
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8 FLANGE	0-91180-108-0	03	1	0603-
155	TUBE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0407-0511
155	TUBE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0512-
155	TUBE (A)	1-48629-092-0	01	1	0407-0511
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	0512-
155	TUBE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0407-0511
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0512-
165	LINK; RETARDER (A)	1-48629-140-0	01	1	0407-0511
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	0512-
165	LINK; RETARDER (B)	1-48629-141-0	01	1	0407-0511
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	0512-
166	ATTACHMENT; YOKE (A)	1-48629-066-0	01	1	0407-0511
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0512-
166	ATTACHMENT; YOKE (B)	1-48629-067-0	01	1	0407-0511
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0512-
167	STOPPER; LINKAGE (A)	1-48629-069-0	02	1	0407-0511
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	0512-
167	STOPPER; LINKAGE (B)	1-48629-217-0	02	1	0407-0511
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-217-0	02	1	0512-
168	PROTECTOR; HEAT (A)	1-48629-190-0	02	1	0407-0511
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0512-
168	PROTECTOR; HEAT (B)	1-22119-592-0	01	1	0407-0511
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-22119-592-0	01	1	0512-
168	PROTECTOR; HEAT (C)	1-22119-593-0	01	1	0407-0509
168	PROTECTOR; HEAT (C)	8-97609-584-0	01	1	0510-0511
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-22119-593-0	01	1	0512-
168	PROTECTOR; HEAT (D)	1-22119-594-0	01	1	0407-0511
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-22119-594-0	01	1	0512-
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	0512-
170	COVER; CASE (A)	1-48629-063-0	01	1	0407-0511
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0512-
170	COVER; CASE (B)	1-48629-240-0	01	1	0407-0511
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0512-
171	BREATHER	1-48629-144-0	01	1	0407-0511
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0512-
174	BOLT; SWITCH M6X10 HEX SOCKET	1-48629-133-0	02	1	0407-0511
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	0512-
