Isuzu WW
▶
TRUCKS
▶
EXY
▶
10956 - EXY NEW ZEALAND
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#29630) — 14 parça
◀

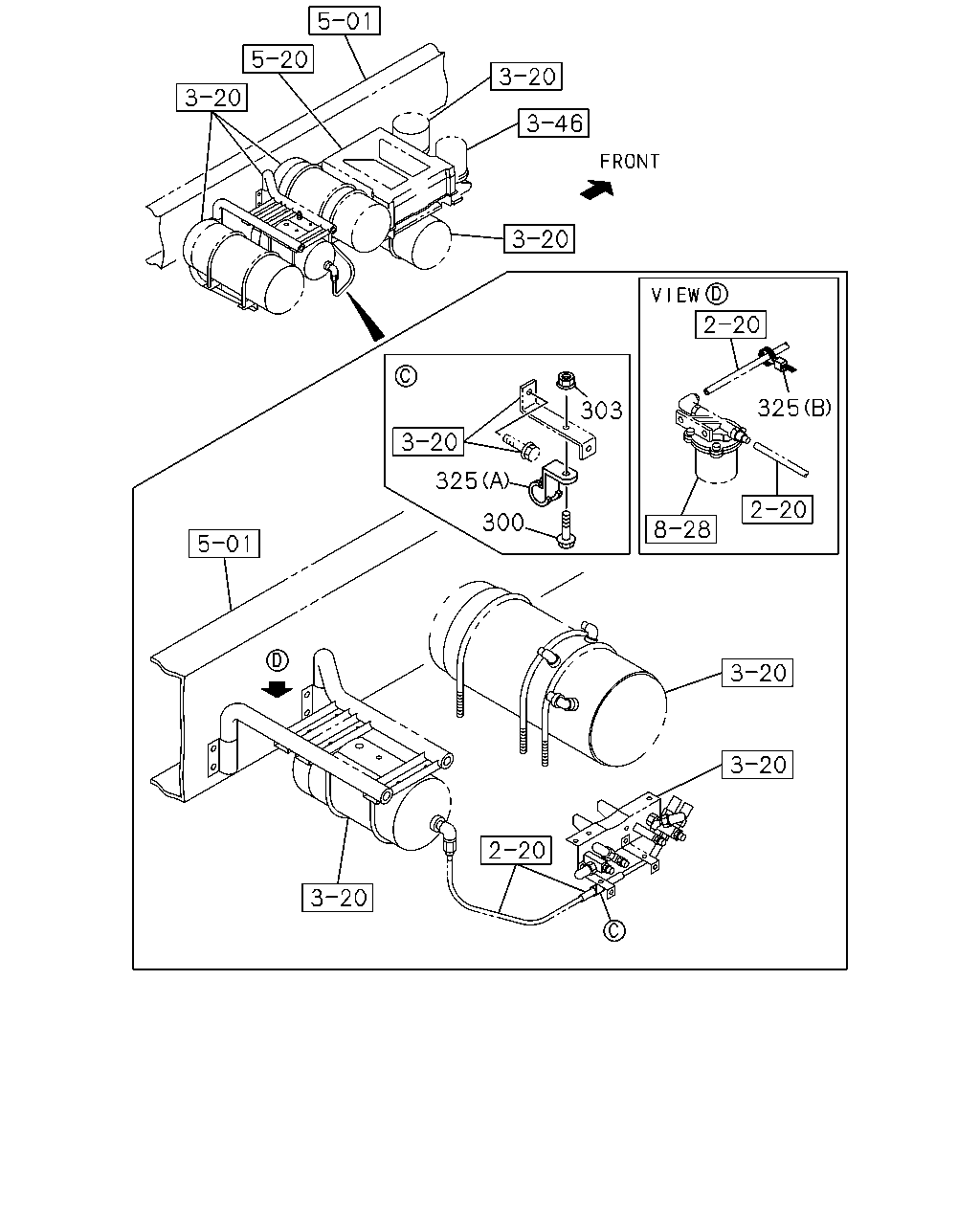

[236A] FIXING;CLIP (10 parça)
[236A] FIXING;CONNECTOR (4 parça)
▶
325
303
325
300
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
300
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0407-0511
300
BOLT; CLIP
6WF1 TC-C(1B8) M8X20 FLANGE
0-28680-820-0
01
1
0512-0512
300
BOLT; CLIP
6WF1 TC-C(1B8) M8X20 FLANGE
0-28650-820-0
01
1
0601-
303
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0407-0511
303
NUT; CLIP
6WF1 TC-C(1B8) M8 FLANGE
0-91150-108-0
01
1
0512-0602
303
NUT; CLIP
6WF1 TC-C(1B8) M8 FLANGE
0-91180-108-0
01
1
0603-
325
CLIP; NYLON TUBE
(A) ID=18 L=25 H=50
1-09701-096-0
01
1
0407-0511
325
CLIP; NYLON TUBE
6WF1 TC-C(1B8) (A) ID=18 L=25 H=50
1-09701-096-0
01
1
0512-
325
CLIP; NYLON TUBE
(B) L=350
1-09707-183-0
01
1
0407-0511
325
CLIP; NYLON TUBE
6WF1 TC-C(1B8) (B) L=350
1-09707-183-0
01
1
0512-
441
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
441
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0407-0511
441
CONNECTOR; NYLON TUBE
6WF1 TC-C(1B8) (A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0512-
441
CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0407-0511
441
CONNECTOR; NYLON TUBE
6WF1 TC-C(1B8) (B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0512-
