◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82 - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#2963) — 19 parça

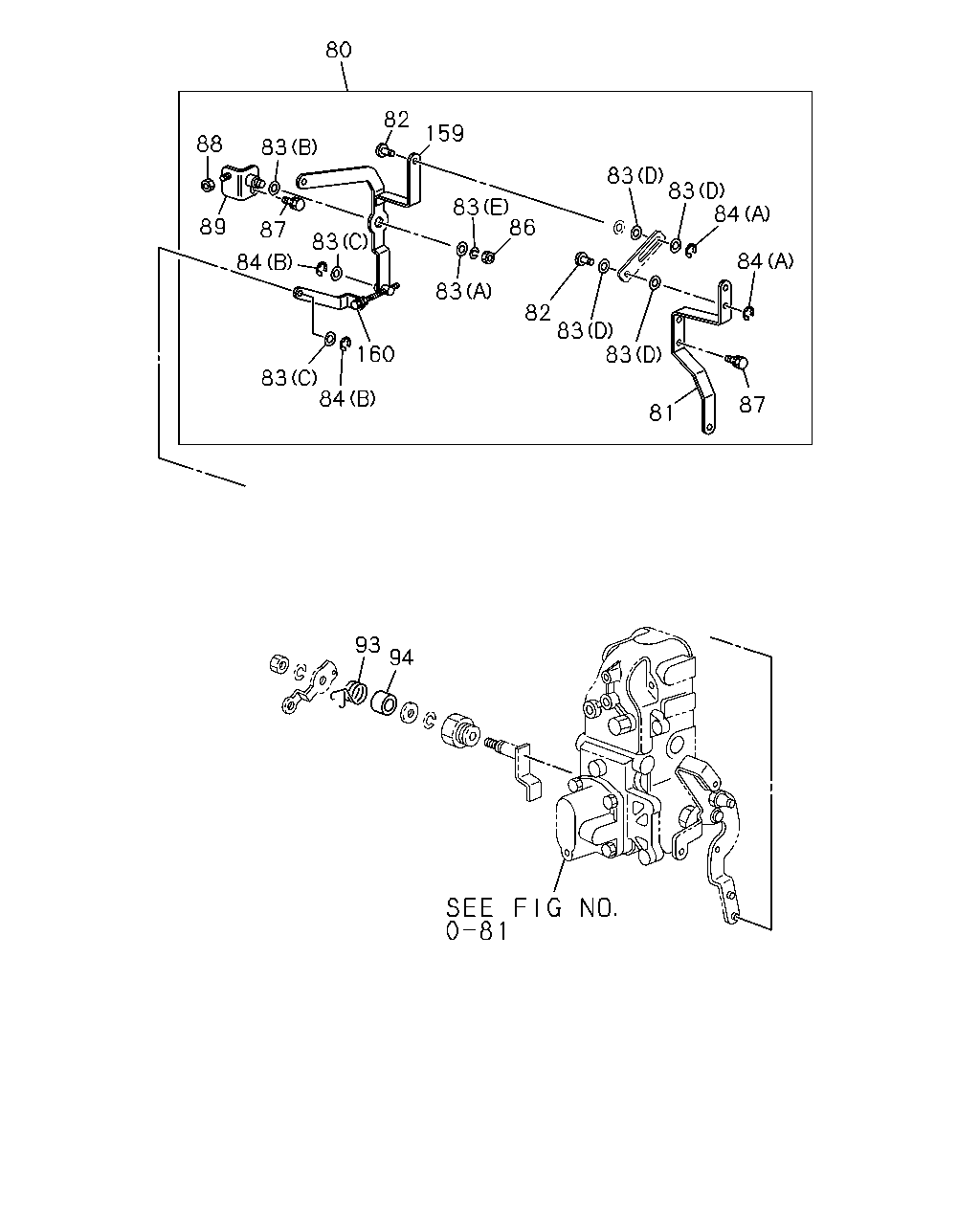

çizim 37027
94 93 84 83 160 83 82 83 83 81 87 84 84 83 83 86 83 159 82 80 83 87 89 88 84 83
BalonParca AdiParca NoAdetTipApplied Date
80 LEVER KIT
ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		1-15725-564-0 01 1 -
81 LEVER; INNER
ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		1-15725-453-0 01 1 -
82 PIN; LEVER TO LEVER
ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		1-15729-722-0 02 1 -
83 WASHER; LEVER
(A) ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		1-14319-034-0 01 1 -
83 WASHER; LEVER
(B) ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		1-15729-941-0 01 1 -
83 WASHER; LEVER
(E) ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		9-09150-608-0 01 1 -
83 WASHER; LEVER
(C) ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		9-09160-606-0 02 1 -
83 WASHER; LEVER
(D) ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		9-09160-610-0 04 1 -
84 RING; SNAP
(A) ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		1-15729-723-0 02 1 -
84 RING; SNAP
(B) ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		8-94244-599-0 02 1 -
86 NUT; LINK LEVER
ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		1-15729-236-0 01 1 -
87 BOLT; LEVER
M6X16 W/LK WASHER ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		9-01900-616-0 02 1 -
87 BOLT; LEVER
M8X30 W/LK WASHER ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		9-01900-830-0 01 1 -
88 NUT; CONN PIN LOCK,LOAD SENSOR
M8 ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		9-09110-408-0 01 1 -
89 BRACKET; LEVER
ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		1-15729-943-0 01 1 -
93 SPRING; LEVER
ASM PART: A = 1-15602-439-0, D = 1-15602-520-1 		1-15723-129-0 01 1 -
94 COLLAR; LEVER
ASM PART: A = 1-15602-439-0, D = 1-15602-520-1 		1-15729-364-0 01 1 -
159 LEVER; OUTER
ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		1-15725-565-0 01 1 -
160 LINK; LEVER
ASM PART: B = 1-15602-505-1, C = 1-15602-506-1 		1-15725-566-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
