2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#29629) — 262 parça

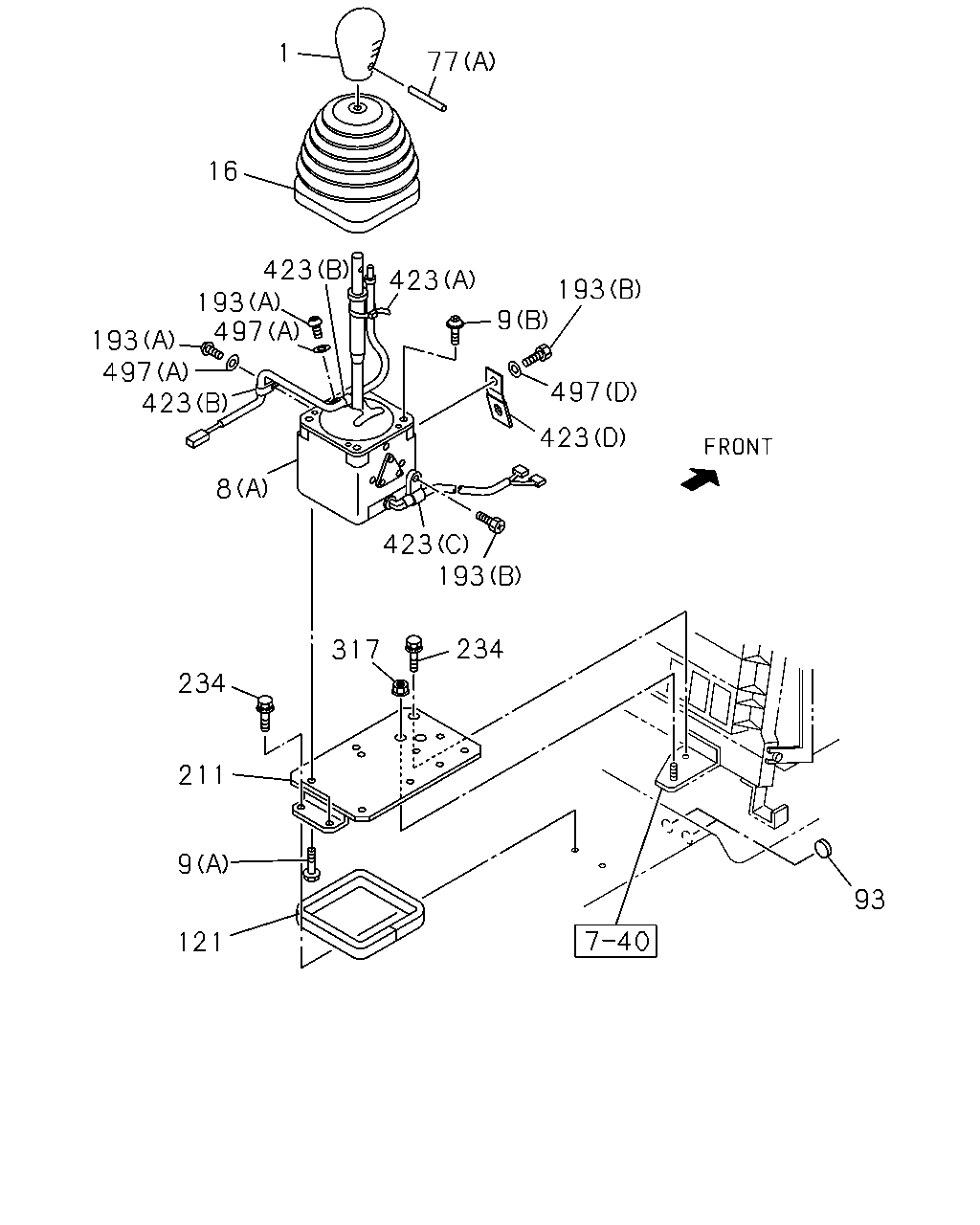

çizim 87965
1 77 16 423 193 497 423 193 9 193 497 423 497 423 8 423 193 234 317 234 211 9 93 121
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 1-33611-124-0 01 1 0407-0911
1 KNOB; CHANGE LEVER 8-98152-481-0 01 1 0912-1010
1 KNOB; CHANGE LEVER
6WF1 TC-C(1B8) 		8-98152-481-0 01 1 1011-
8 LEVER; CHANGE
6WG1 TC-S(97L) (B) 		1-33620-114-2 01 1 0512-1010
8 LEVER; CHANGE
6WG1 TC-S(97L) (C) 		8-98181-427-0 01 1 1011-
8 LEVER; CHANGE
(A) 		1-33620-064-0 01 1 0407-0511
8 LEVER; CHANGE
6WF1 TC-C(1B8) (A) 		1-33620-064-1 01 1 0512-
9 BOLT; CHANGE LEVER
6WG1 TC-S(97L) (C) 		1-33619-798-0 08 1 0512-1010
9 BOLT; CHANGE LEVER
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0407-
9 BOLT; CHANGE LEVER
(B) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0407-0604
16 BOOT; CHANGE LEVER
6WG1 TC-S(97L) 		1-33614-145-0 01 1 0512-1010
16 BOOT; CHANGE LEVER 1-33614-133-0 01 1 0407-0511
16 BOOT; CHANGE LEVER
6WF1 TC-C(1B8) 		1-33614-133-0 01 1 0512-
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) (C) 		1-33619-780-0 01 1 0512-1010
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) (D) 		1-33619-795-0 01 1 0512-1010
77 PIN; CHANGE LEVER
(B) 		1-33619-687-0 01 1 0407-0511
77 PIN; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33619-687-0 01 1 0512-
77 PIN; CHANGE LEVER
(A) 		1-33738-057-0 01 1 0407-0511
77 PIN; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33738-057-0 01 1 0512-
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 04 1 0407-
121 SEAL; CHANGE LEVER 1-79997-354-0 01 1 0407-
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (J) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (H) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0512-1010
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (I) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0512-0911
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (K) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010
193 SCREW; CHANGE LEVER
(G) 		1-33619-501-0 09 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (G) 		1-33619-501-0 09 1 0512-
193 SCREW; CHANGE LEVER
(C) 		1-33619-684-0 06 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (C) 		1-33619-684-0 06 1 0512-
193 SCREW; CHANGE LEVER
(E) 		1-33619-690-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (E) 		1-33619-690-0 02 1 0512-
193 SCREW; CHANGE LEVER
(D) 		1-33619-695-0 03 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (D) 		1-33619-695-0 03 1 0512-
193 SCREW; CHANGE LEVER
(A) 		1-33739-168-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33739-168-0 02 1 0512-
193 SCREW; CHANGE LEVER
(B) 		1-33739-302-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33739-302-0 02 1 0512-
193 SCREW; CHANGE LEVER
(F) 		9-88510-210-0 04 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (F) 		9-88510-210-0 04 1 0512-
211 BRACKET; CHANGE LEVER 1-79907-115-1 01 1 0407-
234 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0407-0904
234 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
317 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
317 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
423 CLIP; BAND
6WG1 TC-S(97L) (E) 		1-33619-781-0 01 1 0512-0911
423 CLIP; BAND
6WG1 TC-S(97L) (E) 		8-97138-392-0 01 1 0912-1010
423 CLIP; BAND
(D) L=60 		1-09700-304-0 01 1 0407-0511
423 CLIP; BAND
6WF1 TC-C(1B8) (D) L=60 		1-09700-304-0 01 1 0512-
423 CLIP; BAND
(A) 		1-47829-050-0 01 1 0407-0511
423 CLIP; BAND
6WF1 TC-C(1B8) (A) 		1-47829-050-0 01 1 0512-
423 CLIP; BAND
(B) ID=9 L=16 		9-09524-822-0 02 1 0407-0511
423 CLIP; BAND
6WF1 TC-C(1B8) (B) ID=9 L=16 		9-09524-822-0 02 1 0512-
423 CLIP; BAND
(C) ID=13 L=20 		9-09525-232-0 01 1 0407-0511
423 CLIP; BAND
6WF1 TC-C(1B8) (C) ID=13 L=20 		9-09525-232-0 01 1 0512-
497 WASHER; CHANGE LEVER
(D) 		1-33619-715-0 01 1 0407-0511
497 WASHER; CHANGE LEVER
6WF1 TC-C(1B8) (D) 		1-33619-715-0 01 1 0512-
497 WASHER; CHANGE LEVER
(B) 		1-33619-759-0 01 1 0407-0511
497 WASHER; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33619-759-0 01 1 0512-
497 WASHER; CHANGE LEVER
(C) ID=6.4 		9-09160-506-0 01 1 0407-0511
497 WASHER; CHANGE LEVER
6WF1 TC-C(1B8) (C) ID=6.4 		9-09160-506-0 01 1 0512-
497 WASHER; CHANGE LEVER
(A) ID=5.3 OD=12 		9-09164-605-0 02 1 0407-0511
497 WASHER; CHANGE LEVER
6WF1 TC-C(1B8) (A) ID=5.3 OD=12 		9-09164-605-0 02 1 0512-

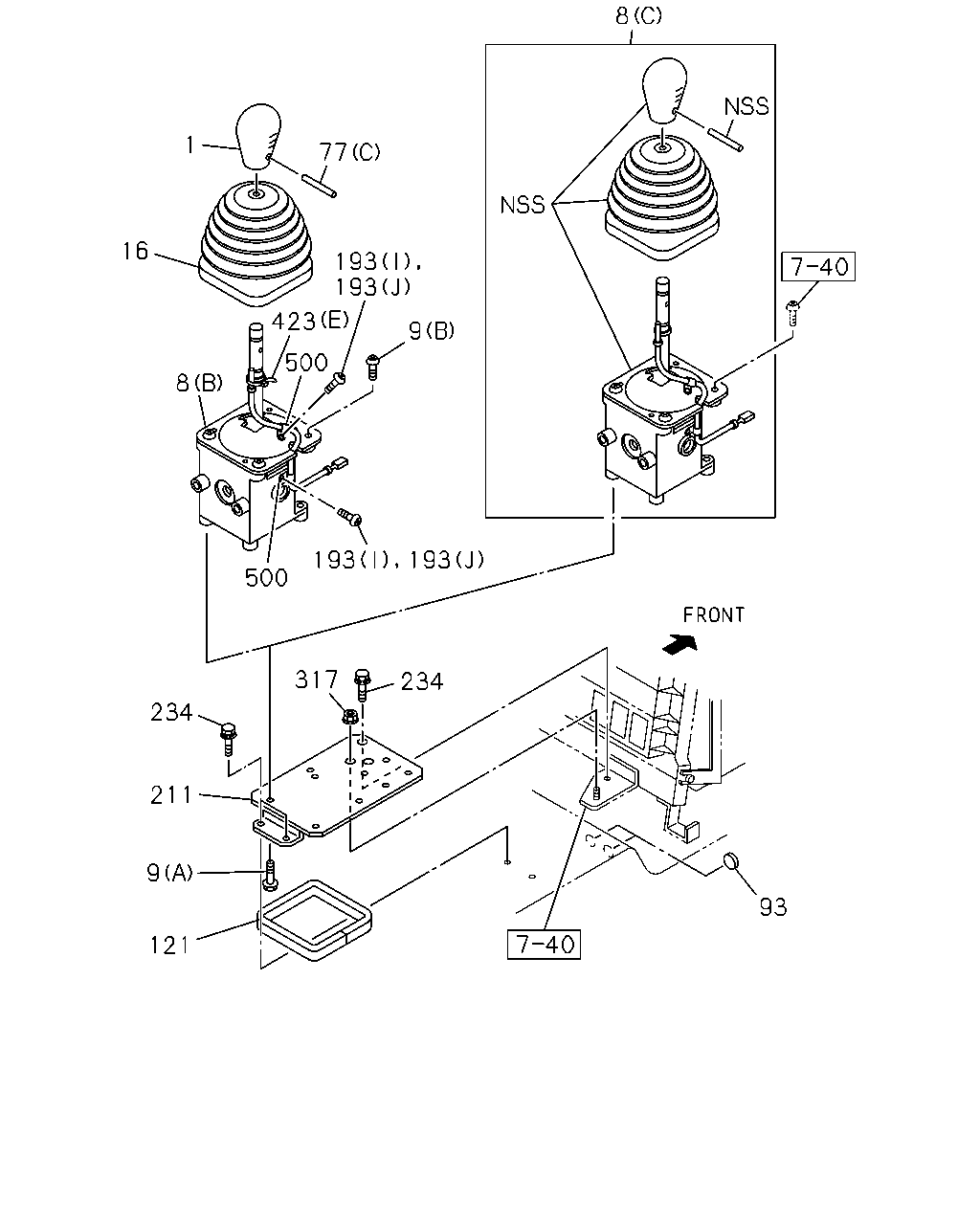

çizim 88323
8 1 77 16 193 193 9 500 8 193 193 500 317 234 234 211 9 93 121
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 1-33611-124-0 01 1 0407-0911
1 KNOB; CHANGE LEVER 8-98152-481-0 01 1 0912-1010
1 KNOB; CHANGE LEVER
6WF1 TC-C(1B8) 		8-98152-481-0 01 1 1011-
8 LEVER; CHANGE
6WG1 TC-S(97L) (B) 		1-33620-114-2 01 1 0512-1010
8 LEVER; CHANGE
6WG1 TC-S(97L) (C) 		8-98181-427-0 01 1 1011-
8 LEVER; CHANGE
(A) 		1-33620-064-0 01 1 0407-0511
8 LEVER; CHANGE
6WF1 TC-C(1B8) (A) 		1-33620-064-1 01 1 0512-
9 BOLT; CHANGE LEVER
6WG1 TC-S(97L) (C) 		1-33619-798-0 08 1 0512-1010
9 BOLT; CHANGE LEVER
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0407-
9 BOLT; CHANGE LEVER
(B) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0407-0604
16 BOOT; CHANGE LEVER
6WG1 TC-S(97L) 		1-33614-145-0 01 1 0512-1010
16 BOOT; CHANGE LEVER 1-33614-133-0 01 1 0407-0511
16 BOOT; CHANGE LEVER
6WF1 TC-C(1B8) 		1-33614-133-0 01 1 0512-
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) (C) 		1-33619-780-0 01 1 0512-1010
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) (D) 		1-33619-795-0 01 1 0512-1010
77 PIN; CHANGE LEVER
(B) 		1-33619-687-0 01 1 0407-0511
77 PIN; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33619-687-0 01 1 0512-
77 PIN; CHANGE LEVER
(A) 		1-33738-057-0 01 1 0407-0511
77 PIN; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33738-057-0 01 1 0512-
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 04 1 0407-
121 SEAL; CHANGE LEVER 1-79997-354-0 01 1 0407-
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (J) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (H) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0512-1010
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (I) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0512-0911
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (K) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010
193 SCREW; CHANGE LEVER
(G) 		1-33619-501-0 09 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (G) 		1-33619-501-0 09 1 0512-
193 SCREW; CHANGE LEVER
(C) 		1-33619-684-0 06 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (C) 		1-33619-684-0 06 1 0512-
193 SCREW; CHANGE LEVER
(E) 		1-33619-690-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (E) 		1-33619-690-0 02 1 0512-
193 SCREW; CHANGE LEVER
(D) 		1-33619-695-0 03 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (D) 		1-33619-695-0 03 1 0512-
193 SCREW; CHANGE LEVER
(A) 		1-33739-168-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33739-168-0 02 1 0512-
193 SCREW; CHANGE LEVER
(B) 		1-33739-302-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33739-302-0 02 1 0512-
193 SCREW; CHANGE LEVER
(F) 		9-88510-210-0 04 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (F) 		9-88510-210-0 04 1 0512-
211 BRACKET; CHANGE LEVER 1-79907-115-1 01 1 0407-
234 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0407-0904
234 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
317 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
317 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
500 CLIP; HARNESS
6WG1 TC-S(97L) ID=9 L=16 		9-09524-822-0 02 1 0512-1010
500 CLIP; HARNESS 1-47829-050-0 01 1 0407-0511
500 CLIP; HARNESS
6WF1 TC-C(1B8) 		1-47829-050-0 01 1 0512-

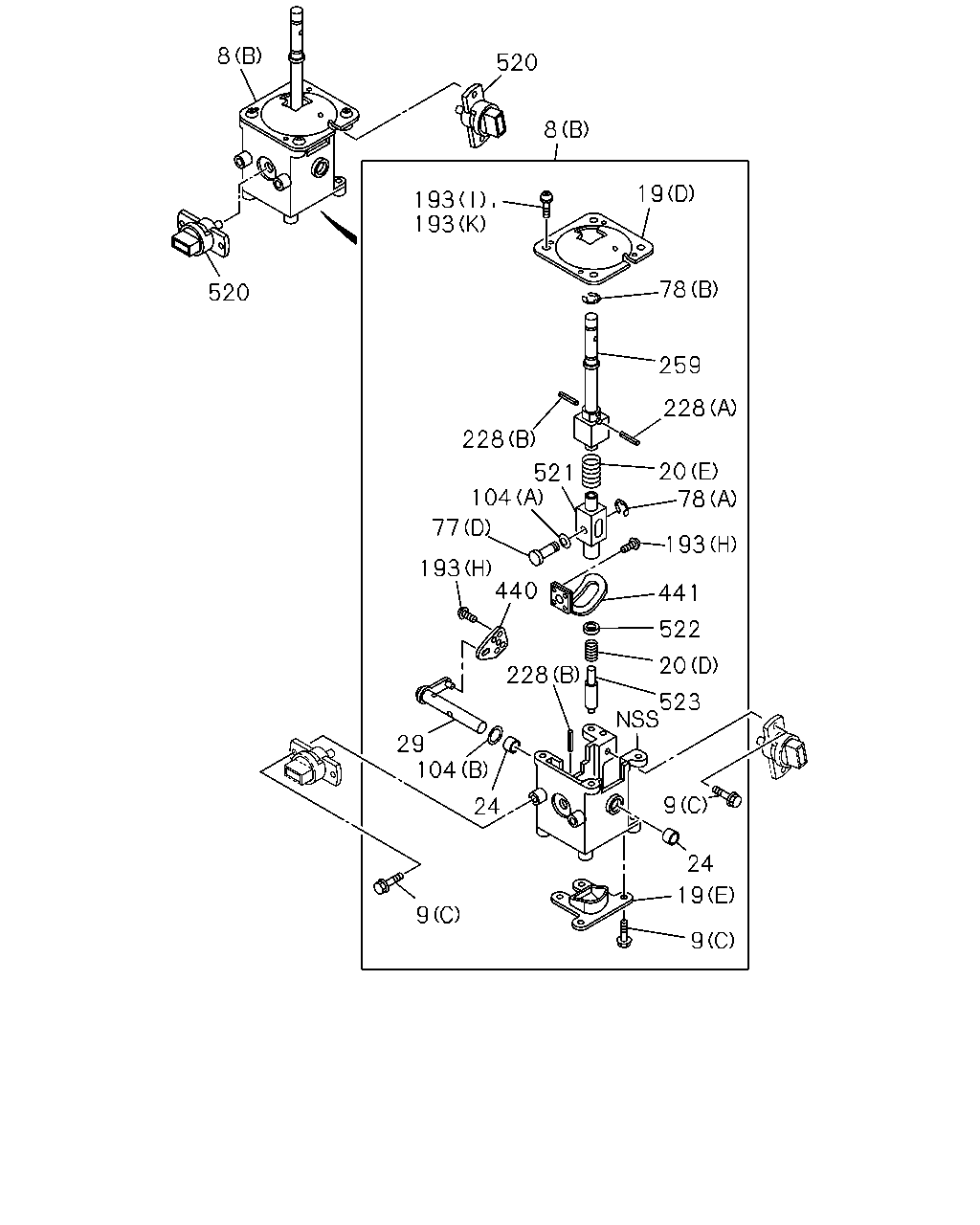

çizim 89680
8 520 8 19 193 193 78 520 259 228 228 20 78 521 104 77 193 193 440 441 522 20 228 523 29 104 9 24 24 19 9 9
BalonParca AdiParca NoAdetTipApplied Date
8 LEVER; CHANGE
6WG1 TC-S(97L) (B) 		1-33620-114-2 01 1 0512-1010
8 LEVER; CHANGE
6WG1 TC-S(97L) (C) 		8-98181-427-0 01 1 1011-
8 LEVER; CHANGE
(A) 		1-33620-064-0 01 1 0407-0511
8 LEVER; CHANGE
6WF1 TC-C(1B8) (A) 		1-33620-064-1 01 1 0512-
9 BOLT; CHANGE LEVER
6WG1 TC-S(97L) (C) 		1-33619-798-0 08 1 0512-1010
9 BOLT; CHANGE LEVER
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0407-
9 BOLT; CHANGE LEVER
(B) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0407-0604
19 COVER; CHANGE LEVER
6WG1 TC-S(97L) (D) 		1-33619-790-0 01 1 0512-1010
19 COVER; CHANGE LEVER
6WG1 TC-S(97L) (E) 		1-33619-791-0 01 1 0512-1010
19 COVER; CHANGE LEVER
(C) 		1-33619-754-0 01 1 0407-0511
19 COVER; CHANGE LEVER
6WF1 TC-C(1B8) (C) 		1-33619-754-0 01 1 0512-
19 COVER; CHANGE LEVER
(A) 		1-33619-757-0 01 1 0407-0511
19 COVER; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33619-757-0 01 1 0512-
19 COVER; CHANGE LEVER
(B) 		1-33619-758-0 01 1 0407-0511
19 COVER; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33619-758-0 01 1 0512-
20 SPRING; CHANGE LEVER
6WG1 TC-S(97L) (D) 		1-33619-786-0 01 1 0512-1010
20 SPRING; CHANGE LEVER
6WG1 TC-S(97L) (E) 		1-33619-787-0 01 1 0512-1010
20 SPRING; CHANGE LEVER
(A) 		1-33619-712-0 01 1 0407-0511
20 SPRING; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33619-712-0 01 1 0512-
20 SPRING; CHANGE LEVER
(B) 		1-33619-719-0 01 1 0407-0511
20 SPRING; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33619-719-0 01 1 0512-
20 SPRING; CHANGE LEVER
(C) 		1-33619-760-0 01 1 0407-0511
20 SPRING; CHANGE LEVER
6WF1 TC-C(1B8) (C) 		1-33619-760-0 01 1 0512-
24 BUSHING; CHANGE LEVER
6WG1 TC-S(97L) 		1-33619-797-0 02 1 0512-1010
29 SHAFT
6WG1 TC-S(97L) 		1-33619-792-0 01 1 0512-1010
29 SHAFT 1-33619-756-0 01 1 0407-0511
29 SHAFT
6WF1 TC-C(1B8) 		1-33619-756-0 01 1 0512-
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) (C) 		1-33619-780-0 01 1 0512-1010
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) (D) 		1-33619-795-0 01 1 0512-1010
77 PIN; CHANGE LEVER
(B) 		1-33619-687-0 01 1 0407-0511
77 PIN; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33619-687-0 01 1 0512-
77 PIN; CHANGE LEVER
(A) 		1-33738-057-0 01 1 0407-0511
77 PIN; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33738-057-0 01 1 0512-
78 RING; SNAP,CHANGE LEVER
6WG1 TC-S(97L) (A) ID=4 		9-09185-404-0 01 1 0512-1010
78 RING; SNAP,CHANGE LEVER
6WG1 TC-S(97L) (B) ID=9 		9-09185-409-0 01 1 0512-1010
104 WASHER; WAVED
6WG1 TC-S(97L) (A) 		1-33619-788-0 01 1 0512-1010
104 WASHER; WAVED
6WG1 TC-S(97L) (B) 		1-33619-789-0 01 1 0512-1010
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (J) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (H) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0512-1010
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (I) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0512-0911
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (K) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010
193 SCREW; CHANGE LEVER
(G) 		1-33619-501-0 09 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (G) 		1-33619-501-0 09 1 0512-
193 SCREW; CHANGE LEVER
(C) 		1-33619-684-0 06 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (C) 		1-33619-684-0 06 1 0512-
193 SCREW; CHANGE LEVER
(E) 		1-33619-690-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (E) 		1-33619-690-0 02 1 0512-
193 SCREW; CHANGE LEVER
(D) 		1-33619-695-0 03 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (D) 		1-33619-695-0 03 1 0512-
193 SCREW; CHANGE LEVER
(A) 		1-33739-168-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33739-168-0 02 1 0512-
193 SCREW; CHANGE LEVER
(B) 		1-33739-302-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33739-302-0 02 1 0512-
193 SCREW; CHANGE LEVER
(F) 		9-88510-210-0 04 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (F) 		9-88510-210-0 04 1 0512-
228 PIN; SPR,CHANGE LEVER
6WG1 TC-S(97L) (A) 		1-33619-505-0 01 1 0512-1010
228 PIN; SPR,CHANGE LEVER
6WG1 TC-S(97L) (B) 		1-33619-796-0 02 1 0512-1010
259 LEVER; CHANGE,UPR
6WG1 TC-S(97L) 		1-33619-782-0 01 1 0512-1010
440 LEVER; SHIFT
6WG1 TC-S(97L) 		1-33619-794-0 01 1 0512-1010
441 LEVER; SELECT
6WG1 TC-S(97L) 		1-33619-793-0 01 1 0512-1010
520 SENSOR; CHANGE LEVER
6WG1 TC-S(97L) 		1-81541-113-0 02 1 0512-1010
521 LEVER; CHANGE,LOW
6WG1 TC-S(97L) 		1-33619-783-0 01 1 0512-1010
522 GUIDE; CHANGE LEVER
6WG1 TC-S(97L) 		1-33619-784-0 01 1 0512-1010
523 PLUNGER; CHANGE LEVER
6WG1 TC-S(97L) 		1-33619-785-0 01 1 0512-1010
çizim 103776
449 500 504
BalonParca AdiParca NoAdetTipApplied Date
449 SWITCH; CHANGE LEVER 1-33619-657-0 01 1 0407-0511
449 SWITCH; CHANGE LEVER
6WF1 TC-C(1B8) 		1-33619-657-1 01 1 0512-
500 CLIP; HARNESS
6WG1 TC-S(97L) ID=9 L=16 		9-09524-822-0 02 1 0512-1010
500 CLIP; HARNESS 1-47829-050-0 01 1 0407-0511
500 CLIP; HARNESS
6WF1 TC-C(1B8) 		1-47829-050-0 01 1 0512-
504 GROMMET; CHANGE LEVER 1-33619-681-0 01 1 0407-0511
504 GROMMET; CHANGE LEVER
6WF1 TC-C(1B8) 		1-33619-681-0 01 1 0512-

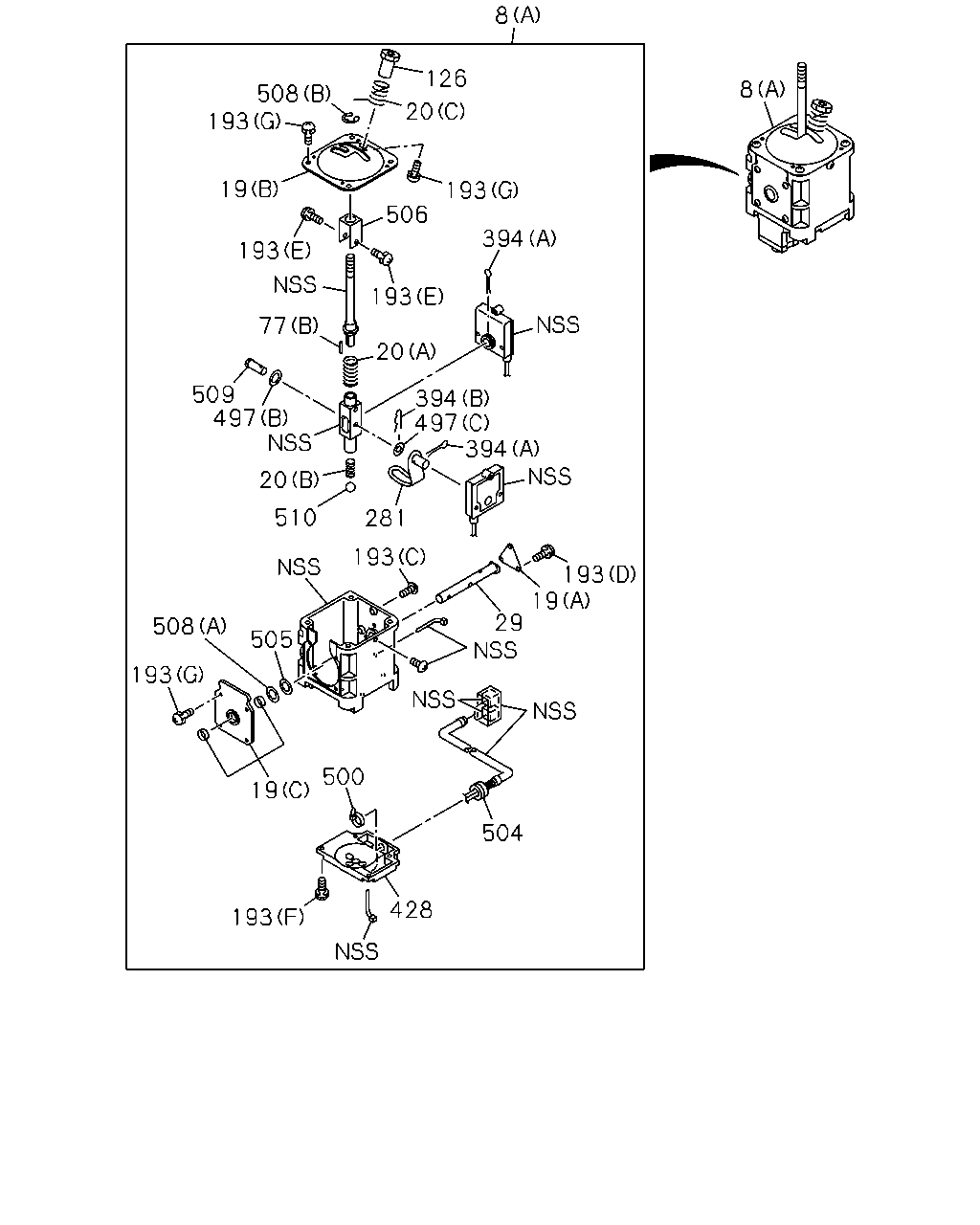

çizim 103779
8 126 8 508 193 20 19 193 506 394 193 193 77 20 394 497 394 509 497 20 510 281 193 193 19 29 508 505 193 500 19 504 428 193
BalonParca AdiParca NoAdetTipApplied Date
8 LEVER; CHANGE
6WG1 TC-S(97L) (B) 		1-33620-114-2 01 1 0512-1010
8 LEVER; CHANGE
6WG1 TC-S(97L) (C) 		8-98181-427-0 01 1 1011-
8 LEVER; CHANGE
(A) 		1-33620-064-0 01 1 0407-0511
8 LEVER; CHANGE
6WF1 TC-C(1B8) (A) 		1-33620-064-1 01 1 0512-
19 COVER; CHANGE LEVER
6WG1 TC-S(97L) (D) 		1-33619-790-0 01 1 0512-1010
19 COVER; CHANGE LEVER
6WG1 TC-S(97L) (E) 		1-33619-791-0 01 1 0512-1010
19 COVER; CHANGE LEVER
(C) 		1-33619-754-0 01 1 0407-0511
19 COVER; CHANGE LEVER
6WF1 TC-C(1B8) (C) 		1-33619-754-0 01 1 0512-
19 COVER; CHANGE LEVER
(A) 		1-33619-757-0 01 1 0407-0511
19 COVER; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33619-757-0 01 1 0512-
19 COVER; CHANGE LEVER
(B) 		1-33619-758-0 01 1 0407-0511
19 COVER; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33619-758-0 01 1 0512-
20 SPRING; CHANGE LEVER
6WG1 TC-S(97L) (D) 		1-33619-786-0 01 1 0512-1010
20 SPRING; CHANGE LEVER
6WG1 TC-S(97L) (E) 		1-33619-787-0 01 1 0512-1010
20 SPRING; CHANGE LEVER
(A) 		1-33619-712-0 01 1 0407-0511
20 SPRING; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33619-712-0 01 1 0512-
20 SPRING; CHANGE LEVER
(B) 		1-33619-719-0 01 1 0407-0511
20 SPRING; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33619-719-0 01 1 0512-
20 SPRING; CHANGE LEVER
(C) 		1-33619-760-0 01 1 0407-0511
20 SPRING; CHANGE LEVER
6WF1 TC-C(1B8) (C) 		1-33619-760-0 01 1 0512-
29 SHAFT
6WG1 TC-S(97L) 		1-33619-792-0 01 1 0512-1010
29 SHAFT 1-33619-756-0 01 1 0407-0511
29 SHAFT
6WF1 TC-C(1B8) 		1-33619-756-0 01 1 0512-
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) (C) 		1-33619-780-0 01 1 0512-1010
77 PIN; CHANGE LEVER
6WG1 TC-S(97L) (D) 		1-33619-795-0 01 1 0512-1010
77 PIN; CHANGE LEVER
(B) 		1-33619-687-0 01 1 0407-0511
77 PIN; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33619-687-0 01 1 0512-
77 PIN; CHANGE LEVER
(A) 		1-33738-057-0 01 1 0407-0511
77 PIN; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33738-057-0 01 1 0512-
126 BOSS; CHANGE LEVER 1-33619-761-0 01 1 0407-0511
126 BOSS; CHANGE LEVER
6WF1 TC-C(1B8) 		1-33619-761-0 01 1 0512-
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (J) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (H) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0512-1010
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (I) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0512-0911
193 SCREW; CHANGE LEVER
6WG1 TC-S(97L) (K) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010
193 SCREW; CHANGE LEVER
(G) 		1-33619-501-0 09 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (G) 		1-33619-501-0 09 1 0512-
193 SCREW; CHANGE LEVER
(C) 		1-33619-684-0 06 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (C) 		1-33619-684-0 06 1 0512-
193 SCREW; CHANGE LEVER
(E) 		1-33619-690-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (E) 		1-33619-690-0 02 1 0512-
193 SCREW; CHANGE LEVER
(D) 		1-33619-695-0 03 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (D) 		1-33619-695-0 03 1 0512-
193 SCREW; CHANGE LEVER
(A) 		1-33739-168-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33739-168-0 02 1 0512-
193 SCREW; CHANGE LEVER
(B) 		1-33739-302-0 02 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33739-302-0 02 1 0512-
193 SCREW; CHANGE LEVER
(F) 		9-88510-210-0 04 1 0407-0511
193 SCREW; CHANGE LEVER
6WF1 TC-C(1B8) (F) 		9-88510-210-0 04 1 0512-
281 ARM; SELECT,CHANGE LEVER 1-33619-755-0 01 1 0407-0511
281 ARM; SELECT,CHANGE LEVER
6WF1 TC-C(1B8) 		1-33619-755-0 01 1 0512-
394 PIN; SPLIT,CHANGE LEVER
(A) 		1-33619-683-0 02 1 0407-0511
394 PIN; SPLIT,CHANGE LEVER
6WF1 TC-C(1B8) (A) 		1-33619-683-0 02 1 0512-
394 PIN; SPLIT,CHANGE LEVER
(B) 		1-33619-714-0 01 1 0407-0511
394 PIN; SPLIT,CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33619-714-0 01 1 0512-
428 BLOCK; ACTION 1-33619-658-0 01 1 0407-0511
428 BLOCK; ACTION
6WF1 TC-C(1B8) 		1-33619-658-0 01 1 0512-
497 WASHER; CHANGE LEVER
(D) 		1-33619-715-0 01 1 0407-0511
497 WASHER; CHANGE LEVER
6WF1 TC-C(1B8) (D) 		1-33619-715-0 01 1 0512-
497 WASHER; CHANGE LEVER
(B) 		1-33619-759-0 01 1 0407-0511
497 WASHER; CHANGE LEVER
6WF1 TC-C(1B8) (B) 		1-33619-759-0 01 1 0512-
497 WASHER; CHANGE LEVER
(C) ID=6.4 		9-09160-506-0 01 1 0407-0511
497 WASHER; CHANGE LEVER
6WF1 TC-C(1B8) (C) ID=6.4 		9-09160-506-0 01 1 0512-
497 WASHER; CHANGE LEVER
(A) ID=5.3 OD=12 		9-09164-605-0 02 1 0407-0511
497 WASHER; CHANGE LEVER
6WF1 TC-C(1B8) (A) ID=5.3 OD=12 		9-09164-605-0 02 1 0512-
500 CLIP; HARNESS
6WG1 TC-S(97L) ID=9 L=16 		9-09524-822-0 02 1 0512-1010
500 CLIP; HARNESS 1-47829-050-0 01 1 0407-0511
500 CLIP; HARNESS
6WF1 TC-C(1B8) 		1-47829-050-0 01 1 0512-
504 GROMMET; CHANGE LEVER 1-33619-681-0 01 1 0407-0511
504 GROMMET; CHANGE LEVER
6WF1 TC-C(1B8) 		1-33619-681-0 01 1 0512-
505 COLLAR; CHANGE LEVER 1-33619-711-0 01 1 0407-0511
505 COLLAR; CHANGE LEVER
6WF1 TC-C(1B8) 		1-33619-711-0 01 1 0512-
506 CASE; CHANGE LEVER 1-33619-713-0 01 1 0407-0511
506 CASE; CHANGE LEVER
6WF1 TC-C(1B8) 		1-33619-713-0 01 1 0512-
508 RING; RETAINING
(A) 		1-33619-710-0 01 1 0407-0511
508 RING; RETAINING
6WF1 TC-C(1B8) (A) 		1-33619-710-0 01 1 0512-
508 RING; RETAINING
(B) 		8-94415-036-0 01 1 0407-0511
508 RING; RETAINING
6WF1 TC-C(1B8) (B) 		8-94415-036-0 01 1 0512-
509 ROD; CHANGE LEVER 1-33619-762-0 01 1 0407-0511
509 ROD; CHANGE LEVER
6WF1 TC-C(1B8) 		1-33619-762-0 01 1 0512-
510 BALL; CHANGE LEVER 1-33619-703-0 01 1 0407-0511
510 BALL; CHANGE LEVER
6WF1 TC-C(1B8) 		1-33619-703-0 01 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
