2-31 — AIR CONTROL TRANSMISSION (A.C.T.) (#29628) — 608 parça

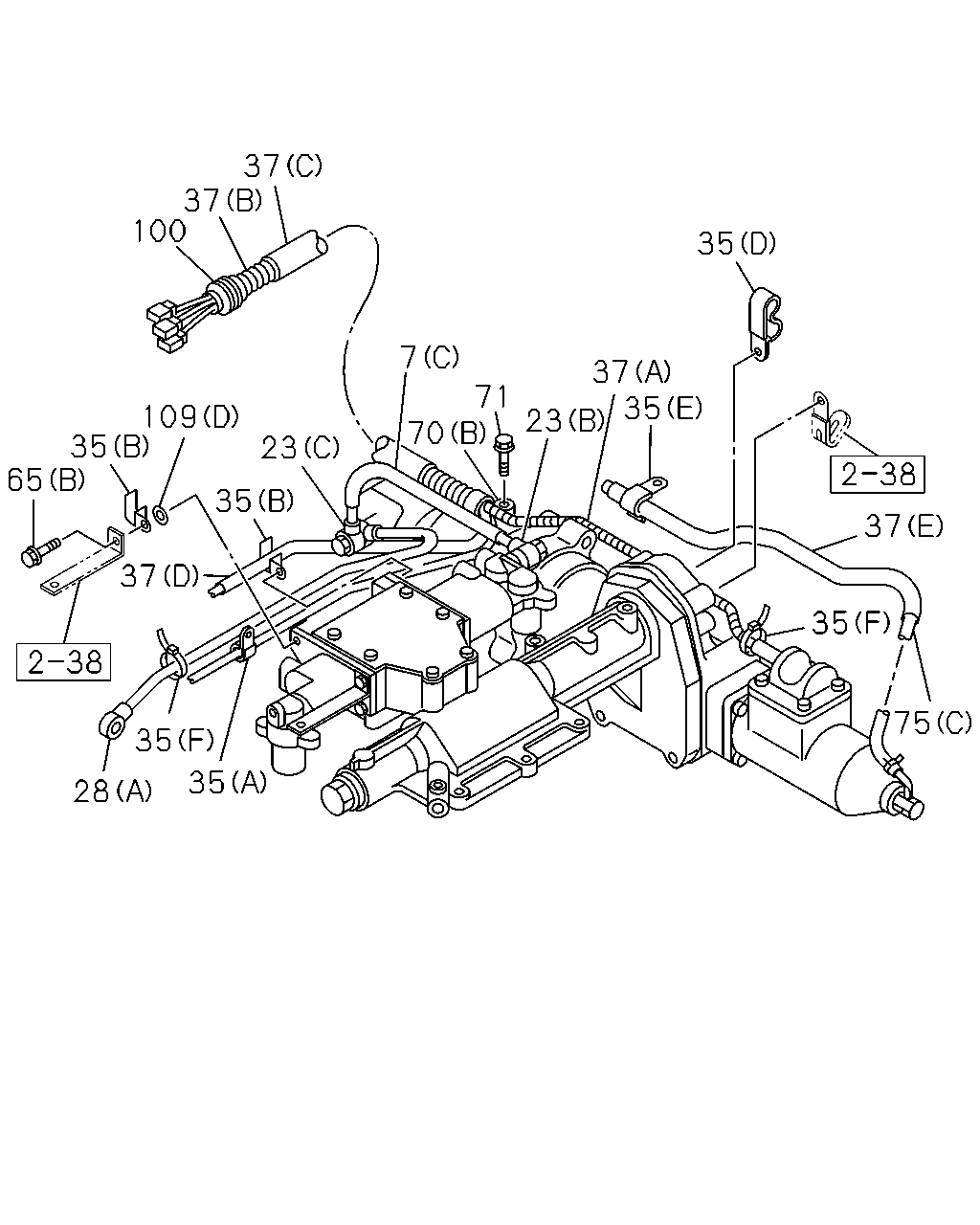

çizim 87835
37 37 100 35 7 37 35 71 70 109 35 65 23 23 35 37 37 35 75 35 35 28
BalonParca AdiParca NoAdetTipApplied Date
7 TUBE; SHIFT UNIT
(B) ASM PART: C = 1-33730-297-1 		1-33730-281-0 02 1 0811-
7 TUBE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-079-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9 		1-33738-096-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: C = 1-33730-297-1 		1-33738-096-0 02 1 -0810
7 TUBE; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-127-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(D), DIN12 & R3/8 ELBOW ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09660-959-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(E), DIN8 & RC3/8 3WAY ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09661-129-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-001-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-126-0 02 1 -
23 CONNECTOR; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-135-0 01 1 -
28 PIPE; SHIFT UNIT
(B) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-022-0 01 1 -
28 PIPE; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0 		1-33149-022-0 02 1 -
28 PIPE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-134-0 01 1 -
28 PIPE; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0 		8-97305-517-0 01 1 -
28 PIPE; SHIFT UNIT
(C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		8-97358-318-0 02 1 -
28 PIPE; SHIFT UNIT
(C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-97358-318-0 03 1 -
35 CLAMP; HOSE
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-021-0 01 1 -
35 CLAMP; HOSE
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-022-0 03 1 -
35 CLAMP; HOSE
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-650-0 01 1 -
35 CLAMP; HOSE
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-701-0 02 1 -
35 CLAMP; HOSE
(E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-702-0 01 1 -
35 CLAMP; HOSE
(F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-47829-050-0 30 1 -
37 PROTECTOR; HARNESS
(A), ID=7 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-048-0 01 1 -
37 PROTECTOR; HARNESS
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-125-0 01 1 -
37 PROTECTOR; HARNESS
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-128-0 01 1 -
37 PROTECTOR; HARNESS
(D) ASM PART: C = 1-33730-297-1 		1-33738-129-0 01 1 -0810
37 PROTECTOR; HARNESS
(D) ASM PART: A = 1-33730-241-9 		1-33738-129-0 01 1 -
37 PROTECTOR; HARNESS
(E) ASM PART: C = 1-33730-297-1 		1-33738-131-0 01 1 -0810
37 PROTECTOR; HARNESS
(E) ASM PART: A = 1-33730-241-9 		1-33738-131-0 01 1 -
37 PROTECTOR; HARNESS
(E) ASM PART: C = 1-33730-297-1 		1-33738-131-0 02 1 -
65 BOLT; CASE,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-22199-155-0 03 1 -
65 BOLT; CASE,GEAR SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-020-0 02 1 -
65 BOLT; CASE,GEAR SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-319-0 01 1 -
70 CLIP; SHIFT UNIT
(B), ID=31 L=35 ASM PART: A = 1-33730-241-9 		1-09700-329-1 01 1 -
70 CLIP; SHIFT UNIT
(A), ID=7.8 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-94246-958-0 01 1 -
70 CLIP; SHIFT UNIT
(A), ID=7.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		8-94246-958-0 03 1 -
71 SCREW; CLIP
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-764-0 01 1 -
75 HOSE; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-020-0 01 1 -
75 HOSE; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-021-0 02 1 -
75 HOSE; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-002-0 01 1 -
75 HOSE; SHIFT UNIT
(B) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98067-939-0 02 1 -
75 HOSE; SHIFT UNIT
(A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98070-399-0 01 1 -
100 GROMMET; HOSE
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-82699-219-0 01 1 -
109 WASHER; PL
(C), ID=12.5 OD=26 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91610-612-0 01 1 -
109 WASHER; PL
(A), ID=10.5 OD=22 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91614-610-0 01 1 -
109 WASHER; PL
(B), OD=40 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09532-008-0 01 1 -
109 WASHER; PL
(C), ID=12.5 OD=26 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		9-09160-612-0 01 1 -
109 WASHER; PL
(D), ID=8.4 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		9-09164-508-0 02 1 -
109 WASHER; PL
(A), ID=10.5 OD=22 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		9-09164-610-0 01 1 -

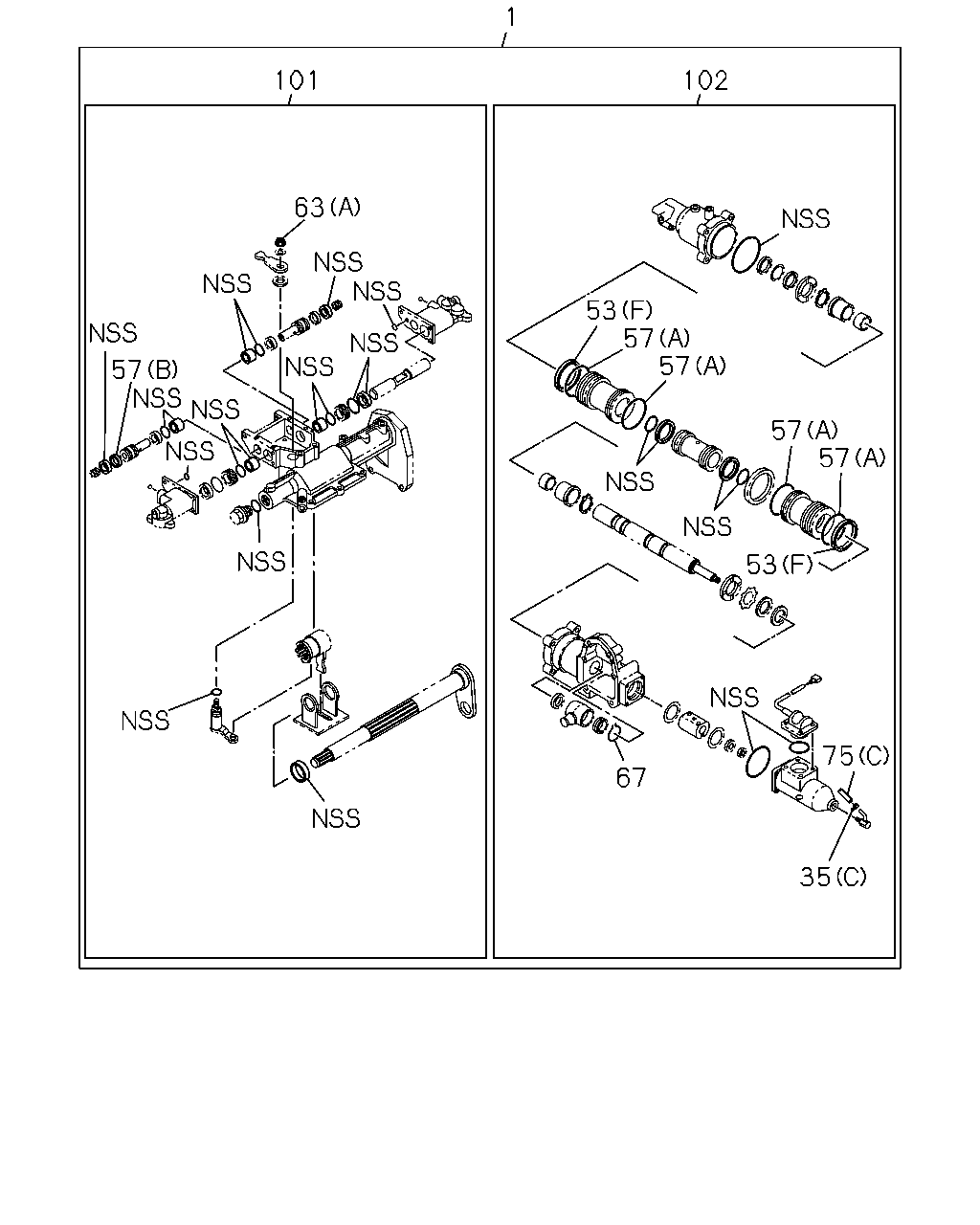

çizim 87955
1 101 102 63 53 57 57 57 57 57 53 75 67 35
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; SHIFT UNIT
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-059-0 01 1 -
35 CLAMP; HOSE
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-021-0 01 1 -
35 CLAMP; HOSE
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-022-0 03 1 -
35 CLAMP; HOSE
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-650-0 01 1 -
35 CLAMP; HOSE
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-701-0 02 1 -
35 CLAMP; HOSE
(E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-702-0 01 1 -
35 CLAMP; HOSE
(F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-47829-050-0 30 1 -
53 GASKET
(A), ID=26.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09623-058-0 02 1 -
53 GASKET
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-641-0 02 1 -
53 GASKET
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		9-09561-360-0 04 1 -
57 RING; WEAR,GEAR SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-019-0 02 1 -
57 RING; WEAR,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-316-0 04 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(B), M10 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		0-91150-110-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(B), M10 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91180-110-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-985-1 01 1 -
67 CLAMP; ROD
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-190-0 01 1 -
75 HOSE; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-020-0 01 1 -
75 HOSE; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-021-0 02 1 -
75 HOSE; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-002-0 01 1 -
75 HOSE; SHIFT UNIT
(B) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98067-939-0 02 1 -
75 HOSE; SHIFT UNIT
(A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98070-399-0 01 1 -
101 REPAIR KIT; CASE
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-060-0 01 1 -
102 REPAIR KIT; SHIFT CYL
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-062-0 01 1 -

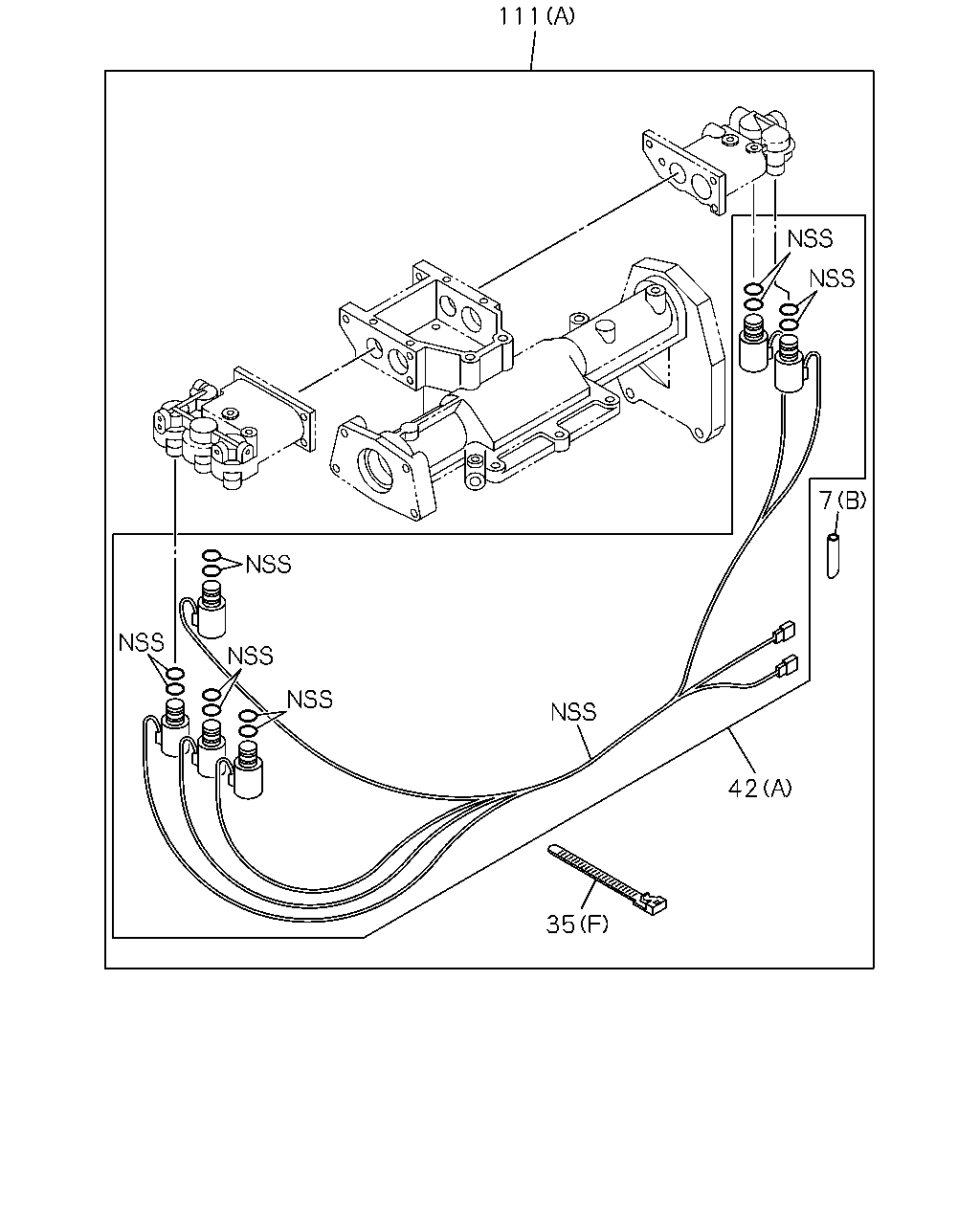

çizim 87962
111 7 42 35
BalonParca AdiParca NoAdetTipApplied Date
7 TUBE; SHIFT UNIT
(B) ASM PART: C = 1-33730-297-1 		1-33730-281-0 02 1 0811-
7 TUBE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-079-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9 		1-33738-096-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: C = 1-33730-297-1 		1-33738-096-0 02 1 -0810
7 TUBE; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-127-0 01 1 -
35 CLAMP; HOSE
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-021-0 01 1 -
35 CLAMP; HOSE
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-022-0 03 1 -
35 CLAMP; HOSE
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-650-0 01 1 -
35 CLAMP; HOSE
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-701-0 02 1 -
35 CLAMP; HOSE
(E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-702-0 01 1 -
35 CLAMP; HOSE
(F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-47829-050-0 30 1 -
42 VALVE; MAGNETIC
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-160-1 01 1 -
42 VALVE; MAGNETIC
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-161-1 01 1 -
111 REPAIR KIT; SELECT,SOLENOID
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-144-1 AR 1 -
111 REPAIR KIT; SELECT,SOLENOID
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-146-1 AR 1 -
111 REPAIR KIT; SELECT,SOLENOID
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-158-1 01 1 -

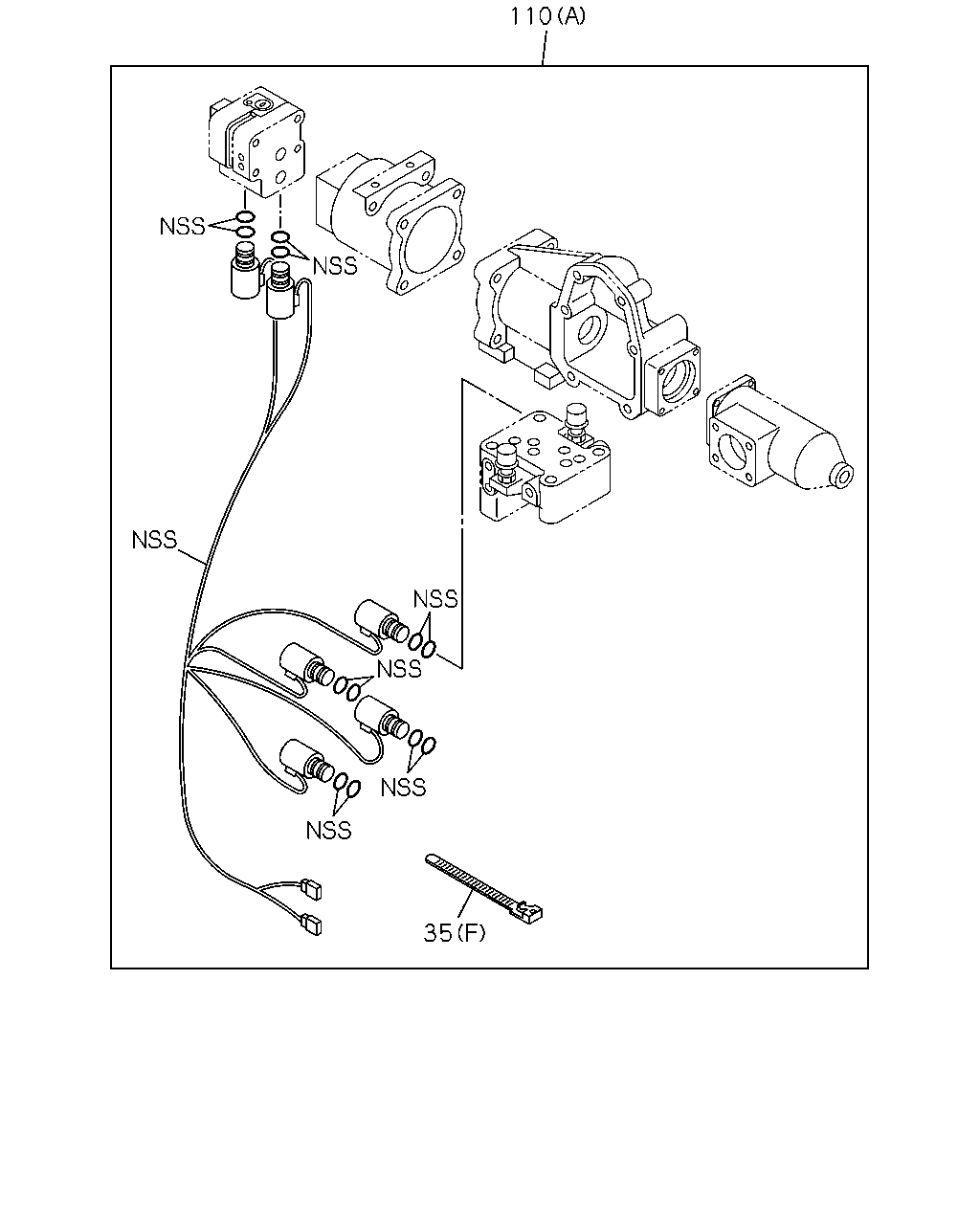

çizim 87963
110 35
BalonParca AdiParca NoAdetTipApplied Date
35 CLAMP; HOSE
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-021-0 01 1 -
35 CLAMP; HOSE
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-022-0 03 1 -
35 CLAMP; HOSE
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-650-0 01 1 -
35 CLAMP; HOSE
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-701-0 02 1 -
35 CLAMP; HOSE
(E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-702-0 01 1 -
35 CLAMP; HOSE
(F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-47829-050-0 30 1 -
110 REPAIR KIT; SHIFT,SOLENOID
(B) UPPER BLOW ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-145-1 AR 1 -
110 REPAIR KIT; SHIFT,SOLENOID
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-159-1 01 1 -

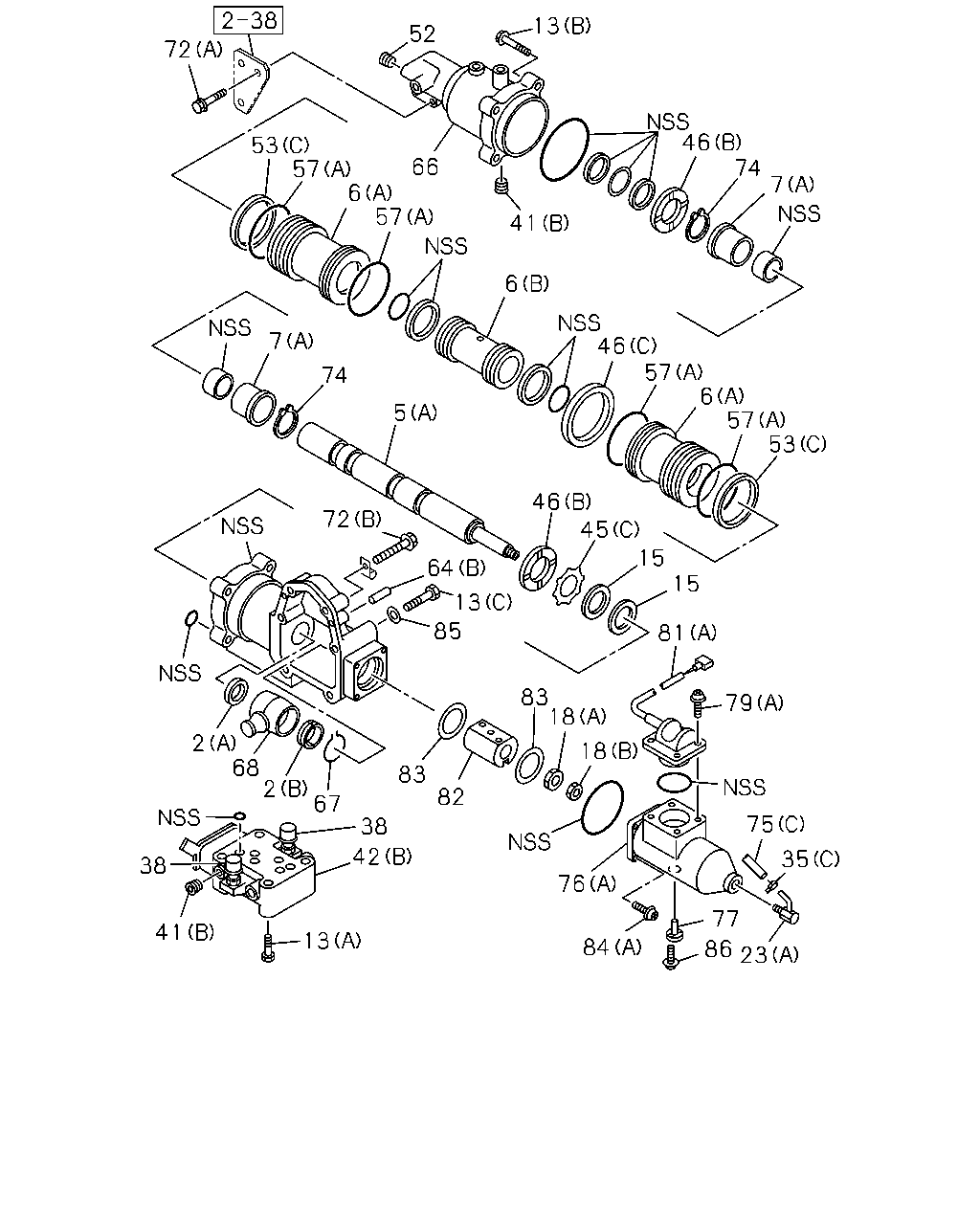

çizim 103778
13 52 72 46 74 7 53 57 66 6 57 41 6 46 57 7 6 57 53 74 5 46 45 72 15 64 15 13 85 81 83 18 79 2 68 2 67 18 83 82 75 38 42 35 38 76 77 41 13 84 86 23
BalonParca AdiParca NoAdetTipApplied Date
2 RING; STOPPER
(A), BLACK ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-091-0 06 1 -
2 RING; STOPPER
(B), BLACK ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-092-0 02 1 -
2 RING; STOPPER
(A), GOLD ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-681-0 02 1 -
2 RING; STOPPER
(A), LIGHT GRAY ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-682-0 02 1 -
2 RING; STOPPER
(B), ORANGE ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-684-0 02 1 -
2 RING; STOPPER
(B), LIGHT GRAY ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-685-0 02 1 -
5 ROD; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		1-33522-195-0 03 1 -
5 ROD; SHIFT UNIT
(D) ASM PART: B = 1-33730-296-0 		1-33522-199-0 01 1 -
5 ROD; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33734-011-0 01 1 -
5 ROD; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33734-020-0 01 1 -
5 ROD; SHIFT UNIT
(D) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-922-0 01 1 -
6 PISTON; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-078-0 01 1 -
6 PISTON; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-081-0 02 1 -
6 PISTON; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-990-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: C = 1-33730-297-1 		1-33730-281-0 02 1 0811-
7 TUBE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-079-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9 		1-33738-096-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: C = 1-33730-297-1 		1-33738-096-0 02 1 -0810
7 TUBE; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-127-0 01 1 -
13 BOLT; CYL
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-083-0 04 1 -
13 BOLT; CYL
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-133-0 04 1 -
13 BOLT; CYL
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-47819-125-0 04 1 -
15 PLATE; ROD
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-687-0 02 1 -
18 NUT; ROD
(C), M6 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		0-91150-106-0 02 1 -
18 NUT; ROD
(D), M10 FLANGE ASM PART: B = 1-33730-296-0 		0-91150-110-0 01 1 -
18 NUT; ROD
(C), M6 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91180-106-0 02 1 -
18 NUT; ROD
(D), M10 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91180-110-0 01 1 -
18 NUT; ROD
(A), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-712-0 01 1 -
18 NUT; ROD
(B), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		9-99111-412-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(D), DIN12 & R3/8 ELBOW ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09660-959-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(E), DIN8 & RC3/8 3WAY ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09661-129-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-001-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-126-0 02 1 -
23 CONNECTOR; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-135-0 01 1 -
35 CLAMP; HOSE
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-021-0 01 1 -
35 CLAMP; HOSE
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-022-0 03 1 -
35 CLAMP; HOSE
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-650-0 01 1 -
35 CLAMP; HOSE
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-701-0 02 1 -
35 CLAMP; HOSE
(E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-702-0 01 1 -
35 CLAMP; HOSE
(F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-47829-050-0 30 1 -
38 COVER; EXH
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-31829-564-0 02 1 -
41 PLUG; SHIFT UNIT
(D), PT3/8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09605-056-0 01 1 -
41 PLUG; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-044-0 01 1 -
41 PLUG; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-674-0 02 1 -
41 PLUG; SHIFT UNIT
(E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-94403-163-0 02 1 -
41 PLUG; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		8-97014-820-0 06 1 -
42 VALVE; MAGNETIC
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-160-1 01 1 -
42 VALVE; MAGNETIC
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-161-1 01 1 -
45 RETAINER; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-033-0 02 1 -
45 RETAINER; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-034-0 01 1 -
45 RETAINER; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-377-0 02 1 -
45 RETAINER; SHIFT UNIT
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-991-0 02 1 -
46 STOPPER; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-038-0 02 1 -
46 STOPPER; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-077-0 02 1 -
46 STOPPER; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-149-0 01 1 -
52 FILTER
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-014-0 02 1 -
53 GASKET
(A), ID=26.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09623-058-0 02 1 -
53 GASKET
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-641-0 02 1 -
53 GASKET
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		9-09561-360-0 04 1 -
57 RING; WEAR,GEAR SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-019-0 02 1 -
57 RING; WEAR,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-316-0 04 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-82353-827-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: D = 8-98047-359-0, F = 8-98070-040-1 		0-82353-827-0 04 1 -
64 PIN; GEAR SHIFT UNIT
(E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-31424-011-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-673-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-762-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(E), OD=6 L=40 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98036-471-1 01 1 -
64 PIN; GEAR SHIFT UNIT
(G), OD=3 L=6.36 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-977-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(C), OD=5 L=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		9-08150-510-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(D), OD=6 L=40 ASM PART: B = 1-33730-296-0 		9-08150-640-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: B = 1-33730-296-0, E = 8-98055-135-0 		9-08230-827-0 04 1 -
66 CYLINDER ASM; GEAR SHIFT UNIT
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33731-123-0 01 1 -
67 CLAMP; ROD
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-190-0 01 1 -
68 STRIKER; ROD
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-082-0 01 1 -
72 BOLT; BRKT
(C), M8X16 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28050-816-0 01 1 -
72 BOLT; BRKT
(C), M8X16 FLANGE ASM PART: B = 1-33730-296-0 		0-28080-816-0 01 1 -
72 BOLT; BRKT
(D), M12X30 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28151-230-0 02 1 -
72 BOLT; BRKT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-090-0 02 1 -
72 BOLT; BRKT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-699-0 02 1 -
74 RING; RETAINING
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-080-0 02 1 -
75 HOSE; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-020-0 01 1 -
75 HOSE; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-021-0 02 1 -
75 HOSE; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-002-0 01 1 -
75 HOSE; SHIFT UNIT
(B) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98067-939-0 02 1 -
75 HOSE; SHIFT UNIT
(A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98070-399-0 01 1 -
76 CASE; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0 		1-33541-541-0 01 1 -
76 CASE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33731-024-1 01 1 -
76 CASE; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-039-0 01 1 -
76 CASE; SHIFT UNIT
(C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		8-98044-034-1 01 1 -
76 CASE; SHIFT UNIT
(D) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98147-533-0 01 1 -
77 PIN; SHIFT UNIT
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-707-0 01 1 -
79 SCREW; SENSOR
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-130-0 04 1 -
79 SCREW; SENSOR
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-994-0 04 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9 		1-33738-113-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: C = 1-33730-297-1 		1-33738-113-0 01 1 -0810
81 SENSOR; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-137-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0 		8-97324-826-0 01 1 -
81 SENSOR; SHIFT UNIT
(D) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0 		8-97324-827-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		8-98046-920-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0 		8-98061-816-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: C = 1-33730-297-1 		8-98135-828-0 01 1 0811-
81 SENSOR; SHIFT UNIT
(C) ASM PART: J = 8-98254-320-0 		8-98282-847-0 01 1 -
81 SENSOR; SHIFT UNIT
(D) ASM PART: J = 8-98254-320-0 		8-98282-848-0 01 1 -
82 HOLDER; ROD
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-935-0 01 1 -
83 SHIM; HOLDER
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-450-0 04 1 -
84 SCREW; CASE
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-779-0 04 1 -
84 SCREW; CASE
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-995-0 04 1 -
85 WASHER; CYL
ID=10.2 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		9-09150-510-0 04 1 -
86 SCREW; HOLDER
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-523-0 02 1 -
çizim 103782
110 111 35 7 111 35
BalonParca AdiParca NoAdetTipApplied Date
7 TUBE; SHIFT UNIT
(B) ASM PART: C = 1-33730-297-1 		1-33730-281-0 02 1 0811-
7 TUBE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-079-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9 		1-33738-096-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: C = 1-33730-297-1 		1-33738-096-0 02 1 -0810
7 TUBE; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-127-0 01 1 -
35 CLAMP; HOSE
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-021-0 01 1 -
35 CLAMP; HOSE
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-022-0 03 1 -
35 CLAMP; HOSE
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-650-0 01 1 -
35 CLAMP; HOSE
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-701-0 02 1 -
35 CLAMP; HOSE
(E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-702-0 01 1 -
35 CLAMP; HOSE
(F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-47829-050-0 30 1 -
110 REPAIR KIT; SHIFT,SOLENOID
(B) UPPER BLOW ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-145-1 AR 1 -
110 REPAIR KIT; SHIFT,SOLENOID
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-159-1 01 1 -
111 REPAIR KIT; SELECT,SOLENOID
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-144-1 AR 1 -
111 REPAIR KIT; SELECT,SOLENOID
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-146-1 AR 1 -
111 REPAIR KIT; SELECT,SOLENOID
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-158-1 01 1 -

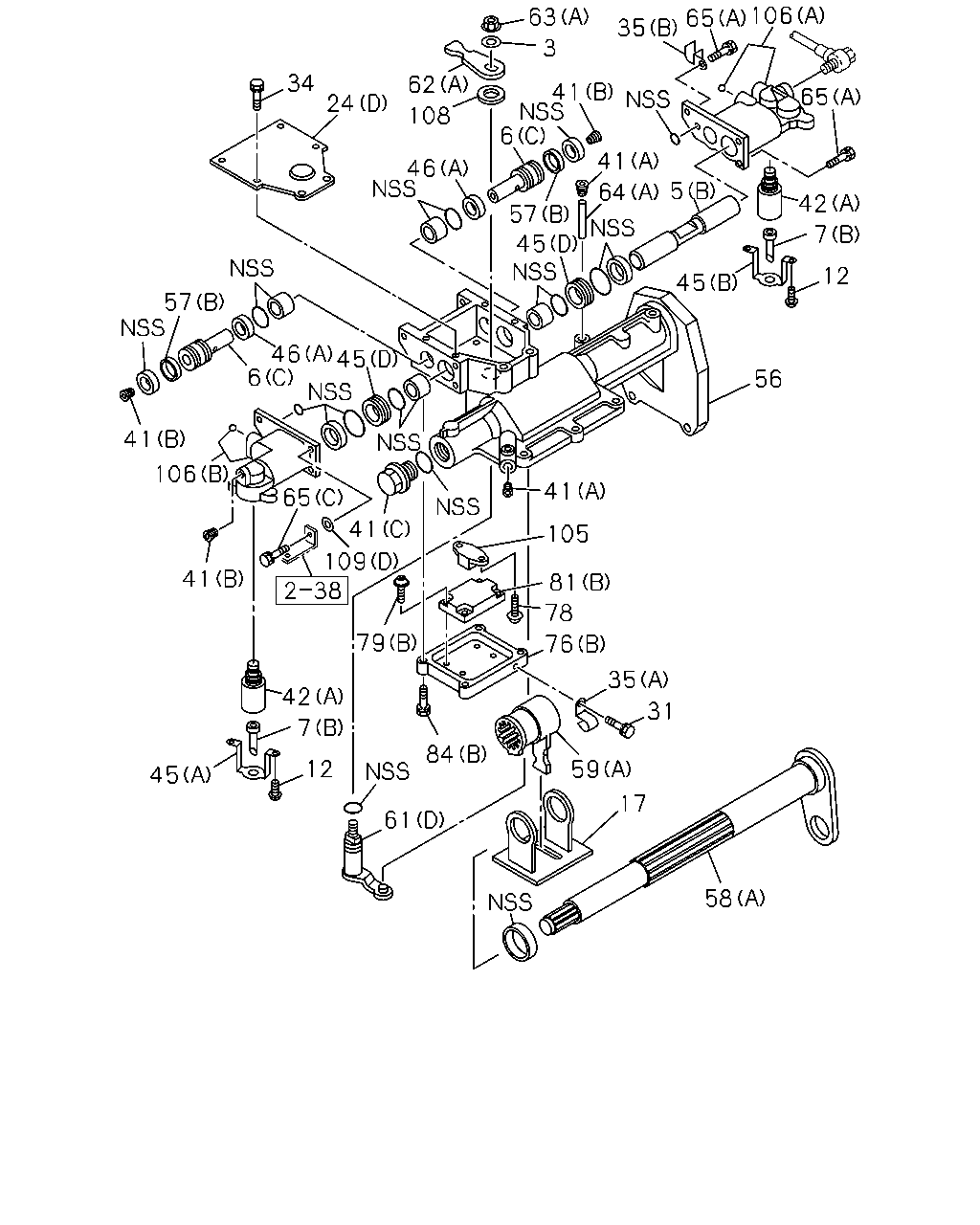

çizim 103783
106 63 65 35 3 34 62 41 6 65 24 108 41 46 5 64 42 57 45 7 12 45 57 45 46 6 56 41 106 41 65 41 105 109 41 81 78 79 76 35 42 31 7 84 12 59 45 17 61 58
BalonParca AdiParca NoAdetTipApplied Date
3 PLATE; OIL SEAL
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-984-0 01 1 -
5 ROD; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		1-33522-195-0 03 1 -
5 ROD; SHIFT UNIT
(D) ASM PART: B = 1-33730-296-0 		1-33522-199-0 01 1 -
5 ROD; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33734-011-0 01 1 -
5 ROD; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33734-020-0 01 1 -
5 ROD; SHIFT UNIT
(D) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-922-0 01 1 -
6 PISTON; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-078-0 01 1 -
6 PISTON; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-081-0 02 1 -
6 PISTON; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-990-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: C = 1-33730-297-1 		1-33730-281-0 02 1 0811-
7 TUBE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-079-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9 		1-33738-096-0 02 1 -
7 TUBE; SHIFT UNIT
(B) ASM PART: C = 1-33730-297-1 		1-33738-096-0 02 1 -0810
7 TUBE; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-127-0 01 1 -
12 CAP; SHIFT CYL
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-716-0 06 1 -
17 YOKE; SHIFT UNIT
ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33529-126-0 01 1 -
17 YOKE; SHIFT UNIT
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-825-0 01 1 -
24 COVER; SHIFT UNIT
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-987-0 01 1 -
24 COVER; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-34141-023-1 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0 		1-34141-024-1 01 1 -
24 COVER; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-34141-028-0 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		8-98045-686-0 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98047-742-0 01 1 -
31 SCREW; CLAMP
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-996-0 01 1 -
34 SCREW; COVER
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-716-0 06 1 -
35 CLAMP; HOSE
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-021-0 01 1 -
35 CLAMP; HOSE
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-022-0 03 1 -
35 CLAMP; HOSE
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-650-0 01 1 -
35 CLAMP; HOSE
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-701-0 02 1 -
35 CLAMP; HOSE
(E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-702-0 01 1 -
35 CLAMP; HOSE
(F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-47829-050-0 30 1 -
41 PLUG; SHIFT UNIT
(D), PT3/8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09605-056-0 01 1 -
41 PLUG; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-044-0 01 1 -
41 PLUG; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-674-0 02 1 -
41 PLUG; SHIFT UNIT
(E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-94403-163-0 02 1 -
41 PLUG; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		8-97014-820-0 06 1 -
42 VALVE; MAGNETIC
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-160-1 01 1 -
42 VALVE; MAGNETIC
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-161-1 01 1 -
45 RETAINER; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-033-0 02 1 -
45 RETAINER; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-034-0 01 1 -
45 RETAINER; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-377-0 02 1 -
45 RETAINER; SHIFT UNIT
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-991-0 02 1 -
46 STOPPER; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-038-0 02 1 -
46 STOPPER; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-077-0 02 1 -
46 STOPPER; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-149-0 01 1 -
56 CASE ASM; GEAR SHIFT UNIT
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33731-119-0 01 1 -
57 RING; WEAR,GEAR SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-019-0 02 1 -
57 RING; WEAR,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-316-0 04 1 -
58 SHAFT; GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33659-240-0 01 1 -
58 SHAFT; GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33734-021-0 01 1 -
59 LEVER; INNER,GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33521-188-0 01 1 -
59 LEVER; INNER,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33735-004-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33522-194-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0 		1-33659-251-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33671-943-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33735-020-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(C) ASM PART: I = 8-98186-516-0, J = 8-98254-320-0 		8-98186-070-0 01 1 -
62 LEVER; OUTER,GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33671-942-0 01 1 -
62 LEVER; OUTER,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33735-015-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(B), M10 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		0-91150-110-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(B), M10 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91180-110-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-985-1 01 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-82353-827-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: D = 8-98047-359-0, F = 8-98070-040-1 		0-82353-827-0 04 1 -
64 PIN; GEAR SHIFT UNIT
(E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-31424-011-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-673-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-762-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(E), OD=6 L=40 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98036-471-1 01 1 -
64 PIN; GEAR SHIFT UNIT
(G), OD=3 L=6.36 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-977-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(C), OD=5 L=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		9-08150-510-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(D), OD=6 L=40 ASM PART: B = 1-33730-296-0 		9-08150-640-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: B = 1-33730-296-0, E = 8-98055-135-0 		9-08230-827-0 04 1 -
65 BOLT; CASE,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-22199-155-0 03 1 -
65 BOLT; CASE,GEAR SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-020-0 02 1 -
65 BOLT; CASE,GEAR SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-319-0 01 1 -
76 CASE; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0 		1-33541-541-0 01 1 -
76 CASE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33731-024-1 01 1 -
76 CASE; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-039-0 01 1 -
76 CASE; SHIFT UNIT
(C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		8-98044-034-1 01 1 -
76 CASE; SHIFT UNIT
(D) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98147-533-0 01 1 -
78 SCREW; PIN
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-523-0 02 1 -
79 SCREW; SENSOR
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-130-0 04 1 -
79 SCREW; SENSOR
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-994-0 04 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9 		1-33738-113-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: C = 1-33730-297-1 		1-33738-113-0 01 1 -0810
81 SENSOR; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-137-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0 		8-97324-826-0 01 1 -
81 SENSOR; SHIFT UNIT
(D) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0 		8-97324-827-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		8-98046-920-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0 		8-98061-816-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: C = 1-33730-297-1 		8-98135-828-0 01 1 0811-
81 SENSOR; SHIFT UNIT
(C) ASM PART: J = 8-98254-320-0 		8-98282-847-0 01 1 -
81 SENSOR; SHIFT UNIT
(D) ASM PART: J = 8-98254-320-0 		8-98282-848-0 01 1 -
84 SCREW; CASE
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-779-0 04 1 -
84 SCREW; CASE
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-995-0 04 1 -
105 HOLDER; SHIFT UNIT
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-988-0 01 1 -
106 BODY ASM; GEAR SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33731-072-0 01 1 -
106 BODY ASM; GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33731-122-0 01 1 -
108 BEARING; GEAR SHIFT UNIT
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-986-0 01 1 -
109 WASHER; PL
(C), ID=12.5 OD=26 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91610-612-0 01 1 -
109 WASHER; PL
(A), ID=10.5 OD=22 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91614-610-0 01 1 -
109 WASHER; PL
(B), OD=40 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09532-008-0 01 1 -
109 WASHER; PL
(C), ID=12.5 OD=26 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		9-09160-612-0 01 1 -
109 WASHER; PL
(D), ID=8.4 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		9-09164-508-0 02 1 -
109 WASHER; PL
(A), ID=10.5 OD=22 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		9-09164-610-0 01 1 -

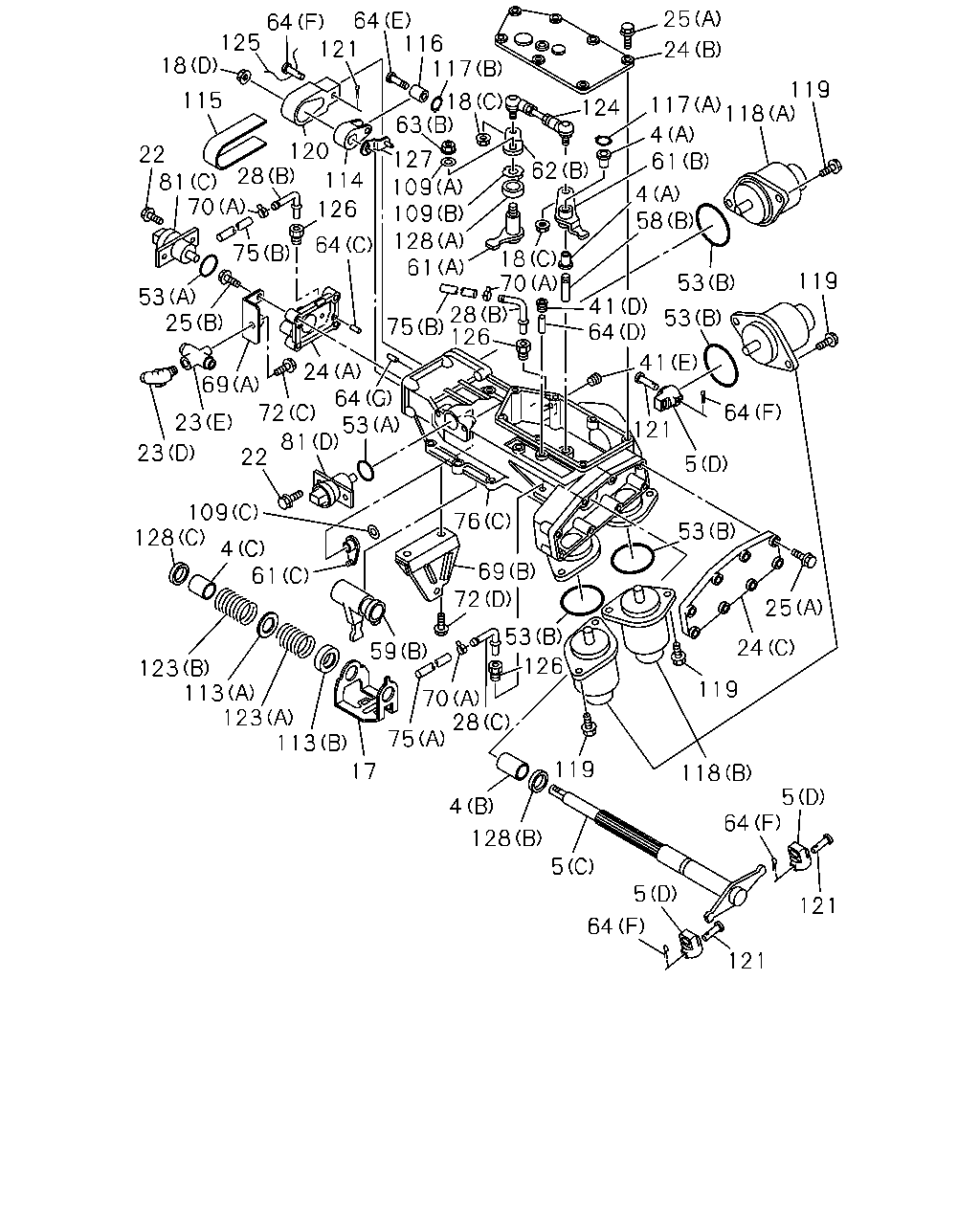

çizim 105182
25 64 116 117 64 125 121 18 24 119 115 18 63 117 118 124 61 62 120 28 22 81 70 127 109 109 128 61 114 4 58 126 64 75 18 70 41 64 119 53 53 25 28 75 126 53 41 69 24 64 53 81 64 72 23 121 23 22 5 109 128 76 53 4 61 69 72 25 53 126 24 59 123 113 123 113 119 70 28 75 119 17 118 5 64 4 128 5 5 121 64 121
BalonParca AdiParca NoAdetTipApplied Date
4 BUSHING; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09330-144-0 02 1 -
4 BUSHING; SHIFT UNIT
(C), ID=20 OD=23 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33549-016-0 01 1 -
4 BUSHING; SHIFT UNIT
(B), ID=28 OD=32 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33549-104-0 01 1 -
5 ROD; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		1-33522-195-0 03 1 -
5 ROD; SHIFT UNIT
(D) ASM PART: B = 1-33730-296-0 		1-33522-199-0 01 1 -
5 ROD; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33734-011-0 01 1 -
5 ROD; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33734-020-0 01 1 -
5 ROD; SHIFT UNIT
(D) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-922-0 01 1 -
17 YOKE; SHIFT UNIT
ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33529-126-0 01 1 -
17 YOKE; SHIFT UNIT
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-825-0 01 1 -
18 NUT; ROD
(C), M6 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		0-91150-106-0 02 1 -
18 NUT; ROD
(D), M10 FLANGE ASM PART: B = 1-33730-296-0 		0-91150-110-0 01 1 -
18 NUT; ROD
(C), M6 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91180-106-0 02 1 -
18 NUT; ROD
(D), M10 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91180-110-0 01 1 -
18 NUT; ROD
(A), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-712-0 01 1 -
18 NUT; ROD
(B), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		9-99111-412-0 01 1 -
22 BOLT; SW
M6X12 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28050-612-0 04 1 -
23 CONNECTOR; SHIFT UNIT
(D), DIN12 & R3/8 ELBOW ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09660-959-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(E), DIN8 & RC3/8 3WAY ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09661-129-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-001-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-126-0 02 1 -
23 CONNECTOR; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-135-0 01 1 -
24 COVER; SHIFT UNIT
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-987-0 01 1 -
24 COVER; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-34141-023-1 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0 		1-34141-024-1 01 1 -
24 COVER; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-34141-028-0 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		8-98045-686-0 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98047-742-0 01 1 -
25 BOLT; COVER
(A), M8X16 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28050-816-0 15 1 -
25 BOLT; COVER
(A), M8X16 FLANGE ASM PART: B = 1-33730-296-0 		0-28080-816-0 15 1 -
25 BOLT; COVER
(B), M6X25 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28650-625-0 04 1 -
25 BOLT; COVER
(B), M6X25 FLANGE ASM PART: B = 1-33730-296-0 		0-28680-625-0 04 1 -
28 PIPE; SHIFT UNIT
(B) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-022-0 01 1 -
28 PIPE; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0 		1-33149-022-0 02 1 -
28 PIPE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-134-0 01 1 -
28 PIPE; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0 		8-97305-517-0 01 1 -
28 PIPE; SHIFT UNIT
(C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		8-97358-318-0 02 1 -
28 PIPE; SHIFT UNIT
(C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-97358-318-0 03 1 -
41 PLUG; SHIFT UNIT
(D), PT3/8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09605-056-0 01 1 -
41 PLUG; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-044-0 01 1 -
41 PLUG; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-674-0 02 1 -
41 PLUG; SHIFT UNIT
(E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-94403-163-0 02 1 -
41 PLUG; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		8-97014-820-0 06 1 -
53 GASKET
(A), ID=26.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09623-058-0 02 1 -
53 GASKET
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-641-0 02 1 -
53 GASKET
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		9-09561-360-0 04 1 -
58 SHAFT; GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33659-240-0 01 1 -
58 SHAFT; GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33734-021-0 01 1 -
59 LEVER; INNER,GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33521-188-0 01 1 -
59 LEVER; INNER,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33735-004-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33522-194-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0 		1-33659-251-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33671-943-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33735-020-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(C) ASM PART: I = 8-98186-516-0, J = 8-98254-320-0 		8-98186-070-0 01 1 -
62 LEVER; OUTER,GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33671-942-0 01 1 -
62 LEVER; OUTER,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33735-015-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(B), M10 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		0-91150-110-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(B), M10 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91180-110-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-985-1 01 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-82353-827-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: D = 8-98047-359-0, F = 8-98070-040-1 		0-82353-827-0 04 1 -
64 PIN; GEAR SHIFT UNIT
(E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-31424-011-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-673-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-762-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(E), OD=6 L=40 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98036-471-1 01 1 -
64 PIN; GEAR SHIFT UNIT
(G), OD=3 L=6.36 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-977-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(C), OD=5 L=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		9-08150-510-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(D), OD=6 L=40 ASM PART: B = 1-33730-296-0 		9-08150-640-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: B = 1-33730-296-0, E = 8-98055-135-0 		9-08230-827-0 04 1 -
69 BRACKET; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-82569-396-2 01 1 -
69 BRACKET; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-82698-527-0 01 1 -
70 CLIP; SHIFT UNIT
(B), ID=31 L=35 ASM PART: A = 1-33730-241-9 		1-09700-329-1 01 1 -
70 CLIP; SHIFT UNIT
(A), ID=7.8 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-94246-958-0 01 1 -
70 CLIP; SHIFT UNIT
(A), ID=7.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		8-94246-958-0 03 1 -
72 BOLT; BRKT
(C), M8X16 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28050-816-0 01 1 -
72 BOLT; BRKT
(C), M8X16 FLANGE ASM PART: B = 1-33730-296-0 		0-28080-816-0 01 1 -
72 BOLT; BRKT
(D), M12X30 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28151-230-0 02 1 -
72 BOLT; BRKT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-090-0 02 1 -
72 BOLT; BRKT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-699-0 02 1 -
75 HOSE; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-020-0 01 1 -
75 HOSE; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-021-0 02 1 -
75 HOSE; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-002-0 01 1 -
75 HOSE; SHIFT UNIT
(B) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98067-939-0 02 1 -
75 HOSE; SHIFT UNIT
(A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98070-399-0 01 1 -
76 CASE; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0 		1-33541-541-0 01 1 -
76 CASE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33731-024-1 01 1 -
76 CASE; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-039-0 01 1 -
76 CASE; SHIFT UNIT
(C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		8-98044-034-1 01 1 -
76 CASE; SHIFT UNIT
(D) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98147-533-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9 		1-33738-113-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: C = 1-33730-297-1 		1-33738-113-0 01 1 -0810
81 SENSOR; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-137-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0 		8-97324-826-0 01 1 -
81 SENSOR; SHIFT UNIT
(D) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0 		8-97324-827-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		8-98046-920-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0 		8-98061-816-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: C = 1-33730-297-1 		8-98135-828-0 01 1 0811-
81 SENSOR; SHIFT UNIT
(C) ASM PART: J = 8-98254-320-0 		8-98282-847-0 01 1 -
81 SENSOR; SHIFT UNIT
(D) ASM PART: J = 8-98254-320-0 		8-98282-848-0 01 1 -
109 WASHER; PL
(C), ID=12.5 OD=26 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91610-612-0 01 1 -
109 WASHER; PL
(A), ID=10.5 OD=22 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91614-610-0 01 1 -
109 WASHER; PL
(B), OD=40 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09532-008-0 01 1 -
109 WASHER; PL
(C), ID=12.5 OD=26 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		9-09160-612-0 01 1 -
109 WASHER; PL
(D), ID=8.4 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		9-09164-508-0 02 1 -
109 WASHER; PL
(A), ID=10.5 OD=22 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		9-09164-610-0 01 1 -
113 SEAT; SPRING
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33537-024-0 01 1 -
113 SEAT; SPRING
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33549-404-0 01 1 -
114 CAM; GEAR SHIFT UNIT
ASM PART: B = 1-33730-296-0 		1-33529-123-1 01 1 -
114 CAM; GEAR SHIFT UNIT
ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-921-0 01 1 -
115 GUIDE; PLATE,CAM
ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33549-401-0 01 1 -
116 ROLLER; SHAFT
ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33529-121-0 01 1 -
117 RING; SNAP
(B), ID=4 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91805-504-0 01 1 -
117 RING; SNAP
(B), ID=10 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91805-510-0 01 1 -
117 RING; SNAP
(B), ID=4 ASM PART: B = 1-33730-296-0 		9-09185-404-0 01 1 -
117 RING; SNAP
(A), ID=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		9-09185-410-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0 		1-82564-379-2 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		1-82564-380-3 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(A) ASM PART: D = 8-98047-359-0 		1-82564-445-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0 		8-98050-197-1 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(A) ASM PART: E = 8-98055-135-0, F = 8-98070-040-1 		8-98052-618-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: G = 8-98147-541-0 		8-98148-111-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(A) ASM PART: H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98162-694-1 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: H = 8-98163-036-0, I = 8-98186-516-0 		8-98162-741-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: J = 8-98254-320-0 		8-98254-315-0 01 1 -
119 BOLT; SOLENOID
M10X25 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28751-025-0 08 1 -
119 BOLT; SOLENOID
M10X25 FLANGE ASM PART: B = 1-33730-296-0 		0-28781-025-0 08 1 -
120 PLATE; CAM
ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33529-125-0 01 1 -
121 PIN; SPRIT
L=27.7 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		1-09747-005-0 04 1 -
121 PIN; SPRIT
L=27.7 ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09747-005-0 01 1 -
123 SPRING; SELECT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09580-593-0 01 1 -
123 SPRING; SELECT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09580-594-0 01 1 -
124 ROD ASM; LINK
ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33671-944-1 01 1 -
125 WIRE
L=200 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		9-08351-020-0 04 1 -
125 WIRE
L=200 ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		9-08351-020-0 01 1 -
126 PLUG; BREATHER
ASM PART: B = 1-33730-296-0 		1-33149-023-0 03 1 -
126 PLUG; BREATHER
ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33149-023-0 02 1 -
127 PLATE; PIN,CAM TO SHIFT SENSOR
ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-924-0 01 1 -
128 SEAL; OIL,SHIFT UNIT
(A), OD=30 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09625-386-0 01 1 -
128 SEAL; OIL,SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09625-612-1 01 1 -
128 SEAL; OIL,SHIFT UNIT
(B), OD=41 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09625-647-0 01 1 -

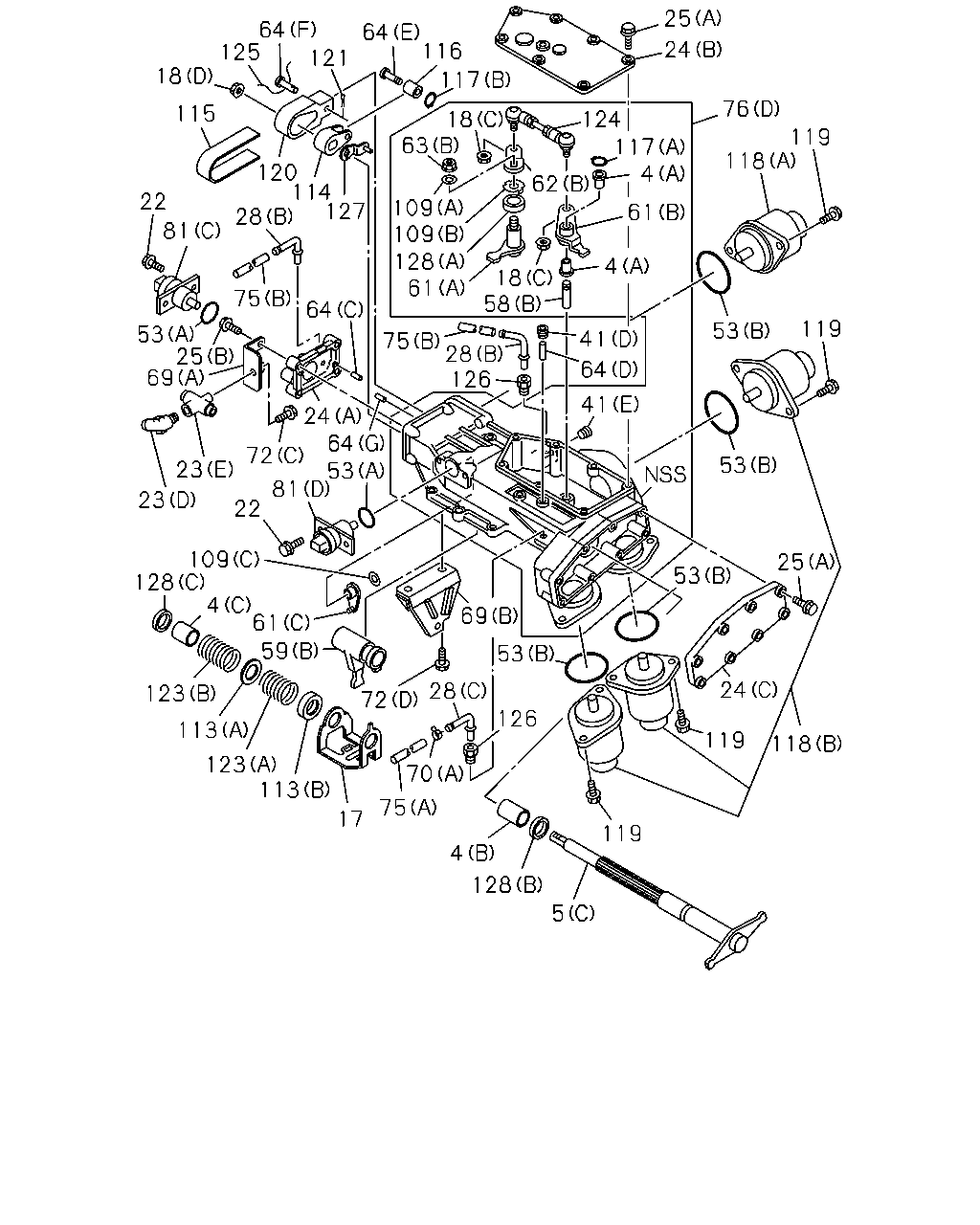

çizim 105295
25 64 125 18 64 116 24 121 117 76 115 124 18 63 62 119 117 4 61 118 120 114 127 28 22 109 109 128 61 81 4 18 58 75 64 119 53 53 25 69 41 75 28 126 64 24 64 53 81 41 72 53 23 23 22 109 128 4 61 59 25 53 69 53 24 28 123 72 126 113 119 118 123 113 70 75 17 119 4 128 5
BalonParca AdiParca NoAdetTipApplied Date
4 BUSHING; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09330-144-0 02 1 -
4 BUSHING; SHIFT UNIT
(C), ID=20 OD=23 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33549-016-0 01 1 -
4 BUSHING; SHIFT UNIT
(B), ID=28 OD=32 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33549-104-0 01 1 -
5 ROD; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		1-33522-195-0 03 1 -
5 ROD; SHIFT UNIT
(D) ASM PART: B = 1-33730-296-0 		1-33522-199-0 01 1 -
5 ROD; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33734-011-0 01 1 -
5 ROD; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33734-020-0 01 1 -
5 ROD; SHIFT UNIT
(D) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-922-0 01 1 -
17 YOKE; SHIFT UNIT
ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33529-126-0 01 1 -
17 YOKE; SHIFT UNIT
ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-825-0 01 1 -
18 NUT; ROD
(C), M6 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		0-91150-106-0 02 1 -
18 NUT; ROD
(D), M10 FLANGE ASM PART: B = 1-33730-296-0 		0-91150-110-0 01 1 -
18 NUT; ROD
(C), M6 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91180-106-0 02 1 -
18 NUT; ROD
(D), M10 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91180-110-0 01 1 -
18 NUT; ROD
(A), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-712-0 01 1 -
18 NUT; ROD
(B), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		9-99111-412-0 01 1 -
22 BOLT; SW
M6X12 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28050-612-0 04 1 -
23 CONNECTOR; SHIFT UNIT
(D), DIN12 & R3/8 ELBOW ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09660-959-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(E), DIN8 & RC3/8 3WAY ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09661-129-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-001-0 01 1 -
23 CONNECTOR; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-126-0 02 1 -
23 CONNECTOR; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-135-0 01 1 -
24 COVER; SHIFT UNIT
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-987-0 01 1 -
24 COVER; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-34141-023-1 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0 		1-34141-024-1 01 1 -
24 COVER; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-34141-028-0 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		8-98045-686-0 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98047-742-0 01 1 -
25 BOLT; COVER
(A), M8X16 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28050-816-0 15 1 -
25 BOLT; COVER
(A), M8X16 FLANGE ASM PART: B = 1-33730-296-0 		0-28080-816-0 15 1 -
25 BOLT; COVER
(B), M6X25 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28650-625-0 04 1 -
25 BOLT; COVER
(B), M6X25 FLANGE ASM PART: B = 1-33730-296-0 		0-28680-625-0 04 1 -
28 PIPE; SHIFT UNIT
(B) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-022-0 01 1 -
28 PIPE; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0 		1-33149-022-0 02 1 -
28 PIPE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-134-0 01 1 -
28 PIPE; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0 		8-97305-517-0 01 1 -
28 PIPE; SHIFT UNIT
(C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		8-97358-318-0 02 1 -
28 PIPE; SHIFT UNIT
(C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-97358-318-0 03 1 -
41 PLUG; SHIFT UNIT
(D), PT3/8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09605-056-0 01 1 -
41 PLUG; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-044-0 01 1 -
41 PLUG; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-674-0 02 1 -
41 PLUG; SHIFT UNIT
(E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-94403-163-0 02 1 -
41 PLUG; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		8-97014-820-0 06 1 -
53 GASKET
(A), ID=26.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09623-058-0 02 1 -
53 GASKET
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-641-0 02 1 -
53 GASKET
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		9-09561-360-0 04 1 -
58 SHAFT; GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33659-240-0 01 1 -
58 SHAFT; GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33734-021-0 01 1 -
59 LEVER; INNER,GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33521-188-0 01 1 -
59 LEVER; INNER,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33735-004-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33522-194-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0 		1-33659-251-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33671-943-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33735-020-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(C) ASM PART: I = 8-98186-516-0, J = 8-98254-320-0 		8-98186-070-0 01 1 -
62 LEVER; OUTER,GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33671-942-0 01 1 -
62 LEVER; OUTER,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33735-015-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(B), M10 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		0-91150-110-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(B), M10 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91180-110-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-985-1 01 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-82353-827-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: D = 8-98047-359-0, F = 8-98070-040-1 		0-82353-827-0 04 1 -
64 PIN; GEAR SHIFT UNIT
(E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-31424-011-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-673-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-762-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(E), OD=6 L=40 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98036-471-1 01 1 -
64 PIN; GEAR SHIFT UNIT
(G), OD=3 L=6.36 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-977-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(C), OD=5 L=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		9-08150-510-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(D), OD=6 L=40 ASM PART: B = 1-33730-296-0 		9-08150-640-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(F) ASM PART: B = 1-33730-296-0, E = 8-98055-135-0 		9-08230-827-0 04 1 -
69 BRACKET; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-82569-396-2 01 1 -
69 BRACKET; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-82698-527-0 01 1 -
70 CLIP; SHIFT UNIT
(B), ID=31 L=35 ASM PART: A = 1-33730-241-9 		1-09700-329-1 01 1 -
70 CLIP; SHIFT UNIT
(A), ID=7.8 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-94246-958-0 01 1 -
70 CLIP; SHIFT UNIT
(A), ID=7.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		8-94246-958-0 03 1 -
72 BOLT; BRKT
(C), M8X16 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28050-816-0 01 1 -
72 BOLT; BRKT
(C), M8X16 FLANGE ASM PART: B = 1-33730-296-0 		0-28080-816-0 01 1 -
72 BOLT; BRKT
(D), M12X30 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28151-230-0 02 1 -
72 BOLT; BRKT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-090-0 02 1 -
72 BOLT; BRKT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33739-699-0 02 1 -
75 HOSE; SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-020-0 01 1 -
75 HOSE; SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		1-33149-021-0 02 1 -
75 HOSE; SHIFT UNIT
(C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-002-0 01 1 -
75 HOSE; SHIFT UNIT
(B) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98067-939-0 02 1 -
75 HOSE; SHIFT UNIT
(A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98070-399-0 01 1 -
76 CASE; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0 		1-33541-541-0 01 1 -
76 CASE; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33731-024-1 01 1 -
76 CASE; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-039-0 01 1 -
76 CASE; SHIFT UNIT
(C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		8-98044-034-1 01 1 -
76 CASE; SHIFT UNIT
(D) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98147-533-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: A = 1-33730-241-9 		1-33738-113-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: C = 1-33730-297-1 		1-33738-113-0 01 1 -0810
81 SENSOR; SHIFT UNIT
(B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		1-33738-137-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0 		8-97324-826-0 01 1 -
81 SENSOR; SHIFT UNIT
(D) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0 		8-97324-827-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0 		8-98046-920-0 01 1 -
81 SENSOR; SHIFT UNIT
(C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0 		8-98061-816-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: C = 1-33730-297-1 		8-98135-828-0 01 1 0811-
81 SENSOR; SHIFT UNIT
(C) ASM PART: J = 8-98254-320-0 		8-98282-847-0 01 1 -
81 SENSOR; SHIFT UNIT
(D) ASM PART: J = 8-98254-320-0 		8-98282-848-0 01 1 -
109 WASHER; PL
(C), ID=12.5 OD=26 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91610-612-0 01 1 -
109 WASHER; PL
(A), ID=10.5 OD=22 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91614-610-0 01 1 -
109 WASHER; PL
(B), OD=40 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09532-008-0 01 1 -
109 WASHER; PL
(C), ID=12.5 OD=26 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		9-09160-612-0 01 1 -
109 WASHER; PL
(D), ID=8.4 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1 		9-09164-508-0 02 1 -
109 WASHER; PL
(A), ID=10.5 OD=22 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0 		9-09164-610-0 01 1 -
113 SEAT; SPRING
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33537-024-0 01 1 -
113 SEAT; SPRING
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33549-404-0 01 1 -
114 CAM; GEAR SHIFT UNIT
ASM PART: B = 1-33730-296-0 		1-33529-123-1 01 1 -
114 CAM; GEAR SHIFT UNIT
ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-921-0 01 1 -
115 GUIDE; PLATE,CAM
ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33549-401-0 01 1 -
116 ROLLER; SHAFT
ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33529-121-0 01 1 -
117 RING; SNAP
(B), ID=4 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91805-504-0 01 1 -
117 RING; SNAP
(B), ID=10 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-91805-510-0 01 1 -
117 RING; SNAP
(B), ID=4 ASM PART: B = 1-33730-296-0 		9-09185-404-0 01 1 -
117 RING; SNAP
(A), ID=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		9-09185-410-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(A) ASM PART: B = 1-33730-296-0 		1-82564-379-2 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0 		1-82564-380-3 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(A) ASM PART: D = 8-98047-359-0 		1-82564-445-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0 		8-98050-197-1 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(A) ASM PART: E = 8-98055-135-0, F = 8-98070-040-1 		8-98052-618-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: G = 8-98147-541-0 		8-98148-111-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(A) ASM PART: H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98162-694-1 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: H = 8-98163-036-0, I = 8-98186-516-0 		8-98162-741-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: J = 8-98254-320-0 		8-98254-315-0 01 1 -
119 BOLT; SOLENOID
M10X25 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		0-28751-025-0 08 1 -
119 BOLT; SOLENOID
M10X25 FLANGE ASM PART: B = 1-33730-296-0 		0-28781-025-0 08 1 -
120 PLATE; CAM
ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33529-125-0 01 1 -
121 PIN; SPRIT
L=27.7 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		1-09747-005-0 04 1 -
121 PIN; SPRIT
L=27.7 ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09747-005-0 01 1 -
123 SPRING; SELECT
(A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09580-593-0 01 1 -
123 SPRING; SELECT
(B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09580-594-0 01 1 -
124 ROD ASM; LINK
ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33671-944-1 01 1 -
125 WIRE
L=200 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1 		9-08351-020-0 04 1 -
125 WIRE
L=200 ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		9-08351-020-0 01 1 -
126 PLUG; BREATHER
ASM PART: B = 1-33730-296-0 		1-33149-023-0 03 1 -
126 PLUG; BREATHER
ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-33149-023-0 02 1 -
127 PLATE; PIN,CAM TO SHIFT SENSOR
ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		8-98046-924-0 01 1 -
128 SEAL; OIL,SHIFT UNIT
(A), OD=30 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09625-386-0 01 1 -
128 SEAL; OIL,SHIFT UNIT
(C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09625-612-1 01 1 -
128 SEAL; OIL,SHIFT UNIT
(B), OD=41 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0 		1-09625-647-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
