Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#29627) — 577 parça

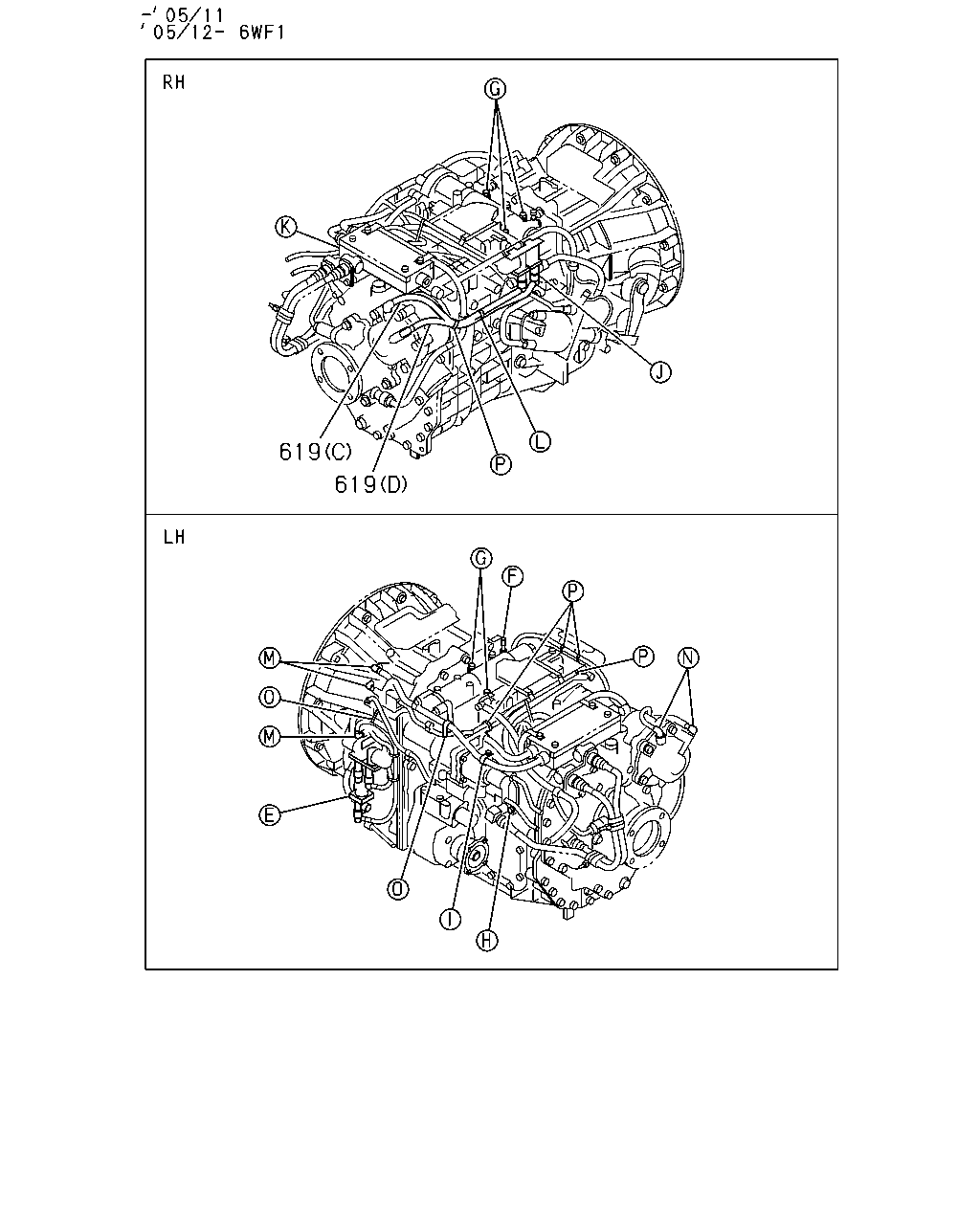

619 619

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
619	TUBE; NYLON 6WF1 TC-C(1B8) (C) L=440	8-98081-863-0	01	1	1004-
619	TUBE; NYLON 6WG1 TC-S(97L) (E) L=690	1-09377-332-0	01	1	0512-
619	TUBE; NYLON (B) L=430	1-09376-828-1	01	1	0407-1003
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1004-
619	TUBE; NYLON (A) L=420	1-09376-829-1	01	1	0407-1003
619	TUBE; NYLON 6WG1 TC-S(97L) (A) L=420	1-09376-829-1	01	1	1004-
619	TUBE; NYLON (C) L=470	1-09376-831-1	01	1	0407-0511
619	TUBE; NYLON 6WF1 TC-C(1B8) (C) L=470	1-09376-831-1	01	1	0512-
619	TUBE; NYLON (D) L=490	1-09376-832-1	01	1	0407-0511
619	TUBE; NYLON 6WF1 TC-C(1B8) (D) L=490	1-09376-832-1	01	1	0512-

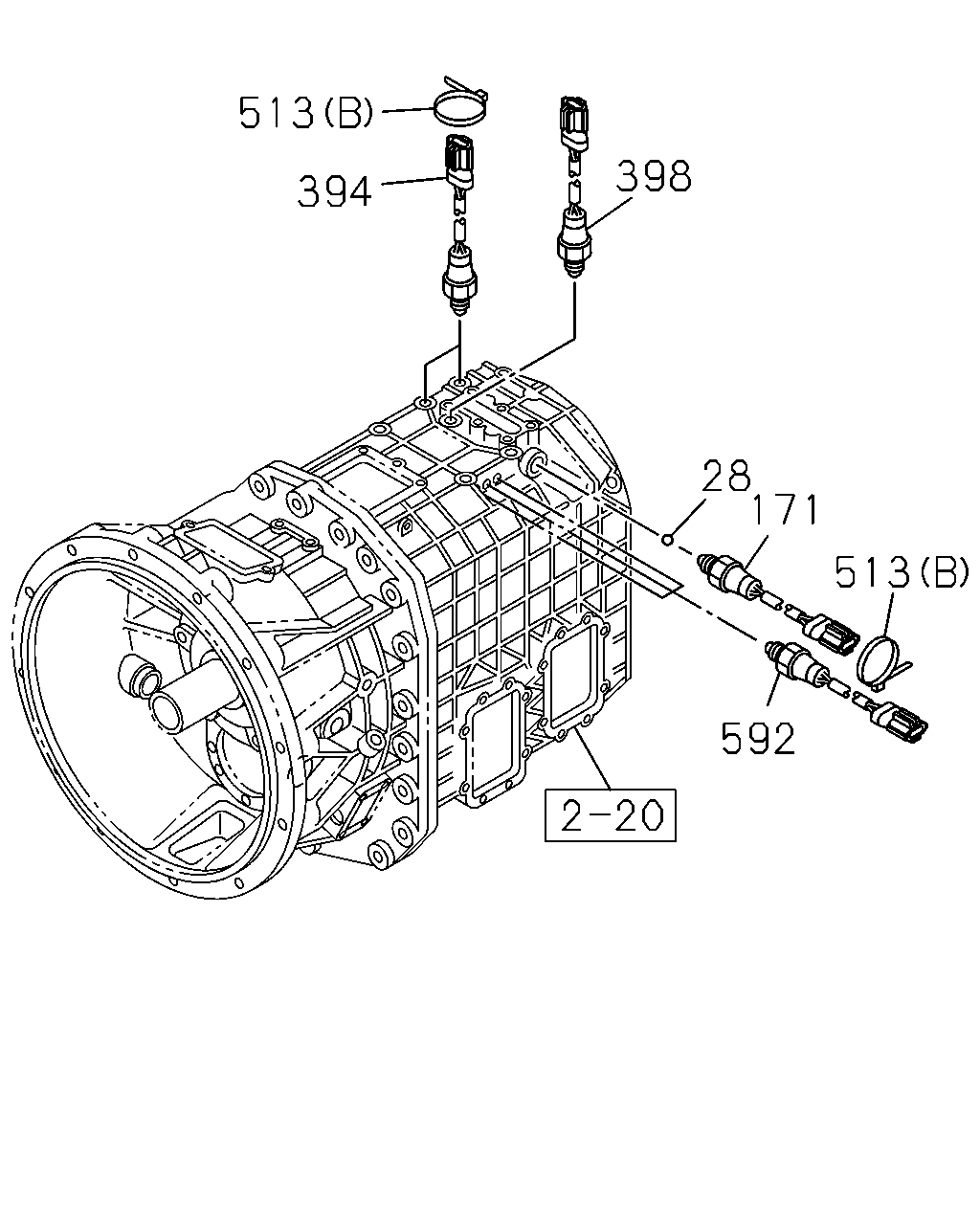

513 398 394 28 171 513 592

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BALL; INTER LK	9-00097-501-0	02	1	0407-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0407-0702
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1005
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1006-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
394	SWITCH; RANGE CHANGE 6WG1 TC-S(97L)	1-82440-124-0	02	1	0512-0602
394	SWITCH; RANGE CHANGE 6WG1 TC-S(97L)	8-98042-854-0	02	1	0603-1209
394	SWITCH; RANGE CHANGE 6WG1 TC-S(97L)	8-98228-481-0	02	1	1210-
394	SWITCH; RANGE CHANGE	1-82440-083-3	02	1	0407-0511
394	SWITCH; RANGE CHANGE 6WF1 TC-C(1B8)	1-82440-083-3	02	1	0512-0602
394	SWITCH; RANGE CHANGE 6WF1 TC-C(1B8)	8-98042-853-0	02	1	0603-1209
394	SWITCH; RANGE CHANGE 6WF1 TC-C(1B8)	8-98228-867-0	02	1	1210-
398	SWITCH; REV LAMP 6WG1 TC-S(97L)	1-82440-124-0	01	1	0512-0602
398	SWITCH; REV LAMP 6WG1 TC-S(97L)	8-98042-854-0	01	1	0603-1209
398	SWITCH; REV LAMP 6WG1 TC-S(97L)	8-98228-483-0	01	1	1210-
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0407-0511
398	SWITCH; REV LAMP 6WF1 TC-C(1B8)	1-82440-083-3	01	1	0512-0602
398	SWITCH; REV LAMP 6WF1 TC-C(1B8)	8-98042-853-0	01	1	0603-1209
398	SWITCH; REV LAMP 6WF1 TC-C(1B8)	8-98228-482-0	01	1	1210-
513	CLIP; BAND 6WG1 TC-S(97L) (A) L=250	5-09707-030-1	08	1	0512-0512
513	CLIP; BAND 6WG1 TC-S(97L) (A) L=250	5-09707-030-1	10	1	0512-
513	CLIP; BAND 6WG1 TC-S(97L) (B) L=140	5-09707-031-1	02	1	0512-
513	CLIP; BAND (A) L=250	5-09707-030-1	02	1	0407-0511
513	CLIP; BAND 6WF1 TC-C(1B8) (A) L=250	5-09707-030-1	02	1	0512-
513	CLIP; BAND (B) L=140	5-09707-031-1	10	1	0407-0511
513	CLIP; BAND 6WF1 TC-C(1B8) (B) L=140	5-09707-031-1	10	1	0512-
592	SWITCH; POSITION 6WG1 TC-S(97L)	1-82440-124-0	03	1	0512-0602
592	SWITCH; POSITION 6WG1 TC-S(97L)	8-98042-854-0	03	1	0603-1209
592	SWITCH; POSITION 6WG1 TC-S(97L)	8-98228-481-0	03	1	1210-
592	SWITCH; POSITION	1-82440-083-3	03	1	0407-0511
592	SWITCH; POSITION 6WF1 TC-C(1B8)	1-82440-083-3	03	1	0512-0602
592	SWITCH; POSITION 6WF1 TC-C(1B8)	8-98042-853-0	03	1	0603-1209
592	SWITCH; POSITION 6WF1 TC-C(1B8)	8-98228-867-0	03	1	1210-

381 444 512 285 222 512 339 339 339 341 341 341 158 513 578 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS 6WG1 TC-S(97L) (F) ID=19 L=25	1-09700-515-1	01	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (G) ID=28 L=30	1-09700-607-1	01	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (E) L=36	8-94224-891-1	02	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (H) ID=19 L=60	9-09525-896-0	02	1	0512-0606
158	CLIP; HARNESS 6WG1 TC-S(97L) (H) ID=19 L=60	0-95235-896-0	02	1	0607-
158	CLIP; HARNESS (C) L=150	1-82569-328-0	10	1	0407-
158	CLIP; HARNESS (A) L=36	8-94224-891-1	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (A) L=36	8-94224-891-1	01	1	0512-
158	CLIP; HARNESS (D) ID=19 L=20	9-09525-836-0	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (D) ID=19 L=20	9-09525-836-0	01	1	0512-0606
158	CLIP; HARNESS 6WF1 TC-C(1B8) (D) ID=19 L=20	0-95235-836-0	01	1	0607-
158	CLIP; HARNESS (B) ID=19 L=60	9-09525-896-0	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (B) ID=19 L=60	9-09525-896-0	01	1	0512-0606
158	CLIP; HARNESS 6WF1 TC-C(1B8) (B) ID=19 L=60	0-95235-896-0	01	1	0607-
222	BRACKET; CLIP 6WG1 TC-S(97L)	1-82698-591-0	01	1	0512-
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0407-0511
285	BREATHER; AIR,QUAD BOX 6WF1 TC-C(1B8)	1-33149-008-0	01	1	0512-
339	NUT; QUAD BOX M10 FLANGE	0-91150-210-0	05	1	0407-0602
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	0603-
341	STUD; QUAD BOX 6WG1 TC-S(97L) M10X81.5 L=96.5	8-98019-465-0	01	1	0512-
341	STUD; QUAD BOX 6WG1 TC-S(97L) M10X35 L=50	9-04411-035-0	04	1	0512-0604
341	STUD; QUAD BOX 6WG1 TC-S(97L) M10X35 L=50	0-44011-035-0	04	1	0605-
341	STUD; QUAD BOX M10X35 L=50	9-04411-035-0	05	1	0407-0511
341	STUD; QUAD BOX 6WF1 TC-C(1B8) M10X35 L=50	9-04411-035-0	05	1	0512-0604
341	STUD; QUAD BOX 6WF1 TC-C(1B8) M10X35 L=50	0-44011-035-0	05	1	0605-
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT (F) M6X50 FLANGE	0-28080-650-0	02	1	0407-0512
381	BOLT (F) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT (C) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28080-820-0	04	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28050-820-0	04	1	0601-
381	BOLT (E) M10X25 FLANGE	0-28781-025-0	11	1	0407-0512
381	BOLT (E) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28781-030-0	01	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28751-030-0	01	1	0601-
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (C) L=27 DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	0512-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (A) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0512-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (B) 2WAY	1-09661-518-0	01	1	0512-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (C) L=30	1-09661-770-0	02	1	0512-
427	CONNECTOR; NYLON TUBE (C) L=27 DIN6 & R1/4 ELBOW	1-09660-707-1	03	1	0407-0511
427	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) (C) L=27 DIN6 & R1/4 ELBOW	1-09660-707-1	03	1	0512-
444	BOLT; CLIP 6WG1 TC-S(97L) M10X25 FLANGE	0-28781-025-0	04	1	0512-0512
444	BOLT; CLIP 6WG1 TC-S(97L) M10X25 FLANGE	0-28751-025-0	04	1	0601-
512	CLIP; PIPE 6WG1 TC-S(97L) ID=13X2 L=25	9-09916-814-0	04	1	0512-
513	CLIP; BAND 6WG1 TC-S(97L) (A) L=250	5-09707-030-1	08	1	0512-0512
513	CLIP; BAND 6WG1 TC-S(97L) (A) L=250	5-09707-030-1	10	1	0512-
513	CLIP; BAND 6WG1 TC-S(97L) (B) L=140	5-09707-031-1	02	1	0512-
513	CLIP; BAND (A) L=250	5-09707-030-1	02	1	0407-0511
513	CLIP; BAND 6WF1 TC-C(1B8) (A) L=250	5-09707-030-1	02	1	0512-
513	CLIP; BAND (B) L=140	5-09707-031-1	10	1	0407-0511
513	CLIP; BAND 6WF1 TC-C(1B8) (B) L=140	5-09707-031-1	10	1	0512-
578	CONNECTOR 6WG1 TC-S(97L) (C)	1-09661-134-0	01	1	0512-
578	CONNECTOR 6WG1 TC-S(97L) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0512-
578	CONNECTOR (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0407-

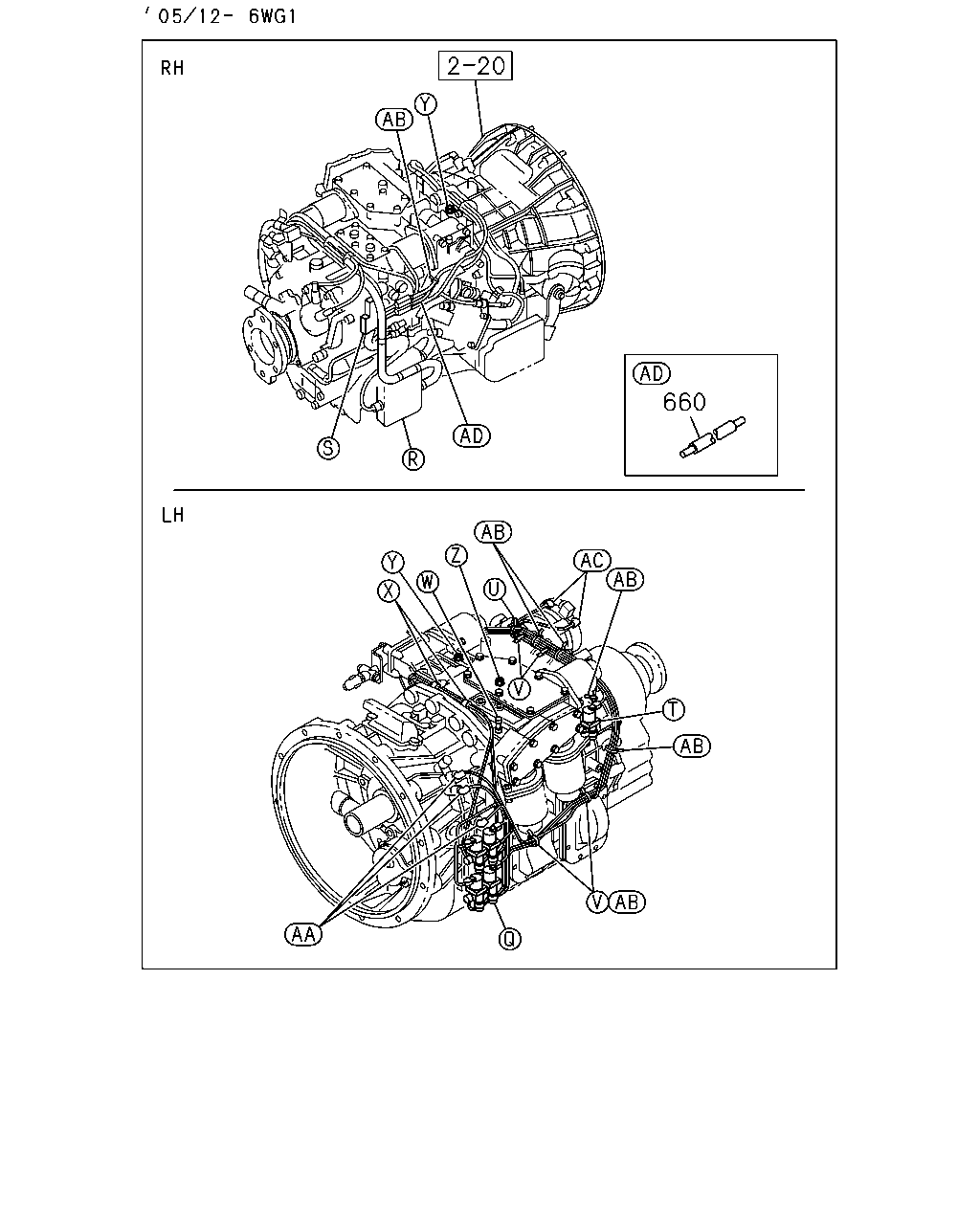

596 552 195 427 596 660 195 427 158 381 195 195 158 552 661 619 381 615 578 661 374 381 374 342 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS 6WG1 TC-S(97L) (F) ID=19 L=25	1-09700-515-1	01	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (G) ID=28 L=30	1-09700-607-1	01	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (E) L=36	8-94224-891-1	02	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (H) ID=19 L=60	9-09525-896-0	02	1	0512-0606
158	CLIP; HARNESS 6WG1 TC-S(97L) (H) ID=19 L=60	0-95235-896-0	02	1	0607-
158	CLIP; HARNESS (C) L=150	1-82569-328-0	10	1	0407-
158	CLIP; HARNESS (A) L=36	8-94224-891-1	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (A) L=36	8-94224-891-1	01	1	0512-
158	CLIP; HARNESS (D) ID=19 L=20	9-09525-836-0	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (D) ID=19 L=20	9-09525-836-0	01	1	0512-0606
158	CLIP; HARNESS 6WF1 TC-C(1B8) (D) ID=19 L=20	0-95235-836-0	01	1	0607-
158	CLIP; HARNESS (B) ID=19 L=60	9-09525-896-0	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (B) ID=19 L=60	9-09525-896-0	01	1	0512-0606
158	CLIP; HARNESS 6WF1 TC-C(1B8) (B) ID=19 L=60	0-95235-896-0	01	1	0607-
195	BOLT 6WG1 TC-S(97L) (B) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512
195	BOLT 6WG1 TC-S(97L) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-
195	BOLT 6WG1 TC-S(97L) (A) M10X25 FLANGE	0-28781-025-0	03	1	0512-0512
195	BOLT 6WG1 TC-S(97L) (A) M10X25 FLANGE	0-28751-025-0	03	1	0601-
342	BOLT (A) M12X41	1-09675-140-0	01	1	0407-
342	BOLT (B) M12X27 FLANGE	1-09675-160-0	06	1	0407-0805
342	BOLT (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	0806-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	0407-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	0407-
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT (F) M6X50 FLANGE	0-28080-650-0	02	1	0407-0512
381	BOLT (F) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT (C) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28080-820-0	04	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28050-820-0	04	1	0601-
381	BOLT (E) M10X25 FLANGE	0-28781-025-0	11	1	0407-0512
381	BOLT (E) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28781-030-0	01	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28751-030-0	01	1	0601-
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (C) L=27 DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	0512-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (A) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0512-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (B) 2WAY	1-09661-518-0	01	1	0512-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (C) L=30	1-09661-770-0	02	1	0512-
427	CONNECTOR; NYLON TUBE (C) L=27 DIN6 & R1/4 ELBOW	1-09660-707-1	03	1	0407-0511
427	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) (C) L=27 DIN6 & R1/4 ELBOW	1-09660-707-1	03	1	0512-
552	BRACKET 6WG1 TC-S(97L) (D)	1-47471-393-0	01	1	0512-
552	BRACKET 6WG1 TC-S(97L) (E)	1-82569-397-1	01	1	0512-
552	BRACKET 6WG1 TC-S(97L) (C)	1-82698-607-0	01	1	0512-
552	BRACKET (A)	1-82569-303-2	01	1	0407-0511
552	BRACKET 6WF1 TC-C(1B8) (A)	1-82569-303-2	01	1	0512-
552	BRACKET (B)	1-82569-304-0	01	1	0407-0511
552	BRACKET 6WF1 TC-C(1B8) (B)	1-82569-304-0	01	1	0512-
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	05	1	0407-
578	CONNECTOR 6WG1 TC-S(97L) (C)	1-09661-134-0	01	1	0512-
578	CONNECTOR 6WG1 TC-S(97L) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0512-
578	CONNECTOR (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0407-
596	BOX; CONNECTOR 6WG1 TC-S(97L) (A)	1-82569-414-0	01	1	0512-0606
596	BOX; CONNECTOR 6WG1 TC-S(97L) (A)	1-82569-434-0	01	1	0607-0701
596	BOX; CONNECTOR 6WG1 TC-S(97L) (B)	8-98067-899-0	01	1	0702-1003
596	BOX; CONNECTOR 6WG1 TC-S(97L) (B)	8-98160-716-1	01	1	1004-
596	BOX; CONNECTOR (C)	1-82569-315-1	01	1	0407-0511
596	BOX; CONNECTOR 6WF1 TC-C(1B8) (C)	1-82569-315-1	01	1	0512-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (F) M12	1-82560-342-0	02	1	0512-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (E)	1-82560-344-0	01	1	0512-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (D) M12 & PT3/8	1-82560-451-0	02	1	0512-
615	VALVE; MAGNETIC (A) M12	1-82560-342-0	01	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (A) M12	1-82560-342-0	01	1	0512-
615	VALVE; MAGNETIC (C)	1-82560-343-0	01	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (C)	1-82560-343-0	01	1	0512-
615	VALVE; MAGNETIC (B)	1-82560-344-0	02	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (B)	1-82560-344-0	02	1	0512-
619	TUBE; NYLON 6WF1 TC-C(1B8) (C) L=440	8-98081-863-0	01	1	1004-
619	TUBE; NYLON 6WG1 TC-S(97L) (E) L=690	1-09377-332-0	01	1	0512-
619	TUBE; NYLON (B) L=430	1-09376-828-1	01	1	0407-1003
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1004-
619	TUBE; NYLON (A) L=420	1-09376-829-1	01	1	0407-1003
619	TUBE; NYLON 6WG1 TC-S(97L) (A) L=420	1-09376-829-1	01	1	1004-
619	TUBE; NYLON (C) L=470	1-09376-831-1	01	1	0407-0511
619	TUBE; NYLON 6WF1 TC-C(1B8) (C) L=470	1-09376-831-1	01	1	0512-
619	TUBE; NYLON (D) L=490	1-09376-832-1	01	1	0407-0511
619	TUBE; NYLON 6WF1 TC-C(1B8) (D) L=490	1-09376-832-1	01	1	0512-
660	PROTECTOR; NYLON TUBE 6WG1 TC-S(97L)	1-09377-342-0	01	1	0512-
661	CLIP 6WG1 TC-S(97L) L=150	1-82569-328-0	02	1	0512-

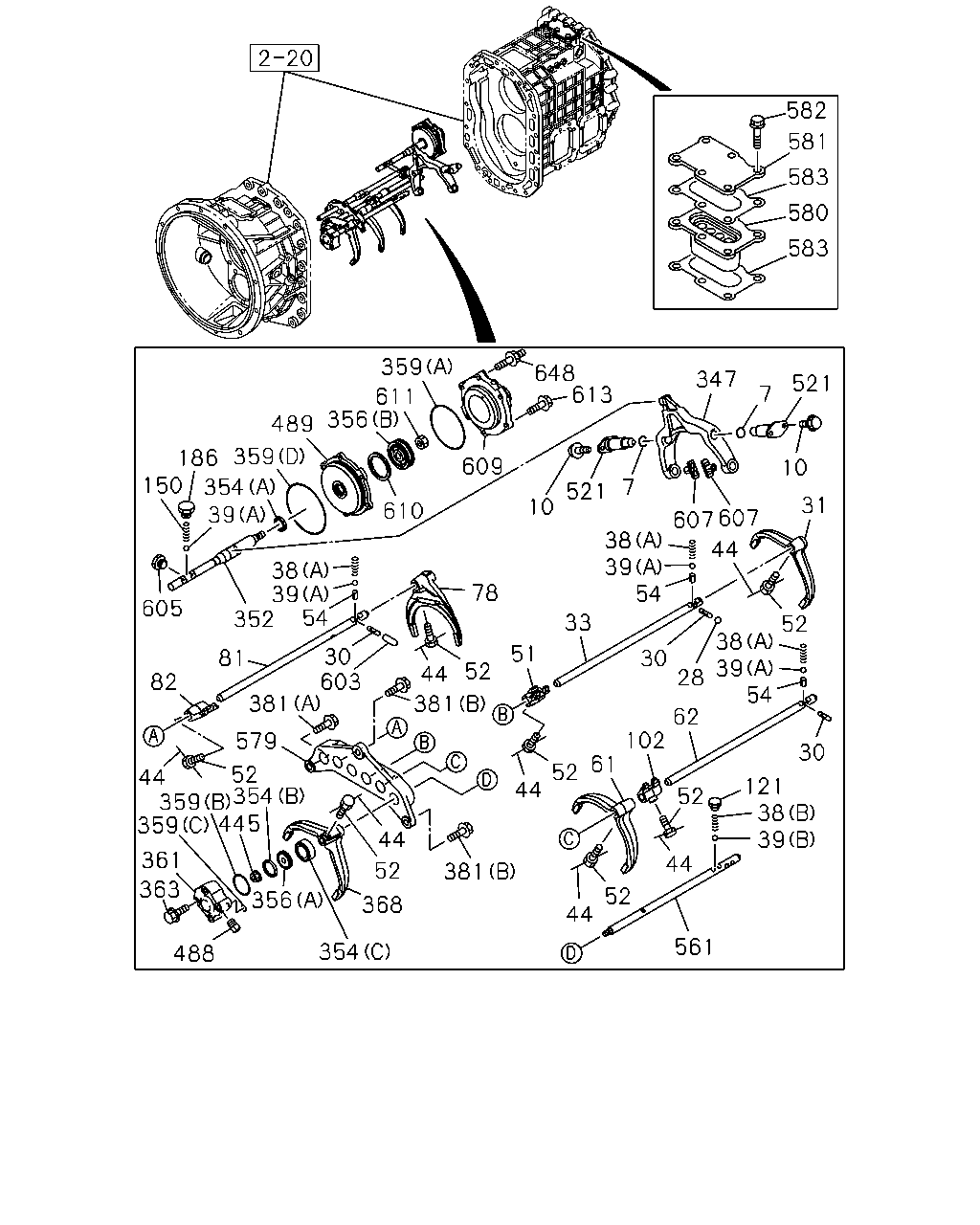

582 581 583 580 583 359 648 613 347 521 7 611 356 489 359 186 150 609 10 354 39 7 521 31 10 610 38 39 54 44 38 39 78 605 33 52 38 39 54 51 30 603 81 30 52 44 28 82 381 381 62 102 579 30 61 52 44 52 354 121 38 39 44 52 44 361 44 52 381 363 52 368 44 561 354 488 359 359 445 352 607 607 54 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	02	1	0407-
10	BOLT; SPINDLE M10X30 FLANGE	0-28781-030-0	04	1	0407-0512
10	BOLT; SPINDLE M10X30 FLANGE	0-28751-030-0	04	1	0601-
28	BALL; INTER LK	9-00097-501-0	02	1	0407-
30	PIN; INTER LK	9-33534-003-0	03	1	0407-
31	ARM; SHIFT,LOW & 2ND	1-33511-587-0	01	1	0407-
33	ROD; SHIFT,LOW & 2ND	1-33531-458-0	01	1	0407-
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0407-
38	SPRING; DETENT (A)	1-09580-379-0	03	1	0407-
39	BALL; DETENT (A)	1-09843-012-0	04	1	0407-
39	BALL; DETENT (B)	9-00097-013-0	01	1	0407-
44	WIRE; LK L=200	9-08351-020-0	07	1	0407-
51	BLOCK; SHIFT,1ST & 2ND	1-33511-590-0	01	1	0407-
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	0407-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0407-
61	ARM; SHIFT,3RD & 4TH	1-33511-586-0	01	1	0407-
62	ROD; SHIFT,3RD & 4TH	1-33531-459-0	01	1	0407-
78	ARM; SHIFT,REV	1-33511-589-0	01	1	0407-
81	ROD; SHIFT,REV BLOCK	1-33531-457-0	01	1	0407-
82	BLOCK; SHIFT,REV	1-33511-451-0	01	1	0407-
102	BLOCK; SHIFT,3RD & 4TH	1-33511-592-0	01	1	0407-0602
102	BLOCK; SHIFT,3RD & 4TH	8-98044-038-0	01	1	0603-
121	PLUG; DETENT SPR M16X12	9-99202-316-0	01	1	0407-0606
121	PLUG; DETENT SPR M16X12	0-92002-416-0	01	1	0607-
150	SPRING; DETENT BALL	1-09580-379-0	01	1	0407-
186	PLUG; SHIFTER ROD M16X12	9-99202-316-0	01	1	0407-0606
186	PLUG; SHIFTER ROD M16X12	0-92002-416-0	01	1	0607-
347	ARM; SHIFT,RANGE CHANGE	1-33511-585-0	01	1	0407-
352	ROD; SHIFT,RANGE CHANGE	1-33531-482-0	01	1	0407-
354	SEAL; AIR CYL (A)	1-19387-056-0	01	1	0407-
354	SEAL; AIR CYL (B)	1-33739-978-0	01	1	0407-
354	SEAL; AIR CYL (C)	1-33739-981-0	01	1	0407-
356	PISTON; AIR CYL (A)	1-33551-017-0	01	1	0407-
356	PISTON; AIR CYL (B)	1-33551-024-0	01	1	0407-0502
356	PISTON; AIR CYL (B)	1-33551-025-0	01	1	0503-
359	GASKET; AIR CYL (A) ID=124.6	1-09623-468-0	01	1	0407-
359	GASKET; AIR CYL (B) ID=55.6	1-09623-547-0	01	1	0407-0704
359	GASKET; AIR CYL (B) ID=55.6	8-98075-598-0	01	1	0705-
359	GASKET; AIR CYL (C) ID=6.8	9-09565-107-0	01	1	0407-
359	GASKET; AIR CYL (D) ID=144.4	9-09920-735-0	01	1	0407-
361	CYLINDER; AIR,SHIFT	1-33561-013-0	01	1	0407-0702
361	CYLINDER; AIR,SHIFT	1-33561-019-0	01	1	0703-
363	BOLT; AIR CYL M10X60 FLANGE	0-28181-060-0	04	1	0407-0512
363	BOLT; AIR CYL M10X60 FLANGE	0-28151-060-0	04	1	0601-1003
363	BOLT; AIR CYL M10X60 FLANGE	8-98169-763-0	04	1	1004-
368	ARM; SHIFT,SPLITTER GEAR	1-33511-588-0	01	1	0407-
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT (F) M6X50 FLANGE	0-28080-650-0	02	1	0407-0512
381	BOLT (F) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT (C) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28080-820-0	04	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28050-820-0	04	1	0601-
381	BOLT (E) M10X25 FLANGE	0-28781-025-0	11	1	0407-0512
381	BOLT (E) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28781-030-0	01	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28751-030-0	01	1	0601-
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
445	NUT; SHIFT CYL M12 LOCK NUT FLANGE	0-91303-612-0	01	1	0407-0604
445	NUT; SHIFT CYL M12 LOCK NUT FLANGE	0-91380-012-0	01	1	0605-
488	PLUG; AIR CYL	9-09204-510-0	01	1	0407-
489	COVER; AIR CYL	1-33569-052-0	01	1	0407-
521	SPINDLE; 6TH	1-33519-131-0	02	1	0407-
561	ROD; SHIFT	1-33531-460-0	01	1	0407-
579	BLOCK; SHIFT,ROD GUIDE	1-33539-066-2	01	1	0407-
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	0407-
581	COVER; BLOCK	1-33141-056-0	01	1	0407-
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28181-035-0	06	1	0407-0512
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28151-035-0	06	1	0601-
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	0407-
603	ROD; INTER LK L=49	1-33534-005-0	01	1	0407-
605	PLUG; INTER LK M18X12	9-99202-318-0	01	1	0407-0606
605	PLUG; INTER LK M18X12	0-92002-418-0	01	1	0607-
607	PIECE; SHIFT	1-33518-010-0	02	1	0407-
609	BODY; AIR,CYL	1-33561-018-0	01	1	0407-
610	SEAL; PISTON	1-33738-054-0	01	1	0407-
611	NUT; SHAFT	8-97324-304-0	01	1	0407-
613	BOLT; AIR CYL 6WG1 TC-S(97L) M10X45 FLANGE	0-28181-045-0	03	1	0512-0512
613	BOLT; AIR CYL 6WG1 TC-S(97L) M10X45 FLANGE	0-28151-045-0	03	1	0601-
613	BOLT; AIR CYL M10X45 FLANGE	0-28181-045-0	06	1	0407-0408
613	BOLT; AIR CYL M10X45 FLANGE	0-28181-045-0	04	1	0409-0511
613	BOLT; AIR CYL 6WF1 TC-C(1B8) M10X45 FLANGE	0-28181-045-0	04	1	0512-0512
613	BOLT; AIR CYL 6WF1 TC-C(1B8) M10X45 FLANGE	0-28151-045-0	04	1	0601-
648	STUD; AIR CYL 6WG1 TC-S(97L) M10X20,M10X45 L=75	1-09049-015-0	03	1	0512-0805
648	STUD; AIR CYL 6WG1 TC-S(97L) M10X20,M10X45 L=75	8-98010-335-0	03	1	0806-
648	STUD; AIR CYL M10X20,M10X45 L=75	1-09049-015-0	02	1	0409-0511
648	STUD; AIR CYL 6WF1 TC-C(1B8) M10X20,M10X45 L=75	1-09049-015-0	02	1	0512-0805
648	STUD; AIR CYL 6WF1 TC-C(1B8) M10X20,M10X45 L=75	8-98010-335-0	02	1	0806-

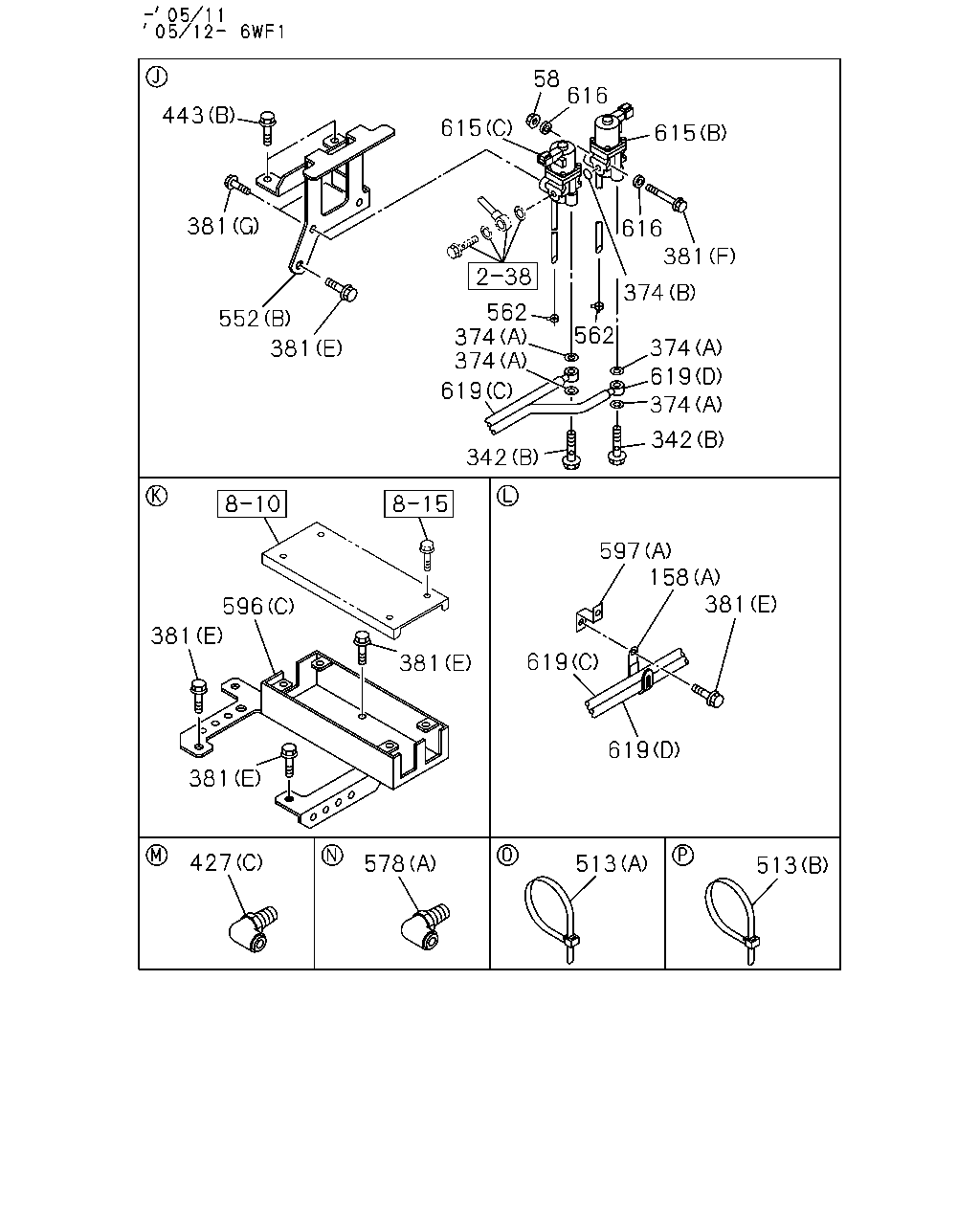

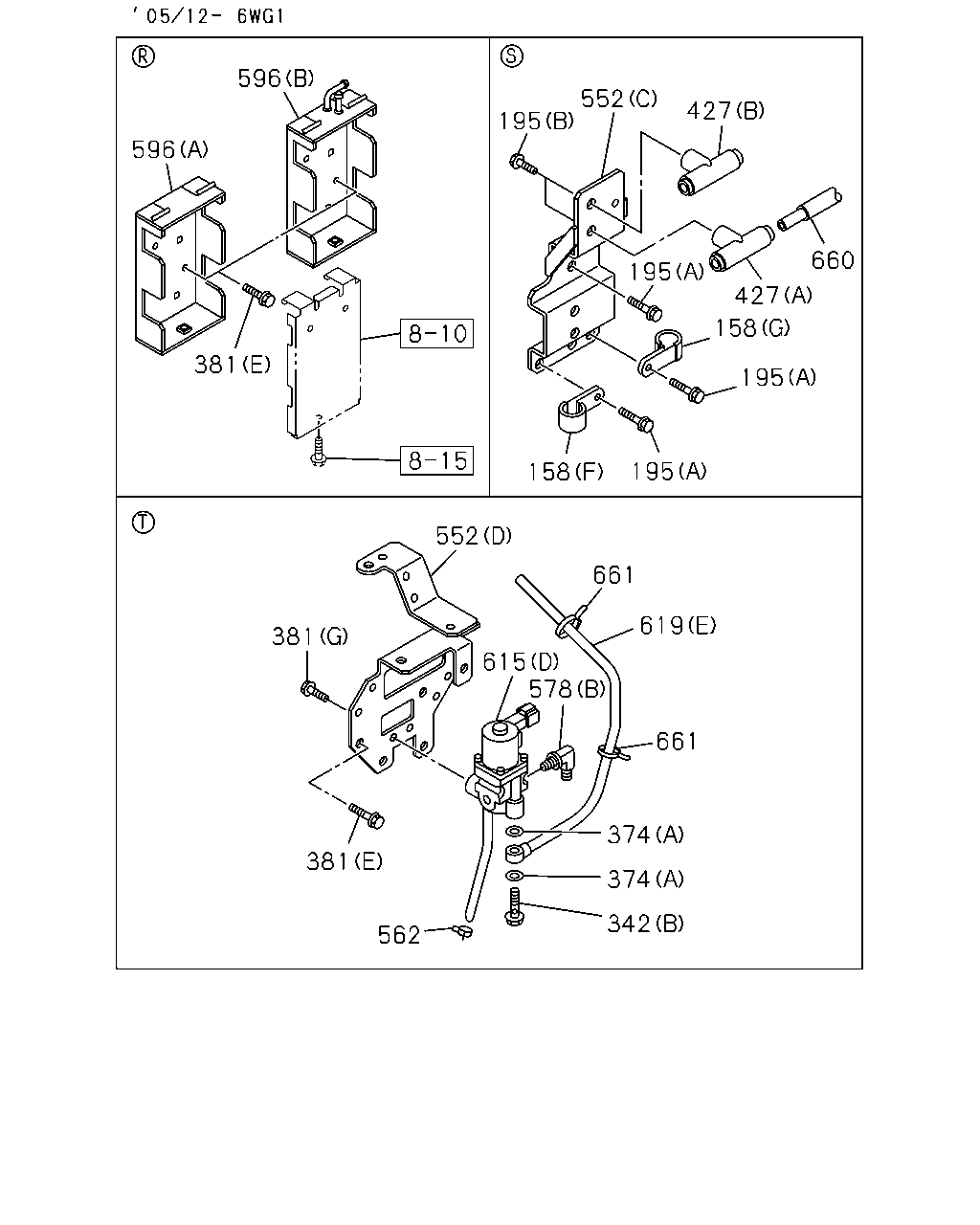

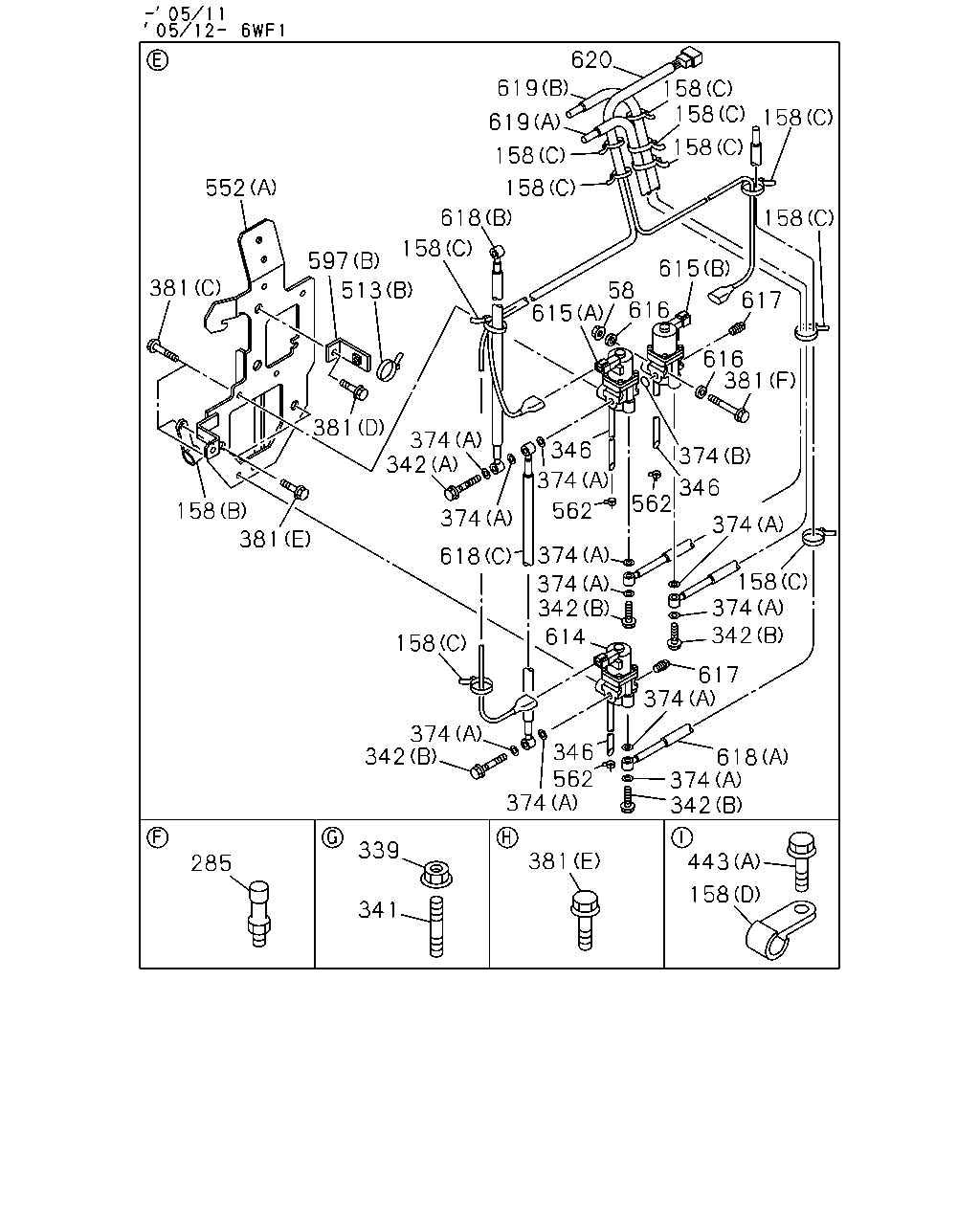

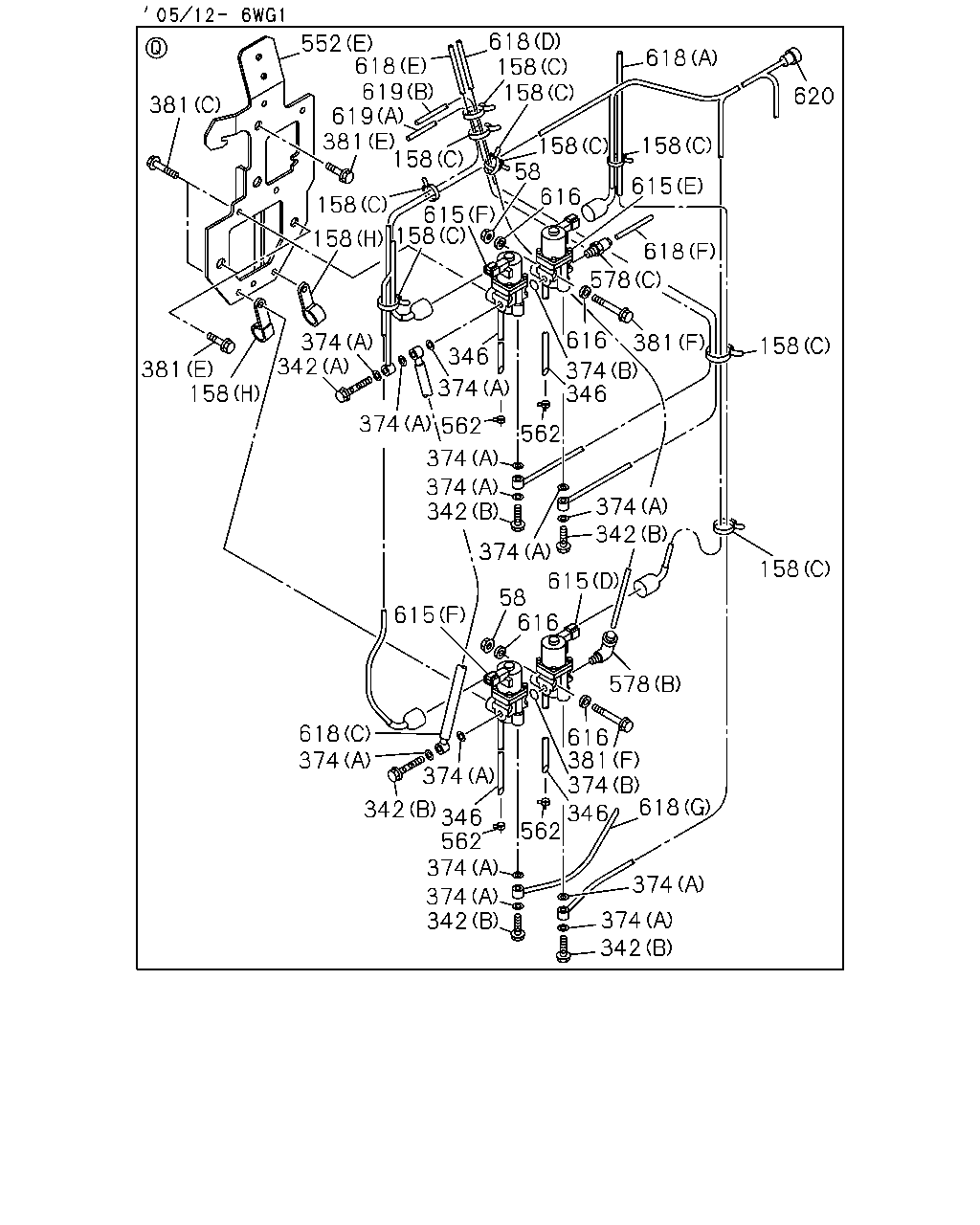

620 619 158 158 158 619 158 158 552 158 618 158 158 597 615 381 513 58 616 617 615 616 381 381 374 342 346 374 374 346 562 158 562 374 374 381 374 618 158 374 342 374 342 614 158 617 374 374 342 346 562 374 618 374 342 443 339 381 285 158 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	NUT M6 FLANGE	0-91150-106-0	02	1	0407-0602
58	NUT M6 FLANGE	0-91180-106-0	02	1	0603-
158	CLIP; HARNESS 6WG1 TC-S(97L) (F) ID=19 L=25	1-09700-515-1	01	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (G) ID=28 L=30	1-09700-607-1	01	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (E) L=36	8-94224-891-1	02	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (H) ID=19 L=60	9-09525-896-0	02	1	0512-0606
158	CLIP; HARNESS 6WG1 TC-S(97L) (H) ID=19 L=60	0-95235-896-0	02	1	0607-
158	CLIP; HARNESS (C) L=150	1-82569-328-0	10	1	0407-
158	CLIP; HARNESS (A) L=36	8-94224-891-1	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (A) L=36	8-94224-891-1	01	1	0512-
158	CLIP; HARNESS (D) ID=19 L=20	9-09525-836-0	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (D) ID=19 L=20	9-09525-836-0	01	1	0512-0606
158	CLIP; HARNESS 6WF1 TC-C(1B8) (D) ID=19 L=20	0-95235-836-0	01	1	0607-
158	CLIP; HARNESS (B) ID=19 L=60	9-09525-896-0	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (B) ID=19 L=60	9-09525-896-0	01	1	0512-0606
158	CLIP; HARNESS 6WF1 TC-C(1B8) (B) ID=19 L=60	0-95235-896-0	01	1	0607-
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0407-0511
285	BREATHER; AIR,QUAD BOX 6WF1 TC-C(1B8)	1-33149-008-0	01	1	0512-
339	NUT; QUAD BOX M10 FLANGE	0-91150-210-0	05	1	0407-0602
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	0603-
341	STUD; QUAD BOX 6WG1 TC-S(97L) M10X81.5 L=96.5	8-98019-465-0	01	1	0512-
341	STUD; QUAD BOX 6WG1 TC-S(97L) M10X35 L=50	9-04411-035-0	04	1	0512-0604
341	STUD; QUAD BOX 6WG1 TC-S(97L) M10X35 L=50	0-44011-035-0	04	1	0605-
341	STUD; QUAD BOX M10X35 L=50	9-04411-035-0	05	1	0407-0511
341	STUD; QUAD BOX 6WF1 TC-C(1B8) M10X35 L=50	9-04411-035-0	05	1	0512-0604
341	STUD; QUAD BOX 6WF1 TC-C(1B8) M10X35 L=50	0-44011-035-0	05	1	0605-
342	BOLT (A) M12X41	1-09675-140-0	01	1	0407-
342	BOLT (B) M12X27 FLANGE	1-09675-160-0	06	1	0407-0805
342	BOLT (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	0806-
346	HOSE; AIR 6WF1 TC-C(1B8) ID=6 OD=9 L=150	1-33739-872-0	03	1	1004-
346	HOSE; AIR 6WG1 TC-S(97L) ID=6 OD=9 L=150	1-33739-872-0	04	1	1004-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	0407-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	0407-
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT (F) M6X50 FLANGE	0-28080-650-0	02	1	0407-0512
381	BOLT (F) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT (C) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28080-820-0	04	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28050-820-0	04	1	0601-
381	BOLT (E) M10X25 FLANGE	0-28781-025-0	11	1	0407-0512
381	BOLT (E) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28781-030-0	01	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28751-030-0	01	1	0601-
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
443	BOLT; CLIP (A) M8X10 FLANGE	0-28080-810-0	01	1	0407-0511
443	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X10 FLANGE	0-28080-810-0	01	1	0512-0512
443	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X10 FLANGE	0-28050-810-0	01	1	0601-
443	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511
443	BOLT; CLIP 6WF1 TC-C(1B8) (B) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
443	BOLT; CLIP 6WF1 TC-C(1B8) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
513	CLIP; BAND 6WG1 TC-S(97L) (A) L=250	5-09707-030-1	08	1	0512-0512
513	CLIP; BAND 6WG1 TC-S(97L) (A) L=250	5-09707-030-1	10	1	0512-
513	CLIP; BAND 6WG1 TC-S(97L) (B) L=140	5-09707-031-1	02	1	0512-
513	CLIP; BAND (A) L=250	5-09707-030-1	02	1	0407-0511
513	CLIP; BAND 6WF1 TC-C(1B8) (A) L=250	5-09707-030-1	02	1	0512-
513	CLIP; BAND (B) L=140	5-09707-031-1	10	1	0407-0511
513	CLIP; BAND 6WF1 TC-C(1B8) (B) L=140	5-09707-031-1	10	1	0512-
552	BRACKET 6WG1 TC-S(97L) (D)	1-47471-393-0	01	1	0512-
552	BRACKET 6WG1 TC-S(97L) (E)	1-82569-397-1	01	1	0512-
552	BRACKET 6WG1 TC-S(97L) (C)	1-82698-607-0	01	1	0512-
552	BRACKET (A)	1-82569-303-2	01	1	0407-0511
552	BRACKET 6WF1 TC-C(1B8) (A)	1-82569-303-2	01	1	0512-
552	BRACKET (B)	1-82569-304-0	01	1	0407-0511
552	BRACKET 6WF1 TC-C(1B8) (B)	1-82569-304-0	01	1	0512-
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	05	1	0407-
597	BRACKET; RANGE,NYLON TUBE (B) L=55	1-47476-177-0	01	1	0407-0511
597	BRACKET; RANGE,NYLON TUBE 6WF1 TC-C(1B8) (B) L=55	1-47476-177-0	01	1	0512-
597	BRACKET; RANGE,NYLON TUBE (A)	1-82699-425-0	01	1	0407-0511
597	BRACKET; RANGE,NYLON TUBE 6WF1 TC-C(1B8) (A)	1-82699-425-0	01	1	0512-
614	VALVE ASM	1-82564-068-0	01	1	0407-0511
614	VALVE ASM 6WF1 TC-C(1B8)	1-82564-068-0	01	1	0512-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (F) M12	1-82560-342-0	02	1	0512-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (E)	1-82560-344-0	01	1	0512-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (D) M12 & PT3/8	1-82560-451-0	02	1	0512-
615	VALVE; MAGNETIC (A) M12	1-82560-342-0	01	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (A) M12	1-82560-342-0	01	1	0512-
615	VALVE; MAGNETIC (C)	1-82560-343-0	01	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (C)	1-82560-343-0	01	1	0512-
615	VALVE; MAGNETIC (B)	1-82560-344-0	02	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (B)	1-82560-344-0	02	1	0512-
616	COLLAR	1-82569-266-0	04	1	0407-
617	PLUG PT3/8	8-94475-259-0	02	1	0407-0511
617	PLUG 6WF1 TC-C(1B8) PT3/8	8-94475-259-0	02	1	0512-
618	TUBE; NYLON 6WG1 TC-S(97L) (D) L=1400	1-09377-321-0	01	1	0512-
618	TUBE; NYLON 6WG1 TC-S(97L) (E) L=750	1-09377-322-0	01	1	0512-
618	TUBE; NYLON 6WG1 TC-S(97L) (F) L=700	1-09377-323-0	01	1	0512-
618	TUBE; NYLON 6WG1 TC-S(97L) (G) L=1500	1-09377-324-0	01	1	0512-
618	TUBE; NYLON (B) L=470	1-09376-825-0	01	1	0407-0511
618	TUBE; NYLON 6WF1 TC-C(1B8) (B) L=470	1-09376-825-0	01	1	0512-
618	TUBE; NYLON (C) L=140	1-09376-826-0	01	1	0407-
618	TUBE; NYLON (A) L=550	1-09376-830-1	01	1	0407-
619	TUBE; NYLON 6WF1 TC-C(1B8) (C) L=440	8-98081-863-0	01	1	1004-
619	TUBE; NYLON 6WG1 TC-S(97L) (E) L=690	1-09377-332-0	01	1	0512-
619	TUBE; NYLON (B) L=430	1-09376-828-1	01	1	0407-1003
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1004-
619	TUBE; NYLON (A) L=420	1-09376-829-1	01	1	0407-1003
619	TUBE; NYLON 6WG1 TC-S(97L) (A) L=420	1-09376-829-1	01	1	1004-
619	TUBE; NYLON (C) L=470	1-09376-831-1	01	1	0407-0511
619	TUBE; NYLON 6WF1 TC-C(1B8) (C) L=470	1-09376-831-1	01	1	0512-
619	TUBE; NYLON (D) L=490	1-09376-832-1	01	1	0407-0511
619	TUBE; NYLON 6WF1 TC-C(1B8) (D) L=490	1-09376-832-1	01	1	0512-
620	HARNESS 6WG1 TC-S(97L)	1-82677-897-1	01	1	0512-
620	HARNESS	1-82675-069-0	01	1	0407-0511
620	HARNESS 6WF1 TC-C(1B8)	1-82675-069-0	01	1	0512-

58 616 443 615 615 381 616 381 374 562 374 374 552 562 374 381 619 619 374 342 342 597 158 381 596 381 619 381 619 381 427 578 513 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	NUT M6 FLANGE	0-91150-106-0	02	1	0407-0602
58	NUT M6 FLANGE	0-91180-106-0	02	1	0603-
158	CLIP; HARNESS 6WG1 TC-S(97L) (F) ID=19 L=25	1-09700-515-1	01	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (G) ID=28 L=30	1-09700-607-1	01	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (E) L=36	8-94224-891-1	02	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (H) ID=19 L=60	9-09525-896-0	02	1	0512-0606
158	CLIP; HARNESS 6WG1 TC-S(97L) (H) ID=19 L=60	0-95235-896-0	02	1	0607-
158	CLIP; HARNESS (C) L=150	1-82569-328-0	10	1	0407-
158	CLIP; HARNESS (A) L=36	8-94224-891-1	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (A) L=36	8-94224-891-1	01	1	0512-
158	CLIP; HARNESS (D) ID=19 L=20	9-09525-836-0	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (D) ID=19 L=20	9-09525-836-0	01	1	0512-0606
158	CLIP; HARNESS 6WF1 TC-C(1B8) (D) ID=19 L=20	0-95235-836-0	01	1	0607-
158	CLIP; HARNESS (B) ID=19 L=60	9-09525-896-0	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (B) ID=19 L=60	9-09525-896-0	01	1	0512-0606
158	CLIP; HARNESS 6WF1 TC-C(1B8) (B) ID=19 L=60	0-95235-896-0	01	1	0607-
342	BOLT (A) M12X41	1-09675-140-0	01	1	0407-
342	BOLT (B) M12X27 FLANGE	1-09675-160-0	06	1	0407-0805
342	BOLT (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	0806-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	0407-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	0407-
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT (F) M6X50 FLANGE	0-28080-650-0	02	1	0407-0512
381	BOLT (F) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT (C) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28080-820-0	04	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28050-820-0	04	1	0601-
381	BOLT (E) M10X25 FLANGE	0-28781-025-0	11	1	0407-0512
381	BOLT (E) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28781-030-0	01	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28751-030-0	01	1	0601-
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (C) L=27 DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	0512-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (A) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0512-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (B) 2WAY	1-09661-518-0	01	1	0512-
427	CONNECTOR; NYLON TUBE 6WG1 TC-S(97L) (C) L=30	1-09661-770-0	02	1	0512-
427	CONNECTOR; NYLON TUBE (C) L=27 DIN6 & R1/4 ELBOW	1-09660-707-1	03	1	0407-0511
427	CONNECTOR; NYLON TUBE 6WF1 TC-C(1B8) (C) L=27 DIN6 & R1/4 ELBOW	1-09660-707-1	03	1	0512-
443	BOLT; CLIP (A) M8X10 FLANGE	0-28080-810-0	01	1	0407-0511
443	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X10 FLANGE	0-28080-810-0	01	1	0512-0512
443	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X10 FLANGE	0-28050-810-0	01	1	0601-
443	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511
443	BOLT; CLIP 6WF1 TC-C(1B8) (B) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
443	BOLT; CLIP 6WF1 TC-C(1B8) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
513	CLIP; BAND 6WG1 TC-S(97L) (A) L=250	5-09707-030-1	08	1	0512-0512
513	CLIP; BAND 6WG1 TC-S(97L) (A) L=250	5-09707-030-1	10	1	0512-
513	CLIP; BAND 6WG1 TC-S(97L) (B) L=140	5-09707-031-1	02	1	0512-
513	CLIP; BAND (A) L=250	5-09707-030-1	02	1	0407-0511
513	CLIP; BAND 6WF1 TC-C(1B8) (A) L=250	5-09707-030-1	02	1	0512-
513	CLIP; BAND (B) L=140	5-09707-031-1	10	1	0407-0511
513	CLIP; BAND 6WF1 TC-C(1B8) (B) L=140	5-09707-031-1	10	1	0512-
552	BRACKET 6WG1 TC-S(97L) (D)	1-47471-393-0	01	1	0512-
552	BRACKET 6WG1 TC-S(97L) (E)	1-82569-397-1	01	1	0512-
552	BRACKET 6WG1 TC-S(97L) (C)	1-82698-607-0	01	1	0512-
552	BRACKET (A)	1-82569-303-2	01	1	0407-0511
552	BRACKET 6WF1 TC-C(1B8) (A)	1-82569-303-2	01	1	0512-
552	BRACKET (B)	1-82569-304-0	01	1	0407-0511
552	BRACKET 6WF1 TC-C(1B8) (B)	1-82569-304-0	01	1	0512-
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	05	1	0407-
578	CONNECTOR 6WG1 TC-S(97L) (C)	1-09661-134-0	01	1	0512-
578	CONNECTOR 6WG1 TC-S(97L) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0512-
578	CONNECTOR (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0407-
596	BOX; CONNECTOR 6WG1 TC-S(97L) (A)	1-82569-414-0	01	1	0512-0606
596	BOX; CONNECTOR 6WG1 TC-S(97L) (A)	1-82569-434-0	01	1	0607-0701
596	BOX; CONNECTOR 6WG1 TC-S(97L) (B)	8-98067-899-0	01	1	0702-1003
596	BOX; CONNECTOR 6WG1 TC-S(97L) (B)	8-98160-716-1	01	1	1004-
596	BOX; CONNECTOR (C)	1-82569-315-1	01	1	0407-0511
596	BOX; CONNECTOR 6WF1 TC-C(1B8) (C)	1-82569-315-1	01	1	0512-
597	BRACKET; RANGE,NYLON TUBE (B) L=55	1-47476-177-0	01	1	0407-0511
597	BRACKET; RANGE,NYLON TUBE 6WF1 TC-C(1B8) (B) L=55	1-47476-177-0	01	1	0512-
597	BRACKET; RANGE,NYLON TUBE (A)	1-82699-425-0	01	1	0407-0511
597	BRACKET; RANGE,NYLON TUBE 6WF1 TC-C(1B8) (A)	1-82699-425-0	01	1	0512-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (F) M12	1-82560-342-0	02	1	0512-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (E)	1-82560-344-0	01	1	0512-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (D) M12 & PT3/8	1-82560-451-0	02	1	0512-
615	VALVE; MAGNETIC (A) M12	1-82560-342-0	01	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (A) M12	1-82560-342-0	01	1	0512-
615	VALVE; MAGNETIC (C)	1-82560-343-0	01	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (C)	1-82560-343-0	01	1	0512-
615	VALVE; MAGNETIC (B)	1-82560-344-0	02	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (B)	1-82560-344-0	02	1	0512-
616	COLLAR	1-82569-266-0	04	1	0407-
619	TUBE; NYLON 6WF1 TC-C(1B8) (C) L=440	8-98081-863-0	01	1	1004-
619	TUBE; NYLON 6WG1 TC-S(97L) (E) L=690	1-09377-332-0	01	1	0512-
619	TUBE; NYLON (B) L=430	1-09376-828-1	01	1	0407-1003
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1004-
619	TUBE; NYLON (A) L=420	1-09376-829-1	01	1	0407-1003
619	TUBE; NYLON 6WG1 TC-S(97L) (A) L=420	1-09376-829-1	01	1	1004-
619	TUBE; NYLON (C) L=470	1-09376-831-1	01	1	0407-0511
619	TUBE; NYLON 6WF1 TC-C(1B8) (C) L=470	1-09376-831-1	01	1	0512-
619	TUBE; NYLON (D) L=490	1-09376-832-1	01	1	0407-0511
619	TUBE; NYLON 6WF1 TC-C(1B8) (D) L=490	1-09376-832-1	01	1	0512-

660

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	660	PROTECTOR; NYLON TUBE 6WG1 TC-S(97L)	1-09377-342-0	01	1	0512-

618 158 158 552 618 619 619 381 158 618 620 381 158 158 58 616 615 158 615 158 158 618 578 616 374 342 381 374 346 158 346 381 158 374 562 374 562 374 374 342 374 342 374 158 615 58 616 615 578 618 374 616 381 618 346 562 374 342 346 562 374 374 374 342 374 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	NUT M6 FLANGE	0-91150-106-0	02	1	0407-0602
58	NUT M6 FLANGE	0-91180-106-0	02	1	0603-
158	CLIP; HARNESS 6WG1 TC-S(97L) (F) ID=19 L=25	1-09700-515-1	01	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (G) ID=28 L=30	1-09700-607-1	01	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (E) L=36	8-94224-891-1	02	1	0512-
158	CLIP; HARNESS 6WG1 TC-S(97L) (H) ID=19 L=60	9-09525-896-0	02	1	0512-0606
158	CLIP; HARNESS 6WG1 TC-S(97L) (H) ID=19 L=60	0-95235-896-0	02	1	0607-
158	CLIP; HARNESS (C) L=150	1-82569-328-0	10	1	0407-
158	CLIP; HARNESS (A) L=36	8-94224-891-1	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (A) L=36	8-94224-891-1	01	1	0512-
158	CLIP; HARNESS (D) ID=19 L=20	9-09525-836-0	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (D) ID=19 L=20	9-09525-836-0	01	1	0512-0606
158	CLIP; HARNESS 6WF1 TC-C(1B8) (D) ID=19 L=20	0-95235-836-0	01	1	0607-
158	CLIP; HARNESS (B) ID=19 L=60	9-09525-896-0	01	1	0407-0511
158	CLIP; HARNESS 6WF1 TC-C(1B8) (B) ID=19 L=60	9-09525-896-0	01	1	0512-0606
158	CLIP; HARNESS 6WF1 TC-C(1B8) (B) ID=19 L=60	0-95235-896-0	01	1	0607-
342	BOLT (A) M12X41	1-09675-140-0	01	1	0407-
342	BOLT (B) M12X27 FLANGE	1-09675-160-0	06	1	0407-0805
342	BOLT (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	0806-
346	HOSE; AIR 6WF1 TC-C(1B8) ID=6 OD=9 L=150	1-33739-872-0	03	1	1004-
346	HOSE; AIR 6WG1 TC-S(97L) ID=6 OD=9 L=150	1-33739-872-0	04	1	1004-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	0407-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	0407-
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28080-820-0	05	1	0512-0512
381	BOLT 6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28050-820-0	05	1	0601-
381	BOLT (F) M6X50 FLANGE	0-28080-650-0	02	1	0407-0512
381	BOLT (F) M6X50 FLANGE	0-28050-650-0	02	1	0601-
381	BOLT (G) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512
381	BOLT (G) M8X16 FLANGE	0-28050-816-0	02	1	0601-
381	BOLT (C) M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28080-820-0	04	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28050-820-0	04	1	0601-
381	BOLT (E) M10X25 FLANGE	0-28781-025-0	11	1	0407-0512
381	BOLT (E) M10X25 FLANGE	0-28751-025-0	11	1	0601-
381	BOLT (D) M10X30 FLANGE	0-28781-030-0	01	1	0407-0511
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28781-030-0	01	1	0512-0512
381	BOLT 6WF1 TC-C(1B8) (D) M10X30 FLANGE	0-28751-030-0	01	1	0601-
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0407-0512
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0407-
552	BRACKET 6WG1 TC-S(97L) (D)	1-47471-393-0	01	1	0512-
552	BRACKET 6WG1 TC-S(97L) (E)	1-82569-397-1	01	1	0512-
552	BRACKET 6WG1 TC-S(97L) (C)	1-82698-607-0	01	1	0512-
552	BRACKET (A)	1-82569-303-2	01	1	0407-0511
552	BRACKET 6WF1 TC-C(1B8) (A)	1-82569-303-2	01	1	0512-
552	BRACKET (B)	1-82569-304-0	01	1	0407-0511
552	BRACKET 6WF1 TC-C(1B8) (B)	1-82569-304-0	01	1	0512-
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	05	1	0407-
578	CONNECTOR 6WG1 TC-S(97L) (C)	1-09661-134-0	01	1	0512-
578	CONNECTOR 6WG1 TC-S(97L) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0512-
578	CONNECTOR (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	0407-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (F) M12	1-82560-342-0	02	1	0512-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (E)	1-82560-344-0	01	1	0512-
615	VALVE; MAGNETIC 6WG1 TC-S(97L) (D) M12 & PT3/8	1-82560-451-0	02	1	0512-
615	VALVE; MAGNETIC (A) M12	1-82560-342-0	01	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (A) M12	1-82560-342-0	01	1	0512-
615	VALVE; MAGNETIC (C)	1-82560-343-0	01	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (C)	1-82560-343-0	01	1	0512-
615	VALVE; MAGNETIC (B)	1-82560-344-0	02	1	0407-0511
615	VALVE; MAGNETIC 6WF1 TC-C(1B8) (B)	1-82560-344-0	02	1	0512-
616	COLLAR	1-82569-266-0	04	1	0407-
618	TUBE; NYLON 6WG1 TC-S(97L) (D) L=1400	1-09377-321-0	01	1	0512-
618	TUBE; NYLON 6WG1 TC-S(97L) (E) L=750	1-09377-322-0	01	1	0512-
618	TUBE; NYLON 6WG1 TC-S(97L) (F) L=700	1-09377-323-0	01	1	0512-
618	TUBE; NYLON 6WG1 TC-S(97L) (G) L=1500	1-09377-324-0	01	1	0512-
618	TUBE; NYLON (B) L=470	1-09376-825-0	01	1	0407-0511
618	TUBE; NYLON 6WF1 TC-C(1B8) (B) L=470	1-09376-825-0	01	1	0512-
618	TUBE; NYLON (C) L=140	1-09376-826-0	01	1	0407-
618	TUBE; NYLON (A) L=550	1-09376-830-1	01	1	0407-
619	TUBE; NYLON 6WF1 TC-C(1B8) (C) L=440	8-98081-863-0	01	1	1004-
619	TUBE; NYLON 6WG1 TC-S(97L) (E) L=690	1-09377-332-0	01	1	0512-
619	TUBE; NYLON (B) L=430	1-09376-828-1	01	1	0407-1003
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1004-
619	TUBE; NYLON (A) L=420	1-09376-829-1	01	1	0407-1003
619	TUBE; NYLON 6WG1 TC-S(97L) (A) L=420	1-09376-829-1	01	1	1004-
619	TUBE; NYLON (C) L=470	1-09376-831-1	01	1	0407-0511
619	TUBE; NYLON 6WF1 TC-C(1B8) (C) L=470	1-09376-831-1	01	1	0512-
619	TUBE; NYLON (D) L=490	1-09376-832-1	01	1	0407-0511
619	TUBE; NYLON 6WF1 TC-C(1B8) (D) L=490	1-09376-832-1	01	1	0512-
620	HARNESS 6WG1 TC-S(97L)	1-82677-897-1	01	1	0512-
620	HARNESS	1-82675-069-0	01	1	0407-0511
620	HARNESS 6WF1 TC-C(1B8)	1-82675-069-0	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
