2-05 — CLUTCH PIPING (#29620) — 137 parça

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	1-09364-879-1	01	1	0407-0703
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0704-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0407-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0407-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0407-0511
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0512-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) (B) L=2085 SERVICED BY L=2150	1-47428-770-0	01	1	0512-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0407-0802
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0803-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2013 SERVICED BY L=2150	1-47428-770-0	01	1	0407-0511
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0512-
167	BRACKET; UNION	1-71117-183-3	01	1	0407-

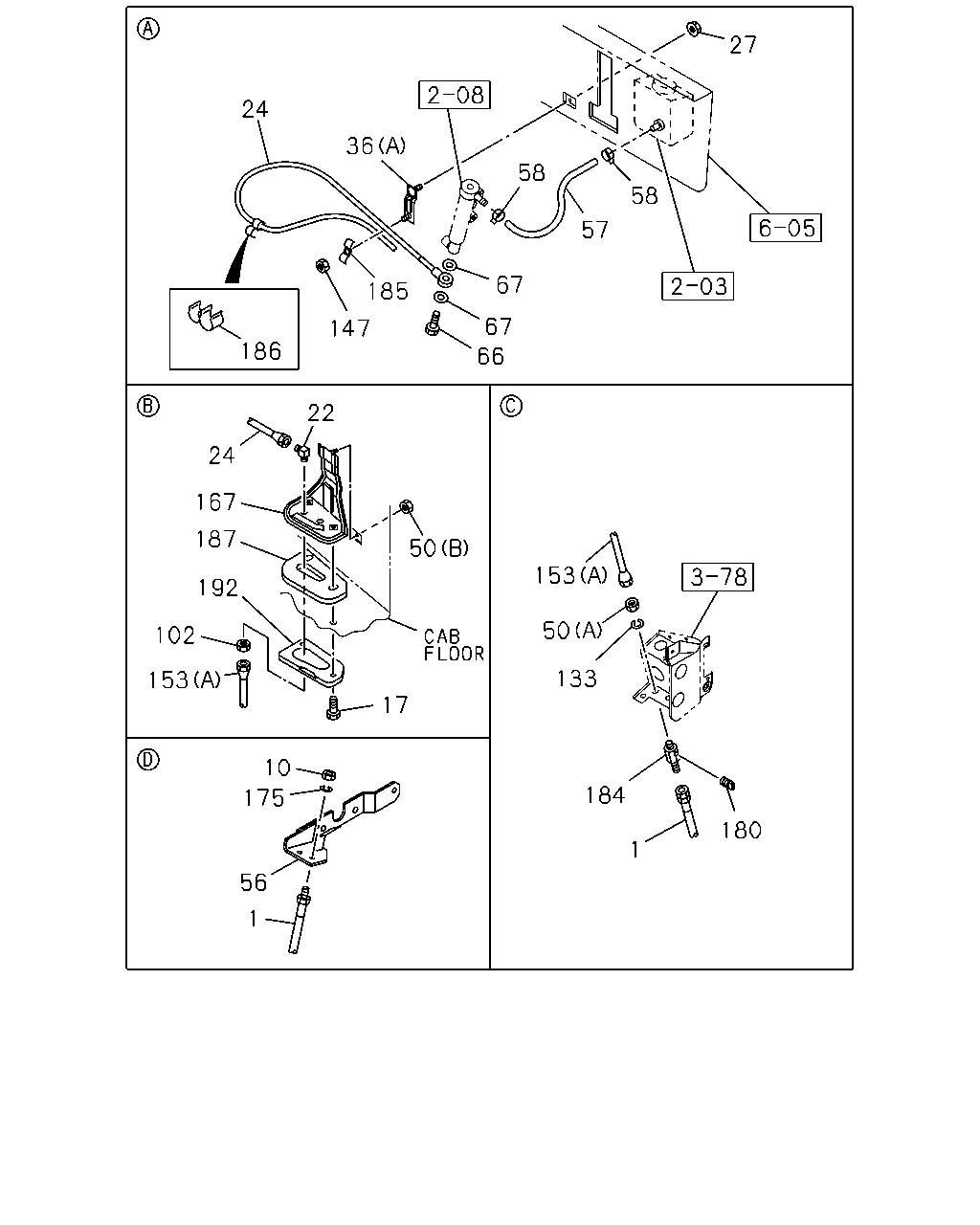

27 24 36 58 58 57 67 185 67 147 186 66 22 24 167 187 50 153 192 50 102 133 153 17 10 184 175 180 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	1-09364-879-1	01	1	0407-0703
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0704-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0407-0512
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0407-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0407-0607
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0407-
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511
27	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0511
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0407-
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0407-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0407-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0407-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0407-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0407-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0407-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0407-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0407-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0407-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0407-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0407-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) (B) L=2085 SERVICED BY L=2150	1-47428-770-0	01	1	0512-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0407-0802
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0803-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2013 SERVICED BY L=2150	1-47428-770-0	01	1	0407-0511
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0512-
167	BRACKET; UNION	1-71117-183-3	01	1	0407-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0407-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0407-0804
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0407-0804
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0407-0606
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-
186	HOLDER; CLIP	8-94107-710-0	02	1	0407-0511
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0512-
187	SEAL; BRKT	1-71117-222-0	01	1	0407-
192	PLATE	1-71117-221-0	01	1	0407-

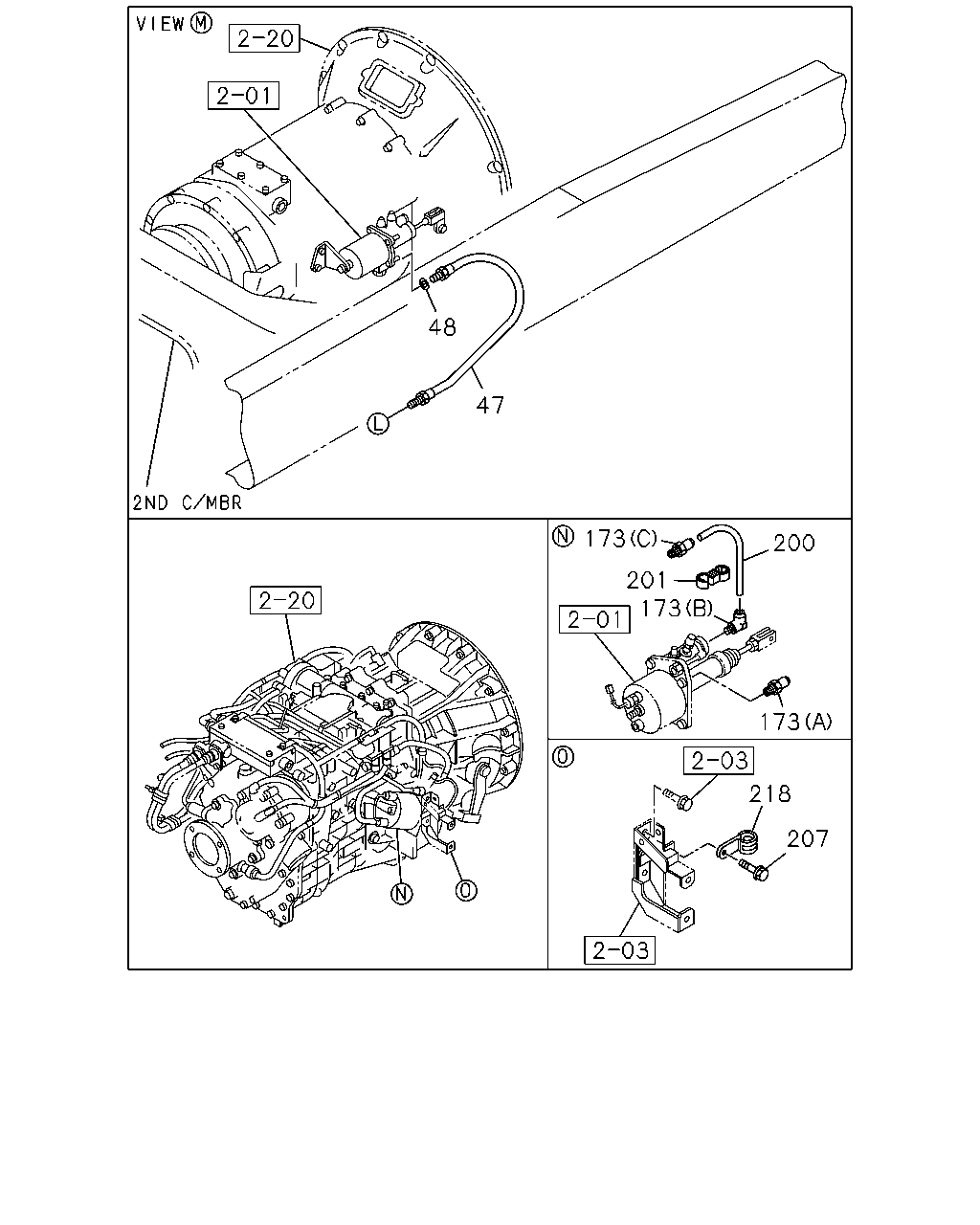

48 47 173 200 201 173 173 218 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT 6WG1 TC-S(97L) L=640	1-09365-155-0	01	1	0512-
47	HOSE; FLEX,CLU CONT L=650	1-09364-694-0	01	1	0407-0511
47	HOSE; FLEX,CLU CONT 6WF1 TC-C(1B8) L=650	1-09364-694-0	01	1	0512-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0407-
173	CONNECTOR (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0407-
173	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0407-
173	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	0407-0511
173	CONNECTOR 6WF1 TC-C(1B8) (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	0512-
200	TUBE; NYLON 6WG1 TC-S(97L) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0512-
200	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0407-0511
200	TUBE; NYLON 6WF1 TC-C(1B8) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0512-
201	CLIP; NYLON TUBE ID=6.35 & 12	1-09709-275-1	01	1	0407-
207	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0407-0512
207	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
218	CLIP ID=11 L=20	9-09525-035-0	01	1	0407-0606
218	CLIP ID=11 L=20	0-95235-035-0	01	1	0607-

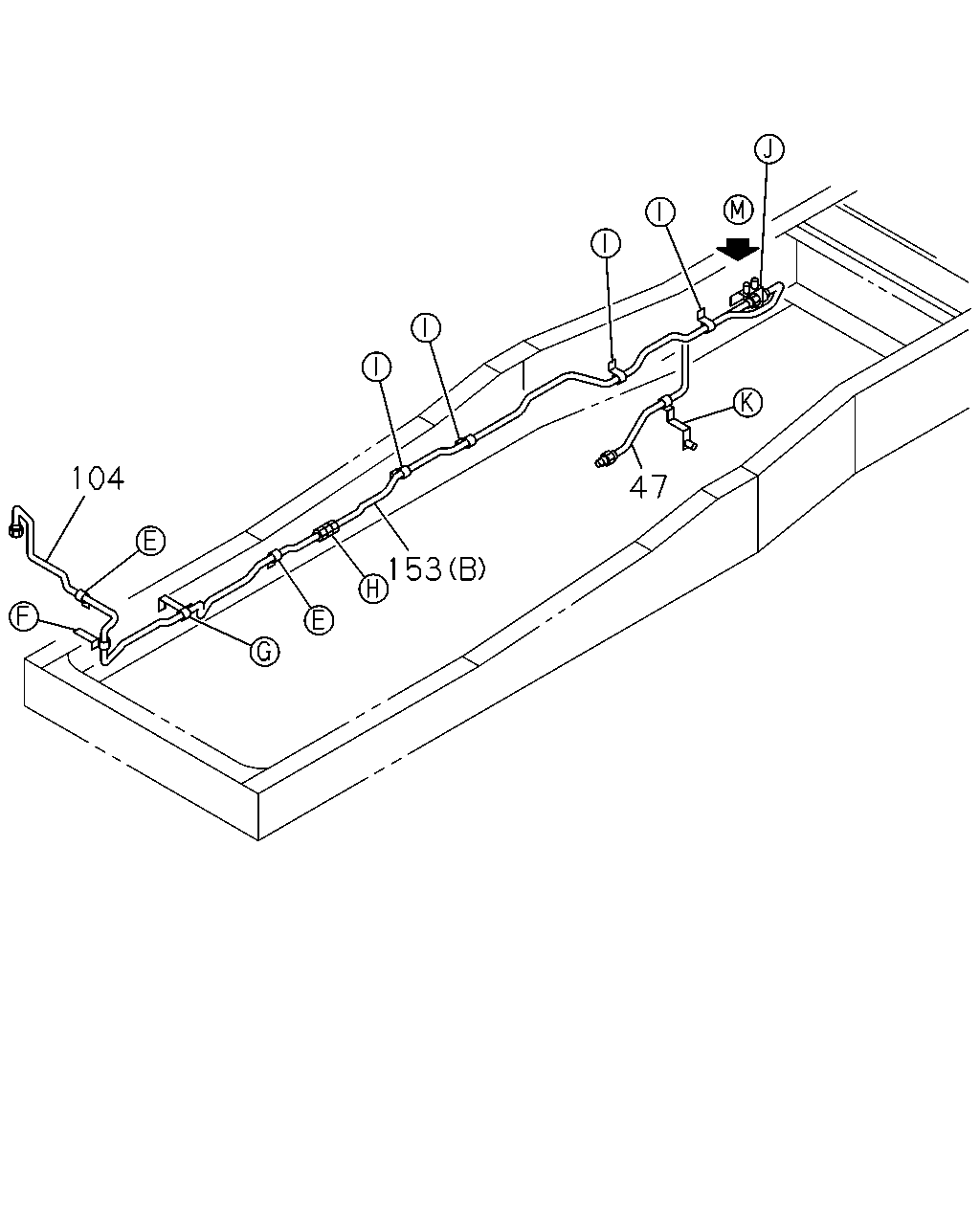

104 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT 6WG1 TC-S(97L) L=640	1-09365-155-0	01	1	0512-
47	HOSE; FLEX,CLU CONT L=650	1-09364-694-0	01	1	0407-0511
47	HOSE; FLEX,CLU CONT 6WF1 TC-C(1B8) L=650	1-09364-694-0	01	1	0512-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47428-766-0	01	1	0407-0511
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0512-
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-S(97L) (B) L=2085 SERVICED BY L=2150	1-47428-770-0	01	1	0512-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0407-0802
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0803-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2013 SERVICED BY L=2150	1-47428-770-0	01	1	0407-0511
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (B) L=2066 SERVICED BY L=2150	1-47428-770-0	01	1	0512-

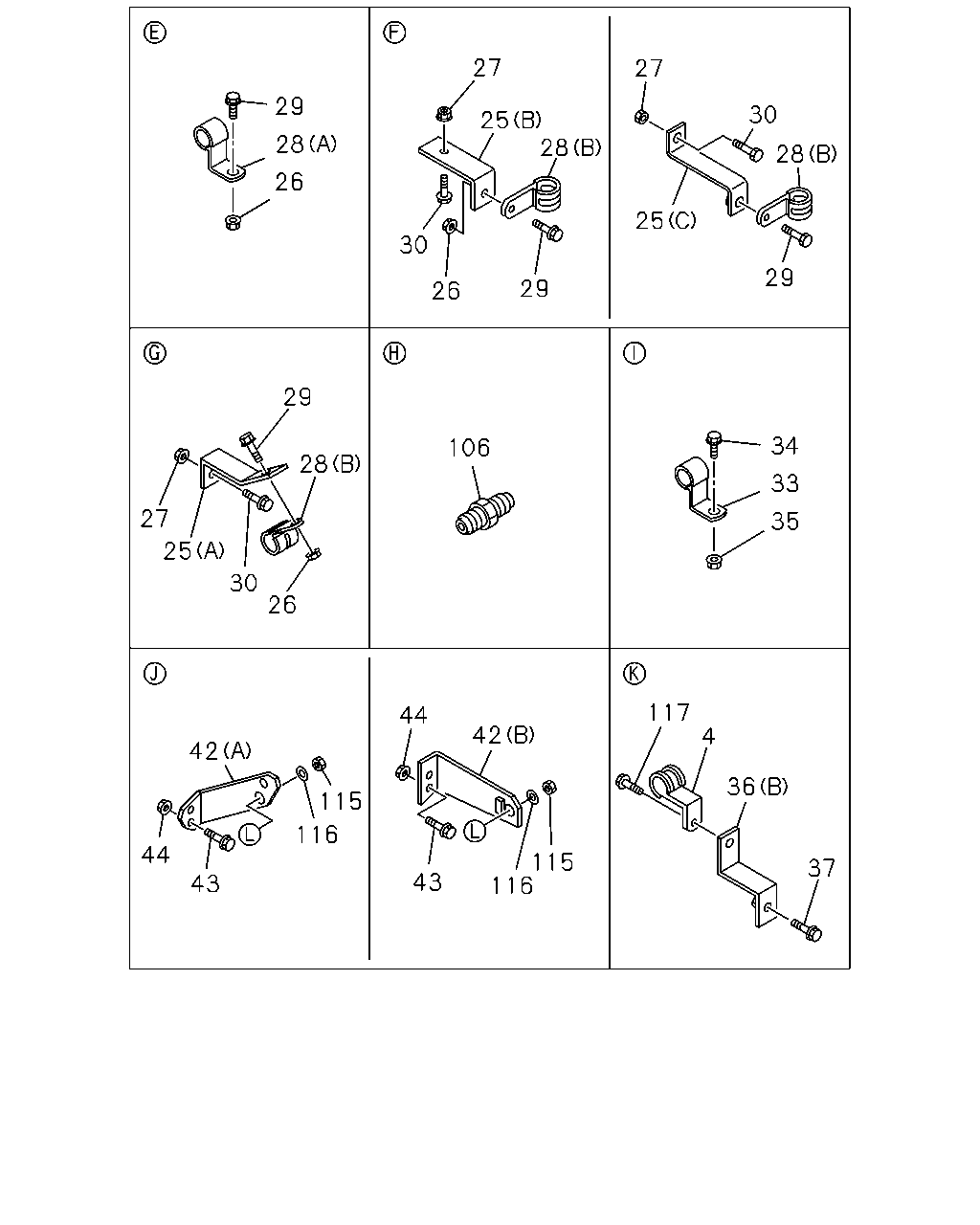

27 27 29 30 25 28 28 28 26 25 30 29 29 26 29 34 106 28 33 27 35 25 30 26 117 44 42 4 42 36 115 116 44 115 116 37 43 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	0407-
25	BRACKET; OIL PIPE (B) L=55	1-47475-304-0	01	1	0407-0511
25	BRACKET; OIL PIPE (C)	1-46147-101-0	01	1	0512-
25	BRACKET; OIL PIPE (A)	1-47477-406-0	01	1	0407-0511
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0407-0511
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0512-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511
27	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0511
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0407-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0407-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	02	1	0407-0511
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0512-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0407-0511
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0407-0512
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0511
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0407-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	04	1	0407-0512
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0601-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0407-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0407-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0407-
37	BOLT; CLIP BRKT M10X18 FLANGE	0-28181-018-0	01	1	0407-0511
37	BOLT; CLIP BRKT M10X16 FLANGE	0-28181-016-0	01	1	0512-0512
37	BOLT; CLIP BRKT M10X16 FLANGE	0-28151-016-0	01	1	0601-
42	BRACKET; FLEX HOSE,CLU CONT 6WG1 TC-S(97L) (B)	1-47471-235-0	01	1	0512-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47479-762-0	01	1	0407-0511
42	BRACKET; FLEX HOSE,CLU CONT 6WF1 TC-C(1B8) (A)	1-47479-626-0	01	1	0512-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0407-0511
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0512-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0512-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0407-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-0703
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0407-0607
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0407-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0407-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28080-816-0	01	1	0407-0512
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	0601-
