2-03 — CLUTCH PEDAL AND CONTROL (#29619) — 88 parça

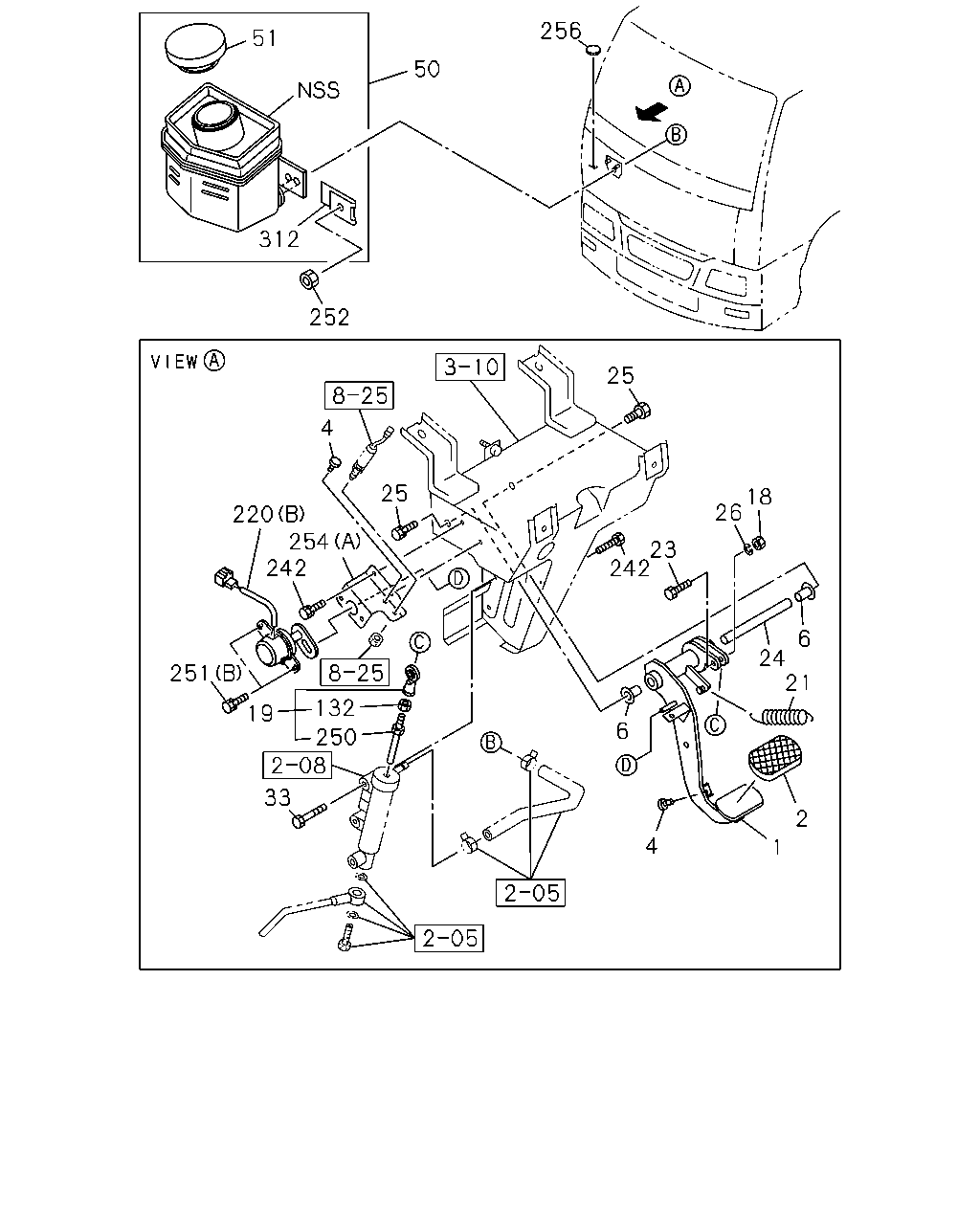

çizim 87439
256 51 50 312 252 25 4 25 18 26 220 254 242 23 242 6 24 21 251 132 19 6 250 33 2 4 1
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU 1-73907-474-1 01 1 0407-
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0407-
4 STOPPER; CLU PEDAL 1-47319-014-1 02 1 0407-
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0407-
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0407-
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0407-
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0407-
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0407-
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0407-
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0407-
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0407-
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0407-0512
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601-
50 TANK; OIL,CLU 1-47530-182-0 01 1 0407-
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0407-
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0407-
220 SENSOR; CLUTCH
6WG1 TC-S(97L) (A) 		1-81541-121-0 01 1 0512-
220 SENSOR; CLUTCH
(B) 		1-80250-014-0 01 1 0407-
220 SENSOR; CLUTCH
(A) 		1-81541-106-1 01 1 0407-0511
220 SENSOR; CLUTCH
6WF1 TC-C(1B8) (A) 		1-81541-106-1 01 1 0512-
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 0407-
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0407-
251 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28680-616-0 02 1 0407-0512
251 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0601-
251 BOLT; SENSOR
(C) M10X25 FLANGE 		0-28781-025-0 01 1 0407-0512
251 BOLT; SENSOR
(C) M10X25 FLANGE 		0-28751-025-0 01 1 0601-
251 BOLT; SENSOR
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0407-
254 BRACKET; CLU SENSOR
(B) 		1-31349-072-1 01 1 0407-0511
254 BRACKET; CLU SENSOR
(B) 		1-31349-072-1 01 1 0512-
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0407-
256 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0407-
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0407-

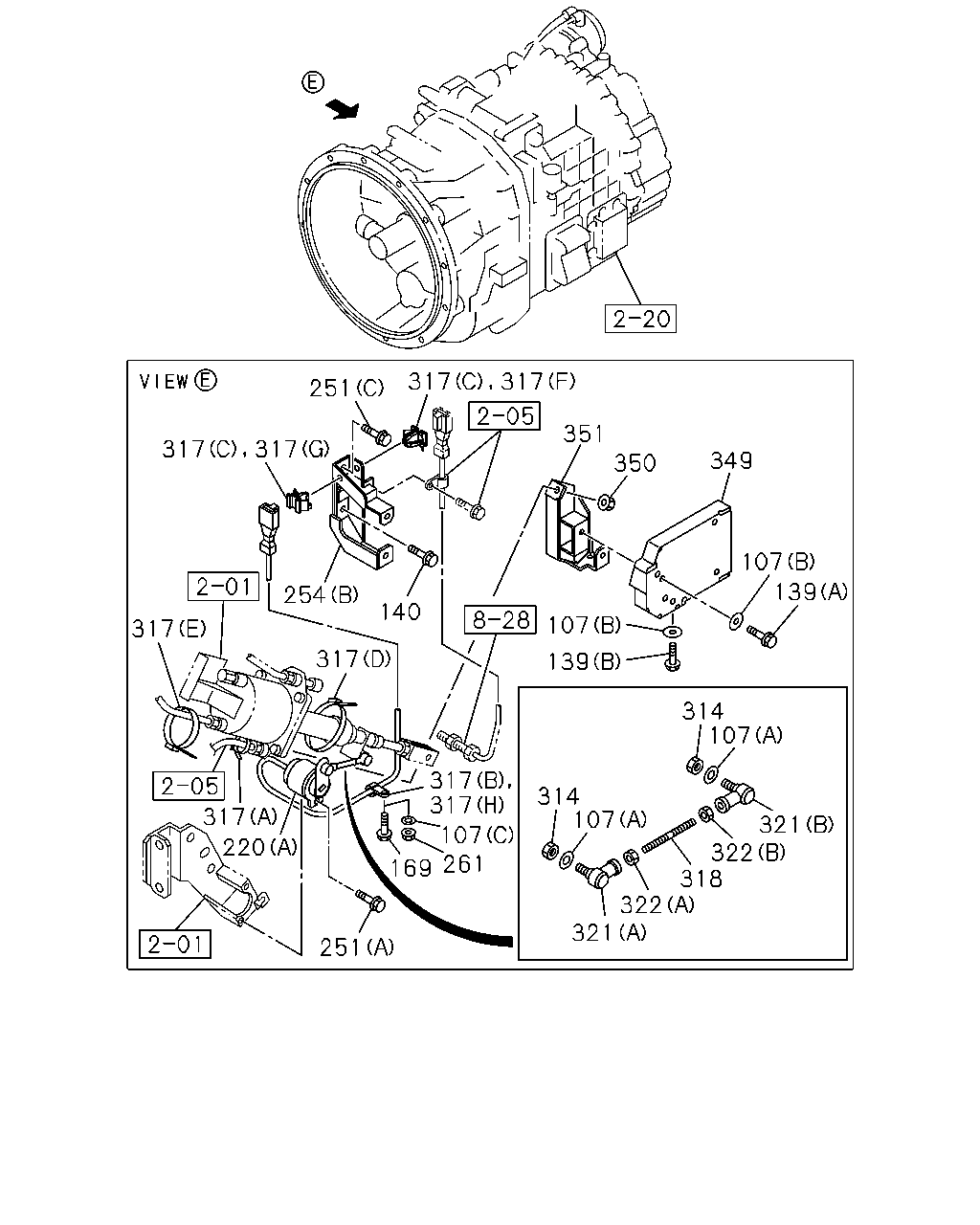

çizim 103670
251 351 349 350 107 139 254 140 107 317 317 139 314 107 317 317 314 107 317 220 321 322 318 322 321 107 261 169 251 317 317 317 317
BalonParca AdiParca NoAdetTipApplied Date
107 WASHER; PL
(C) ID=8.4 OD=16 		0-91610-508-0 01 1 0512-
107 WASHER; PL
(B) ID=8.4 OD=22 		9-09160-708-0 06 1 0407-0605
107 WASHER; PL
(B) ID=8.4 OD=22 		0-91610-708-0 06 1 0606-
107 WASHER; PL
(A) ID=5.3 OD=16 		9-09164-705-0 02 1 0407-0605
107 WASHER; PL
(A) ID=5.3 OD=16 		0-91614-705-0 02 1 0606-
139 BOLT; COVER
(A) M8X16 FLANGE 		0-28080-816-0 05 1 0407-0512
139 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 05 1 0601-
139 BOLT; COVER
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0407-0512
139 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
140 BOLT; BRKT
M10X30 FLANGE 		0-28781-030-0 01 1 0407-0512
140 BOLT; BRKT
M10X30 FLANGE 		0-28751-030-0 01 1 0601-
169 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511
169 BOLT; CLIP
M8X15,M8X17 L=40 		8-97320-627-0 01 1 0512-0805
169 BOLT; CLIP
M8X15,M8X17 L=40 		8-98009-913-0 01 1 0806-
220 SENSOR; CLUTCH
6WG1 TC-S(97L) (A) 		1-81541-121-0 01 1 0512-
220 SENSOR; CLUTCH
(B) 		1-80250-014-0 01 1 0407-
220 SENSOR; CLUTCH
(A) 		1-81541-106-1 01 1 0407-0511
220 SENSOR; CLUTCH
6WF1 TC-C(1B8) (A) 		1-81541-106-1 01 1 0512-
251 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28680-616-0 02 1 0407-0512
251 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0601-
251 BOLT; SENSOR
(C) M10X25 FLANGE 		0-28781-025-0 01 1 0407-0512
251 BOLT; SENSOR
(C) M10X25 FLANGE 		0-28751-025-0 01 1 0601-
251 BOLT; SENSOR
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-
254 BRACKET; CLU SENSOR
(B) 		1-31349-072-1 01 1 0407-0511
254 BRACKET; CLU SENSOR
(B) 		1-31349-072-1 01 1 0512-
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0407-
261 NUT; CLIP
M8 FLANGE 		0-91150-208-0 01 1 0512-0602
261 NUT; CLIP
M8 FLANGE 		0-91180-208-0 01 1 0603-0811
261 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812-
314 NUT; ROD
M5 		9-99110-405-0 02 1 0407-0512
314 NUT; ROD
M5 		0-91110-505-0 02 1 0601-
317 CLIP; CABLE
6WG1 TC-S(97L) (F) OD=9 H=6 		1-09709-178-0 01 1 0512-
317 CLIP; CABLE
6WG1 TC-S(97L) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
317 CLIP; CABLE
6WG1 TC-S(97L) (H) ID=11 L=32 		9-09525-065-0 01 1 0512-0606
317 CLIP; CABLE
6WG1 TC-S(97L) (H) ID=11 L=32 		0-95235-065-0 01 1 0607-
317 CLIP; CABLE
(A) L=180 		1-09707-162-1 01 1 0407-
317 CLIP; CABLE
(C) OD=9 H=6 		1-09709-178-0 02 1 0407-0511
317 CLIP; CABLE
6WF1 TC-C(1B8) (C) OD=9 H=6 		1-09709-178-0 02 1 0512-
317 CLIP; CABLE
(D) L=250 		5-09707-030-1 01 1 0407-
317 CLIP; CABLE
(E) L=140 		5-09707-031-1 01 1 0407-
317 CLIP; CABLE
(B) ID=11 L=20 		9-09525-035-0 01 1 0407-0511
317 CLIP; CABLE
6WF1 TC-C(1B8) (B) ID=11 L=20 		9-09525-035-0 01 1 0512-0606
317 CLIP; CABLE
6WF1 TC-C(1B8) (B) ID=11 L=20 		0-95235-035-0 01 1 0607-
318 ROD; CLU 9-08410-506-0 01 1 0407-0606
318 ROD; CLU 0-84100-506-0 01 1 0607-
321 END; ROD
(A) 		1-09760-103-2 01 1 0407-
321 END; ROD
(B) 		1-09760-104-2 01 1 0407-
322 NUT; ROD END
(B) M5 LH THREAD 		9-09840-277-0 01 1 0407-
322 NUT; ROD END
(A) M5 		9-99110-405-0 01 1 0407-0512
322 NUT; ROD END
(A) M5 		0-91110-505-0 01 1 0601-
349 COVER; SENSOR 1-31349-075-0 01 1 0407-
350 NUT; COVER
M10 FLANGE 		0-91150-210-0 01 1 0407-0602
350 NUT; COVER
M10 FLANGE 		0-91180-210-0 01 1 0603-
351 BRACKET; COVER 1-31349-073-0 01 1 0407-0511
351 BRACKET; COVER 1-31349-079-0 01 1 0512-
