Isuzu WW
▶
TRUCKS
▶
EXY
▶
10956 - EXY NEW ZEALAND
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶
1-50 — EXHAUST PIPE AND SILENCER
(#29615) — 81 parça
◀

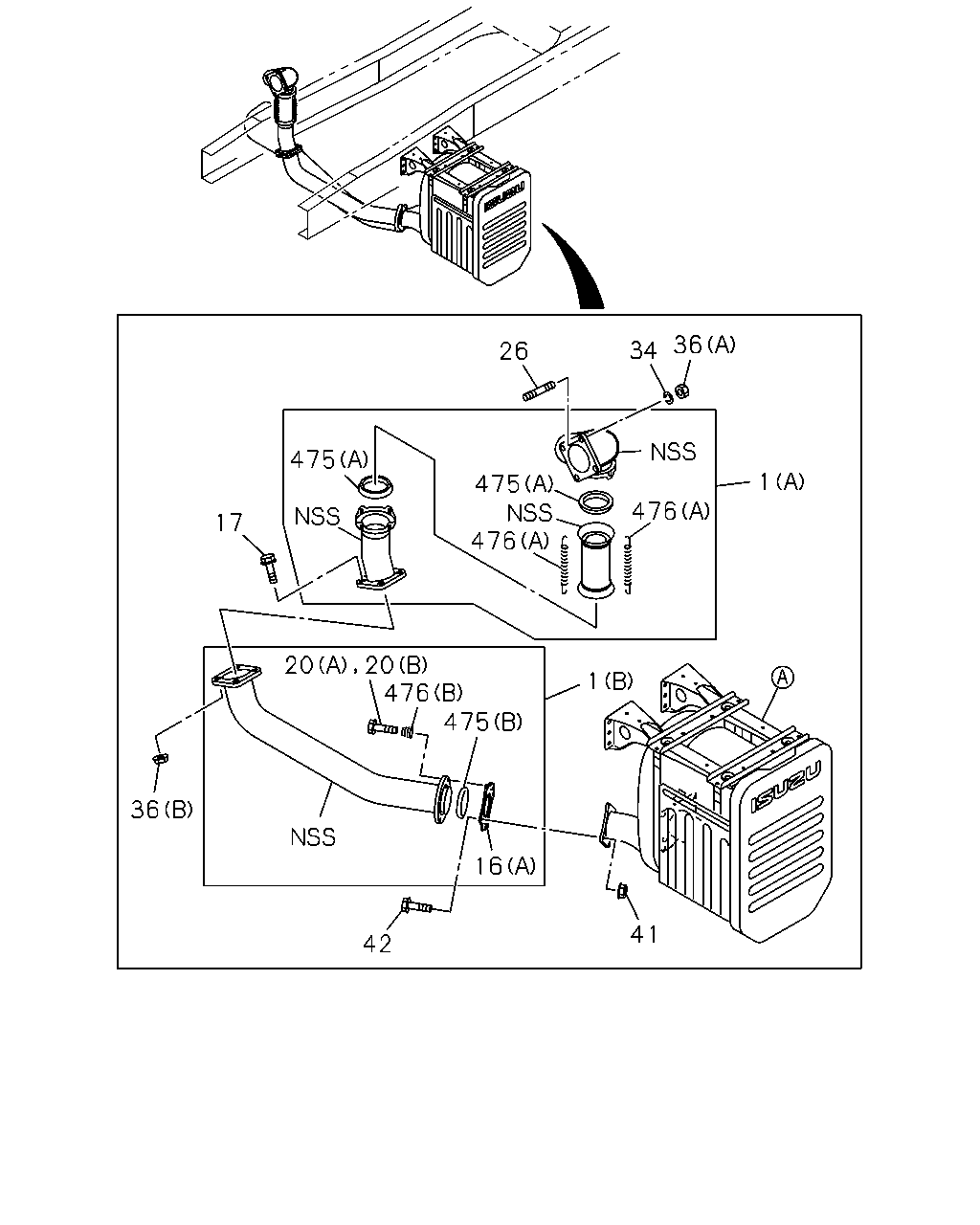

[150A] FRONT (26 parça)

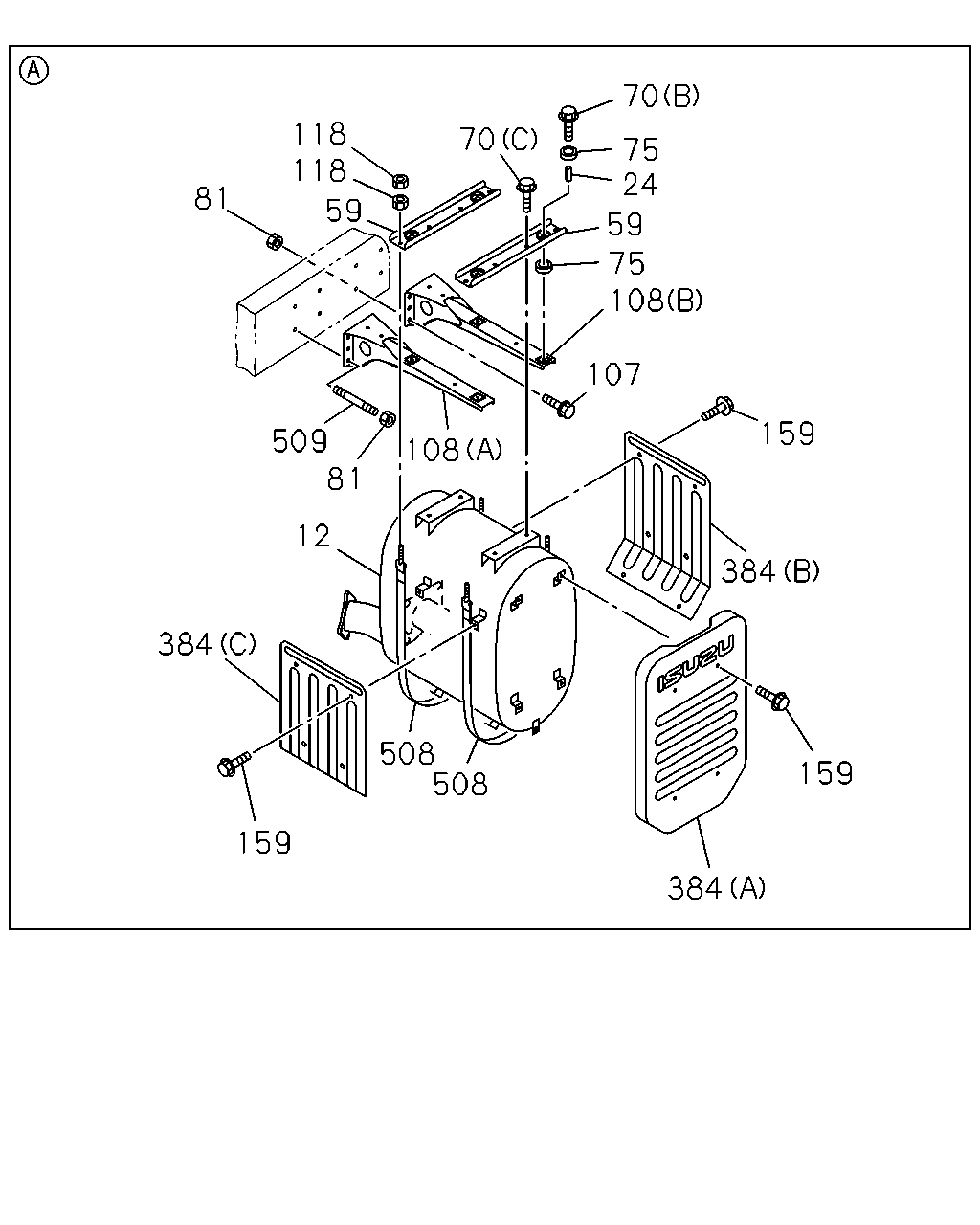

[150A] SILENCER (27 parça)

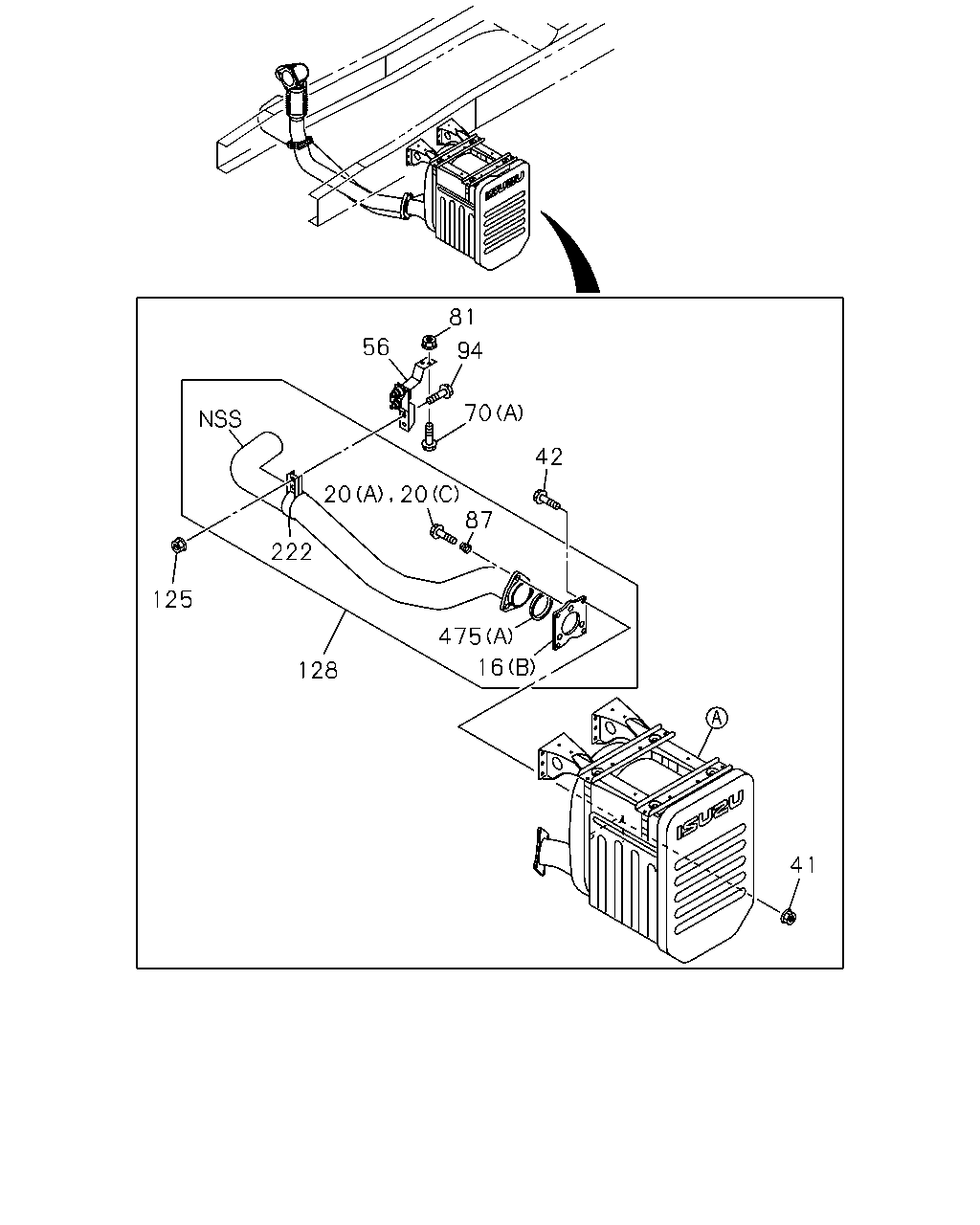

[150A] REAR (28 parça)
▶
36
34
26
475
1
475
476
476
17
20
20
476
475
1
36
16
41
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
6WG1 TC-S(97L) (A)
1-22123-731-2
01
1
0512-0606
1
PIPE; EXH
6WG1 TC-S(97L) (A)
1-22124-029-0
01
1
0607-
1
PIPE; EXH
(B)
1-22123-573-1
01
1
0407-
1
PIPE; EXH
(A)
1-22123-646-2
01
1
0407-0511
1
PIPE; EXH
6WF1 TC-C(1B8) (A)
1-22123-646-2
01
1
0512-0606
1
PIPE; EXH
6WF1 TC-C(1B8) (A)
1-22124-027-0
01
1
0607-
16
FLANGE; EXH PIPE
(A)
1-22115-217-0
01
1
0407-
16
FLANGE; EXH PIPE
(B)
1-22115-229-0
01
1
0407-
17
BOLT; EXH PIPE
M12X25 FLANGE
1-09000-604-0
04
1
0407-
20
BOLT; FLANGE,EXH PIPE
(B) M10X51.4
8-94436-943-0
02
1
0501-0701
20
BOLT; FLANGE,EXH PIPE
(B) M10X51.4
8-94436-943-0
05
1
0702-
20
BOLT; FLANGE,EXH PIPE
(A) M10X51.4
1-09009-167-0
05
1
0407-0412
20
BOLT; FLANGE,EXH PIPE
(C) M10X51.4
1-09009-167-0
03
1
0501-0701
26
STUD; EXH MANIF
M12X140 L=160
1-09302-163-0
04
1
0407-
34
WASHER; EXH PIPE
ID=13 OD=26
1-09556-020-0
04
1
0407-
36
NUT; EXH PIPE
(A) M12
1-09400-131-0
04
1
0407-
36
NUT; EXH PIPE
(B) M12
9-99110-512-0
04
1
0407-0512
36
NUT; EXH PIPE
(B) M12
0-91110-512-0
04
1
0601-
41
NUT; EXH PIPE TO EXH SILENCER
M12
9-99110-512-0
08
1
0407-0512
41
NUT; EXH PIPE TO EXH SILENCER
M12
0-91110-512-0
08
1
0601-
42
BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE
1-09000-604-0
08
1
0407-
475
BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=112
1-22119-294-1
01
1
0407-
475
BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122
1-22119-297-1
01
1
0407-
475
BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122
1-22119-297-0
02
1
0407-
476
SPRING; VIBNON,EXH PIPE
(B)
8-94141-851-0
02
1
0407-
476
SPRING; VIBNON,EXH PIPE
(A)
1-09583-248-0
04
1
0407-
70
118
118
70
75
24
81
59
59
75
108
107
108
159
509
81
12
384
384
508
508
159
159
384
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
SILENCER ASM; EXH
6WG1 TC-S(97L)
1-22141-157-0
01
1
0512-
12
SILENCER ASM; EXH
1-22141-048-3
01
1
0407-0511
12
SILENCER ASM; EXH
6WF1 TC-C(1B8)
1-22141-048-3
01
1
0512-
24
COLLAR; DIST,CLAMP
L=22
9-22159-024-0
04
1
0407-
59
BRACKET; EXH SILENCER,FRT
1-22151-710-1
02
1
0407-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28081-050-0
04
1
0407-0512
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
04
1
0601-
70
BOLT; BRKT
(C) M10X20 FLANGE
0-28681-020-0
04
1
0407-0512
70
BOLT; BRKT
(C) M10X20 FLANGE
0-28651-020-0
04
1
0601-
70
BOLT; BRKT
(A) M10X30 FLANGE
0-28681-030-0
02
1
0407-0512
70
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
02
1
0601-
75
RUBBER; SUPPORT,BRKT
OD=40
1-22159-094-0
08
1
0407-
81
NUT; BRKT
M12 FLANGE
0-91150-212-0
08
1
0407-0602
81
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
0603-
107
BOLT; BRKT
M12X35 FLANGE
0-28681-235-0
04
1
0407-0512
107
BOLT; BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0601-
108
BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(A)
1-22131-774-3
01
1
0407-
108
BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B)
1-22131-775-3
01
1
0407-
118
NUT; SILENCER MTG BRKT
M10
9-09110-510-0
08
1
0407-0512
118
NUT; SILENCER MTG BRKT
M10
0-91110-510-0
08
1
0601-
159
BOLT; HEAT PROTECTOR
M8X22 W/LK&PL WASHER
1-09030-042-0
12
1
0407-
384
PROTECTOR; HEAT SILENCER MTG
(B)
1-22119-341-3
01
1
0407-
384
PROTECTOR; HEAT SILENCER MTG
(A)
1-22119-378-4
01
1
0407-
384
PROTECTOR; HEAT SILENCER MTG
(C)
1-22119-527-0
01
1
0407-
508
BAND; EXHAUST SILENCER
1-22159-264-1
02
1
0407-0408
508
BAND; EXHAUST SILENCER
1-22159-382-0
02
1
0409-
509
STUD; BRKT
M12X40 L=56
1-09300-123-0
04
1
0407-
81
56
94
70
42
20
20
87
222
125
475
16
128
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
FLANGE; EXH PIPE
(A)
1-22115-217-0
01
1
0407-
16
FLANGE; EXH PIPE
(B)
1-22115-229-0
01
1
0407-
20
BOLT; FLANGE,EXH PIPE
(B) M10X51.4
8-94436-943-0
02
1
0501-0701
20
BOLT; FLANGE,EXH PIPE
(B) M10X51.4
8-94436-943-0
05
1
0702-
20
BOLT; FLANGE,EXH PIPE
(A) M10X51.4
1-09009-167-0
05
1
0407-0412
20
BOLT; FLANGE,EXH PIPE
(C) M10X51.4
1-09009-167-0
03
1
0501-0701
41
NUT; EXH PIPE TO EXH SILENCER
M12
9-99110-512-0
08
1
0407-0512
41
NUT; EXH PIPE TO EXH SILENCER
M12
0-91110-512-0
08
1
0601-
42
BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE
1-09000-604-0
08
1
0407-
56
BRACKET; CLAMP,EXH PIPE
1-22151-976-2
01
1
0407-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28081-050-0
04
1
0407-0512
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
04
1
0601-
70
BOLT; BRKT
(C) M10X20 FLANGE
0-28681-020-0
04
1
0407-0512
70
BOLT; BRKT
(C) M10X20 FLANGE
0-28651-020-0
04
1
0601-
70
BOLT; BRKT
(A) M10X30 FLANGE
0-28681-030-0
02
1
0407-0512
70
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
02
1
0601-
81
NUT; BRKT
M12 FLANGE
0-91150-212-0
08
1
0407-0602
81
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
0603-
87
SPRING; PRE SILENCER
8-94141-851-0
03
1
0407-
94
BOLT; CLAMP
M8X40 FLANGE
0-28680-840-0
02
1
0407-0512
94
BOLT; CLAMP
M8X40 FLANGE
0-28650-840-0
02
1
0601-
125
NUT; CLAMP
M8 FLANGE
0-91150-108-0
02
1
0407-0602
125
NUT; CLAMP
M8 FLANGE
0-91180-108-0
02
1
0603-
128
PIPE; EXH,RR
1-22126-399-1
01
1
0407-
222
CLAMP; EXH PIPE
1-22133-276-0
01
1
0407-
475
BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=112
1-22119-294-1
01
1
0407-
475
BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122
1-22119-297-1
01
1
0407-
475
BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122
1-22119-297-0
02
1
0407-
