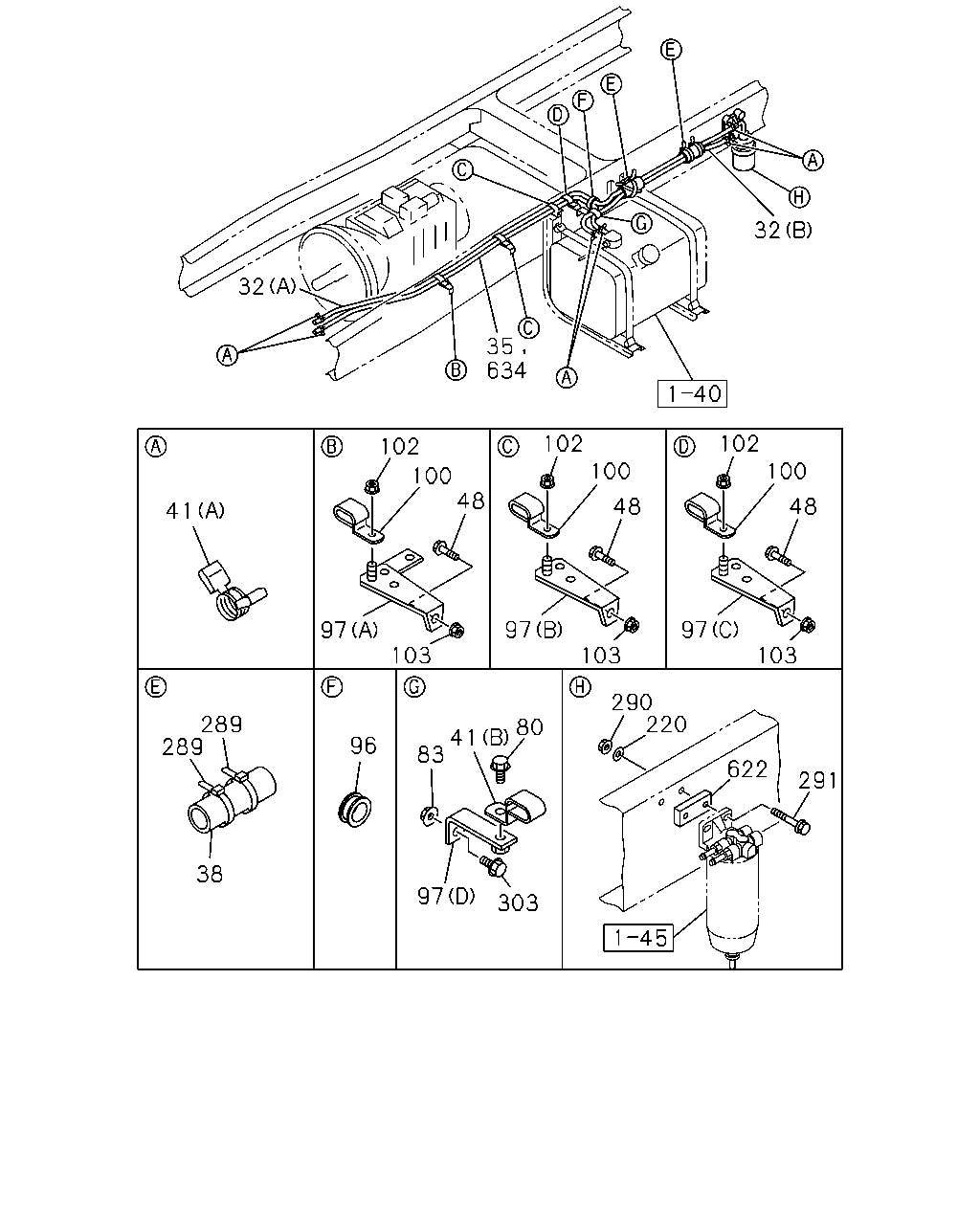

32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=900
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0407- |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=1850
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0407-0511 |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=2200
SERVICED BY L=3000
|
0-01262-300-0 |
01 |
1 |
0512- |
| |
35 |
PIPE; FUEL TANK,RETURN
L=1550
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0407-0511 |
| |
38 |
SLEEVE; RUBBER,RUBBER HOSE
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0407- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=19
|
8-94238-569-0 |
02 |
1 |
0512- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
ID=14X29 H=15 L=20
|
1-09700-744-0 |
01 |
1 |
0407- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
|
1-09704-102-0 |
06 |
1 |
0407-0511 |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
|
1-09704-102-0 |
04 |
1 |
0512- |
| |
48 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0407-0512 |
| |
48 |
BOLT; BRKT
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
| |
80 |
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0407-0512 |
| |
80 |
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601- |
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0407-0602 |
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
96 |
GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0407-0511 |
| |
96 |
GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=23
|
1-09332-112-0 |
01 |
1 |
0512- |
| |
97 |
BRACKET; CLIP
(D)
|
1-47475-927-0 |
01 |
1 |
0407- |
| |
97 |
BRACKET; CLIP
(C)
|
1-47479-552-0 |
01 |
1 |
0407- |
| |
97 |
BRACKET; CLIP
(B)
|
1-47479-723-0 |
02 |
1 |
0407- |
| |
97 |
BRACKET; CLIP
(A)
|
1-47479-851-0 |
01 |
1 |
0407- |
| |
100 |
CLIP; FUEL PIPE
ID=14X29 H=15 L=20
|
1-09700-744-0 |
04 |
1 |
0407-0511 |
| |
100 |
CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5
|
1-09701-315-0 |
04 |
1 |
0512- |
| |
102 |
NUT; CLIP,FUEL PIPE
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0407-0602 |
| |
102 |
NUT; CLIP,FUEL PIPE
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
| |
103 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0407-0602 |
| |
103 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
| |
220 |
WASHER; PL
ID=10.5 OD=26
|
9-09164-710-0 |
02 |
1 |
0407-0605 |
| |
220 |
WASHER; PL
ID=10.5 OD=26
|
0-91614-710-0 |
02 |
1 |
0606- |
| |
289 |
CLIP; BAND,HOSE
L=250
|
5-09707-030-1 |
04 |
1 |
0407- |
| |
290 |
NUT; FILTER TO BRKT
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0407-0602 |
| |
290 |
NUT; FILTER TO BRKT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
291 |
BOLT; FILER TO BRKT
M10X60 FLANGE
|
0-28081-060-0 |
02 |
1 |
0407-0512 |
| |
291 |
BOLT; FILER TO BRKT
M10X60 FLANGE
|
0-28051-060-0 |
02 |
1 |
0601- |
| |
303 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0407-0512 |
| |
303 |
BOLT; BRKT
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
| |
622 |
SPACER; BRKT
|
1-53168-492-0 |
01 |
1 |
0407-0909 |
| |
622 |
SPACER; BRKT
|
8-98124-944-0 |
01 |
1 |
0910- |
| |
634 |
HOSE; RUBBER RETURN
L=1550
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0512- |
