Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#2958) — 195 parça

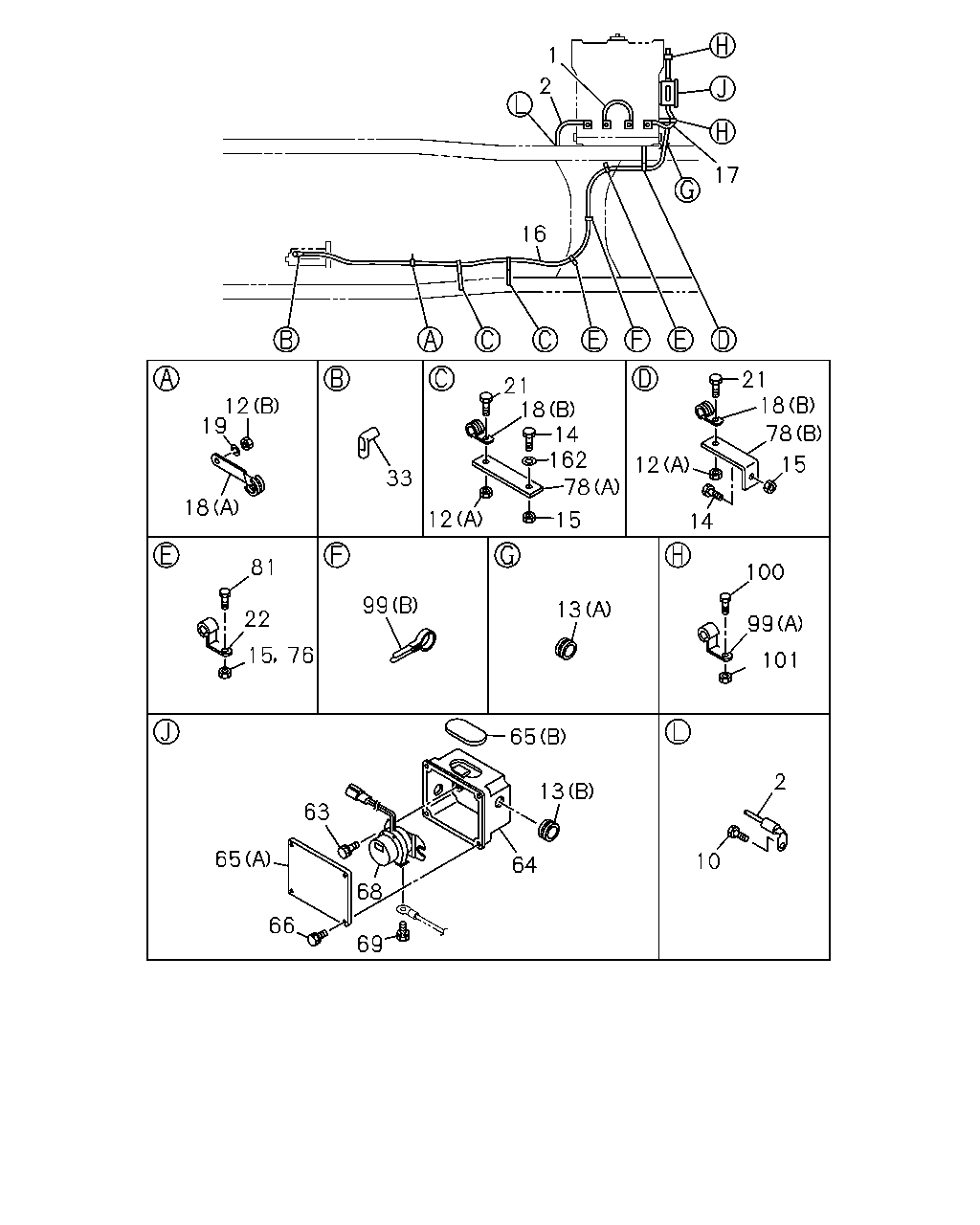

1 2 17 16 21 18 78 15 14 12 15 78 162 14 18 21 12 33 18 19 12 81 22 15 76 99 13 100 101 99 2 10 64 13 65 63 65 66 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=500	1-82650-130-0	01	1	9002-9003	●
1	CABLE; BATTERY EXC. CONCRETE PUMP<RA5> L=500	1-82650-130-0	01	1	9002-9003		●
1	CABLE; BATTERY L=500	1-82650-124-0	01	1	9004-	●
1	CABLE; BATTERY EXC. CONCRETE PUMP<RA5> L=500	1-82650-124-0	01	1	9004-		●
1	CABLE; BATTERY CONCRETE PUMP<RA5> L=280	1-82650-068-0	01	1	9002-		●
2	CABLE; BATTERY L=290	1-82650-151-0	01	1	9002-	●
2	CABLE; BATTERY EXC. CONCRETE PUMP<RA5> L=290	1-82650-151-0	01	1	9002-		●
2	CABLE; BATTERY CONCRETE PUMP<RA5> L=850	1-82650-150-0	01	1	9002-		●
10	BOLT; BATTERY CABLE CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9002-9306	●
10	BOLT; BATTERY CABLE CLIP EXC. CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	01	1	9002-9306		●
10	BOLT; BATTERY CABLE CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9307-		●
12	NUT; BATTERY CABLE CLIP (A) M8	9-09110-408-0	01	1	9002-9306	●
12	NUT; BATTERY CABLE CLIP EXC. CONCRETE PUMP<RA5> (A) M8	9-09110-408-0	01	1	9002-9306		●
12	NUT; BATTERY CABLE CLIP (A) M8	9-09110-408-0	01	1	9307-		●
12	NUT; BATTERY CABLE CLIP (A) M8	9-09110-408-0	02	1	9002-	●	●
12	NUT; BATTERY CABLE CLIP (B) M10	9-09110-510-0	01	1	9002-	●	●
13	GROMMET; BATTERY CABLE (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	9002-	●
13	GROMMET; BATTERY CABLE EXC. CONCRETE PUMP<RA5> (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	9002-		●
13	GROMMET; BATTERY CABLE (A) ID=26	1-09333-140-0	01	1	9002-	●
13	GROMMET; BATTERY CABLE EXC. CONCRETE PUMP<RA5> (A) ID=26	1-09333-140-0	01	1	9002-		●
14	BOLT; BRKT CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
14	BOLT; BRKT CLIP EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204		●
14	BOLT; BRKT CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●
14	BOLT; BRKT CLIP EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302		●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28080-830-0	01	1	9303-9306	●
14	BOLT; BRKT CLIP EXC. CONCRETE PUMP<RA5> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306		●
14	BOLT; BRKT CLIP EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9307-		●
14	BOLT; BRKT CLIP M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
14	BOLT; BRKT CLIP M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
15	NUT; BRKT CLIP M8	9-09110-408-0	01	1	9002-	●
15	NUT; BRKT CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-		●
15	NUT; BRKT CLIP M8	9-09110-408-0	02	1	9002-	●	●
16	CABLE; STARTER TO RELAY L=3900	1-82652-525-0	01	1	9002-9003	●
16	CABLE; STARTER TO RELAY EXC. CONCRETE PUMP<RA5> L=3900	1-82652-525-0	01	1	9002-9003		●
16	CABLE; STARTER TO RELAY L=3750	1-82652-543-0	01	1	9004-9102	●
16	CABLE; STARTER TO RELAY EXC. CONCRETE PUMP<RA5> L=3750	1-82652-543-0	01	1	9004-9102		●
16	CABLE; STARTER TO RELAY	1-82652-522-0	01	1	9103-	●
16	CABLE; STARTER TO RELAY EXC. CONCRETE PUMP<RA5>	1-82652-522-0	01	1	9103-		●
16	CABLE; STARTER TO RELAY CONCRETE PUMP<RA5> L=1850	1-82652-508-1	01	1	9002-		●
17	CABLE; BATTERY (+) TO RELAY L=250	1-82652-510-0	01	1	9002-	●
17	CABLE; BATTERY (+) TO RELAY EXC. CONCRETE PUMP<RA5> L=250	1-82652-510-0	01	1	9002-		●
17	CABLE; BATTERY (+) TO RELAY CONCRETE PUMP<RA5> L=520	1-82650-094-0	01	1	9002-		●
18	CLIP; BATTERY CABLE (B)	1-09701-111-0	01	1	9002-	●
18	CLIP; BATTERY CABLE EXC. CONCRETE PUMP<RA5> (B)	1-09701-111-0	01	1	9002-		●
18	CLIP; BATTERY CABLE (A)	1-09701-069-0	01	1	9002-	●	●
18	CLIP; BATTERY CABLE (B)	1-09701-111-0	02	1	9002-9306	●	●
18	CLIP; BATTERY CABLE (B) ID=18 L=50	1-09701-072-0	02	1	9307-		●
19	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-	●	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
21	BOLT; CLIP CABLE EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204		●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●
21	BOLT; CLIP CABLE EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302		●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●
21	BOLT; CLIP CABLE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9303-		●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
22	CLIP; BATTERY CABLE ID=18 L=28 H=30	1-09701-110-0	02	1	9002-9306	●
22	CLIP; BATTERY CABLE EXC. CONCRETE PUMP<RA5> ID=18 L=28 H=30	1-09701-110-0	02	1	9002-9306		●
22	CLIP; BATTERY CABLE EXC. CONCRETE PUMP<RA5> ID=18 H=23 L=28	1-09701-070-0	02	1	9307-		●
33	CAP; INSULATOR	1-82699-206-0	01	1	9002-	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9002-	●	●
64	BOX; BATTERY RELAY	1-82699-352-2	01	1	9002-	●
64	BOX; BATTERY RELAY EXC. CONCRETE PUMP<RA5>	1-82699-352-2	01	1	9002-		●
64	BOX; BATTERY RELAY CONCRETE PUMP<RA5>	1-81809-011-2	01	1	9002-		●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9002-	●
65	COVER; BATTERY RELAY EXC. CONCRETE PUMP<RA5> (A)	1-82699-353-1	01	1	9002-		●
65	COVER; BATTERY RELAY (B)	1-82699-354-2	01	1	9002-	●
65	COVER; BATTERY RELAY EXC. CONCRETE PUMP<RA5> (B)	1-82699-354-2	01	1	9002-		●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	9-01960-616-0	04	1	9002-9204	●
66	BOLT; COVER,BATTERY RELAY EXC. CONCRETE PUMP<RA5> M6X16 W/LK&PL WASHER	9-01960-616-0	04	1	9002-9204		●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9205-	●
66	BOLT; COVER,BATTERY RELAY EXC. CONCRETE PUMP<RA5> M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9205-		●
68	RELAY; BATTERY	1-82550-228-2	01	1	9002-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
69	BOLT; CABLE BATTERY M8X20 FLANGE	0-28080-820-0	02	1	9303-9401	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9402-		●
76	NUT; BATTERY CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-9306		●
78	BRACKET; CLIP BATTERY (B) L=95	1-82699-085-0	01	1	9002-	●
78	BRACKET; CLIP BATTERY EXC. CONCRETE PUMP<RA5> (B) L=95	1-82699-085-0	01	1	9002-		●
78	BRACKET; CLIP BATTERY (A)	1-22133-053-0	02	1	9002-	●	●
81	BOLT; BATTERY CABLE M8X20 W/LK WASHER	9-01900-820-0	02	1	9112-9204	●
81	BOLT; BATTERY CABLE EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	02	1	9112-9204		●
81	BOLT; BATTERY CABLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●
81	BOLT; BATTERY CABLE EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302		●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	02	1	9303-	●
81	BOLT; BATTERY CABLE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	02	1	9303-		●
81	BOLT; BATTERY CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X22	9-01900-822-0	03	1	9002-9204		●
81	BOLT; BATTERY CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X22 W/LK WASHER	0-50040-822-0	03	1	9205-9302		●
81	BOLT; BATTERY CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	03	1	9303-9306		●
99	CLIP; BATTERY CABLE (B) ID=16 L=46	9-09917-428-0	01	1	9002-	●
99	CLIP; BATTERY CABLE EXC. CONCRETE PUMP<RA5> (B) ID=16 L=46	9-09917-428-0	01	1	9002-		●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	9002-9306	●	●
99	CLIP; BATTERY CABLE CONCRETE PUMP<RA5> (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9307-		●
99	CLIP; BATTERY CABLE EXC. CONCRETE PUMP<RA5> (A) ID=18 H=23 L=28	1-09701-070-0	02	1	9307-		●
100	BOLT; BATTERY CABLE CLIP M6X20 W/LK WASHER	9-01900-620-0	02	1	9002-9009	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9010-9204	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●
100	BOLT; BATTERY CABLE CLIP EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	02	1	9307-		●
100	BOLT; BATTERY CABLE CLIP CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9307-		●
101	NUT; BATTERY CABLE CLIP M6	9-09110-406-0	02	1	9002-9009	●	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	02	1	9010-9306	●	●
101	NUT; BATTERY CABLE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9307-		●
101	NUT; BATTERY CABLE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9307-		●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=22	9-09160-708-0	02	1	9002-9401	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9402-		●

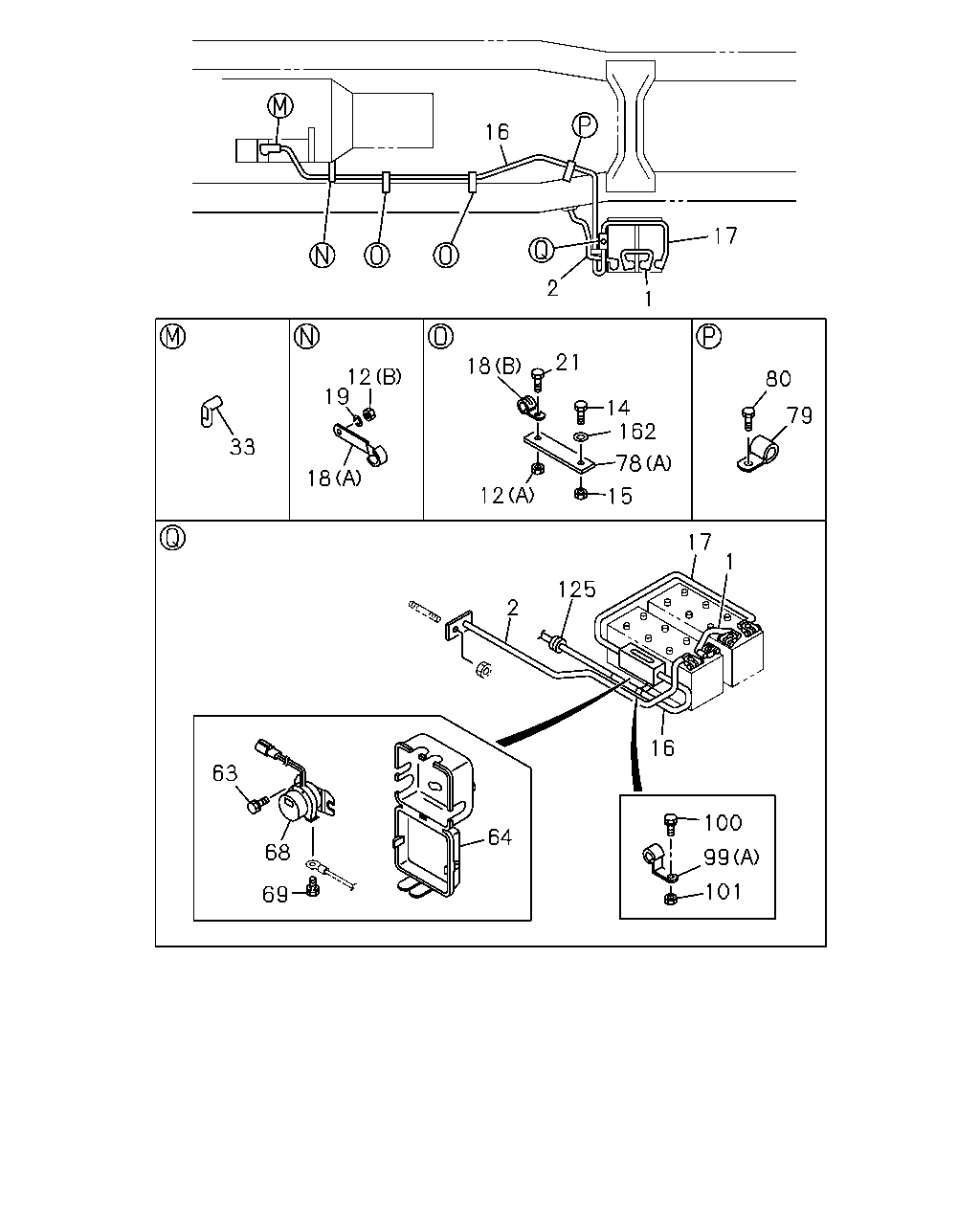

101 99 100 16 64 68 69 63 2 125 17 1 79 80 15 78 162 14 12 21 18 12 19 18 33 16 2 1 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=500	1-82650-130-0	01	1	9002-9003	●
1	CABLE; BATTERY EXC. CONCRETE PUMP<RA5> L=500	1-82650-130-0	01	1	9002-9003		●
1	CABLE; BATTERY L=500	1-82650-124-0	01	1	9004-	●
1	CABLE; BATTERY EXC. CONCRETE PUMP<RA5> L=500	1-82650-124-0	01	1	9004-		●
1	CABLE; BATTERY CONCRETE PUMP<RA5> L=280	1-82650-068-0	01	1	9002-		●
2	CABLE; BATTERY L=290	1-82650-151-0	01	1	9002-	●
2	CABLE; BATTERY EXC. CONCRETE PUMP<RA5> L=290	1-82650-151-0	01	1	9002-		●
2	CABLE; BATTERY CONCRETE PUMP<RA5> L=850	1-82650-150-0	01	1	9002-		●
12	NUT; BATTERY CABLE CLIP (A) M8	9-09110-408-0	01	1	9002-9306	●
12	NUT; BATTERY CABLE CLIP EXC. CONCRETE PUMP<RA5> (A) M8	9-09110-408-0	01	1	9002-9306		●
12	NUT; BATTERY CABLE CLIP (A) M8	9-09110-408-0	01	1	9307-		●
12	NUT; BATTERY CABLE CLIP (A) M8	9-09110-408-0	02	1	9002-	●	●
12	NUT; BATTERY CABLE CLIP (B) M10	9-09110-510-0	01	1	9002-	●	●
14	BOLT; BRKT CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●
14	BOLT; BRKT CLIP EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204		●
14	BOLT; BRKT CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●
14	BOLT; BRKT CLIP EXC. CONCRETE PUMP<RA5> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302		●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28080-830-0	01	1	9303-9306	●
14	BOLT; BRKT CLIP EXC. CONCRETE PUMP<RA5> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306		●
14	BOLT; BRKT CLIP EXC. CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9307-		●
14	BOLT; BRKT CLIP M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
14	BOLT; BRKT CLIP M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
15	NUT; BRKT CLIP M8	9-09110-408-0	01	1	9002-	●
15	NUT; BRKT CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9002-		●
15	NUT; BRKT CLIP M8	9-09110-408-0	02	1	9002-	●	●
16	CABLE; STARTER TO RELAY L=3900	1-82652-525-0	01	1	9002-9003	●
16	CABLE; STARTER TO RELAY EXC. CONCRETE PUMP<RA5> L=3900	1-82652-525-0	01	1	9002-9003		●
16	CABLE; STARTER TO RELAY L=3750	1-82652-543-0	01	1	9004-9102	●
16	CABLE; STARTER TO RELAY EXC. CONCRETE PUMP<RA5> L=3750	1-82652-543-0	01	1	9004-9102		●
16	CABLE; STARTER TO RELAY	1-82652-522-0	01	1	9103-	●
16	CABLE; STARTER TO RELAY EXC. CONCRETE PUMP<RA5>	1-82652-522-0	01	1	9103-		●
16	CABLE; STARTER TO RELAY CONCRETE PUMP<RA5> L=1850	1-82652-508-1	01	1	9002-		●
17	CABLE; BATTERY (+) TO RELAY L=250	1-82652-510-0	01	1	9002-	●
17	CABLE; BATTERY (+) TO RELAY EXC. CONCRETE PUMP<RA5> L=250	1-82652-510-0	01	1	9002-		●
17	CABLE; BATTERY (+) TO RELAY CONCRETE PUMP<RA5> L=520	1-82650-094-0	01	1	9002-		●
18	CLIP; BATTERY CABLE (B)	1-09701-111-0	01	1	9002-	●
18	CLIP; BATTERY CABLE EXC. CONCRETE PUMP<RA5> (B)	1-09701-111-0	01	1	9002-		●
18	CLIP; BATTERY CABLE (A)	1-09701-069-0	01	1	9002-	●	●
18	CLIP; BATTERY CABLE (B)	1-09701-111-0	02	1	9002-9306	●	●
18	CLIP; BATTERY CABLE (B) ID=18 L=50	1-09701-072-0	02	1	9307-		●
19	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-	●	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
21	BOLT; CLIP CABLE EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204		●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●
21	BOLT; CLIP CABLE EXC. CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302		●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●
21	BOLT; CLIP CABLE EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9303-		●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
33	CAP; INSULATOR	1-82699-206-0	01	1	9002-	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9002-	●	●
64	BOX; BATTERY RELAY	1-82699-352-2	01	1	9002-	●
64	BOX; BATTERY RELAY EXC. CONCRETE PUMP<RA5>	1-82699-352-2	01	1	9002-		●
64	BOX; BATTERY RELAY CONCRETE PUMP<RA5>	1-81809-011-2	01	1	9002-		●
68	RELAY; BATTERY	1-82550-228-2	01	1	9002-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
69	BOLT; CABLE BATTERY M8X20 FLANGE	0-28080-820-0	02	1	9303-9401	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9402-		●
78	BRACKET; CLIP BATTERY (B) L=95	1-82699-085-0	01	1	9002-	●
78	BRACKET; CLIP BATTERY EXC. CONCRETE PUMP<RA5> (B) L=95	1-82699-085-0	01	1	9002-		●
78	BRACKET; CLIP BATTERY (A)	1-22133-053-0	02	1	9002-	●	●
79	CLIP; BATTERY CABLE CONCRETE PUMP<RA5> ID=16 L=40	9-09525-575-0	01	1	9002-		●
80	BOLT; BATTERY CABLE CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204		●
80	BOLT; BATTERY CABLE CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302		●
80	BOLT; BATTERY CABLE CLIP CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9303-		●
99	CLIP; BATTERY CABLE (B) ID=16 L=46	9-09917-428-0	01	1	9002-	●
99	CLIP; BATTERY CABLE EXC. CONCRETE PUMP<RA5> (B) ID=16 L=46	9-09917-428-0	01	1	9002-		●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	9002-9306	●	●
99	CLIP; BATTERY CABLE CONCRETE PUMP<RA5> (A) ID=18 H=23 L=28	1-09701-070-0	01	1	9307-		●
99	CLIP; BATTERY CABLE EXC. CONCRETE PUMP<RA5> (A) ID=18 H=23 L=28	1-09701-070-0	02	1	9307-		●
100	BOLT; BATTERY CABLE CLIP M6X20 W/LK WASHER	9-01900-620-0	02	1	9002-9009	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9010-9204	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●
100	BOLT; BATTERY CABLE CLIP EXC. CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	02	1	9307-		●
100	BOLT; BATTERY CABLE CLIP CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	01	1	9307-		●
101	NUT; BATTERY CABLE CLIP M6	9-09110-406-0	02	1	9002-9009	●	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	02	1	9010-9306	●	●
101	NUT; BATTERY CABLE CLIP EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9307-		●
101	NUT; BATTERY CABLE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	01	1	9307-		●
125	GROMMET; CABLE BATTERY CONCRETE PUMP<RA5>	1-09333-062-1	01	1	9002-9012		●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=22	9-09160-708-0	02	1	9002-9401	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9402-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
