Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#29574) — 422 parça

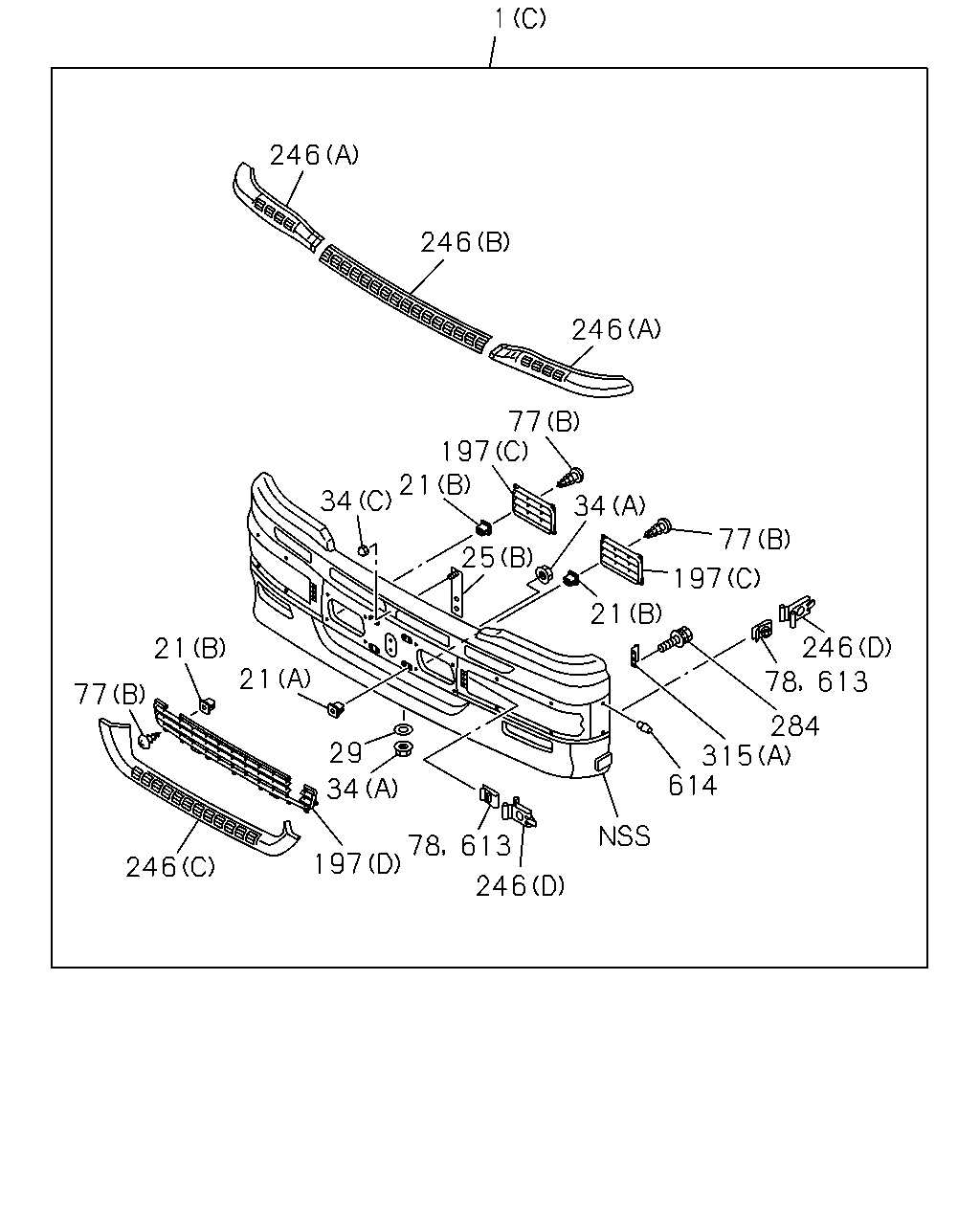

1 246 246 246 77 197 21 34 34 77 25 197 21 246 21 21 77 284 315 614 29 34 613 78 197 246 246 78 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	1-71211-427-2	01	1	0512-	●
1	BUMPER ASM; FRT (A) WHITE	1-71210-746-5	01	1	0407-0511		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	1-71211-419-2	01	1	0512-	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	0512-	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	14	1	0407-0511		●
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	0512-	●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	10	1	0407-0511		●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0512-	●
25	SPACER; PLATFORM (A)	1-71260-162-0	06	1	0407-0511		●
25	SPACER; PLATFORM (B)	1-71230-640-0	01	1	0512-	●
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	13	1	0512-0605	●
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	0606-	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	9-09160-708-0	19	1	0407-0511		●
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	17	1	0512-0605	●
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	0606-	●
34	NUT; BRKT,BUMPER (C) M10 CAP NUT	1-09650-480-0	01	1	0512-	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	13	1	0512-0602	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	0603-	●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	03	1	0407-0511		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	17	1	0512-0602	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	0603-	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91150-108-0	17	1	0407-0511		●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	03	1	0512-0602	●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	0512-	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	9-07076-516-0	08	1	0512-0603	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	0604-	●
77	SCREW; BRKT (B) M5X16 TAPPING	9-07076-516-0	14	1	0407-0511		●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	9-07076-516-0	22	1	0512-0603	●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	22	1	0604-	●
78	NUT; SPIRE	1-71260-174-0	06	1	0407-0511		●
78	NUT; SPIRE	1-71260-174-0	06	1	0512-0610	●
78	NUT; SPIRE EXC. FRONT SPOILER<VP1>	1-71260-174-0	06	1	0611-	●
197	GRILLE; BUMPER (C)	1-71260-116-1	01	1	0512-	●
197	GRILLE; BUMPER (A)	1-71260-117-0	01	1	0407-0511		●
197	GRILLE; BUMPER (C)	1-71260-115-1	01	1	0512-	●
197	GRILLE; BUMPER (B)	1-71260-157-2	01	1	0407-0511		●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (D)	1-71260-210-1	01	1	0512-0610	●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (D)	8-97617-998-0	01	1	0611-	●
246	PROTECTOR; BUMPER (D)	1-71260-162-0	06	1	0512-	●
246	PROTECTOR; BUMPER (A)	1-71260-094-1	01	1	0407-0511		●
246	PROTECTOR; BUMPER (A)	1-71260-094-2	01	1	0512-	●
246	PROTECTOR; BUMPER (A)	1-71260-095-1	01	1	0407-0511		●
246	PROTECTOR; BUMPER (A)	1-71260-095-2	01	1	0512-	●
246	PROTECTOR; BUMPER (B)	1-71260-155-0	01	1	0407-0511		●
246	PROTECTOR; BUMPER (B)	1-71260-155-1	01	1	0512-	●
246	PROTECTOR; BUMPER (C)	1-71260-156-1	01	1	0407-0511		●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	0512-	●
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0407-0511		●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	0512-0512	●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	0601-	●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0407-0511		●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0512-0512	●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-636-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-637-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	0512-	●
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-566-0	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	01	1	0512-	●
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-579-1	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	0512-	●
315	STAY; BUMPER (A)	1-71230-346-2	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0512-	●
315	STAY; BUMPER (A)	1-71230-347-2	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0512-	●
315	STAY; BUMPER (C)	1-71230-549-0	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	0512-	●
315	STAY; BUMPER (C)	1-71230-578-1	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	01	1	0512-	●
613	CLIP FRONT SPOILER<VP1>	1-71260-174-0	06	1	0611-	●
614	STOPPER; LID	1-71260-163-0	12	1	0407-0511		●
614	STOPPER; LID	1-71260-163-0	12	1	0512-	●

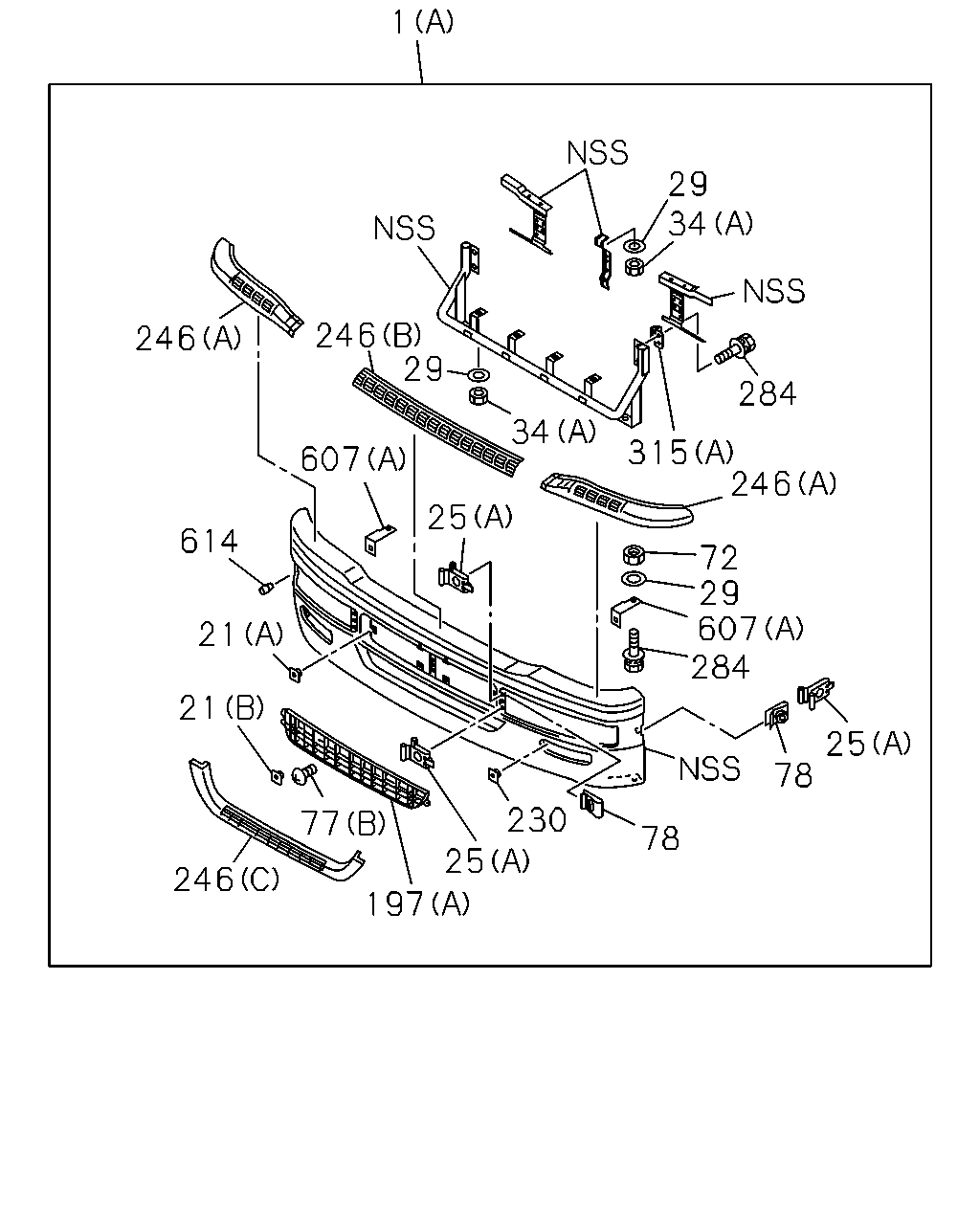

1 29 34 246 29 34 246 284 315 246 607 25 614 72 29 607 284 21 21 25 78 230 25 77 78 246 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	1-71211-427-2	01	1	0512-	●
1	BUMPER ASM; FRT (A) WHITE	1-71210-746-5	01	1	0407-0511		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	1-71211-419-2	01	1	0512-	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	0512-	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	14	1	0407-0511		●
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	0512-	●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	10	1	0407-0511		●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0512-	●
25	SPACER; PLATFORM (A)	1-71260-162-0	06	1	0407-0511		●
25	SPACER; PLATFORM (B)	1-71230-640-0	01	1	0512-	●
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	13	1	0512-0605	●
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	0606-	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	9-09160-708-0	19	1	0407-0511		●
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	17	1	0512-0605	●
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	0606-	●
34	NUT; BRKT,BUMPER (C) M10 CAP NUT	1-09650-480-0	01	1	0512-	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	13	1	0512-0602	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	0603-	●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	03	1	0407-0511		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	17	1	0512-0602	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	0603-	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91150-108-0	17	1	0407-0511		●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	03	1	0512-0602	●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●
72	NUT; BRKT M8	9-09110-508-0	02	1	0407-0511		●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	0512-	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	9-07076-516-0	08	1	0512-0603	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	0604-	●
77	SCREW; BRKT (B) M5X16 TAPPING	9-07076-516-0	14	1	0407-0511		●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	9-07076-516-0	22	1	0512-0603	●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	22	1	0604-	●
78	NUT; SPIRE	1-71260-174-0	06	1	0407-0511		●
78	NUT; SPIRE	1-71260-174-0	06	1	0512-0610	●
78	NUT; SPIRE EXC. FRONT SPOILER<VP1>	1-71260-174-0	06	1	0611-	●
197	GRILLE; BUMPER (C)	1-71260-116-1	01	1	0512-	●
197	GRILLE; BUMPER (A)	1-71260-117-0	01	1	0407-0511		●
197	GRILLE; BUMPER (C)	1-71260-115-1	01	1	0512-	●
197	GRILLE; BUMPER (B)	1-71260-157-2	01	1	0407-0511		●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (D)	1-71260-210-1	01	1	0512-0610	●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (D)	8-97617-998-0	01	1	0611-	●
230	NUT; BRK,HD LAMP,LWR D=9.7X9.7 L=8	8-94222-314-0	04	1	0407-0511		●
246	PROTECTOR; BUMPER (D)	1-71260-162-0	06	1	0512-	●
246	PROTECTOR; BUMPER (A)	1-71260-094-1	01	1	0407-0511		●
246	PROTECTOR; BUMPER (A)	1-71260-094-2	01	1	0512-	●
246	PROTECTOR; BUMPER (A)	1-71260-095-1	01	1	0407-0511		●
246	PROTECTOR; BUMPER (A)	1-71260-095-2	01	1	0512-	●
246	PROTECTOR; BUMPER (B)	1-71260-155-0	01	1	0407-0511		●
246	PROTECTOR; BUMPER (B)	1-71260-155-1	01	1	0512-	●
246	PROTECTOR; BUMPER (C)	1-71260-156-1	01	1	0407-0511		●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	0512-	●
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0407-0511		●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	0512-0512	●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	0601-	●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0407-0511		●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0512-0512	●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-636-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-637-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	0512-	●
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-566-0	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	01	1	0512-	●
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-579-1	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	0512-	●
315	STAY; BUMPER (A)	1-71230-346-2	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0512-	●
315	STAY; BUMPER (A)	1-71230-347-2	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0512-	●
315	STAY; BUMPER (C)	1-71230-549-0	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	0512-	●
315	STAY; BUMPER (C)	1-71230-578-1	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	01	1	0512-	●
607	BRACKET EXC. FRONT SPOILER<VP1> (B)	8-97610-034-2	01	1	0512-	●
607	BRACKET (A)	1-71230-454-0	02	1	0407-0511		●
607	BRACKET EXC. FRONT SPOILER<VP1> (B)	8-97609-951-2	01	1	0512-	●
614	STOPPER; LID	1-71260-163-0	12	1	0407-0511		●
614	STOPPER; LID	1-71260-163-0	12	1	0512-	●

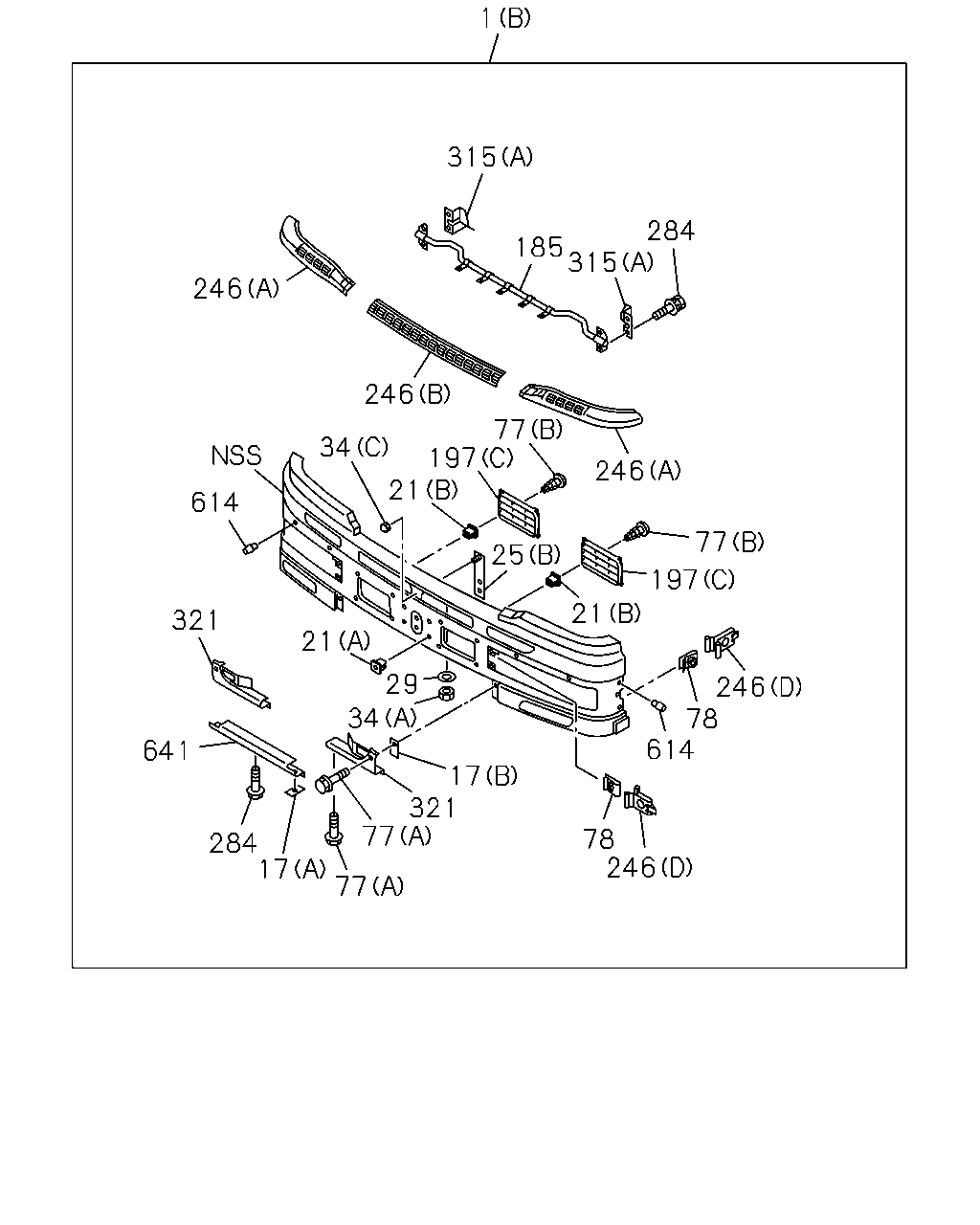

1 315 284 185 315 246 246 77 197 21 34 246 614 77 25 197 21 321 21 29 246 78 614 34 641 17 321 77 78 246 284 17 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	1-71211-427-2	01	1	0512-	●
1	BUMPER ASM; FRT (A) WHITE	1-71210-746-5	01	1	0407-0511		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	1-71211-419-2	01	1	0512-	●
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71260-185-0	02	1	0512-	●
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71260-277-0	02	1	0512-	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	0512-	●
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	14	1	0407-0511		●
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	0512-	●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	10	1	0407-0511		●
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0512-	●
25	SPACER; PLATFORM (A)	1-71260-162-0	06	1	0407-0511		●
25	SPACER; PLATFORM (B)	1-71230-640-0	01	1	0512-	●
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	13	1	0512-0605	●
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	0606-	●
29	WASHER; FRT BUMPER ID=8.4 OD=22	9-09160-708-0	19	1	0407-0511		●
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	17	1	0512-0605	●
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	0606-	●
34	NUT; BRKT,BUMPER (C) M10 CAP NUT	1-09650-480-0	01	1	0512-	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	13	1	0512-0602	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	0603-	●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	03	1	0407-0511		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	17	1	0512-0602	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	0603-	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91150-108-0	17	1	0407-0511		●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	03	1	0512-0602	●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	0512-	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	9-07076-516-0	08	1	0512-0603	●
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	0604-	●
77	SCREW; BRKT (B) M5X16 TAPPING	9-07076-516-0	14	1	0407-0511		●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	9-07076-516-0	22	1	0512-0603	●
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	22	1	0604-	●
78	NUT; SPIRE	1-71260-174-0	06	1	0407-0511		●
78	NUT; SPIRE	1-71260-174-0	06	1	0512-0610	●
78	NUT; SPIRE EXC. FRONT SPOILER<VP1>	1-71260-174-0	06	1	0611-	●
185	BRACKET; BUMPER,INNER EXC. FRONT SPOILER<VP1>	1-71230-610-0	01	1	0512-	●
197	GRILLE; BUMPER (C)	1-71260-116-1	01	1	0512-	●
197	GRILLE; BUMPER (A)	1-71260-117-0	01	1	0407-0511		●
197	GRILLE; BUMPER (C)	1-71260-115-1	01	1	0512-	●
197	GRILLE; BUMPER (B)	1-71260-157-2	01	1	0407-0511		●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (D)	1-71260-210-1	01	1	0512-0610	●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (D)	8-97617-998-0	01	1	0611-	●
246	PROTECTOR; BUMPER (D)	1-71260-162-0	06	1	0512-	●
246	PROTECTOR; BUMPER (A)	1-71260-094-1	01	1	0407-0511		●
246	PROTECTOR; BUMPER (A)	1-71260-094-2	01	1	0512-	●
246	PROTECTOR; BUMPER (A)	1-71260-095-1	01	1	0407-0511		●
246	PROTECTOR; BUMPER (A)	1-71260-095-2	01	1	0512-	●
246	PROTECTOR; BUMPER (B)	1-71260-155-0	01	1	0407-0511		●
246	PROTECTOR; BUMPER (B)	1-71260-155-1	01	1	0512-	●
246	PROTECTOR; BUMPER (C)	1-71260-156-1	01	1	0407-0511		●
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	0512-	●
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0407-0511		●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	0512-0512	●
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	0601-	●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0407-0511		●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0512-0512	●
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-636-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-637-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	0512-	●
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-566-0	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	01	1	0512-	●
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-579-1	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	0512-	●
315	STAY; BUMPER (A)	1-71230-346-2	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0512-	●
315	STAY; BUMPER (A)	1-71230-347-2	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0512-	●
315	STAY; BUMPER (C)	1-71230-549-0	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	0512-	●
315	STAY; BUMPER (C)	1-71230-578-1	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	01	1	0512-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>	1-71260-263-1	01	1	0512-	●
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>	1-71260-264-1	01	1	0512-	●
614	STOPPER; LID	1-71260-163-0	12	1	0407-0511		●
614	STOPPER; LID	1-71260-163-0	12	1	0512-	●
641	BUMPER; FRT,LWR EXC. FRONT SPOILER<VP1>	1-71211-304-1	01	1	0512-	●

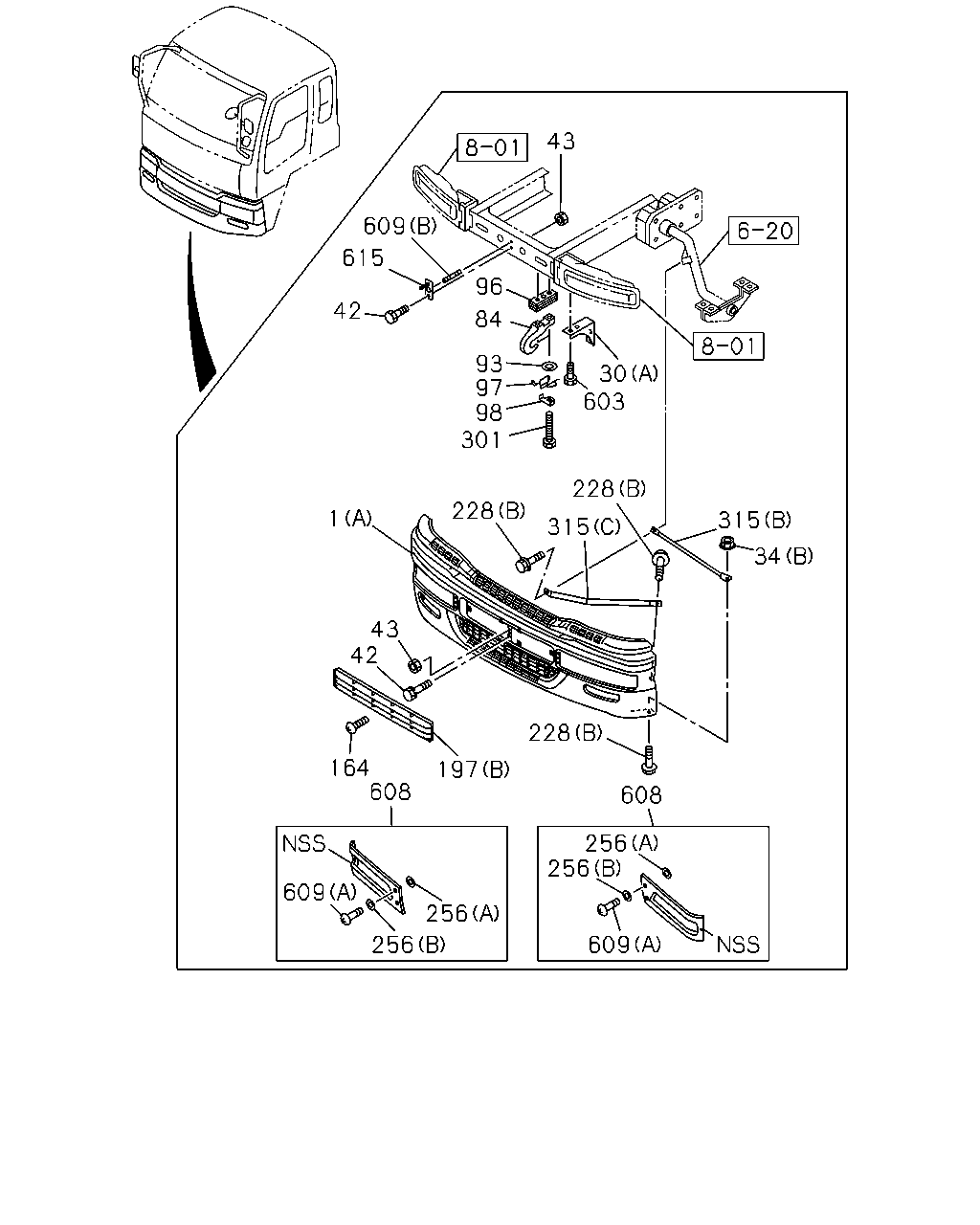

43 609 615 96 42 84 93 97 98 301 30 603 228 228 1 315 315 34 43 42 228 164 608 197 608 256 256 609 256 256 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	1-71211-427-2	01	1	0512-	●
1	BUMPER ASM; FRT (A) WHITE	1-71210-746-5	01	1	0407-0511		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	1-71211-419-2	01	1	0512-	●
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-638-0	01	1	0512-	●
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-639-0	01	1	0512-	●
30	BRACKET; FRT BUMPER (A)	1-71230-430-0	01	1	0407-0511		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	0512-	●
30	BRACKET; FRT BUMPER (A)	1-71230-431-0	01	1	0407-0511		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	0512-	●
34	NUT; BRKT,BUMPER (C) M10 CAP NUT	1-09650-480-0	01	1	0512-	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	13	1	0512-0602	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	0603-	●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	03	1	0407-0511		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	17	1	0512-0602	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	0603-	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91150-108-0	17	1	0407-0511		●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	03	1	0512-0602	●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●
42	BOLT; BUMPER M10X25 FLANGE	0-28681-025-0	07	1	0407-0511		●
42	BOLT; BUMPER M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	0512-	●
43	NUT; BRKT TO BUMPER M10 CAP NUT	1-09650-480-0	01	1	0512-0602	●
43	NUT; BRKT TO BUMPER EXC. FRONT SPOILER<VP1> M10 FLANGE	0-91150-210-0	03	1	0512-0602	●
43	NUT; BRKT TO BUMPER EXC. FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	03	1	0603-	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	03	1	0407-0511		●
43	NUT; BRKT TO BUMPER FRONT SPOILER<VP1> M10 FLANGE	0-91150-210-0	01	1	0512-0602	●
43	NUT; BRKT TO BUMPER FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	01	1	0603-	●
84	HOOK	1-57181-027-1	01	1	0407-0511		●
84	HOOK	1-57181-027-1	01	1	0512-	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0407-0511		●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0512-0603	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-	●
96	PLATE; DIST,HOOK EXC. FRONT SPOILER<VP1>	1-53497-595-0	01	1	0512-	●
96	PLATE; DIST,HOOK CAB UP +110MM<TGG>	1-53497-560-0	01	1	0407-0511		●
96	PLATE; DIST,HOOK FRONT SPOILER<VP1>	1-53497-473-0	01	1	0512-	●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0407-0511		●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0512-	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0407-0511		●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0512-	●
164	SCREW; AIR INT GRILLE M6X20	1-71260-141-0	06	1	0407-0511		●
197	GRILLE; BUMPER (C)	1-71260-116-1	01	1	0512-	●
197	GRILLE; BUMPER (A)	1-71260-117-0	01	1	0407-0511		●
197	GRILLE; BUMPER (C)	1-71260-115-1	01	1	0512-	●
197	GRILLE; BUMPER (B)	1-71260-157-2	01	1	0407-0511		●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (D)	1-71260-210-1	01	1	0512-0610	●
197	GRILLE; BUMPER FRONT SPOILER<VP1> (D)	8-97617-998-0	01	1	0611-	●
228	BOLT; BRKT EXC. FRONT SPOILER<VP1> (A) M16X40	9-92061-640-0	06	1	0512-0512	●
228	BOLT; BRKT EXC. FRONT SPOILER<VP1> (A) M16X40	0-20951-640-0	06	1	0601-	●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	06	1	0407-0511		●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	06	1	0512-0512	●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●
256	WASHER; PL (A)	1-71260-173-0	06	1	0407-0511		●
256	WASHER; PL (A)	1-71260-173-0	06	1	0512-	●
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0407-0511		●
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0512-	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X70	0-10811-670-0	01	1	0407-0511		●
301	BOLT; HOOK TO FRAME M16X90	0-10811-690-0	01	1	0512-0512	●
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	0601-	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X80	0-10811-680-0	01	1	0407-0511		●
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-636-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-637-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	0512-	●
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-566-0	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	01	1	0512-	●
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-579-1	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	0512-	●
315	STAY; BUMPER (A)	1-71230-346-2	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0512-	●
315	STAY; BUMPER (A)	1-71230-347-2	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0512-	●
315	STAY; BUMPER (C)	1-71230-549-0	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	0512-	●
315	STAY; BUMPER (C)	1-71230-578-1	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	01	1	0512-	●
603	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0407-0511		●
603	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0512-0512	●
603	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
608	LID; BUMPER EXC. FRONT SPOILER<VP1>	1-71211-284-2	01	1	0512-	●
608	LID; BUMPER EXC. FRONT SPOILER<VP1>	1-71211-285-2	01	1	0512-	●
608	LID; BUMPER	1-71210-752-4	01	1	0407-0511		●
608	LID; BUMPER FRONT SPOILER<VP1>	1-71210-752-6	01	1	0512-	●
608	LID; BUMPER	1-71210-753-4	01	1	0407-0511		●
608	LID; BUMPER FRONT SPOILER<VP1>	1-71210-753-6	01	1	0512-	●
609	STUD; BUMPER (A)	1-71260-175-0	06	1	0407-0511		●
609	STUD; BUMPER (A)	1-71260-175-0	06	1	0512-	●
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	0407-0511		●
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	0512-	●
615	BRACKET; BUMPER CENTER CAB UP +110MM<TGG>	1-71230-407-0	01	1	0407-0511		●

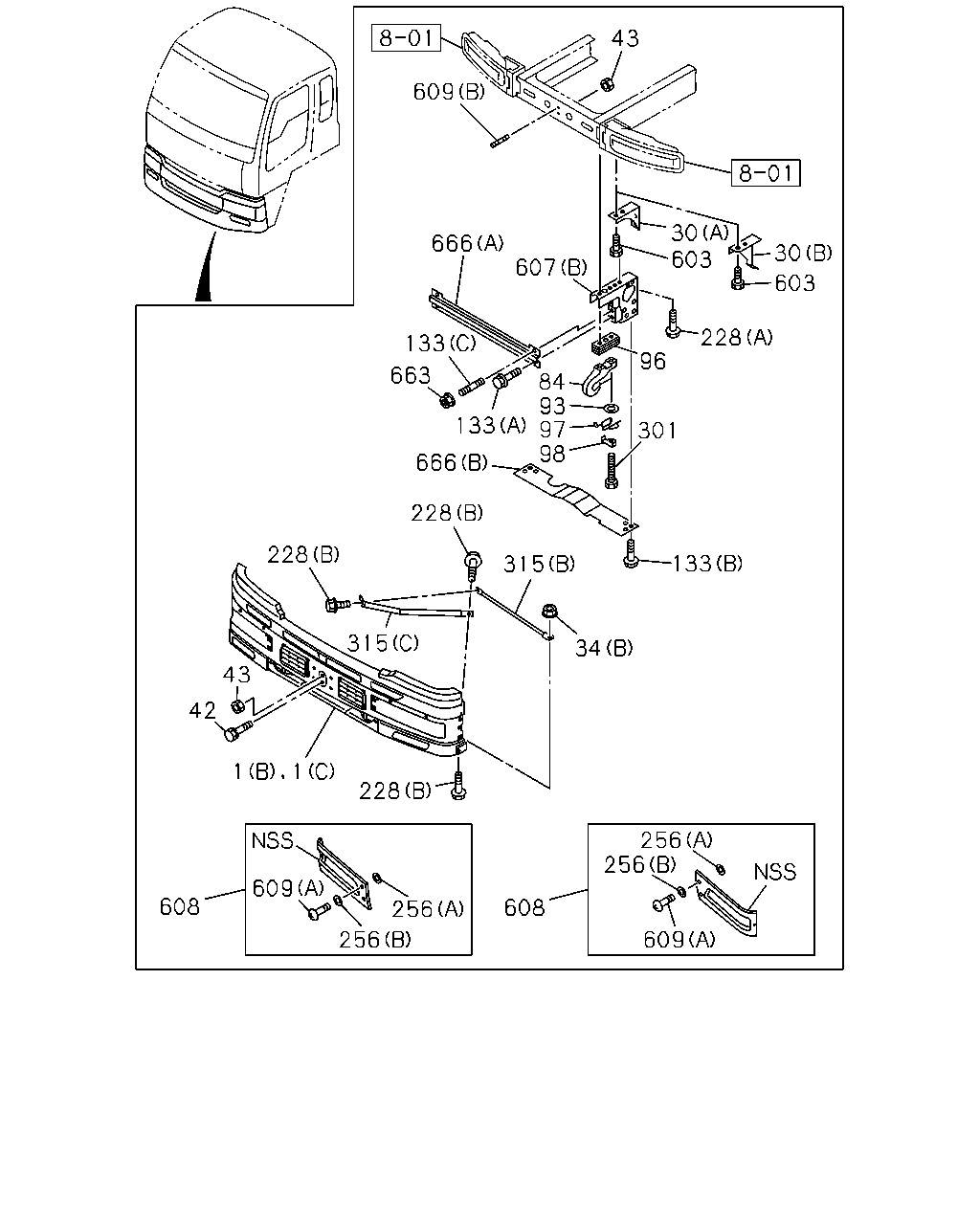

43 609 30 603 666 30 607 603 228 133 96 84 93 97 98 663 133 301 666 228 228 133 315 315 34 43 42 1 1 228 256 256 609 608 608 256 256 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	1-71211-427-2	01	1	0512-	●
1	BUMPER ASM; FRT (A) WHITE	1-71210-746-5	01	1	0407-0511		●
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (C) WHITE	1-71211-419-2	01	1	0512-	●
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-638-0	01	1	0512-	●
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-639-0	01	1	0512-	●
30	BRACKET; FRT BUMPER (A)	1-71230-430-0	01	1	0407-0511		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	0512-	●
30	BRACKET; FRT BUMPER (A)	1-71230-431-0	01	1	0407-0511		●
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	0512-	●
34	NUT; BRKT,BUMPER (C) M10 CAP NUT	1-09650-480-0	01	1	0512-	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	13	1	0512-0602	●
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	0603-	●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	03	1	0407-0511		●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91150-108-0	17	1	0512-0602	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	0603-	●
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91150-108-0	17	1	0407-0511		●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91150-108-0	03	1	0512-0602	●
34	NUT; BRKT,BUMPER (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●
42	BOLT; BUMPER M10X25 FLANGE	0-28681-025-0	07	1	0407-0511		●
42	BOLT; BUMPER M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	0512-	●
43	NUT; BRKT TO BUMPER M10 CAP NUT	1-09650-480-0	01	1	0512-0602	●
43	NUT; BRKT TO BUMPER EXC. FRONT SPOILER<VP1> M10 FLANGE	0-91150-210-0	03	1	0512-0602	●
43	NUT; BRKT TO BUMPER EXC. FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	03	1	0603-	●
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	03	1	0407-0511		●
43	NUT; BRKT TO BUMPER FRONT SPOILER<VP1> M10 FLANGE	0-91150-210-0	01	1	0512-0602	●
43	NUT; BRKT TO BUMPER FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	01	1	0603-	●
84	HOOK	1-57181-027-1	01	1	0407-0511		●
84	HOOK	1-57181-027-1	01	1	0512-	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0407-0511		●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0512-0603	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-	●
96	PLATE; DIST,HOOK EXC. FRONT SPOILER<VP1>	1-53497-595-0	01	1	0512-	●
96	PLATE; DIST,HOOK CAB UP +110MM<TGG>	1-53497-560-0	01	1	0407-0511		●
96	PLATE; DIST,HOOK FRONT SPOILER<VP1>	1-53497-473-0	01	1	0512-	●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0407-0511		●
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0512-	●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0407-0511		●
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0512-	●
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (C)	8-97617-397-0	02	1	0710-0808	●
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28081-260-0	04	1	0512-0512	●
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	04	1	0601-0709	●
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	02	1	0710-0808	●
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	04	1	0809-	●
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (B) M12X25 FLANGE	0-28691-225-0	06	1	0512-0512	●
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (B) M12X25 FLANGE	0-28661-225-0	06	1	0601-1207	●
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (B) M12X30 FLANGE	0-28661-230-0	06	1	1208-	●
228	BOLT; BRKT EXC. FRONT SPOILER<VP1> (A) M16X40	9-92061-640-0	06	1	0512-0512	●
228	BOLT; BRKT EXC. FRONT SPOILER<VP1> (A) M16X40	0-20951-640-0	06	1	0601-	●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	06	1	0407-0511		●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	06	1	0512-0512	●
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●
256	WASHER; PL (A)	1-71260-173-0	06	1	0407-0511		●
256	WASHER; PL (A)	1-71260-173-0	06	1	0512-	●
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0407-0511		●
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0512-	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X70	0-10811-670-0	01	1	0407-0511		●
301	BOLT; HOOK TO FRAME M16X90	0-10811-690-0	01	1	0512-0512	●
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	0601-	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> M16X80	0-10811-680-0	01	1	0407-0511		●
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-636-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-637-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	0512-	●
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	0512-	●
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-566-0	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	01	1	0512-	●
315	STAY; BUMPER CAB UP +110MM<TGG> (B)	1-71230-579-1	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	0512-	●
315	STAY; BUMPER (A)	1-71230-346-2	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0512-	●
315	STAY; BUMPER (A)	1-71230-347-2	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0512-	●
315	STAY; BUMPER (C)	1-71230-549-0	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	0512-	●
315	STAY; BUMPER (C)	1-71230-578-1	01	1	0407-0511		●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	01	1	0512-	●
603	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0407-0511		●
603	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0512-0512	●
603	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
607	BRACKET EXC. FRONT SPOILER<VP1> (B)	8-97610-034-2	01	1	0512-	●
607	BRACKET (A)	1-71230-454-0	02	1	0407-0511		●
607	BRACKET EXC. FRONT SPOILER<VP1> (B)	8-97609-951-2	01	1	0512-	●
608	LID; BUMPER EXC. FRONT SPOILER<VP1>	1-71211-284-2	01	1	0512-	●
608	LID; BUMPER EXC. FRONT SPOILER<VP1>	1-71211-285-2	01	1	0512-	●
608	LID; BUMPER	1-71210-752-4	01	1	0407-0511		●
608	LID; BUMPER FRONT SPOILER<VP1>	1-71210-752-6	01	1	0512-	●
608	LID; BUMPER	1-71210-753-4	01	1	0407-0511		●
608	LID; BUMPER FRONT SPOILER<VP1>	1-71210-753-6	01	1	0512-	●
609	STUD; BUMPER (A)	1-71260-175-0	06	1	0407-0511		●
609	STUD; BUMPER (A)	1-71260-175-0	06	1	0512-	●
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	0407-0511		●
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	0512-	●
663	NUT EXC. FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	0710-0808	●
666	PROTECTOR; UNDER EXC. FRONT SPOILER<VP1> (B)	8-97608-467-1	01	1	0512-	●
666	PROTECTOR; UNDER EXC. FRONT SPOILER<VP1> (A)	8-97610-033-0	01	1	0512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
