◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#29569) — 134 parça

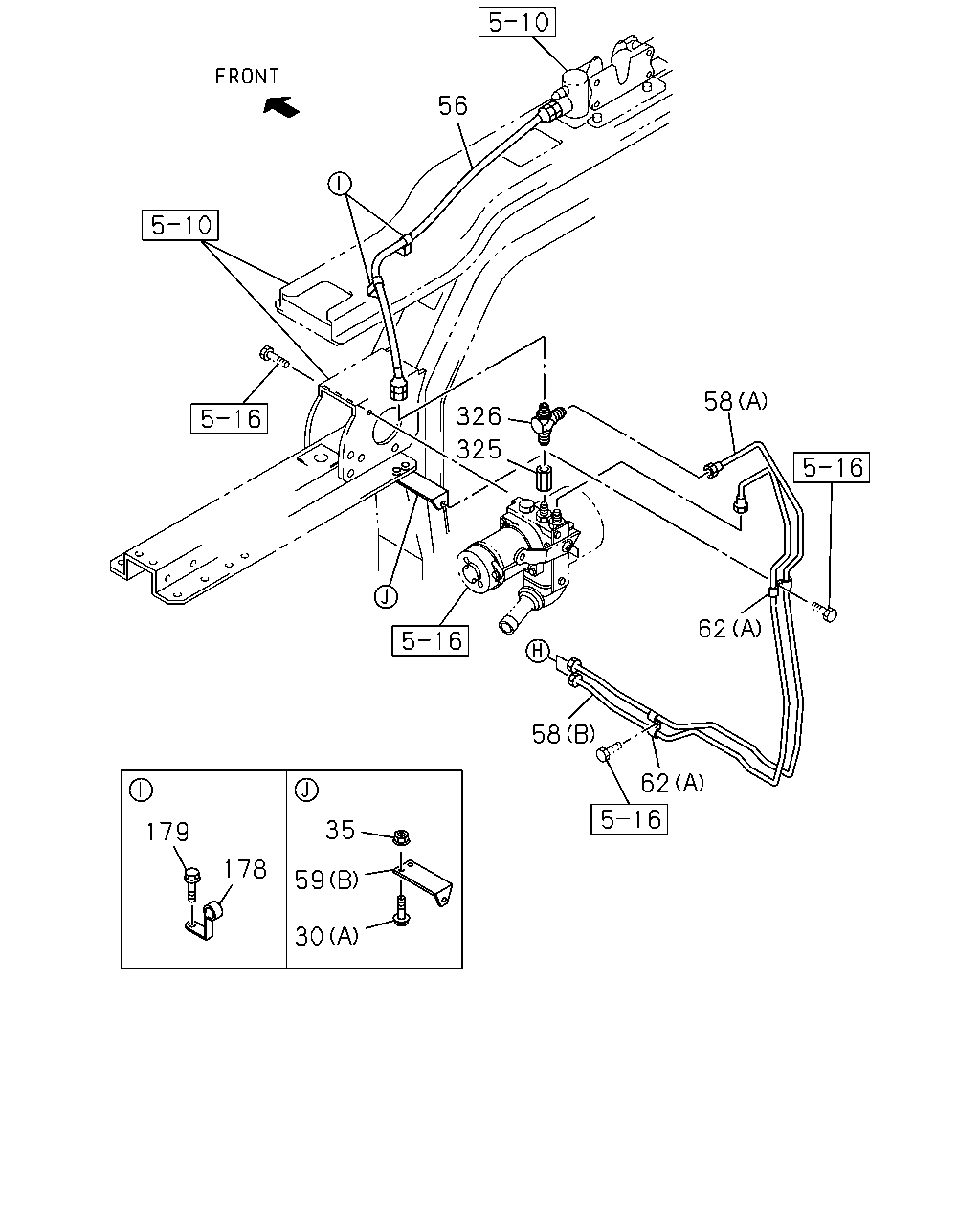

çizim 86584
56 58 326 325 62 58 62 35 179 178 59 30
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0407-0511 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0512-0512 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
56 HOSE; FLEX,OIL PIPE
L=750 		1-09365-058-0 01 1 0407-0511 ●
56 HOSE; FLEX,OIL PIPE
L=750 		1-09365-058-0 01 1 0512- ●
58 PIPE; OIL,POWER UNIT
(A) L=989 		1-49166-916-0 01 1 0407-0511 ●
58 PIPE; OIL,POWER UNIT
(A) L=989 		1-49166-916-0 01 1 0512- ●
58 PIPE; OIL,POWER UNIT
(B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 0407-0511 ●
58 PIPE; OIL,POWER UNIT
(B) L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 0512- ●
59 BRACKET; CLIP
(A) L=55 		1-47475-304-0 03 1 0407-0511 ●
59 BRACKET; CLIP
(A) L=55 		1-47475-304-0 03 1 0512- ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 0407-0511 ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 0512- ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0407-0511 ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0512- ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 04 1 0407-0511 ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 04 1 0512- ●
62 CLIP; OIL PIPE
(C) L=140 		5-09707-031-1 02 1 0407-0511 ●
62 CLIP; OIL PIPE
6WF1 TC-C(1B8) (C) L=140 		5-09707-031-1 02 1 0512- ●
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		9-09534-825-0 01 1 0407-0511 ●
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		9-09534-825-0 01 1 0512-0606 ●
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		0-95324-825-0 01 1 0607- ●
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 0407-0511 ●
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 0512- ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0407-0511 ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0512- ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0407-0511 ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0512- ●

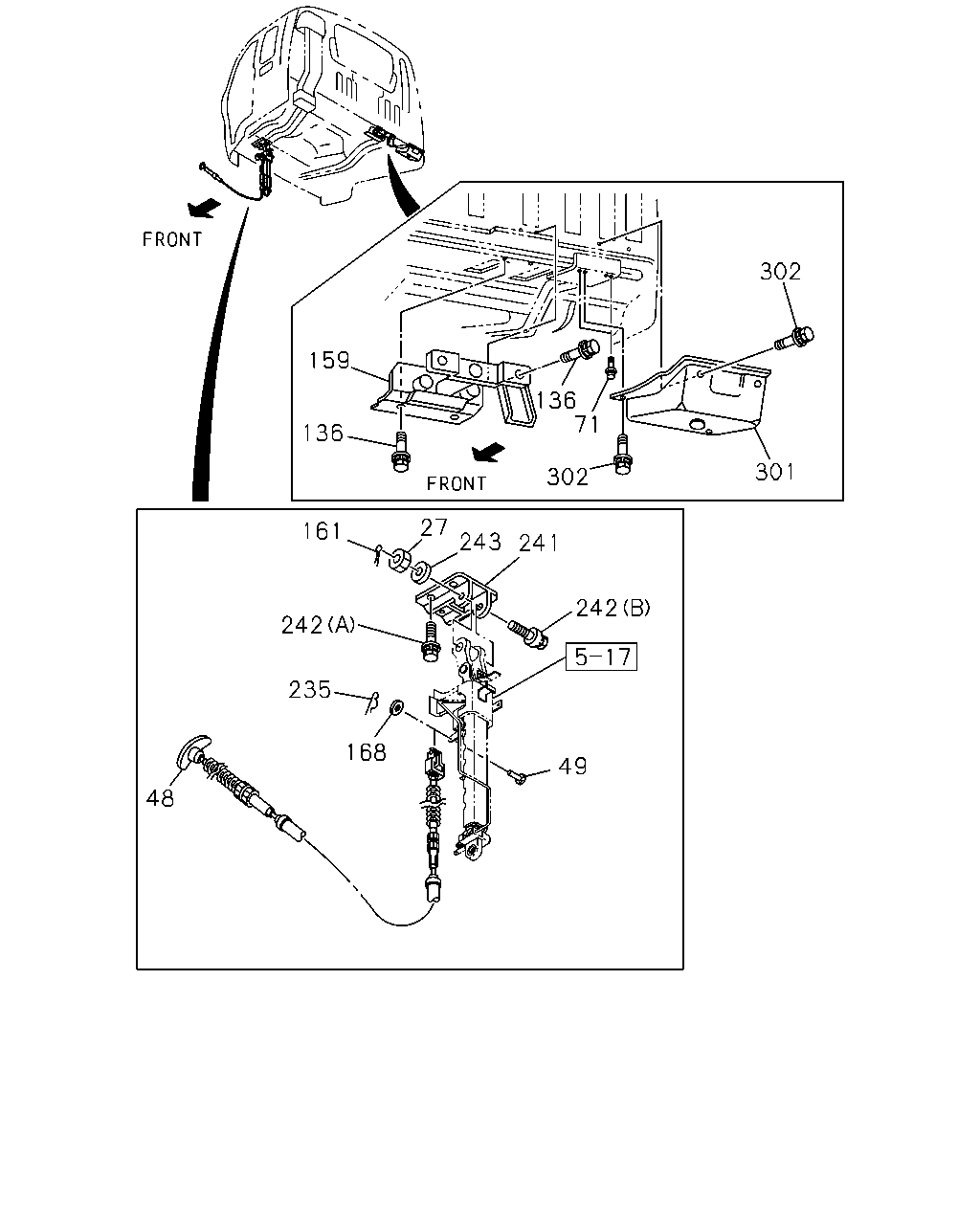

çizim 86695
302 159 136 71 136 301 302 27 161 243 241 242 242 235 168 49 48
BalonParca AdiParca NoAdetTipApplied Date A B
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 0407-0511 ●
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 0512-0604 ●
27 NUT; OIL CYL
M14 SLOTTED 		0-91116-514-0 01 1 0605- ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0407-0511 ●
48 CABLE ASM; CONT
6WF1 TC-C(1B8) L=2457 		1-62500-730-0 01 1 0512- ●
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 0407-0511 ●
49 PIN; JAW FIX
6WF1 TC-C(1B8) OD=6 L=17 		9-08223-617-0 01 1 0512-0606 ●
49 PIN; JAW FIX
6WF1 TC-C(1B8) OD=6 L=17 		0-82253-617-0 01 1 0607- ●
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0407-0511 ●
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0512- ●
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0407-0511 ●
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0512- ●
159 PIN 1-79717-627-1 01 1 0407-0511 ●
159 PIN 1-79717-627-1 01 1 0512- ●
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 0407-0511 ●
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 0512-0606 ●
161 PIN; SPLIT
OD=2.8 L=25 		0-81123-025-0 01 1 0607- ●
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 0407-0511 ●
168 WASHER; PL
6WF1 TC-C(1B8) ID=6.4 		9-09160-506-0 01 1 0512- ●
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 0407-0511 ●
235 PIN; SNAP
6WF1 TC-C(1B8) L=21.2 		8-94157-840-0 01 1 0512- ●
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-338-1 01 1 0407-0511 ●
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-338-1 01 1 0512- ●
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER 		1-09980-546-0 05 1 0407-0511 ●
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER 		1-09980-546-0 05 1 0512- ●
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 0407-0511 ●
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 0512- ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 0407-0511 ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 0512-0603 ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-514-0 01 1 0604-0805 ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-814-0 01 1 0806- ●
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 0407-0511 ●
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 0512- ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 0407-0511 ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 0512- ●

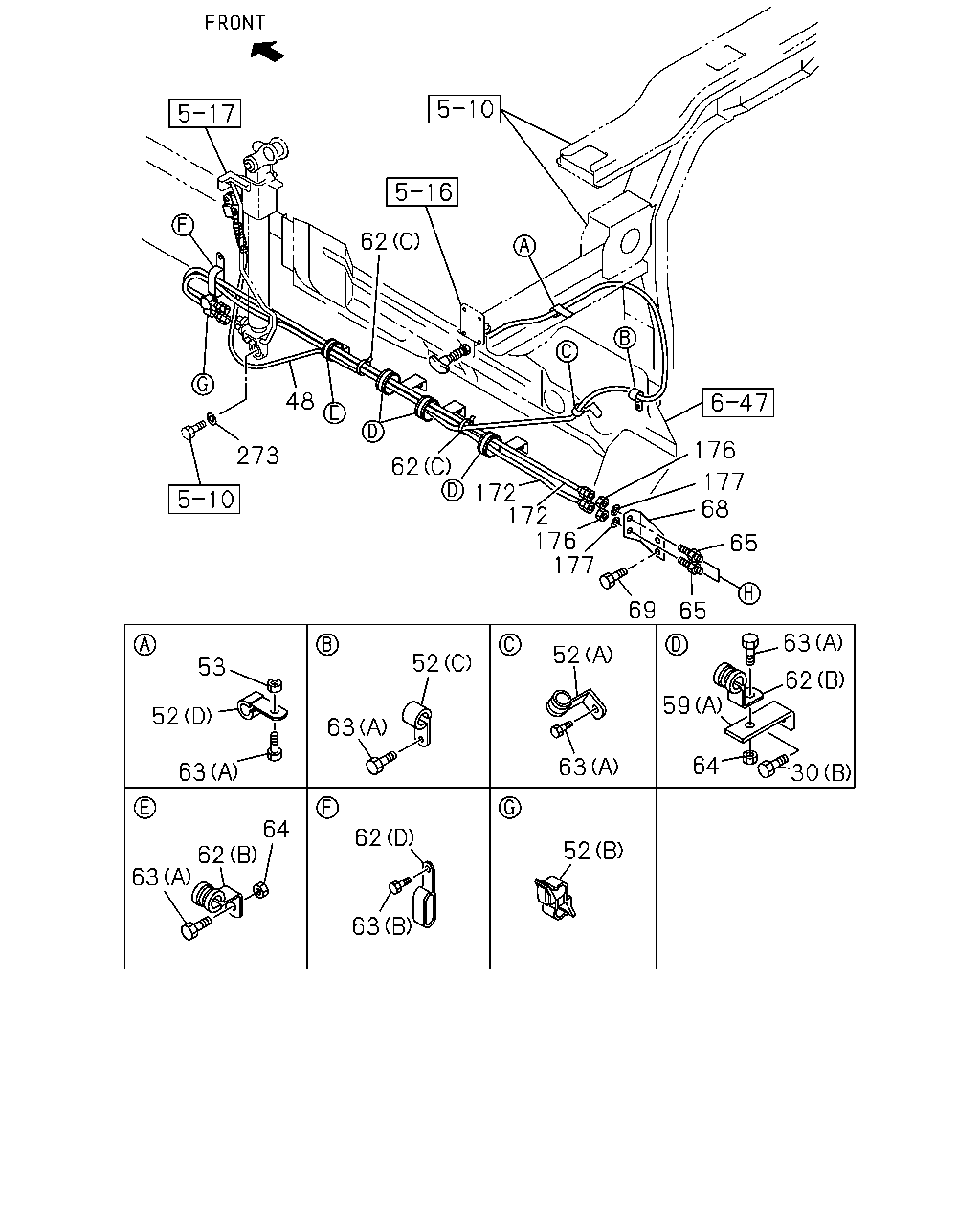

çizim 88188
62 48 176 273 62 177 68 172 172 176 177 65 69 65 63 52 52 53 62 59 52 63 64 63 63 30 64 62 62 52 63 63
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0407-0511 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0512-0512 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0407-0511 ●
48 CABLE ASM; CONT
6WF1 TC-C(1B8) L=2457 		1-62500-730-0 01 1 0512- ●
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0407-0511 ●
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0512- ●
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0407-0511 ●
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0512- ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0407-0511 ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0512-0606 ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		0-95234-635-0 01 1 0607- ●
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 0407-0511 ●
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 0512-0606 ●
52 CLIP; CONT CABLE
(D) ID=7 L=50 		0-95234-685-0 01 1 0607- ●
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
53 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
59 BRACKET; CLIP
(A) L=55 		1-47475-304-0 03 1 0407-0511 ●
59 BRACKET; CLIP
(A) L=55 		1-47475-304-0 03 1 0512- ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 0407-0511 ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 0512- ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0407-0511 ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0512- ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 04 1 0407-0511 ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 04 1 0512- ●
62 CLIP; OIL PIPE
(C) L=140 		5-09707-031-1 02 1 0407-0511 ●
62 CLIP; OIL PIPE
6WF1 TC-C(1B8) (C) L=140 		5-09707-031-1 02 1 0512- ●
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		9-09534-825-0 01 1 0407-0511 ●
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		9-09534-825-0 01 1 0512-0606 ●
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		0-95324-825-0 01 1 0607- ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 07 1 0407-0511 ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 07 1 0512-0512 ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 07 1 0601- ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511 ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512 ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
65 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 02 1 0407-0511 ●
65 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 02 1 0512-0607 ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 0608- ●
68 BRACKET; UNION 1-47479-429-0 01 1 0407-0511 ●
68 BRACKET; UNION 1-47479-429-0 01 1 0512- ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 0407-0511 ●
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 0512-0909 ●
172 HOSE; FLEX,OIL TILT
L=1600 		8-97634-002-0 02 1 0910- ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 0407-0511 ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 0512- ●
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0407-0511 ●
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0512-0603 ●
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604- ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 0407-0511 ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 0512-0605 ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
