5-01 — FRAME AND OTHER PARTS (#29567) — 204 parça

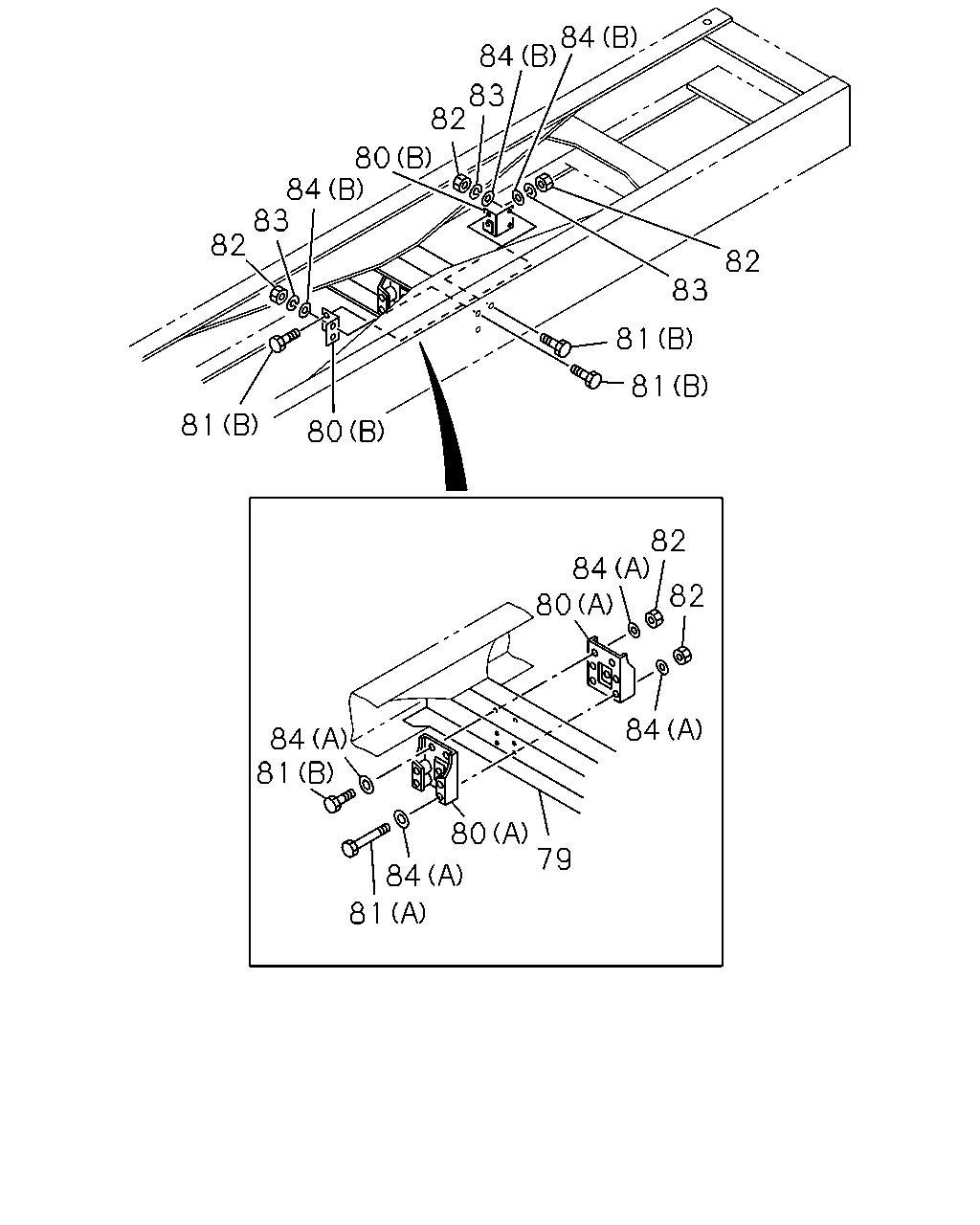

84 84 83 82 80 84 83 82 82 83 81 81 81 80 82 84 80 82 84 84 81 80 79 84 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
79	MEMBER; CROSS,TRUNNION ASM 6WF1 TC-C(1B8)	1-53181-686-2	01	1	0512-
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-0	01	1	0407-0511
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-S(97L)	1-53182-054-0	01	1	0512-0704
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53182-054-1	01	1	0705-
80	BRACKET; C/MBR 6WF1 TC-C(1B8) (B)	1-53167-610-0	04	1	0512-
80	BRACKET; C/MBR (B)	1-53167-665-1	02	1	0407-0511
80	BRACKET; C/MBR 6WG1 TC-S(97L) (B)	1-53167-665-1	02	1	0512-0706
80	BRACKET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53167-665-1	02	1	0707-
80	BRACKET; C/MBR (B)	1-53167-666-1	02	1	0407-0511
80	BRACKET; C/MBR 6WG1 TC-S(97L) (B)	1-53167-666-1	02	1	0512-0706
80	BRACKET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53167-666-1	02	1	0707-
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0407-
81	BOLT; BRKT 6WF1 TC-C(1B8) (B) M14X40	9-92061-440-0	08	1	0512-0512
81	BOLT; BRKT 6WF1 TC-C(1B8) (B) M14X40	0-20951-440-0	08	1	0601-
81	BOLT; BRKT 6WF1 TC-C(1B8) (A) M14X205	1-09000-147-0	02	1	0512-1209
81	BOLT; BRKT (A) M14X205	1-09000-147-0	02	1	1210-
81	BOLT; BRKT 6WF1 TC-C(1B8) (B) M14X50	9-92061-450-0	02	1	0512-0512
81	BOLT; BRKT 6WF1 TC-C(1B8) (B) M14X50	0-20951-450-0	02	1	0601-1209
81	BOLT; BRKT (B) M14X50	0-20951-450-0	02	1	1210-
81	BOLT; BRKT (A) M14X100	9-91066-400-0	04	1	0407-0511
81	BOLT; BRKT 6WG1 TC-S(97L) (A) M14X100	9-91066-400-0	04	1	0512-0704
81	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M14X100	9-91066-400-0	04	1	0705-1209
81	BOLT; BRKT (B) M14X45	9-92061-445-0	08	1	0407-0511
81	BOLT; BRKT 6WG1 TC-S(97L) (B) M14X45	9-92061-445-0	08	1	0512-0706
81	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M14X45	9-92061-445-0	08	1	0707-
81	BOLT; BRKT (B) M14X60	9-92061-460-0	04	1	0407-0512
81	BOLT; BRKT (B) M14X60	0-20951-460-0	04	1	0601-
82	NUT; BRKT M14	9-99110-514-0	08	1	0407-0512
82	NUT; BRKT M14	0-91110-514-0	08	1	0601-
82	NUT; BRKT M14	9-99110-514-0	12	1	0407-0512
82	NUT; BRKT M14	0-91110-514-0	12	1	0601-
83	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	0407-0603
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	0604-
84	WASHER; PL,BRKT 6WG1 TC-S(97L) (A) ID=15	9-09651-069-0	04	1	0512-0704
84	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	9-09651-069-0	04	1	0705-1201
84	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	04	1	1202-
84	WASHER; PL,BRKT (B) ID=15 OD=26	9-09164-514-0	16	1	0407-1104
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1105-
84	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	04	1	0407-0511
84	WASHER; PL,BRKT 6WF1 TC-C(1B8) (A) ID=15	9-09651-069-0	08	1	0512-1201
84	WASHER; PL,BRKT 6WF1 TC-C(1B8) (A) ID=15	8-98010-627-1	08	1	1202-

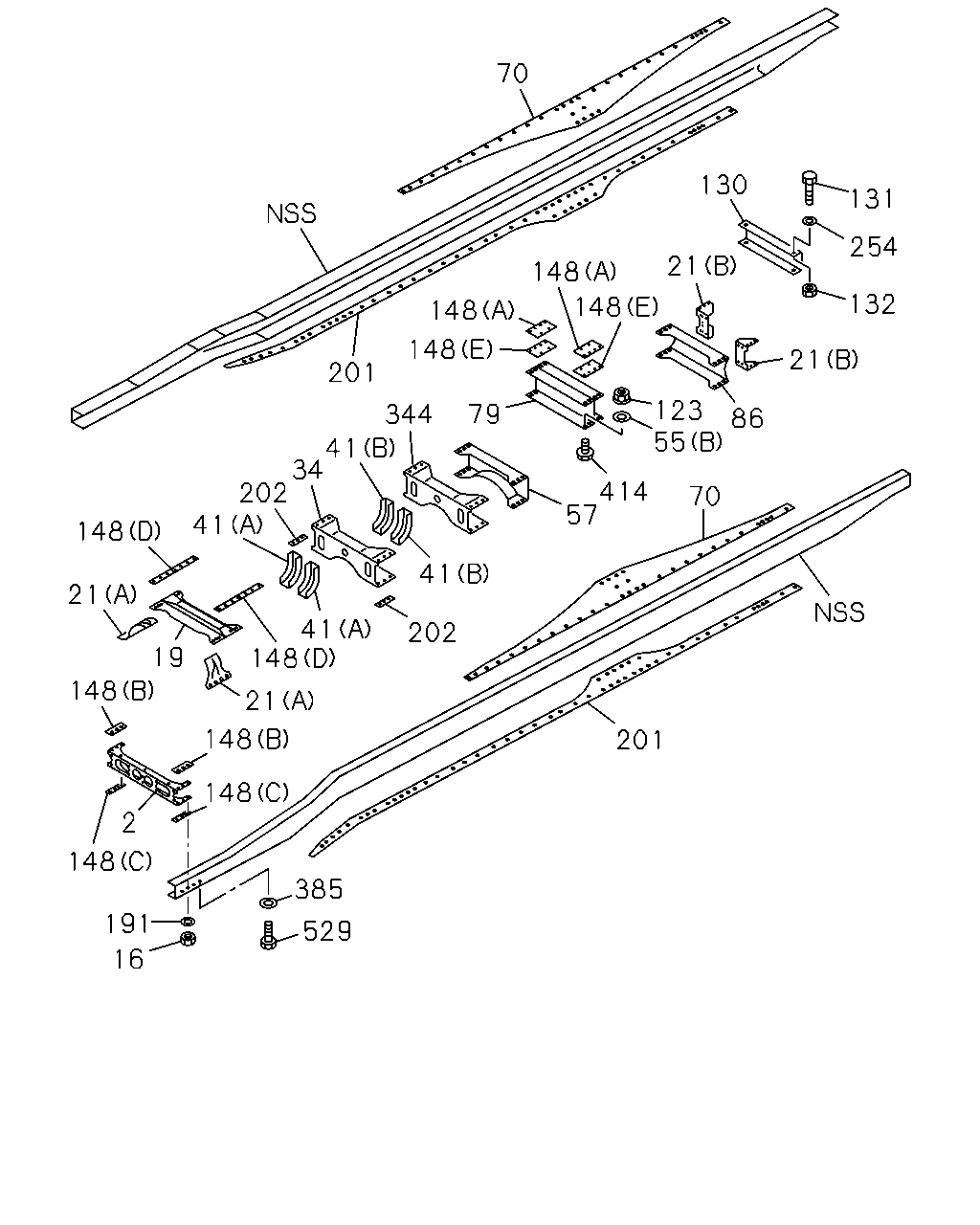

70 130 131 254 21 148 132 148 148 148 21 201 123 86 55 344 79 41 34 202 41 414 57 70 148 41 21 41 148 202 19 148 21 148 201 148 2 148 385 191 529 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	1-53181-975-4	01	1	0407-0511
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	0512-
16	BOLT; 1ST C/MBR TO S/MBR M16X40	9-92061-640-0	02	1	0407-0512
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	0601-
19	MEMBER; CROSS,2ND 6WF1 TC-C(1B8)	1-53174-231-1	01	1	0512-
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0407-0511
19	MEMBER; CROSS,2ND 6WG1 TC-S(97L)	1-53174-221-0	01	1	0512-0704
19	MEMBER; CROSS,2ND 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53174-221-0	01	1	0705-
21	GUSSET; 2ND CROSS 6WF1 TC-C(1B8) (A)	1-53164-185-1	02	1	0512-
21	GUSSET; 2ND CROSS (A)	1-53164-225-0	02	1	0407-0511
21	GUSSET; 2ND CROSS 6WG1 TC-S(97L) (A)	1-53164-225-0	02	1	0512-0704
21	GUSSET; 2ND CROSS 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-53164-225-0	02	1	0705-
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0407-0511
21	GUSSET; 2ND CROSS 6WG1 TC-S(97L) (B)	1-53167-287-3	02	1	0512-0704
21	GUSSET; 2ND CROSS 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53167-287-3	02	1	0705-
34	MEMBER; CROSS,3RD 6WG1 TC-S(97L)	1-53182-091-0	01	1	0512-0704
34	MEMBER; CROSS,3RD 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53182-091-0	01	1	0705-
34	MEMBER; CROSS,3RD	1-53182-070-0	01	1	0407-0511
34	MEMBER; CROSS,3RD 6WF1 TC-C(1B8)	1-53182-090-0	01	1	0512-
41	BRACKET; CENTER BRG,FRAME SIDE 6WG1 TC-C(72L) (B) L=355	1-53271-289-1	02	1	0705-
41	BRACKET; CENTER BRG,FRAME SIDE 6WG1 TC-S(97L) (A) L=330	1-53271-263-2	02	1	0512-0704
41	BRACKET; CENTER BRG,FRAME SIDE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=330	1-53271-263-2	02	1	0705-
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=335	1-53271-309-1	02	1	0407-0511
41	BRACKET; CENTER BRG,FRAME SIDE 6WF1 TC-C(1B8) (A) L=325	1-53271-341-0	02	1	0512-
55	WASHER; PL 6WF1 TC-C(1B8) (B) ID=19	9-09160-518-0	32	1	0512-1209
55	WASHER; PL (A) ID=15	9-09651-069-0	10	1	0407-1201
55	WASHER; PL (A) ID=15	8-98010-627-1	10	1	1202-
57	MEMBER; CROSS,RR SUSP FRT 6WF1 TC-C(1B8)	1-53181-937-3	01	1	0512-
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	0407-0511
57	MEMBER; CROSS,RR SUSP FRT 6WG1 TC-S(97L)	1-53181-994-1	01	1	0512-0704
57	MEMBER; CROSS,RR SUSP FRT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53181-994-1	01	1	0705-
70	GUSSET; TRUNNION,UPR 6WG1 TC-C(72L)	8-97620-862-1	02	1	0705-
70	GUSSET; TRUNNION,UPR 6WF1 TC-C(1B8)	1-53161-928-0	02	1	0512-
70	GUSSET; TRUNNION,UPR	1-53182-058-1	02	1	0407-0511
70	GUSSET; TRUNNION,UPR 6WG1 TC-S(97L)	1-53182-058-2	02	1	0512-
79	MEMBER; CROSS,TRUNNION ASM 6WF1 TC-C(1B8)	1-53181-686-2	01	1	0512-
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-0	01	1	0407-0511
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-S(97L)	1-53182-054-0	01	1	0512-0704
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53182-054-1	01	1	0705-
86	MEMBER; CROSS,RR SUSP RR 6WF1 TC-C(1B8)	1-53181-646-8	01	1	0512-
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-1	01	1	0407-0511
86	MEMBER; CROSS,RR SUSP RR 6WG1 TC-S(97L)	1-53181-134-1	01	1	0512-0704
86	MEMBER; CROSS,RR SUSP RR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53181-134-2	01	1	0705-
123	NUT 6WF1 TC-C(1B8) M18	9-99110-518-0	16	1	0512-0512
123	NUT 6WF1 TC-C(1B8) M18	0-91110-518-0	16	1	0601-1209
130	MEMBER; CROSS,END 6WF1 TC-C(1B8)	1-53181-613-1	01	1	0512-
130	MEMBER; CROSS,END	1-53181-537-1	01	1	0407-0511
130	MEMBER; CROSS,END 6WG1 TC-S(97L)	1-53181-537-1	01	1	0512-0704
130	MEMBER; CROSS,END 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53181-537-2	01	1	0705-
131	BOLT; END C/MBR M14X40	9-92061-440-0	04	1	0407-0512
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	0601-1209
131	BOLT; END C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) M14X40	0-20951-440-0	04	1	1210-
132	NUT; END C/MBR M14	9-99110-514-0	04	1	0407-0512
132	NUT; END C/MBR M14	0-91110-514-0	04	1	0601-1209
132	NUT; END C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) M14	0-91110-514-0	04	1	1210-
148	SPACER; C/MBR (B)	1-53168-400-1	02	1	0407-
148	SPACER; C/MBR (C)	1-53168-403-1	02	1	0407-
148	SPACER; C/MBR (D)	1-53168-443-0	02	1	0407-0511
148	SPACER; C/MBR 6WG1 TC-S(97L) (D)	1-53168-443-0	02	1	0512-0704
148	SPACER; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-53168-443-0	02	1	0705-
148	SPACER; C/MBR (E) T=7.0	1-53168-486-0	02	1	0407-0511
148	SPACER; C/MBR 6WG1 TC-S(97L) (E) T=7.0	1-53168-486-0	02	1	0512-0704
148	SPACER; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) T=7.0	1-53168-486-0	02	1	0705-
148	SPACER; C/MBR (A) T=7.5	1-53168-487-0	02	1	0407-0511
148	SPACER; C/MBR 6WG1 TC-S(97L) (A) T=7.5	1-53168-487-0	02	1	0512-0704
148	SPACER; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) T=7.5	1-53168-487-0	02	1	0705-
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-223-0	02	1	0407-
201	GUSSET; C/MBR 6WG1 TC-C(72L)	8-97620-863-1	02	1	0705-
201	GUSSET; C/MBR 6WF1 TC-C(1B8)	1-53161-929-0	02	1	0512-
201	GUSSET; C/MBR	1-53182-059-2	02	1	0407-0511
201	GUSSET; C/MBR 6WG1 TC-S(97L)	1-53182-059-3	02	1	0512-
202	SPACER; 3RD C/MBR	1-53168-506-0	02	1	0407-0511
202	SPACER; 3RD C/MBR 6WG1 TC-S(97L)	1-53168-506-0	02	1	0512-0704
202	SPACER; 3RD C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53168-506-0	02	1	0705-
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	04	1	0407-1201
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1202-1209
254	WASHER; PL,C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=15	8-98010-627-1	04	1	1210-
344	MEMBER; CROSS,4TH 6WG1 TC-C(72L)	1-53182-091-0	01	1	0705-
385	WASHER; PL,DUMMY 6WG1 TC-S(97L) ID=16.2	1-09503-223-0	04	1	0512-0704
385	WASHER; PL,DUMMY 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.2	1-09503-223-0	04	1	0705-0706
385	WASHER; PL,DUMMY 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.2	1-09503-223-0	02	1	0707-
414	BOLT 6WF1 TC-C(1B8) M18X60	9-91066-860-0	16	1	0512-0805
414	BOLT 6WF1 TC-C(1B8) M18X60	8-98036-497-0	16	1	0806-1209
529	BOLT; DUMMY,HOLE 6WG1 TC-S(97L) M16X30	0-20801-630-0	04	1	0512-0704
529	BOLT; DUMMY,HOLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M16X30	0-20801-630-0	04	1	0705-0706
529	BOLT; DUMMY,HOLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M16X30	0-20801-630-0	02	1	0707-

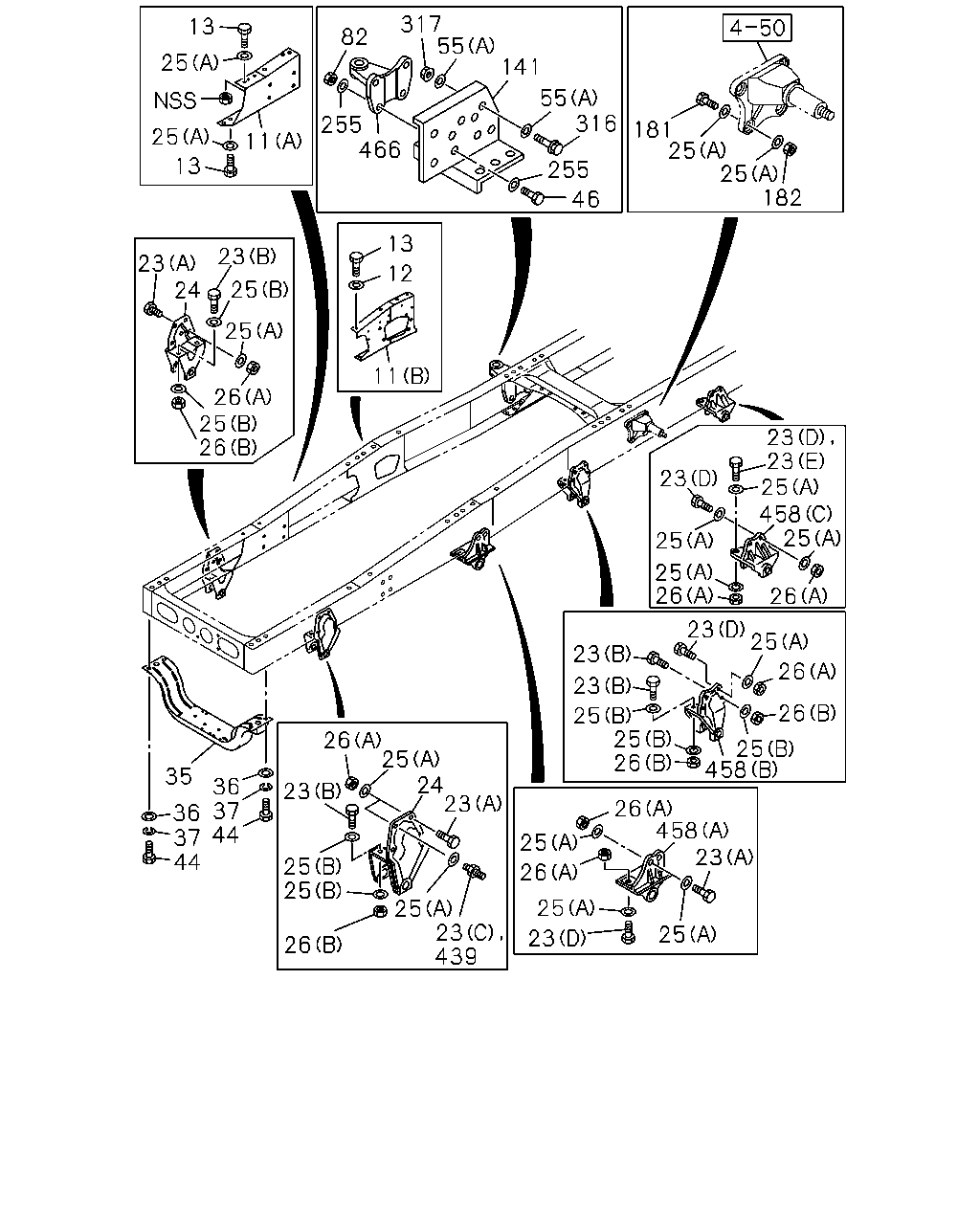

317 55 13 82 141 25 55 316 255 466 11 181 25 25 25 182 13 255 46 13 23 23 24 12 25 25 11 26 25 26 23 23 23 25 458 25 25 25 26 26 23 25 23 26 23 26 25 25 26 26 25 24 23 25 458 35 36 37 44 23 26 458 23 36 37 44 25 25 25 26 25 23 439 25 25 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (B)	1-53221-230-4	01	1	0512-0805
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (B)	8-98056-611-1	01	1	0806-
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (B)	1-53221-231-4	01	1	0512-0805
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (B)	8-98056-612-0	01	1	0806-
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	0407-
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	0407-
11	BRACKET; ENG MTG (B)	1-53221-226-4	01	1	0407-0511
11	BRACKET; ENG MTG 6WG1 TC-S(97L) (B)	1-53221-226-4	01	1	0512-0704
11	BRACKET; ENG MTG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53221-226-4	01	1	0705-
11	BRACKET; ENG MTG (B)	1-53221-227-4	01	1	0407-0511
11	BRACKET; ENG MTG 6WG1 TC-S(97L) (B)	1-53221-227-4	01	1	0512-0704
11	BRACKET; ENG MTG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53221-227-4	01	1	0705-
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	0407-1201
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	02	1	1202-
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	06	1	0407-0407
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	04	1	0408-0512
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	0601-
23	BOLT; BRKT,SPR 6WG1 TC-S(97L) (D) M14X50	9-92061-450-0	12	1	0512-0512
23	BOLT; BRKT,SPR 6WG1 TC-S(97L) (D) M14X50	0-20951-450-0	12	1	0601-0704
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M14X50	0-20951-450-0	12	1	0705-
23	BOLT; BRKT,SPR (C) M12X25,M14X45 L=81	1-09029-103-0	02	1	0407-0511
23	BOLT; BRKT,SPR 6WG1 TC-S(97L) (C) M12X25,M14X45 L=81	1-09029-103-0	02	1	0512-0704
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12X25,M14X45 L=81	1-09029-103-0	02	1	0705-
23	BOLT; BRKT,SPR (A) M14X40	9-92061-440-0	10	1	0407-0512
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	10	1	0601-
23	BOLT; BRKT,SPR (D) M14X50	9-92061-450-0	12	1	0407-0511
23	BOLT; BRKT,SPR 6WF1 TC-C(1B8) (D) M14X50	9-92061-450-0	16	1	0512-0512
23	BOLT; BRKT,SPR 6WF1 TC-C(1B8) (D) M14X50	0-20951-450-0	16	1	0601-
23	BOLT; BRKT,SPR (E) M14X60	9-92061-460-0	04	1	0407-0511
23	BOLT; BRKT,SPR 6WG1 TC-S(97L) (E) M14X60	9-92061-460-0	04	1	0512-0512
23	BOLT; BRKT,SPR 6WG1 TC-S(97L) (E) M14X60	0-20951-460-0	04	1	0601-0704
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) M14X60	0-20951-460-0	04	1	0705-
23	BOLT; BRKT,SPR (B) M16X50	9-92061-650-0	12	1	0407-0512
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	12	1	0601-
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0407-
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0407-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	20	1	0407-
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	51	1	0407-0407
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	50	1	0408-1201
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	50	1	1202-
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	24	1	0407-0512
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	24	1	0601-
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	12	1	0407-0512
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	0601-
35	MEMBER; UNDER	1-53174-263-2	01	1	0407-
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0407-
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	0407-0603
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0604-
44	BOLT; UNDER MBR M16X60	9-92061-660-0	04	1	0407-0512
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0601-
46	BOLT; BRKT FIX M14X60	9-92061-460-0	04	1	0407-0512
46	BOLT; BRKT FIX M14X60	0-20951-460-0	04	1	0601-
55	WASHER; PL 6WF1 TC-C(1B8) (B) ID=19	9-09160-518-0	32	1	0512-1209
55	WASHER; PL (A) ID=15	9-09651-069-0	10	1	0407-1201
55	WASHER; PL (A) ID=15	8-98010-627-1	10	1	1202-
82	NUT; BRKT M14	9-99110-514-0	08	1	0407-0512
82	NUT; BRKT M14	0-91110-514-0	08	1	0601-
82	NUT; BRKT M14	9-99110-514-0	12	1	0407-0512
82	NUT; BRKT M14	0-91110-514-0	12	1	0601-
141	STIFFENER	1-53151-833-1	01	1	0407-
181	BOLT; S/ABS BRKT TO FRAME M14X50	9-92061-450-0	08	1	0407-0512
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	0601-
182	NUT; S/ABS BRKT TO FRAME M14	9-99110-514-0	08	1	0407-0512
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	0601-
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0407-1201
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1202-
316	BOLT; STIFFENER M14X50	9-92061-450-0	05	1	0407-0512
316	BOLT; STIFFENER M14X50	0-20951-450-0	05	1	0601-
317	NUT; STIFFENER M14	9-99110-514-0	05	1	0407-0512
317	NUT; STIFFENER M14	0-91110-514-0	05	1	0601-
439	STUD; BRKT,SPR 6WF1 TC-C(1B8) M12X25,M14X45 L=81	1-09029-103-0	02	1	0512-
458	BRACKET; LEAF SPRING (B)	1-53351-217-0	01	1	0407-
458	BRACKET; LEAF SPRING (B)	1-53351-218-0	01	1	0407-
458	BRACKET; LEAF SPRING (C)	1-53352-067-3	02	1	0407-
458	BRACKET; LEAF SPRING (A)	1-53352-179-0	01	1	0407-
458	BRACKET; LEAF SPRING (A)	1-53352-180-0	01	1	0407-
466	BRACKET; BOOSTER	1-44515-073-0	01	1	0407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
