4-60 — REAR SUSPENSION (#29564) — 109 parça

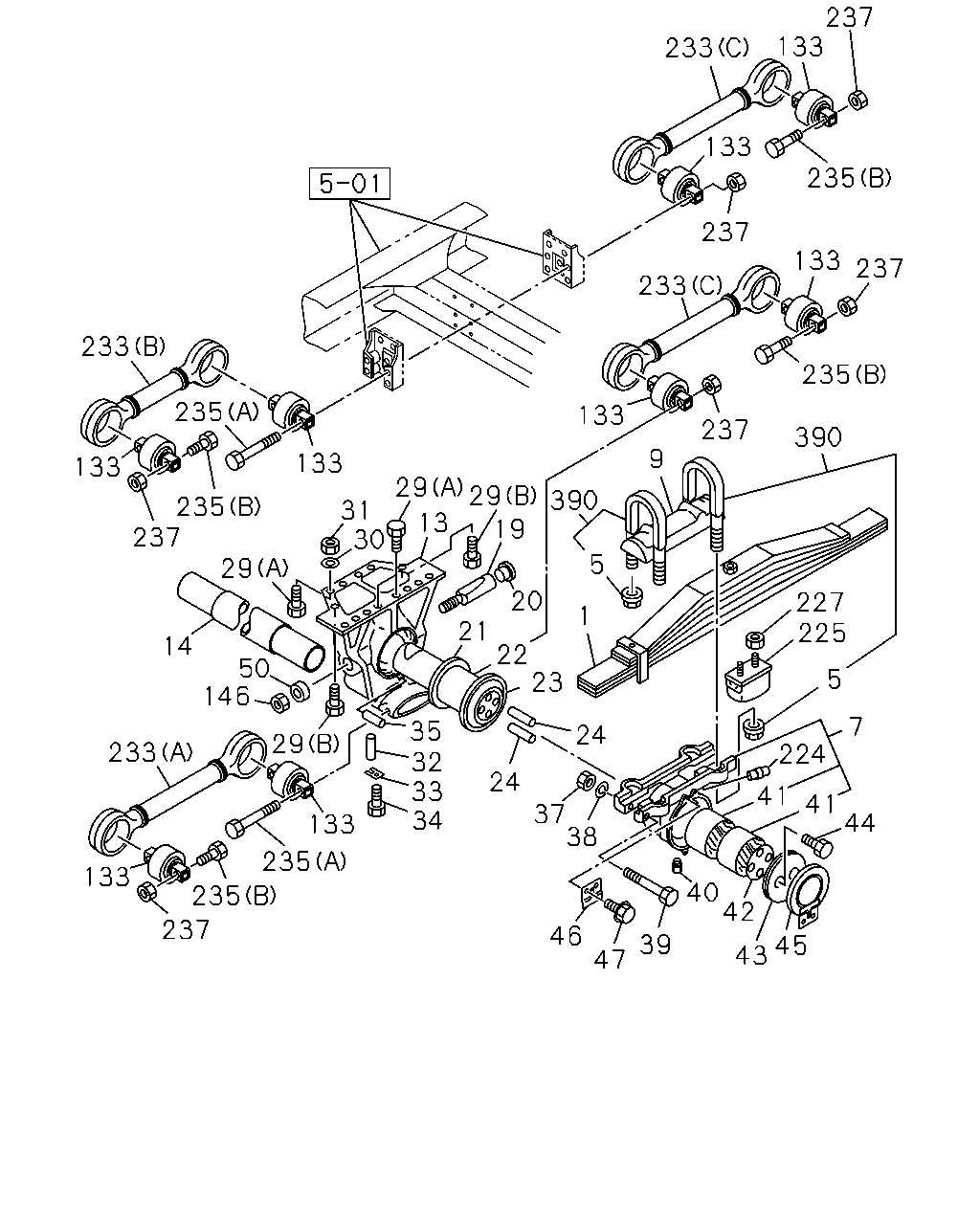

çizim 104159
237 133 233 133 235 237 133 237 233 233 235 237 235 133 390 9 133 133 29 29 390 235 237 31 30 13 19 5 29 20 227 225 1 21 14 22 23 50 146 5 7 35 32 33 34 24 29 233 224 41 24 41 37 38 44 133 235 235 133 40 42 45 43 237 46 47 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		1-51410-301-0 02 1 0407-0511 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		1-51410-301-0 02 1 0512-0604 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-97614-093-0 02 1 0605-0802 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-98102-211-1 02 1 0803- ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE 		1-09440-058-0 08 1 0407-0511 ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE 		1-09440-058-0 08 1 0512- ●
7 SEAT; SPR,LWR 1-51385-091-2 02 1 0407-0511 ●
7 SEAT; SPR,LWR 1-51385-091-2 02 1 0512-0604 ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 0605- ●
9 PAD; U BOLT,RR SPR 1-51372-019-1 02 1 0407-0511 ●
9 PAD; U BOLT,RR SPR 1-51372-019-1 02 1 0512-1010 ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1011- ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 0407-0511 ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 0512- ●
14 PIPE; TRUNNION BRKT 1-51389-032-0 01 1 0407-0511 ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 0512- ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 0407-0511 ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 0512- ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 0407-0511 ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 0512- ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 0407-0511 ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 0512- ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 0407-0511 ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 0512- ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 0407-0511 ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 0512- ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 0407-0511 ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 0512- ●
29 BOLT; BRKT TO FRAME
(A) M18X80 		1-09000-428-1 24 1 0407-0506 ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		1-09000-221-2 24 1 0507-0511 ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		1-09000-221-2 24 1 0512-0712 ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 0801- ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 0407-0511 ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 0512- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 0407-0511 ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 0512- ●
31 NUT; TRUNNION BRKT
M18 		9-99110-518-0 28 1 0407-0511 ●
31 NUT; TRUNNION BRKT
M18 		9-99110-518-0 28 1 0512-0512 ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 0601- ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 0407-0511 ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 0512- ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 0407-0511 ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 0512- ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28081-016-0 02 1 0407-0511 ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28081-016-0 02 1 0512-0512 ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 0601- ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 0407-0511 ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 0512- ●
37 NUT; SPR SETTING
M22 		9-09110-522-0 04 1 0407-0511 ●
37 NUT; SPR SETTING
M22 		9-09110-522-0 04 1 0512-0512 ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 0601- ●
38 WASHER; LK,SPR SETTING
ID=22.5 		9-09150-622-0 04 1 0407-0511 ●
38 WASHER; LK,SPR SETTING
ID=22.5 		9-09150-622-0 04 1 0512-0603 ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 0604- ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 0407-0511 ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 0512- ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 0407-0511 ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 0512- ●
41 BUSHING; TRUNNION SHAFT 1-51386-004-0 04 1 0407-0511 ●
41 BUSHING; TRUNNION SHAFT 1-51386-004-0 04 1 0512-0902 ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 0903- ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 0407-0511 ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 0512- ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 0407-0511 ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 0512- ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 0407-0511 ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 0512- ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 0407-0511 ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 0512- ●
46 BRACKET; COVER 1-51387-015-2 02 1 0407-0511 ●
46 BRACKET; COVER 1-51387-015-2 02 1 0512- ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28080-812-0 08 1 0407-0511 ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28080-812-0 08 1 0512-0512 ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 0601- ●
50 WASHER; PL,TRUNNION SHAFT 1-09503-071-0 02 1 0407-0511 ●
50 WASHER; PL,TRUNNION SHAFT 1-09503-071-0 02 1 0512- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 12 1 0407-0511 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 12 1 0512- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-1 12 1 0407-0511 ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-1 12 1 0512- ●
146 NUT; KEY BOLT
M24 		9-99110-524-0 02 1 0407-0511 ●
146 NUT; KEY BOLT
M24 		9-99110-524-0 02 1 0512-0512 ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 0601- ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0407-0511 ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0512-0512 ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-072-1 02 1 0407-0511 ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-072-2 02 1 0512- ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-073-1 02 1 0407-0511 ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-073-2 02 1 0512- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 08 1 0407-0511 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 08 1 0512-0602 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 0603- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=520 		1-51511-605-0 02 1 0407-0511 ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=520 		1-51511-605-0 02 1 0512- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=535 		1-51511-657-0 01 1 0407-0511 ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=535 		1-51511-657-0 01 1 0512- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 03 1 0407-0511 ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 03 1 0512- ●
235 BOLT; TORQUE ROD
(A) M18X265 		1-09000-078-1 06 1 0407-0511 ●
235 BOLT; TORQUE ROD
(A) M18X265 		1-09000-078-1 06 1 0512-0805 ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 0806- ●
235 BOLT; TORQUE ROD
(B) M18X102 		1-09000-568-0 12 1 0407-0511 ●
235 BOLT; TORQUE ROD
(B) M18X102 		1-09000-568-0 12 1 0512-0805 ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 0806- ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 0407-0511 ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 0512- ●
390 U-BOLT SET; RR SPRING
L=350 		1-87870-392-1 04 1 0407-0511 ●
390 U-BOLT SET; RR SPRING
L=350 		1-87870-392-1 04 1 0512- ●
