◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#29562) — 197 parça

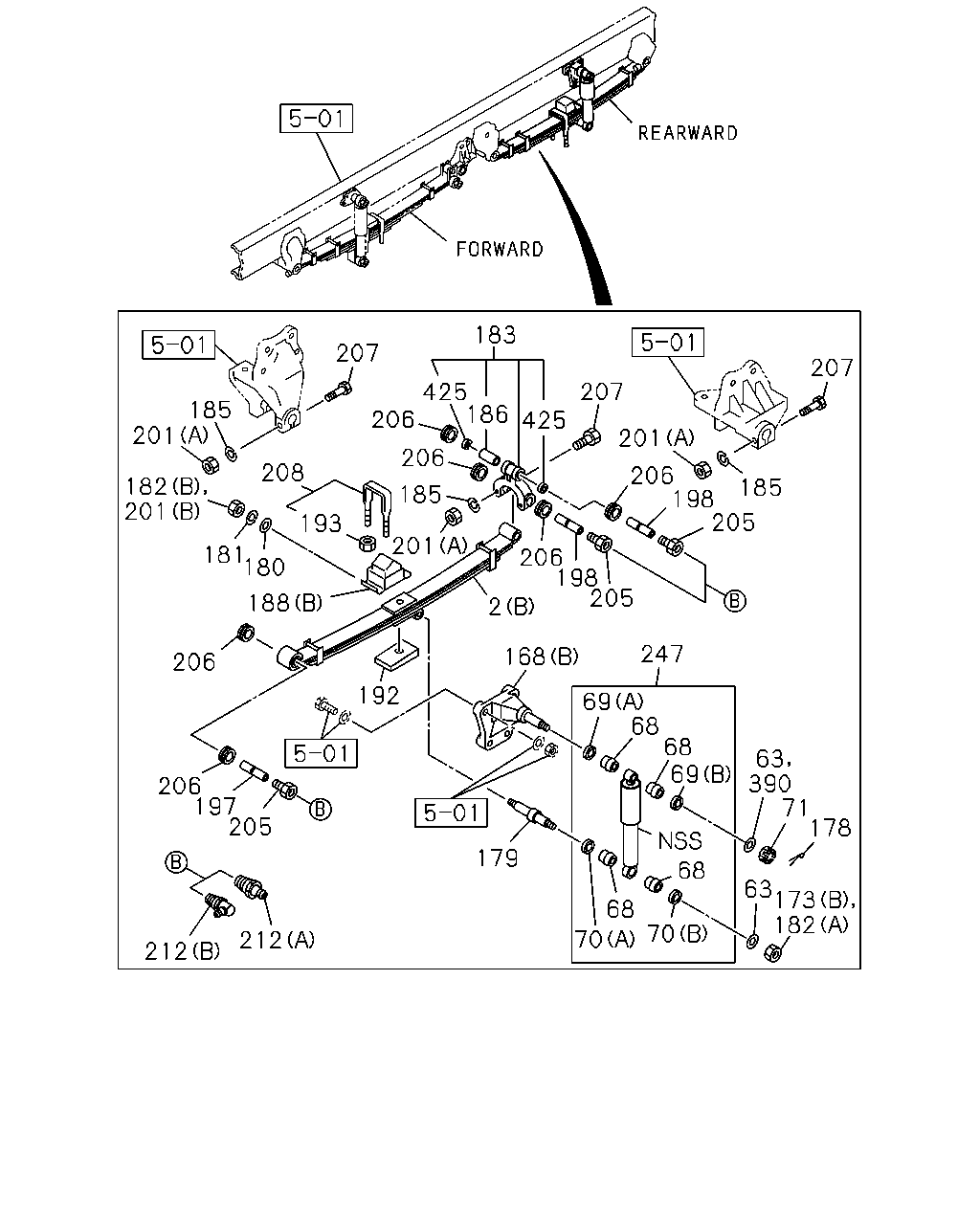

çizim 104060
183 207 207 207 425 186 206 185 201 425 201 206 182 201 208 206 198 205 185 185 193 201 181 180 206 198 205 188 2 247 168 206 192 69 68 68 69 63 390 71 178 206 197 205 68 179 63 173 182 68 70 70 212 212
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 4-LEAF 		1-51130-929-0 02 1 0407-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 4-LEAF 		1-51130-929-0 02 1 0512- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 4-LEAF 		1-51130-936-0 02 1 0407-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 4-LEAF 		1-51130-936-0 02 1 0512- ●
63 WASHER; PL,S/ABS,LWR
ID=21 		9-09160-520-0 02 1 0407-0511 ●
63 WASHER; PL,S/ABS,LWR
ID=21 		9-09160-520-0 04 1 0512-0605 ●
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 0606- ●
68 BUSHING; S/ABS 9-51631-026-0 16 1 0407-0511 ●
68 BUSHING; S/ABS 9-51631-026-0 08 1 0512- ●
68 BUSHING; S/ABS 9-51631-026-0 08 1 0512- ●
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0407-0511 ●
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0512- ●
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0407-0511 ●
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0512- ●
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0407-0511 ●
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0512- ●
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0407-0511 ●
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0512- ●
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0407-0511 ●
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0512-1107 ●
71 NUT; LK,S/ABS,UPR
M20 		0-91110-520-0 01 1 1108- ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0407-0511 ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0512-1012 ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101- ●
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0407-0511 ●
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0512-1309 ●
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310- ●
173 NUT; S/ABS
(A) M14 		9-99110-514-0 08 1 0407-0511 ●
173 NUT; S/ABS
(A) M14 		9-99110-514-0 08 1 0512-0512 ●
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0601- ●
173 NUT; S/ABS
(B) M20 		9-99110-520-0 04 1 0407-0511 ●
173 NUT; S/ABS
(B) M20 		9-99110-520-0 02 1 0512-0512 ●
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 0601- ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0407-0511 ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0512-0606 ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 04 1 0607-1011 ●
179 PIN 1-51682-094-1 02 1 0407-0511 ●
179 PIN 1-51682-094-1 02 1 0512- ●
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 0407-0511 ●
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 0512- ●
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 02 1 0407-0511 ●
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 02 1 0512-0603 ●
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 0604- ●
182 NUT; S/ABS LWR
(A) M20 		9-99110-520-0 01 1 0512-0512 ●
182 NUT; S/ABS LWR
(A) M20 		0-91110-520-0 01 1 0601- ●
182 NUT; S/ABS LWR
(B) M24 		9-99110-524-0 02 1 0512-0512 ●
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 02 1 0601- ●
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0407-0511 ●
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0512-1005 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006- ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0407-0511 ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0512-0603 ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0604- ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0407-0511 ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0512-1005 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-085-0 02 1 0407-0511 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-085-2 02 1 0512- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-125-1 02 1 0407-0511 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-125-1 02 1 0512- ●
192 PIECE; DIST 1-51177-281-0 02 1 0407-0511 ●
192 PIECE; DIST 1-51177-281-1 02 1 0512-1308 ●
192 PIECE; DIST 8-98200-748-0 02 1 1309- ●
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0407-0511 ●
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0512-0512 ●
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0601-1206 ●
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207- ●
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0407-0511 ●
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0512- ●
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0407-0511 ●
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0512- ●
201 NUT; PIN LK
(A) M12 		9-99110-512-0 24 1 0407-0511 ●
201 NUT; PIN LK
(A) M12 		9-99110-512-0 24 1 0512-0512 ●
201 NUT; PIN LK
(A) M12 		0-91110-512-0 24 1 0601- ●
201 NUT; PIN LK
(B) M24 		9-99110-524-0 02 1 0407-0511 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0407-0511 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0512- ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0407-0511 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0512- ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0407-0511 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0512-0512 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0601- ●
208 U-BOLT SET; FRT SPRING
FORWARD L=230 		1-87870-269-1 04 1 0407-0511 ●
208 U-BOLT SET; FRT SPRING
FORWARD L=230 		1-87870-269-2 04 1 0512-1206 ●
208 U-BOLT SET; FRT SPRING
FORWARD L=230 		1-87870-493-0 04 1 1207- ●
208 U-BOLT SET; FRT SPRING
REARWARD L=290 		1-87870-437-0 04 1 0407-0511 ●
208 U-BOLT SET; FRT SPRING
REARWARD L=290 		1-87870-437-2 04 1 0512- ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0407-0511 ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0512-0512 ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0601- ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0407-0511 ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0512-0512 ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0601- ●
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-810-0 02 1 0407-0511 ●
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-810-0 02 1 0512- ●
390 WASHER; PL,S/ABS,UPR
ID=21 		9-09160-520-0 02 1 0407-0511 ●
425 SEAL; DUST 1-51177-321-0 08 1 0407-0511 ●
425 SEAL; DUST 1-51177-321-0 08 1 0512-1005 ●

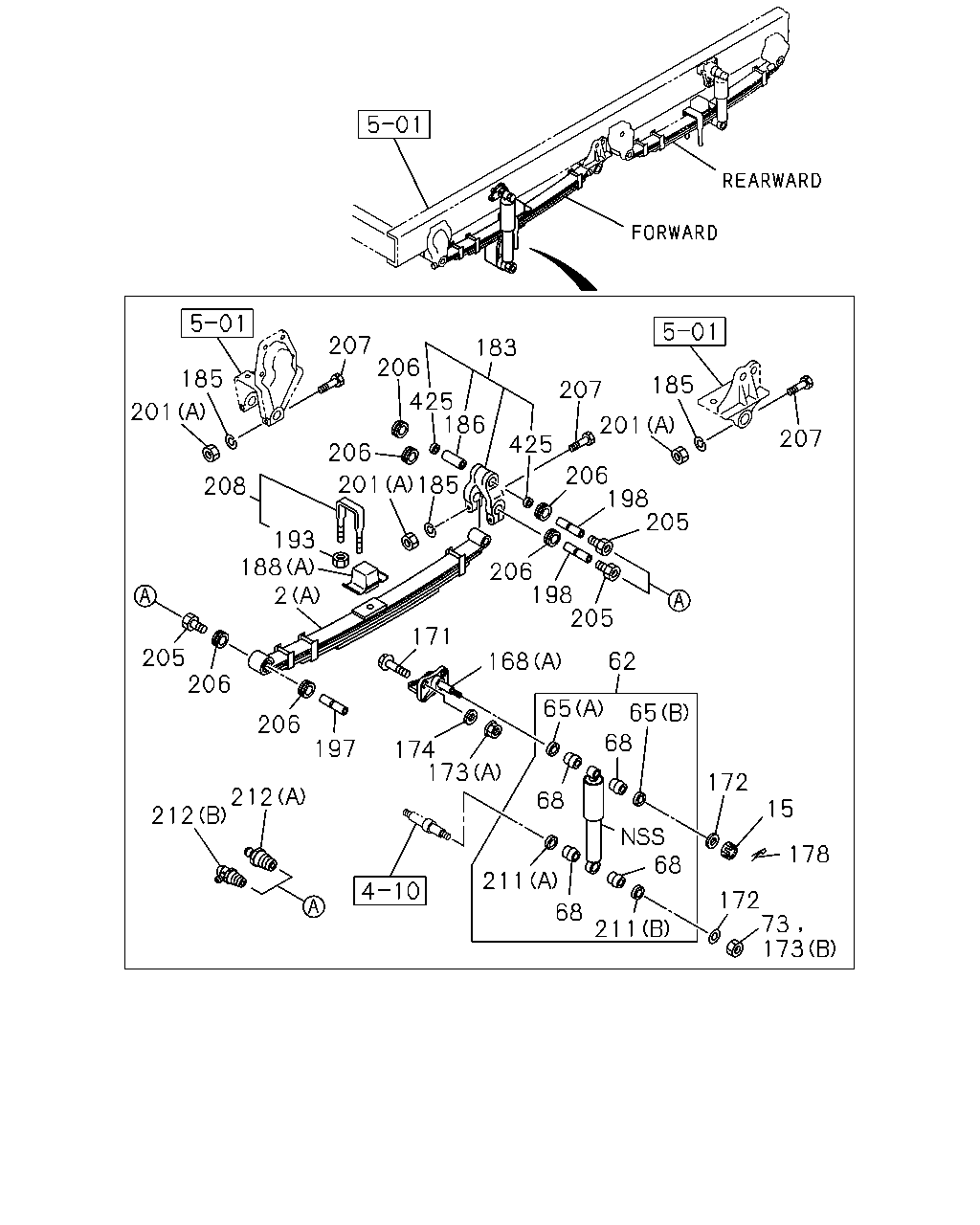

çizim 104063
207 206 183 185 185 207 425 186 201 201 207 425 206 185 206 198 205 201 208 193 188 2 206 198 205 171 205 206 62 168 65 65 206 68 197 174 173 172 212 212 68 15 68 178 211 172 73 173 68 211
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 4-LEAF 		1-51130-929-0 02 1 0407-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 4-LEAF 		1-51130-929-0 02 1 0512- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 4-LEAF 		1-51130-936-0 02 1 0407-0511 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 4-LEAF 		1-51130-936-0 02 1 0512- ●
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0407-0511 ●
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0512-1107 ●
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 02 1 1108- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-804-1 02 1 0407-0407 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-805-1 02 1 0408-0511 ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-805-1 02 1 0512- ●
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0407-0511 ●
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0512- ●
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0407-0511 ●
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0512- ●
68 BUSHING; S/ABS 9-51631-026-0 16 1 0407-0511 ●
68 BUSHING; S/ABS 9-51631-026-0 08 1 0512- ●
68 BUSHING; S/ABS 9-51631-026-0 08 1 0512- ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 01 1 0512-0512 ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 01 1 0601- ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0407-0511 ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0512-1012 ●
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101- ●
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0407-0511 ●
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0512-1309 ●
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310- ●
171 BOLT; S/ABS BRKT
M14X45 		9-92061-445-0 08 1 0407-0511 ●
171 BOLT; S/ABS BRKT
M14X45 		9-92061-445-0 08 1 0512- ●
172 WASHER; PL,S/ABS BRKT
ID=21 		9-09160-520-0 04 1 0407-0511 ●
172 WASHER; PL,S/ABS BRKT
ID=21 		9-09160-520-0 04 1 0512-0605 ●
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 0606- ●
173 NUT; S/ABS
(A) M14 		9-99110-514-0 08 1 0407-0511 ●
173 NUT; S/ABS
(A) M14 		9-99110-514-0 08 1 0512-0512 ●
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0601- ●
173 NUT; S/ABS
(B) M20 		9-99110-520-0 04 1 0407-0511 ●
173 NUT; S/ABS
(B) M20 		9-99110-520-0 02 1 0512-0512 ●
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 0601- ●
174 WASHER; LK,S/ABS
ID=14.2 		9-09150-614-0 08 1 0407-0511 ●
174 WASHER; LK,S/ABS
ID=14.2 		9-09150-614-0 08 1 0512-0603 ●
174 WASHER; LK,S/ABS
ID=14.2 		0-91510-614-0 08 1 0604- ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0407-0511 ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0512-0606 ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 04 1 0607-1011 ●
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0407-0511 ●
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0512-1005 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006- ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0407-0511 ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0512-0603 ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0604- ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0407-0511 ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0512-1005 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-085-0 02 1 0407-0511 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-085-2 02 1 0512- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-125-1 02 1 0407-0511 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-125-1 02 1 0512- ●
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0407-0511 ●
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0512-0512 ●
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0601-1206 ●
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207- ●
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0407-0511 ●
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0512- ●
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0407-0511 ●
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0512- ●
201 NUT; PIN LK
(A) M12 		9-99110-512-0 24 1 0407-0511 ●
201 NUT; PIN LK
(A) M12 		9-99110-512-0 24 1 0512-0512 ●
201 NUT; PIN LK
(A) M12 		0-91110-512-0 24 1 0601- ●
201 NUT; PIN LK
(B) M24 		9-99110-524-0 02 1 0407-0511 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0407-0511 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0512- ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0407-0511 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0512- ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0407-0511 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0512-0512 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0601- ●
208 U-BOLT SET; FRT SPRING
FORWARD L=230 		1-87870-269-1 04 1 0407-0511 ●
208 U-BOLT SET; FRT SPRING
FORWARD L=230 		1-87870-269-2 04 1 0512-1206 ●
208 U-BOLT SET; FRT SPRING
FORWARD L=230 		1-87870-493-0 04 1 1207- ●
208 U-BOLT SET; FRT SPRING
REARWARD L=290 		1-87870-437-0 04 1 0407-0511 ●
208 U-BOLT SET; FRT SPRING
REARWARD L=290 		1-87870-437-2 04 1 0512- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0407-0511 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0512- ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0407-0511 ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0512- ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0407-0511 ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0512-0512 ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0601- ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0407-0511 ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0512-0512 ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0601- ●
425 SEAL; DUST 1-51177-321-0 08 1 0407-0511 ●
425 SEAL; DUST 1-51177-321-0 08 1 0512-1005 ●
çizim 104785
140 377 140 377 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 0407-0511 ●
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 0512- ●
140 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0407-0511 ●
140 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0512-0512 ●
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0601- ●
377 WASHER; LK,BRKT
ID=15 		9-09651-069-0 04 1 0407-0511 ●
377 WASHER; LK,BRKT
ID=15 		9-09651-069-0 04 1 0512-1201 ●
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 04 1 1202- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
