◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-43 - POWER STEERING BOOSTER ▶
4-43 — POWER STEERING BOOSTER (#29561) — 56 parça

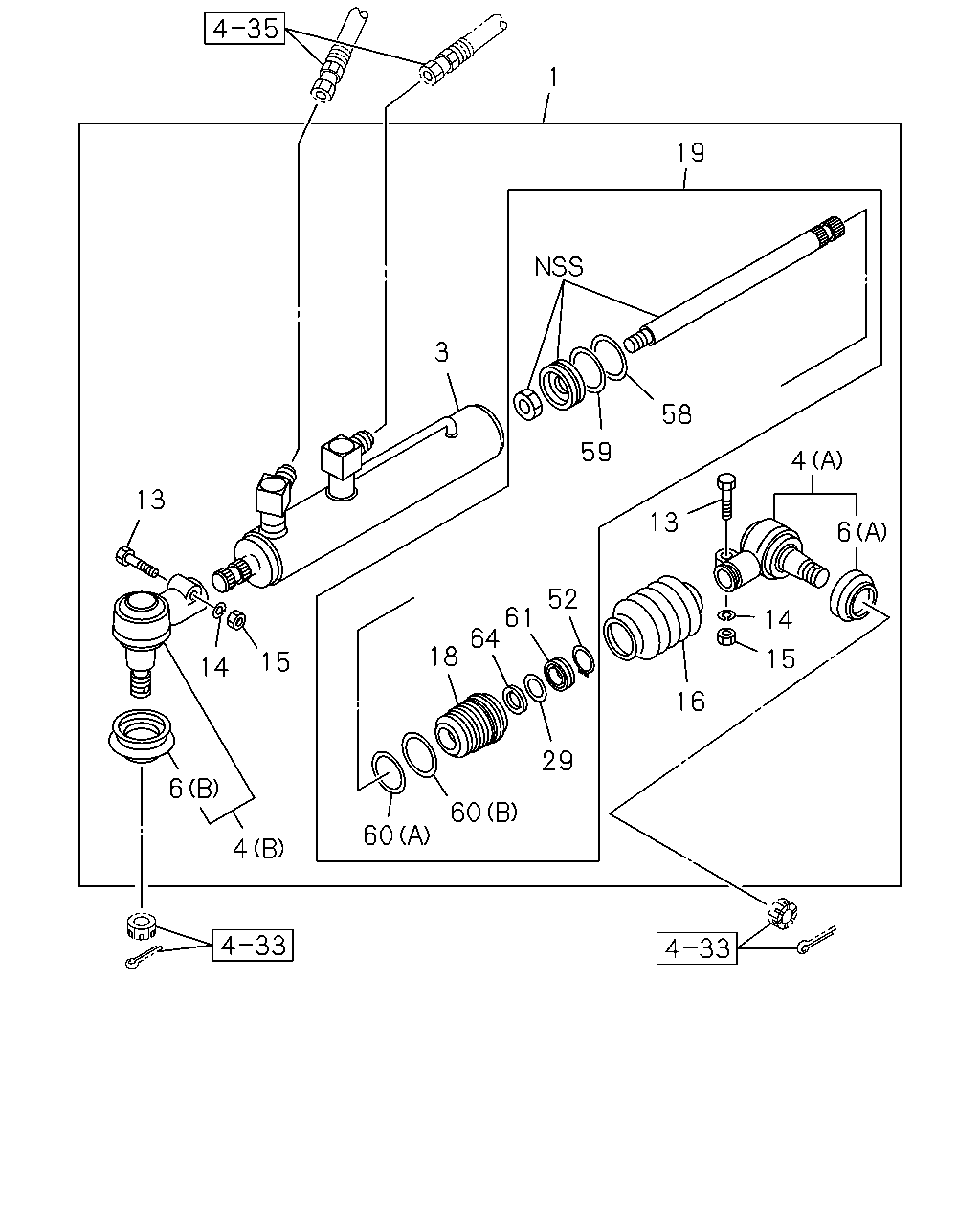

çizim 86756
1 19 3 58 59 4 13 13 6 52 61 64 14 18 15 15 14 16 29 6 60 60 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOOSTER ASM; POWER STRG 1-44510-124-2 01 1 0407-0511 ●
1 BOOSTER ASM; POWER STRG 1-44510-124-2 01 1 0512- ●
3 CYLINDER ASM; POWER STRG BOOSTER 1-44511-035-0 01 1 0407-0511 ●
3 CYLINDER ASM; POWER STRG BOOSTER 1-44511-035-0 01 1 0512- ●
4 SOCKET ASM; BALL,POWER STRG BOOSTER
(B) 		1-44517-021-0 01 1 0407-0511 ●
4 SOCKET ASM; BALL,POWER STRG BOOSTER
(B) 		1-44517-021-0 01 1 0512- ●
4 SOCKET ASM; BALL,POWER STRG BOOSTER
(A) 		1-44517-022-0 01 1 0407-0511 ●
4 SOCKET ASM; BALL,POWER STRG BOOSTER
(A) 		1-44517-022-0 01 1 0512- ●
6 COVER; DUST,POWER STRG BOOSTER
(A) 		1-43159-078-0 01 1 0407-0511 ●
6 COVER; DUST,POWER STRG BOOSTER
(A) 		1-43159-078-0 01 1 0512- ●
6 COVER; DUST,POWER STRG BOOSTER
(B) 		1-43159-081-0 01 1 0407-0511 ●
6 COVER; DUST,POWER STRG BOOSTER
(B) 		1-43159-091-0 01 1 0512- ●
13 BOLT; SOCKET,POWER STRG BOOSTER 1-44519-247-0 02 1 0407-0511 ●
13 BOLT; SOCKET,POWER STRG BOOSTER 1-44519-247-0 02 1 0512- ●
14 WASHER; SOCKET,POWER STRG BOOSTER 1-44519-248-0 02 1 0407-0511 ●
14 WASHER; SOCKET,POWER STRG BOOSTER 1-44519-248-0 02 1 0512- ●
15 NUT; SOCKET,POWER STRG BOOSTER 1-44519-249-0 02 1 0407-0511 ●
15 NUT; SOCKET,POWER STRG BOOSTER 1-44519-249-0 02 1 0512- ●
16 BOOT; POWER STRG BOOSTER 1-44519-246-0 01 1 0407-0511 ●
16 BOOT; POWER STRG BOOSTER 1-44519-246-0 01 1 0512- ●
18 BEARING; POWER STRG BOOSTER 1-44519-237-0 01 1 0407-0511 ●
18 BEARING; POWER STRG BOOSTER 1-44519-237-0 01 1 0512- ●
19 PISTON & ROD ASM; POWER STRG BOOSTER 1-44520-008-0 01 1 0407-0511 ●
19 PISTON & ROD ASM; POWER STRG BOOSTER 1-44520-008-0 01 1 0512- ●
29 RING; BACKUP,POWER STRG BOOSTER 1-44519-239-0 01 1 0407-0511 ●
29 RING; BACKUP,POWER STRG BOOSTER 1-44519-239-0 01 1 0512- ●
52 RING; RET,POWER STRG BOOSTER 1-44519-241-0 01 1 0407-0511 ●
52 RING; RET,POWER STRG BOOSTER 1-44519-241-0 01 1 0512- ●
58 RING; SEAL,POWER STRG BOOSTER 1-44519-245-0 01 1 0407-0511 ●
58 RING; SEAL,POWER STRG BOOSTER 1-44519-245-0 01 1 0512- ●
59 GASKET; PISTON,POWER STRG BOOSTER 1-44519-244-0 01 1 0407-0511 ●
59 GASKET; PISTON,POWER STRG BOOSTER 1-44519-244-0 01 1 0512- ●
60 GASKET; BRG,POWER STRG BOOSTER
(A) 		1-44519-242-0 01 1 0407-0511 ●
60 GASKET; BRG,POWER STRG BOOSTER
(A) 		1-44519-242-0 01 1 0512- ●
60 GASKET; BRG,POWER STRG BOOSTER
(B) 		1-44519-243-0 01 1 0407-0511 ●
60 GASKET; BRG,POWER STRG BOOSTER
(B) 		1-44519-243-0 01 1 0512- ●
61 SEAL; DUST,POWER STRG BOOSTER 1-44519-240-0 01 1 0407-0511 ●
61 SEAL; DUST,POWER STRG BOOSTER 1-44519-240-0 01 1 0512- ●
64 GASKET; POWER STRG BOOSTER 1-44519-238-0 01 1 0407-0511 ●
64 GASKET; POWER STRG BOOSTER 1-44519-238-0 01 1 0512- ●
çizim 86828
2 58 59 61 64 29 60 60
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; POWER STRG BOOSTER 1-44519-250-0 01 1 0407-0511 ●
2 REPAIR KIT; POWER STRG BOOSTER 1-44519-250-0 01 1 0512- ●
29 RING; BACKUP,POWER STRG BOOSTER 1-44519-239-0 01 1 0407-0511 ●
29 RING; BACKUP,POWER STRG BOOSTER 1-44519-239-0 01 1 0512- ●
58 RING; SEAL,POWER STRG BOOSTER 1-44519-245-0 01 1 0407-0511 ●
58 RING; SEAL,POWER STRG BOOSTER 1-44519-245-0 01 1 0512- ●
59 GASKET; PISTON,POWER STRG BOOSTER 1-44519-244-0 01 1 0407-0511 ●
59 GASKET; PISTON,POWER STRG BOOSTER 1-44519-244-0 01 1 0512- ●
60 GASKET; BRG,POWER STRG BOOSTER
(A) 		1-44519-242-0 01 1 0407-0511 ●
60 GASKET; BRG,POWER STRG BOOSTER
(A) 		1-44519-242-0 01 1 0512- ●
60 GASKET; BRG,POWER STRG BOOSTER
(B) 		1-44519-243-0 01 1 0407-0511 ●
60 GASKET; BRG,POWER STRG BOOSTER
(B) 		1-44519-243-0 01 1 0512- ●
61 SEAL; DUST,POWER STRG BOOSTER 1-44519-240-0 01 1 0407-0511 ●
61 SEAL; DUST,POWER STRG BOOSTER 1-44519-240-0 01 1 0512- ●
64 GASKET; POWER STRG BOOSTER 1-44519-238-0 01 1 0407-0511 ●
64 GASKET; POWER STRG BOOSTER 1-44519-238-0 01 1 0512- ●
