Sayfa 0-52 - Isuzu EPC

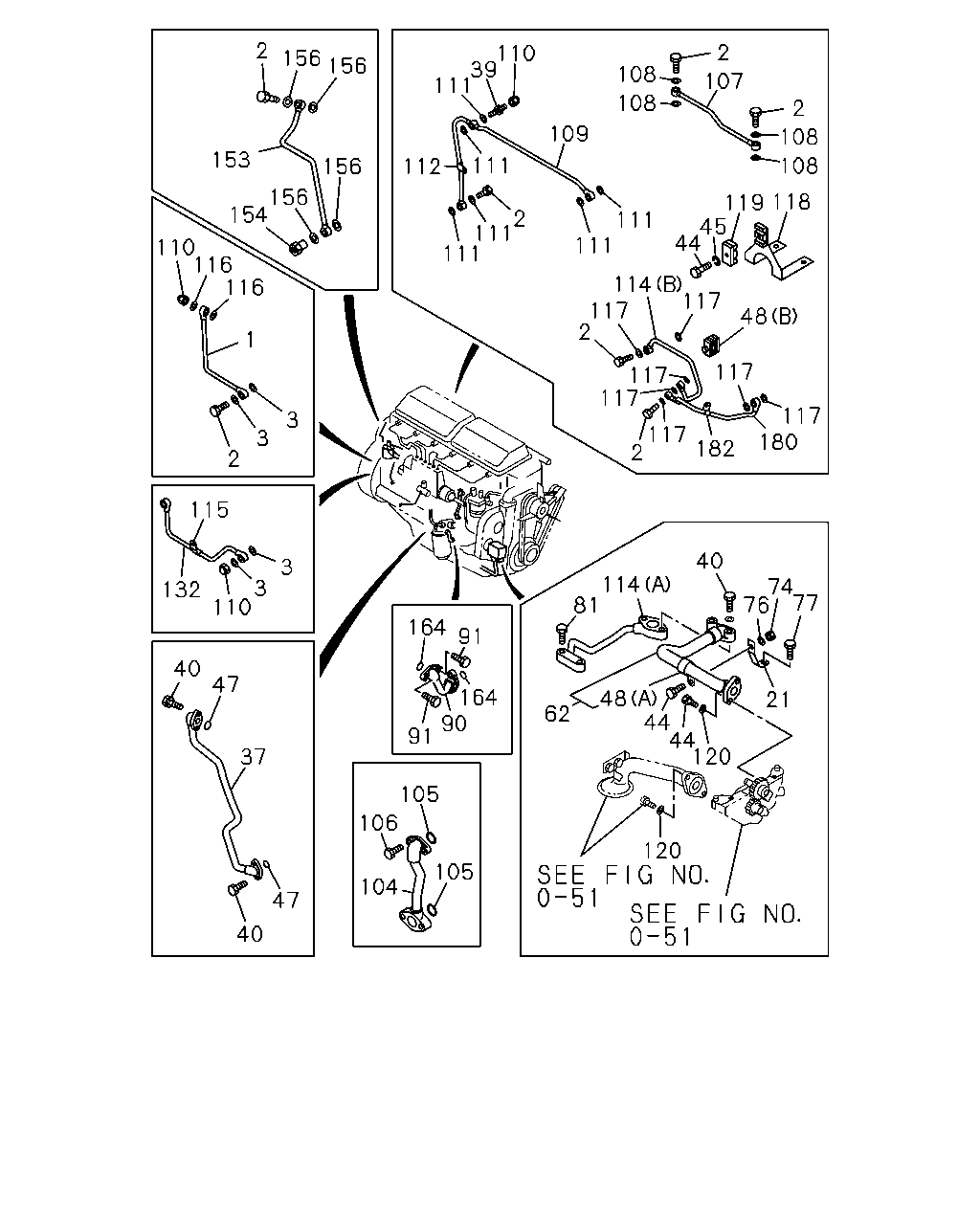

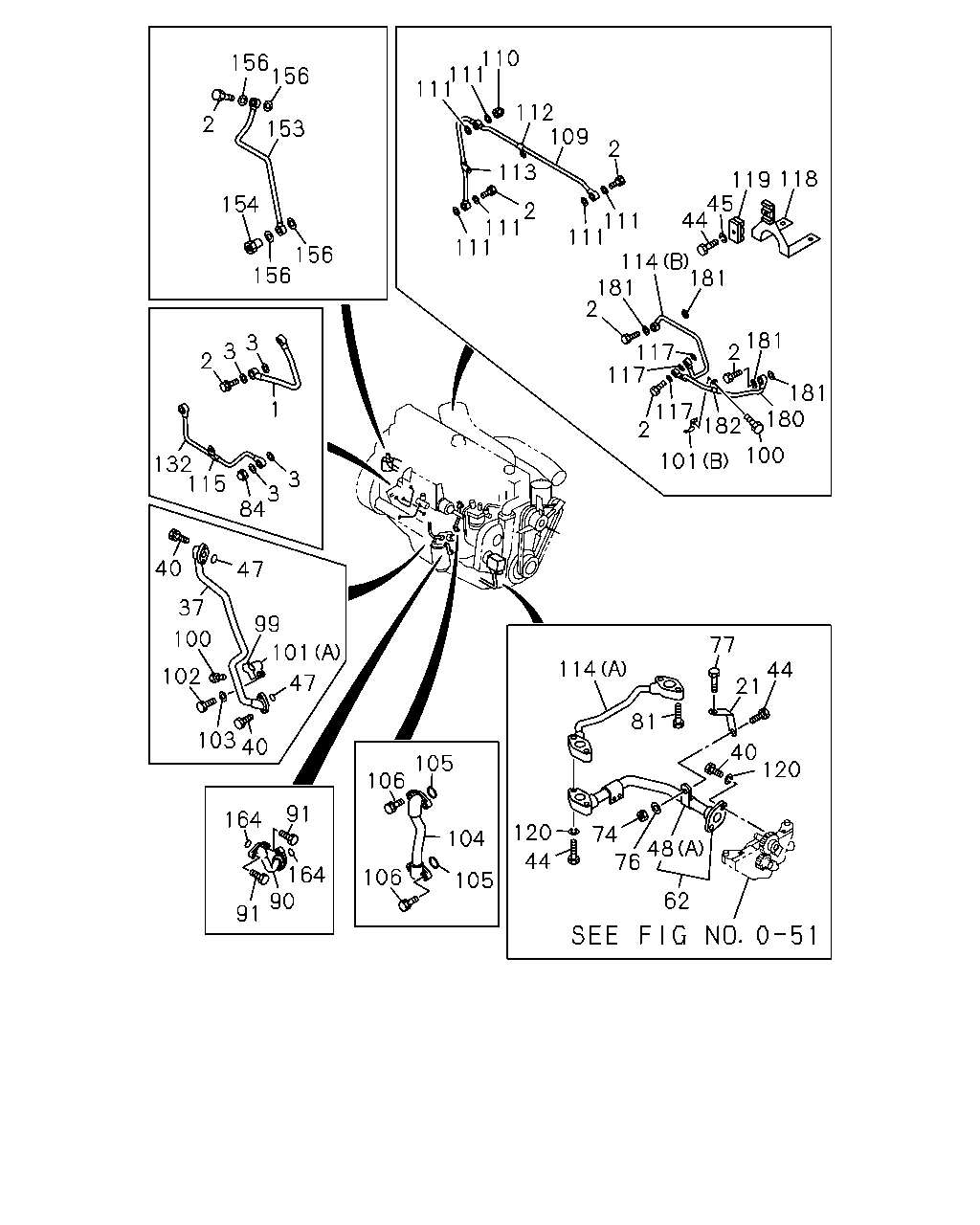

0-52 — OIL AND VACUUM PIPING; ENGINE (#2956) — 312 parça

91 90 91 164 40 103 102 100 47 101 99 37 40 47 84 3 3 115 132 2 3 3 1 156 156 154 153 2 156 156 111 111 110 112 113 111 111 111 111 44 45 119 118 114 181 181 2 117 117 2 181 181 180 100 182 101 117 2 77 44 21 81 114 40 120 62 48 76 74 44 120 105 104 105 106 106 164 109 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	9-13312-675-0	01	1	9002-9306	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13311-650-0	01	1	9002-		●
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	04	1	9002-9306	●
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	01	1	9002-9306	●	●
2	BOLT; EYE,OIL PIPE M12X27 FLANGE	1-09675-085-0	01	1	9002-	●	●
2	BOLT; EYE,OIL PIPE M10X32	1-09675-119-0	01	1	9002-	●	●
2	BOLT; EYE,OIL PIPE M10X49	1-09675-064-0	01	1	9002-		●
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	9002-		●
2	BOLT; EYE,OIL PIPE M10X69.5	1-09675-143-0	01	1	9002-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9002-9306	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	9002-	●	●
21	STAY; OIL PIPE	1-13345-105-1	01	1	9002-	●	●
37	PIPE; OIL,FILTER TO COOLER	1-13311-848-0	01	1	9002-9306	●
37	PIPE; OIL,FILTER TO COOLER	1-13312-073-0	01	1	9002-		●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	03	1	9002-9005	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-9306	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	01	1	9002-9005	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9006-9306	●
40	BOLT; OIL PIPE M8X70	9-01055-870-0	02	1	9002-9005		●
40	BOLT; OIL PIPE M8X70	0-10805-870-0	02	1	9006-		●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	04	1	9002-9005		●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	04	1	9006-		●
44	BOLT; CLIP,OIL PIPE M8X70	9-01055-870-0	02	1	9002-9005	●
44	BOLT; CLIP,OIL PIPE M8X70	0-10805-870-0	02	1	9006-9306	●
44	BOLT; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M5X25	9-09602-082-0	01	1	9002-	●
44	BOLT; CLIP,OIL PIPE M5X25	9-09602-082-0	01	1	9002-		●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	0-50051-022-0	01	1	9002-	●	●
44	BOLT; CLIP,OIL PIPE M10X55	9-01656-055-0	01	1	9002-9004	●	●
44	BOLT; CLIP,OIL PIPE M10X55	0-16806-055-0	01	1	9005-	●	●
44	BOLT; CLIP,OIL PIPE M8X20	9-01970-820-0	01	1	9002-9005	●	●
44	BOLT; CLIP,OIL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9006-	●	●
45	WASHER; LK,CLIP EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=5.1	9-09150-505-0	01	1	9002-	●
45	WASHER; LK,CLIP ID=5.1	9-09150-505-0	01	1	9002-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-170-0	02	1	9002-9003	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-450-0	02	1	9004-	●	●
48	CLIP; OIL PIPE (A)	1-09700-377-0	01	1	9002-	●	●
48	CLIP; OIL PIPE (B)	9-15419-612-0	01	1	9307-		●
62	PIPE; OIL,PUMP TO C/BL	1-13311-871-1	01	1	9002-	●	●
74	NUT; CLIP,OIL PIPE,PUMP TO BODY M8	9-09110-408-0	01	1	9002-	●	●
76	WASHER; CLIP ID=8.4 OD=18	9-09160-608-0	01	1	9002-	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-	●	●
84	NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	9002-9306	●
90	PIPE ASM; OIL,C/BL TO FILTER	1-13311-849-1	01	1	9002-	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22	9-01910-822-0	02	1	9002-9005	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	02	1	9006-	●	●
99	CLIP; OIL PIPE,FILTER TO COOLER ID=23.6 L=35	1-09700-634-0	01	1	9002-9306	●
100	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9002-9306	●
100	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY<E1Q> M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005	●
100	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY<E1Q> M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-9306	●
101	BRACKET; CLIP (A)	1-13345-118-0	01	1	9002-9306	●
101	BRACKET; CLIP AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-23219-106-0	01	1	9010-9306	●
102	BOLT; BRKT M14X25	9-92351-425-0	01	1	9002-9005	●
102	BOLT; BRKT M14X25	0-23801-425-0	01	1	9006-9306	●
103	WASHER; LK,BRKT ID=14.2	9-09150-514-0	01	1	9002-9306	●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-304-1	01	1	9002-9306	●
104	PIPE ASM; OIL,COOLER TO BODY ENGINE OIL TEMPERATURE GAUGE<UG3>	1-13311-659-0	01	1	9002-9306		●
104	PIPE ASM; OIL,COOLER TO BODY EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-13311-500-1	01	1	9002-9306		●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-500-1	01	1	9307-		●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22	9-01910-822-0	02	1	9002-9005	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	9-01910-828-0	02	1	9002-9005	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-	●	●
109	PIPE ASM; OIL,BODY TO HD	1-13312-057-0	01	1	9002-9306	●
109	PIPE ASM; OIL,BODY TO HD	1-13311-910-1	01	1	9002-		●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	01	1	9002-9306	●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	03	1	9002-		●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	06	1	9002-9306	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	07	1	9002-		●
112	CLIP; OIL PIPE,TAP CHAMBER CVR	1-09700-144-0	01	1	9002-	●	●
113	CLIP; WATER OUTLET PIPE	1-09700-444-0	01	1	9002-9306	●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-13312-144-0	01	1	9002-9306	●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-13312-866-1	01	1	9002-9102	●
114	PIPE ASM; OIL,BODY (B)	1-13312-866-1	01	1	9002-9102		●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-13313-101-0	01	1	9103-	●
114	PIPE ASM; OIL,BODY (B)	1-13313-101-0	01	1	9103-		●
114	PIPE ASM; OIL,BODY (A)	1-13311-703-1	01	1	9002-	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-411-0	01	1	9002-9306	●
115	CLIP; PIPE,INJ PUMP	9-09917-404-0	01	1	9002-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	03	1	9002-9306	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	06	1	9002-		●
118	BRACKET; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-13319-012-1	01	1	9002-9102	●
118	BRACKET; CLIP,OIL PIPE	1-13319-012-1	01	1	9002-9102		●
118	BRACKET; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-13319-016-0	01	1	9103-	●
118	BRACKET; CLIP,OIL PIPE	1-13319-016-0	01	1	9103-		●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09700-110-0	01	1	9002-9102	●
119	CLIP; OIL PIPE,BODY TO CMPR	1-09700-110-0	01	1	9002-9102		●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-15419-613-0	01	1	9103-	●
119	CLIP; OIL PIPE,BODY TO CMPR	9-15419-613-0	01	1	9103-		●
120	WASHER; PL,PIPE FIX ID=8.2	9-09150-508-0	02	1	9002-	●	●
120	WASHER; PL,PIPE FIX ID=10.2	9-09150-510-0	01	1	9002-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	9-13312-414-1	01	1	9002-9306	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13311-453-1	01	1	9002-		●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	9-13312-393-1	01	1	9002-9306	●	●
154	UNION; NIPPLE ENGINE REAR PTO(SV1)	9-09902-517-0	01	1	9002-9306	●	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) ID=10.2 OD=15.2	1-09630-083-0	04	1	9002-9306	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●
180	PIPE ASM; OIL,FAN CENTER AIR COMPRESSOR HEAVY DUTY<E1Q>	1-13312-463-0	01	1	9002-9306	●
180	PIPE ASM; OIL,FAN CENTER EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-13312-500-0	01	1	9002-9102	●
180	PIPE ASM; OIL,FAN CENTER	1-13311-948-0	01	1	9002-9102		●
180	PIPE ASM; OIL,FAN CENTER EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-13313-100-0	01	1	9103-	●
180	PIPE ASM; OIL,FAN CENTER	1-13313-100-0	01	1	9103-		●
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9002-9306	●
182	CLIP; OIL PIPE TO ELBOW AIR COMPRESSOR HEAVY DUTY<E1Q> ID=7 L=20	9-09524-635-0	02	1	9002-9306	●
182	CLIP; OIL PIPE TO ELBOW EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=7 L=20	9-09524-635-0	01	1	9002-	●
182	CLIP; OIL PIPE TO ELBOW ID=7 L=20	9-09524-635-0	01	1	9002-		●

120 120 44 44 48 62 21 77 74 76 40 114 81 164 91 164 90 91 105 106 104 105 40 47 37 47 40 132 110 3 3 115 2 3 3 1 116 116 110 154 156 156 153 2 156 156 111 39 110 112 111 111 111 2 109 108 108 2 107 2 108 108 118 119 45 44 111 111 2 117 114 117 48 117 117 117 2 117 182 180 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	9-13312-675-0	01	1	9002-9306	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13311-650-0	01	1	9002-		●
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	04	1	9002-9306	●
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	01	1	9002-9306	●	●
2	BOLT; EYE,OIL PIPE M12X27 FLANGE	1-09675-085-0	01	1	9002-	●	●
2	BOLT; EYE,OIL PIPE M10X32	1-09675-119-0	01	1	9002-	●	●
2	BOLT; EYE,OIL PIPE M10X49	1-09675-064-0	01	1	9002-		●
2	BOLT; EYE,OIL PIPE M10X21 FLANGE	1-09675-077-0	02	1	9002-		●
2	BOLT; EYE,OIL PIPE M10X69.5	1-09675-143-0	01	1	9002-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9002-9306	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	9002-	●	●
21	STAY; OIL PIPE	1-13345-105-1	01	1	9002-	●	●
37	PIPE; OIL,FILTER TO COOLER	1-13311-848-0	01	1	9002-9306	●
37	PIPE; OIL,FILTER TO COOLER	1-13312-073-0	01	1	9002-		●
39	CONNECTOR	1-09660-088-0	01	1	9002-		●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	03	1	9002-9005	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-9306	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	01	1	9002-9005	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9006-9306	●
40	BOLT; OIL PIPE M8X70	9-01055-870-0	02	1	9002-9005		●
40	BOLT; OIL PIPE M8X70	0-10805-870-0	02	1	9006-		●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	04	1	9002-9005		●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	04	1	9006-		●
44	BOLT; CLIP,OIL PIPE M8X70	9-01055-870-0	02	1	9002-9005	●
44	BOLT; CLIP,OIL PIPE M8X70	0-10805-870-0	02	1	9006-9306	●
44	BOLT; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M5X25	9-09602-082-0	01	1	9002-	●
44	BOLT; CLIP,OIL PIPE M5X25	9-09602-082-0	01	1	9002-		●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	0-50051-022-0	01	1	9002-	●	●
44	BOLT; CLIP,OIL PIPE M10X55	9-01656-055-0	01	1	9002-9004	●	●
44	BOLT; CLIP,OIL PIPE M10X55	0-16806-055-0	01	1	9005-	●	●
44	BOLT; CLIP,OIL PIPE M8X20	9-01970-820-0	01	1	9002-9005	●	●
44	BOLT; CLIP,OIL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9006-	●	●
45	WASHER; LK,CLIP EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=5.1	9-09150-505-0	01	1	9002-	●
45	WASHER; LK,CLIP ID=5.1	9-09150-505-0	01	1	9002-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-170-0	02	1	9002-9003	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-450-0	02	1	9004-	●	●
48	CLIP; OIL PIPE (A)	1-09700-377-0	01	1	9002-	●	●
48	CLIP; OIL PIPE (B)	9-15419-612-0	01	1	9307-		●
62	PIPE; OIL,PUMP TO C/BL	1-13311-871-1	01	1	9002-	●	●
74	NUT; CLIP,OIL PIPE,PUMP TO BODY M8	9-09110-408-0	01	1	9002-	●	●
76	WASHER; CLIP ID=8.4 OD=18	9-09160-608-0	01	1	9002-	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-	●	●
90	PIPE ASM; OIL,C/BL TO FILTER	1-13311-849-1	01	1	9002-	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22	9-01910-822-0	02	1	9002-9005	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	02	1	9006-	●	●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-304-1	01	1	9002-9306	●
104	PIPE ASM; OIL,COOLER TO BODY ENGINE OIL TEMPERATURE GAUGE<UG3>	1-13311-659-0	01	1	9002-9306		●
104	PIPE ASM; OIL,COOLER TO BODY EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-13311-500-1	01	1	9002-9306		●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-500-1	01	1	9307-		●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22	9-01910-822-0	02	1	9002-9005	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	9-01910-828-0	02	1	9002-9005	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-	●	●
107	PIPE; OIL,CAM BRG	1-13312-373-0	01	1	9002-		●
108	GASKET; OIL PIPE,CAM BRG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	9002-		●
109	PIPE ASM; OIL,BODY TO HD	1-13312-057-0	01	1	9002-9306	●
109	PIPE ASM; OIL,BODY TO HD	1-13311-910-1	01	1	9002-		●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	01	1	9002-9306	●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	03	1	9002-		●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	06	1	9002-9306	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	07	1	9002-		●
112	CLIP; OIL PIPE,TAP CHAMBER CVR	1-09700-144-0	01	1	9002-	●	●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-13312-144-0	01	1	9002-9306	●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-13312-866-1	01	1	9002-9102	●
114	PIPE ASM; OIL,BODY (B)	1-13312-866-1	01	1	9002-9102		●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-13313-101-0	01	1	9103-	●
114	PIPE ASM; OIL,BODY (B)	1-13313-101-0	01	1	9103-		●
114	PIPE ASM; OIL,BODY (A)	1-13311-703-1	01	1	9002-	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-411-0	01	1	9002-9306	●
115	CLIP; PIPE,INJ PUMP	9-09917-404-0	01	1	9002-		●
116	GASKET; CAP NUT,OIL PIPE ID=12.2	1-09630-084-0	02	1	9002-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	03	1	9002-9306	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	06	1	9002-		●
118	BRACKET; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-13319-012-1	01	1	9002-9102	●
118	BRACKET; CLIP,OIL PIPE	1-13319-012-1	01	1	9002-9102		●
118	BRACKET; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-13319-016-0	01	1	9103-	●
118	BRACKET; CLIP,OIL PIPE	1-13319-016-0	01	1	9103-		●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-09700-110-0	01	1	9002-9102	●
119	CLIP; OIL PIPE,BODY TO CMPR	1-09700-110-0	01	1	9002-9102		●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	9-15419-613-0	01	1	9103-	●
119	CLIP; OIL PIPE,BODY TO CMPR	9-15419-613-0	01	1	9103-		●
120	WASHER; PL,PIPE FIX ID=8.2	9-09150-508-0	02	1	9002-	●	●
120	WASHER; PL,PIPE FIX ID=10.2	9-09150-510-0	01	1	9002-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	9-13312-414-1	01	1	9002-9306	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13311-453-1	01	1	9002-		●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	9-13312-393-1	01	1	9002-9306	●	●
154	UNION; NIPPLE ENGINE REAR PTO(SV1)	9-09902-517-0	01	1	9002-9306	●	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) ID=10.2 OD=15.2	1-09630-083-0	04	1	9002-9306	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●
180	PIPE ASM; OIL,FAN CENTER AIR COMPRESSOR HEAVY DUTY<E1Q>	1-13312-463-0	01	1	9002-9306	●
180	PIPE ASM; OIL,FAN CENTER EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-13312-500-0	01	1	9002-9102	●
180	PIPE ASM; OIL,FAN CENTER	1-13311-948-0	01	1	9002-9102		●
180	PIPE ASM; OIL,FAN CENTER EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-13313-100-0	01	1	9103-	●
180	PIPE ASM; OIL,FAN CENTER	1-13313-100-0	01	1	9103-		●
182	CLIP; OIL PIPE TO ELBOW AIR COMPRESSOR HEAVY DUTY<E1Q> ID=7 L=20	9-09524-635-0	02	1	9002-9306	●
182	CLIP; OIL PIPE TO ELBOW EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=7 L=20	9-09524-635-0	01	1	9002-	●
182	CLIP; OIL PIPE TO ELBOW ID=7 L=20	9-09524-635-0	01	1	9002-		●

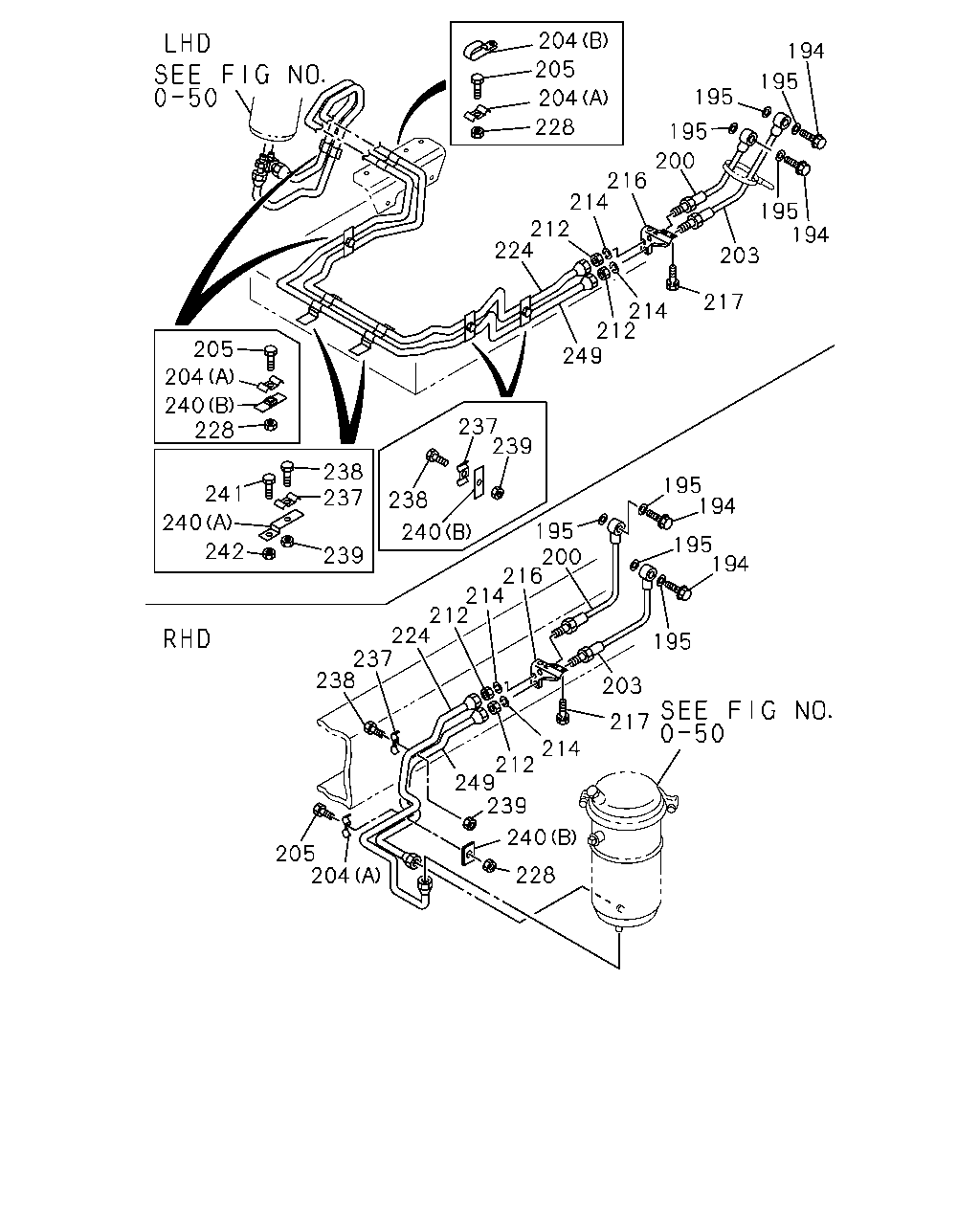

228 240 239 249 212 214 217 203 195 194 195 194 195 195 200 216 214 212 224 237 238 205 204 242 240 241 239 240 238 239 237 237 238 228 240 204 205 249 212 214 217 203 195 194 194 195 195 195 200 216 214 212 224 228 204 205 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M14X27 FLANGE	1-09675-086-0	02	1	9002-	●	●
195	GASKET; EYE BOLT,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-	●	●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S>,CONCRETE PUMP<RA5> L=500	1-09364-487-0	01	1	9002-9309	●	●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY CONCRETE PUMP<RA5> EXC. OIL FILTER CENTRIFUGAL<E6S> L=420	1-09364-486-0	01	1	9002-9310		●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY CONCRETE PUMP<RA5> EXC. OIL FILTER CENTRIFUGAL<E6S> L=380	1-09364-525-0	01	1	9311-		●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S>,CONCRETE PUMP<RA5> L=440	1-09364-488-0	01	1	9310-		●
203	HOSE; FLEX,PARTIAL FILTER,RETURN EXC. OIL FILTER CENTRIFUGAL<E6S>,CONCRETE PUMP<RA5> L=500	1-09364-656-0	01	1	9002-9309	●	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN CONCRETE PUMP<RA5> EXC. OIL FILTER CENTRIFUGAL<E6S> L=420	1-09364-655-0	01	1	9002-9310		●
203	HOSE; FLEX,PARTIAL FILTER,RETURN CONCRETE PUMP<RA5> EXC. OIL FILTER CENTRIFUGAL<E6S> L=380	1-09364-659-0	01	1	9311-		●
203	HOSE; FLEX,PARTIAL FILTER,RETURN EXC. OIL FILTER CENTRIFUGAL<E6S>,CONCRETE PUMP<RA5> L=440	1-09364-657-0	01	1	9310-		●
204	CLIP; OIL PIPE EXC. OIL FILTER CENTRIFUGAL<E6S> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9002-	●	●
204	CLIP; OIL PIPE CVR&RHD(CVR5M*) (A) ID=11 & 11 L=15 & 15	1-09700-656-0	02	1	9002-	●	●
204	CLIP; OIL PIPE EXC. OIL FILTER CENTRIFUGAL<E6S> (B) ID=11X2 L=20	9-09535-036-0	01	1	9002-		●
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9009	●	●
205	BOLT; CLIP CVR&RHD(CVR5M*) M8X16 W/LK WASHER	9-01900-816-0	02	1	9010-9204	●	●
205	BOLT; CLIP CVR&RHD(CVR5M*) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●	●
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	9-01900-816-0	01	1	9010-9204	●	●
205	BOLT; CLIP CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	9-01900-816-0	01	1	9010-9204	●	●
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306	●	●
205	BOLT; CLIP CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306	●	●
205	BOLT; CLIP CVR LONG CHASSIS&RHD(CVR5MF) M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-		●
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 FLANGE	0-28080-816-0	01	1	9307-		●
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-		●
212	NUT; FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M16	9-99111-416-0	02	1	9002-	●	●
214	WASHER; LK,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=16.2	9-09150-516-0	02	1	9002-	●	●
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-47475-296-1	01	1	9002-9310	●	●
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-47475-782-0	01	1	9311-		●
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●	●
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 FLANGE	0-28080-820-0	02	1	9307-9410		●
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X30 FLANGE	0-28080-830-0	02	1	9411-		●
224	PIPE; OIL,DELIVERY CVR&RHD(CVR5M*)	1-13312-709-1	01	1	9002-9306	●	●
224	PIPE; OIL,DELIVERY CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-278-0	01	1	9307-9310		●
224	PIPE; OIL,DELIVERY CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-478-0	01	1	9311-		●
224	PIPE; OIL,DELIVERY CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13312-790-0	01	1	9002-9007	●	●
224	PIPE; OIL,DELIVERY CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-027-0	01	1	9008-9306	●	●
224	PIPE; OIL,DELIVERY CVR LONG CHASSIS&RHD(CVR5MF)	1-13313-277-0	01	1	9307-9309		●
224	PIPE; OIL,DELIVERY CVR LONG CHASSIS&RHD(CVR5MF)	1-13313-472-0	01	1	9310-		●
228	NUT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	01	1	9002-9009	●	●
228	NUT; CLIP CVR&RHD(CVR5M*) M8	9-09110-408-0	01	1	9002-9009	●	●
228	NUT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	01	1	9010-9306	●	●
228	NUT; CLIP CVR LONG CHASSIS&RHD(CVR5MF) M8	9-09110-408-0	02	1	9307-		●
228	NUT; CLIP CVR&RHD(CVR5M*) M8	9-09110-408-0	02	1	9010-9306	●	●
228	NUT; CLIP CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	01	1	9307-		●
237	CLIP; FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9002-9009	●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER CVR&RHD(CVR5M*) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9002-9009	●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9010-9103	●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S> ID=11 & 11 L=15 & 15	1-09700-656-0	04	1	9002-9306	●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S> ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9307-		●
237	CLIP; FLEX HOSE,PARTIAL FILTER CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S> ID=11 & 11 L=15 & 15	1-09700-656-0	06	1	9307-		●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9009	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER CVR&RHD(CVR5M*) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9009	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	01	1	9010-9103	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9306	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-		●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	06	1	9307-		●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	01	1	9002-9009	●	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER CVR&RHD(CVR5M*) M8	9-09110-408-0	01	1	9002-9009	●	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	01	1	9010-9103	●	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	04	1	9002-9306	●	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	01	1	9307-		●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	06	1	9307-		●
240	BRACKET; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> (B) L=50	1-47475-299-2	01	1	9002-9009	●	●
240	BRACKET; CLIP CVR&RHD(CVR5M*) (B) L=50	1-47475-299-2	01	1	9002-9009	●	●
240	BRACKET; CLIP CVR LONG CHASSIS&RHD(CVR5MF) (B) L=50	1-47475-299-2	02	1	9010-9306		●
240	BRACKET; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> (B) L=50	1-47475-299-2	01	1	9010-9306	●	●
240	BRACKET; CLIP CVR SHORT CHASSIS&LHD(CVR6MC) EXC. OIL FILTER CENTRIFUGAL<E6S> (B) L=50	1-47475-299-2	04	1	9002-9306	●	●
240	BRACKET; CLIP CVR LONG CHASSIS&RHD(CVR5MF) (B) L=50	1-47475-299-2	02	1	9307-		●
240	BRACKET; CLIP CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-47475-601-0	02	1	9002-		●
240	BRACKET; CLIP CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S> (B) L=50	1-47475-299-2	01	1	9307-		●
241	BOLT; CLIP BRKT CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
241	BOLT; CLIP BRKT CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●	●
241	BOLT; CLIP BRKT CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 FLANGE	0-28080-820-0	02	1	9307-		●
242	NUT; CLIP BRKT CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	02	1	9002-	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE CVR&RHD(CVR5M*)	1-13312-677-1	01	1	9002-9306	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-280-0	01	1	9307-9310		●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE CVR LONG CHASSIS&LHD(CVR6MF) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-479-0	01	1	9311-		●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13312-791-0	01	1	9002-9007	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE CVR&LHD(CVR6M*) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-028-0	01	1	9008-9306	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE CVR LONG CHASSIS&RHD(CVR5MF)	1-13313-279-0	01	1	9307-9309		●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE CVR LONG CHASSIS&RHD(CVR5MF)	1-13313-473-0	01	1	9310-		●

279 278 279 277 448 434 449 449 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
277	CAP; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>,CONCRETE PUMP<RA5>	1-11750-024-1	01	1	9002-	●	●
278	HOSE; RUBBER,OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>,CONCRETE PUMP<RA5>	1-11749-077-0	01	1	9002-	●	●
278	HOSE; RUBBER,OIL FILLER CONCRETE PUMP<RA5> EXC. OIL FILLER CAB BACK DELETE<E6X>	1-09360-698-0	01	1	9002-		●
279	CLIP; RUBBER HOSE EXC. OIL FILLER CAB BACK DELETE<E6X> ID=40	9-09916-024-1	02	1	9002-	●	●
434	NUT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8	9-09110-408-0	04	1	9002-	●	●
448	FILLER; OIL EXC. OIL FILLER CAB BACK DELETE<E6X>,CONCRETE PUMP<RA5>	1-11740-213-1	01	1	9002-	●	●
448	FILLER; OIL CONCRETE PUMP<RA5> EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11740-212-1	01	1	9002-		●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9002-9204	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9205-9304	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 FLANGE	0-28080-820-0	04	1	9305-9306	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9307-9412		●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 FLANGE	0-28080-820-0	04	1	9501-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
