Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#29557) — 443 parça

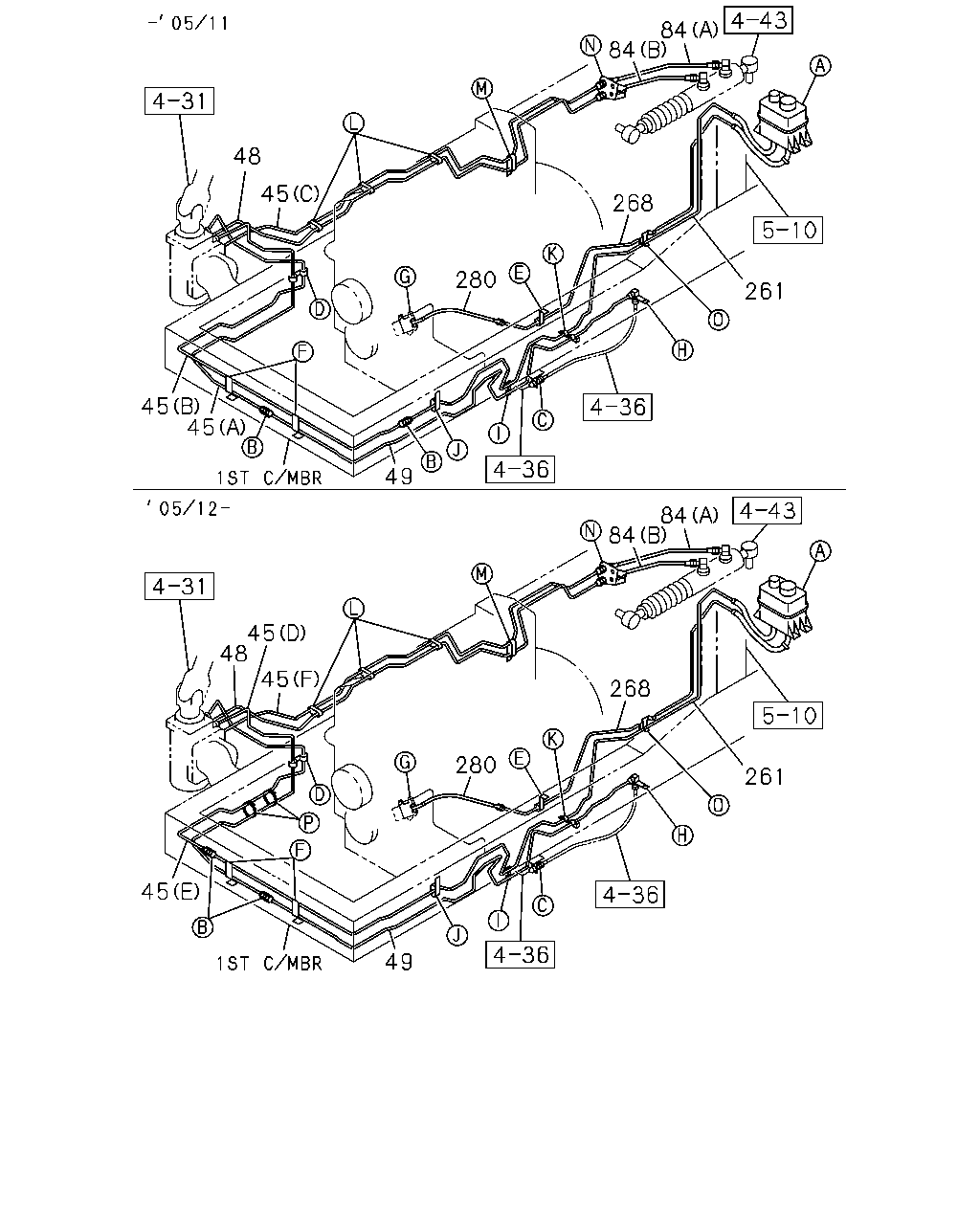

84 84 268 261 261 280 45 45 45 48 45 45 49 280 45 48 84 84 268 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-306-0	01	1	0407-0505	●
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-776-0	01	1	0506-0511	●
45	PIPE; OIL,P/S UNIT TO UNION (F) L=2539	1-21117-744-0	01	1	0512-		●
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2201	1-21117-307-0	01	1	0407-0511	●
45	PIPE; OIL,P/S UNIT TO UNION (E) L=1403	1-21117-738-0	01	1	0512-0611		●
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1475	1-21117-916-0	01	1	0612-1309		●
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1475	8-98257-624-0	01	1	1310-		●
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2562	1-21117-435-0	01	1	0407-0408	●
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2559	1-21117-601-0	01	1	0409-0410	●
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2562	1-21117-435-0	01	1	0411-0511	●
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1474	1-21117-739-0	01	1	0512-0611		●
45	PIPE; OIL,P/S UNIT TO UNION (E) L=1404	1-21117-917-0	01	1	0612-1309		●
45	PIPE; OIL,P/S UNIT TO UNION (E) L=1404	8-98257-625-0	01	1	1310-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2556	1-21117-433-0	01	1	0407-0511	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2519	1-21117-745-0	01	1	0512-		●
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0512-0704		●
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L),6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0705-		●
49	PIPE; OIL,FLEX HOSE TO UNION L=2050	1-21117-367-0	01	1	0407-0511	●
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0512-		●
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0407-0511	●
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0512-0606		●
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0607-		●
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0407-0511	●
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0512-		●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0512-0704		●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0705-		●
261	PIPE; OIL,UNION TO HOSE L=2500	1-21117-369-1	01	1	0407-0511	●
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0512-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0512-0704		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0705-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0407-0511	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0512-		●
280	HOSE; P/S OIL PUMP,INL 6WF1 TC-C(1B8)	1-21117-831-0	01	1	0604-0604		●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0407-0511	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0512-0603		●
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-S(97L)	1-21117-301-0	01	1	0604-0604		●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0605-		●

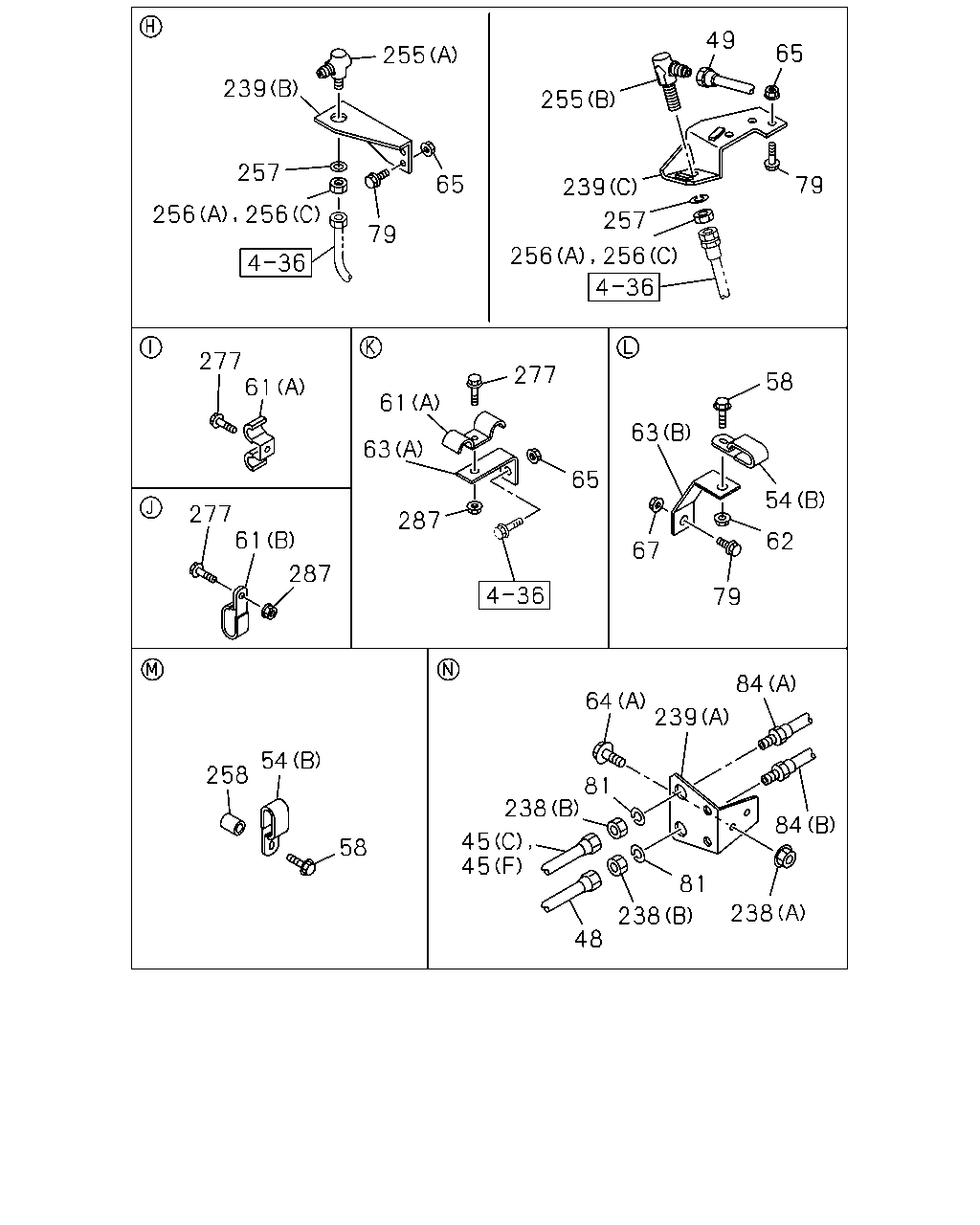

234 54 58 264 262 263 67 166 54 61 234 264 263 54 58 67 262 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (D) L=350	1-09707-183-0	01	1	1310-		●
54	CLIP; OIL PIPE 6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0512-0704		●
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0705-		●
54	CLIP; OIL PIPE 6WG1 TC-S(97L) (C) ID=26 L=27	1-09701-006-0	01	1	0512-0704		●
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=26 L=27	1-09701-006-0	01	1	0705-		●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0407-0511	●
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0512-		●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0407-0511	●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0512-0606		●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	0607-		●
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512		●
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0601-0704		●
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0705-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-0704		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0705-		●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0407-0511	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0512-0512		●
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0407-0511	●
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0512-0512		●
58	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0601-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0407-0511	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-0704		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0705-		●
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0407-0511	●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512		●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-		●
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-		●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0407-0511	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0512-		●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0407-0511	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0512-0606		●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-		●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0512-0602		●
67	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	04	1	0512-0602		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-0704		●
67	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0603-0704		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0705-		●
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0705-		●
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0603-		●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0407-0511	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0512-		●
263	BRACKET; P/S PIPE 6WG1 TC-S(97L) (B)	1-47471-191-1	01	1	0512-0704		●
263	BRACKET; P/S PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-47471-191-1	01	1	0705-		●
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0407-0511	●
263	BRACKET; P/S PIPE 6WF1 TC-C(1B8) (A)	1-47476-483-2	01	1	0512-		●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-		●

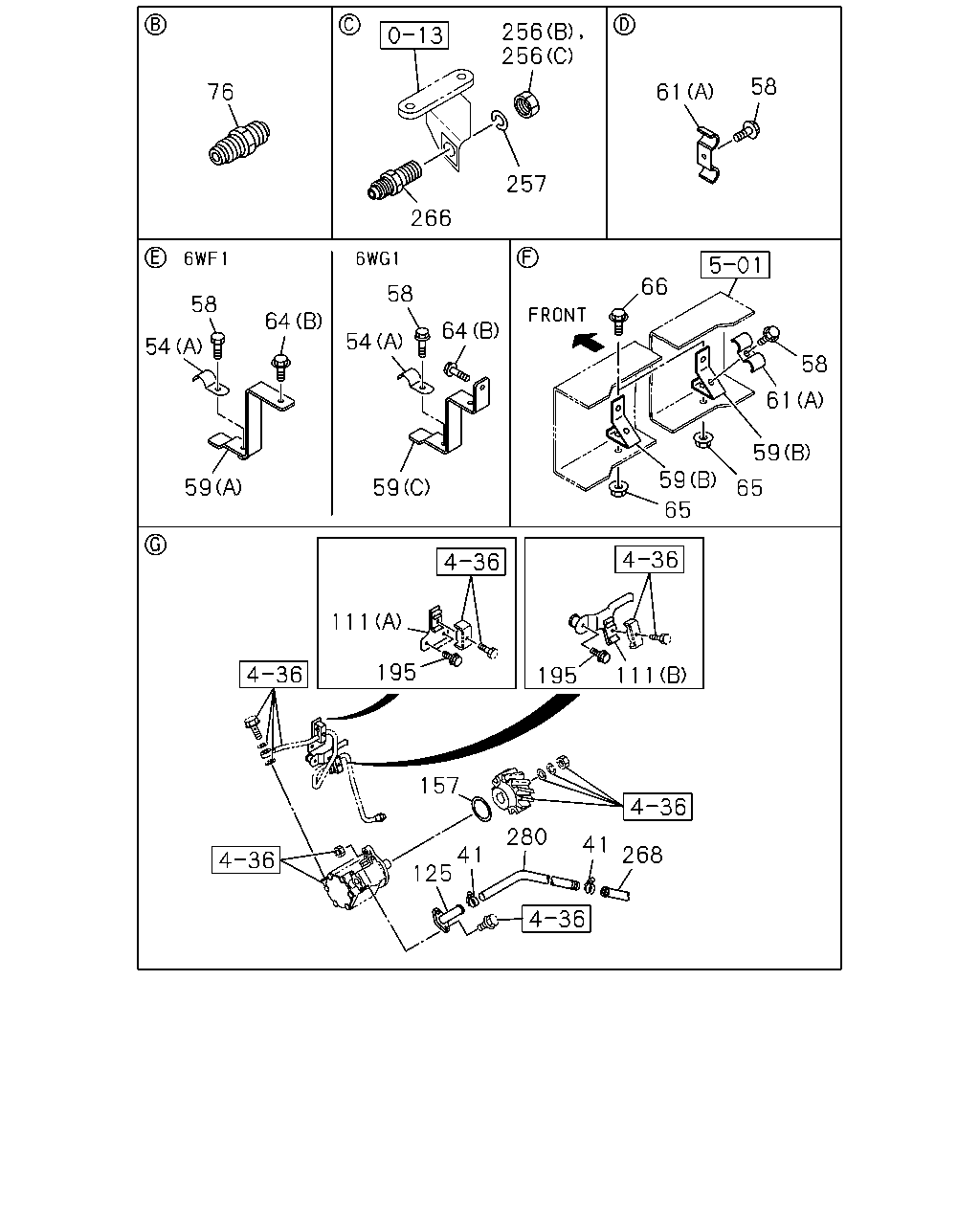

256 256 58 76 61 257 266 66 58 58 64 64 54 54 58 61 59 59 59 59 65 65 111 195 111 195 157 280 41 268 41 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0407-0511	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0512-		●
54	CLIP; OIL PIPE (D) L=350	1-09707-183-0	01	1	1310-		●
54	CLIP; OIL PIPE 6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0512-0704		●
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0705-		●
54	CLIP; OIL PIPE 6WG1 TC-S(97L) (C) ID=26 L=27	1-09701-006-0	01	1	0512-0704		●
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=26 L=27	1-09701-006-0	01	1	0705-		●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0407-0511	●
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0512-		●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0407-0511	●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0512-0606		●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	0607-		●
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512		●
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0601-0704		●
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0705-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-0704		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0705-		●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0407-0511	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0512-0512		●
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0407-0511	●
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0512-0512		●
58	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0601-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0407-0511	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-0704		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0705-		●
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0407-0511	●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512		●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-		●
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-S(97L) (C)	1-47471-183-0	01	1	0512-0704		●
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-47471-183-0	01	1	0705-		●
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0407-0511	●
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (A)	1-47477-145-0	01	1	0512-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0407-0511	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0512-		●
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-		●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0407-0511	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0512-		●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0407-0511	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0512-0606		●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-		●
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0407-0511	●
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0512-0602		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-		●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	0407-0511	●
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	0512-0607		●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0608-		●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0407-0511	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0512-		●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0407-0511	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0512-		●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0407-0511	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0512-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0407-0511	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0512-		●
195	BOLT; BRKT 6WG1 TC-S(97L) M8X25 FLANGE	0-28680-825-0	08	1	0512-0512		●
195	BOLT; BRKT 6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	08	1	0601-0704		●
195	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	08	1	0705-		●
195	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0407-0511	●
195	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0512-0512		●
195	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-		●
195	BOLT; BRKT M10X35 FLANGE	0-28181-035-0	01	1	0407-0511	●
195	BOLT; BRKT M10X35 FLANGE	0-28181-035-0	01	1	0512-0512		●
195	BOLT; BRKT M10X35 FLANGE	0-28151-035-0	01	1	0601-		●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0407-0511	●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0512-0512		●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-		●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-		●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0407-0511	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0512-0512		●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0511	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0511	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0512-0603		●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0512-0603		●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-		●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-		●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0407-0511	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0512-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0512-0704		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0705-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0407-0511	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0512-		●
280	HOSE; P/S OIL PUMP,INL 6WF1 TC-C(1B8)	1-21117-831-0	01	1	0604-0604		●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0407-0511	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0512-0603		●
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-S(97L)	1-21117-301-0	01	1	0604-0604		●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0605-		●

2 7 8 20 19 12 19 58 229 278 2 1 3 5 37 68 261 25 268 15 37 37 31 34 37 55 277 39 2 7 8 20 1 2 19 12 19 3 25 5 15 195 229 67 192 195 261 37 268 366 195 68 366 37 39 67 37 277 34 55 37 58 31

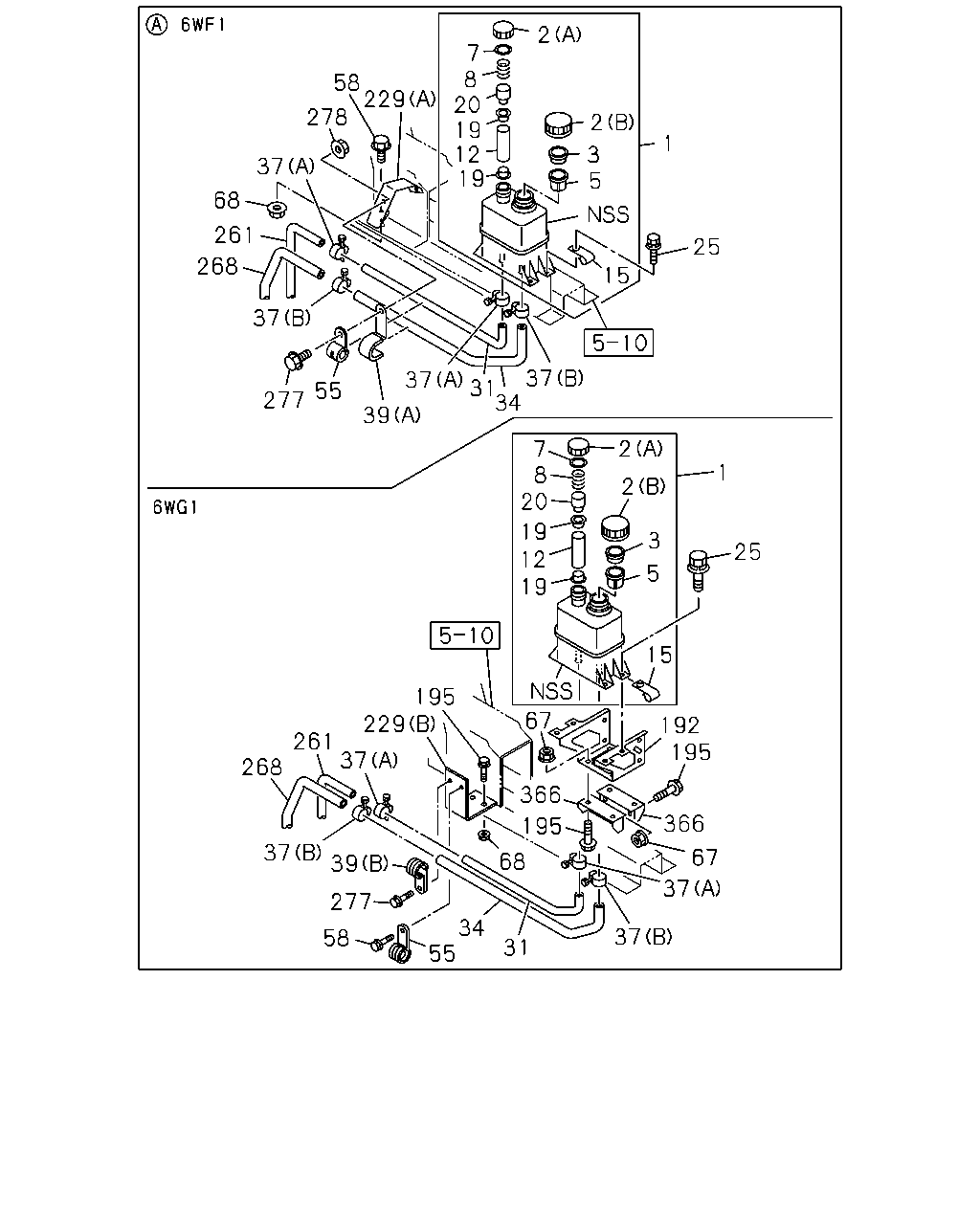

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0407-0508	●
1	TANK ASM; OIL,P/S	1-21210-235-0	01	1	0509-0511	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0512-		●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	0407-0511	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0512-		●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	0407-0511	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0512-		●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0407-0511	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0512-		●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0407-0511	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0512-		●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0407-0511	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0512-		●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0407-0508	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-0511	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0512-		●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0407-0511	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0512-		●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0407-0508	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-0511	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0512-		●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0407-0511	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0512-		●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0407-0511	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0512-		●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0407-0511	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0512-0512		●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
31	HOSE; P/S OIL TANK,INL 6WG1 TC-S(97L)	1-21117-509-1	01	1	0512-0704		●
31	HOSE; P/S OIL TANK,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-509-1	01	1	0705-		●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0407-0511	●
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8)	1-21114-284-0	01	1	0512-		●
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-S(97L)	1-21117-510-1	01	1	0512-0704		●
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-510-1	01	1	0705-		●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0407-0511	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0705-		●
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8)	1-21114-283-0	01	1	0512-		●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0407-0511	●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0512-		●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0407-0511	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0512-		●
39	CLIP; FLEX HOSE 6WG1 TC-S(97L) (B) ID=37 L=35	1-09701-109-0	01	1	0512-0704		●
39	CLIP; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=37 L=35	1-09701-109-0	01	1	0705-		●
39	CLIP; FLEX HOSE (A) ID=32 L=75	1-09700-702-0	01	1	0407-0511	●
39	CLIP; FLEX HOSE 6WF1 TC-C(1B8) (A) ID=32 L=75	1-09700-702-0	01	1	0512-		●
55	CLIP; P/S RUBBER HOSE 6WG1 TC-S(97L) ID=28 L=32	1-09701-107-1	01	1	0512-0704		●
55	CLIP; P/S RUBBER HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=28 L=32	1-09701-107-1	01	1	0705-		●
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0407-0511	●
55	CLIP; P/S RUBBER HOSE 6WF1 TC-C(1B8) ID=28 L=30	1-09700-607-1	01	1	0512-		●
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512		●
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0601-0704		●
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0705-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-0704		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0705-		●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0407-0511	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0512-0512		●
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0407-0511	●
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0512-0512		●
58	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0601-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0407-0511	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-0704		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0705-		●
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0407-0511	●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512		●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-		●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0512-0602		●
67	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	04	1	0512-0602		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-0704		●
67	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0603-0704		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0705-		●
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0705-		●
68	NUT; CLIP,OIL PIPE 6WG1 TC-S(97L) M10 FLANGE	0-91150-210-0	02	1	0512-0602		●
68	NUT; CLIP,OIL PIPE 6WG1 TC-S(97L) M10 FLANGE	0-91180-210-0	02	1	0603-0704		●
68	NUT; CLIP,OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) M10 FLANGE	0-91180-210-0	02	1	0705-		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
68	NUT; CLIP,OIL PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
68	NUT; CLIP,OIL PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	01	1	0603-		●
192	BRACKET; P/S OIL TANK 6WG1 TC-S(97L)	1-21489-200-1	01	1	0512-0704		●
192	BRACKET; P/S OIL TANK 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21489-200-1	01	1	0705-		●
195	BOLT; BRKT 6WG1 TC-S(97L) M8X25 FLANGE	0-28680-825-0	08	1	0512-0512		●
195	BOLT; BRKT 6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	08	1	0601-0704		●
195	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE	0-28650-825-0	08	1	0705-		●
195	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0407-0511	●
195	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0512-0512		●
195	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-		●
195	BOLT; BRKT M10X35 FLANGE	0-28181-035-0	01	1	0407-0511	●
195	BOLT; BRKT M10X35 FLANGE	0-28181-035-0	01	1	0512-0512		●
195	BOLT; BRKT M10X35 FLANGE	0-28151-035-0	01	1	0601-		●
229	BRACKET; HOSE,POWER STRG 6WG1 TC-S(97L) (B)	1-21464-780-0	01	1	0512-0704		●
229	BRACKET; HOSE,POWER STRG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-21464-780-0	01	1	0705-		●
229	BRACKET; HOSE,POWER STRG (A)	1-21464-407-1	01	1	0407-0511	●
229	BRACKET; HOSE,POWER STRG 6WF1 TC-C(1B8) (A)	1-21464-407-1	01	1	0512-		●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0512-0704		●
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0705-		●
261	PIPE; OIL,UNION TO HOSE L=2500	1-21117-369-1	01	1	0407-0511	●
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0512-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0512-0704		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0705-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0407-0511	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0512-		●
277	BOLT; HOSE CLIP 6WG1 TC-S(97L) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
277	BOLT; HOSE CLIP 6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	01	1	0601-0704		●
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	01	1	0705-		●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0407-0511	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0407-0511	●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512		●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	01	1	0601-		●
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0407-0511	●
278	NUT; HOSE CLIP 6WF1 TC-C(1B8) M10 FLANGE	0-91150-210-0	01	1	0512-0602		●
278	NUT; HOSE CLIP 6WF1 TC-C(1B8) M10 FLANGE	0-91180-210-0	01	1	0603-		●
366	SPACER; BRKT TO MEMBER 6WG1 TC-S(97L)	1-21489-196-1	02	1	0512-0704		●
366	SPACER; BRKT TO MEMBER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21489-196-1	02	1	0705-		●

49 65 255 239 255 257 65 79 239 256 257 79 256 277 61 277 58 61 63 63 65 54 277 61 287 62 67 287 79 84 64 239 54 258 81 238 84 45 45 58 81 238 238 48 256 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-306-0	01	1	0407-0505	●
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-776-0	01	1	0506-0511	●
45	PIPE; OIL,P/S UNIT TO UNION (F) L=2539	1-21117-744-0	01	1	0512-		●
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2201	1-21117-307-0	01	1	0407-0511	●
45	PIPE; OIL,P/S UNIT TO UNION (E) L=1403	1-21117-738-0	01	1	0512-0611		●
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1475	1-21117-916-0	01	1	0612-1309		●
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1475	8-98257-624-0	01	1	1310-		●
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2562	1-21117-435-0	01	1	0407-0408	●
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2559	1-21117-601-0	01	1	0409-0410	●
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2562	1-21117-435-0	01	1	0411-0511	●
45	PIPE; OIL,P/S UNIT TO UNION (D) L=1474	1-21117-739-0	01	1	0512-0611		●
45	PIPE; OIL,P/S UNIT TO UNION (E) L=1404	1-21117-917-0	01	1	0612-1309		●
45	PIPE; OIL,P/S UNIT TO UNION (E) L=1404	8-98257-625-0	01	1	1310-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2556	1-21117-433-0	01	1	0407-0511	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2519	1-21117-745-0	01	1	0512-		●
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0512-0704		●
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L),6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0705-		●
49	PIPE; OIL,FLEX HOSE TO UNION L=2050	1-21117-367-0	01	1	0407-0511	●
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0512-		●
54	CLIP; OIL PIPE (D) L=350	1-09707-183-0	01	1	1310-		●
54	CLIP; OIL PIPE 6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0512-0704		●
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0705-		●
54	CLIP; OIL PIPE 6WG1 TC-S(97L) (C) ID=26 L=27	1-09701-006-0	01	1	0512-0704		●
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=26 L=27	1-09701-006-0	01	1	0705-		●
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0407-0511	●
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0512-		●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0407-0511	●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0512-0606		●
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	0607-		●
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512		●
58	BOLT; CLIP 6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0601-0704		●
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0705-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-0704		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0705-		●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0407-0511	●
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0512-0512		●
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0407-0511	●
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0512-0512		●
58	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0601-		●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0407-0511	●
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-0704		●
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0705-		●
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0407-0511	●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512		●
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-		●
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-		●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0407-0511	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0512-		●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0407-0511	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0512-0606		●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-		●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0512-0602		●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0603-		●
63	BRACKET; CLIP,P/S (A) L=115 B=25	1-47476-758-0	01	1	0407-0511	●
63	BRACKET; CLIP,P/S (A) L=115 B=25	1-47476-758-0	01	1	0512-		●
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	0407-0511	●
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	0512-		●
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0407-0511	●
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0512-0602		●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-		●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0512-0602		●
67	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	04	1	0512-0602		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-0704		●
67	NUT; BRKT 6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0603-0704		●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0705-		●
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0705-		●
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0407-0511	●
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0512-0512		●
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0511	●
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0512-0512		●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-		●
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	0407-0511	●
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	0512-0603		●
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	0604-		●
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0407-0511	●
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0512-0606		●
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0607-		●
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0407-0511	●
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0512-		●
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
238	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	0407-0511	●
238	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	0512-0512		●
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	0601-		●
239	BRACKET; FLEX HOSE 6WG1 TC-S(97L) (C)	1-47471-227-0	01	1	0512-0704		●
239	BRACKET; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-47471-227-0	01	1	0705-		●
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	0407-0511	●
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	0512-		●
239	BRACKET; FLEX HOSE (B)	1-47479-664-0	01	1	0407-0511	●
239	BRACKET; FLEX HOSE 6WF1 TC-C(1B8) (B)	1-47479-664-0	01	1	0512-		●
255	UNION; FLEX HOSE 6WG1 TC-S(97L) (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0512-0704		●
255	UNION; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0705-		●
255	UNION; FLEX HOSE (A) M22 & M22 ELBOW	1-09650-375-1	01	1	0407-0511	●
255	UNION; FLEX HOSE 6WF1 TC-C(1B8) (A) M22 & M22 ELBOW	1-09650-375-1	01	1	0512-		●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0407-0511	●
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0512-0512		●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-		●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-		●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0407-0511	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0512-0512		●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0511	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0407-0511	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0512-0603		●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0512-0603		●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-		●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-		●
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	0407-0511	●
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	0512-		●
277	BOLT; HOSE CLIP 6WG1 TC-S(97L) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
277	BOLT; HOSE CLIP 6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	01	1	0601-0704		●
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	01	1	0705-		●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0407-0511	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0407-0511	●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512		●
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	01	1	0601-		●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
