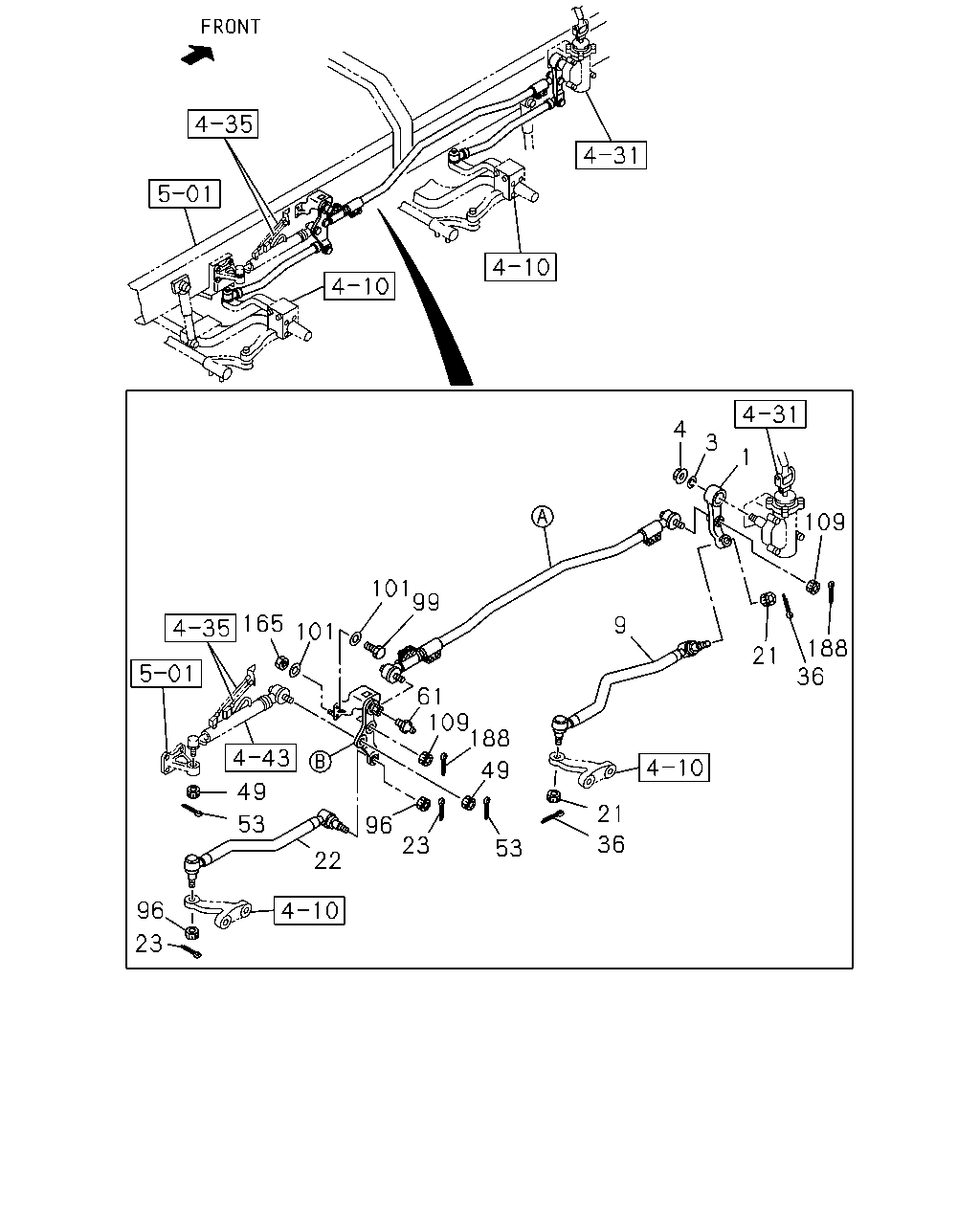

4-33 — STEERING LINKAGE (#29556) — 92 parça

4 3 1 109 101 99 165 9 101 188 36 21 61 109 188 49 49 21 53 96 23 36 53 22 96 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; PITMAN,STRG	1-44341-467-0	01	1	0407-0511	●
1	ARM; PITMAN,STRG	1-44341-504-1	01	1	0512-		●
3	WASHER; LK,PITMAN ARM ID=36.5	1-09500-021-0	01	1	0407-0511	●
3	WASHER; LK,PITMAN ARM ID=36.5	1-09500-021-0	01	1	0512-		●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-013-0	01	1	0407-0511	●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-013-0	01	1	0512-0805		●
4	NUT; PITMAN ARM M36 FLANGE	1-09440-098-0	01	1	0806-		●
9	LINK; DRAG	1-44380-271-1	01	1	0407-0511	●
9	LINK; DRAG	1-44380-271-1	01	1	0512-		●
21	NUT; LK,JOINT BALL M24 SLOTTED	1-09442-028-0	02	1	0407-0511	●
21	NUT; LK,JOINT BALL M24 SLOTTED	1-09442-028-0	02	1	0512-		●
22	LINK; DRAG,2ND	1-44380-278-0	01	1	0407-0511	●
22	LINK; DRAG,2ND	1-44380-278-0	01	1	0512-		●
23	PIN; SPLIT DRAG LINK 3RD OD=4.6 L=35	9-08115-035-0	02	1	0407-0511	●
23	PIN; SPLIT DRAG LINK 3RD OD=4.6 L=35	9-08115-035-0	02	1	0512-0606		●
23	PIN; SPLIT DRAG LINK 3RD OD=4.6 L=35	0-81125-035-0	02	1	0607-		●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	9-08115-035-0	02	1	0407-0511	●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	9-08115-035-0	02	1	0512-0606		●
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	0-81125-035-0	02	1	0607-		●
49	NUT; BOOSTER,BRKT SIDE M24 SLOTTED	1-09442-020-0	02	1	0407-0511	●
49	NUT; BOOSTER,BRKT SIDE M24 SLOTTED	1-09442-020-0	02	1	0512-0805		●
49	NUT; BOOSTER,BRKT SIDE M24	1-09442-032-0	02	1	0806-		●
53	PIN; SPLIT,BOOSTER,BRKT SIDE OD=4.6 L=35	9-08115-035-0	02	1	0407-0511	●
53	PIN; SPLIT,BOOSTER,BRKT SIDE OD=4.6 L=35	9-08115-035-0	02	1	0512-0606		●
53	PIN; SPLIT,BOOSTER,BRKT SIDE OD=4.6 L=35	0-81125-035-0	02	1	0607-		●
61	NIPPLE; PIN LINK ARM PT1/8 STRAIGHT	9-09031-010-0	01	1	0407-0511	●
61	NIPPLE; PIN LINK ARM PT1/8 STRAIGHT	9-09031-010-0	01	1	0512-0512		●
61	NIPPLE; PIN LINK ARM PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●
96	NUT; LINK ARM M24 SLOTTED	1-09442-028-0	02	1	0407-0511	●
96	NUT; LINK ARM M24 SLOTTED	1-09442-028-0	02	1	0512-		●
99	BOLT; BRKT M14X50	9-92061-450-0	02	1	0407-0511	●
99	BOLT; BRKT M14X50	9-92061-450-0	02	1	0512-0512		●
99	BOLT; BRKT M14X50	0-20951-450-0	02	1	0601-		●
99	BOLT; BRKT M14X60	9-92061-460-0	01	1	0407-0511	●
99	BOLT; BRKT M14X60	9-92061-460-0	01	1	0512-0512		●
99	BOLT; BRKT M14X60	0-20951-460-0	01	1	0601-		●
101	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0407-0511	●
101	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0512-1201		●
101	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1202-		●
109	NUT; ROD M24 SLOTTED	1-09442-020-0	02	1	0407-0511	●
109	NUT; ROD M24 SLOTTED	1-09442-020-0	02	1	0512-0805		●
109	NUT; ROD M24	1-09442-032-0	02	1	0806-		●
165	NUT; BRKT M14	9-99110-514-0	01	1	0407-0511	●
165	NUT; BRKT M14	9-99110-514-0	01	1	0512-0512		●
165	NUT; BRKT M14	0-91110-514-0	01	1	0601-		●
188	PIN; ROD OD=4.6 L=35	9-08115-035-0	02	1	0407-0511	●
188	PIN; ROD OD=4.6 L=35	9-08115-035-0	02	1	0512-0606		●
188	PIN; ROD OD=4.6 L=35	0-81125-035-0	02	1	0607-		●

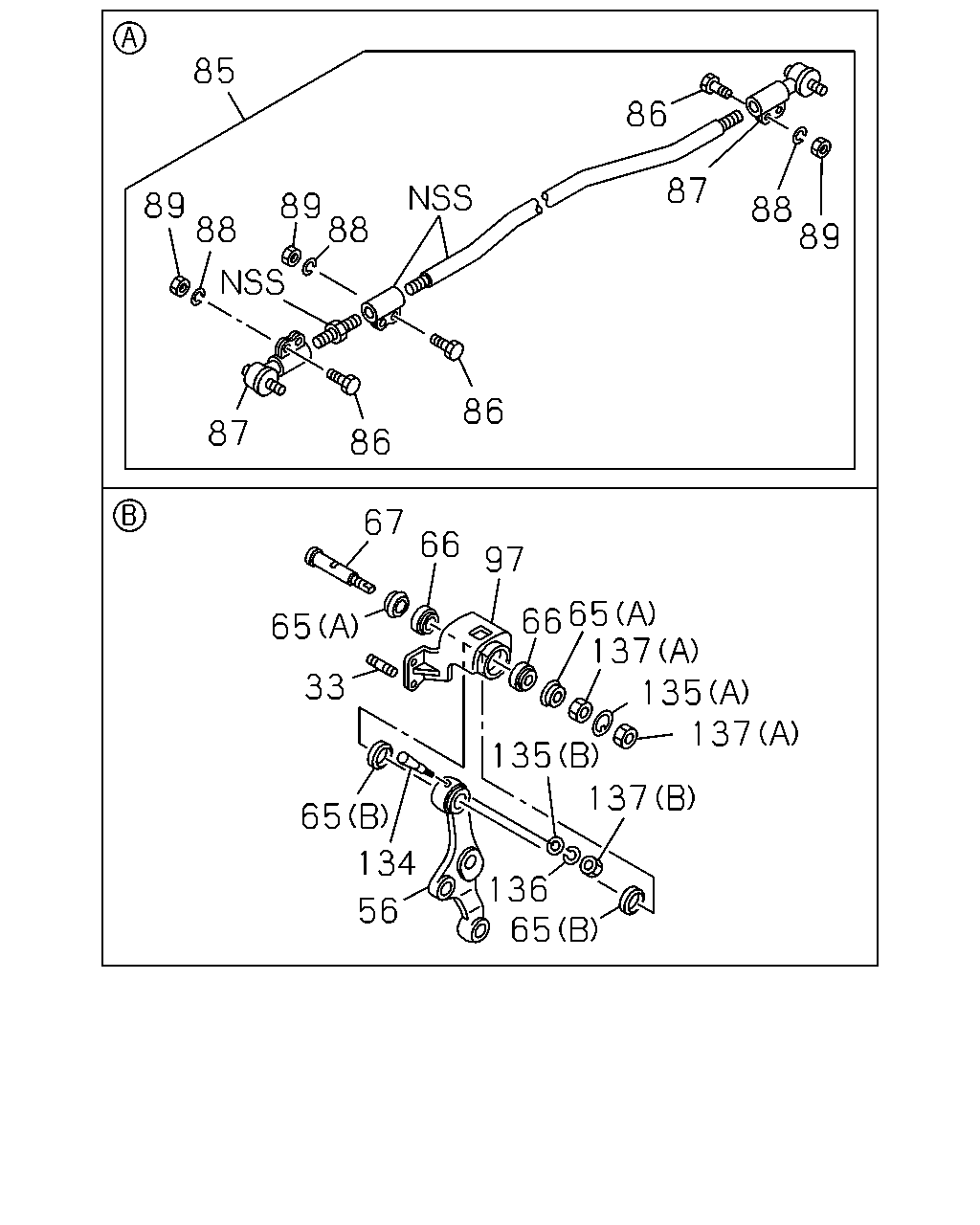

85 86 87 89 88 89 88 88 89 86 87 86 67 66 97 65 66 137 135 137 65 33 135 137 65 134 136 65 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	STUD M14X37 L=66	1-09300-095-1	01	1	0407-0511	●
33	STUD M14X37 L=66	1-09300-095-1	01	1	0512-		●
56	ARM; LINK,FRT,W/JOINT BALL	1-44345-202-0	01	1	0407-0511	●
56	ARM; LINK,FRT,W/JOINT BALL	1-44345-202-0	01	1	0512-		●
65	SEAL; DUST,LINK ARM (A) ID=32	1-44159-058-1	02	1	0407-0511	●
65	SEAL; DUST,LINK ARM (A) ID=32	1-44159-058-1	02	1	0512-		●
65	SEAL; DUST,LINK ARM (B) ID=38	1-44349-017-0	02	1	0407-0511	●
65	SEAL; DUST,LINK ARM (B) ID=38	1-44349-017-0	02	1	0512-		●
66	BEARING; LINK ARM	1-09812-149-0	02	1	0407-0511	●
66	BEARING; LINK ARM	1-09812-149-0	02	1	0512-		●
67	PIN; LINK ARM UPR	1-44346-011-3	01	1	0407-0511	●
67	PIN; LINK ARM UPR	1-44346-011-3	01	1	0512-		●
85	ROD ASM; LINK	1-44380-256-0	01	1	0407-0408	●
85	ROD ASM; LINK	1-44380-292-0	01	1	0409-0410	●
85	ROD ASM; LINK	1-44380-256-0	01	1	0411-0511	●
85	ROD ASM; LINK	1-44380-256-1	01	1	0512-		●
86	BOLT; ROD END TO LINK ROD M12X45	9-91066-245-0	06	1	0407-0511	●
86	BOLT; ROD END TO LINK ROD M12X45	9-91066-245-0	06	1	0512-0805		●
86	BOLT; ROD END TO LINK ROD M12X45	8-98036-382-0	06	1	0806-		●
87	END; ROD	1-44380-121-0	02	1	0407-0511	●
87	END; ROD	1-44380-121-1	02	1	0512-		●
88	WASHER; LK,ROD END TO LINK ROD ID=12.2	9-09150-812-0	06	1	0407-0511	●
88	WASHER; LK,ROD END TO LINK ROD ID=12.2	9-09150-812-0	06	1	0512-0603		●
88	WASHER; LK,ROD END TO LINK ROD ID=12.2	0-91510-812-0	06	1	0604-		●
89	NUT; ROD END TO LINK ROD M12	9-99110-512-0	06	1	0407-0511	●
89	NUT; ROD END TO LINK ROD M12	9-99110-512-0	06	1	0512-0512		●
89	NUT; ROD END TO LINK ROD M12	0-91110-512-0	06	1	0601-		●
97	BRACKET; LINK ARM	1-44348-077-0	01	1	0407-0511	●
97	BRACKET; LINK ARM	1-44348-077-0	01	1	0512-		●
134	BOLT; PIN SET LINK ARM	1-44349-016-2	01	1	0407-0511	●
134	BOLT; PIN SET LINK ARM	1-44349-016-2	01	1	0512-		●
135	WASHER; LK,PIN SET,LINK ARM (A) M31	1-09533-015-1	01	1	0407-0511	●
135	WASHER; LK,PIN SET,LINK ARM (A) M31	1-09533-015-1	01	1	0512-		●
135	WASHER; LK,PIN SET,LINK ARM (B) ID=8.2	9-09150-808-0	01	1	0407-0511	●
135	WASHER; LK,PIN SET,LINK ARM (B) ID=8.2	9-09150-808-0	01	1	0512-0603		●
135	WASHER; LK,PIN SET,LINK ARM (B) ID=8.2	0-91510-808-0	01	1	0604-		●
136	WASHER; PL,SPINDLE,LINK ARM ID=8.4	9-09164-508-0	01	1	0407-0511	●
136	WASHER; PL,SPINDLE,LINK ARM ID=8.4	9-09164-508-0	01	1	0512-0605		●
136	WASHER; PL,SPINDLE,LINK ARM ID=8.4 OD=16	0-91614-508-0	01	1	0606-		●
137	NUT; PIN SET LINK ARM (A) M30	1-09400-102-0	02	1	0407-0511	●
137	NUT; PIN SET LINK ARM (A) M30	1-09400-102-0	02	1	0512-		●
137	NUT; PIN SET LINK ARM (B) M8	9-09110-508-0	01	1	0407-0511	●
137	NUT; PIN SET LINK ARM (B) M8	9-09110-508-0	01	1	0512-0512		●
137	NUT; PIN SET LINK ARM (B) M8	0-91110-508-0	01	1	0601-		●
