◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#29555) — 83 parça

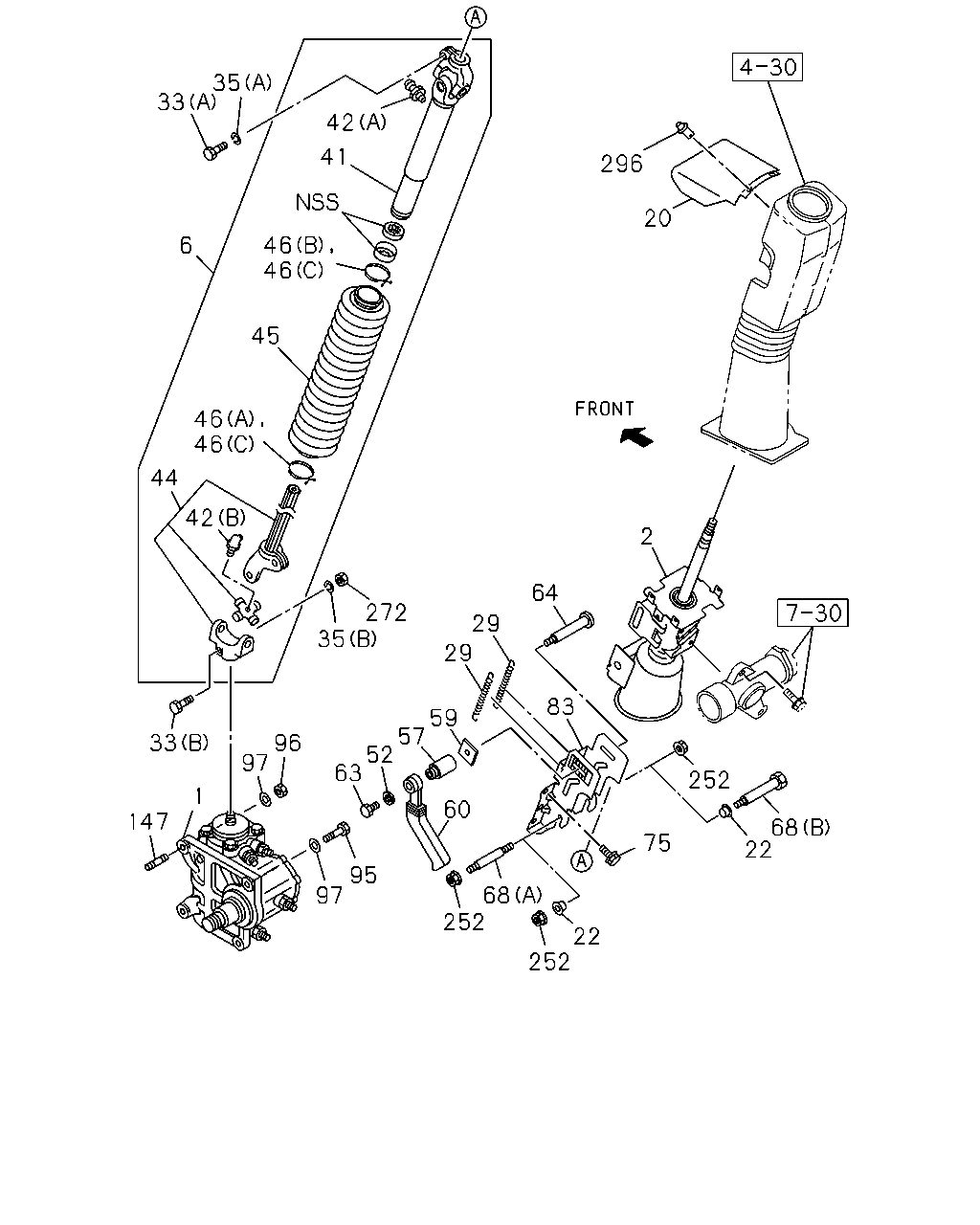

çizim 104069
35 33 42 41 296 20 46 46 6 45 46 46 44 42 2 64 272 35 29 29 83 59 57 52 63 33 96 97 252 1 60 147 68 22 75 95 97 68 252 22 252
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-910-0 01 1 0407-0511 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-910-0 01 1 0512-0703 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-922-2 01 1 0704- ●
2 SHAFT ASM; STRG
CAB UP +110MM<TGG> 		1-44130-740-0 01 1 0407-0510 ●
2 SHAFT ASM; STRG
CAB UP +110MM<TGG> 		1-44130-783-0 01 1 0511-0511 ●
2 SHAFT ASM; STRG 1-44130-783-0 01 1 0512- ●
6 SHAFT; STRG LWR
CAB UP +110MM<TGG> 		1-44135-354-0 01 1 0407-0511 ●
6 SHAFT; STRG LWR
CAB UP +110MM<TGG> 		1-44135-385-0 01 1 0512-0512 ●
6 SHAFT; STRG LWR 1-44135-385-0 01 1 0512- ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0407-0511 ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0512- ●
22 BUSHING; STRG COLUMN
CAB UP +110MM<TGG> 		1-44227-165-0 02 1 0511-0511 ●
22 BUSHING; STRG COLUMN 1-44227-165-0 02 1 0512- ●
29 SPRING; COLUMN
CAB UP +110MM<TGG> 		1-44227-136-0 02 1 0407-0511 ●
29 SPRING; COLUMN
CAB UP +110MM<TGG> 		1-44227-136-0 01 1 0512-0512 ●
29 SPRING; COLUMN 1-44227-136-0 01 1 0512- ●
33 BOLT; STRG SHAFT TO UNIT
CAB UP +110MM<TGG> (A) 		1-44139-141-0 01 1 0407-0511 ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 0512- ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 0407-0511 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 0512-0707 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708- ●
35 WASHER; LK,STRG SHAFT
CAB UP +110MM<TGG> (A) 		1-44139-142-0 01 1 0407-0511 ●
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-142-0 01 1 0512- ●
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		9-09150-810-0 01 1 0407-0511 ●
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		9-09150-810-0 01 1 0512-0603 ●
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		0-91510-810-0 01 1 0604- ●
41 YOKE; SLEEVE,STRG
CAB UP +110MM<TGG> 		1-44135-359-0 01 1 0407-0511 ●
41 YOKE; SLEEVE,STRG 1-44135-359-0 01 1 0512- ●
42 NIPPLE; GREASE,SLEEVE YOKE
CAB UP +110MM<TGG> (A) M6 STRAIGHT 		9-09031-006-0 01 1 0407-0511 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 0512-0607 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		0-90301-406-0 01 1 0608- ●
42 NIPPLE; GREASE,SLEEVE YOKE
CAB UP +110MM<TGG> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 0407-0511 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 0512-0512 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
44 SHAFT; SPLINE,STRG
CAB UP +110MM<TGG> 		1-44135-316-0 01 1 0407-0511 ●
44 SHAFT; SPLINE,STRG 1-44135-316-0 01 1 0512- ●
45 BOOT; STRG SHAFT
CAB UP +110MM<TGG> 		1-44139-138-0 01 1 0407-0511 ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 0512- ●
46 CLIP; BOOT
CAB UP +110MM<TGG> (A) 		1-44139-139-0 01 1 0407-0511 ●
46 CLIP; BOOT
CAB UP +110MM<TGG> (C) 		8-98019-551-0 02 1 0512-0512 ●
46 CLIP; BOOT
(C) 		8-98019-551-0 02 1 0512- ●
46 CLIP; BOOT
CAB UP +110MM<TGG> (B) 		1-44139-140-0 01 1 0407-0511 ●
52 WASHER; PL,ADJ LEVER
CAB UP +110MM<TGG> 		1-44227-154-0 01 1 0407-0511 ●
52 WASHER; PL,ADJ LEVER 1-44227-154-0 01 1 0512- ●
57 NUT; ADJ BOLT
CAB UP +110MM<TGG> 		1-44227-159-0 01 1 0407-0511 ●
57 NUT; ADJ BOLT 1-44227-159-0 01 1 0512- ●
59 COLLAR; DIST,ADJ BOLT
CAB UP +110MM<TGG> 		1-44227-127-0 01 1 0407-0511 ●
59 COLLAR; DIST,ADJ BOLT 1-44227-127-0 01 1 0512- ●
60 LEVER; ADJ,STRG COLUMN
CAB UP +110MM<TGG> 		1-44227-160-0 01 1 0407-0511 ●
60 LEVER; ADJ,STRG COLUMN 1-44227-160-0 01 1 0512- ●
63 BOLT; ADJ LEVER,TILT STRG
CAB UP +110MM<TGG> 		1-44227-126-0 01 1 0407-0511 ●
63 BOLT; ADJ LEVER,TILT STRG 1-44227-126-0 01 1 0512- ●
64 BOLT; ADJ,PROTECTOR
CAB UP +110MM<TGG> 		1-44227-156-0 01 1 0407-0511 ●
64 BOLT; ADJ,PROTECTOR 1-44227-156-0 01 1 0512- ●
68 PIN; TILT CENTER
CAB UP +110MM<TGG> (A) 		1-44227-161-0 01 1 0407-0510 ●
68 PIN; TILT CENTER
CAB UP +110MM<TGG> (B) 		1-44227-164-0 01 1 0511-0511 ●
68 PIN; TILT CENTER
CAB UP +110MM<TGG> (B) 		8-97163-920-1 01 1 0512-0512 ●
68 PIN; TILT CENTER
(B) 		8-97163-920-1 01 1 0512- ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
83 BRACKET; TILT STRG UPR
CAB UP +110MM<TGG> 		1-44227-157-0 01 1 0407-0511 ●
83 BRACKET; TILT STRG UPR
CAB UP +110MM<TGG> 		1-44227-166-0 01 1 0512-0512 ●
83 BRACKET; TILT STRG UPR 1-44227-166-0 01 1 0512- ●
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 0407-0409 ●
95 BOLT; STRG UNIT
M18X60 		9-91066-860-0 03 1 0410-0511 ●
95 BOLT; STRG UNIT
M18X60 		9-91066-860-0 03 1 0512-0805 ●
95 BOLT; STRG UNIT
M18X60 		8-98036-497-0 03 1 0806- ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 0407-0511 ●
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 0512-0512 ●
96 NUT; STRG UNIT
M18 		0-91110-518-0 01 1 0601- ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 0407-0511 ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 0512- ●
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 0407-0511 ●
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 0512- ●
252 NUT; TILT CENTER BOLT
CAB UP +110MM<TGG> 		1-44227-135-0 02 1 0407-0510 ●
252 NUT; TILT CENTER BOLT
CAB UP +110MM<TGG> 		1-44227-135-0 01 1 0511-0511 ●
252 NUT; TILT CENTER BOLT 1-44227-135-0 01 1 0512- ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 0407-0511 ●
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 0512-0512 ●
272 NUT; SHAFT TO YOKE
M10 		0-91110-510-0 01 1 0601- ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0407-0511 ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0512- ●
