◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10953 - CXH/CYH NEW ZEALAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#29554) — 32 parça

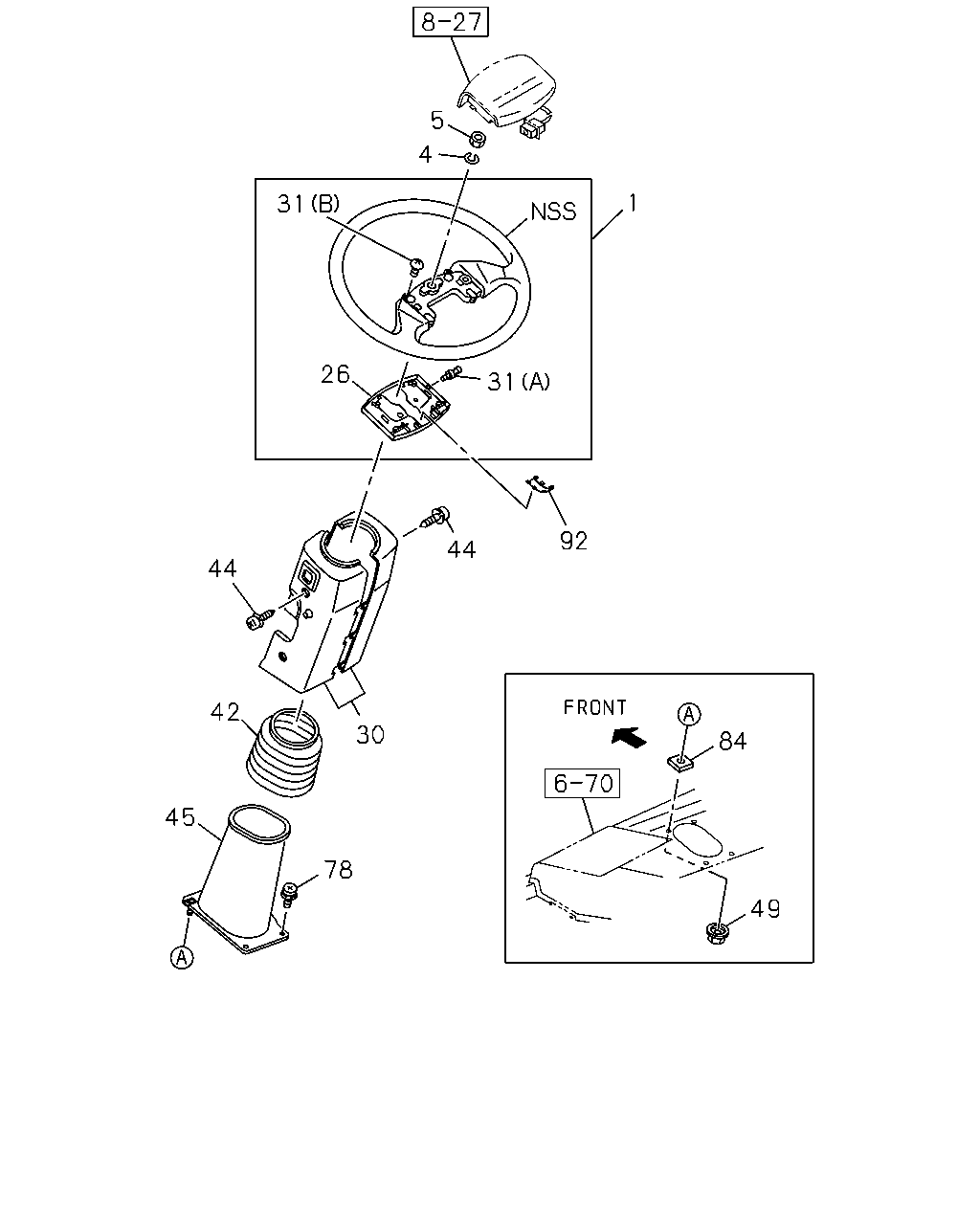

çizim 86887
5 4 1 31 26 31 92 44 44 42 30 84 45 78 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
CUSTOM CAB(SR5) 		1-44110-167-2 01 1 0407-0511 ●
1 WHEEL; STRG
STRG WHEEL LEATHER WRAPPED<NP5> 		1-44110-167-2 01 1 0512- ●
1 WHEEL; STRG
EXC. CUSTOM CAB(SR5) 		1-44110-166-2 01 1 0407-0511 ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 0407-0511 ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 0512-0603 ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0604- ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 0407-0511 ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 0512-0512 ●
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0601- ●
26 COVER; STRG WHEEL,LWR 1-44129-057-1 01 1 0407-0511 ●
26 COVER; STRG WHEEL,LWR
STRG WHEEL LEATHER WRAPPED<NP5> 		1-44129-057-1 01 1 0512- ●
30 COWL; STEERING 1-79907-070-0 01 1 0407-0511 ●
30 COWL; STEERING 1-79907-070-0 01 1 0512- ●
31 SCREW; BOSS TO COVER
(A) 		1-09169-005-0 02 1 0407-0511 ●
31 SCREW; BOSS TO COVER
STRG WHEEL LEATHER WRAPPED<NP5> (A) 		1-09169-005-0 02 1 0512- ●
31 SCREW; BOSS TO COVER
(B) M4X14 TAPPING 		9-07066-414-0 04 1 0407-0511 ●
31 SCREW; BOSS TO COVER
STRG WHEEL LEATHER WRAPPED<NP5> (B) M4X14 TAPPING 		9-07066-414-0 04 1 0512- ●
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0407-0511 ●
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0512- ●
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0407-0511 ●
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0512- ●
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0407-0511 ●
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0512- ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0407-0511 ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0512-1205 ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1206- ●
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0407-0511 ●
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0512- ●
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0407-0511 ●
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0512-1205 ●
92 LID; WHEEL COVER 1-44119-001-1 01 1 0407-0511 ●
92 LID; WHEEL COVER 1-44119-001-1 01 1 0512- ●
