4-20 — REAR AXLE CASE AND SHAFT (#29552) — 172 parça

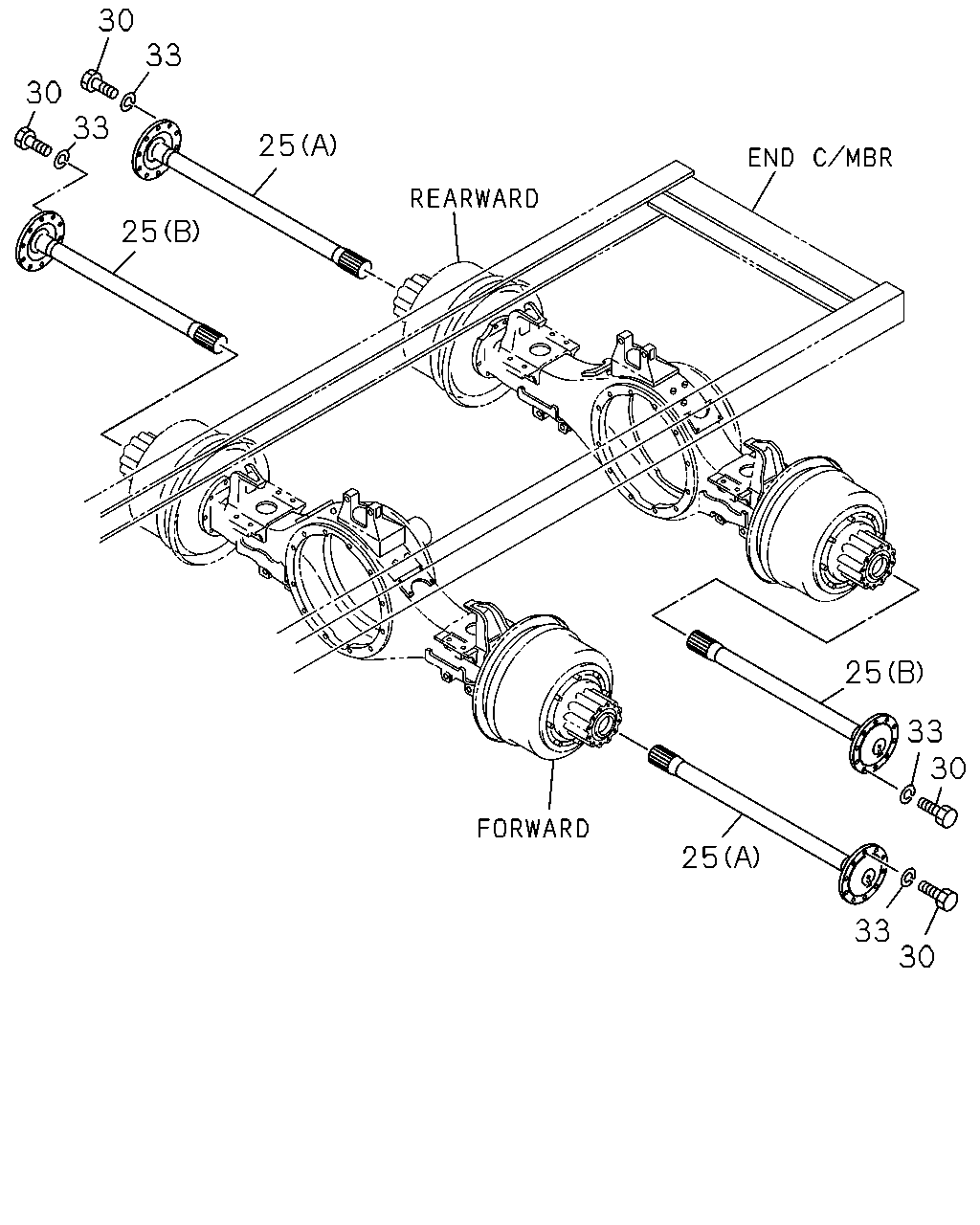

çizim 86826
30 33 30 33 25 25 25 33 30 25 33 30
BalonParca AdiParca NoAdetTipApplied Date A B
25 SHAFT; AXLE,RR
(B) L=976 		1-42171-356-0 01 1 0407-0511 ●
25 SHAFT; AXLE,RR
(B) L=976 		1-42171-356-0 01 1 0407-0511 ●
25 SHAFT; AXLE,RR
(B) L=976 		1-42171-356-0 01 1 0512-0910 ●
25 SHAFT; AXLE,RR
(B) L=976 		1-42171-356-0 01 1 0512-0910 ●
25 SHAFT; AXLE,RR
(B) L=990 		8-98146-166-0 01 1 0911- ●
25 SHAFT; AXLE,RR
(B) L=990 		8-98146-166-0 01 1 0911- ●
25 SHAFT; AXLE,RR
(A) L=1106 		1-42171-357-0 01 1 0407-0511 ●
25 SHAFT; AXLE,RR
(A) L=1106 		1-42171-357-0 01 1 0407-0511 ●
25 SHAFT; AXLE,RR
(A) L=1106 		1-42171-357-0 01 1 0512-0910 ●
25 SHAFT; AXLE,RR
(A) L=1106 		1-42171-357-0 01 1 0512-0910 ●
25 SHAFT; AXLE,RR
(A) L=1110 		8-98146-167-0 01 1 0911- ●
25 SHAFT; AXLE,RR
(A) L=1110 		8-98146-167-0 01 1 0911- ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0407-0511 ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0407-0511 ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0512- ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0512- ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0407-0511 ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0407-0511 ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0512-0603 ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0512-0603 ●
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604- ●
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604- ●

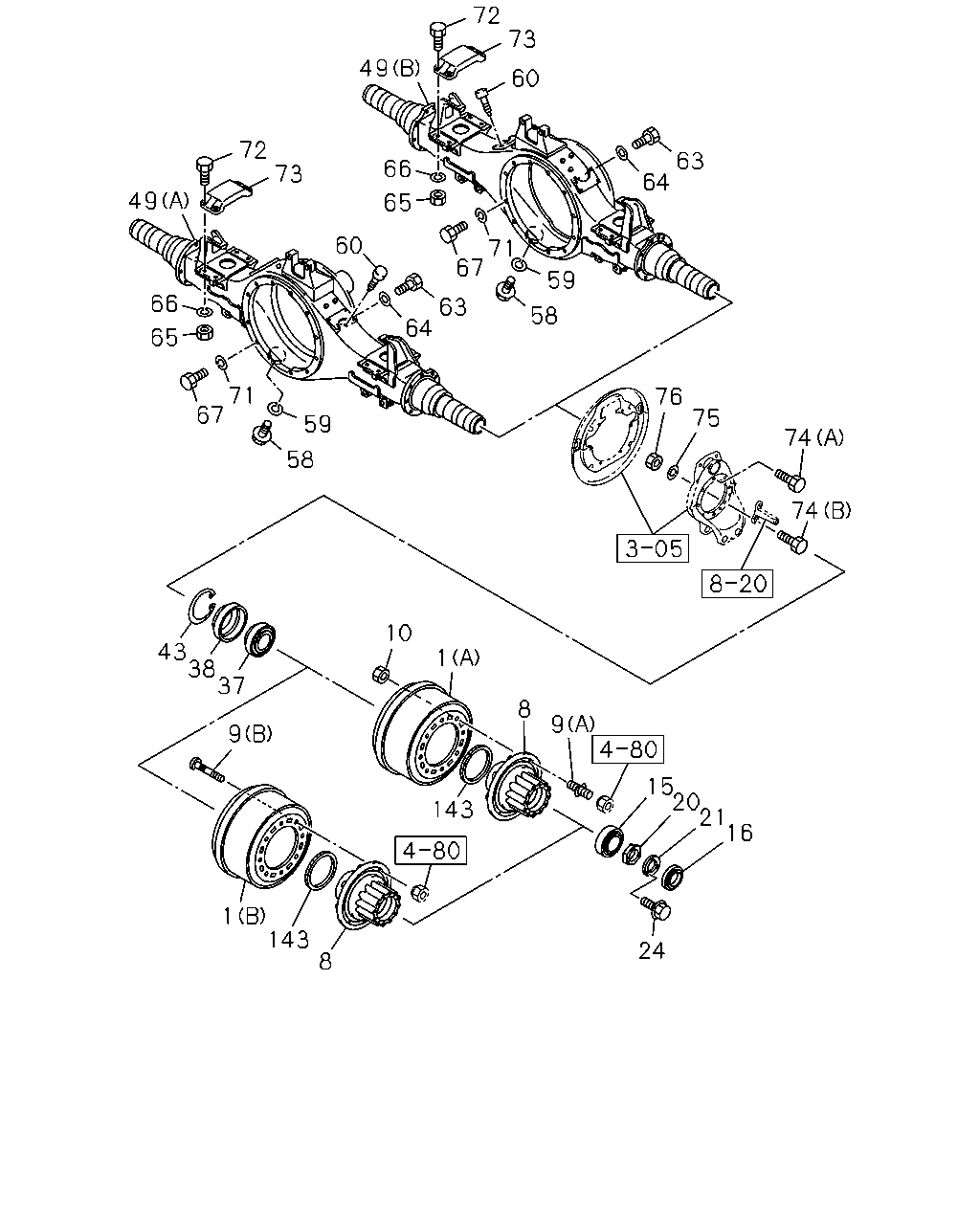

çizim 103964
72 73 49 60 72 73 63 64 66 49 65 71 67 60 59 66 63 64 58 65 71 67 76 75 59 74 58 74 10 43 38 37 1 8 9 9 15 20 21 16 143 1 143 8 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
(A) 		1-42315-383-0 02 1 0407-0511 ●
1 DRUM; BRK,RR
(A) 		1-42315-383-0 02 1 0407-0511 ●
1 DRUM; BRK,RR
(B) 		1-42315-377-2 02 1 0512- ●
1 DRUM; BRK,RR
(B) 		1-42315-377-2 02 1 0512- ●
8 HUB; RR AXLE
REARWARD 		1-42311-094-0 02 1 0407-0511 ●
8 HUB; RR AXLE
REARWARD 		1-42311-094-0 02 1 0512- ●
8 HUB; RR AXLE
FORWARD 		1-42311-085-0 02 1 0407-0511 ●
8 HUB; RR AXLE
FORWARD 		1-42311-085-0 02 1 0512- ●
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> (A) M22X79.8,M22X53.5 RH THREAD 		1-42337-070-0 20 1 0407-0511 ●
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> (A) M22X79.8,M22X53.5 RH THREAD 		1-42337-070-0 20 1 0407-0511 ●
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> (B) M22X109 RH THREAD 		1-42337-076-1 20 1 0512- ●
9 PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM> (B) M22X109 RH THREAD 		1-42337-076-1 20 1 0512- ●
9 PIN; WHEEL,RR AXLE
DISC WHEEL STEEL<SDN> (A) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-0 20 1 0407-0511 ●
9 PIN; WHEEL,RR AXLE
DISC WHEEL STEEL<SDN> (A) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-0 20 1 0407-0511 ●
9 PIN; WHEEL,RR AXLE
DISC WHEEL STEEL<SDN> (B) M22X93 RH THREAD 		1-42337-066-2 20 1 0512- ●
9 PIN; WHEEL,RR AXLE
DISC WHEEL STEEL<SDN> (B) M22X93 RH THREAD 		1-42337-066-2 20 1 0512- ●
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0407-0511 ●
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0407-0511 ●
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209- ●
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209- ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0407-0511 ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0407-0511 ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0512- ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0512- ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209- ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209- ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0407-0511 ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0407-0511 ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0512- ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0512- ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0407-0511 ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0407-0511 ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0512- ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0512- ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0407-0511 ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0407-0511 ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0512- ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0512- ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0407-0511 ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0407-0511 ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0512- ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0512- ●
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209- ●
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209- ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0407-0511 ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0407-0511 ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0512- ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0512- ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0407-0511 ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0407-0511 ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0512- ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 0512- ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0407-0511 ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0407-0511 ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0512- ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0512- ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0407-0511 ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0407-0511 ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0512- ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0512- ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0407-0511 ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0407-0511 ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0512- ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0512- ●
49 CASE; RR AXLE
(B) REARWARD 		1-42190-401-3 01 1 0407-0511 ●
49 CASE; RR AXLE
(B) REARWARD 		1-42190-287-5 01 1 0512- ●
49 CASE; RR AXLE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) FORWARD 		1-42190-482-0 01 1 0407-0511 ●
49 CASE; RR AXLE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) FORWARD 		1-42190-483-1 01 1 0512- ●
49 CASE; RR AXLE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) FORWARD 		1-42190-442-0 01 1 0407-0511 ●
49 CASE; RR AXLE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) FORWARD 		1-42190-330-4 01 1 0512- ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0407-0511 ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0407-0511 ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0512- ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0512- ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0407-0511 ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0407-0511 ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0512- ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0512- ●
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0407-0511 ●
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0512-1412 ●
60 BREATHER; RR AXLE CASE 1-09893-003-0 02 1 1501- ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0407-0511 ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0407-0511 ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0512- ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0512- ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0407-0511 ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0407-0511 ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0512- ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0512- ●
65 NUT
M14 		9-99110-514-0 08 1 0407-0511 ●
65 NUT
M14 		9-99110-514-0 08 1 0407-0511 ●
65 NUT
M14 		9-99110-514-0 08 1 0512-0512 ●
65 NUT
M14 		9-99110-514-0 08 1 0512-0512 ●
65 NUT
M14 		0-91110-514-0 08 1 0601- ●
65 NUT
M14 		0-91110-514-0 08 1 0601- ●
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0407-0511 ●
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0407-0511 ●
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0512-0603 ●
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0512-0603 ●
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604- ●
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604- ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 0407-0511 ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 0512-0512 ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 0601- ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0407-0511 ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0407-0511 ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0512-0512 ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0512-0512 ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601- ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601- ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0407-0511 ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0512-0512 ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 07 1 0601- ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0407-0511 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0407-0511 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0512-0603 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0512-0603 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604- ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604- ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0407-0511 ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0407-0511 ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0512-0805 ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0512-0805 ●
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806- ●
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806- ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0407-0511 ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0407-0511 ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0512- ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0512- ●
74 BOLT; RR BRK ASM SETTING
(A) FORWARD M14X50 		1-09040-066-0 14 1 0407-0511 ●
74 BOLT; RR BRK ASM SETTING
(A) FORWARD M14X50 		1-09040-066-0 16 1 0512- ●
74 BOLT; RR BRK ASM SETTING
(A) REARWARD M14X50 		1-09040-066-0 10 1 0407-0511 ●
74 BOLT; RR BRK ASM SETTING
(A) REARWARD M14X50 		1-09040-066-0 12 1 0512- ●
74 BOLT; RR BRK ASM SETTING
(B) REARWARD M14X80 		9-92621-480-0 04 1 0407-0511 ●
74 BOLT; RR BRK ASM SETTING
(B) REARWARD M14X80 		9-92621-480-0 04 1 0512-1504 ●
74 BOLT; RR BRK ASM SETTING
(B) REARWARD M14X60 		1-09040-084-0 04 1 1505- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0407-0511 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0407-0511 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0512-0603 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0512-0603 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604- ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0407-0511 ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0407-0511 ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0512-0512 ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0512-0512 ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601- ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601- ●
143 RING; EXCITER 1-42319-173-0 02 1 0407-0511 ●
143 RING; EXCITER 1-42319-173-0 02 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
