Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#29550) — 568 parça

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 110 128 111 110 127 105 234 87 91 111 128 127 91 234 103 103 234 296 87 303 82 93 87 303 304 304 93 93 234 105 237 93 237 87 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

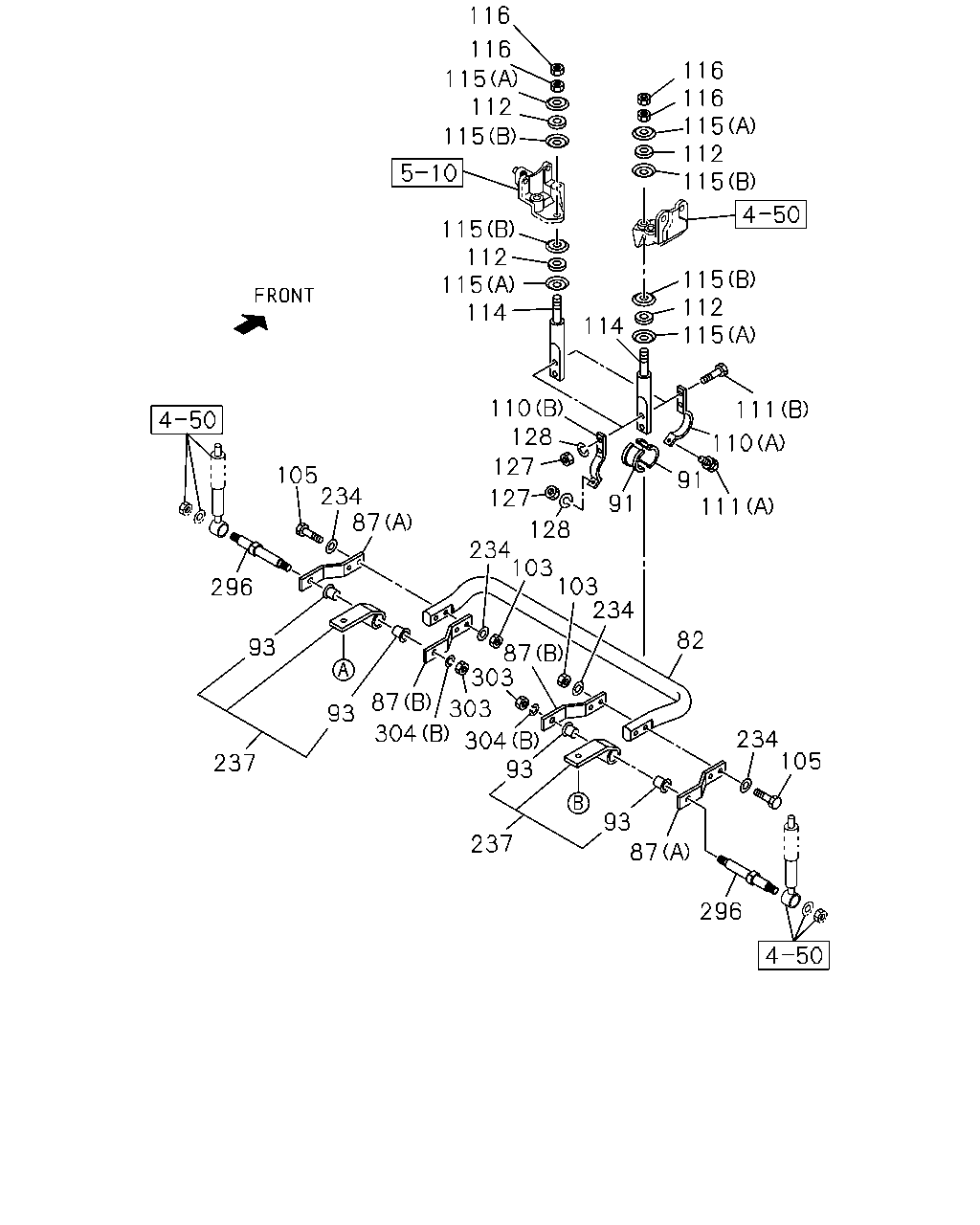

82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-136-0	01	1	0407-0511	●
82	BAR; STAB,FRT SUSP	1-51771-136-1	01	1	0512-		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	0407-0511	●
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0512-0912		●
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1001-		●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	0407-0511	●
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0512-0912		●
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1001-		●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-0	04	1	0407-0511	●
91	BUSHING; RUBBER,STAB BAR	1-51779-087-1	04	1	0512-		●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-1	04	1	0407-0511	●
93	BUSHING; STABILIZER	1-51689-015-3	04	1	0512-		●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	0407-0511	●
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	0512-0512		●
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	0601-		●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0407-0511	●
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0512-0910		●
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	0911-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0407-0511	●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0512-		●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0407-0511	●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0512-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0407-0511	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0512-0910		●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-		●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0407-0511	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0512-0910		●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-		●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	0407-0511	●
112	BUSHING; ROD	9-51631-039-0	04	1	0512-		●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-083-2	02	1	0407-0407	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-071-2	02	1	0408-0511	●
114	ROD; STAB BAR	1-51773-071-2	02	1	0512-		●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	0407-0511	●
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.5	9-51631-040-0	04	1	0512-		●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	0407-0511	●
115	WASHER; CENTER,STAB TO FRAME (B) ID=20.8	9-51631-041-0	04	1	0512-		●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	0407-0511	●
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	0512-0512		●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0601-		●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	0407-0511	●
127	NUT; CLAMP M12	9-99110-412-0	06	1	0512-0512		●
127	NUT; CLAMP M12	0-91110-512-0	06	1	0601-		●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	0407-0511	●
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0512-0603		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-0912		●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1001-		●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0407-0511	●
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0512-0910		●
234	WASHER; STAB ID=15	8-98010-627-1	08	1	0911-		●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-664-0	02	1	0407-0407	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-842-0	02	1	0408-0511	●
237	SUPPORT; STAB BAR	1-51681-842-0	02	1	0512-		●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	0407-0511	●
296	PIN; STAB	1-51682-145-2	02	1	0512-0907		●
296	PIN; STAB	8-98022-874-1	02	1	0908-		●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	0407-0511	●
303	NUT; PIN M20	9-99110-520-0	02	1	0512-0512		●
303	NUT; PIN M20	0-91110-520-0	02	1	0601-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0407-0511	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0512-0907		●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	08	1	0407-0511	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	08	1	0512-0709		●
304	WASHER; PL (A) FORWARD ID=12.5	0-91614-512-0	04	1	0710-0802		●
304	WASHER; PL (A) REARWARD ID=12.5	9-09164-512-0	04	1	0710-0802		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	08	1	0803-		●

2 1 33 34 30 21 48 313 295 295 48 30 21 80 66 45 32 25 59 58 80 44 40 220 58 36 59 44 275 66 68 61 8 6 9 81 74 2 304 313 68 304 17 74 18 45 61 8 3 3 6 8 21 48 295 48 44 44 295 21 45 21 44 44 21 8 6 33 8 6 33 48 48 32 32 25 34 6 8 25 34 6 8 8 8 45 21 44 48 44 21 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

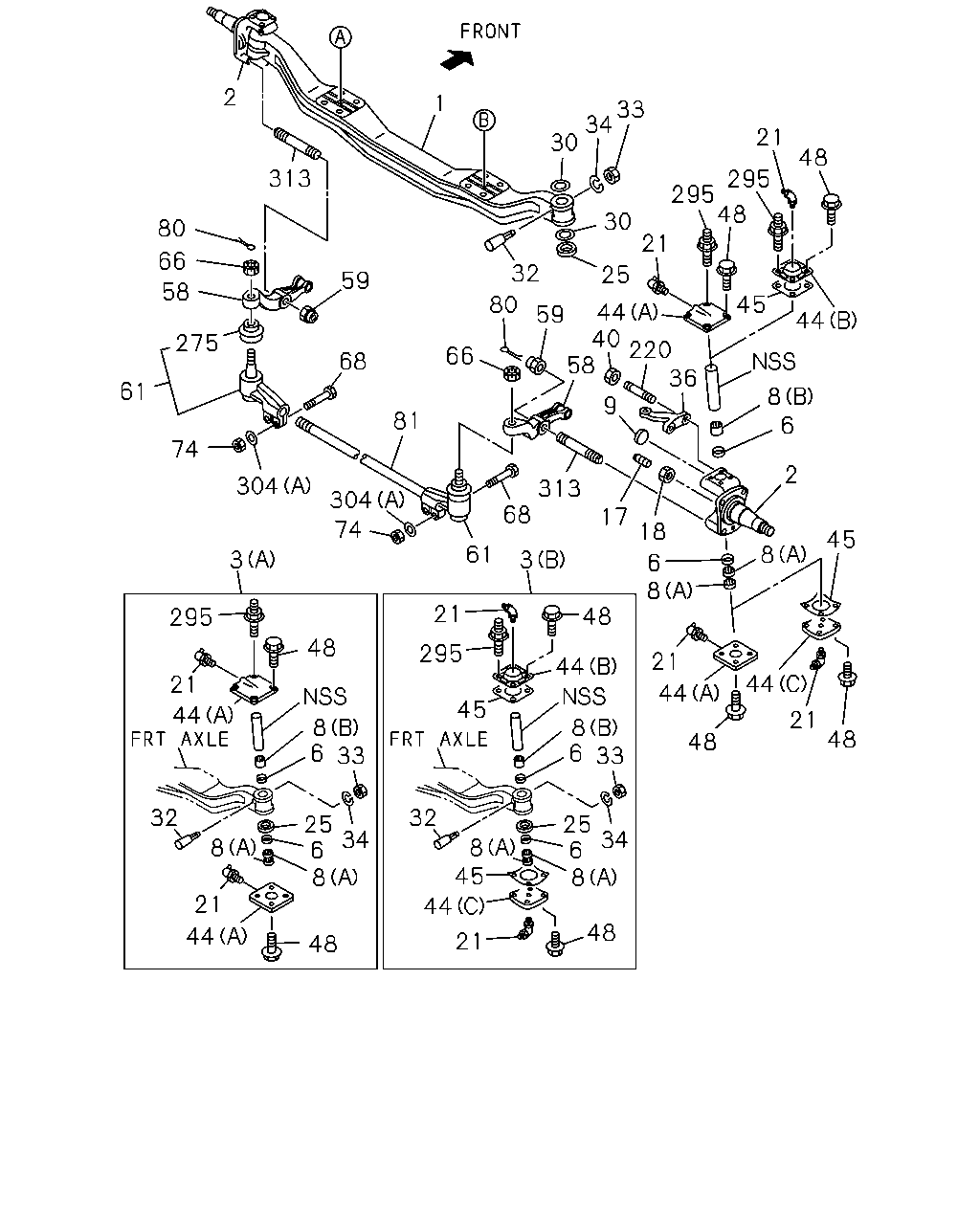

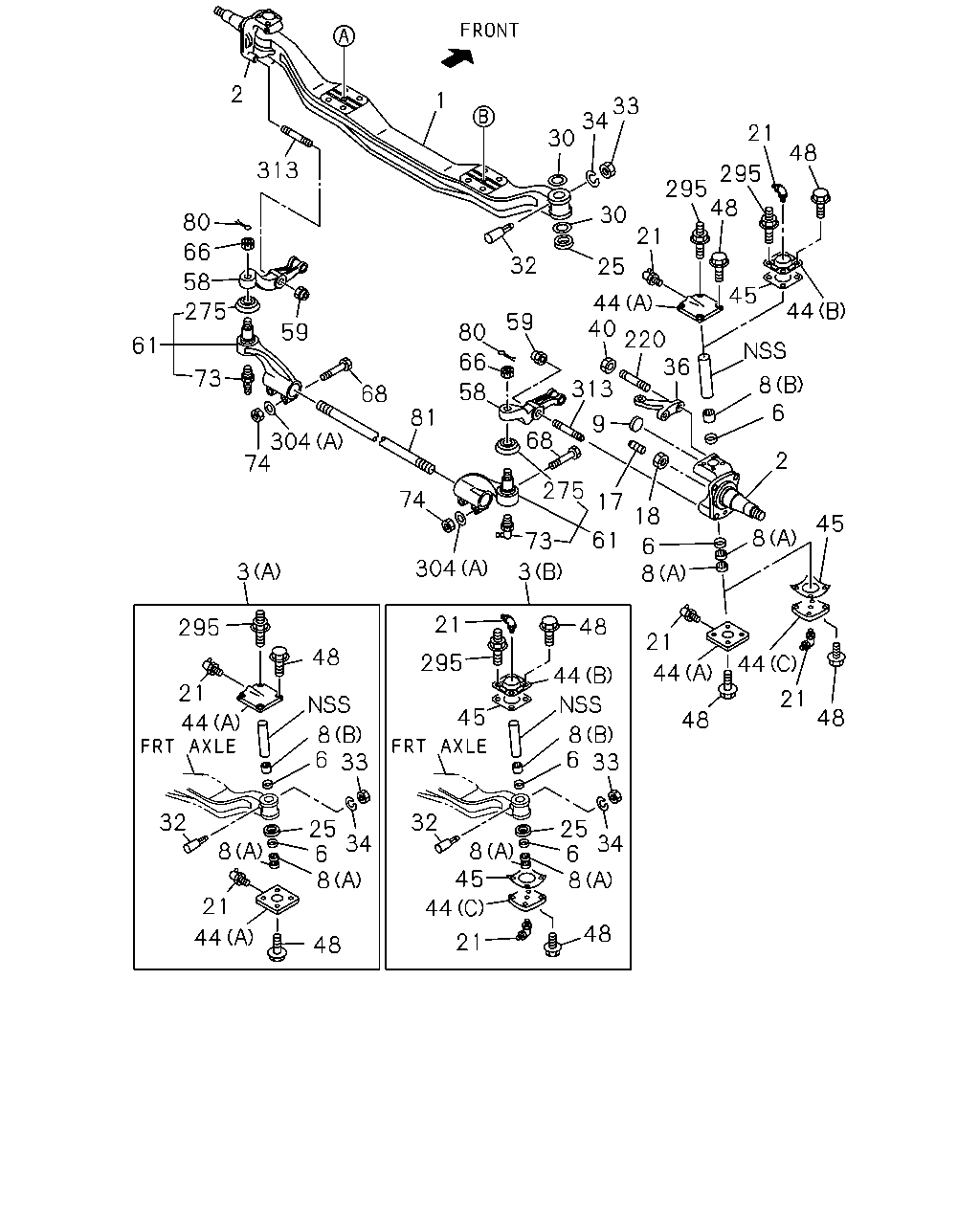

1	AXLE; FRT	1-43111-107-4	01	1	0407-0511	●
1	AXLE; FRT	1-43111-107-4	01	1	0407-0511	●
1	AXLE; FRT	1-43111-107-9	01	1	0512-		●
1	AXLE; FRT	1-43111-107-9	01	1	0512-		●
2	KNUCKLE; FRT AXLE	1-43131-118-0	01	1	0407-0511	●
2	KNUCKLE; FRT AXLE	1-43131-118-0	01	1	0407-0511	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0512-		●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0512-		●
2	KNUCKLE; FRT AXLE	1-43132-101-0	01	1	0407-0511	●
2	KNUCKLE; FRT AXLE	1-43132-101-0	01	1	0407-0511	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0512-		●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0512-		●
3	KING PIN SET (A)	1-87831-111-2	02	1	0407-0511	●
3	KING PIN SET (A)	1-87831-111-2	02	1	0407-0511	●
3	KING PIN SET (A)	1-87831-111-7	02	1	0512-0801		●
3	KING PIN SET (A)	1-87831-111-7	02	1	0512-0801		●
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-		●
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-		●
6	SEAL; KING PIN	9-09926-024-0	04	1	0407-0511	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0407-0511	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0512-		●
6	SEAL; KING PIN	9-09926-024-0	04	1	0512-		●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0407-0511	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0407-0511	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0512-		●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0512-		●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0407-0511	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0407-0511	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0512-		●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0512-		●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0407-0511	●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0407-0511	●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0512-		●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0512-		●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	03	1	0407-0511	●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	03	1	0407-0511	●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	03	1	0512-		●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	03	1	0512-		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0705-0705		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0705-0705		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-		●
17	BOLT; STOPPER KNUCKLE M18X38	1-09009-164-0	02	1	0407-0511	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0512-		●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0407-0511	●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0407-0511	●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0512-		●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0512-		●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0407-0511	●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0407-0511	●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0512-0512		●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0512-0512		●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	0-91110-518-0	02	1	0601-		●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	0-91110-518-0	02	1	0601-		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0407-0511	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0407-0511	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0512-0512		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0512-0512		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-		●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0407-0511	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0407-0511	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0512-		●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0512-		●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0407-0511	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0407-0511	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0512-		●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0512-		●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0407-0511	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0407-0511	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0512-0512		●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0512-0512		●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-		●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-		●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0407-0511	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0407-0511	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0512-0603		●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0512-0603		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-		●
36	ARM; KNUCKLE	1-43133-083-3	01	1	0512-		●
36	ARM; KNUCKLE	1-43133-083-3	01	1	0512-		●
36	ARM; KNUCKLE	1-43133-083-1	01	1	0407-0511	●
36	ARM; KNUCKLE	1-43133-083-1	01	1	0407-0511	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0407-0511	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0407-0511	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0512-0704		●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0512-0704		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-		●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-		●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-		●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0407-0511	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0407-0511	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0512-0801		●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0512-0801		●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-		●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-		●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0802-		●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0802-		●
48	BOLT; COVER M10X25 FLANGE	0-28781-025-0	28	1	0407-0511	●
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	28	1	0512-		●
58	ARM; TIE ROD FORWARD	1-43134-049-2	01	1	0407-0511	●
58	ARM; TIE ROD FORWARD	1-43134-049-4	01	1	0512-		●
58	ARM; TIE ROD REARWARD	1-43134-060-0	01	1	0407-0511	●
58	ARM; TIE ROD REARWARD	1-43134-060-2	01	1	0512-		●
58	ARM; TIE ROD FORWARD	1-43135-049-2	01	1	0407-0511	●
58	ARM; TIE ROD FORWARD	1-43135-049-4	01	1	0512-		●
58	ARM; TIE ROD REARWARD	1-43135-060-0	01	1	0407-0511	●
58	ARM; TIE ROD REARWARD	1-43135-060-2	01	1	0512-		●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0407-0511	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0407-0511	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0512-0704		●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0512-0704		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-		●
61	ROD END; TIE ROD REARWARD	1-43150-852-0	01	1	0407-0511	●
61	ROD END; TIE ROD REARWARD	1-43150-852-1	01	1	0512-1009		●
61	ROD END; TIE ROD REARWARD	1-43150-853-0	01	1	0407-0511	●
61	ROD END; TIE ROD REARWARD	1-43150-853-1	01	1	0512-1009		●
61	ROD END; TIE ROD FORWARD	1-43150-856-0	01	1	0407-0511	●
61	ROD END; TIE ROD FORWARD	1-43150-856-0	01	1	0512-1009		●
61	ROD END; TIE ROD FORWARD	1-43150-857-0	01	1	0407-0511	●
61	ROD END; TIE ROD FORWARD	1-43150-857-0	01	1	0512-1009		●
61	ROD END; TIE ROD FORWARD	8-98105-073-0	01	1	1010-1306		●
61	ROD END; TIE ROD FORWARD	8-98228-100-0	01	1	1307-		●
61	ROD END; TIE ROD FORWARD	8-98105-074-0	01	1	1010-1306		●
61	ROD END; TIE ROD FORWARD	8-98228-101-0	01	1	1307-		●
61	ROD END; TIE ROD REARWARD	8-98127-017-0	01	1	1010-1306		●
61	ROD END; TIE ROD REARWARD	8-98228-102-0	01	1	1307-		●
61	ROD END; TIE ROD REARWARD	8-98127-018-0	01	1	1010-1306		●
61	ROD END; TIE ROD REARWARD	8-98228-103-0	01	1	1307-		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0407-0511	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0407-0511	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0512-0805		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0512-0805		●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-		●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	08	1	0803-		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	08	1	0803-		●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	08	1	0407-0511	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	08	1	0512-0709		●
68	BOLT; TIE ROD END FORWARD M12X65	8-98053-922-0	04	1	0710-		●
68	BOLT; TIE ROD END REARWARD M12X65	9-91061-265-0	04	1	0710-		●
74	NUT; TIE ROD END M12	9-99110-512-0	08	1	0407-0511	●
74	NUT; TIE ROD END M12	0-91110-512-0	08	1	0512-		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0407-0511	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0407-0511	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0512-0606		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0512-0606		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-		●
81	ROD; TIE	1-43151-154-0	02	1	0407-0511	●
81	ROD; TIE	1-43151-154-0	02	1	0512-		●
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0407-0511	●
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0407-0511	●
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0512-0704		●
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0512-0704		●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0705-		●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0705-		●
275	BOOT; ROD END,TIE	1-43159-107-0	04	1	0407-0511	●
275	BOOT; ROD END,TIE	1-43159-107-0	04	1	0512-1009		●
275	BOOT; ROD END,TIE	1-43159-131-0	04	1	1010-1306		●
275	BOOT; ROD END,TIE	8-98229-116-0	04	1	1307-		●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	1-09049-014-1	04	1	0407-0511	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	1-09049-014-1	04	1	0512-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0407-0511	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0512-0907		●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	08	1	0407-0511	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	08	1	0512-0709		●
304	WASHER; PL (A) FORWARD ID=12.5	0-91614-512-0	04	1	0710-0802		●
304	WASHER; PL (A) REARWARD ID=12.5	9-09164-512-0	04	1	0710-0802		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	08	1	0803-		●
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0407-0511	●
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0407-0511	●
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0512-0704		●
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0512-0704		●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0705-		●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0705-		●

2 1 33 34 30 21 48 313 295 295 48 30 21 80 66 45 32 25 58 275 44 40 220 36 44 59 80 59 61 66 313 73 8 6 58 68 81 9 68 304 74 2 275 74 17 18 45 8 61 73 6 8 304 3 3 21 48 295 44 21 48 44 295 44 45 21 21 48 48 44 8 6 33 8 6 33 32 32 25 34 6 8 25 34 6 8 8 8 45 21 44 48 44 21 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	1-43111-107-4	01	1	0407-0511	●
1	AXLE; FRT	1-43111-107-4	01	1	0407-0511	●
1	AXLE; FRT	1-43111-107-9	01	1	0512-		●
1	AXLE; FRT	1-43111-107-9	01	1	0512-		●
2	KNUCKLE; FRT AXLE	1-43131-118-0	01	1	0407-0511	●
2	KNUCKLE; FRT AXLE	1-43131-118-0	01	1	0407-0511	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0512-		●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0512-		●
2	KNUCKLE; FRT AXLE	1-43132-101-0	01	1	0407-0511	●
2	KNUCKLE; FRT AXLE	1-43132-101-0	01	1	0407-0511	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0512-		●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0512-		●
3	KING PIN SET (A)	1-87831-111-2	02	1	0407-0511	●
3	KING PIN SET (A)	1-87831-111-2	02	1	0407-0511	●
3	KING PIN SET (A)	1-87831-111-7	02	1	0512-0801		●
3	KING PIN SET (A)	1-87831-111-7	02	1	0512-0801		●
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-		●
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-		●
6	SEAL; KING PIN	9-09926-024-0	04	1	0407-0511	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0407-0511	●
6	SEAL; KING PIN	9-09926-024-0	04	1	0512-		●
6	SEAL; KING PIN	9-09926-024-0	04	1	0512-		●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0407-0511	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0407-0511	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0512-		●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0512-		●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0407-0511	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0407-0511	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0512-		●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0512-		●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0407-0511	●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0407-0511	●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0512-		●
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	0512-		●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	03	1	0407-0511	●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	03	1	0407-0511	●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	03	1	0512-		●
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	03	1	0512-		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0705-0705		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0705-0705		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-		●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-		●
17	BOLT; STOPPER KNUCKLE M18X38	1-09009-164-0	02	1	0407-0511	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0512-		●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0407-0511	●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0407-0511	●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0512-		●
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0512-		●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0407-0511	●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0407-0511	●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0512-0512		●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0512-0512		●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	0-91110-518-0	02	1	0601-		●
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	0-91110-518-0	02	1	0601-		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0407-0511	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0407-0511	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0512-0512		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0512-0512		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-		●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-		●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0407-0511	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0407-0511	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0512-		●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0407-0511	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0512-		●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0512-		●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0407-0511	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0407-0511	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0512-		●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0512-		●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0407-0511	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0407-0511	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0512-0512		●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0512-0512		●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-		●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-		●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0407-0511	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0407-0511	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0512-0603		●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0512-0603		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-		●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-		●
36	ARM; KNUCKLE	1-43133-083-3	01	1	0512-		●
36	ARM; KNUCKLE	1-43133-083-3	01	1	0512-		●
36	ARM; KNUCKLE	1-43133-083-1	01	1	0407-0511	●
36	ARM; KNUCKLE	1-43133-083-1	01	1	0407-0511	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0407-0511	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0407-0511	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0512-0704		●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0512-0704		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-		●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-		●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-		●
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-		●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0407-0511	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0407-0511	●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0512-0801		●
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0512-0801		●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-		●
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-		●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0802-		●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0802-		●
48	BOLT; COVER M10X25 FLANGE	0-28781-025-0	28	1	0407-0511	●
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	28	1	0512-		●
58	ARM; TIE ROD FORWARD	1-43134-049-2	01	1	0407-0511	●
58	ARM; TIE ROD FORWARD	1-43134-049-4	01	1	0512-		●
58	ARM; TIE ROD REARWARD	1-43134-060-0	01	1	0407-0511	●
58	ARM; TIE ROD REARWARD	1-43134-060-2	01	1	0512-		●
58	ARM; TIE ROD FORWARD	1-43135-049-2	01	1	0407-0511	●
58	ARM; TIE ROD FORWARD	1-43135-049-4	01	1	0512-		●
58	ARM; TIE ROD REARWARD	1-43135-060-0	01	1	0407-0511	●
58	ARM; TIE ROD REARWARD	1-43135-060-2	01	1	0512-		●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0407-0511	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0407-0511	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0512-0704		●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0512-0704		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-		●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-		●
61	ROD END; TIE ROD REARWARD	1-43150-852-0	01	1	0407-0511	●
61	ROD END; TIE ROD REARWARD	1-43150-852-1	01	1	0512-1009		●
61	ROD END; TIE ROD REARWARD	1-43150-853-0	01	1	0407-0511	●
61	ROD END; TIE ROD REARWARD	1-43150-853-1	01	1	0512-1009		●
61	ROD END; TIE ROD FORWARD	1-43150-856-0	01	1	0407-0511	●
61	ROD END; TIE ROD FORWARD	1-43150-856-0	01	1	0512-1009		●
61	ROD END; TIE ROD FORWARD	1-43150-857-0	01	1	0407-0511	●
61	ROD END; TIE ROD FORWARD	1-43150-857-0	01	1	0512-1009		●
61	ROD END; TIE ROD FORWARD	8-98105-073-0	01	1	1010-1306		●
61	ROD END; TIE ROD FORWARD	8-98228-100-0	01	1	1307-		●
61	ROD END; TIE ROD FORWARD	8-98105-074-0	01	1	1010-1306		●
61	ROD END; TIE ROD FORWARD	8-98228-101-0	01	1	1307-		●
61	ROD END; TIE ROD REARWARD	8-98127-017-0	01	1	1010-1306		●
61	ROD END; TIE ROD REARWARD	8-98228-102-0	01	1	1307-		●
61	ROD END; TIE ROD REARWARD	8-98127-018-0	01	1	1010-1306		●
61	ROD END; TIE ROD REARWARD	8-98228-103-0	01	1	1307-		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0407-0511	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0407-0511	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0512-0805		●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0512-0805		●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-		●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	08	1	0803-		●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	08	1	0803-		●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	08	1	0407-0511	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	08	1	0512-0709		●
68	BOLT; TIE ROD END FORWARD M12X65	8-98053-922-0	04	1	0710-		●
68	BOLT; TIE ROD END REARWARD M12X65	9-91061-265-0	04	1	0710-		●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	04	1	1010-		●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	04	1	1010-		●
74	NUT; TIE ROD END M12	9-99110-512-0	08	1	0407-0511	●
74	NUT; TIE ROD END M12	0-91110-512-0	08	1	0512-		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0407-0511	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0407-0511	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0512-0606		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0512-0606		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-		●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-		●
81	ROD; TIE	1-43151-154-0	02	1	0407-0511	●
81	ROD; TIE	1-43151-154-0	02	1	0512-		●
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0407-0511	●
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0407-0511	●
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0512-0704		●
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0512-0704		●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0705-		●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0705-		●
275	BOOT; ROD END,TIE	1-43159-107-0	04	1	0407-0511	●
275	BOOT; ROD END,TIE	1-43159-107-0	04	1	0512-1009		●
275	BOOT; ROD END,TIE	1-43159-131-0	04	1	1010-1306		●
275	BOOT; ROD END,TIE	8-98229-116-0	04	1	1307-		●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	1-09049-014-1	04	1	0407-0511	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	1-09049-014-1	04	1	0512-		●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0407-0511	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0512-0907		●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-		●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	08	1	0407-0511	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	08	1	0512-0709		●
304	WASHER; PL (A) FORWARD ID=12.5	0-91614-512-0	04	1	0710-0802		●
304	WASHER; PL (A) REARWARD ID=12.5	9-09164-512-0	04	1	0710-0802		●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	08	1	0803-		●
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0407-0511	●
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0407-0511	●
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0512-0704		●
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0512-0704		●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0705-		●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0705-		●

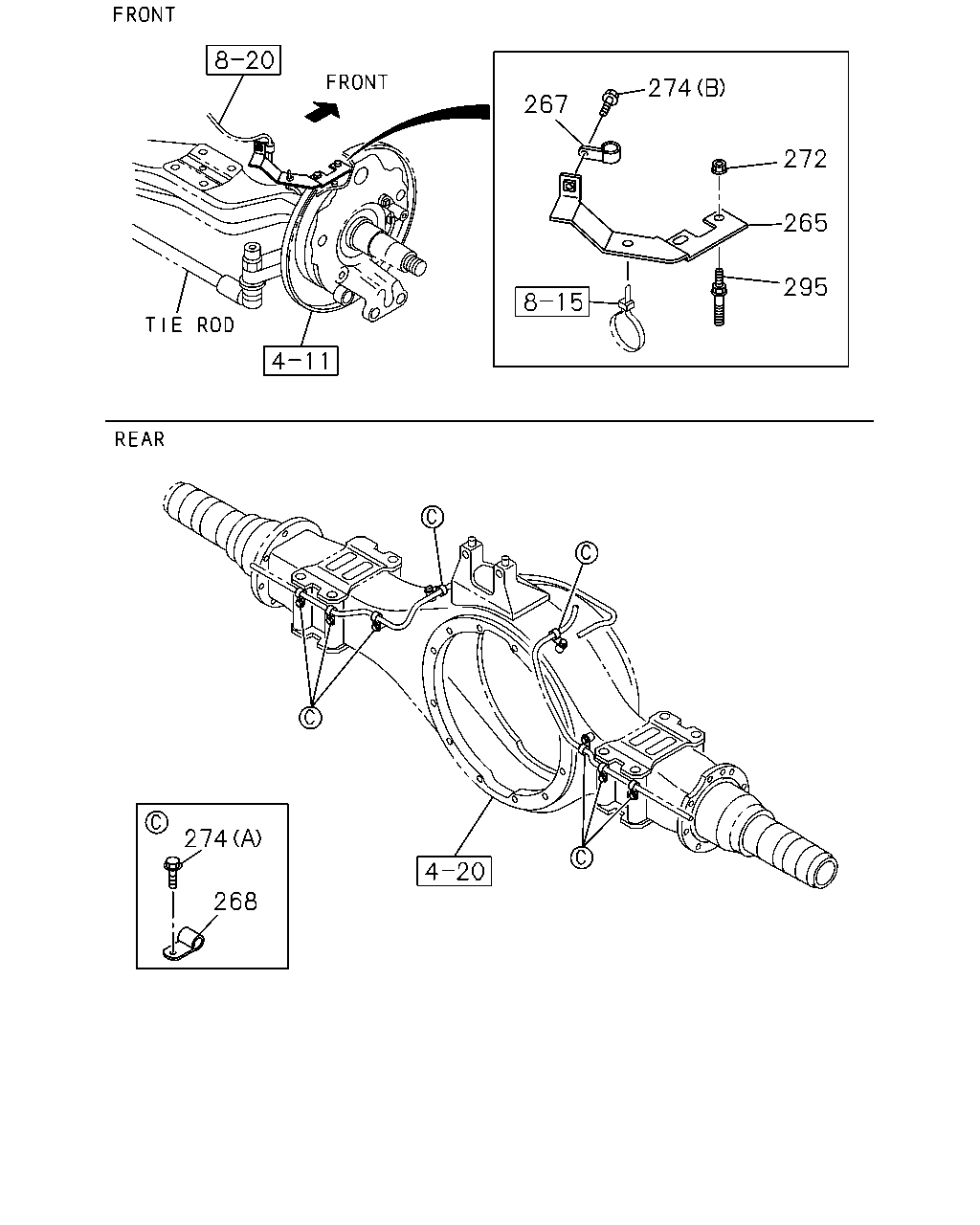

274 267 272 265 295 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	0407-0511	●
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	0512-		●
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	0407-0511	●
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	0512-		●
267	CLIP; HARNESS ID=11 L=20	9-09525-035-0	02	1	0407-0511	●
267	CLIP; HARNESS ID=11 L=20	9-09525-035-0	02	1	0512-0606		●
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	0607-		●
268	CLIP; HARNESS ID=11 L=20	9-09525-035-0	08	1	0407-0511	●
268	CLIP; HARNESS ID=11 L=20	9-09525-035-0	08	1	0512-0606		●
268	CLIP; HARNESS ID=11 L=20	0-95235-035-0	08	1	0607-		●
272	NUT; CLIP M10 FLANGE	0-91150-110-0	04	1	0407-0511	●
272	NUT; CLIP M10 FLANGE	0-91150-110-0	04	1	0512-0602		●
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	0603-		●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28080-810-0	08	1	0407-0511	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	08	1	0512-		●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	02	1	0407-0511	●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0512-		●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	1-09049-014-1	04	1	0407-0511	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	1-09049-014-1	04	1	0512-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
