4-02 — PROPELLER SHAFT GUARD (#29549) — 16 parça

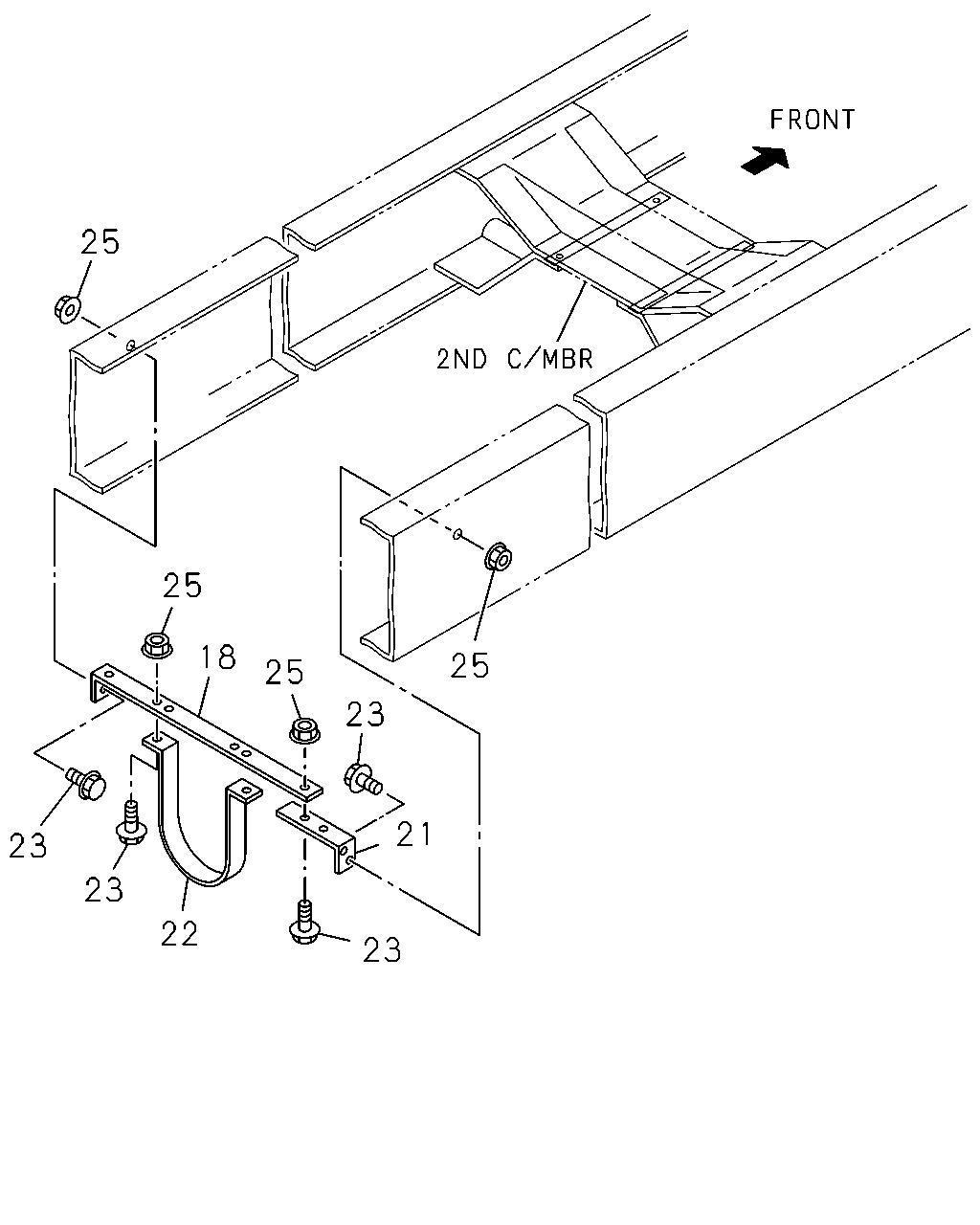

çizim 86888
25 25 18 25 25 23 21 23 23 22 23
BalonParca AdiParca NoAdetTipApplied Date A B
18 BRACKET; PROP SHAFT GUARD 1-53279-249-0 01 1 0407-0511 ●
18 BRACKET; PROP SHAFT GUARD 1-53279-249-0 01 1 0512- ●
21 BRACKET; PROP GUARD 1-53279-248-0 01 1 0407-0511 ●
21 BRACKET; PROP GUARD 1-53279-248-0 01 1 0512- ●
22 GUARD; PROP SHAFT
6WG1 TC-S(97L) 		1-53279-174-0 01 1 0512-0704 ●
22 GUARD; PROP SHAFT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-53279-174-0 01 1 0705- ●
22 GUARD; PROP SHAFT 1-53279-166-0 01 1 0407-0511 ●
22 GUARD; PROP SHAFT
6WF1 TC-C(1B8) 		1-53279-178-0 01 1 0512- ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28051-030-0 05 1 0805- ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28681-030-0 07 1 0407-0511 ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28681-030-0 07 1 0512-0512 ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28651-030-0 07 1 0601-0804 ●
23 BOLT; GUARD
M10X30 FLANGE 		0-28651-030-0 02 1 0805- ●
25 NUT; GUARD
M10 FLANGE 		0-91150-210-0 07 1 0407-0511 ●
25 NUT; GUARD
M10 FLANGE 		0-91150-210-0 07 1 0512-0602 ●
25 NUT; GUARD
M10 FLANGE 		0-91180-210-0 07 1 0603- ●
