Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#29545) — 546 parça

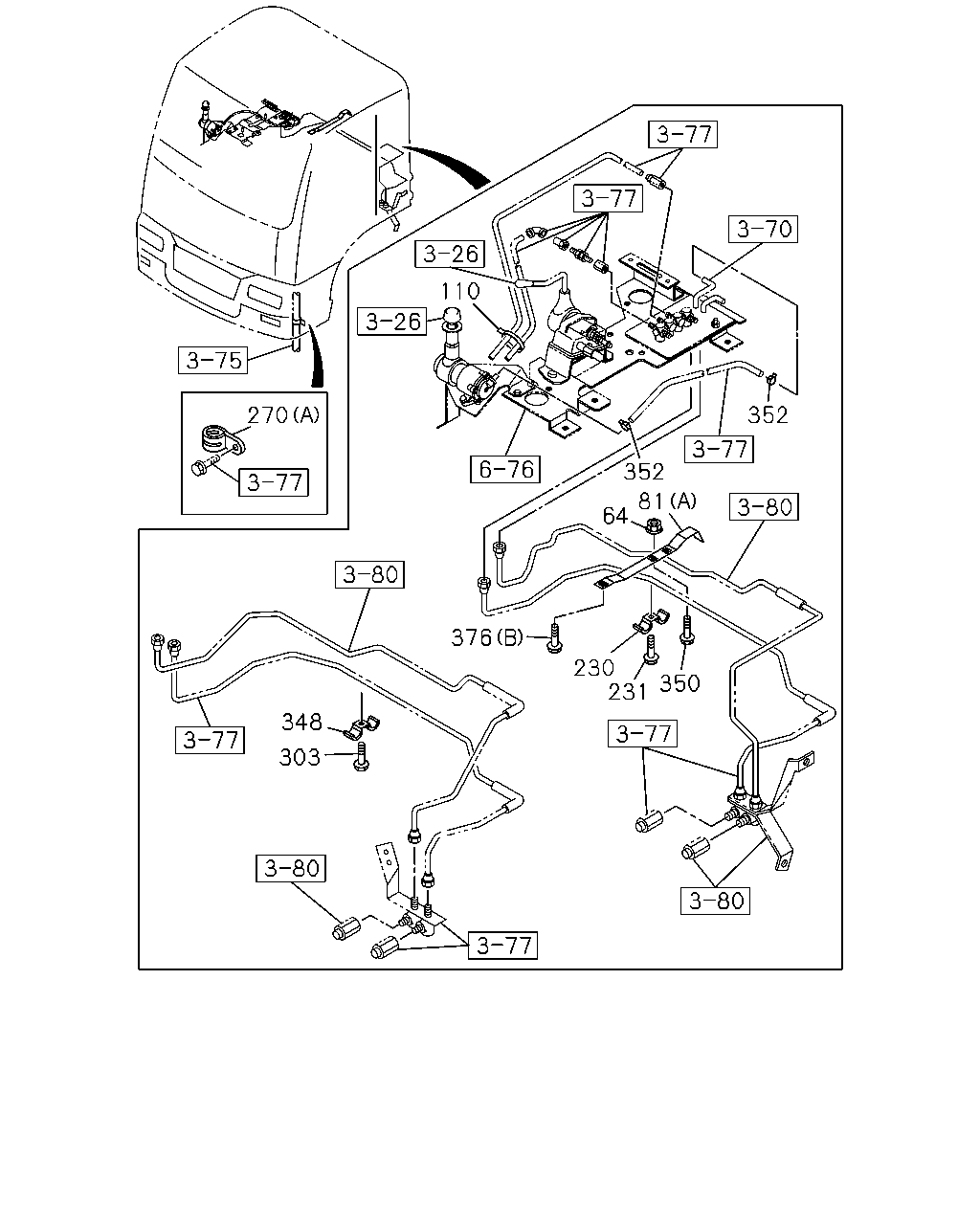

110 352 270 352 81 64 376 230 231 350 348 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●
81	BRACKET; CLIP 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F)	1-47471-322-0	02	1	0512-0704		●
81	BRACKET; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F)	1-47471-322-0	02	1	0705-		●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0407-0511	●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0512-		●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0407-0511	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0512-		●
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	0407-0511	●
81	BRACKET; CLIP 6WF1 TC-C(1B8) (D) L=130	1-47478-959-0	02	1	0512-0704		●
81	BRACKET; CLIP 6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=130	1-47478-959-0	02	1	0512-0704		●
81	BRACKET; CLIP 6WF1 TC-C(1B8) (D) L=130	1-47478-959-0	02	1	0705-		●
81	BRACKET; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=130	1-47478-959-0	02	1	0705-		●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0407-0511	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0512-		●
81	BRACKET; CLIP (E)	1-47479-562-0	02	1	0407-0410	●
81	BRACKET; CLIP (E) W/STUD M8X20	1-47471-209-0	02	1	0411-0511	●
81	BRACKET; CLIP (E) W/STUD M8X20	1-47471-209-0	02	1	0512-		●
110	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	02	1	0407-0511	●
110	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	01	1	0512-		●
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	0407-0511	●
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	0512-		●
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0407-0511	●
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0512-		●
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-0511	●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-		●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-0511	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0512-		●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0407-0511	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0512-		●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0407-0511	●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0512-		●
350	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0407-0511	●
350	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0512-		●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0407-0511	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0512-		●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●

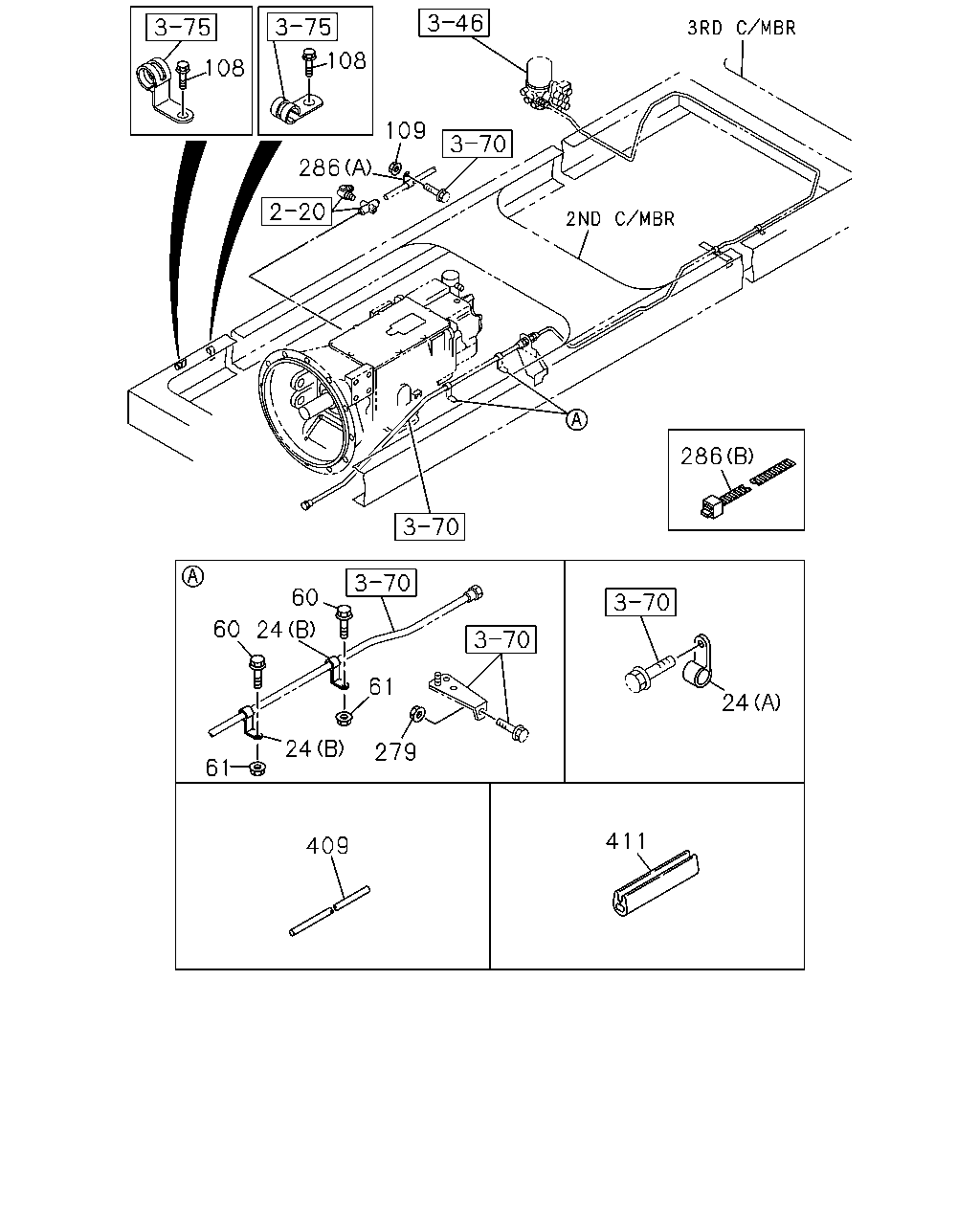

108 108 109 286 286 60 60 24 61 24 24 279 61 411 409

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0407-0511	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0512-		●
24	CLIP; PIPE (A) ID=19 L=20	9-09525-836-0	01	1	0407-0511	●
24	CLIP; PIPE (A) ID=19 L=20	9-09525-836-0	01	1	0512-0606		●
24	CLIP; PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0607-		●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28680-830-0	02	1	0407-0511	●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-		●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-		●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	07	1	0407-0511	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	10	1	0512-0512		●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	10	1	0601-		●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	05	1	0512-0602		●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-		●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
109	NUT; TUBE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
109	NUT; TUBE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	01	1	0603-0704		●
109	NUT; TUBE CLIP FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0705-		●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	06	1	0407-0511	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	11	1	0512-0602		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	0603-		●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	13	1	0407-0511	●
279	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
279	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	0603-		●
286	CLIP; NYLON TUBE FULLER M/T<X9B> (B) L=250	1-09707-126-0	02	1	0512-		●
286	CLIP; NYLON TUBE (A) ID=12 H=24 L=20	1-09700-605-0	01	1	0407-0511	●
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=12 H=24 L=20	1-09700-605-0	01	1	0512-		●
286	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0407-0511	●
286	CLIP; NYLON TUBE TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=18 L=28	1-09701-067-0	01	1	0512-0704		●
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=18 L=28	1-09701-067-0	01	1	0512-0704		●
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=18 L=28	1-09701-067-0	01	1	0705-		●
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) ID=18 L=28	1-09701-067-0	01	1	0705-		●
409	TUBE; DISTANCE L=22	9-22159-024-0	01	1	0407-0511	●
409	TUBE; DISTANCE MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) L=22	9-22159-024-0	01	1	0512-		●
411	SLEEVE; RUBBER TRANSMISSION-FULLER RTLO189 18(Y4W) L=60	8-97865-346-0	02	1	0705-		●
411	SLEEVE; RUBBER L=60	8-97865-346-0	01	1	0607-0704		●
411	SLEEVE; RUBBER 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) L=60	8-97865-346-0	01	1	0705-		●
411	SLEEVE; RUBBER MJX16P M/T(Y3Z) L=60	8-97865-346-0	01	1	0705-		●
411	SLEEVE; RUBBER L=60	8-97865-346-0	01	1	0407-0511	●

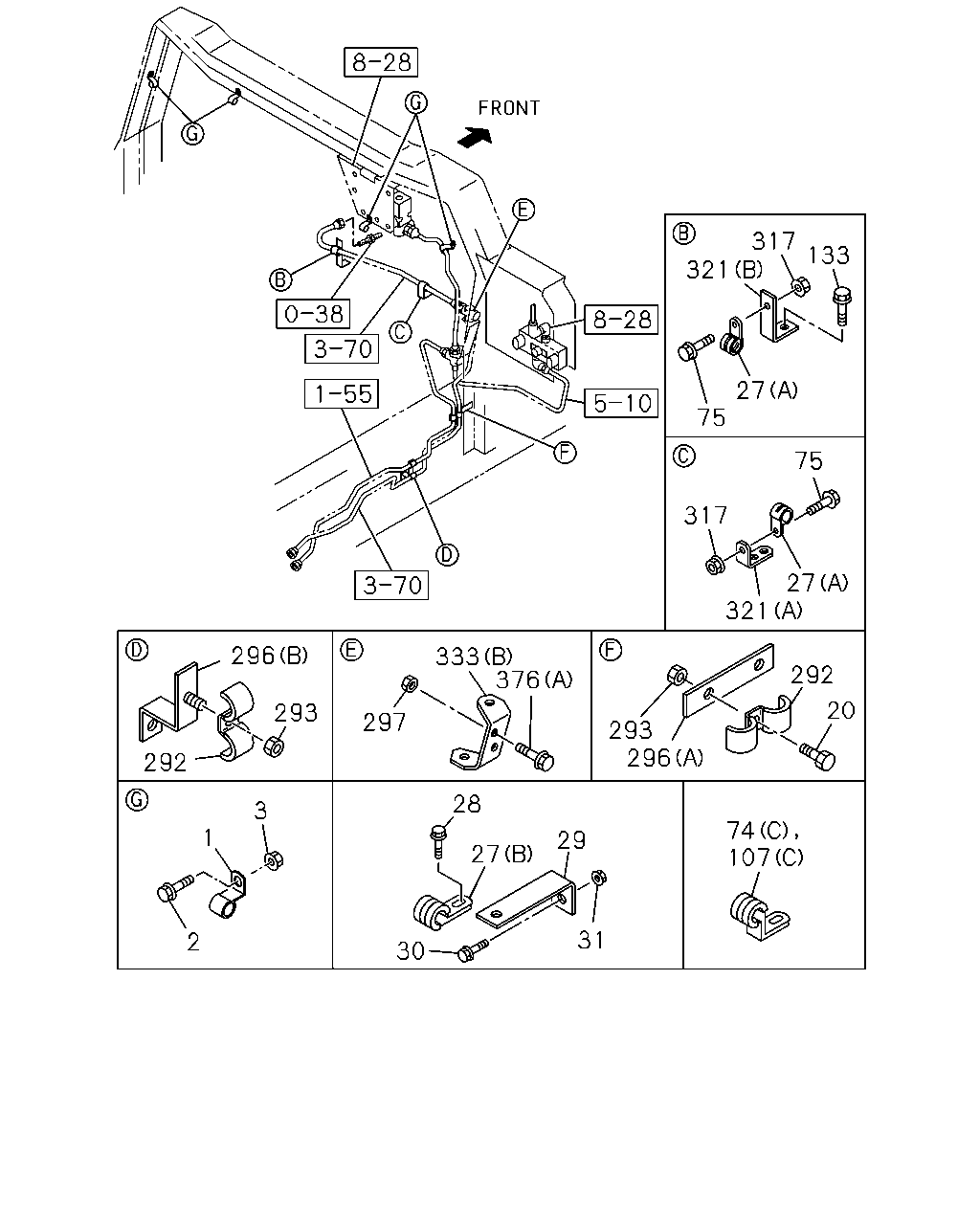

317 321 133 27 75 75 317 27 321 296 333 376 292 20 293 297 293 296 292 28 3 74 107 1 29 27 31 2 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0407-0511	●
1	CLIP; AIR PIPE 6WF1 TC-C(1B8) ID=6 H=20 L=20	1-09700-603-0	01	1	0512-		●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	03	1	0407-0511	●
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
3	NUT; CLIP,AIR PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
3	NUT; CLIP,AIR PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	01	1	0603-		●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	04	1	0407-0511	●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	04	1	0512-0512		●
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
20	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0407-0511	●
20	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
20	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
27	CLIP; FLEX HOSE (B) ID=26 L=27	1-09701-006-0	01	1	0407-0511	●
27	CLIP; FLEX HOSE (B) ID=26 L=27	1-09701-006-0	01	1	0512-		●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	0407-0511	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	0512-		●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
29	BRACKET; CLIP,AIR PIPE L=145 B=25	1-47479-123-0	01	1	0407-0511	●
29	BRACKET; CLIP,AIR PIPE L=145 B=25	1-47479-123-0	01	1	0512-		●
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	03	1	0407-0511	●
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	03	1	0512-		●
74	CLIP; NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	03	1	0407-0511	●
74	CLIP; NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	03	1	0512-		●
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	0407-0511	●
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	0512-		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	26	1	0407-0511	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	26	1	0512-		●
75	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
75	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
107	CLIP; NYLON TUBE (D) ID=25 L=50	1-09701-019-0	01	1	0512-		●
107	CLIP; NYLON TUBE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	0407-0511	●
107	CLIP; NYLON TUBE (B) ID=24 L=27	1-09700-809-0	01	1	0512-		●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	03	1	0407-0511	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0512-		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0407-0511	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	17	1	0512-		●
133	BOLT; BRKT 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28650-830-0	08	1	0705-		●
133	BOLT; BRKT MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	08	1	0705-		●
133	BOLT; BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	10	1	0705-		●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	17	1	0512-0512		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0407-0511	●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0512-0512		●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-		●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	0407-0511	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0512-0512		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	20	1	0407-0511	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	17	1	0601-0704		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	09	1	0705-		●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0407-0511	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0512-		●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-		●
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	0407-0511	●
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	0512-		●
296	BRACKET; CLIP (B) L=85 H=40	1-47476-676-0	01	1	0407-0511	●
296	BRACKET; CLIP (B) L=85 H=40	1-47476-676-0	01	1	0512-		●
297	NUT; BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	26	1	0705-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0407-0511	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0512-0602		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	25	1	0407-0511	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	25	1	0512-0602		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	25	1	0603-0704		●
297	NUT; BRKT 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	25	1	0705-		●
297	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	25	1	0705-		●
317	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
317	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-		●
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0407-0511	●
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0512-		●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0407-0511	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0512-		●
321	BRACKET; CLIP (C) L=59 B=20	1-47479-048-0	01	1	0407-0511	●
321	BRACKET; CLIP (C) L=59 B=20	1-47479-048-0	01	1	0512-		●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0407-0511	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0512-		●
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0407-0511	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0512-0702		●
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801		●
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-		●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511	●
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-		●

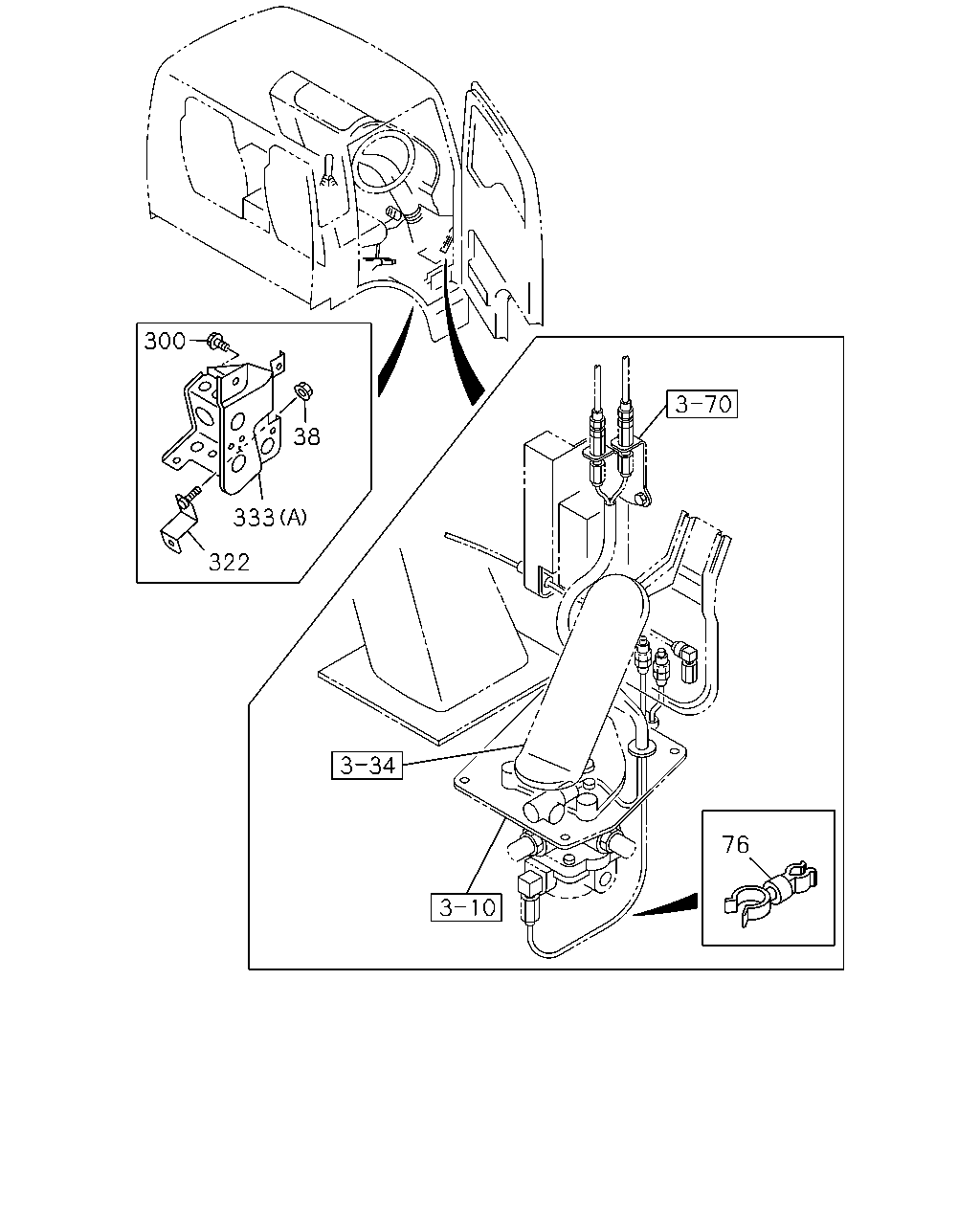

300 38 333 322 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0702		●
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	0407-0511	●
76	CLIP; NYLON TUBE 6WF1 TC-C(1B8) ID=6 & 8.3	8-94167-742-0	02	1	0512-		●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0407-0511	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0512-0904		●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-		●
322	BRACKET; CLIP	1-79996-360-0	01	1	0407-0511	●
322	BRACKET; CLIP	1-79996-659-1	01	1	0512-0702		●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0407-0511	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0512-		●
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0407-0511	●
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0512-0702		●
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801		●
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-		●

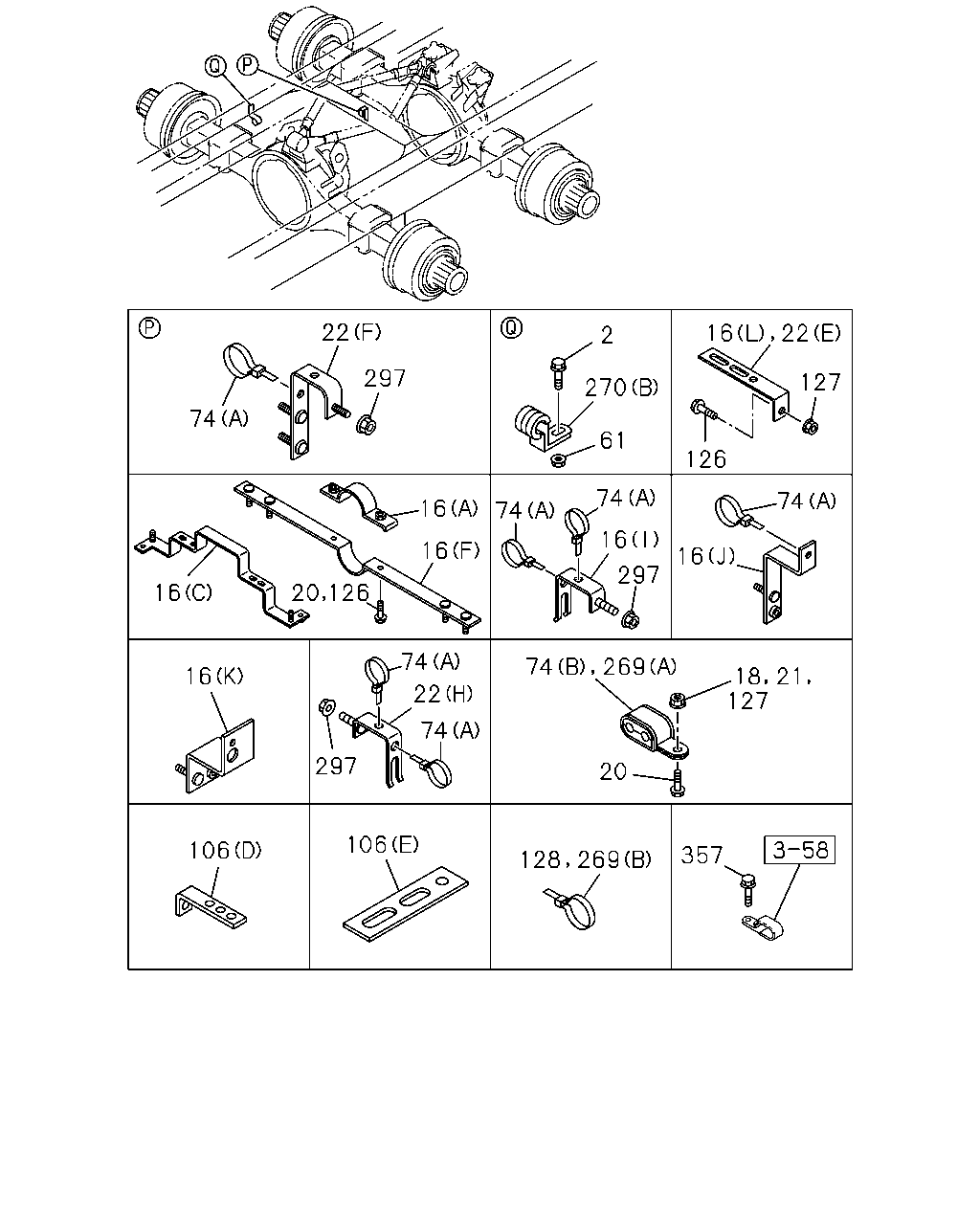

22 2 297 127 270 74 61 126 74 74 16 74 16 16 16 297 16 126 74 16 18 127 22 74 297 20 106 106 357 16 22 74 269 128 269 20 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	03	1	0407-0511	●
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
16	BRACKET; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (I)	1-47479-381-2	06	1	0705-		●
16	BRACKET; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (H)	1-47479-693-0	03	1	0705-		●
16	BRACKET; PIPE CLIP (L) L=100 H=30	1-47477-645-2	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (L) L=100 H=30	1-47477-645-2	01	1	0512-		●
16	BRACKET; PIPE CLIP (D)	1-47479-329-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (D)	1-47479-329-0	03	1	0512-		●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	08	1	0407-0511	●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	07	1	0512-0704		●
16	BRACKET; PIPE CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (I)	1-47479-381-2	07	1	0705-		●
16	BRACKET; PIPE CLIP MJX16P M/T(Y3Z) (I)	1-47479-381-2	07	1	0705-		●
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	01	1	0512-		●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	02	1	0512-		●
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0512-		●
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	02	1	0512-0704		●
16	BRACKET; PIPE CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (H)	1-47479-693-0	02	1	0705-		●
16	BRACKET; PIPE CLIP MJX16P M/T(Y3Z) (H)	1-47479-693-0	02	1	0705-		●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	0512-		●
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	0512-		●
16	BRACKET; PIPE CLIP (K)	1-47479-722-1	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (K)	1-47479-722-1	01	1	0512-		●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0512-		●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	0512-		●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	0512-		●
18	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0407-0511	●
18	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0512-0602		●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-		●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	04	1	0407-0511	●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	04	1	0512-0512		●
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
20	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0407-0511	●
20	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
20	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0512-0602		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	06	1	0512-0602		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-		●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	10	1	0407-0511	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	0603-		●
22	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (I) L=90	1-47477-755-1	01	1	0705-		●
22	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (H)	1-47479-381-2	11	1	0705-		●
22	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47479-693-0	04	1	0705-		●
22	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	01	1	0407-0511	●
22	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	01	1	0512-		●
22	BRACKET; CLIP (I) L=60 H=30	1-47477-716-1	01	1	0407-0511	●
22	BRACKET; CLIP (I) L=60 H=30	1-47477-716-1	01	1	0512-		●
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	0407-0511	●
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	0512-		●
22	BRACKET; CLIP (H)	1-47479-381-2	12	1	0407-0511	●
22	BRACKET; CLIP (H)	1-47479-381-2	12	1	0512-0704		●
22	BRACKET; CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (H)	1-47479-381-2	12	1	0705-		●
22	BRACKET; CLIP MJX16P M/T(Y3Z) (H)	1-47479-381-2	12	1	0705-		●
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	0407-0511	●
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	0512-		●
22	BRACKET; CLIP (B)	1-47479-693-0	03	1	0407-0511	●
22	BRACKET; CLIP (B)	1-47479-693-0	03	1	0512-0704		●
22	BRACKET; CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (B)	1-47479-693-0	03	1	0705-		●
22	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47479-693-0	03	1	0705-		●
22	BRACKET; CLIP (C)	1-47479-754-0	01	1	0407-0511	●
22	BRACKET; CLIP (C)	1-47479-754-0	01	1	0512-		●
22	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	03	1	0407-0511	●
22	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	03	1	0512-		●
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	0407-0511	●
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	0512-0704		●
22	BRACKET; CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (D)	1-47479-800-0	01	1	0705-		●
22	BRACKET; CLIP MJX16P M/T(Y3Z) (D)	1-47479-800-0	01	1	0705-		●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-		●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0407-0511	●
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-		●
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	03	1	0407-0511	●
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	03	1	0512-		●
74	CLIP; NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	03	1	0407-0511	●
74	CLIP; NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	03	1	0512-		●
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	0407-0511	●
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	0512-		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	26	1	0407-0511	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	26	1	0512-		●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0512-		●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	06	1	0407-0511	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	07	1	0512-		●
106	BRACKET; TUBE CLIP (B)	1-47479-562-0	02	1	0407-0410	●
106	BRACKET; TUBE CLIP (B) W/STUD M8X20	1-47471-209-0	02	1	0411-0511	●
106	BRACKET; TUBE CLIP (B) W/STUD M8X20	1-47471-209-0	02	1	0512-		●
106	BRACKET; TUBE CLIP (C)	1-47479-598-0	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (C)	1-47479-598-0	01	1	0512-		●
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0512-0905		●
106	BRACKET; TUBE CLIP (D)	1-82698-358-0	01	1	0906-		●
126	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	05	1	0705-		●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28080-812-0	04	1	0407-0511	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28080-812-0	04	1	0512-0512		●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	0407-0511	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	0512-0512		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28050-825-0	01	1	0601-		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0407-0511	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0512-0512		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0512-0512		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0407-0511	●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0512-0512		●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-0704		●
126	BOLT; CLIP BRKT 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28650-830-0	04	1	0705-		●
126	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	0705-		●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0511	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0512-0512		●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-		●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	16	1	0407-0511	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	16	1	0512-0602		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	16	1	0603-		●
128	CLIP; NYLON TUBE L=350	1-09707-183-0	26	1	0407-0511	●
128	CLIP; NYLON TUBE L=350	1-09707-183-0	26	1	0512-		●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	0512-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	04	1	0512-		●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	09	1	0407-0511	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	03	1	0512-		●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-0511	●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-		●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-0511	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0512-		●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0407-0511	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0512-		●
297	NUT; BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	26	1	0705-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0407-0511	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0512-0602		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	25	1	0407-0511	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	25	1	0512-0602		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	25	1	0603-0704		●
297	NUT; BRKT 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	25	1	0705-		●
297	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	25	1	0705-		●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28080-810-0	02	1	0407-0511	●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28080-810-0	02	1	0512-0512		●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	0601-		●

65 107 270 70 107 65 6 70 94 91 91 107 110 93 321 92 94 316 34 85 55 106 93 107 81 16 81 71 71 107 133 22 16 22 81 106 60 22 106 81 85 47 133 133 81 367 93 309 16 22 16 22 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
6	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-		●
16	BRACKET; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (I)	1-47479-381-2	06	1	0705-		●
16	BRACKET; PIPE CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (H)	1-47479-693-0	03	1	0705-		●
16	BRACKET; PIPE CLIP (L) L=100 H=30	1-47477-645-2	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (L) L=100 H=30	1-47477-645-2	01	1	0512-		●
16	BRACKET; PIPE CLIP (D)	1-47479-329-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (D)	1-47479-329-0	03	1	0512-		●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	08	1	0407-0511	●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	07	1	0512-0704		●
16	BRACKET; PIPE CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (I)	1-47479-381-2	07	1	0705-		●
16	BRACKET; PIPE CLIP MJX16P M/T(Y3Z) (I)	1-47479-381-2	07	1	0705-		●
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	01	1	0512-		●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	02	1	0512-		●
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0512-		●
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	02	1	0512-0704		●
16	BRACKET; PIPE CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (H)	1-47479-693-0	02	1	0705-		●
16	BRACKET; PIPE CLIP MJX16P M/T(Y3Z) (H)	1-47479-693-0	02	1	0705-		●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	02	1	0512-		●
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	0512-		●
16	BRACKET; PIPE CLIP (K)	1-47479-722-1	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (K)	1-47479-722-1	01	1	0512-		●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0407-0511	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0512-		●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	0407-0511	●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	0512-		●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	0512-		●
22	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (I) L=90	1-47477-755-1	01	1	0705-		●
22	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (H)	1-47479-381-2	11	1	0705-		●
22	BRACKET; CLIP TRANSMISSION-FULLER RTLO189 18(Y4W) (B)	1-47479-693-0	04	1	0705-		●
22	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	01	1	0407-0511	●
22	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	01	1	0512-		●
22	BRACKET; CLIP (I) L=60 H=30	1-47477-716-1	01	1	0407-0511	●
22	BRACKET; CLIP (I) L=60 H=30	1-47477-716-1	01	1	0512-		●
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	0407-0511	●
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	0512-		●
22	BRACKET; CLIP (H)	1-47479-381-2	12	1	0407-0511	●
22	BRACKET; CLIP (H)	1-47479-381-2	12	1	0512-0704		●
22	BRACKET; CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (H)	1-47479-381-2	12	1	0705-		●
22	BRACKET; CLIP MJX16P M/T(Y3Z) (H)	1-47479-381-2	12	1	0705-		●
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	0407-0511	●
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	0512-		●
22	BRACKET; CLIP (B)	1-47479-693-0	03	1	0407-0511	●
22	BRACKET; CLIP (B)	1-47479-693-0	03	1	0512-0704		●
22	BRACKET; CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (B)	1-47479-693-0	03	1	0705-		●
22	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47479-693-0	03	1	0705-		●
22	BRACKET; CLIP (C)	1-47479-754-0	01	1	0407-0511	●
22	BRACKET; CLIP (C)	1-47479-754-0	01	1	0512-		●
22	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	03	1	0407-0511	●
22	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	03	1	0512-		●
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	0407-0511	●
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	0512-0704		●
22	BRACKET; CLIP 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) (D)	1-47479-800-0	01	1	0705-		●
22	BRACKET; CLIP MJX16P M/T(Y3Z) (D)	1-47479-800-0	01	1	0705-		●
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
47	BRACKET; PIPE CLIP	1-47479-325-0	01	1	0407-0511	●
47	BRACKET; PIPE CLIP	1-47479-325-0	01	1	0512-		●
55	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0407-0511	●
55	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512		●
55	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28680-830-0	02	1	0407-0511	●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
65	CLIP; AIR PIPE (A) ID=12 H=24 L=20	1-09700-605-0	01	1	0407-0511	●
65	CLIP; AIR PIPE (B) ID=13 L=20	9-09525-235-0	01	1	0407-0511	●
65	CLIP; AIR PIPE (B) ID=13 L=20	9-09525-235-0	02	1	0512-0606		●
65	CLIP; AIR PIPE (B) ID=13 L=20	0-95235-235-0	02	1	0607-		●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0407-0511	●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0512-0512		●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
70	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
70	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
70	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
71	NUT; BRKT M8 FLANGE	0-91150-108-0	09	1	0407-0511	●
71	NUT; BRKT M8 FLANGE	0-91150-108-0	10	1	0512-0602		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	10	1	0603-		●
81	BRACKET; CLIP 6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F)	1-47471-322-0	02	1	0512-0704		●
81	BRACKET; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (F)	1-47471-322-0	02	1	0705-		●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0407-0511	●
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0512-		●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0407-0511	●
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	02	1	0512-		●
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	0407-0511	●
81	BRACKET; CLIP 6WF1 TC-C(1B8) (D) L=130	1-47478-959-0	02	1	0512-0704		●
81	BRACKET; CLIP 6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=130	1-47478-959-0	02	1	0512-0704		●
81	BRACKET; CLIP 6WF1 TC-C(1B8) (D) L=130	1-47478-959-0	02	1	0705-		●
81	BRACKET; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=130	1-47478-959-0	02	1	0705-		●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0407-0511	●
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0512-		●
81	BRACKET; CLIP (E)	1-47479-562-0	02	1	0407-0410	●
81	BRACKET; CLIP (E) W/STUD M8X20	1-47471-209-0	02	1	0411-0511	●
81	BRACKET; CLIP (E) W/STUD M8X20	1-47471-209-0	02	1	0512-		●
85	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0407-0511	●
85	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0512-0602		●
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-		●
91	CLIP; AIR PIPE ID=13X2 L=20	9-09535-236-0	02	1	0407-0511	●
91	CLIP; AIR PIPE ID=13X2 L=20	9-09535-236-0	02	1	0512-0606		●
91	CLIP; AIR PIPE ID=13X2 L=20	0-95325-236-0	02	1	0607-		●
92	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
92	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
92	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●
93	BRACKET; PIPE CLIP (C) L=80 H=20	1-82699-304-0	01	1	0512-		●
93	BRACKET; PIPE CLIP (B) L=85 H=40	1-47476-676-0	01	1	0407-0511	●
93	BRACKET; PIPE CLIP (B) L=85 H=40	1-47476-676-0	01	1	0512-		●
93	BRACKET; PIPE CLIP (A) L=175 H=30	1-47479-386-1	01	1	0407-0511	●
93	BRACKET; PIPE CLIP (A) L=175 H=30	1-47479-386-1	01	1	0512-		●
94	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0511	●
94	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	03	1	0512-0512		●
94	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0512-		●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	06	1	0407-0511	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	07	1	0512-		●
106	BRACKET; TUBE CLIP (B)	1-47479-562-0	02	1	0407-0410	●
106	BRACKET; TUBE CLIP (B) W/STUD M8X20	1-47471-209-0	02	1	0411-0511	●
106	BRACKET; TUBE CLIP (B) W/STUD M8X20	1-47471-209-0	02	1	0512-		●
106	BRACKET; TUBE CLIP (C)	1-47479-598-0	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (C)	1-47479-598-0	01	1	0512-		●
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0407-0511	●
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0512-0905		●
106	BRACKET; TUBE CLIP (D)	1-82698-358-0	01	1	0906-		●
107	CLIP; NYLON TUBE (D) ID=25 L=50	1-09701-019-0	01	1	0512-		●
107	CLIP; NYLON TUBE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	0407-0511	●
107	CLIP; NYLON TUBE (B) ID=24 L=27	1-09700-809-0	01	1	0512-		●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	03	1	0407-0511	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0512-		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0407-0511	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	17	1	0512-		●
110	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	02	1	0407-0511	●
110	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	01	1	0512-		●
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	0407-0511	●
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	0512-		●
133	BOLT; BRKT 6WF1 TC-C(1B8) TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28650-830-0	08	1	0705-		●
133	BOLT; BRKT MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	08	1	0705-		●
133	BOLT; BRKT TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	10	1	0705-		●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	17	1	0512-0512		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0407-0511	●
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0512-0512		●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-		●
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0511	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0512-0512		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	0407-0511	●
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0512-0512		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	20	1	0407-0511	●
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	17	1	0601-0704		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	09	1	0705-		●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-0511	●
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-		●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-0511	●
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0512-		●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0407-0511	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	03	1	0512-		●
309	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0407-0511	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-		●
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0407-0511	●
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0512-		●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0407-0511	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0512-		●
321	BRACKET; CLIP (C) L=59 B=20	1-47479-048-0	01	1	0407-0511	●
321	BRACKET; CLIP (C) L=59 B=20	1-47479-048-0	01	1	0512-		●
367	BRACKET ASM	1-47479-701-1	01	1	0407-0511	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
